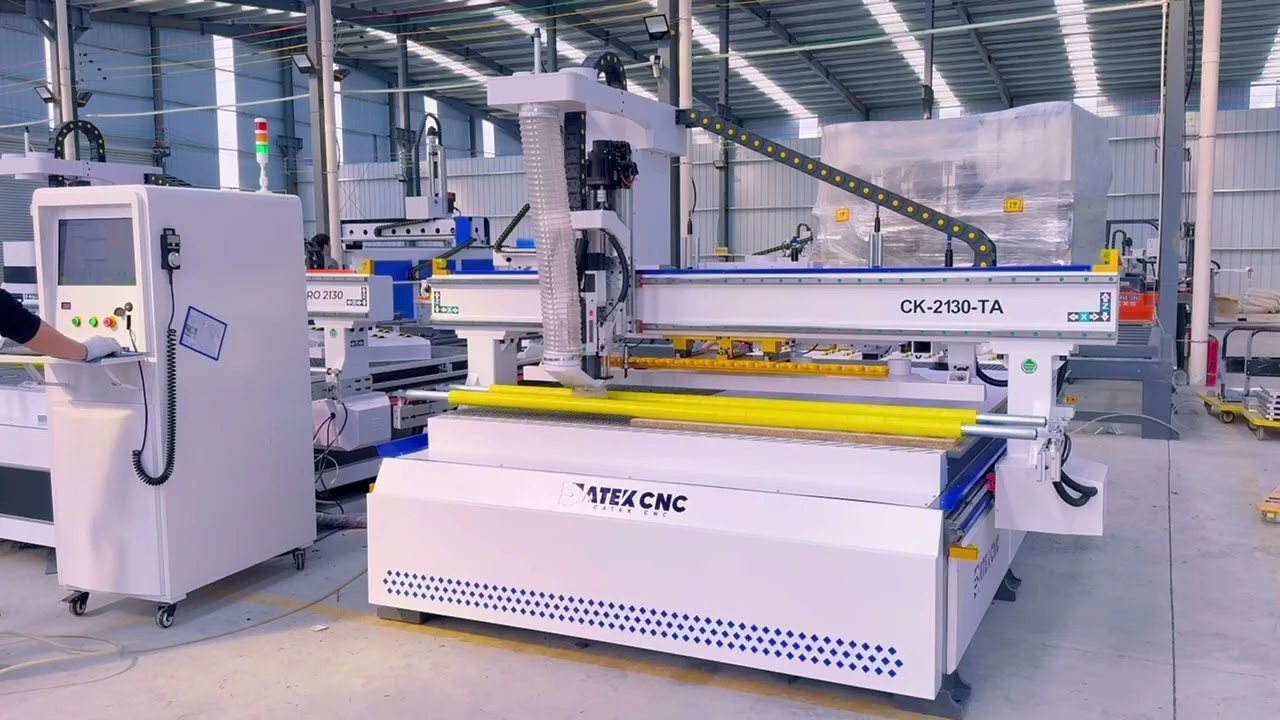

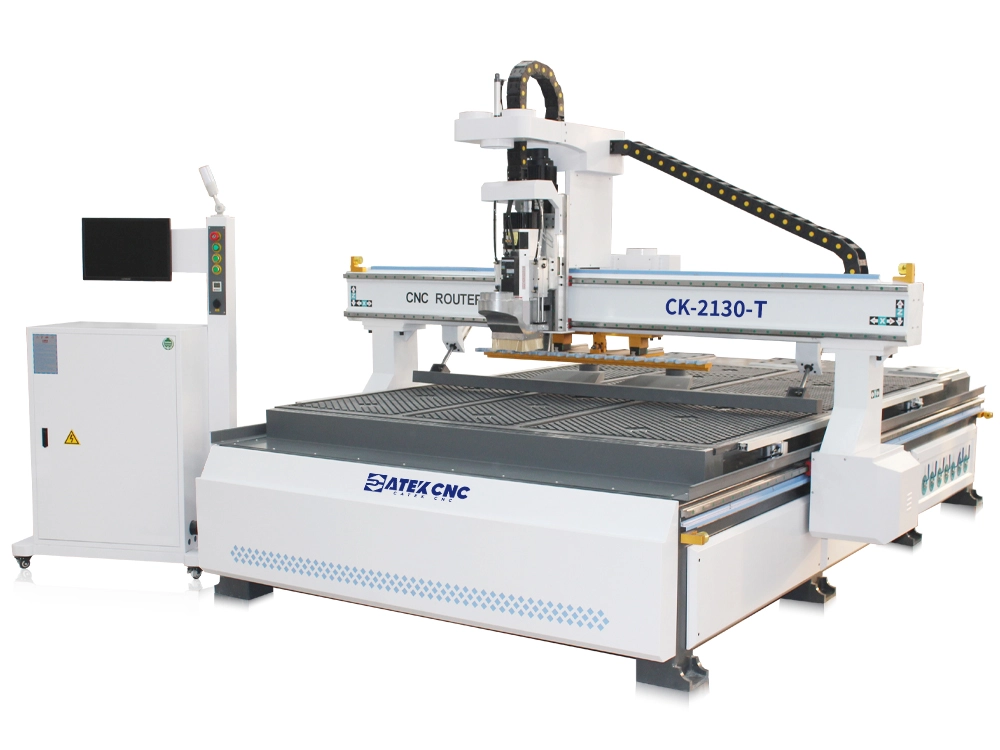

7x10ft Linear ATC CNC Wood Router - CK-2130-T

The CK-2130-T is a large industrial-grade CNC wood carving machine, equipped with an oversized 26-zone, 35-hole vacuum adsorption worktable measuring 2100*3000mm (7x10 feet), capable of securing large-sized wooden boards. Compared to ordinary 1325-type CNC wood carving machines, this machine not only has a larger size but also features upgrades in various core components:

• All three linear axes are equipped with Yaskawa servo motors, which are widely recognized as the best servo motors in the industry, offering rapid response, minimal vibration, and extremely high precision.
• It adopts an HQD 9KW air-cooled spindle. HQD is a high-end precision spindle brand that provides higher accuracy and more stable machining.
• It utilizes a bus control system, which ensures high communication efficiency, strong synchronization, precise position control, and a high degree of modularity.
• It comes with a linear tool-changing device that can hold up to 16 tools, effectively improving processing speed and accuracy in operations requiring multiple tools.
• This machine is primarily used for the production of large-sized panel furniture, such as cabinets, office desks, panel beds, conference tables, and more.
