    CATEK · Spire

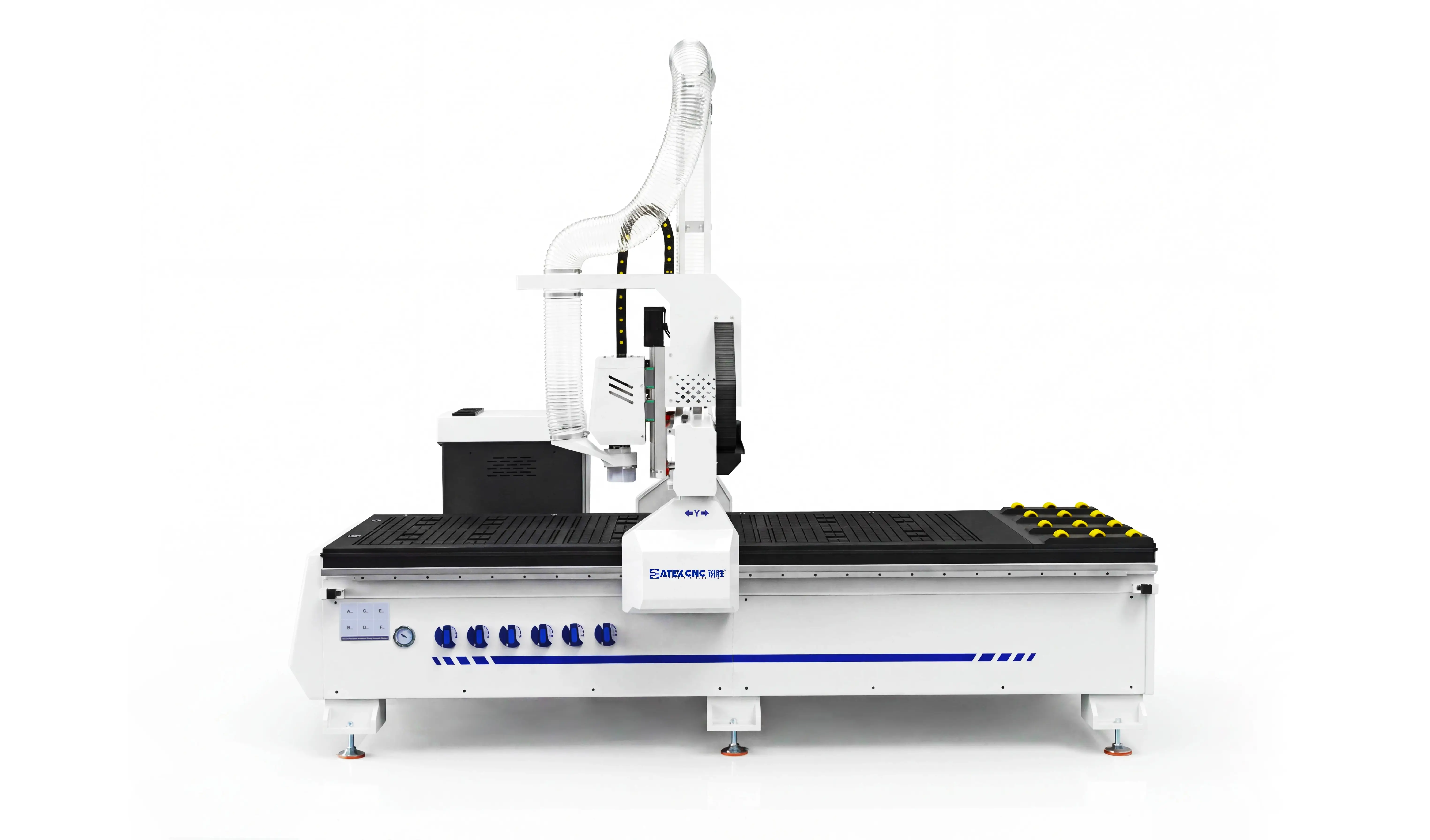

    1325 CNC Wood Router Machine

    5.0 Rating (0 customer reviews)
    · Function Description ·
    The CK-1325-WSP is a standard CNC wood router of the Spire series. It inherits the excellent DNA of the Spire range, is fitted with renowned components including Yaskawa servo motors, HSD spindles and Schneider electric parts, and comes with the exclusive VIP services of the Spire series.
    {{(goodsPrice)}}
    Add To Cart Contact Now
    • Brand: CATEKCNC
    • Model: CK-1325-WSP
    • Tags: Spire Series
    • Share:
    Description
    Parameters
    Reviews

    CATEK · Spire

    Empowering Production with Top-Tier Performance, Making Efficient Manufacturing a Standard Rather Than an Option

    The Spire is more than just a machine; it is a cost-effective solution built around three core pillars: stability, precision control, and high-efficiency output, engineered to turn every production run into predictable, uncompromising, and reliable profits. Choosing the Spire means bidding farewell to uncertainties and locking in a steady upward growth trajectory for your productivity.

    Core Advantages of Spire 1325 CNC Router: Four Dimensions to Reshape the Standards of High-Efficiency Production

    01.
    Foundation for Heavy Loads,
    Redefining Stability Standards.
    The Spire 1325 CNC Router lays a solid foundation for stable machining with its industry-leading heavy-duty structure. From the machine bed constructed with thickened steel tubes and a three-dimensional frame, to the one-piece milled thickened crossbeam and high-rigidity cast iron columns, every component undergoes precision machining and stress relief treatment. This fundamentally resists vibration and deformation during high-speed machining, ensuring the machine maintains lifelong anti-deformation capability and providing robust support for consistent high-precision operations.
    02.
    Top-Tier Transmission,
    Enabling Ultra-High Precision Machining.
    To achieve extreme machining precision, the Spire 1325 CNC Router is equipped with a world-class transmission system. Core moving parts include Taiwan Hiwin P-level linear guideways, YYC ground helical racks, TBI high-precision ball screws. Combined with a powerful drive unit consisting of Yaskawa servo motors and Japan Shimpo reducers, it guarantees accurate motion trajectories, meeting the stringent requirements for dimensional consistency and surface finish in complex pattern engraving and heavy-load machining.
    03.
    Intelligent Auxiliaries,
    Empowering Efficient Automated Production.
    The Spire 1325 CNC Router integrates an intelligent production auxiliary system to significantly enhance overall performance. It comes with a 6-zone vacuum worktable, automatic tool setter, positioning cylinders, a large-capacity automatic lubrication system, and a pulse cyclone dust collector. This realizes full-process automation from rapid loading and positioning, automatic tool calibration, and intelligent maintenance to efficient dust removal. It effectively reduces manual intervention and machine setup time, allowing the equipment to focus on high-efficiency output.
    04.
    Premium Services,
    Delivering Worry-Free Support Throughout.
    Choosing the Spire 1325 CNC Router means securing long-term investment protection and premium warranty services. Each unit comes with an exclusive 5-year free original factory warranty and one-on-one technical support from a dedicated service team. Additionally, a valuable accessory toolbox and a full set of cutting tools are included with the machine, ensuring users can start production immediately after unboxing. This truly achieves worry-free after-sales service and operation, supporting your long-term stable development.

    Choosing the
    Spire 1325 CNC Router
    means choosing

    Higher return on investment
    With high precision, exceptional stability, and fully automated processing, it effectively reduces the scrap rate, delivering a return on investment far beyond expectations.
    Faster production capacity growth
    Thanks to outstanding stability and automation capabilities, its top-tier configuration significantly reduces processing time, minimizes downtime, and drives rapid leaps in production capacity.
    Better long-term asset value
    A 5-year extended warranty and minimal performance degradation ensure your Spire CNC Router Machine maintains excellent performance over the long term, with a retention of value far surpassing comparable machines.
    More professional production assurance
    A dedicated service system minimizes unexpected downtime losses, ensuring your production plans and product deliveries remain consistently reliable.

    Heavy-Duty Rigid Structure, The Solid Foundation for High-Precision & Stable Machining of CNC Router!

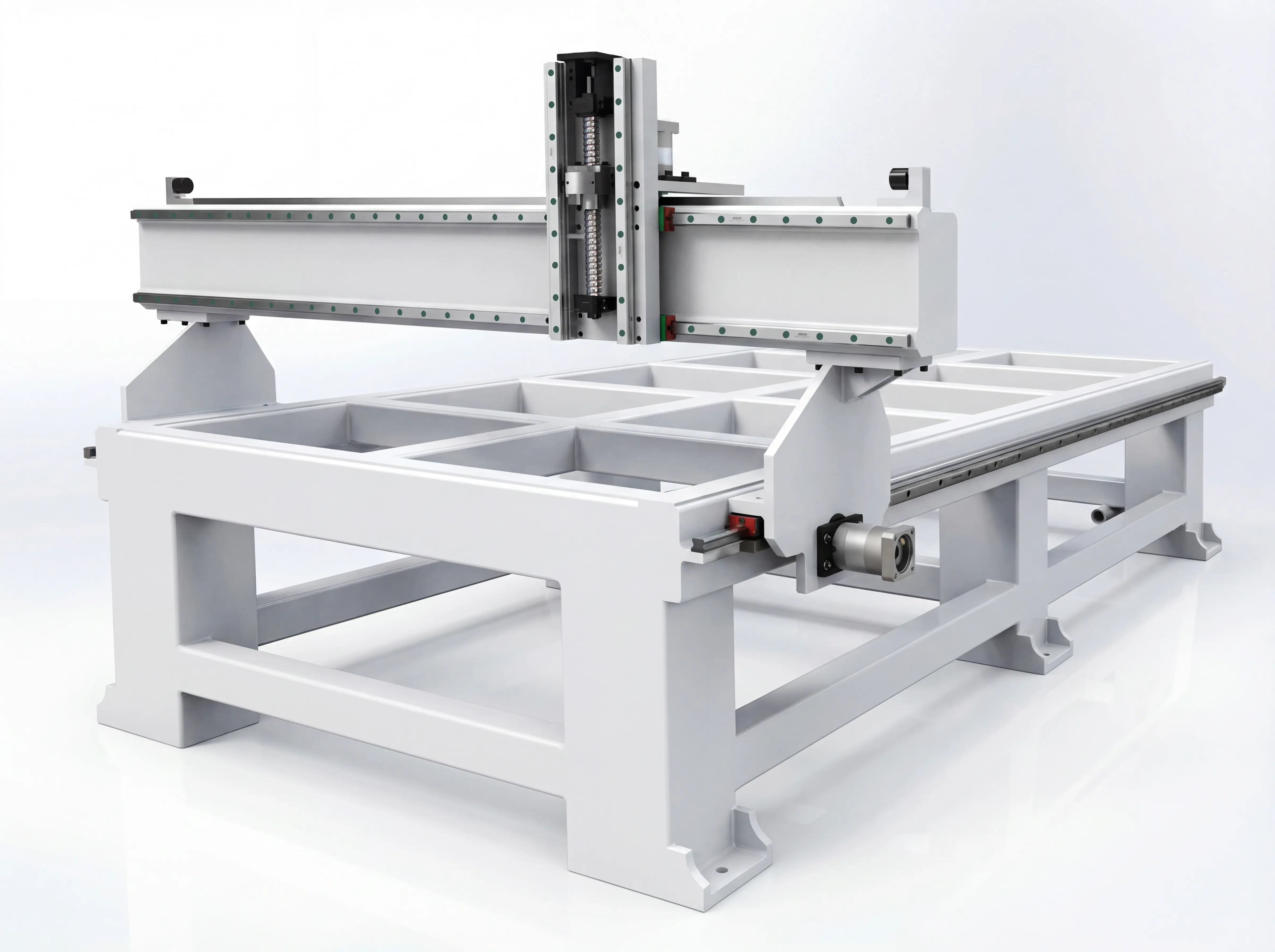

    Heavy-duty bed of Spire 1325 CNC wood router

    Heavy-Duty Bed Base, Empowering Efficient and Stable Machining of the CNC Router

    • The machine base adopts a heavy-duty design. Six sets of support legs are made of 200*250mm large-section thickened steel tubes (4.5mm wall thickness), capable of efficiently bearing the weight of the machine body and workpieces. It is matched with dense horizontal supports made of 80*100mm thickened steel tubes (4.5mm wall thickness), forming a stable three-dimensional frame with the leg supports to effectively eliminate machine vibration during high-speed machining.
    • The surface is paved with 8mm thick steel plates, which undergo integrated precision machining by a large five-axis gantry milling machine to ensure surface flatness and datum consistency. The side mounting supports for guideways and racks are milled from steel strips (20mm thick), meeting the assembly requirements of guideways and racks, minimizing component installation errors, and providing reliable guarantee for the high-precision machining of the whole machine.
    • The entire bed undergoes vibratory stress relief (VSR) and annealing treatment, which can completely eliminate internal stresses generated during welding and machining. This greatly improves the overall torsion resistance and deformation resistance of the bed, endowing the machine with superior stability to resist stress effects for a long time. It fundamentally avoids precision attenuation caused by bed deformation and extends the service life of the machine.

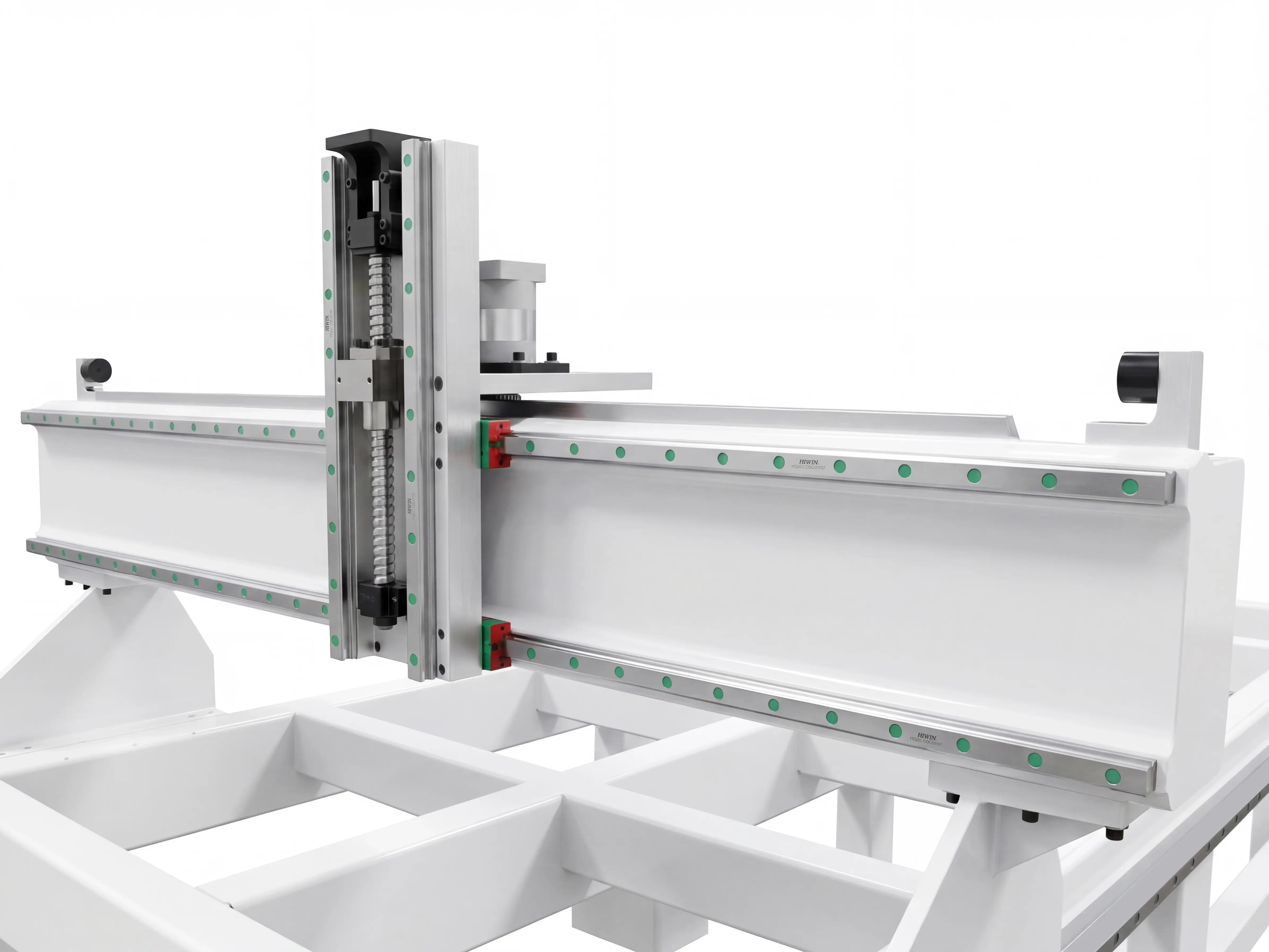

    High rigidity gantry crossbeam of Spire 1325 CNC wood router

    High-Strength Reinforced Crossbeam + Cast Iron Vertical Columns

    • The machine bed is equipped with an 8mm-thick integrally formed high-strength reinforced crossbeam, which effectively resists longitudinal bending moments and transverse torques generated during high-speed operation, avoiding sagging or deformation of the gantry.
    • Both the guideway and rack mounting bases on the crossbeam are integrally milled from 20mm ultra-thick high-quality steel strip, boasting exceptional impact and deformation resistance. The base achieves seamless fit with the guideway and rack to ensure smooth machine operation.
    • The mounting holes of the guideway and rack are drilled by a large five-axis gantry milling machine, a process that precisely controls the coordinates, depth and perpendicularity of the holes, completely eliminating installation tolerances.
    • Two high-rigidity cast iron columns offer excellent rigidity, shock absorption and thermal stability, effectively absorbing high-frequency vibrations generated during high-speed machining. The fitting surfaces and mounting datums of the columns are all milled flat, and the assembly clearance between the columns, gantry crossbeam and machine bed base is controlled within ±0.03mm, thus ensuring the precision stability of routing and cutting.

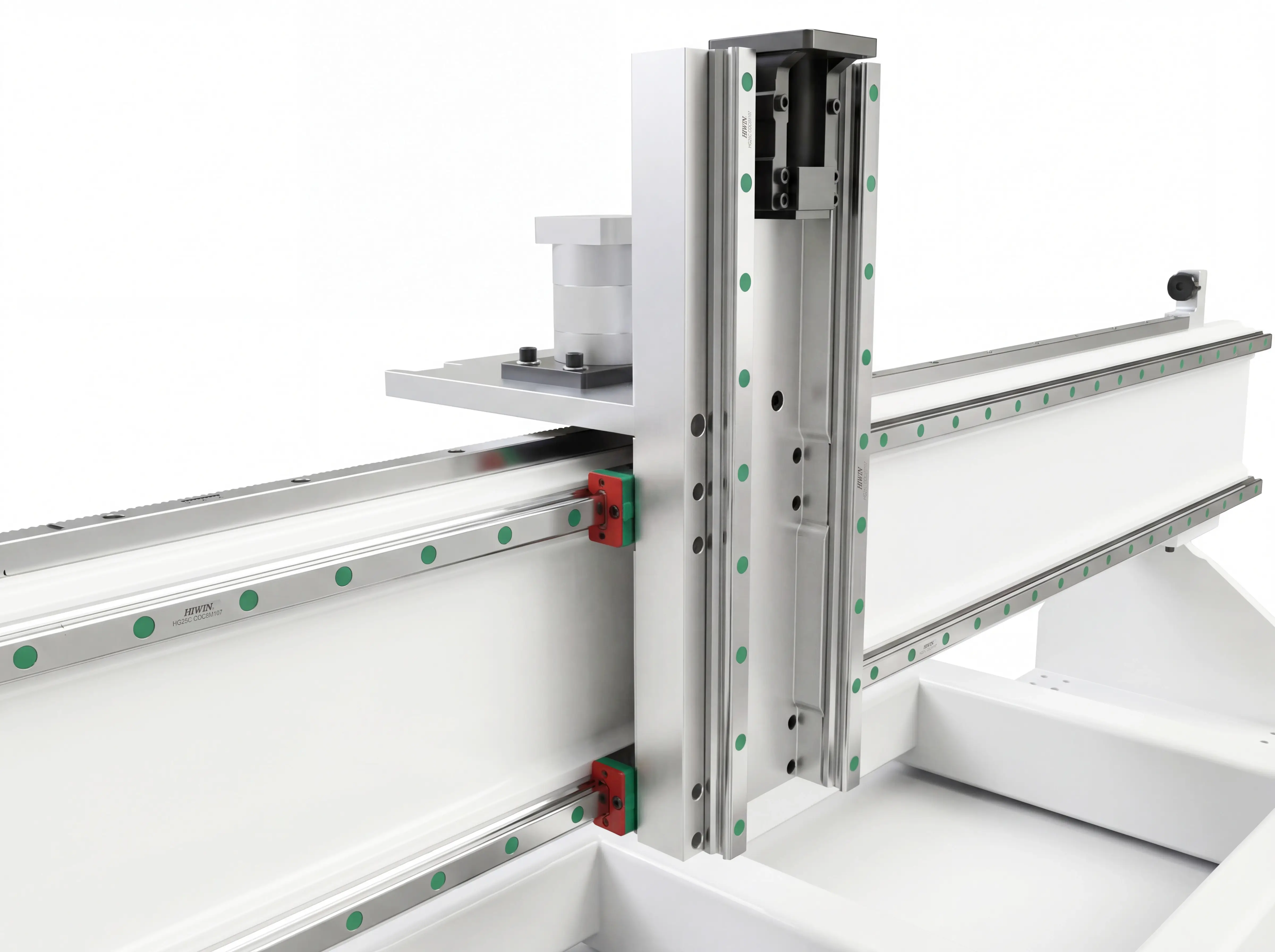

    Anodized aluminum z-axis mounting plate of Spire 1325 CNC wood router

    Thickened Hard-Anodized Aluminum Spindle Mounting Plate

    • The spindle mounting plate is made of 46mm ultra-thick anodized aluminum base material, with a thickness exceeding the industry standard by more than 30%. It greatly enhances structural rigidity and load-bearing capacity, enabling stable support for the weight of high-power spindles. Meanwhile, it resists longitudinal impact forces generated by the high-speed lifting, frequent starting and stopping of the Z-axis, providing stable support for high-precision machining.
    • Through professional anodizing treatment, a dense oxide protective film is formed, featuring excellent corrosion resistance, wear resistance and dust adhesion prevention performance. It can adapt to various complex working environments such as humid and dusty workshops, without surface wear or aging after long-term use, significantly reducing later maintenance costs.
    • It combines the dual characteristics of lightweight and high strength. Compared with cast iron mounting plates, its weight is reduced by more than 40%, which effectively lowers the operating load of the gantry sliding table and improves the response speed of the Z-axis. It meets the load-bearing requirements of heavy-duty spindles for long-term high-frequency operations, achieving the operating effect of light load and high precision.
    Adjustable leveling feet for Spire 1325 CNC wood router

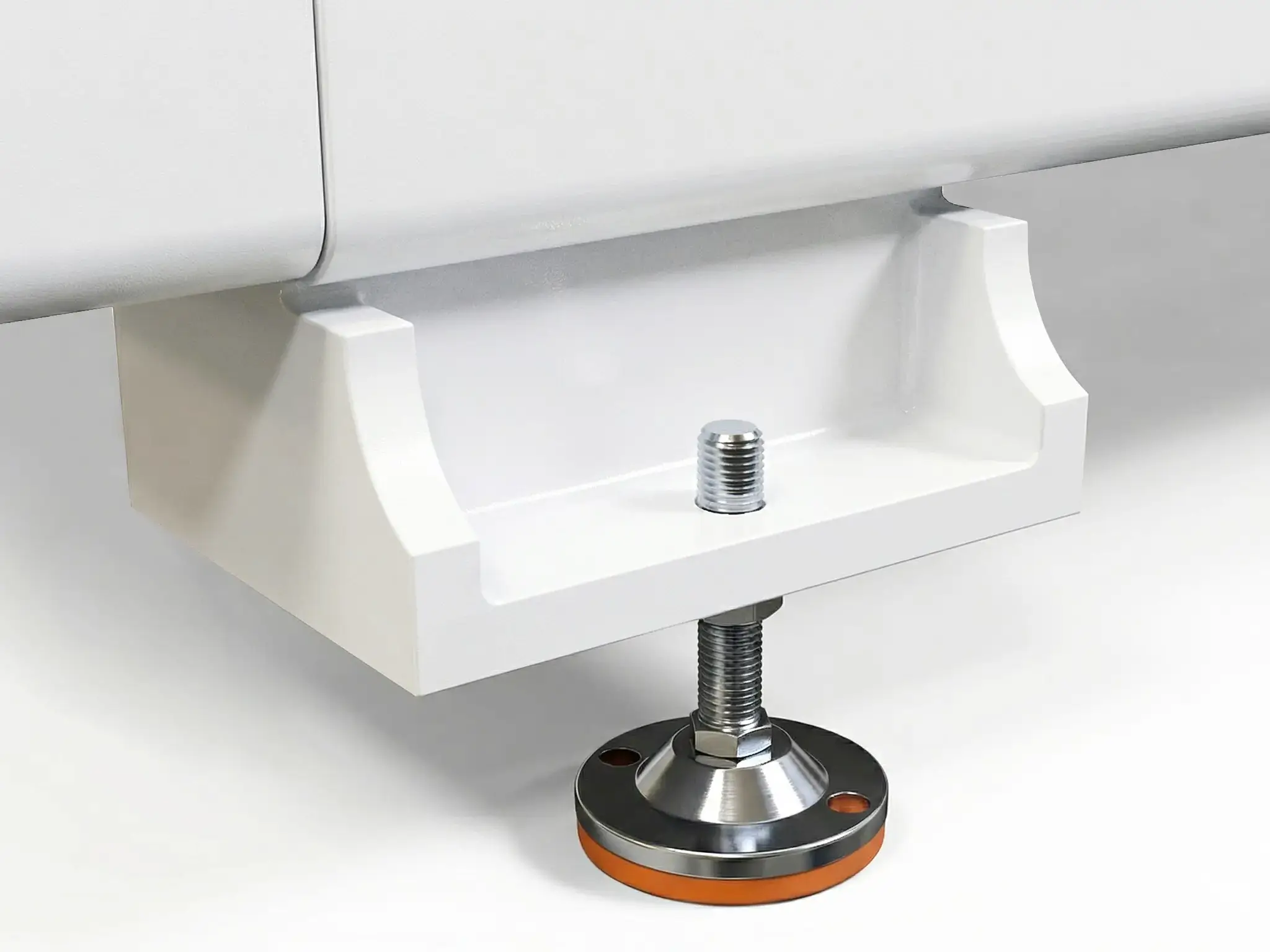

    Adjustable Leveling Feet

    • The high-strength leveling feet are integrally formed from reinforced steel, with excellent compression resistance, capable of evenly distributing the weight of the entire machine. Even under high-load working conditions such as large-size plate processing and high-speed routing, it can maintain the machine body stability, effectively avoiding tilting or shaking caused by uneven ground.
    • The leveling feet can realize fine height adjustment by rotating the adjusting nuts, facilitating quick calibration of the machine level, especially suitable for workshops with uneven ground. By adjusting the machine to the optimal processing posture, it provides a stable foundation for high-precision machining.
    • The bottom of the feet is equipped with anti-slip rubber pads, which can increase friction with the ground and effectively prevent the machine from displacement during high-speed processing. The rubber pads can also absorb part of the vibration, reducing the impact of resonance on machining precision and workpiece surface quality.
    Click the icon labels to view different machine parts

    Top-Grade High-Precision Transmission Components, Empowering High Stability, Accuracy, Precision & Efficient of CNC Router!

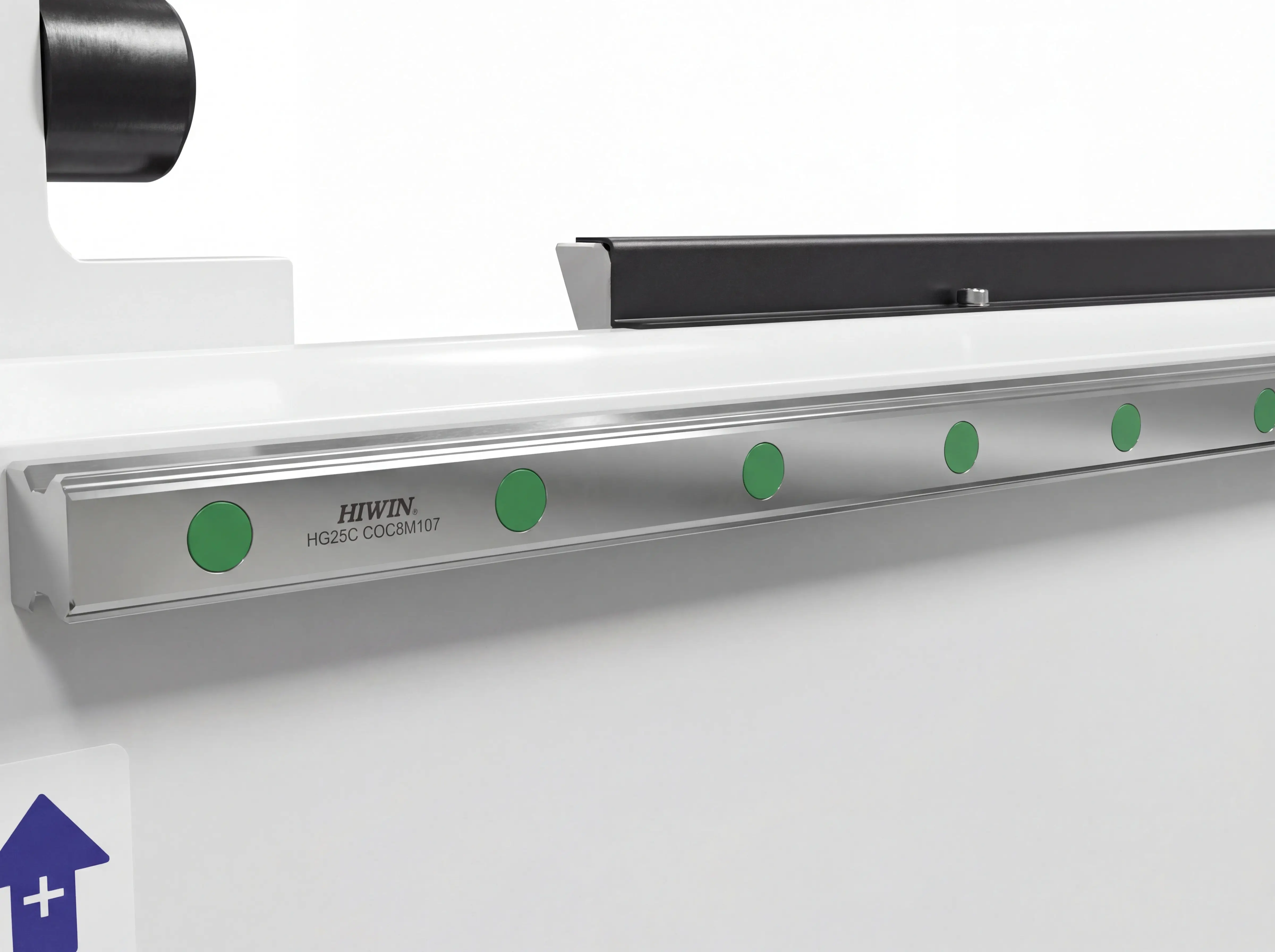

    Hiwin (Taiwan) P level 30 linear guideways of Spire 1325 CNC wood router

    HIWIN (Taiwan) P-Level 25mm Linear Guide/Slider

    • The CNC router machine adopts Taiwan Hiwin P-level high-precision guideways, with positioning accuracy and repeat positioning accuracy reaching the micron level. Backlash is eliminated after preloading treatment, meeting various high-precision machining requirements.
    • The 25mm square guideway features a large contact area and strong structural rigidity, which can effectively resist transverse impact forces generated during high-speed processing. Even under high-load and high-frequency reciprocating operation conditions, it can maintain stable operation and avoid precision degradation caused by guideway deformation.
    • The slider is equipped with a built-in recirculating ball, ensuring smooth operation, high speed and low noise. Both ends of the slider are equipped with dust baffles, which can effectively block impurities such as workshop dust, cutting fluid and debris, prevent wear on the contact surface between balls and guideways, and ensure long-term stable operation of the equipment.

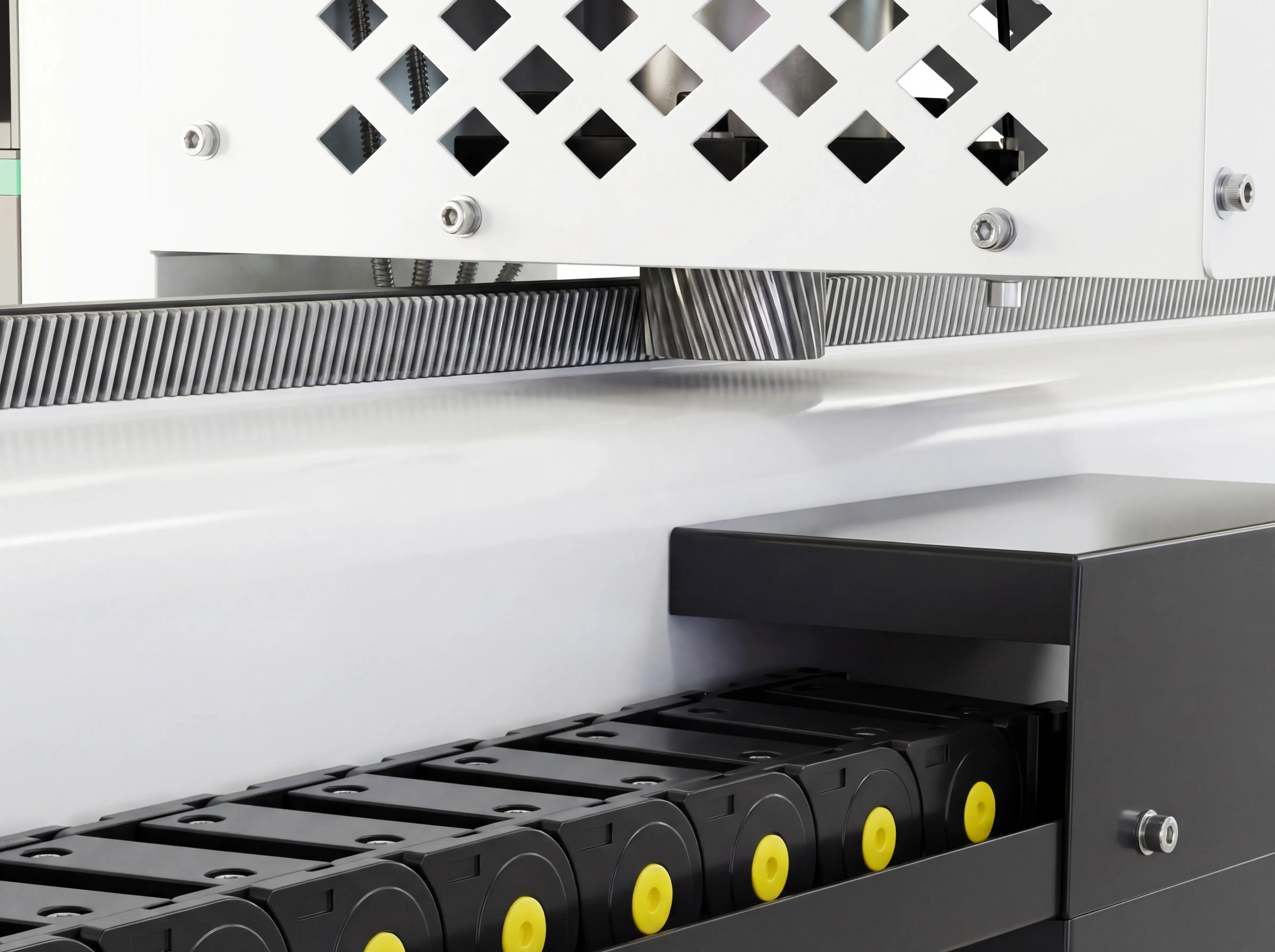

    YYC (Taiwan) Ground helical rack & pinion of Spire 1325 CNC wood router

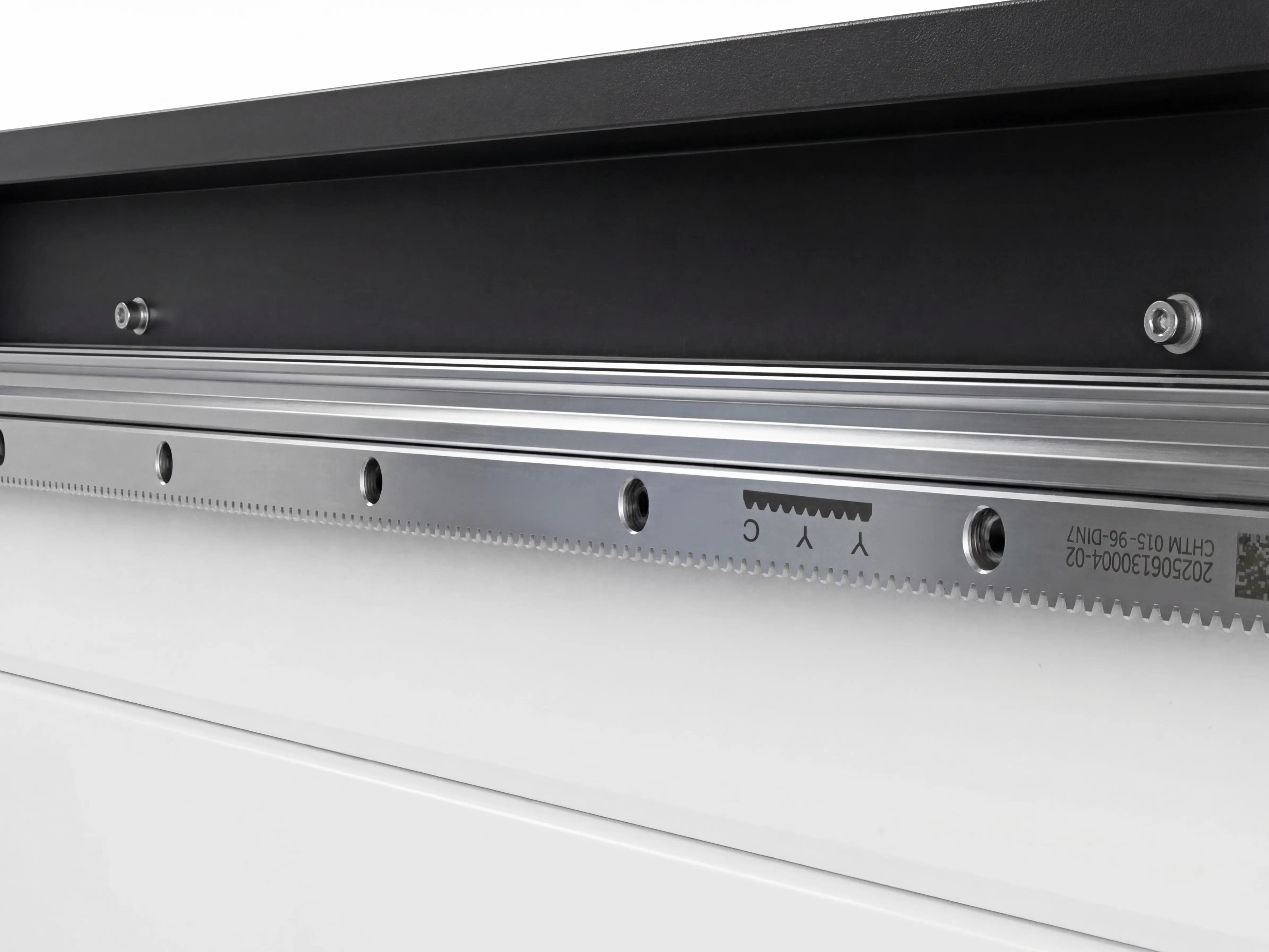

    YYC (Taiwan) Ground helical rack of Spire 1325 CNC wood router

    YYC (Taiwan) High-Precision Ground Helical Rack & Pinion

    • Processed by YYC precision grinding technology, the tooth surface finish can reach below Ra0.4μm. Compared with ordinary hobbing racks, the grinding process effectively eliminates tooth surface burrs and machining allowance deviations, ensuring uniform meshing clearance with servo motor gears, providing high-precision linear transmission guarantee for CNC routers and meeting strict positioning requirements.
    • Compared with ordinary straight-tooth racks, the helical tooth design increases the gear contact area by more than 30%. The meshing process is progressive contact, resulting in more uniform force bearing, which can effectively disperse the impact force during high-speed transmission. Meanwhile, the impact noise of helical tooth meshing is reduced by more than 10% compared with straight teeth.
    • The rack base material is high-strength alloy steel, and the tooth surface undergoes dual heat treatment of carburizing and quenching plus low-temperature tempering, with hardness reaching HRC58-62. It can resist wear and impact caused by long-term meshing transmission, with a service life 2-3 times that of ordinary racks, significantly reducing equipment maintenance frequency and costs.

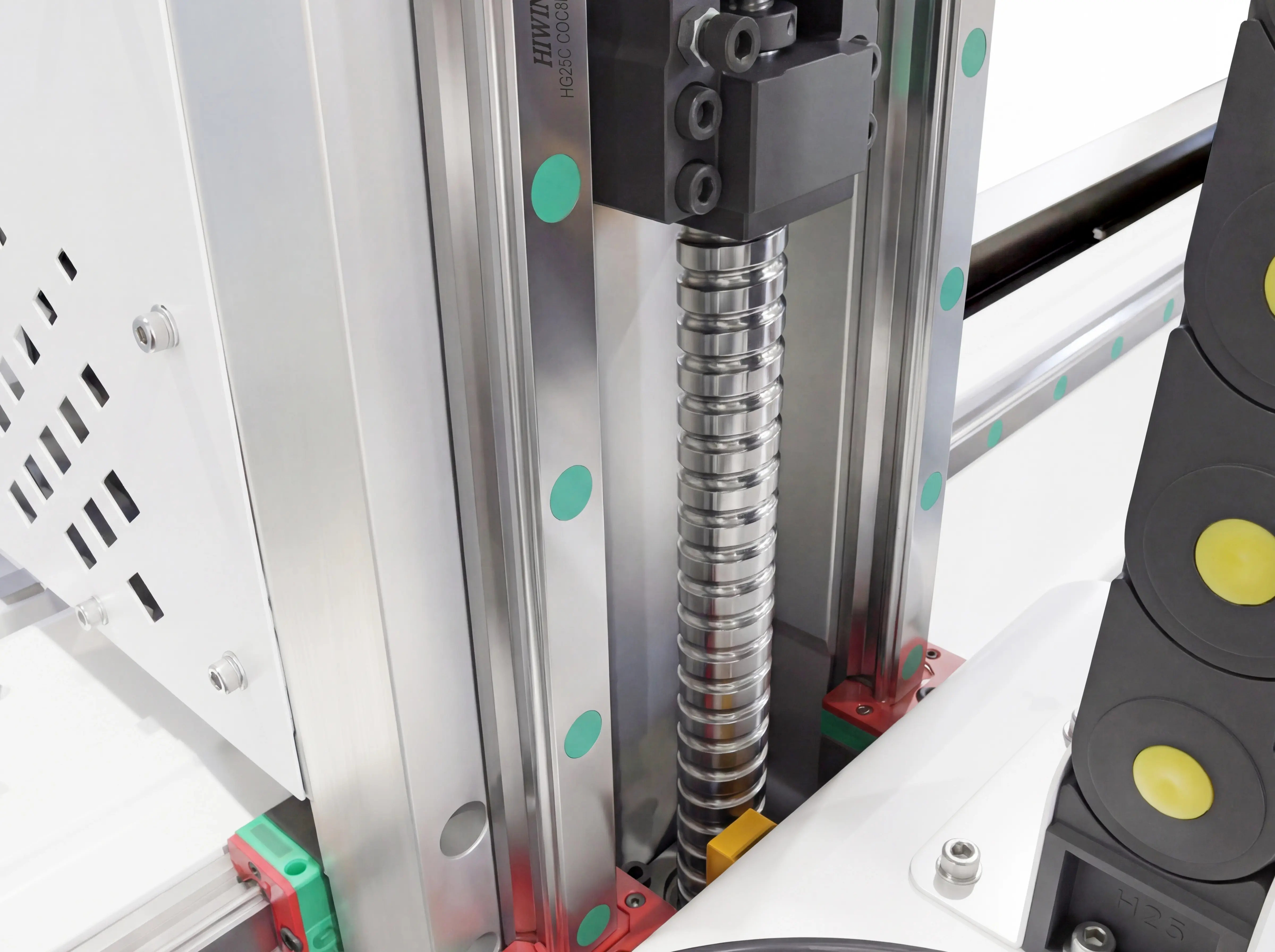

    TBI (Taiwan) Ground ball screws of Spire 1325 CNC wood router

    TBI (Taiwan) High-Precision Ground Ball Screw

    • Manufactured by TBI precision grinding technology, the pitch error is controlled at the micron level. Its positioning accuracy and repeat positioning accuracy are far superior to rolled ball screws, which can precisely control the Z-axis feeding height, effectively eliminate machining errors, and meet the needs of fine machining.
    • Equipped with a professional preloading structure, it achieves zero-backlash transmission by precisely adjusting the fit clearance between the nut and the screw, significantly improving the axial rigidity of the screw. It can efficiently bear the impact force generated during the rapid commutation of the machine, ensuring the straightness and stability of the spindle's movement trajectory. Even under heavy-load machining conditions, it can still maintain excellent transmission accuracy.
    • Adopting an optimized ball circulation path design, the friction coefficient between the balls, screw and nut is as low as 0.001–0.005, and the transmission efficiency is as high as 95% or more, which is more than 3 times that of traditional ordinary screws. Cooperated with servo motor drive, it can realize high-speed feeding and rapid response of the spindle, greatly improving the machining efficiency of CNC routers.

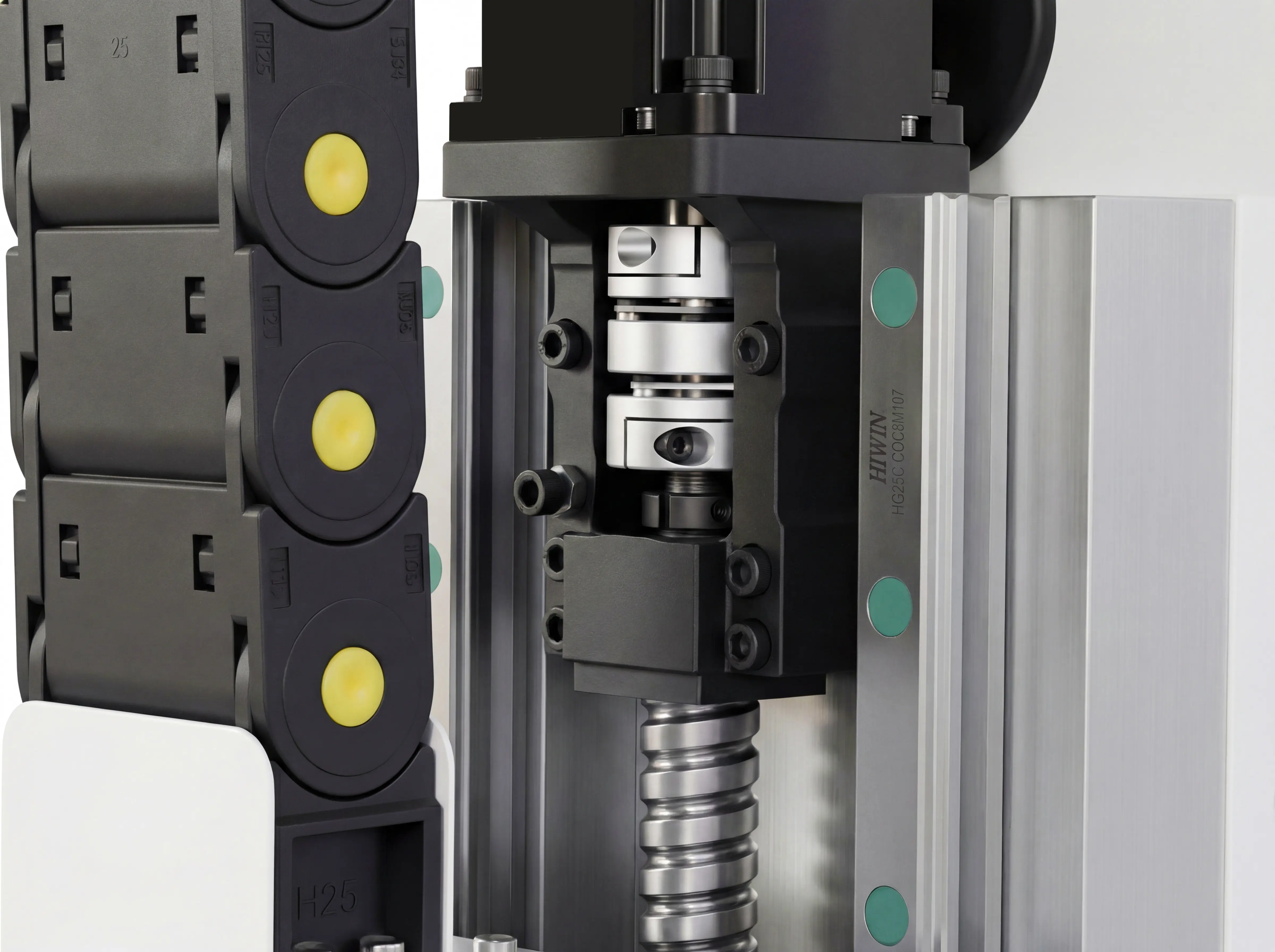

    High-precision diaphragm coupling of Spire 1325 CNC wood router

    Diaphragm Coupling

    • Adopting a multi-piece metal diaphragm elastic linkage structure, there is no mechanical clearance during power transmission, enabling precise torque conduction, which perfectly matches the operation requirements of CNC routers for high-speed startup and high-frequency commutation.
    • The diaphragms are made of high-strength alloy material, featuring excellent fatigue resistance and impact resistance. They can withstand the long-term high-frequency dynamic alternating loads of CNC routers. Compared with ordinary rubber couplings, there are no aging or deformation issues.
    • The elastic deformation capacity of the diaphragms can compensate for axial and angular installation deviations between the motor shaft and the ball screw, avoiding transmission jamming caused by rigid connection and ensuring the accuracy of the spindle's movement trajectory.

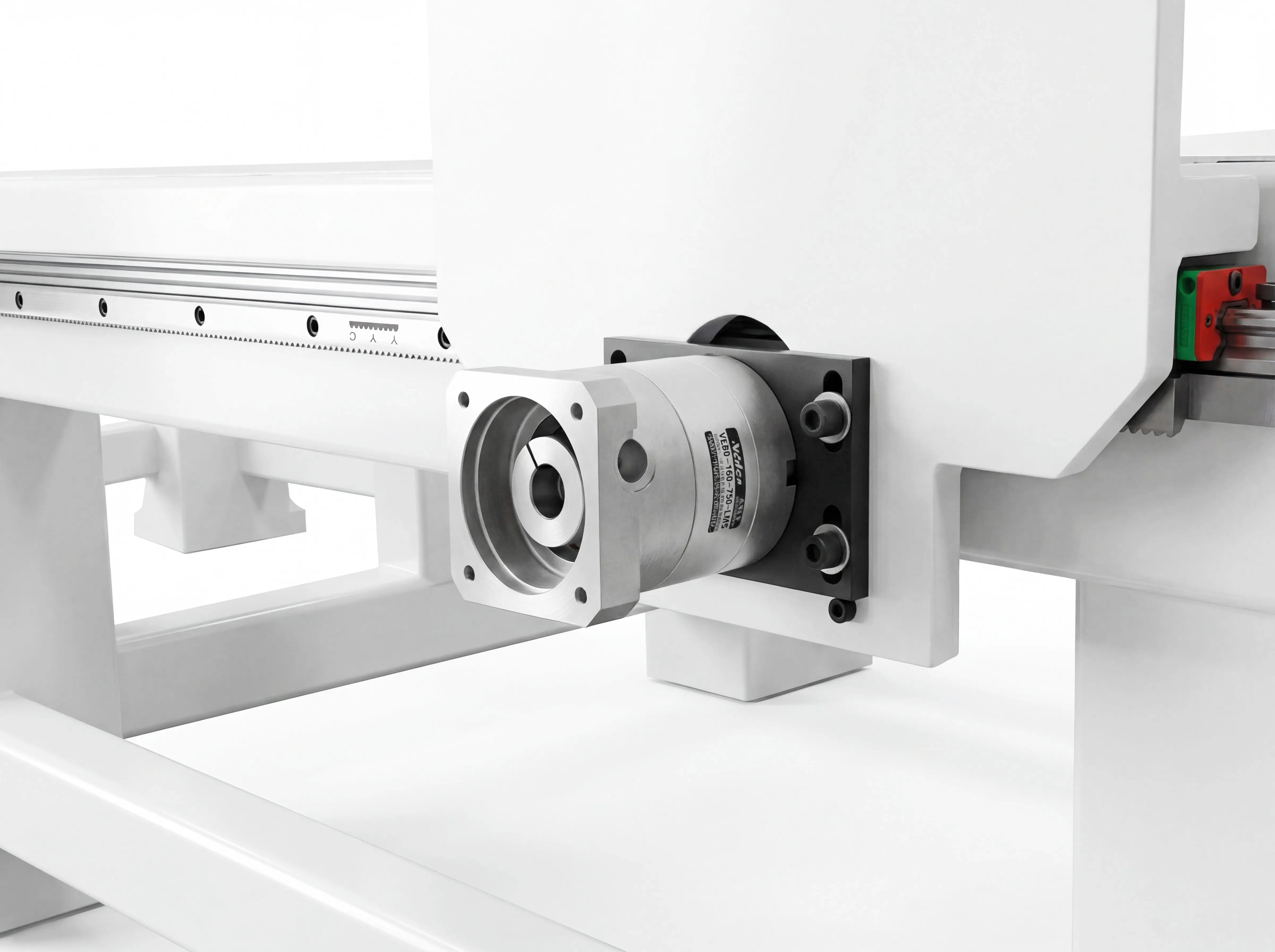

    Shimpo (Japan) planetary of gear reducers

    SHIMPO (Japan) Planetary Gear Reducers

    • The CNC router machine's Y-axis adopts a dual-motor synchronous drive system and is equipped with a Japanese Shimpo planetary gear reducer. Its gears are precision ground, with the tooth surface accuracy reaching the micron level; the standard backlash is as low as 15 arcminutes, and the precision-grade backlash can be controlled within 3 arcminutes. The reducer features a dedicated flange structure for servo motors, enabling seamless connection with servo motors and ensuring zero delay in power transmission.
    • The reducer features high rigidity and high load-bearing capacity. The symmetrically distributed planetary gear design realizes balanced power splitting, with instantaneous overload resistance up to more than four times the rated torque, easily coping with heavy-load machining conditions such as cutting and milling.
    • The transmission efficiency of this reducer is as high as 90% or more, which can effectively reduce the kinetic energy loss form the servo motor. Its low-vibration and low-noise operation characteristics help significantly reduce the overall machine resonance, improve the surface finish of workpieces, and assist the equipment in achieving stable high-precision and high-efficiency machining.
    High-strength aluminum alloy limit bumpers

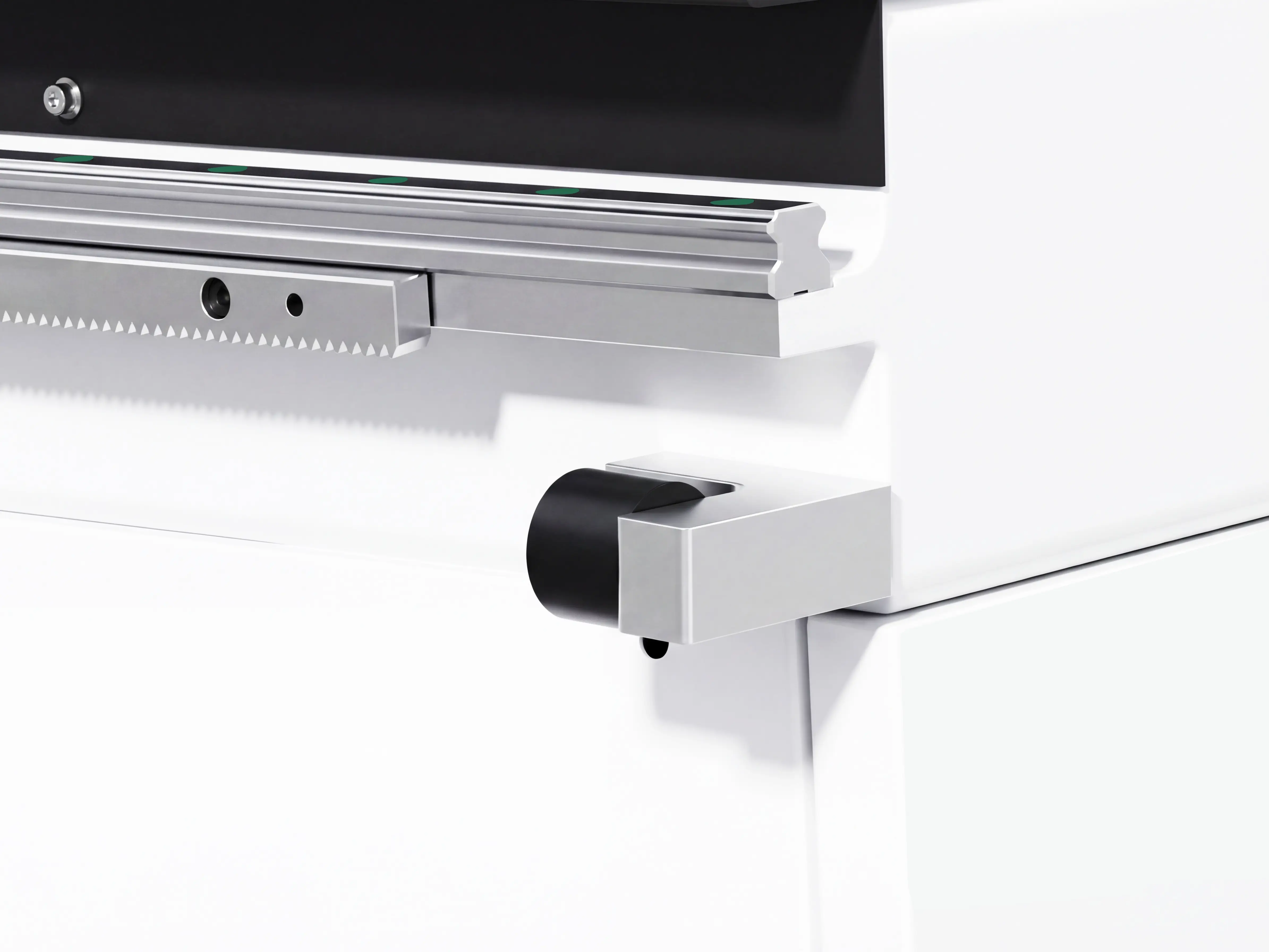

    High-Strength Aluminum Alloy Limit Bumpers

    • The CNC router machine's X and Y axes are equipped with high-strength aluminum alloy limit bumpers, which combine light weight and high rigidity while boasting excellent compressive strength. These bumpers can withstand strong impacts during high-speed operation and prevent their own deformation and damage.
    • Each bumper is equipped with a high-elasticity and wear-resistant rubber cushion, which can absorb more than 90% of impact energy, effectively mitigating the impact of motion axes caused by overtravel.
    • The bumpers are accurately installed at the limit positions of the X and Y axis strokes, working in conjunction with the machine tool limit switches to form a dual protection of "electrical limit + mechanical anti-collision". They can reliably prevent overtravel collisions of motion axes caused by program errors or operational mistakes, ensuring operational safety.
    Click the icon labels to view different machine parts

    6KW Powerful Drive, Enabling Effortless High-Speed & High-Precision Machining!

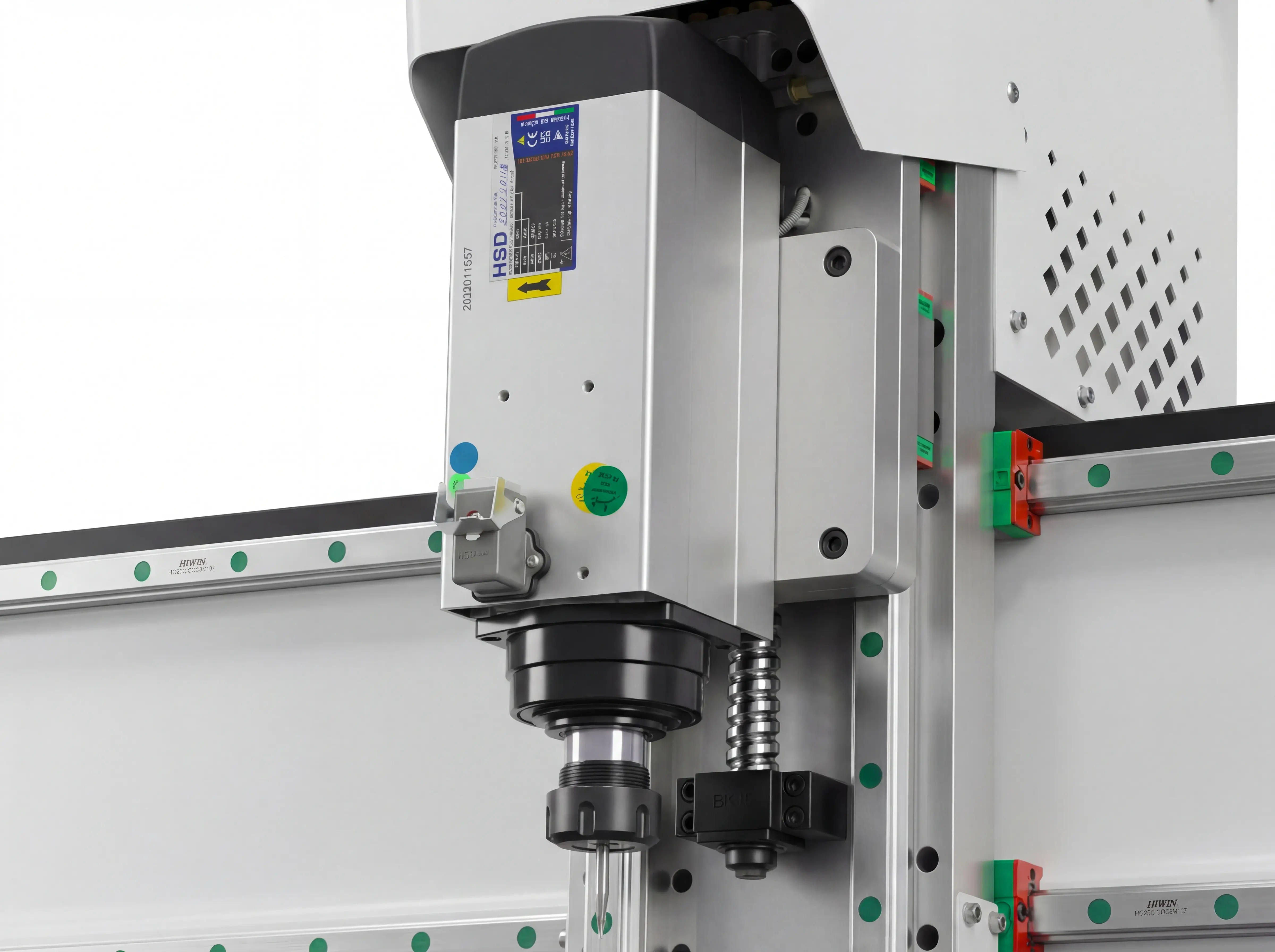

    HSD (Italy) 6kW high-speed air-cooled spindle of Spire 1325 CNC wood router

    HSD (Italy) 6kW High-Speed Air-Cooled Spindle

    • The HSD spindle equipped with a coaxial forced air-cooling system, the airflow circulates evenly along the spindle housing for heat dissipation. This ensures stable and controllable temperature during high-speed operation, eliminating overheating risks during continuous work and enabling user-friendly operation.
    • Compared with water-cooled spindles, this air-cooled spindle requires no external water-cooling pipelines and features full-time lubrication-free and maintenance-free operation. It is compatible with a wide range of machining materials including solid wood, MDF, aluminum alloy, acrylic, and composite materials. It not only meets regular processing needs such as panel furniture cutting and advertising letter engraving, but also suits various high-precision machining scenarios.
    • The spindle rotor has undergone professional G2.5-grade dynamic balance calibration, with radial runout ≤ 0.005mm and vibration value ≤ 0.005mm/s during high-speed operation. This effectively reduces machining errors caused by tool vibration and improves workpiece surface finish. The spindle is compatible with ER32 collets and supports various tool specifications within φ20mm.

    Powerful Drive, Precise Output, Reshaping New Standards for Stability & Precision of CNC Router!

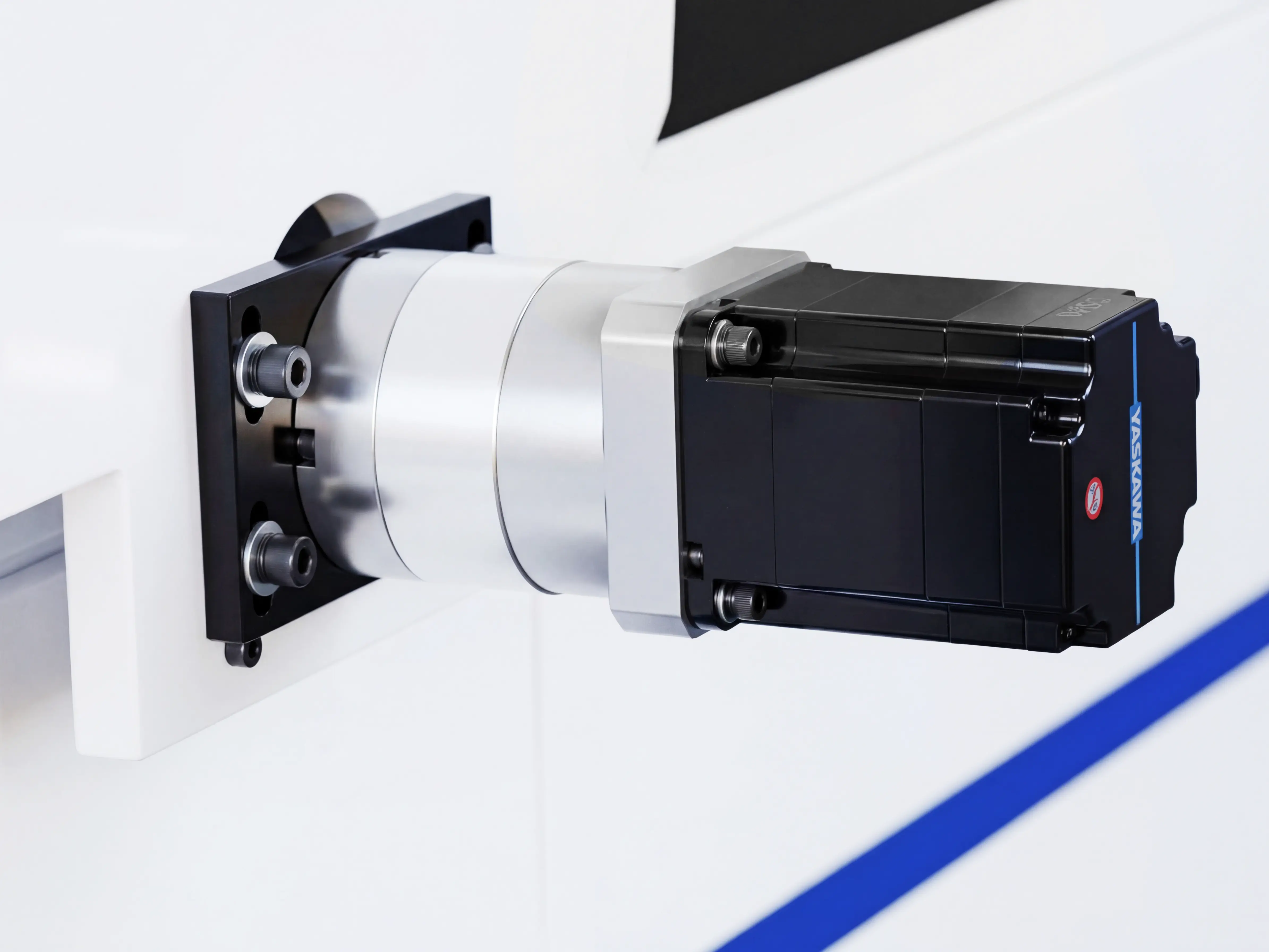

    Yaskawa (Japan) servo motor and Shimpo (Japan) planetary gear reducers for Spire 1325 CNC wood router

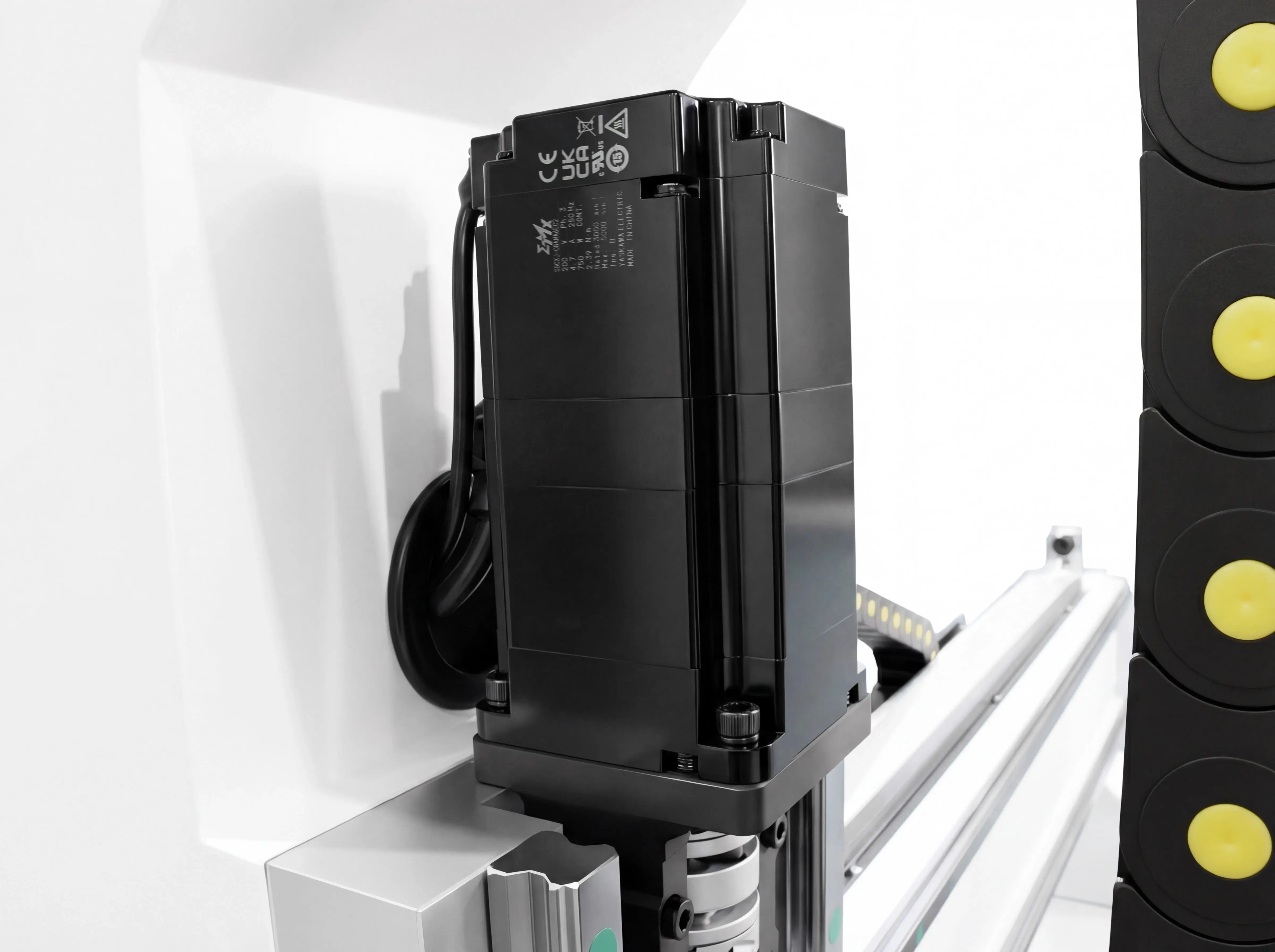

    Z-axis Yaskawa (Japan) servo motor for Spire 1325 CNC wood router

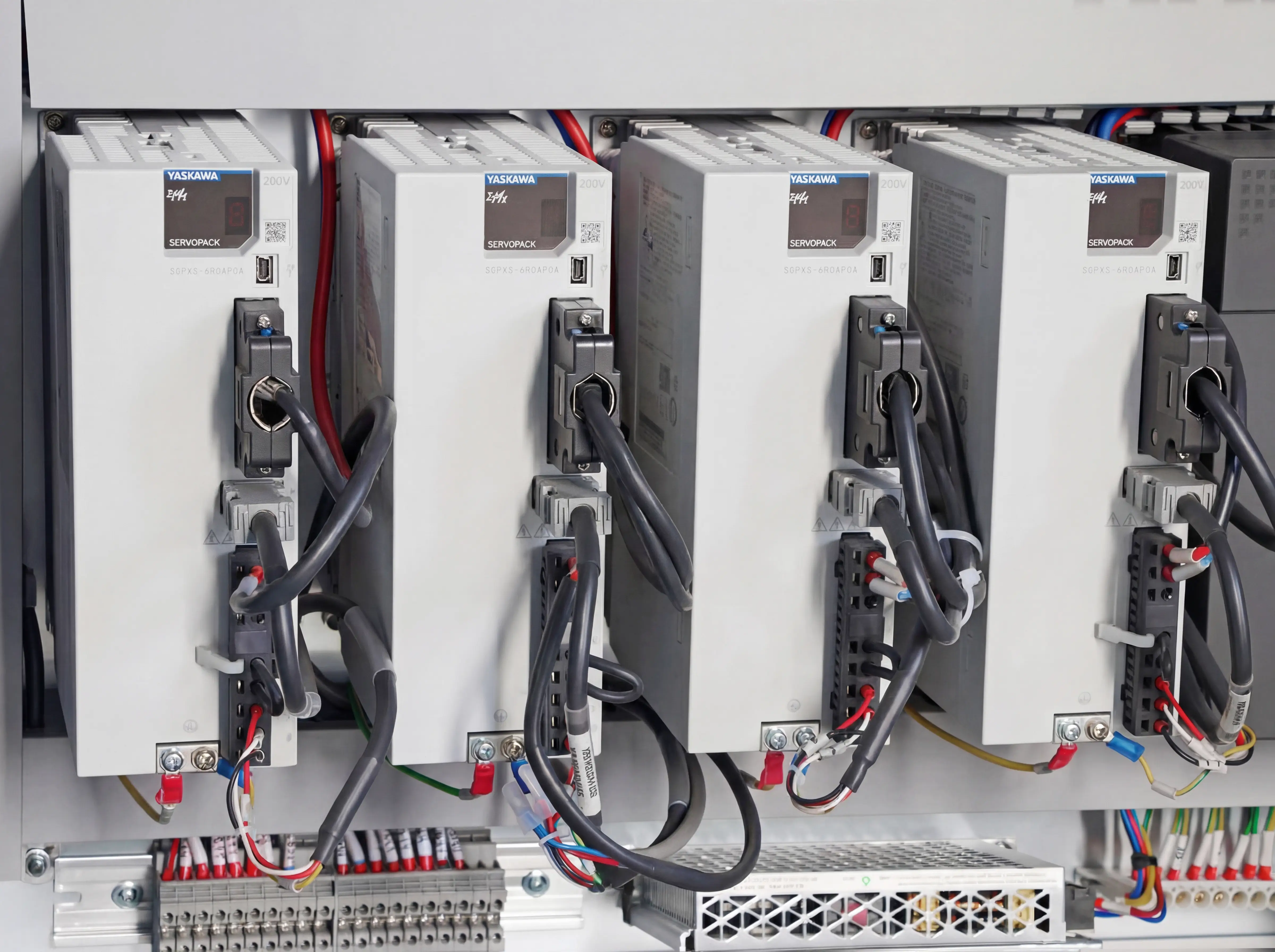

    Yaskawa servo drive for Spire 1325 CNC wood router

    Yaskawa (Japan) 750W Servo System

    • The CNC router machine is driven by four sets of Japanese Yaskawa 750W servo motors, with one set each for the X-axis and Z-axis, and two sets for the Y-axis. This configuration is perfectly tailored to the power requirements of the CNC router's long-span gantry structure. The dual-drive design of the Y-axis enables synchronous power output on both sides, significantly enhancing the operational stability and load-bearing capacity of the gantry.
    • The torque output of Yaskawa servo motors is precisely matched to the running load of each axis of the router. The single motors on the X-axis and Z-axis are sufficient to meet the processing demands of high-speed positioning and frequent start-stop operations; the dual-motor coordinated output on the Y-axis can easily handle the instantaneous high load during heavy-duty cutting.
    • The servo motors Equipped with high-resolution absolute encoders, the motors achieve micron-level position feedback accuracy, ensuring high-precision positioning of the machine. The motors boast an overload capacity of over 150%, which can effortlessly withstand load impacts when cutting hard materials. Supporting multi-mode control (position, speed, and torque), the motors deliver optimal driving performance without complex debugging.

    Professional CNC Software, Wireless Control, Empowering Higher Efficiency & Reliability in Precision Machining!

    Weihong PM95A control system for Spire 1325 CNC wood router

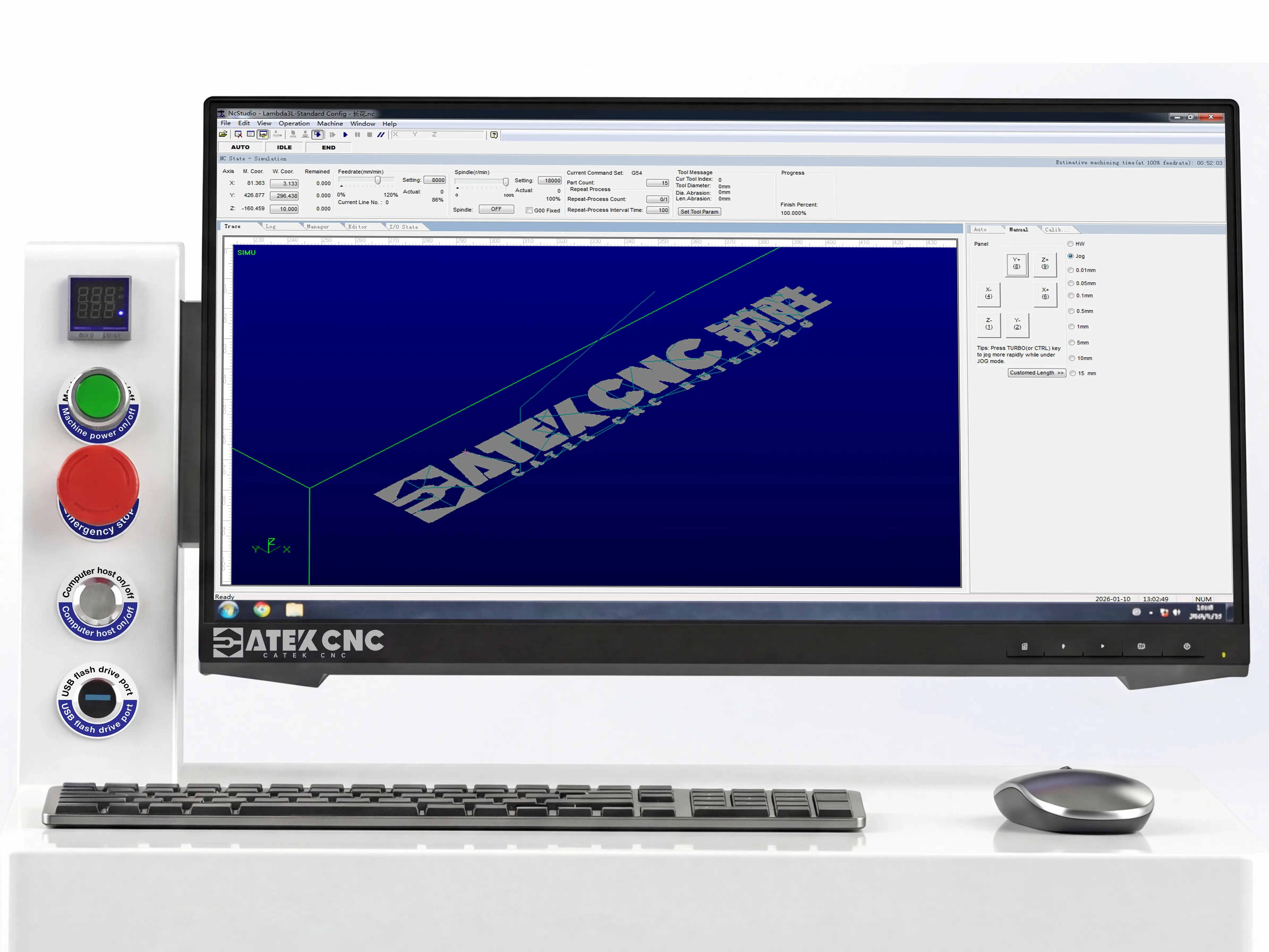

    Weihong NcStudio control software for Spire 1325 CNC wood router

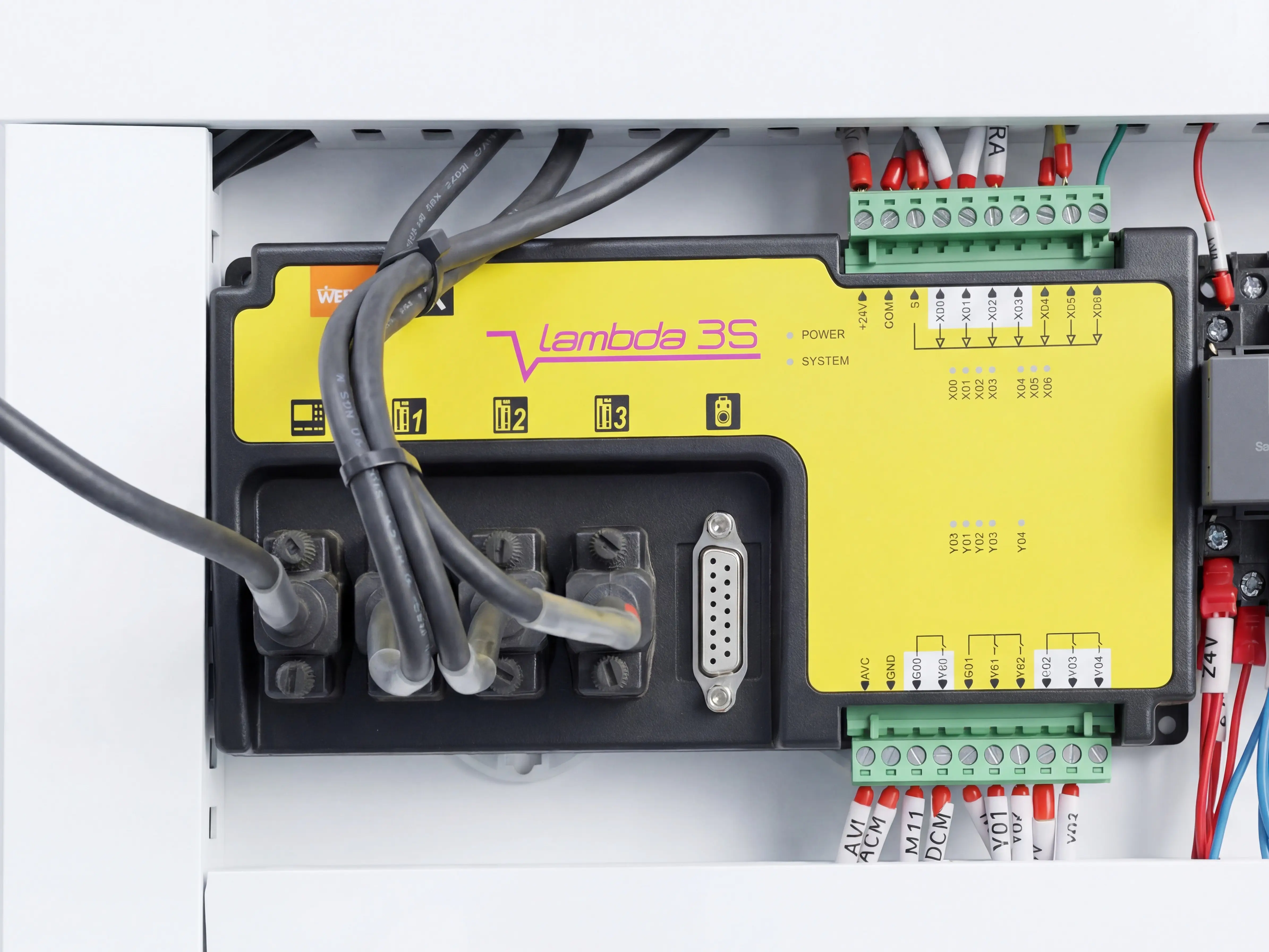

    Weihong Lambda 3S slave controller for Spire 1325 CNC wood router

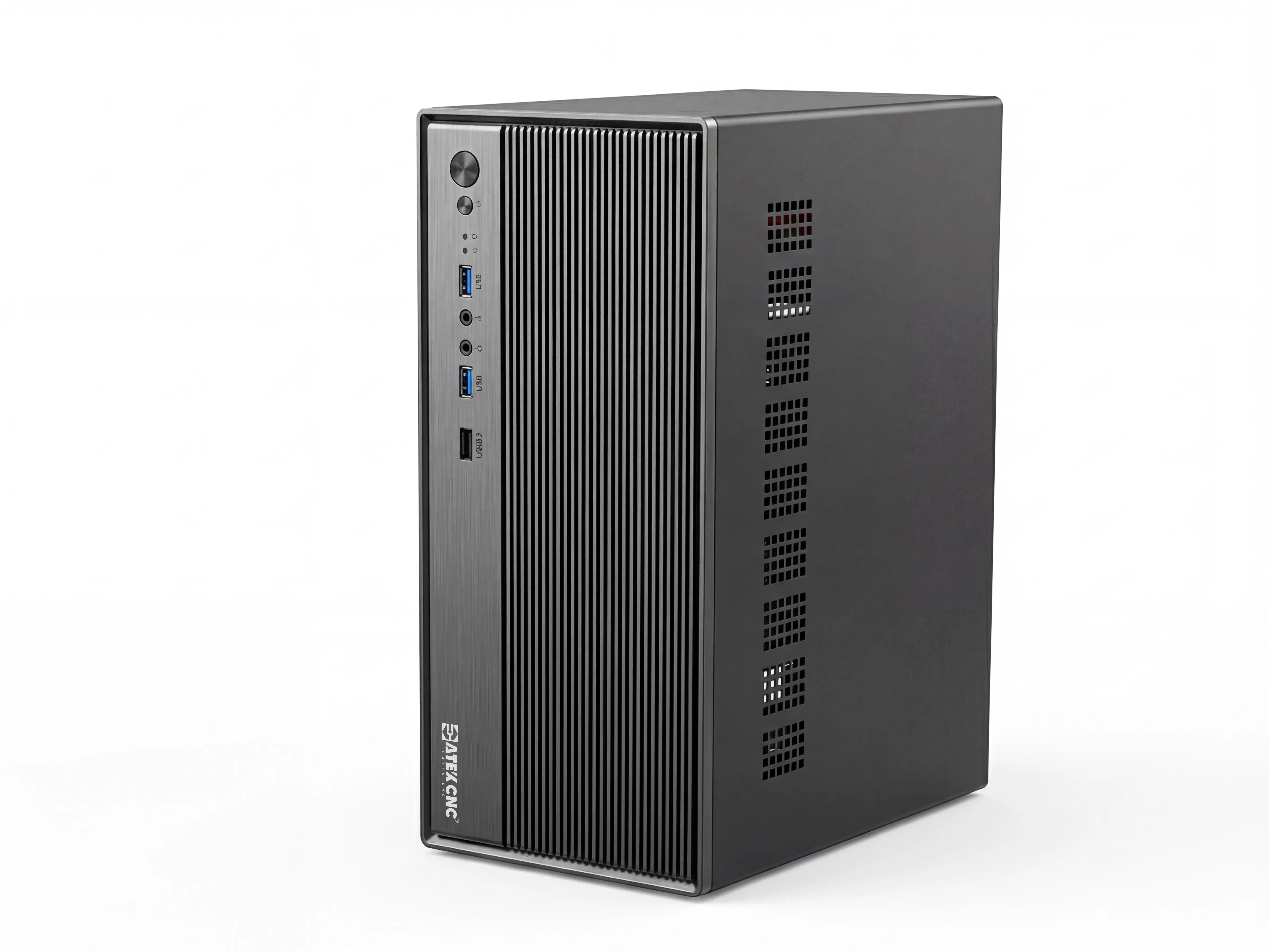

    Computer host for Spire 1325 CNC wood router

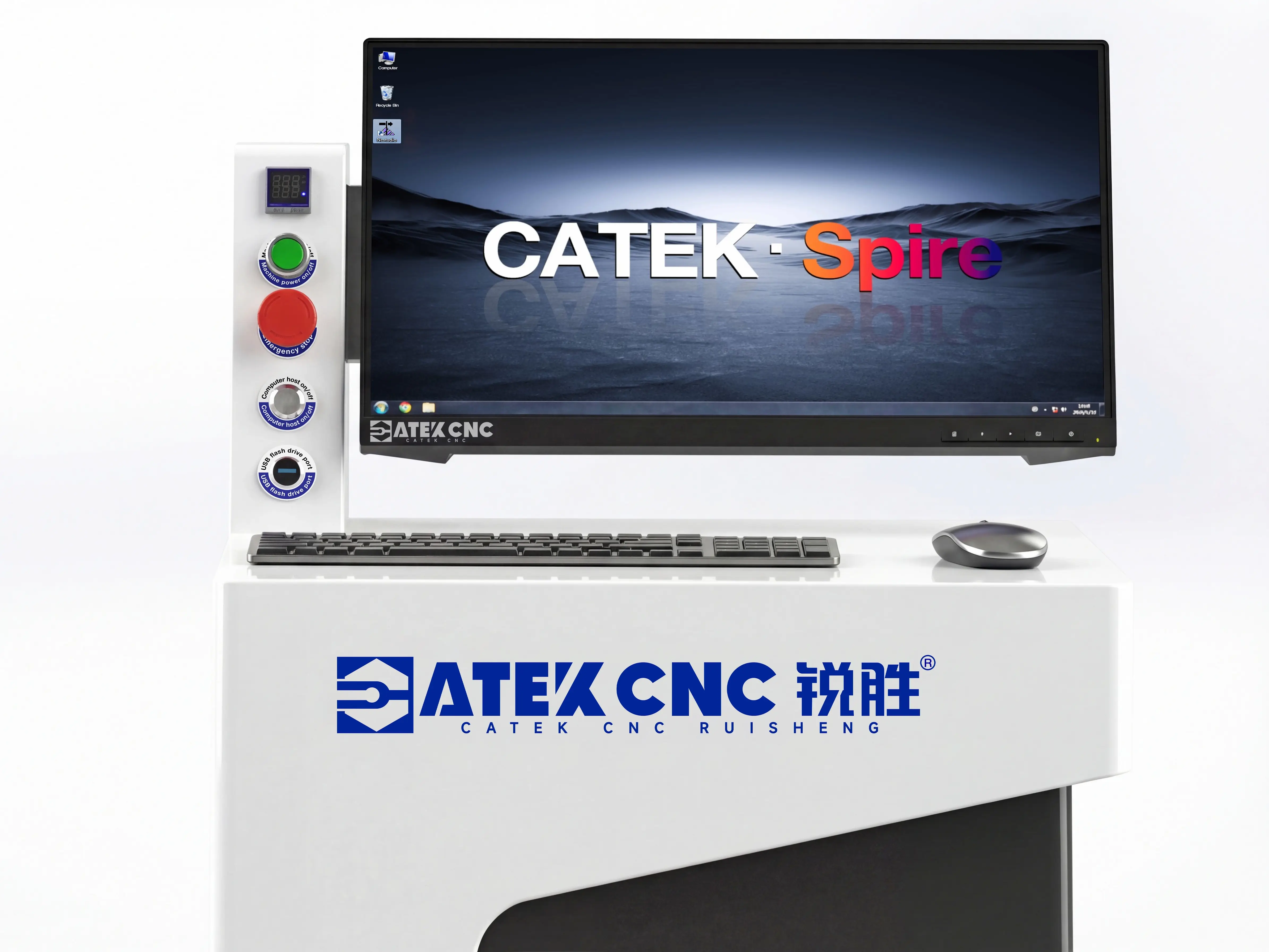

    Weihong PM95A Control System

    • Adopting a PCI-E interface and embedded real-time processor architecture, it boasts faster data transmission speed than controllers with outdated PCI ports. This ensures real-time synchronous execution of multi-axis control commands, with a position response frequency of over 2kHz and a higher pulse output frequency.
    • Running on the standard Windows platform and paired with NcStudio software, the system features easy accessibility, intuitive operation and strong expandability for technicians. It is compatible with G-code files generated by various CAD/CAM software, allowing direct use without format conversion.
    • It supports multiple advanced functions such as breakpoint carving resumption, power-off memory, simulation and dynamic tracking machining. Equipped with an intelligent trajectory optimization algorithm, it can real-time smooth machining paths and eliminate micro-level step differences. Particularly suitable for complex curved surface and precision machining, it effectively improves the smoothness of workpiece edges and the consistency of batch machining.

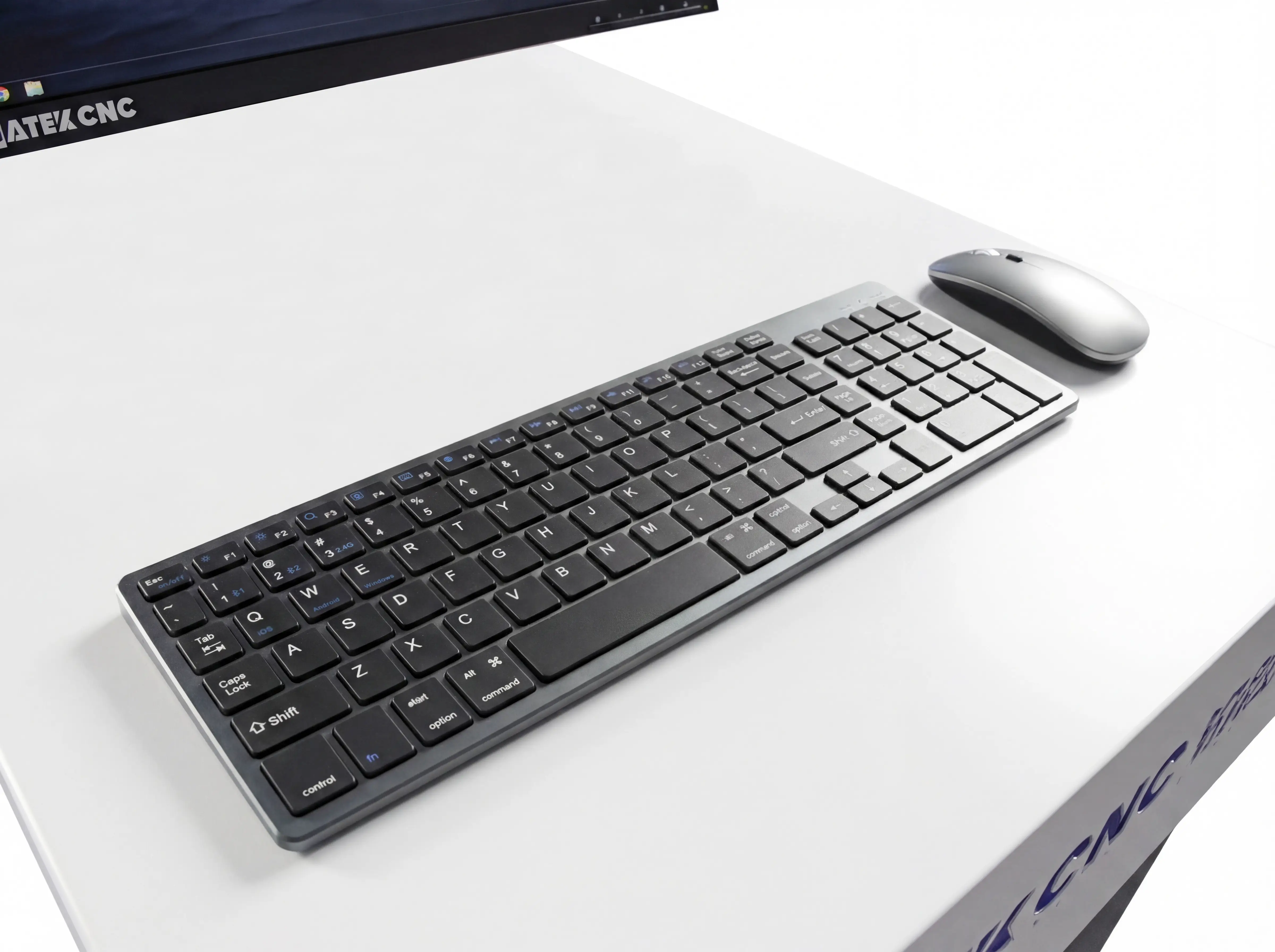

    Wireless keyboard and mouse for Spire 1325 CNC wood router

    Wireless Keyboard / Mouse

    • Equipped with an industrial-grade wireless keyboard and mouse set, it adopts 2.4GHz anti-interference transmission technology, with an effective transmission distance of over 10 meters, ensuring stable and delay-free signals.
    • The wireless design completely eliminates the cable constraints of traditional wired keyboards and mice. Operators can complete operations such as XYZ-axis tool calibration and machining start/stop without approaching the control cabinet, real-time monitoring the machining status and greatly improving operational flexibility.
    • The keyboard features an oil-resistant, stain-resistant and wear-resistant design, with a more sealed shell. It can withstand complex working conditions such as dust and debris common in workshops, avoiding key failures caused by dust intrusion, and is suitable for high-intensity 24-hour continuous machining needs.
    Click the icon labels to view different machine parts

    High-Quality Electrical Components from Leading Brands, Empowering Long-Term & Stable Machining of CNC Router!

    • Delta Variable Frequency Drive
    • Interlock and Short-Circuit Protection Switch
    • High-Quality Power Switches
    • Schneider Electrical Components
    • High-Reliability Aviation Plugs
    • Fully Enclosed High-Strength Cable Carrier
    • High-Quality Terminal Blocks

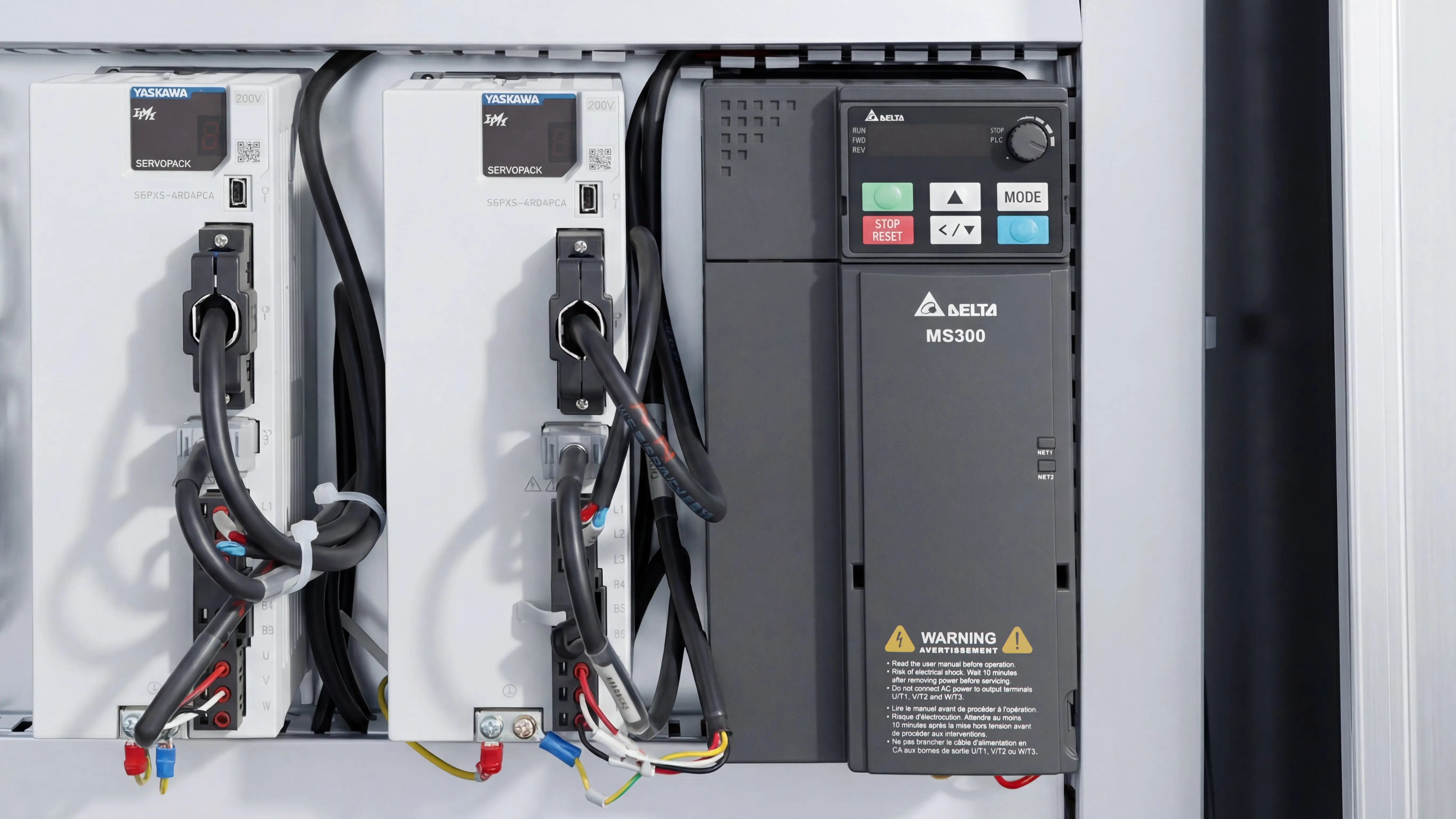

    • Delta (Taiwan) variable frequency drive of Spire 1325 CNC wood router

      Delta (Taiwan) Variable Frequency Drive

      • This high-performance vector-type Delta VFD is perfectly matched with the HSD high-speed spindle. It can output 150% of the rated torque even under the low-frequency condition of 0.5Hz, adapting to various machining requirements.
      • The inverter is built with multiple protection mechanisms including overload, overcurrent, overheating and phase loss protection. It can real-time monitor the spindle operation status, automatically adjust the output power, and achieve precise synchronization between spindle speed and feed axes. This not only effectively protects the spindle motor and tools, but also ensures machining continuity.
      • Equipped with an intelligent energy-saving module, it can dynamically adjust energy consumption according to machining load. Compared with ordinary VFDs, it saves 20%–40% energy, significantly reducing the long-term operation cost of the equipment and adapting to various batch machining scenarios.

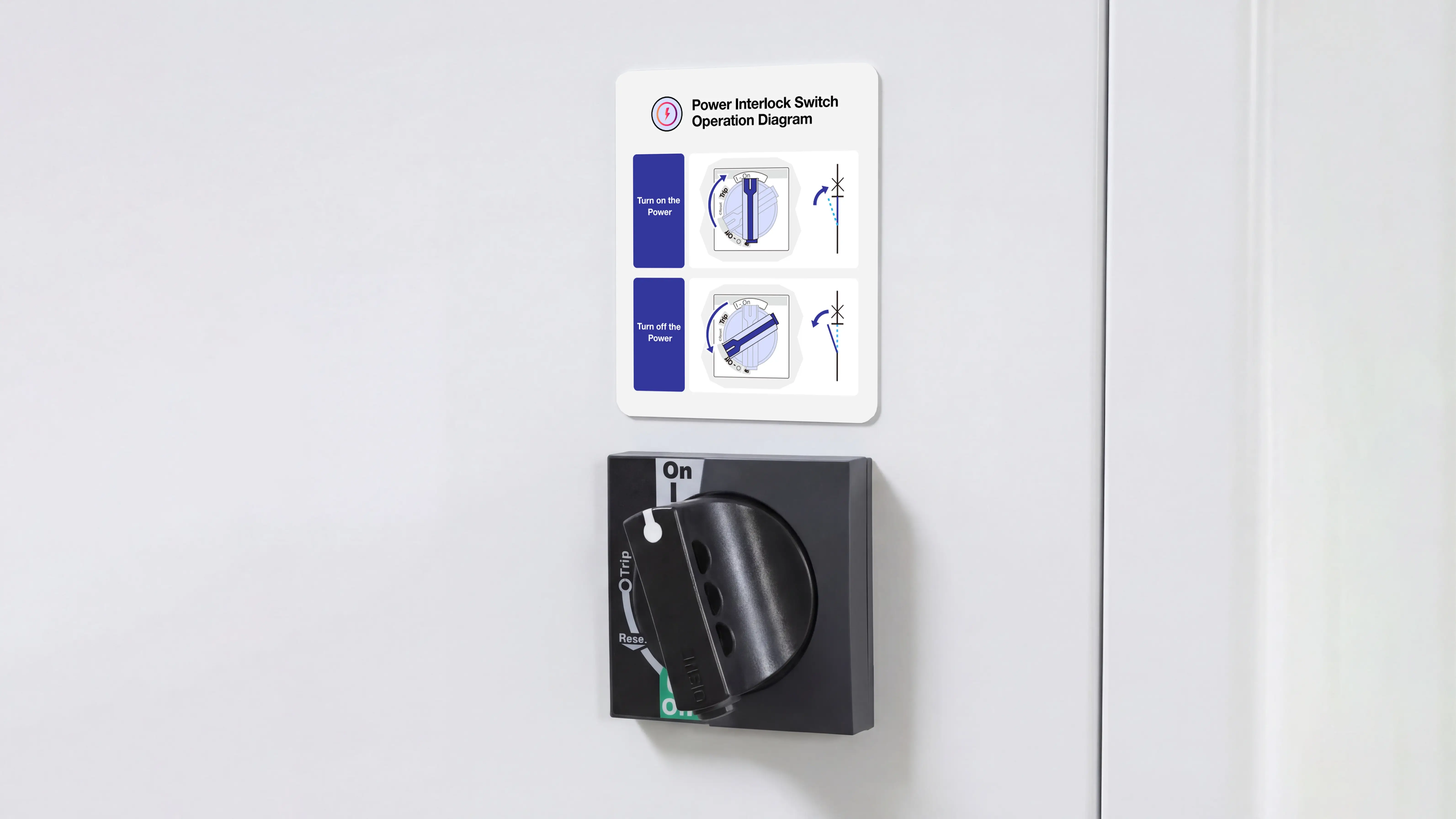

    • Interlock and short-circuit protection switch of Spire 1325 CNC wood router

      Control Cabinet Interlock and Short-Circuit Protection Switch

      • It achieves interlock control between the control cabinet and the power supply: when the cabinet door is opened, the interlock switch automatically cuts off the power supply of the control cabinet; when the cabinet door is closed, the power supply is automatically restored, fundamentally eliminating the electric shock risk caused by mistakenly opening the cabinet door during the CNC router's operation.
      • The interlock switch is built with a Schneider circuit breaker. When the equipment experiences circuit overload or line short-circuit, the protector can cut off the power supply within milliseconds, preventing abnormal current from damaging core electrical components and ensuring the safety of the machine's circuit system.

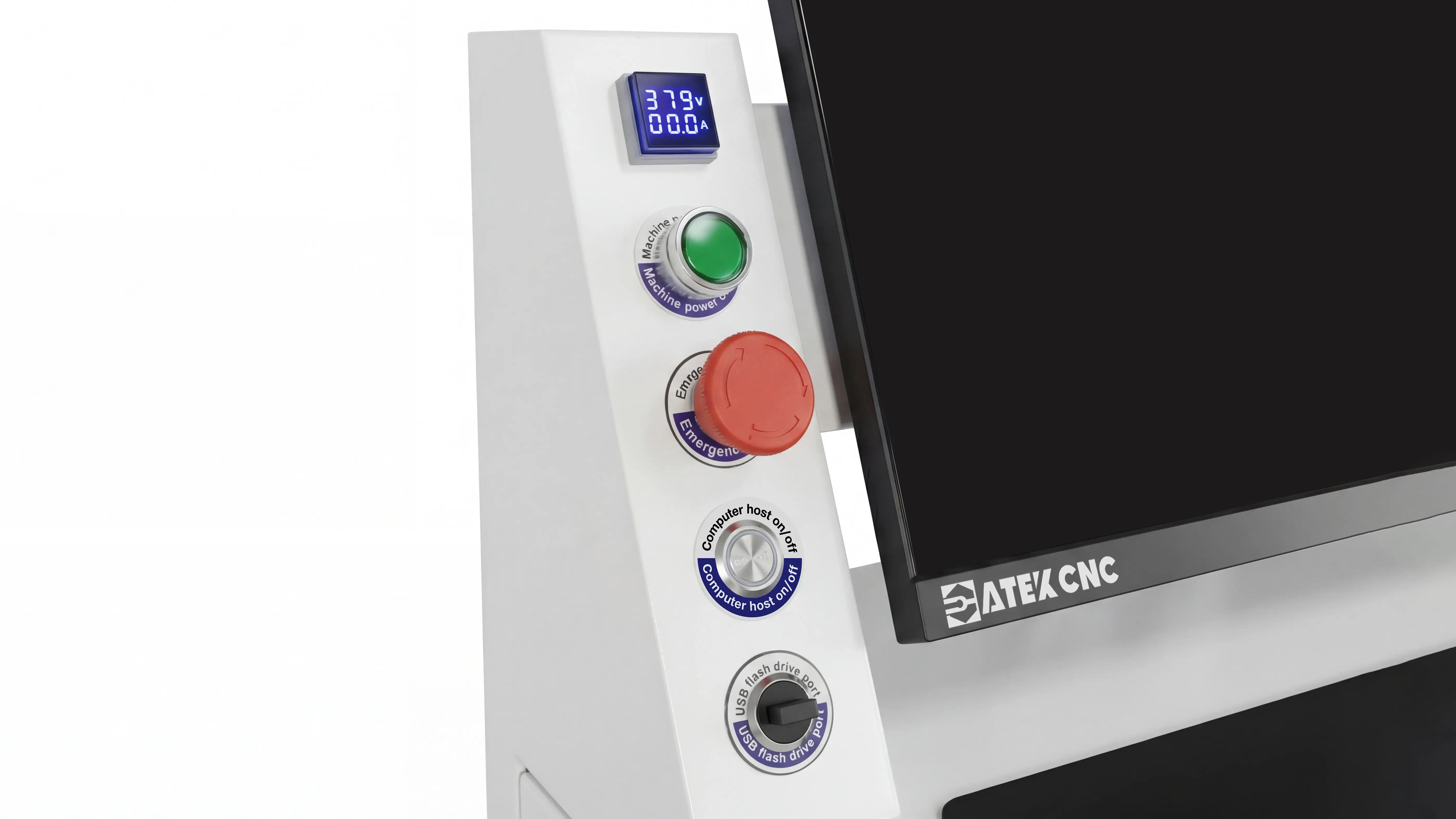

    • High-quality power switches of Spire 1325 CNC wood router

      High-Quality Power Switches

      • Schneider Industrial-Grade Push Button Switch is adopted, featuring arc resistance and wear resistance. With a service life of over 1,000,000 presses, it is perfectly suited for high-frequency operation scenarios in workshops. The emergency stop button comes with a mushroom-head design and self-locking function—pressing it will force the CNC router to shut down immediately, and a clockwise rotation is required for resetting. This design effectively prevents misoperation and complies with international safety standards.
      • Equipped with a high-precision digital current and voltage meter, it can display the voltage and current inside the control cabinet in real time with clear and intuitive readings. Operators can monitor the electrical status of the equipment without additional measuring tools. When abnormalities such as voltage instability or current overload occur, early warnings can be triggered for timely troubleshooting. This avoids equipment damage caused by electrical failures, effectively reduces the failure rate, and ensures long-term stable operation.
      • A dedicated stainless steel external switch is provided for one-touch control of the industrial computer's start-up and shutdown. It also comes with an external USB port that supports direct USB drive connection, facilitating fast transmission of processing files and updating of CNC software to save operation time. With a neat layout, it offers both dustproof and anti-miscontact protection, comprehensively enhancing the operational convenience of the CNC router.

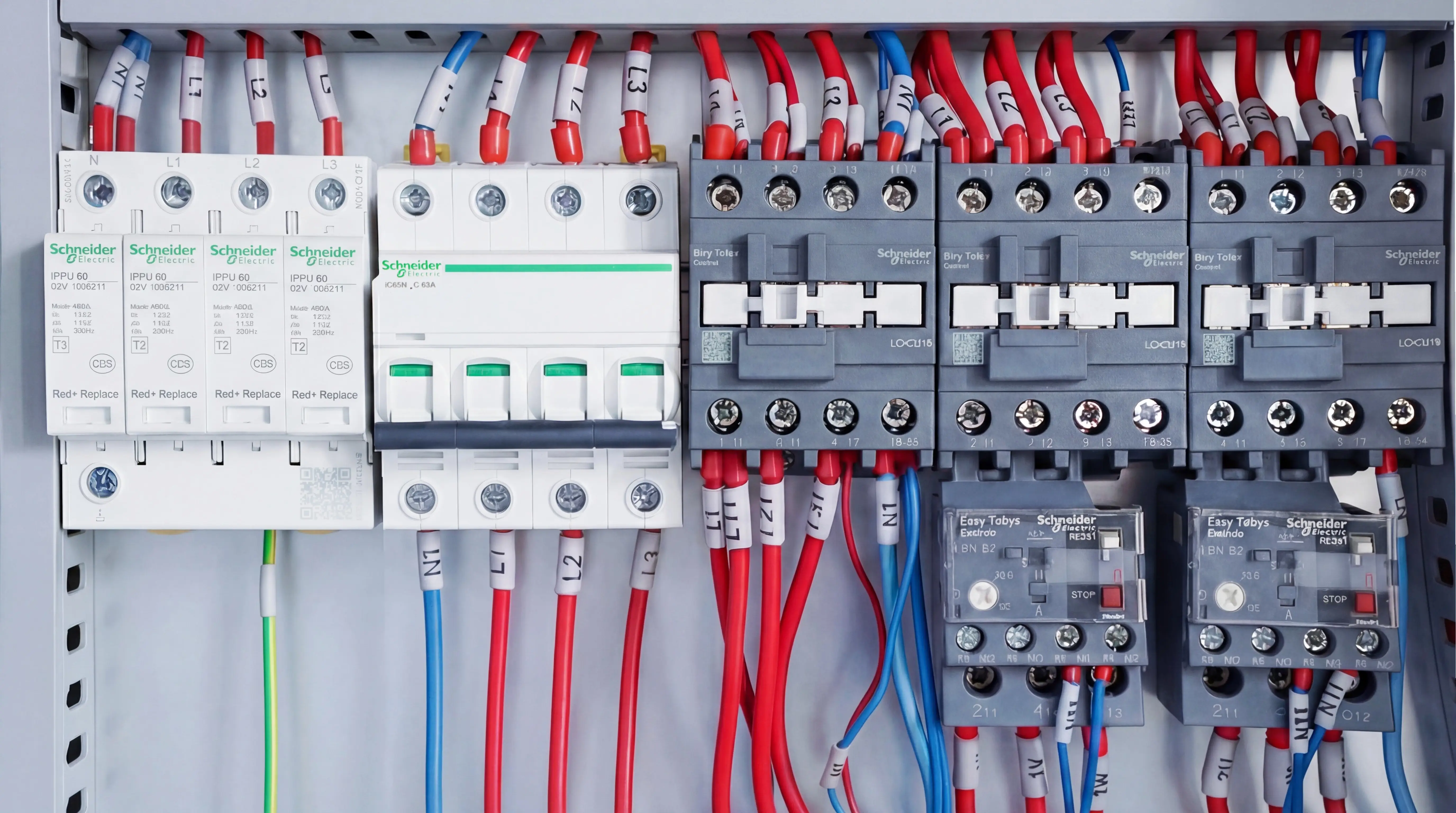

    • Schneider electrical components of Spire 1325 CNC wood router

      Schneider Electrical Components

      • Safety Protection Category: Schneider surge protectors effectively withstand instantaneous overvoltage impacts such as grid surges and lightning strikes. Phase sequence protectors monitor the phase sequence, phase loss and voltage unbalance of the three-phase power supply in real time. Circuit breakers provide short-circuit protection, quickly cutting off the power supply in the event of a line short circuit to ensure equipment safety.
      • Power Control Category: AC contactors are specially designed for on-off control of the CNC router spindle. Withstanding over 1,000,000 high-frequency start-stop cycles, they are perfectly suited to the machine's operational needs of frequent start-ups and shutdowns. Intermediate relay modules are used to expand control functions, they can control positioning cylinders, vacuum pumps and dust collectors, etc.
      • DC Power Supply Unit: The Schneider 24V power supply provides DC power for the CNC system, limit switches, push button indicators and other components, featuring stable voltage with output fluctuation ≤ 1%.
      • The entire set of electrical components adopts a modular design with high compatibility and protection level. It can adapt to various harsh working environments and ensure the long-term stable operation of the CNC router.

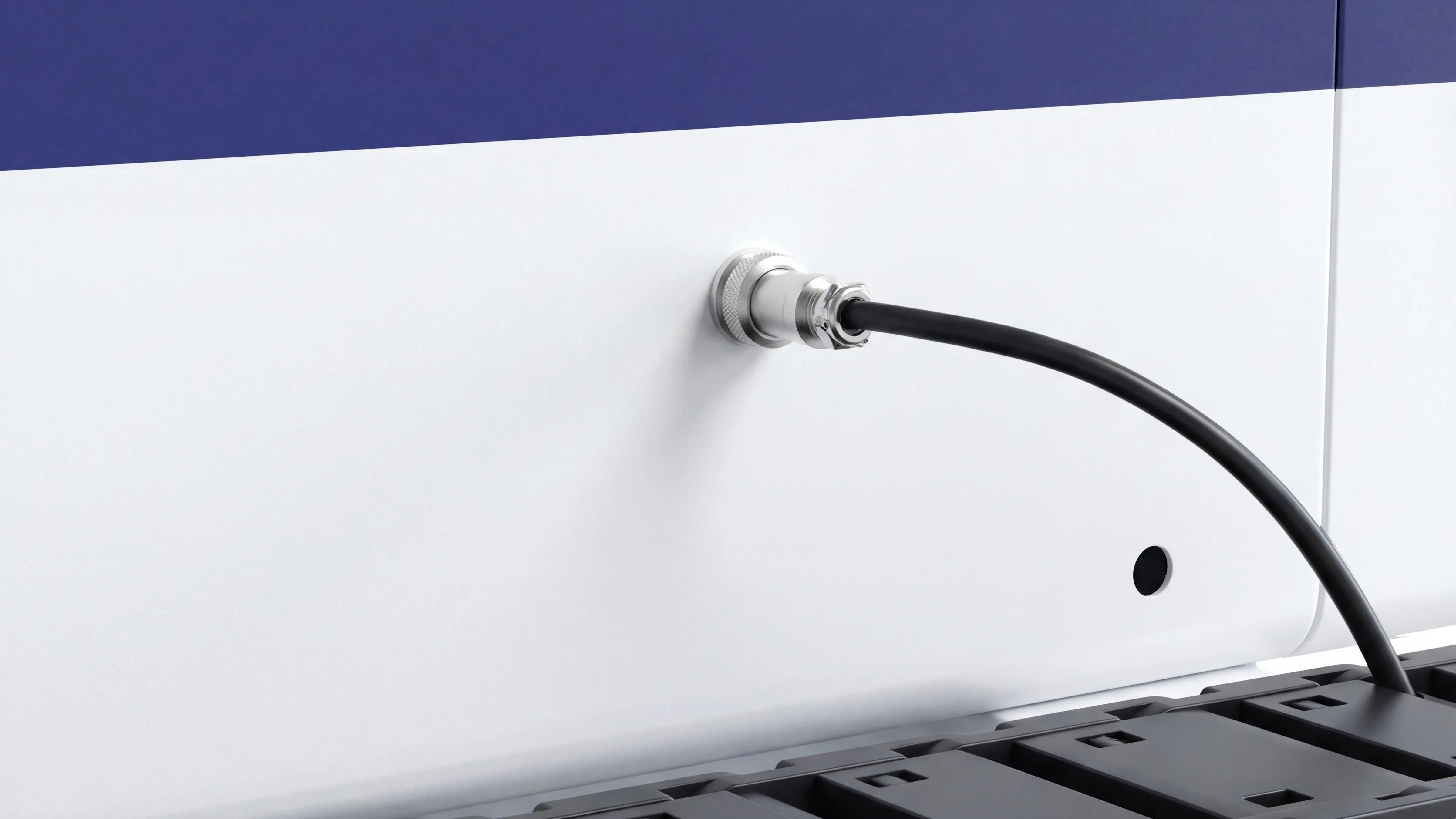

    • High-reliability aviation plugs of Spire 1325 CNC wood router

      High-Reliability Aviation Plugs

      • Industrial-grade aviation plugs are adopted for electrical connection, boasting an IP67 high protection rating. They can effectively prevent moisture and dust intrusion, and avoid issues like oxidation and short circuits that are prone to occur with traditional wiring methods.
      • Aviation plugs feature low contact resistance, arc resistance and oxidation resistance. They also offer excellent vibration resistance, which can effectively withstand vibrations generated during the router's high-speed operation and prevent connection loosening.

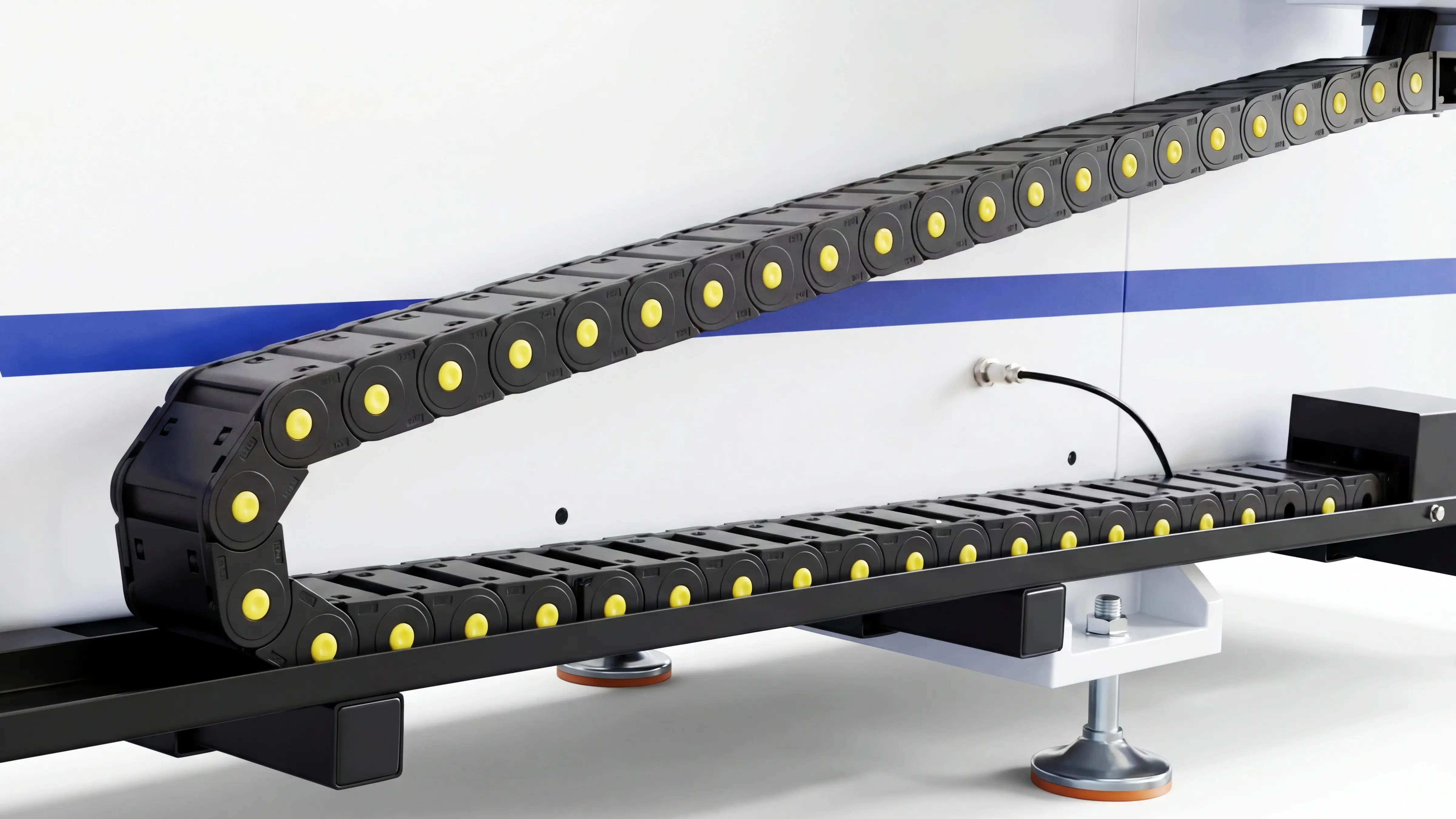

    • Fully enclosed high-strength cable carrier of Spire 1325 CNC wood router

      Fully Enclosed High-Strength Cable Carrier

      • Manufactured from high-strength reinforced nylon, it features a fully enclosed bridge-type structure that completely houses the power cables, signal wires and oil pipes routed along the router's XYZ axes. This design effectively isolates internal components from workshop contaminants such as dust and debris, prevents cable abrasion or pulling, and ensures the stable operation of the electrical system.
      • Withstanding over 1,000,000 bending cycles without damage, its service life far exceeds that of standard cable carriers. Boasting a smooth, burr-free surface, along with impact resistance and wide temperature tolerance, it significantly reduces cable maintenance frequency and enhances the continuous operation of the CNC router.
      • Equipped with a quick-open cover mechanism, it allows users to open the protective cover of specific links without disassembling the entire cable carrier. This facilitates convenient inspection of internal cable wear or connection status, and enab

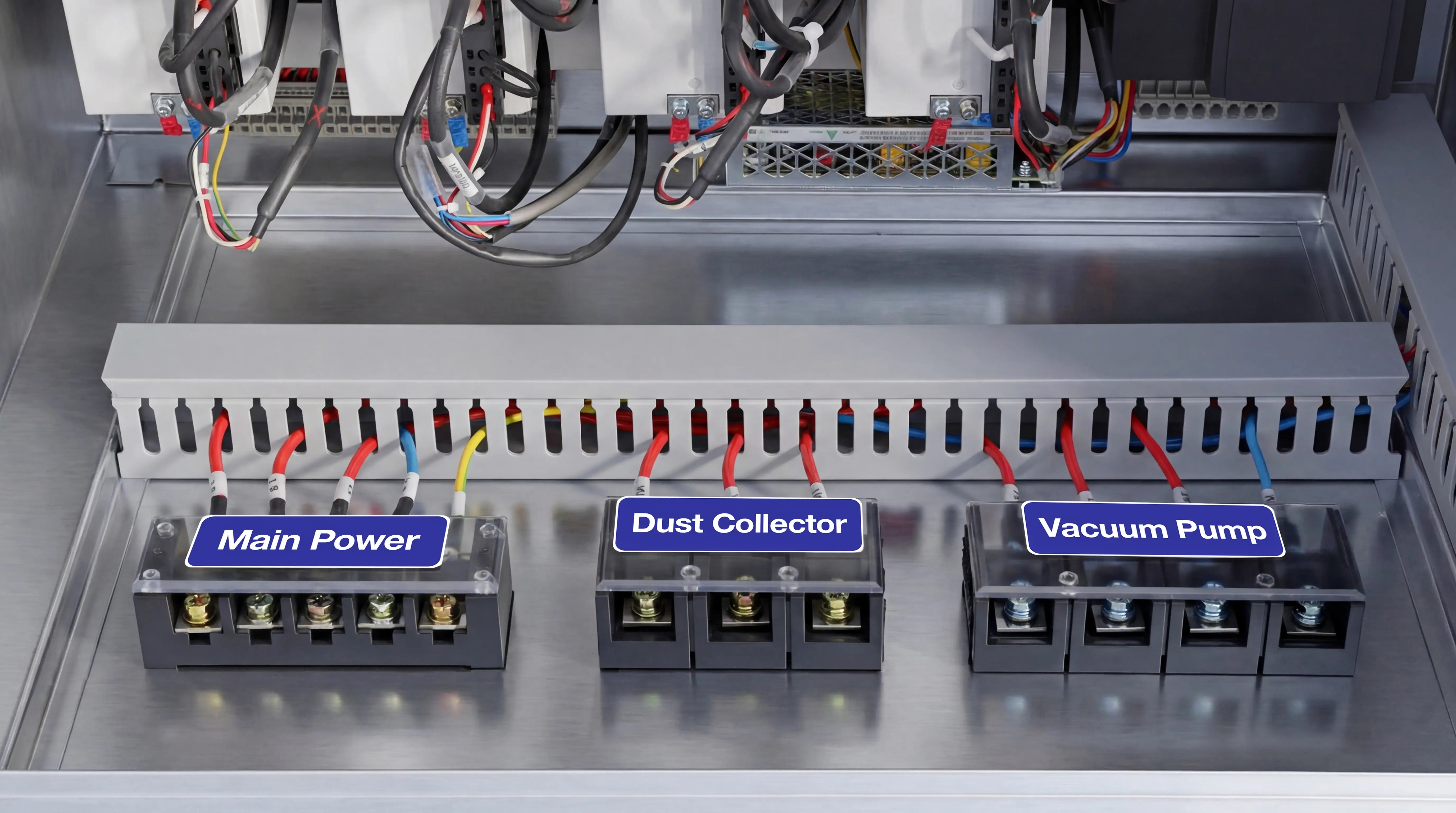

    • High-quality terminal blocks of Spire 1325 CNC wood router

      High-Quality Terminal Blocks

      • Dedicated independent terminal blocks are assigned to the main power supply, dust collector, and vacuum pump, enabling zoned wiring and independent power supply for these three core power components. This effectively prevents electromagnetic interference to the CNC system caused by instantaneous current fluctuations generated during the startup and shutdown of the dust collector and vacuum pump, ensuring stable and precise transmission of equipment commands.
      • Boasting excellent high-current carrying capacity, the terminal blocks adopt a secure screw-clamp Connection wiring structure. It resists vibration interference in the workshop, eliminates potential risks of connection loosening, and provides reliable guarantee for the long-term stable operation of the electrical system.

    Hassle-Free Tool Setting, Achieving a Leap in CNC Router Machining Efficiency and Precision!

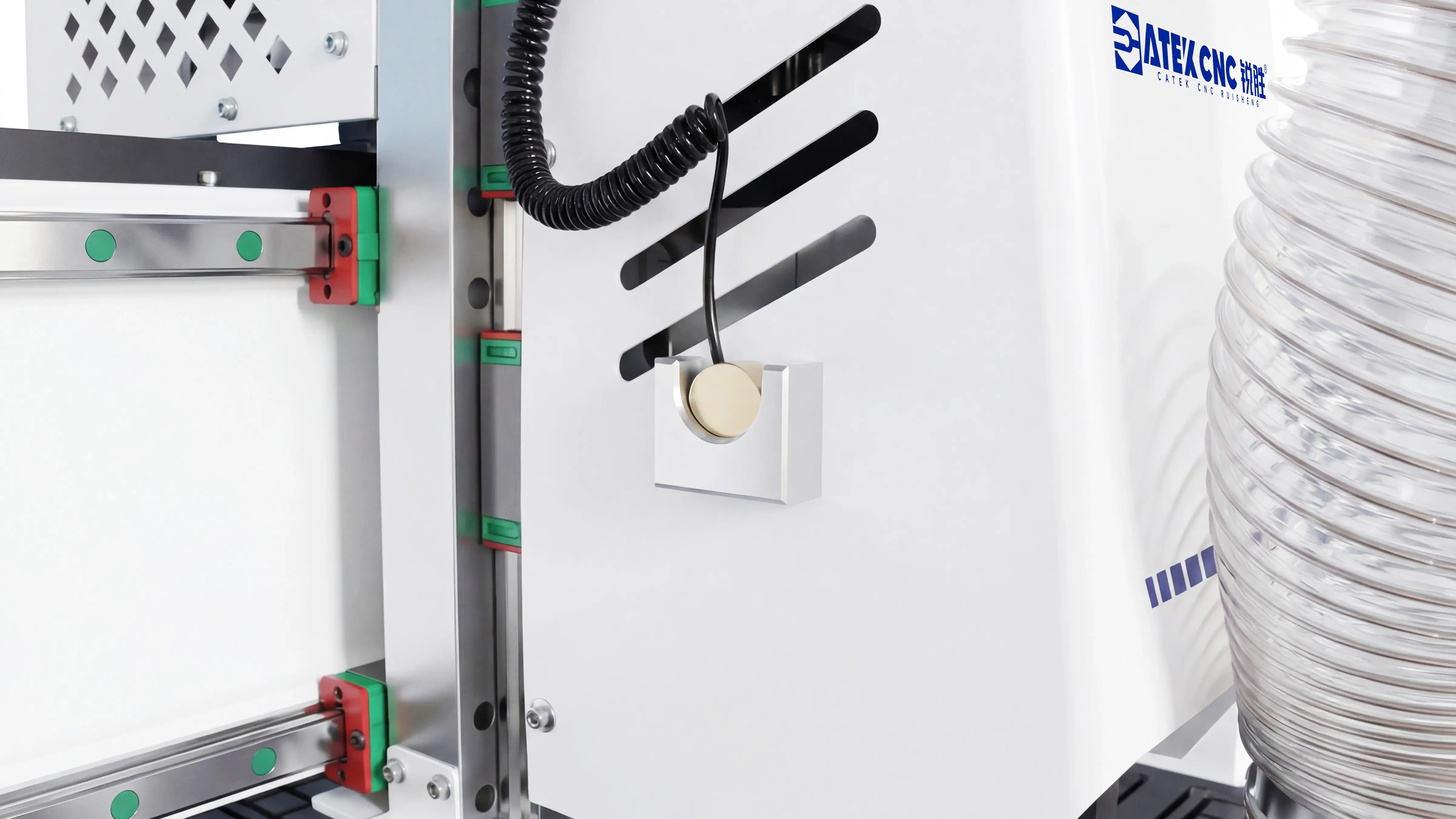

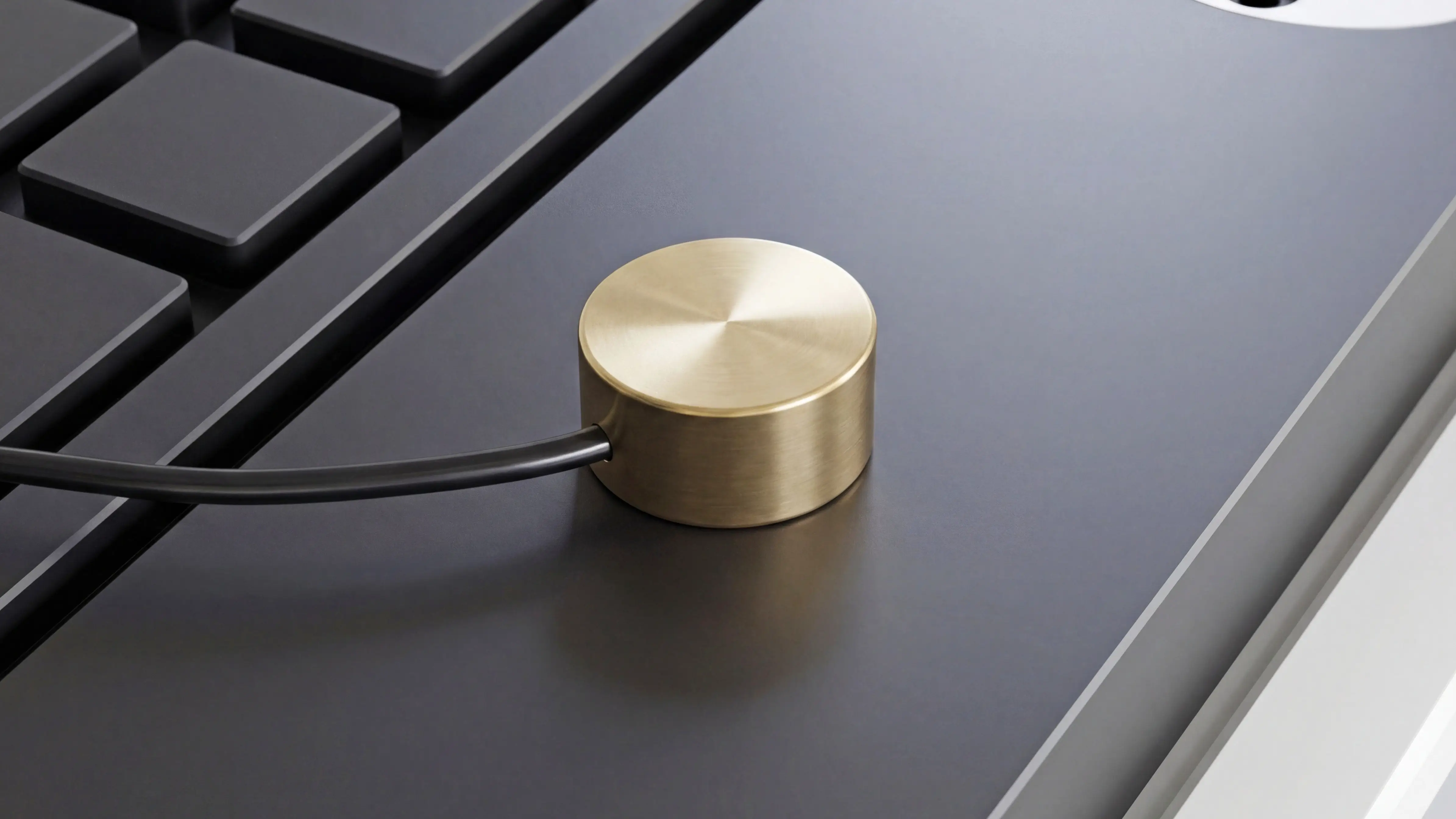

    Automatic Tool Setter

    • The CNC router machine is equipped with a high-precision contact-type automatic tool setter, which can measure the length of various tools and automatically transmit the data to the control system, assisting in setting the machining origin with a positioning accuracy of 0.01mm.
    • This completely avoids machining dimension deviations caused by tool length errors, ensures the consistency of batch-processed workpieces, and meets various high-precision machining requirements.
    • There is no need for manual repeated measurement after tool replacement; the tool setting process can be completed within 3 seconds, significantly shortening downtime during tool changes. Compared with manual tool setting, efficiency is increased by more than 80%, making operation simpler and more efficient.
    Automatic tool setter for Spire 1325 CNC wood router
    Automatic tool setter for Spire 1325 CNC wood router

    Effortless Loading + Automatic Positioning & Adsorption, Enabling Rapid Board Clamping!

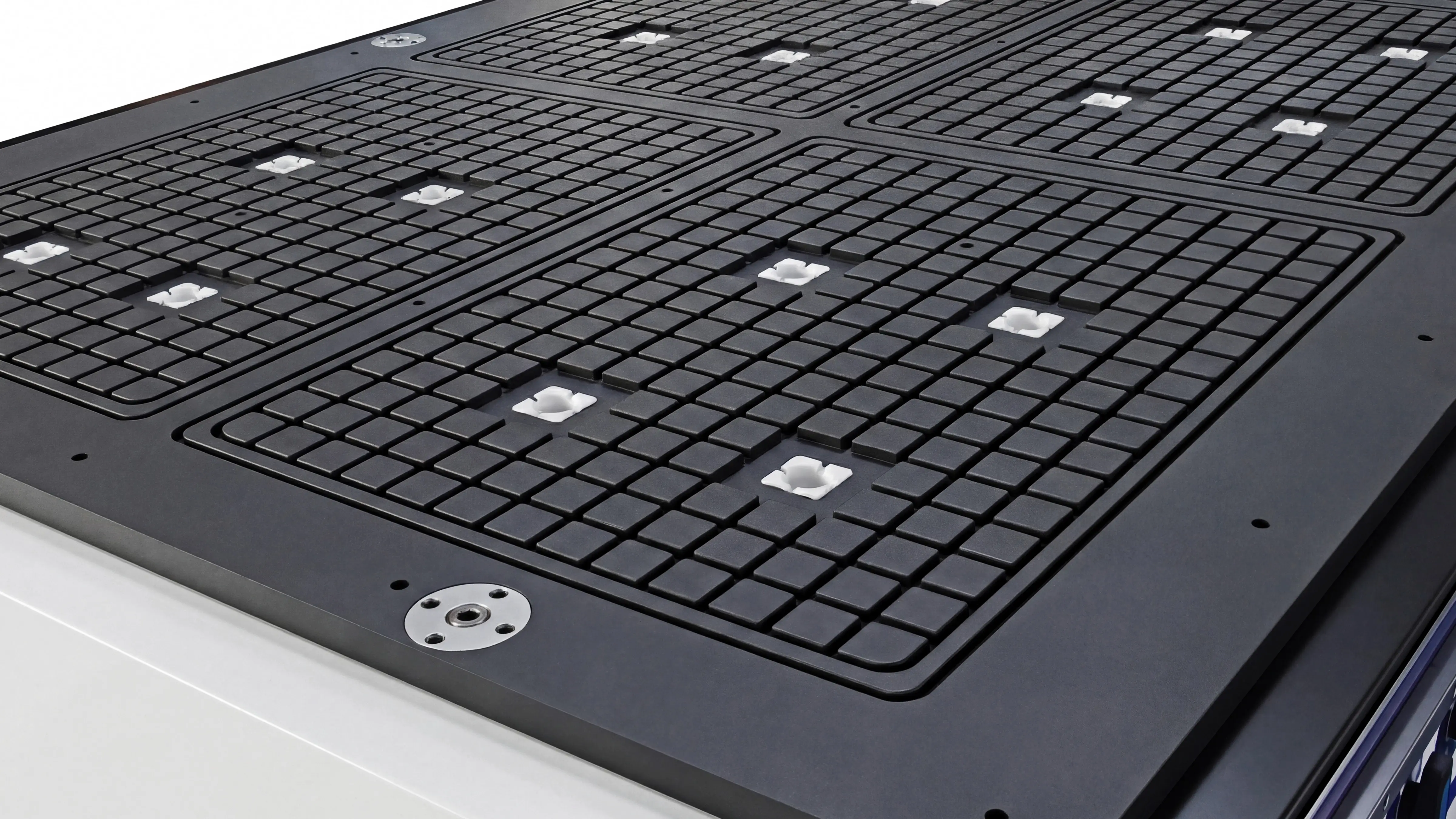

    Vacuum worktable of Spire 1325 CNC wood router

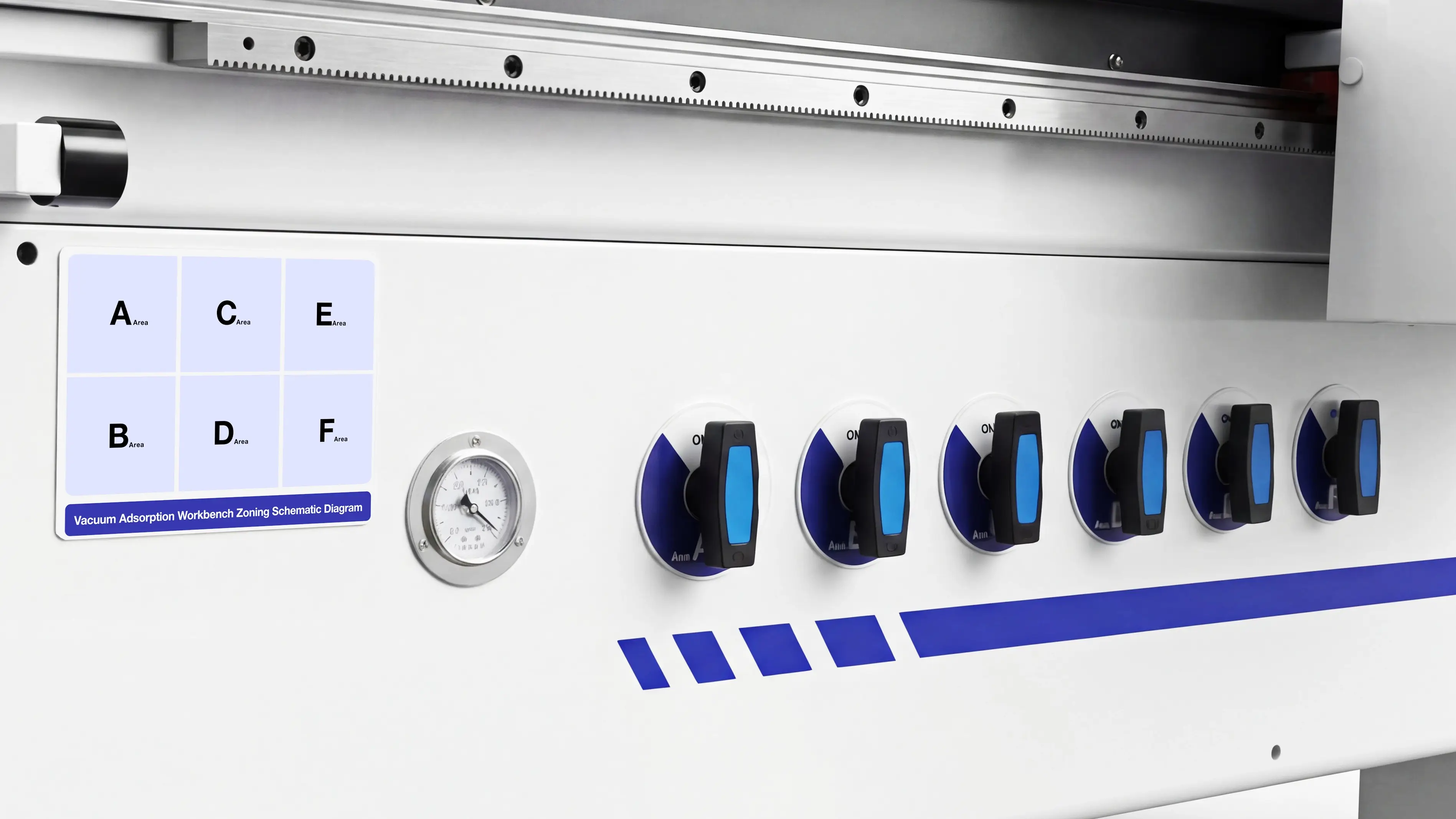

    Vacuum zone control switches of Spire 1325 CNC wood router

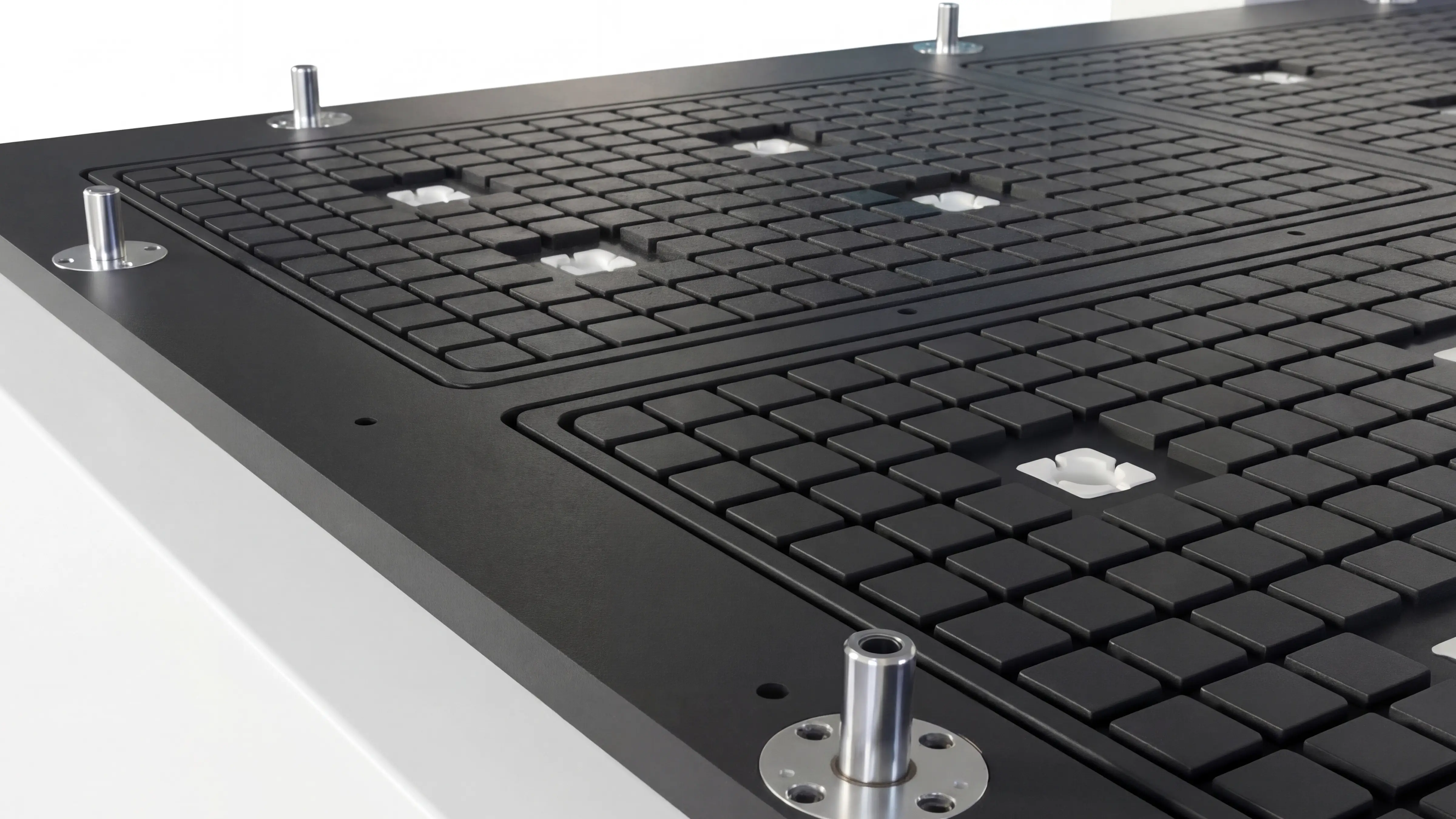

    4+2 positioning cylinders of Spire 1325 CNC wood router
    Auxiliary loading rollers of Spire 1325 CNC wood router

    Vacuum Worktable

    Vacuum Zone Control Switches

    4+2 Positioning Cylinders

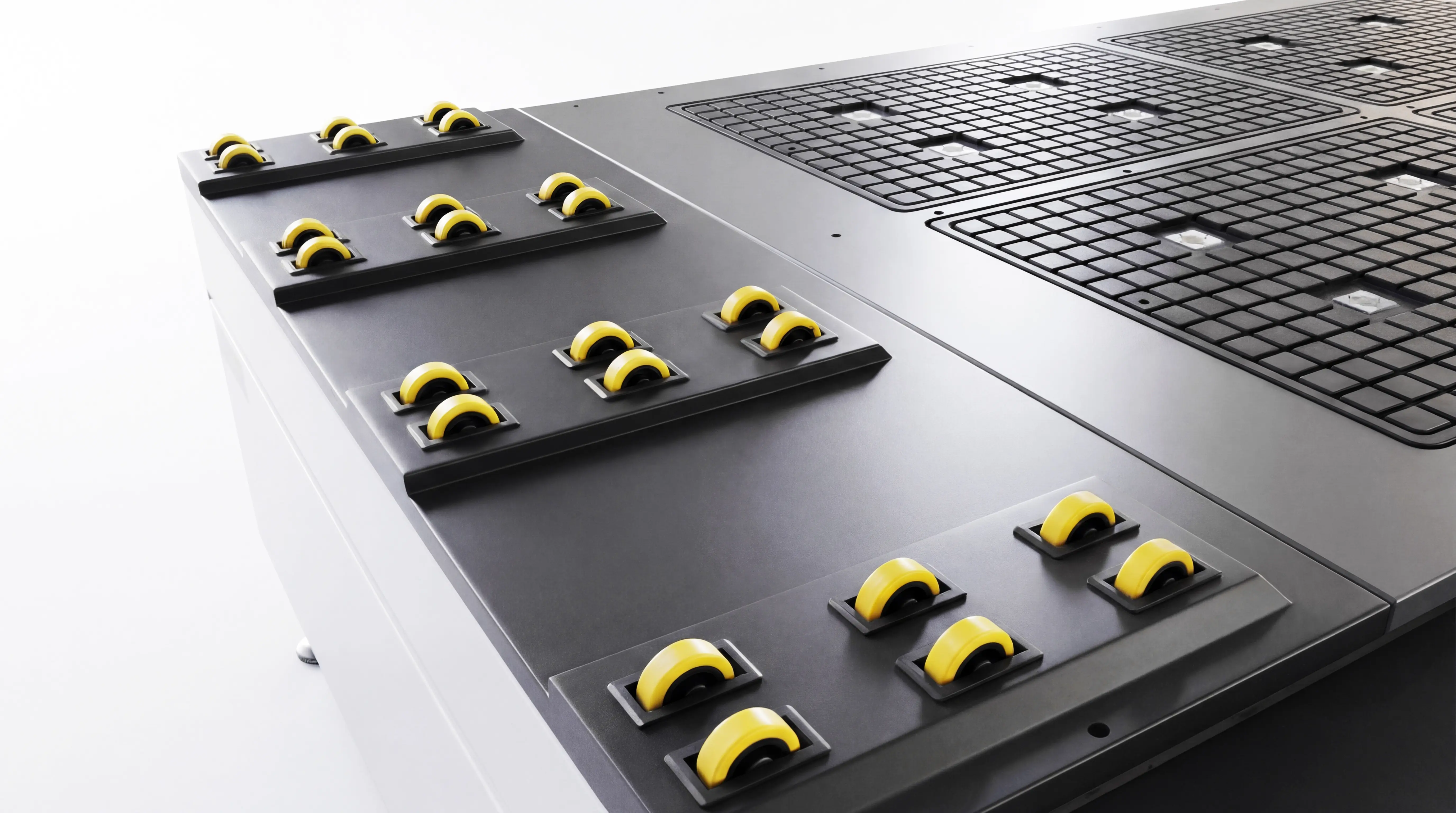

    Auxiliary Loading Rollers

    • The CNC router machine adopts a 6-zone, 24-hole vacuum worktable. Each zone can be independently controlled to open or close, so as to adapt to the processing needs of plates of different sizes: a single zone can be activated alone for small-size plates, while multiple zones can be opened for coordinated adsorption of large-size plates. The 24 air holes are evenly distributed in each zone, ensuring uniform force on the plate and avoiding warping or displacement caused by uneven adsorption.
    • The zoned adsorption mode supports simultaneous clamping and processing of multiple plates. Workpieces of different sizes can be fixed in different zones respectively, or multiple plates can be fixed in batches. This realizes one-time feeding and completes the same process for multiple plates, greatly improving the batch processing efficiency.
    • The worktable is made of high-strength wear-resistant materials, and the layout of holes and vacuum grooves is carefully designed to be compatible with various materials such as wood panels, MDF, acrylic, and aluminum-plastic panels. It can not only firmly adsorb flexible plates as thin as 2mm, but also stably fix solid wood panels or MDF panels of various thicknesses. Equipped with a high-power variable-frequency scroll vacuum pump, it has long-lasting and strong adsorption capacity, which can completely replace traditional fixtures and realize non-marking clamping processing.
    • The worktable is configured with 6 adsorption zones, each controlled by a dedicated switch. Operators can activate or deactivate any zone individually based on specific machining requirements.
    • When processing small-sized plates, only a single zone needs to be turned on, which significantly reduces the energy consumption of the vacuum pump. For large-sized plates, multiple zones can be activated simultaneously to achieve uniform adsorption force and secure workpiece fixation.
    • A vacuum negative pressure gauge is equipped to display the real-time adsorption pressure value. This allows operators to monitor the adsorption status intuitively, effectively preventing plate displacement or machining deviations caused by insufficient adsorption force, and thus ensuring a stable and reliable machining process.
    • The wood panel positioning system adopts a 4+2 layout: 2 positioning cylinders are configured along the X-axis, and 4 positioning cylinders along the Y-axis, forming an overall L-shaped distribution. After the plate is loaded, the cylinders rise, and plate positioning can be completed simply by abutting the plate against the edges of the cylinders. This function ensures that the edge of large-size plates is accurately aligned with the machining zero point after loading, effectively avoiding positioning errors.
    • Controlled by the CNC system, the positioning cylinders feature fast response speed, with lifting actions completed within 0.5 seconds, increasing feeding efficiency by more than 50%.
    • The system system establishes a unified machining coordinate datum by the positioning cylinders. When performing double-sided processing of plates, the cylinders can assist in repositioning the plate to the exact position of the first side after flipping, with a repeat positioning accuracy of ±0.02mm. This function effectively avoids dimensional deviations, hole misalignment, edge irregularities and other issues that may occur after plate flipping, ensuring the perpendicularity and coaxiality of double-sided processing.
    • Equipped with 8 rows (24 in total) of auxiliary loading rollers at the rear of the worktable, the loading rollers can easily bear large-sized and heavy plates. There is no need for two workers to lift the plates—a single operator can place the plate on the loading rollers and smoothly push or pull it into the machining area.
    • The loading rollers are made of high-wear-resistance nylon and polyurethane materials, and smooth rolling. They can effectively prevent scratches on the back of scratch-prone materials such as plates and acrylic sheets. With a height slightly higher than the worktable surface, the rollers also avoid scraping between the plate and the tabletop during conveying.
    • This device has excellent adaptability to plates of various thicknesses. Compared with manual loading, it saves over 70% of labor and significantly shortens the loading time.

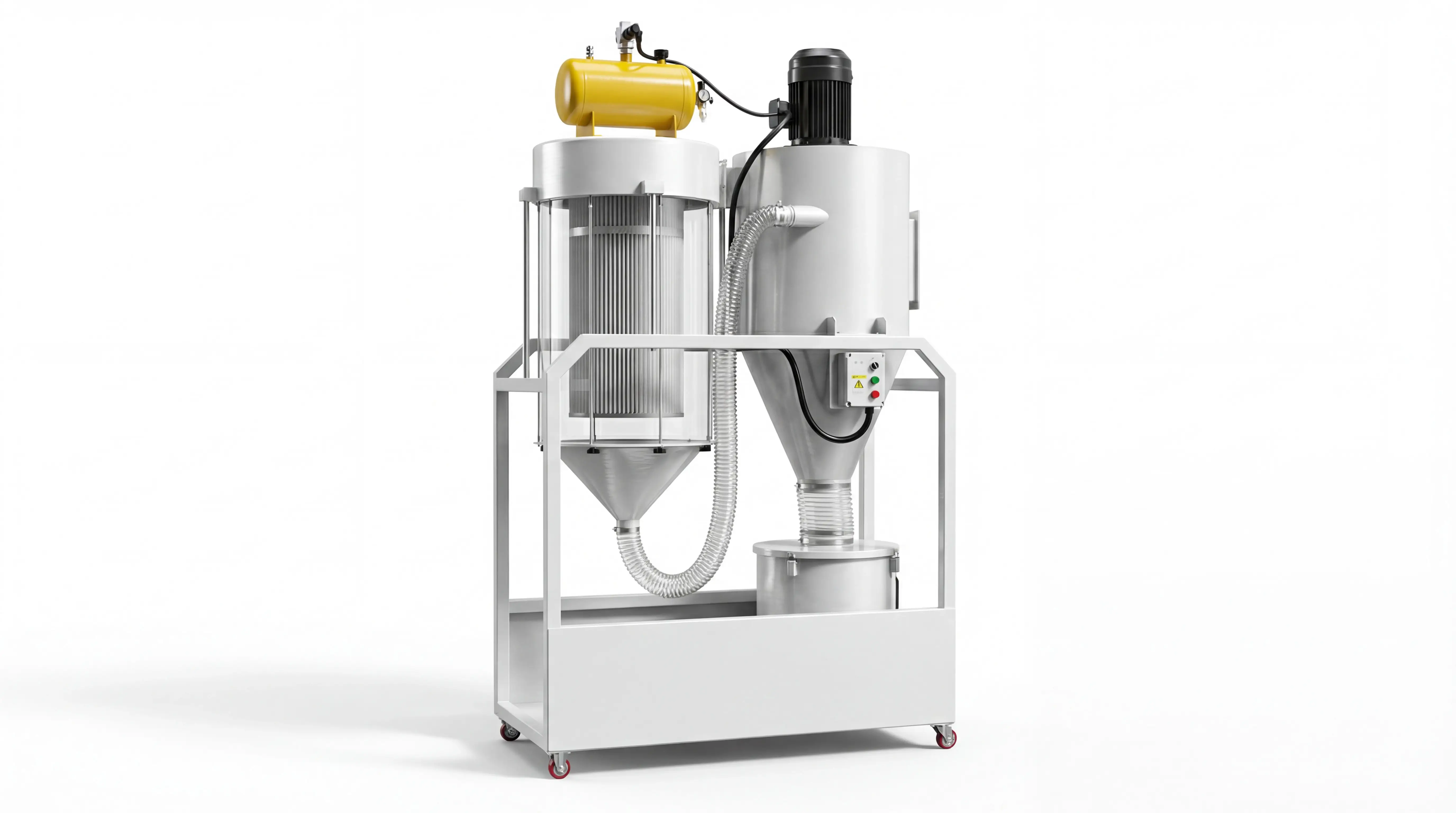

    Professional Air Pump & Dust Collection System for a Stable, Clean Machining Environment!

    7.5KW pulse cyclone dust collector of Spire 1325 CNC wood router

    7.5kW Pulse Cyclone Dust Collector

    • Equipped with a 7.5kW high-efficiency motor, it provides strong negative pressure suction, easily handling various wastes such as wood chips and dust generated during the machining process. Adopting cyclone centrifugal separation technology, the high-speed rotating air flow directly throws large-particle wastes into the dust collection bucket. Small-particle dust is filtered through the filter element and then shaken off into the dust collection bucket by the pulse cleaning system, preventing fine dust from escaping from the air outlet to cause secondary pollution.
    • A built-in intelligent pulse backblowing system sprays high-pressure air flow regularly to automatically clean dust attached to the surface of the filter element. No shutdown or manual disassembly and cleaning are required, ensuring continuous and stable suction.
    • Compared with traditional dust collection equipment, the dust removal efficiency is increased to over 98%. It is equipped with a 150mm large-diameter dust collection pipe, which can be directly connected to the HSD spindle to achieve dust collection at the source. It effectively prevents dust from floating in the workshop and complies with environmental protection operation standards.
    Pulse cleaning
    Cyclone vacuum cleaner
    9kW variable frequency vacuum pump of Spire 1325 CNC wood router

    9kW High-Power Variable Frequency Constant Pressure Vacuum Pump

    • Equipped with a 9kW high-efficiency motor and variable frequency control technology, it can adjust the rotation speed on demand to output strong adsorption force, easily coping with high-load machining scenarios such as large-sized plates and multi-zone simultaneous adsorption.
    • A built-in high-precision negative pressure sensor monitors the system pressure in real time and performs dynamic compensation, keeping the adsorption pressure stably at the set value and effectively avoiding plate displacement or warping caused by pressure fluctuations.
    • It adopts water-free and oil-free dry operation, completely eliminating oil stains or water stains from contaminating plates and vacuum pipelines. Compared with traditional vacuum pumps, its variable frequency technology can save more than 30% energy, combining strong adsorption and high energy efficiency. It supports 24-hour continuous and stable operation of the equipment.
    Variable Frequency
    70KPa
    520m³/h

    Intelligent Auto Lubrication + Anti-Fouling Oil Drip Tray, Safeguarding Long-Term Smooth & Clean Operation!

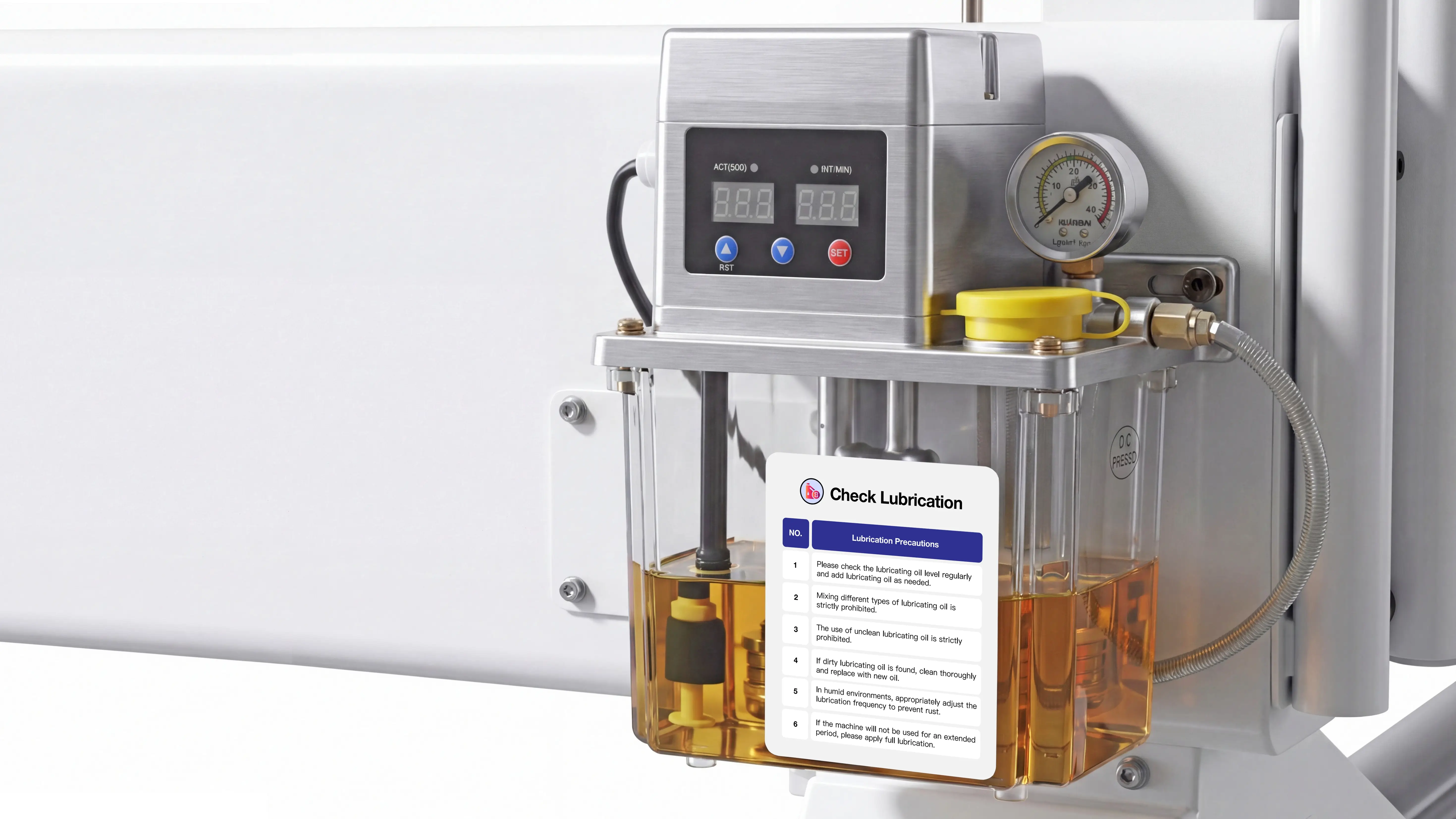

    Large-Capacity Automatic Lubrication System

    • Equipped with a 1.5L large-capacity automatic lubricating oil pot, it has a built-in programmable controller that allows setting the lubrication cycle and single lubrication duration as needed, accurately supplying oil to key transmission components such as XYZ axis guideways, lead screws and sliders.
    • High-strength sealed oil pots and wear-resistant oil pipes are adopted, with the pipe surface covered by a wear-resistant steel wire sheath for strong bending resistance. An oil distributor is installed at the oil outlet to ensure uniform oil supply to each lubrication branch, avoiding lubrication delay or insufficiency.
    • The system starts automatically when the CNC router is powered on and shuts down automatically when the CNC router stops, with no manual intervention required throughout the process. It also features an oil level monitoring function that triggers a refill alert when the lubricant level is too low.
    Automatic lubrication system for Spire 1325 CNC wood router

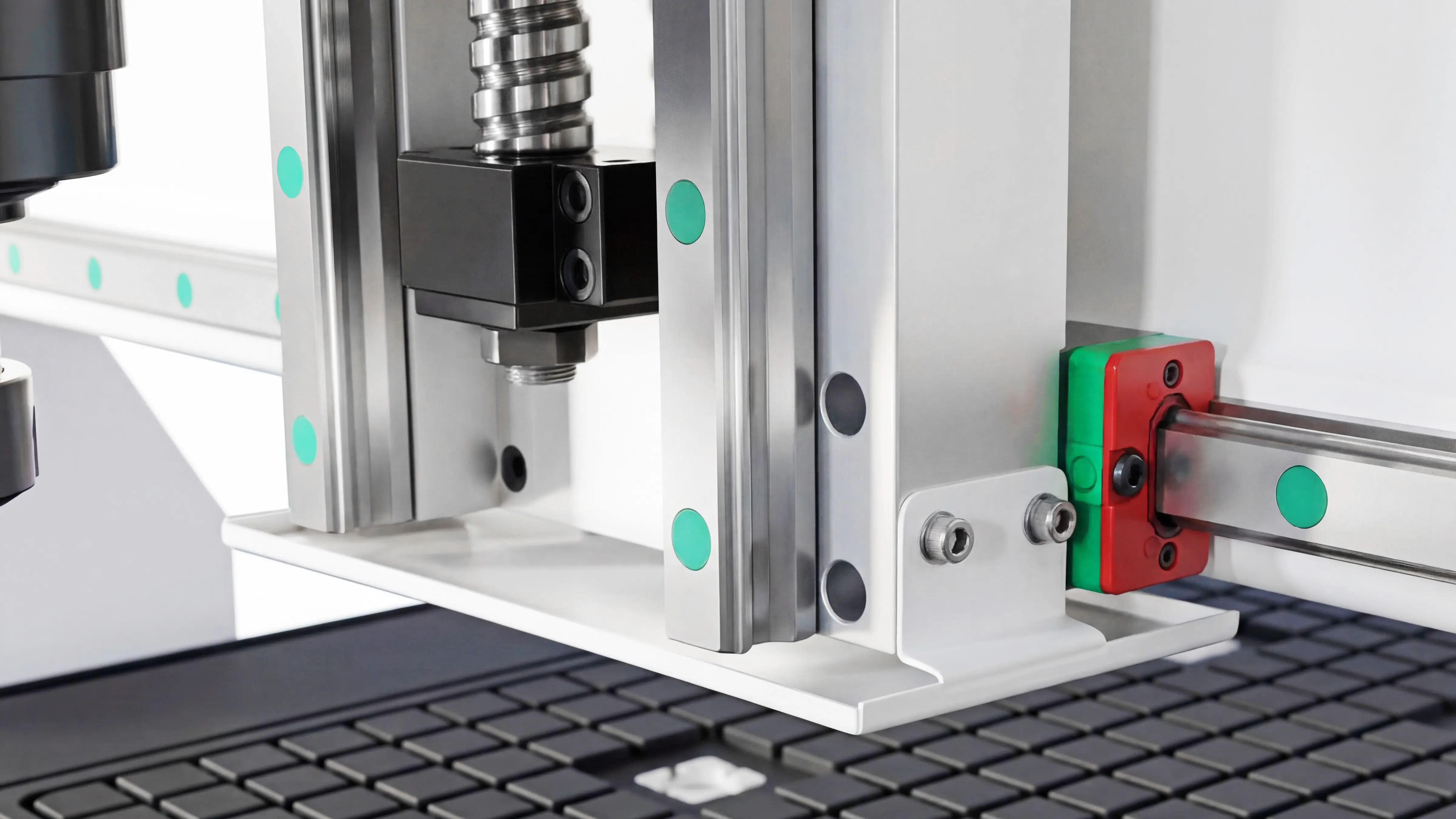

    Oil Drip Tray for Z-Axis

    • An oil drip tray is installed under the Z-axis lead screw and guideway to fully collect residual oil dripping from the lubrication system, preventing contamination of the plate surface. It is especially suitable for materials with high surface cleanliness requirements such as MDF boards and solid wood boards.
    • It adopts a quick-release structure, which can be disassembled and cleaned with an Allen wrench. The collected lubricating oil can be reused after filtration, effectively reducing lubricating oil consumption.
    Oil drip tray for Spire 1325 CNC wood router

    Spire Systematic Service, From Exclusive After-Sales to Technical Support, Thoughtful & Comprehensive Assistance for You!

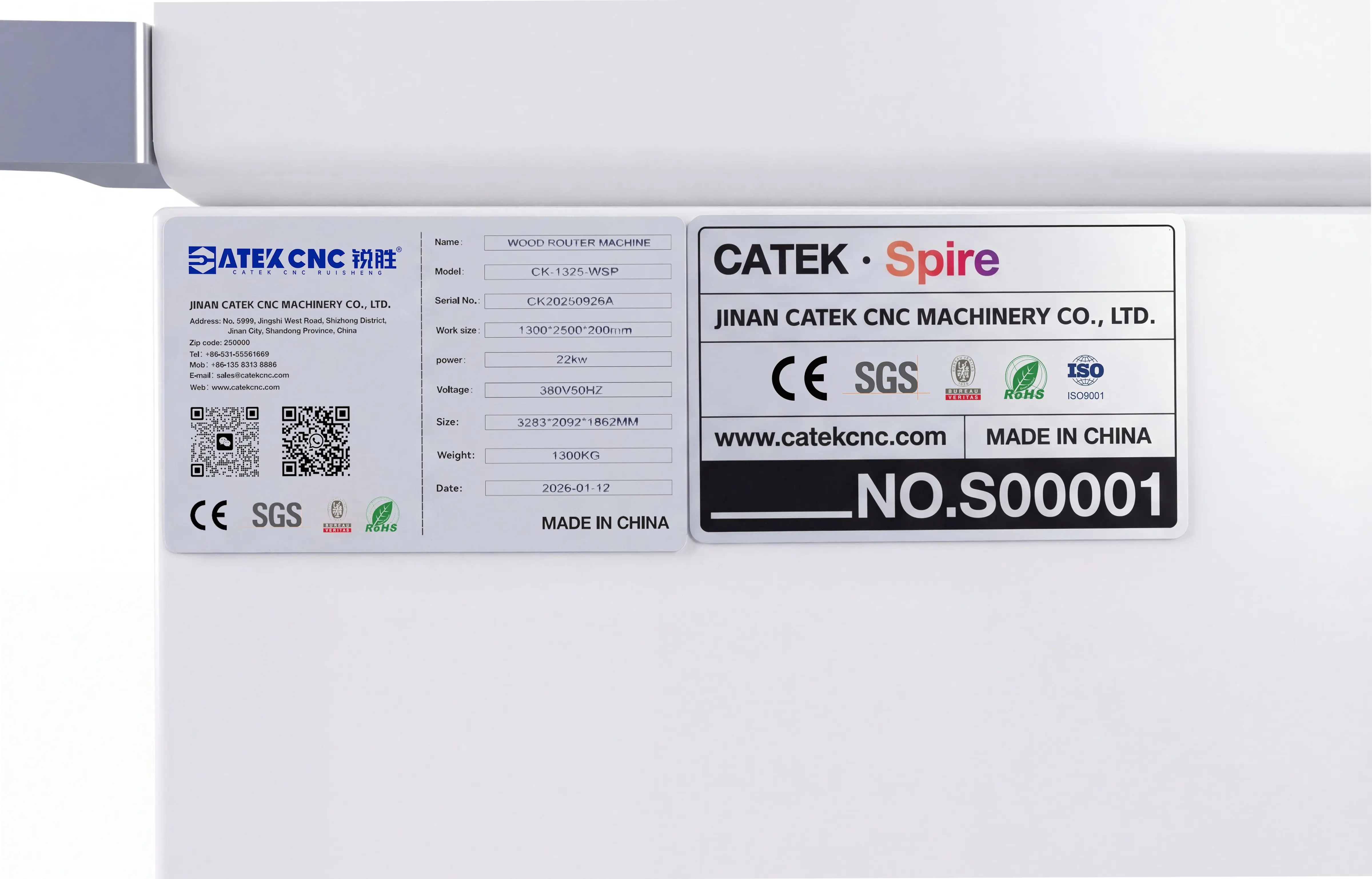

    Spire series exclusive serial number of Spire 1325 CNC wood router

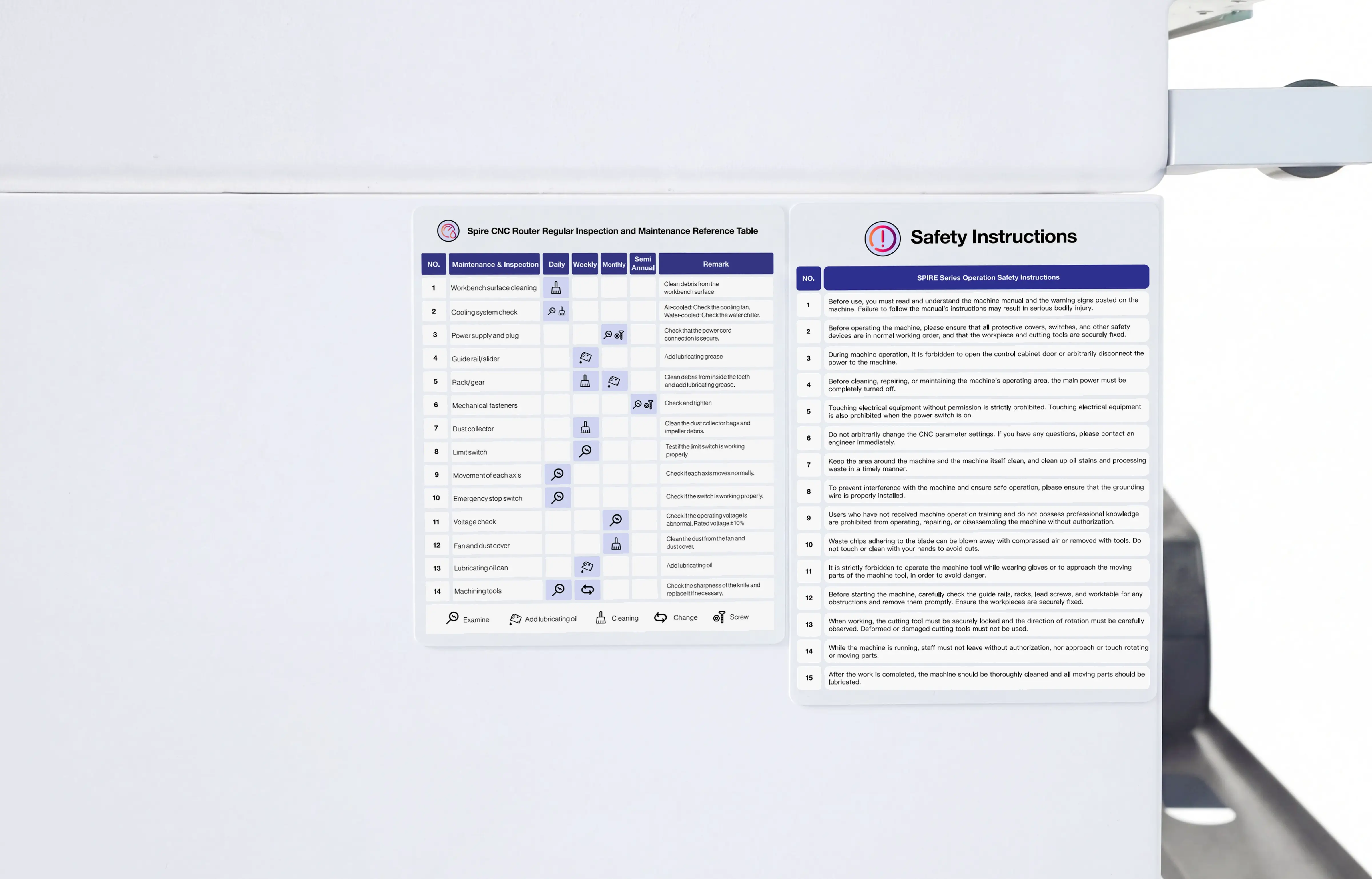

    Maintenance instructions of Spire 1325 CNC wood router

    Spire Series Exclusive Serial Number and After-Sales Support

    • Each Spire Series CNC Router is assigned a unique exclusive serial number. With this number, users can enjoy a 5-year exclusive warranty policy for the machine, receive one-on-one 7*24 online service from a dedicated after-sales team, and benefit from lifelong free maintenance and software upgrades, bringing you a worry-free user experience throughout the entire process.
    • Detailed maintenance instructions and machine operation precautions are attached to the back of the machine. They help operators understand standard operation guidelines and maintenance procedures, extend the machine's service life, and ensure stable operation of the machine.
    User manual, warranty card, quick guide, machine certificate and letter of thanks

    Exclusive Warranty Card / Certificate of Conformity / Quick Start Guide / Operation Manual

    • Each machine is accompanied by an exclusive warranty card, serving as the core warranty certificate for the Spire Series CNC Router. With this card, users can enjoy 5-year free whole-machine maintenance and parts replacement services provided by the original factory, fully protecting users' after-sales rights and interests.
    • Equipped with a quick operation guide designed specifically for beginners, it refines core operation steps in graphic and text form, covering equipment power connection, basic machining settings, vacuum pump and dust collector connection, etc. It helps users with zero foundation quickly master the usage method and start machining easily.
    • A 120-page detailed technical manual is included, containing overall machine structure diagrams, step-by-step installation processes, system parameter debugging and quick machining guides. With clear logic, it can not only be used by professionals for standard installation and debugging, but also serve as a reference manual for daily maintenance.
    • An authoritative factory qualification certificate for the Spire Series CNC Router is provided. The certificate clearly marks the machine model, exclusive serial number and quality inspection seal, proving that its production process is compliant, technical parameters meet the standards, and it is fully in line with industry standards.

    Professional-Grade Accessory Kit, Meeting Diverse Machining & Rapid Maintenance Needs!

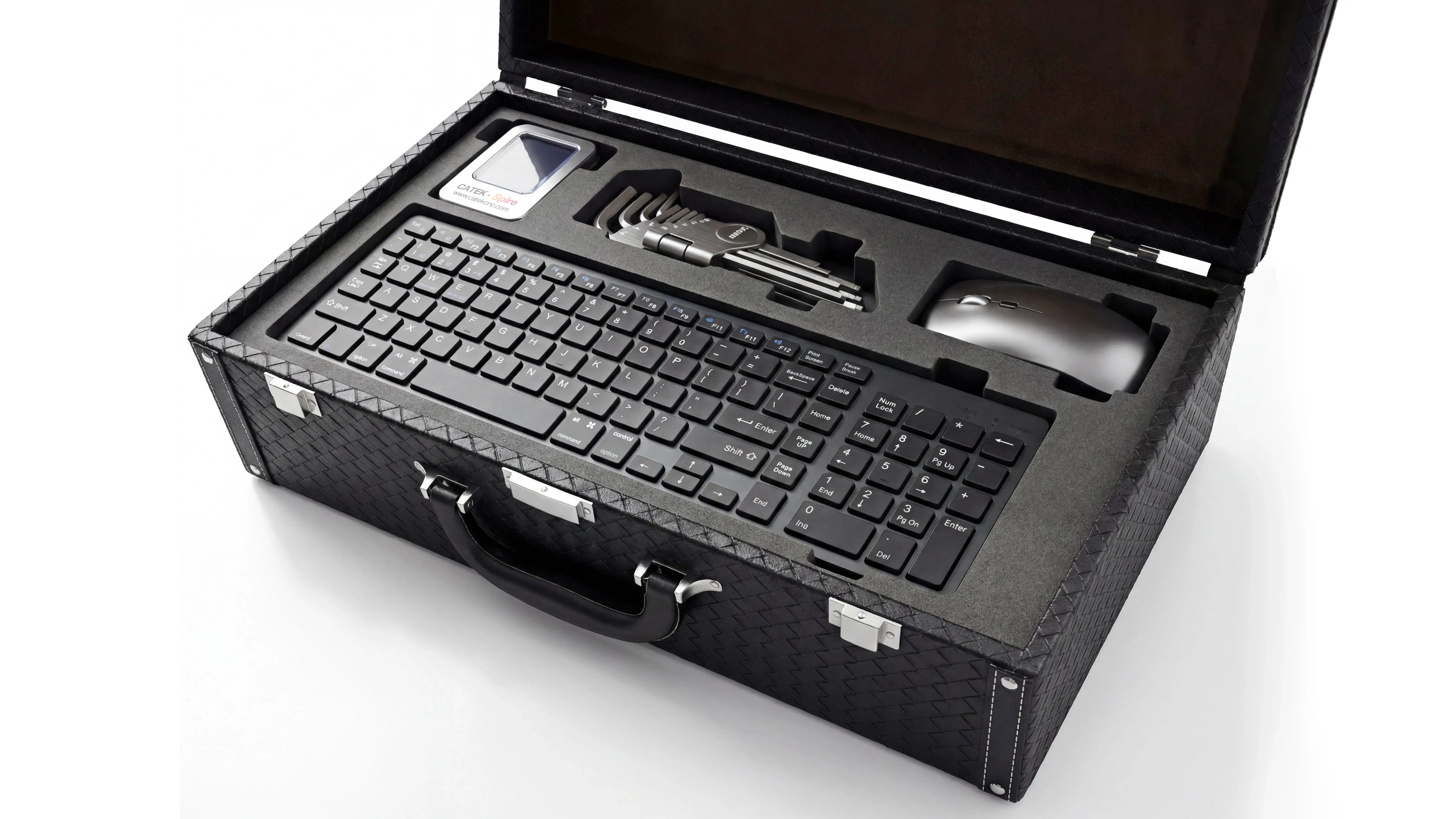

    Toolbox first layer of Spire 1325 CNC wood router

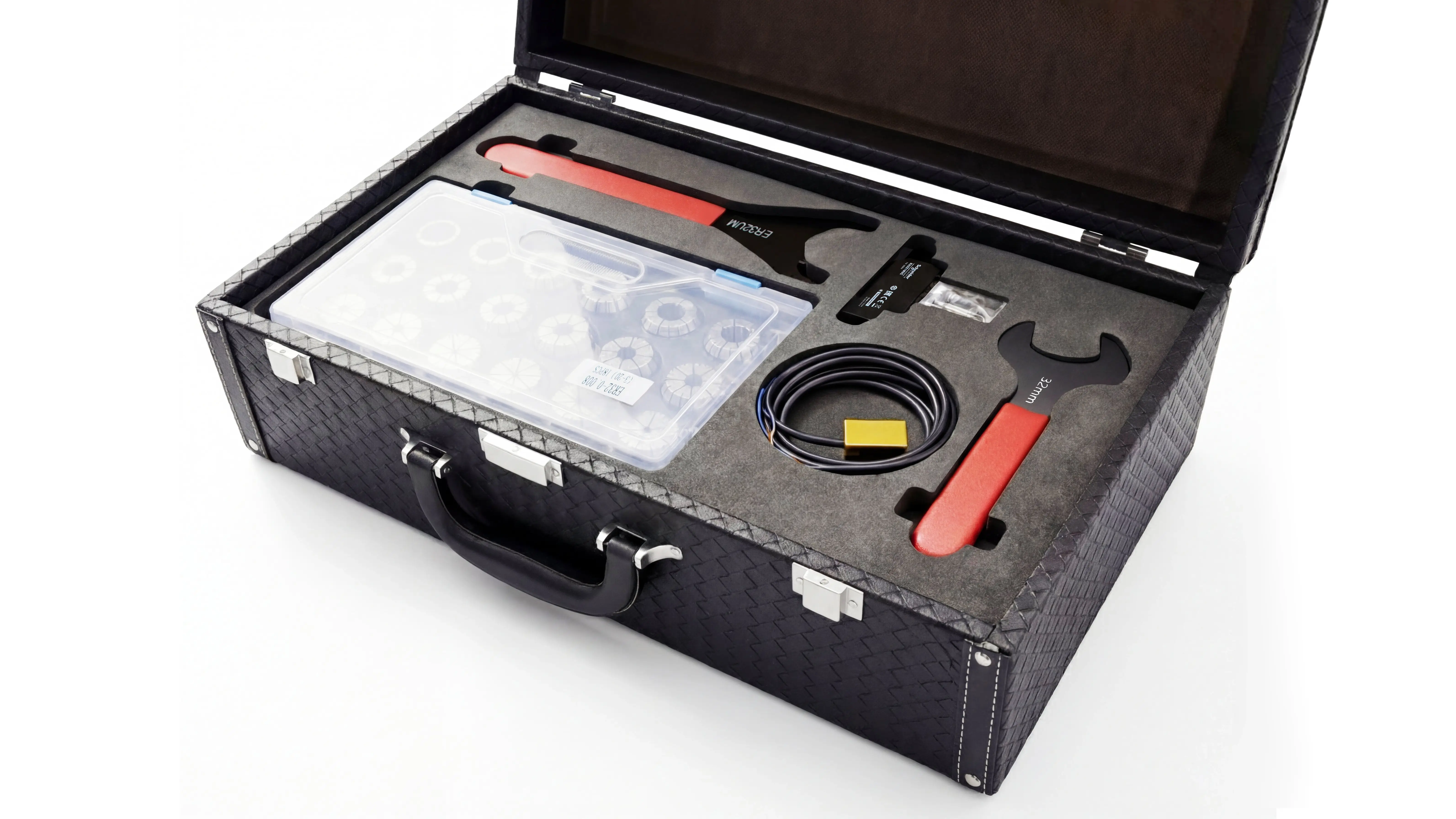

    Toolbox second layer of Spire 1325 CNC wood router

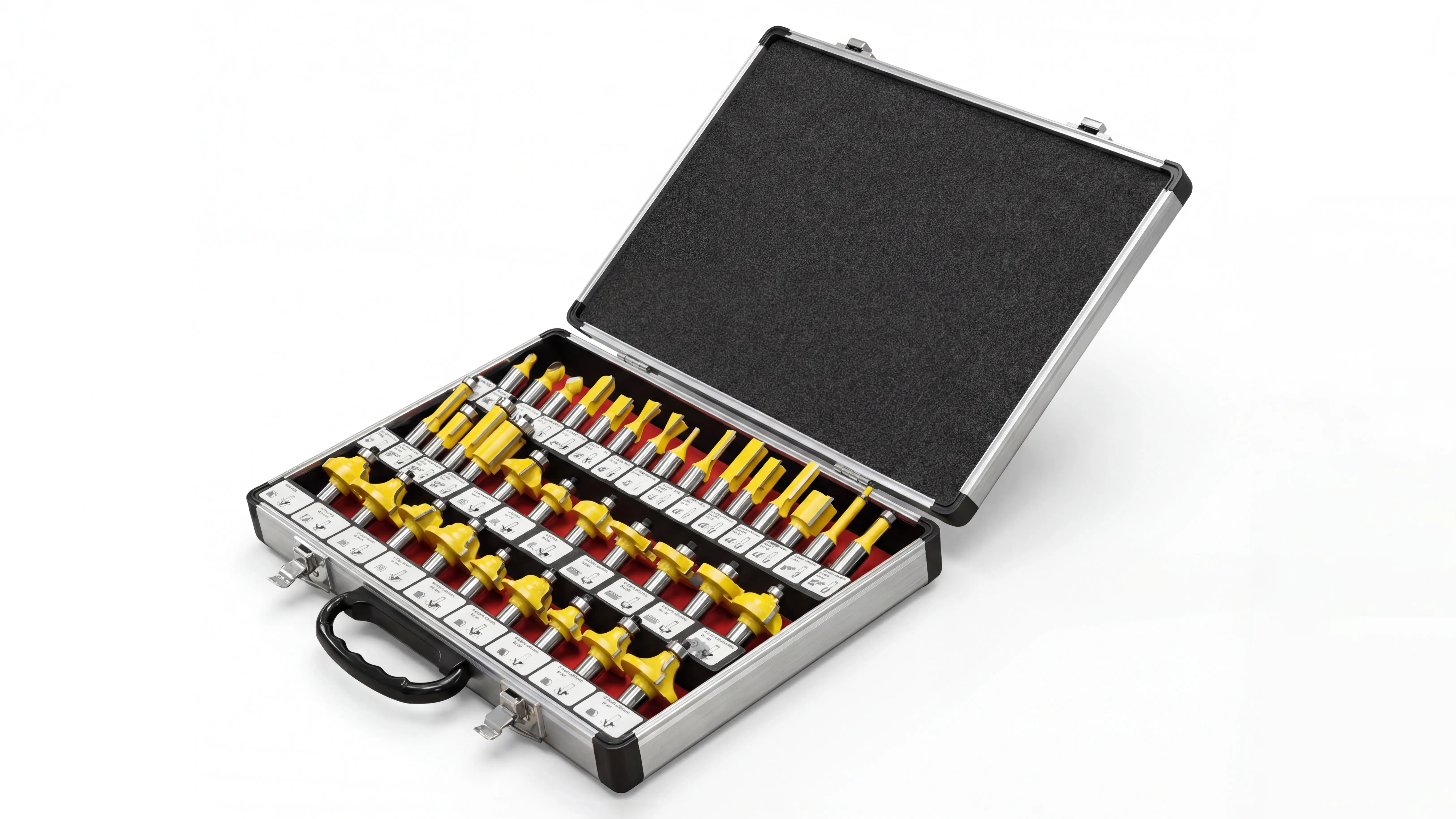

    Tool set of Spire 1325 CNC wood router

    Free Accessory Kit for Diverse Machining Needs

    • Equipped with the exclusive impact-resistant double-layer toolbox of the Spire Series, lined with 55° EVA cushion foam for excellent protection performance. The toolbox contains a full set of essential accessories for equipment operation, including wireless keyboard and mouse, ER wrenches for spindle, etc. It also comes with spare parts such as relays and limit switches, which can be quickly replaced in case of failure, effectively reducing downtime and meeting the full-scenario needs of daily machining and maintenance.
    • 35-piece high-quality alloy milling cutter set is included as a gift, covering commonly used types such as cutting cutters, profile milling cutters, and flat-end cutters. It is suitable for various machining processes including cutting, profile milling, engraving, drilling, grooving, and chamfering.
    • AA-grade ER32 collet chuck set is provided, with a clamping runout error of ≤0.008mm. Made of high-quality alloy steel with a hardness of over HRC60, it features outstanding wear resistance and deformation resistance, and supports clamping of full-size cutters ranging from 1mm to 20mm.
    Toolbox First Layer Toolbox Second Layer Machining Tool Set Machining Tool Collet Set

    Applicable Industries

    Whether it's furniture making, wooden doors, wardrobes, cabinets, or wood carving, billboards, musical instruments, etc., The Spire can handle it all with ease.

    Technical Parameters

    Series
    CATEK · Spire
    Model
    CK-1325-WSP
    XYZ Working Travel
    1300*2500*200mm
    Bed
    Spire-specific machining center processed reinforced bed base, independent anti-interference control cabinet
    Gantry
    Reinforced aged steel gantry, heavy-duty stress-relieved steel beam
    Spindle Mounting Plate
    46mm thick hard-anodized aluminum mounting plate
    Spindle
    Italy HSD 6KW high-speed variable frequency air-cooled spindle
    Spindle Speed
    Max speed 18000RPM
    Variable Frequency Drive
    Taiwan Delta MS300 7.5KW VFD
    Tool Holder Type
    ISO30 ER32 φ20mm
    Tool Setting Method
    Automatic tool setter
    Drive Method
    Japan Yaskawa 750W servo motor * 4 (Z-axis brake motor)
    Reducer
    Japan Shimpo planetary gear reducer
    Table
    Vacuum table, 6 zones, 24 holes
    Transmission Method
    XY-axis high-precision ground helical rack and pinion + Z-axis high-precision ground TBI ball screw
    Guideways
    Taiwan HIWIN high-precision 25 linear guide rails / linear bearings
    Loading
    Rear auxiliary loading rollers
    Positioning
    4+2 positioning cylinders
    Dust Collection Method
    7.5KW pulse cyclone dust collector
    Vacuum Pump
    9KW oil-free constant-pressure variable-frequency vacuum pump
    Cables
    Pure copper high-flexibility bend-resistant cables
    Cable Carrier
    Fully enclosed reinforced cable carrier
    Electrical Components
    Schneider surge protector / phase sequence protector / AC contactor / 24V power supply / relay
    Control System
    Weihong PM95A CNC control system (NcStudio)
    Monitor
    21.5-inch LCD monitor
    Keyboard and Mouse
    2.4GHz wireless keyboard and mouse
    Lubrication System
    Centralized lubrication oil maintenance system
    Safety System
    Omron limit switch
    Working Voltage
    AC380V/50Hz
    Repeat Positioning Accuracy
    ±0.02mm
    Max. Movement Speed
    80,000mm/min
    Max. Processing Speed
    20,000mm/min
    Dimensions
    3283*2092*1862mm
    Weight
    1300kg

    * These parameters are specific to this CK-1325-WSP unit; configurations can be customized to meet specific requirements.

    Review

    0 Reviews of CK-1325-WSP.

    5.0
    Based on 0 reviews
    5
    0
    4
    0
    3
    0
    2
    0
    1
    0
    • All (0)
    • With Photos/Videos (0)
      No reviews yet
      View more reviews

      Enjoy Spire's exclusive top-level service

      Reliability, confidence, and ease

      • Five-years free warranty
        Five-years free warranty
        Enjoy Spire VIP service, providing free warranty and maintenance for the entire machine, bringing you a worry-free experience.
      • Exclusive private customer service and after-sales team
        Exclusive private customer service and after-sales team
        7*24 hours online service, on duty around the clock, to solve any problems for you as soon as possible.
      • The matching CNC software is given for free
        The matching CNC software is given for free
        Enjoy lifetime free software upgrades, supporting software updates and free programming services.

      Spire Exclusive

      VIP Customer Service

      Customer service
      Let Us Chat
      • Dedicated service butler

        Dedicated Service Butler

      • Professional question answers

        Professional Question Answers

      • 24-hour quick response

        24-Hour Quick Response

      • Dedicated after-sales team

        Dedicated After-Sales Team

      Contact Us

      Learn more about how the CATEK Spire Series can bring you more production efficiency.

      Submit
      Get quote
      CATEKCNC

      This website uses cookies

      We use cookies to personalise content and ads, to provide social media features and to analyse our traffic. We also share information about your use of our site with our social media, advertising and analytics partners who may combine it with other information that you’ve provided to them or that they’ve collected from your use of their services.

      You may modify your privacy preferences at any time by accessing the "Your Privacy Choices" link located at the bottom of the page.

      Show Details
