    CATEK CNC® Servo System

    A Breakthrough in Intelligent Manufacturing Forged Over 19 Years of Technological Expertise

    As a technology-driven manufacturer with 19 years of deep expertise in the CNC field, CATEKCNC has established a stable and efficient technical supply chain system through strategic partnerships with internationally leading servo drive motor suppliers (such as Yaskawa and Delta). Simultaneously, the company has continued to invest in the independent R&D of self-developed drive motor systems, building comprehensive technical capabilities spanning "Technology R&D - system optimization - equipment adaptation - after-sales maintenance." This provides core support for the continuous upgrading of its products.

    In 2025, CATEKCNC successfully launched a servo drive motor system specifically optimized for woodworking CNC machinery, alongside the release of the CATEK · Spire high-end flagship custom series.

    Technological Breakthrough: Three Years of Dedicated Efforts from Following to Surpassing

    Since the official launch of its self-developed servo project in 2023, CATEKCNC has undergone over 10,000 real-world tests and continuous optimizations based on user feedback. The self-developed servo system has achieved three major technological breakthroughs:

    • Performance on Par with International Top-Tier Specifications: Laboratory data shows that, under the same power rating, processing efficiency matches that of top global brands. The dynamic response time is <10 ms, and positioning accuracy reaches ±0.01 mm, meeting the demands of high-frequency start-stop operations and complex curve processing in woodworking CNC applications.

    • Deep Scenario-Specific Adaptation: Vibration suppression algorithms have been optimized for wood processing characteristics, reducing tool tracking error by 30%. The built-in "adaptive friction compensation" function effectively mitigates processing fluctuations caused by uneven wooden materials.

    • Long-Term High-Quality Assurance: CATECNC’s directly offers a 5-year free warranty1 + lifetime maintenance plan, extending service coverage by 67% compared to industry standards.

    Creating Multidimensional Value for Users

    • Optimized Supply Chain Costs: Vertical integration of R&D and production reduces comprehensive procurement costs for customers by 40%.

    • System-Level Efficiency Improvement: Seamless synergy with CATEKCNC’s mechanical platforms, coupled with real-time parameter optimization, increases overall equipment efficiency by 25%.

    • Responsive Technical Support: The in-house R&D team enables rapid after-sales issue resolution, reducing the average fault repair time to 30 minutes.2

    Future Outlook: Establishing a New Standard for Intelligent Drive Systems in Woodworking Machinery

    CATEKCNC will continue to advance the iteration of its intelligent drive systems, with plans to launch a next-generation servo system integrated with AI adaptive control algorithms by 2027. This will further enhance online inertia identification and adaptive gain adjustment capabilities, optimizing the dynamic performance of the servo system for superior processing outcomes. With a mission to provide the "globally optimal cost-performance solution," CATEKCNC is committed to driving both the popularization and premium development of woodworking CNC machinery.

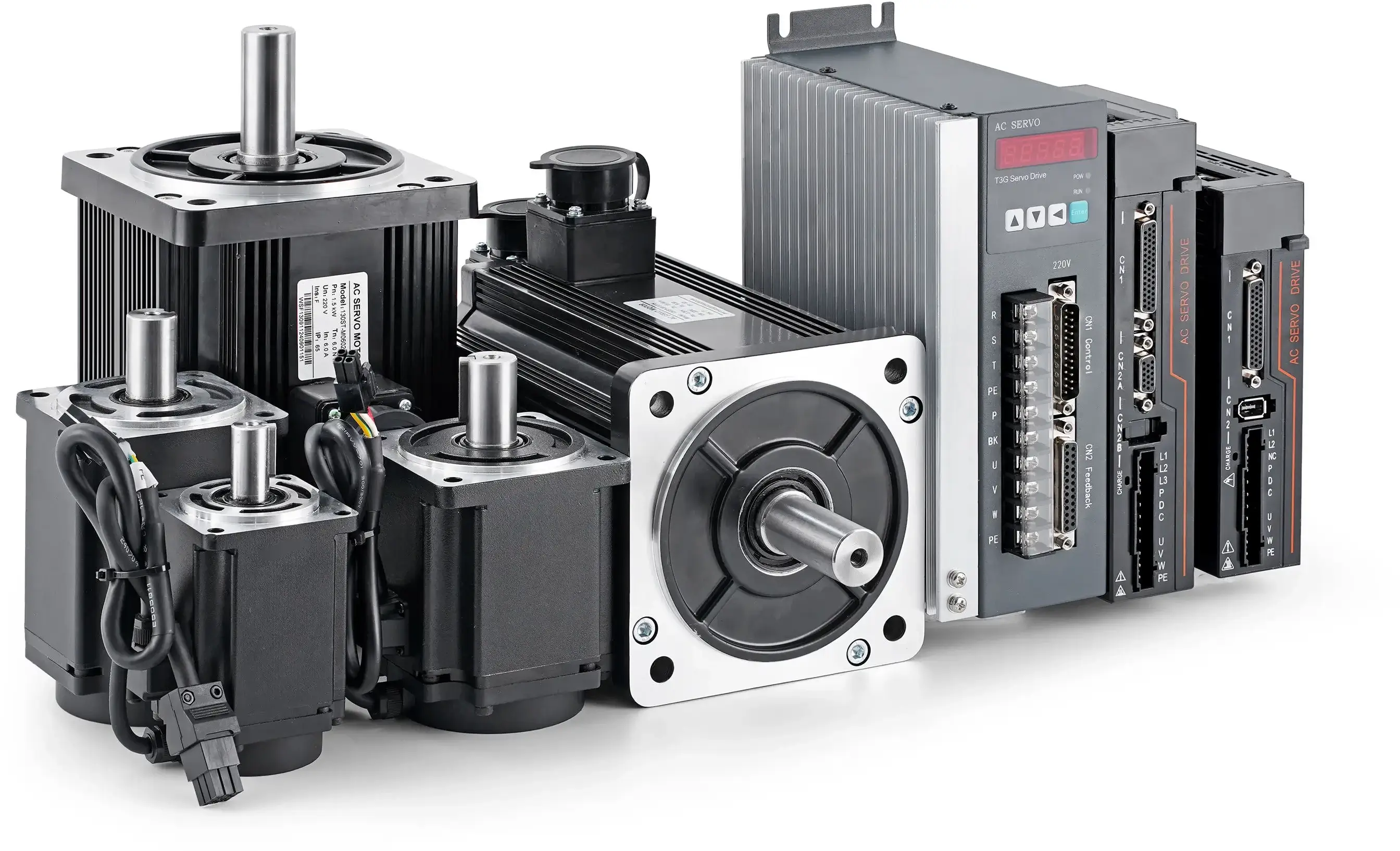

    Servo system of CATEKCNC

    CATEKCNC Servo Motor

    The self-developed servo motor, with its powerful performance, ultra-fast response speed, and exceptional stability, is perfectly tailored for CNC woodworking machinery. It meets users' stringent demands for high efficiency, precision, and reliable operation while offering outstanding cost-effectiveness. Every user can experience the significant machine performance enhancement delivered by CATEK CNC servo systems.

    Advantages and Features
    Servo Motor

    • The high-strength steel housing, designed with a special structural layout, offers robust construction capable of withstanding external impact and pressure. The motor casing features cooling fins that improve heat dissipation efficiency by 125%, significantly reducing the risk of overheating.

    • The rotor is made of 0.5mm high-strength ultra-thin silicon steel laminations, which provide higher saturation magnetic flux density and lower hysteresis loss. This enhances magnetic flux efficiency, with core losses as low as P₁.₅/₅₀ = 4.7 W/kg.3 Compared to conventional motors, this design reduces core losses by 15%~35%, improves efficiency by 0.5%~2%, and lowers winding temperature rise by 10°C~20°C.

    • Equipped with a high-resolution absolute encoder offering up to 23-bit resolution (over 16 million pulses per revolution), ensuring extremely low speed fluctuation and high positioning accuracy.

    • Ultra-low cogging torque design. It adopts skewed slot/skewed pole technology, and optimizes the stator lamination design and magnetic circuit layout, reducing the cogging torque to less than 0.3% of the rated torque. This significantly minimizes low-speed crawling phenomena and torque ripple, and effectively suppresses motor noise and vibration.

    • The 10P12S (10-pole, 12-slot) stator and rotor design achieves an optimal balance among torque output, dynamic response, and rotational speed, while maintaining cogging torque at a minimal level.

    • Low-noise operation is ensured through the use of silent bearings, with noise levels below 50 dB. These bearings offer low friction, high precision, and excellent sealing, effectively reducing operational noise. Ideal for high-precision CNC machine tools.

    • The servo motor operates at a standard rated speed of 3000 RPM, delivering outstanding performance in high-speed scenarios and smooth operation at low speeds. With acceleration/deceleration times as short as 10 ms, it enables rapid start-stop and precise control in CNC applications.

    • It can withstand a maximum overload of 3.5 times, which reduces the risk of shutdown failures caused by overload, easily copes with transient load fluctuations, and perfectly meets the scenarios of CNC machine machinery that have higher requirements for dynamic performance.

    Servo Drive

    • Utilizes advanced fully digital control and AC motor vector control theory, compatible with 17-bit/23-bit single-turn/multi-turn serial communication absolute encoders. The system delivers exceptional performance and high reliability.

    • Incorporates high-performance multi-platform DSP/ARM processor chips, significantly shortening sampling and control cycles.

    • Integrates position control, speed control, and torque control in a unified system.

    • Features the latest industrial-grade IPM (Intelligent Power Module) with integrated power management, providing strong overload driving capability.

    • Includes comprehensive fault protection functions, such as overspeed, overvoltage, overcurrent, overload, overtravel, brake abnormality, encoder error, position deviation, and command frequency excess.

    • Equipped with an electronic tube screen for easy monitoring of parameters including speed, current position, position deviation, motor torque, motor current, and command pulse frequency.

    • Includes a keypad control panel for parameter adjustment, system tuning, troubleshooting, and alarm clearing. The intuitive interface allows offline operation without a computer connection.

    • Constructed with an ABS engineering plastic housing and aluminum alloy heat dissipation fins. The plastic housing ensures effective insulation, while the aluminum fins optimize cooling efficiency and provide electromagnetic interference (EMI) shielding, ensuring stable operation.

    • The servo motor, drive, and shielded connecting cables are sealed with anti-interference gaskets to block external electromagnetic signals. Signal and power lines are wrapped with copper mesh/aluminum foil shielding, forming a complete shielding loop that eliminates electromagnetic interference and enhances operational stability.

    You can also select from a variety of brands and models of servo motors for integration into the Spire Series CNC machines. CATEKCNC has established long-term and reliable partnerships with the following servo motor brands through years of production and operational collaboration, ensuring you can confidently make tailored choices according to your needs.

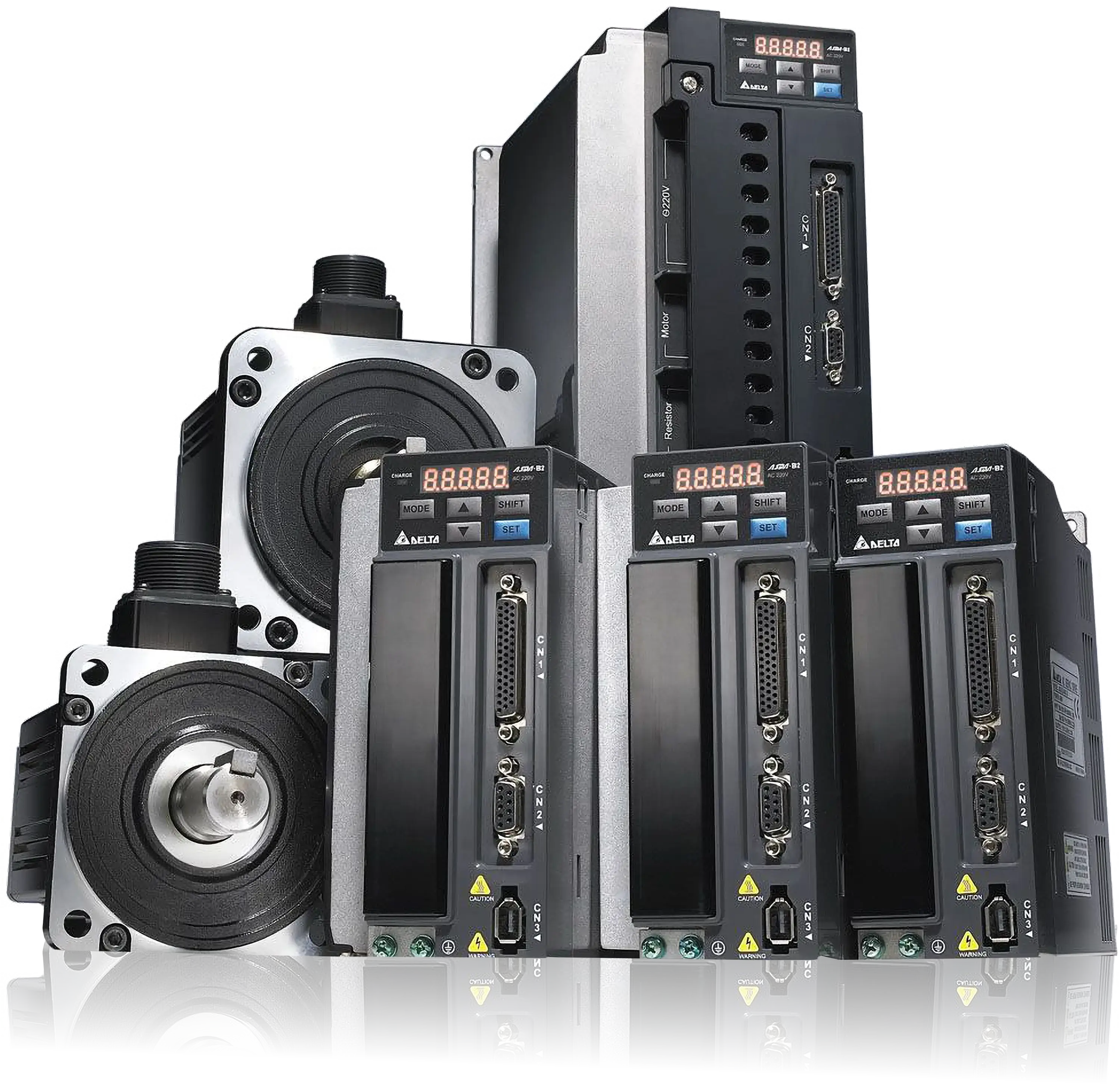

    Servo system of Delta

    DELTA Servo Motor

    Delta servo systems combine energy efficiency and environmental friendliness with flexible configuration, meeting stringent industrial requirements and making them suitable for a wide range of CNC machinery applications.

    Advantages and Features
    • High-Precision Positioning: Utilizing closed-loop control and high-resolution encoders, position control accuracy reaches ±1 pulse, meeting the high-precision demands of CNC machinery. Through magnetic field analysis technology, control algorithms are optimized to achieve precise position, speed, and torque control.
    • High Response Speed: Extremely short dynamic response time enables rapid tracking of command changes, adapting to high-speed start-stop repetitive production scenarios in CNC machinery. This effectively enhances instantaneous response capability and improves production efficiency.
    • Strong Environmental Adaptability: High protection rating (dustproof and waterproof) ensures suitability for various harsh working environments. Excellent anti-vibration design and interference resistance guarantee stable operation under vibration and impact.
    • Energy Efficiency and Environmental Protection: Optimized energy efficiency design reduces energy consumption. The use of efficient thermal management structures effectively prevents performance degradation during high-load operation.
    • Low Vibration and Low Noise: The optimized motor structure and materials significantly reduce operational vibration and noise, enabling smooth performance even at low speeds. This ensures a more comfortable working environment while supporting notch filters and anti-resonance control to effectively suppress mechanical resonance, resulting in stable equipment operation.

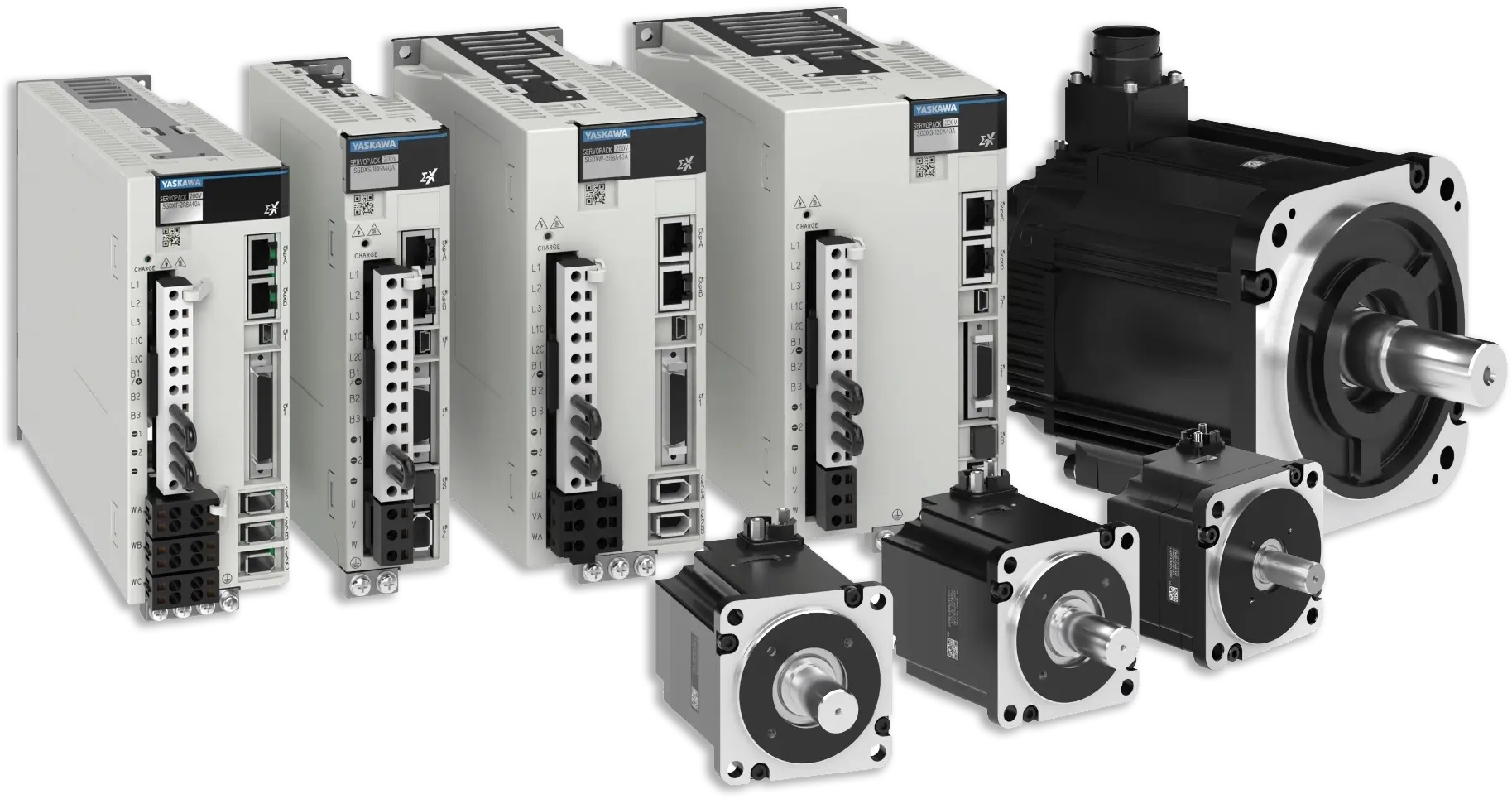

    Servo system of Yaskawa

    YASKAWA Servo Motor

    Yaskawa servo systems deliver stable and superior performance with user-friendly operation and an extended lifecycle, making them suitable for a wide range of machinery applications.

    Advantages and Features
    • Outstanding Dynamic Performance: With a maximum speed response frequency of 3.1 kHz and exceptional overload resistance, it operates stably even under full load and delivers smooth, jitter-free performance at low speeds.
    • High-Precision Control: Advanced control algorithms, full closed-loop control enhances system precision, meeting the demands of both high- and low-rigidity machines.
    • Stability and Reliability: Low temperature rise and extended service life, coupled with IP67 protection ratings, enable adaptation to harsh working environments, including dusty and humid conditions.
    • Safe Operation: Built-in temperature sensors in both servo drives and motors allow direct monitoring of operational temperature, enabling timely detection of abnormalities and preventing failures. Suitable for ambient temperatures up to 60°C.
    • Intelligent and User-Friendly: It requires no complex parameter tuning, maintains stable operation even under significant load variations, and offers extremely short drive commissioning time. Automatic control parameters can be optimized through feedforward gain adjustment and friction compensation.

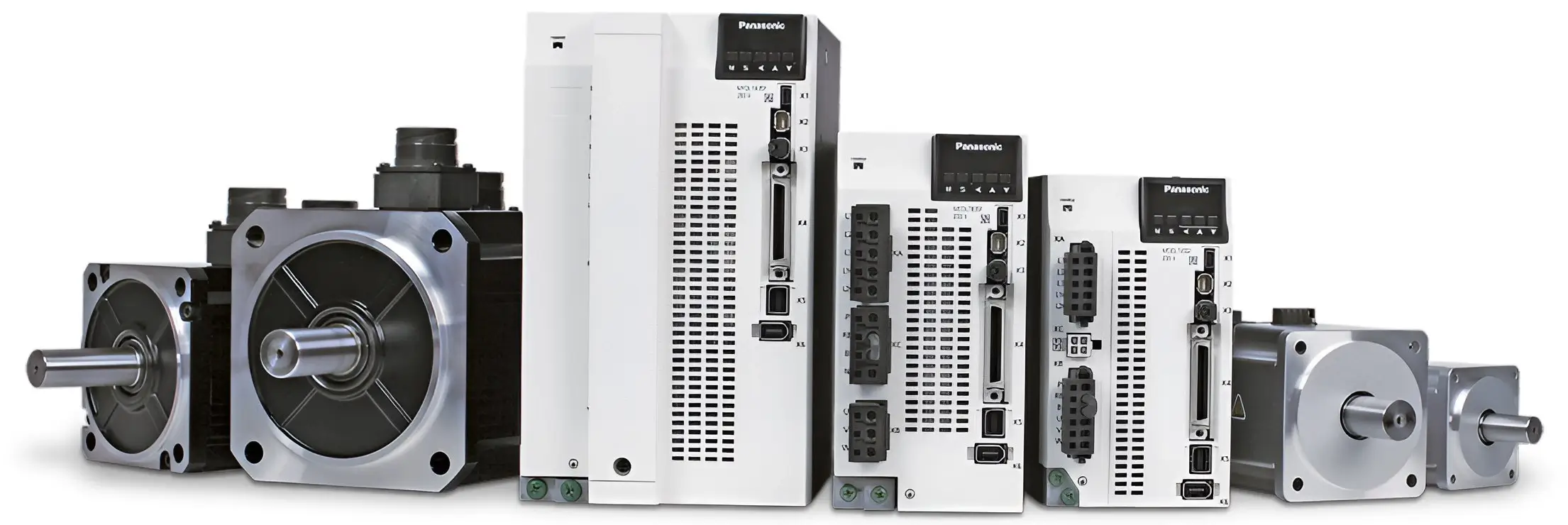

    Servo system of Panasonic

    Panasonic Servo Motor

    Panasonic servo systems leverage advanced, well-established servo technology to enhance machine operational performance and improve overall efficiency.

    Advantages and Features
    • Outstanding Dynamic Performance: Enhances machine performance through advanced fundamental capabilities of the servo system.
    • Ultra-Fast Response: The servo system delivers near-instantaneous response, achieving "smoother and more precise" control performance. Higher gain settings enable immediate reaction to control commands, significantly enhancing machining quality.
    • Improved Positioning Performance: It delivers exceptionally high positioning performance, ensures smooth movement to the target position and accurate stopping, greatly enhancing positioning accuracy and performance.
    • High-Speed Operation: With significantly increased rotational speed, the system rapidly reaches target positions, reducing machine movement time and accelerating the overall motion control cycle.
    • Stable Operation: The motor generates minimal heat and delivers extended operational duration under overload conditions, making it ideal for high-duty applications in CNC machinery and ensuring reliable long-term performance.
    • Wide Compatibility: Covers a range of motor types including low-inertia and small-to-medium power, and heavy-duty models. Suitable for various types of CNC machines, meeting demands for high precision, high torque, and high feedback resolution.

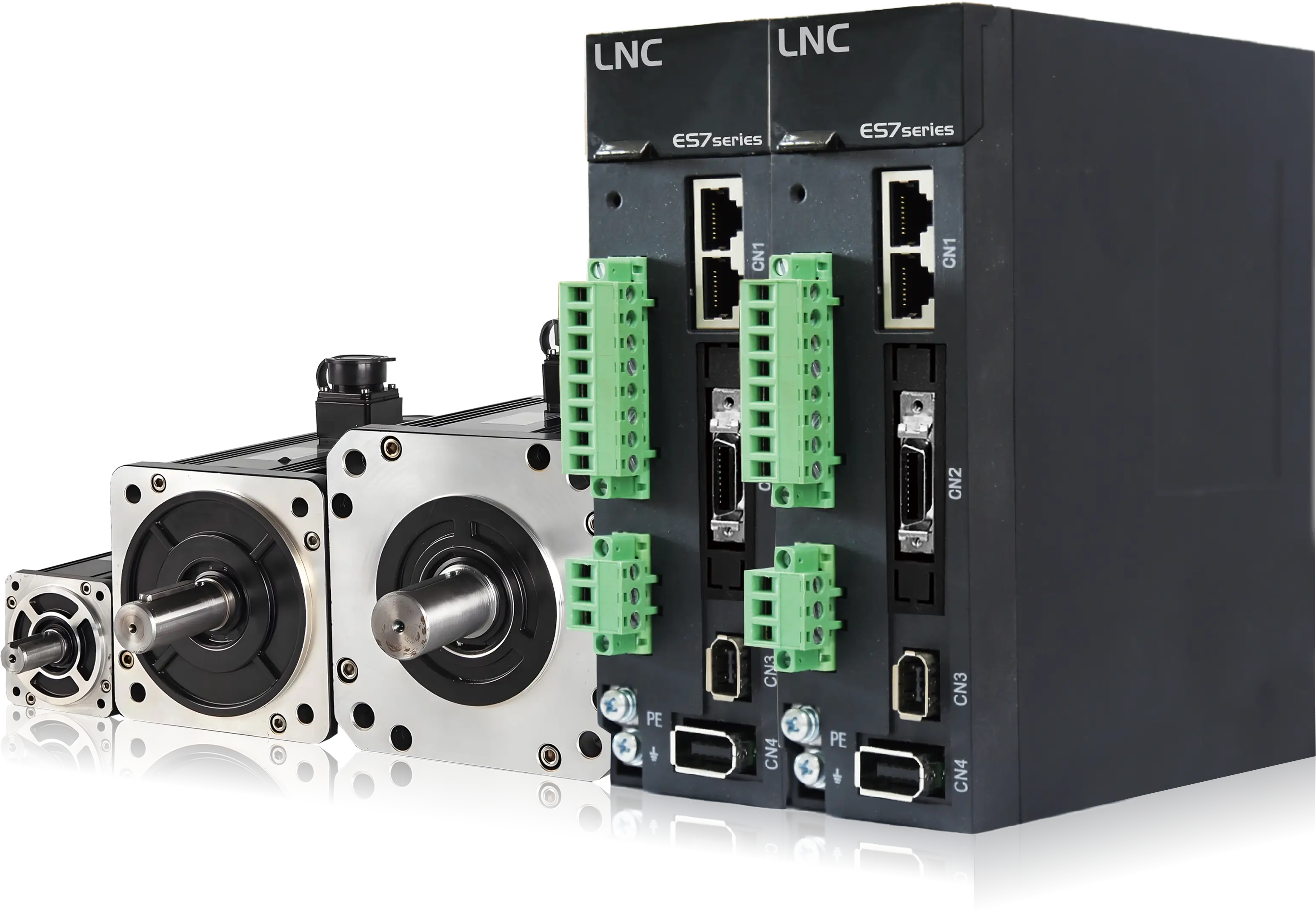

    Servo system of LNC

    LNC Servo Motor

    LNC servo systems and LNC CNC controllers are seamlessly integrated to deliver enhanced synchronization capabilities and achieve superior CNC coordination.

    Advantages and Features
    • High Performance and Precision Control: Equipped with a 23-bit resolution encoder, the system significantly enhances positioning accuracy to meet stringent requirements in high-precision machine tool applications. Its exceptionally high response frequency and minimal electromechanical time constant enable rapid command execution, thereby substantially improving production efficiency.
    • Technological Innovation and Intelligence: Utilizes a new-generation servo control algorithm to achieve low-cost, high-precision, and intelligent control. Internal parameter monitoring enables real-time assessment of motor status, optimizing maintenance efficiency.
    • Multi-Mode Control: Supports various control modes such as position, speed, torque, and automatic homing, with seamless switching between modes to adapt to complex control requirements across different types of machine tools.
    • Reliability and Durability: The fully waterproof servo system boasts an IP67 protection rating, resistant to harsh working environments including moisture and dust. An optimized heat dissipation design ensures smooth operation, reduces vibration and noise, and extends service life.
    • Intelligence and Compatibility: Supports EtherCAT/CANopen bus communication, simplifying system wiring. Parameter configuration is straightforward, with automatic motor parameter identification. Compact size, high integration, and excellent stability.

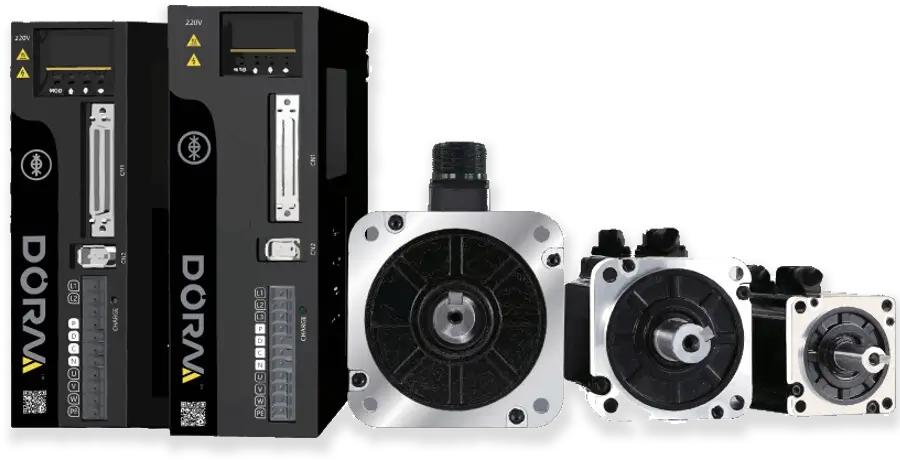

    Servo system of Dorna

    Dorna Servo Motor

    Leveraging China's supply chain and Israeli technology, we deliver servo systems renowned for high precision, high speed, exceptional reliability, and user-friendly operation.

    Advantages and Features
    • High Performance and Precision: The drive features rapid response characteristics and supports high-resolution encoders with 23 bits or above. Advanced control algorithms enable millisecond-level precise position/speed adjustment, making it suitable for applications requiring instant high torque.
    • Precision Integration: Designed with separated high-power and low-power circuits to significantly enhance anti-interference capability. Equipped with an Ethernet interface for easy parameter management and firmware maintenance.
    • Easy Commissioning: Features a six-button control panel for intuitive parameter adjustment, system tuning, fault diagnosis, and alarm clearance. User-friendly and simple to operate.
    • Safety Protection: Incorporates an active cooling system and a triple-protection coating, effectively resisting harsh environments such as high temperature, humidity, and dust. Complies with rigorous IEC 61800 standards.
    • High Reliability: Utilizes high-energy permanent magnet materials and optimized motor design to ensure long-term stable operation. The motor features a simple structure, energy efficiency, compact size, lightweight, and high power density, making it ideal for confined spaces.

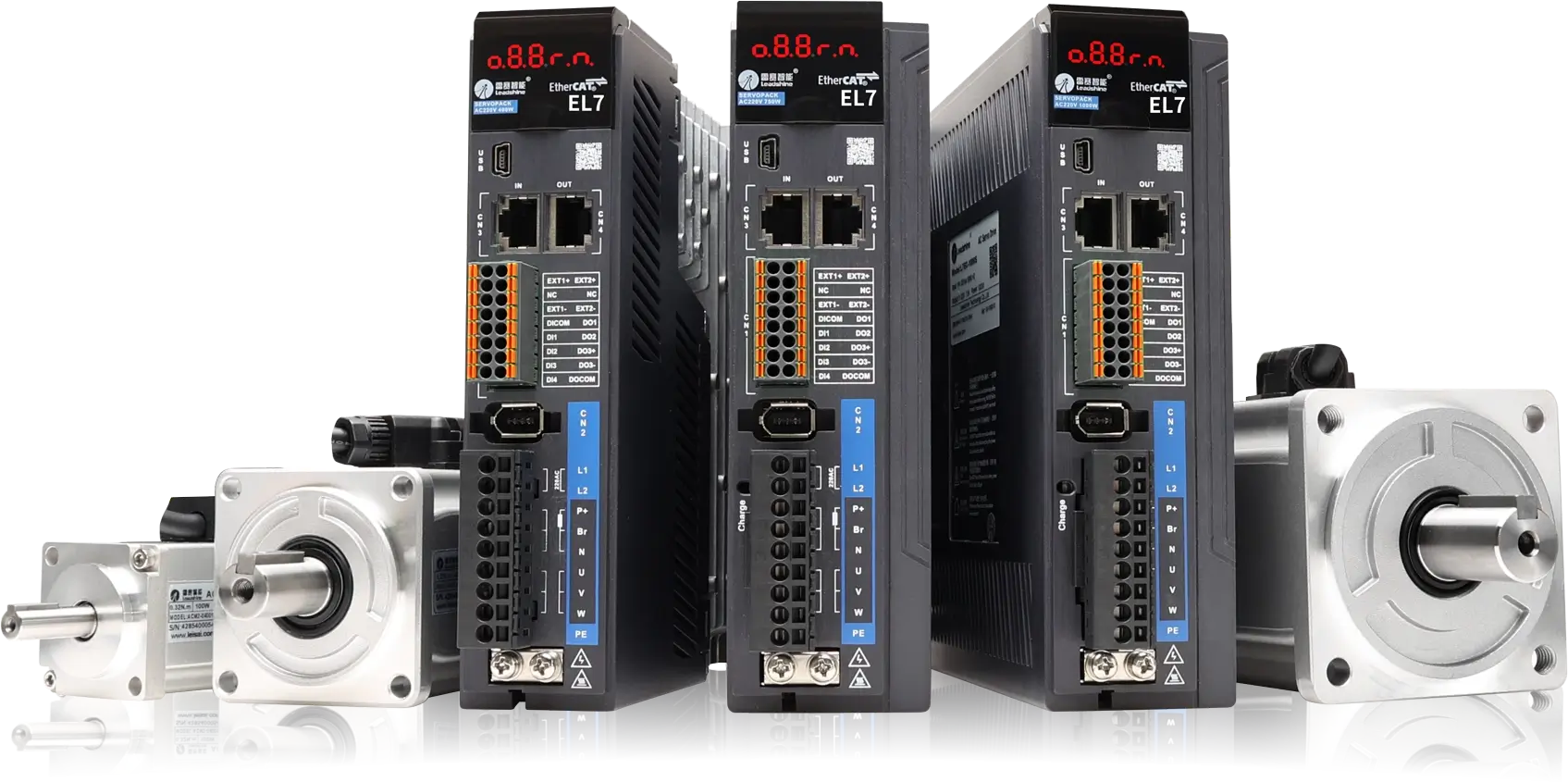

    Servo system of Leadshine

    Leadshine Servo Motor

    Leadshine servo systems capitalize on the strengths of Chinese manufacturing—stability, reliability, and durability—to meet users' demands for high cost-effectiveness.

    Advantages and Features
    • High-Speed Operation: High rotational speed allows the machine to position faster, operate at higher speeds, and complete motion paths in shorter times, enhancing equipment productivity.
    • Excellent Response Performance: A speed loop bandwidth of 3.2kHz ensures faster device response and smaller position tracking errors, and position control is more precise and smoother.
    • Dynamic Braking Function: Integrated dynamic braking enables rapid stopping of the motor through braking during faults, emergency stops, or power outages. This prevents collision risks caused by sudden alarms during high-speed operation, avoids mechanical damage, and ensures safe and reliable operation of machinery.
    • Servo Control Algorithm: Features high-performance one-click auto-tuning, significantly simplifying the commissioning process. After scheduling is completed, parameter gain adjustment is automated, reducing setup time. Automatically suppresses low-frequency vibrations below 200Hz during stops, enabling high-cycle operation in flexible systems.
    • Multi-Drive Parameter Synchronization Management: Via the embedded operation platform in Motion Studio, multi-drive management for all drives in a machine’s electrical cabinet is supported. Parameters can be uploaded and downloaded in one operation, making read/write processes smarter and saving commissioning time.

    Spire Exclusive

    VIP Customer Service

    Customer service
    Let Us Chat
    • Dedicated service butler

      Dedicated Service Butler

    • Professional question answers

      Professional Question Answers

    • 24-hour quick response

      24-Hour Quick Response

    • Dedicated after-sales team

      Dedicated After-Sales Team

    Contact Us

    Learn more about how the CATEK Spire Series can bring you more production efficiency.

    Submit
    • All images of motors and drives displayed on this website are representative of various product series from their respective brands. Please consult with a sales consultant to confirm the actual installed model.
    • Unless otherwise specified, all data presented on this website are based on internal test results from the CATEKCNC Motor R&D Department.
    • Product features, parameters, and specifications are for reference only. The actual installed model shall prevail. Each brand offers a wide range of servo motor and servo drive models, and the compatible servo system parameters may vary depending on the type and model of the CNC equipment.

    1. Damage resulting from human factors or force majeure is not covered under the warranty. To learn more about the warranty policy, please click here.

    2. The Mean Time To Repair (MTTR) is subject to factors such as actual issue complexity, spare parts availability, holidays, and other conditions.

    3. The meaning of P₁.₅/₅₀ = 4.7 W/kg is that under specific test conditions of 50 Hz frequency and a magnetic flux density of 1.5 T, each kilogram of this silicon steel sheet will generate 4.7 watts of power loss.
