    CATEK · Spire

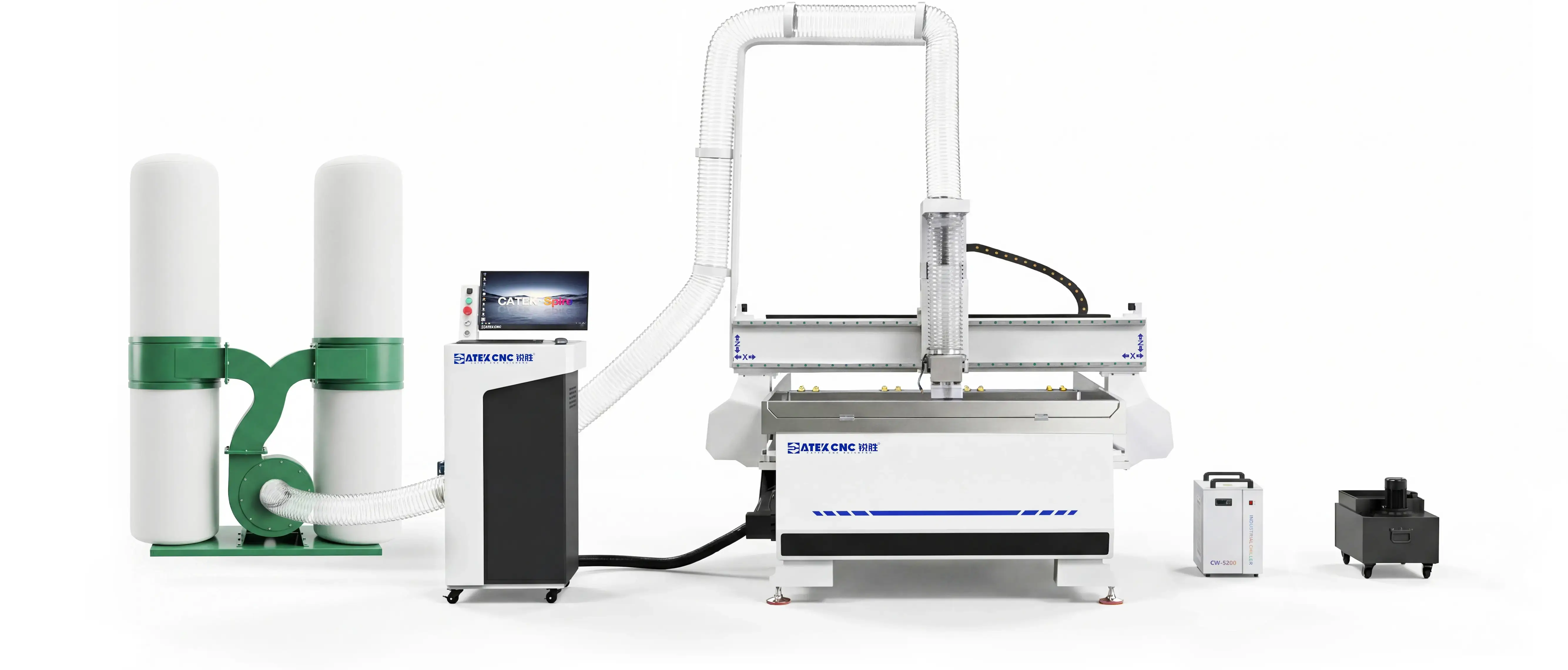

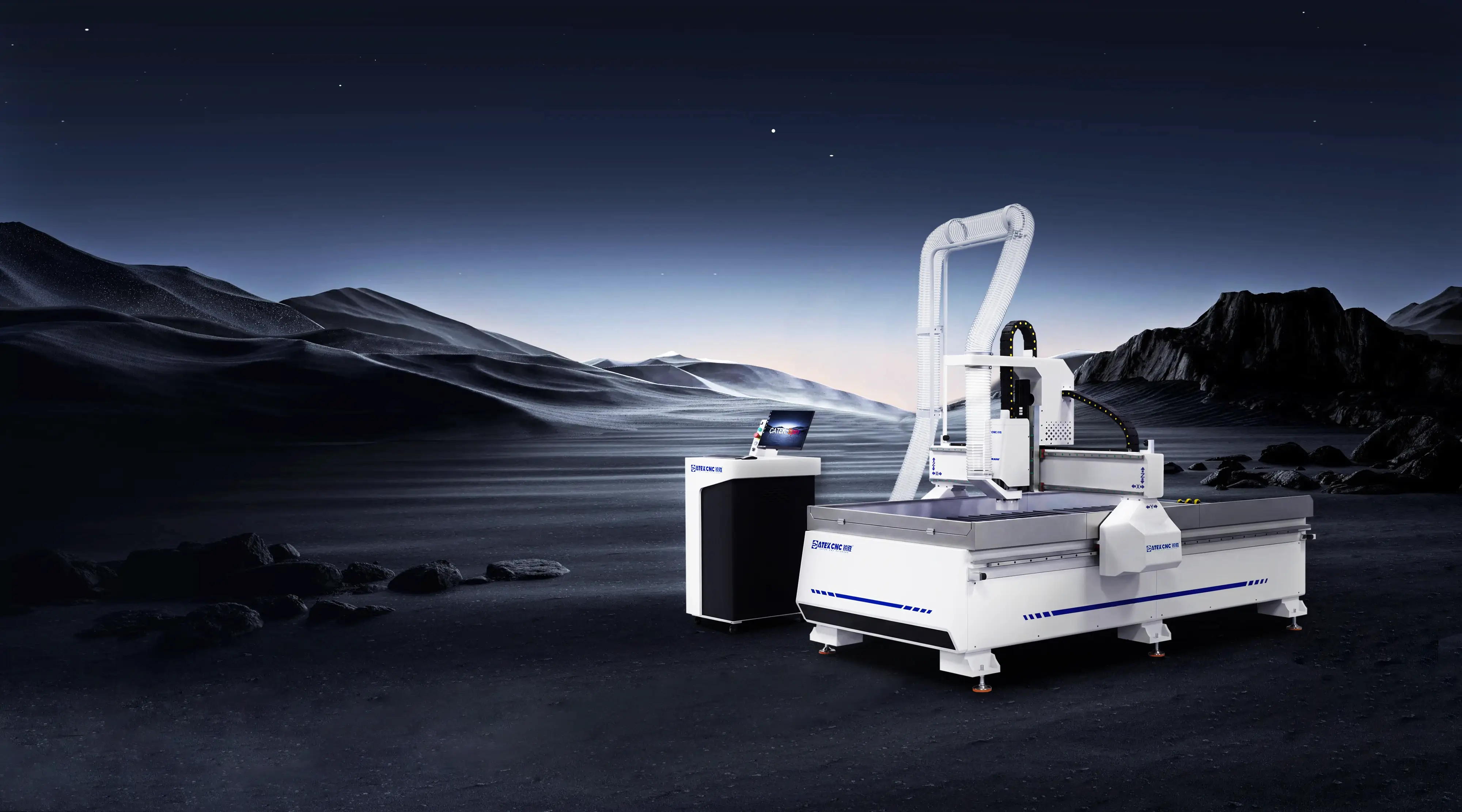

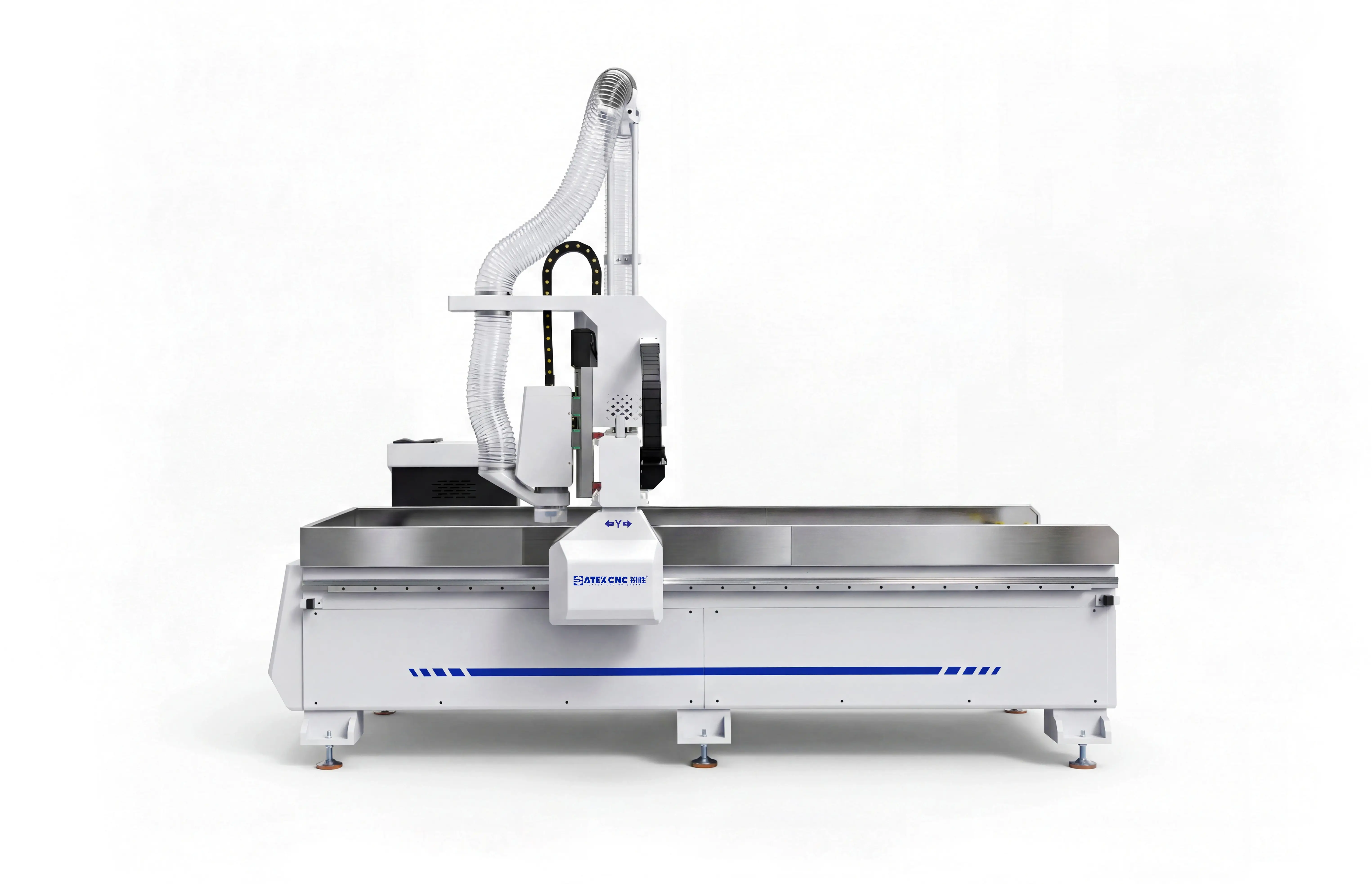

    1325 CNC Router Machine with Flood Cooling

    5.0 Rating (0 customer reviews)
    · Function Description ·
    This machine is a CNC router of the Spire Series with an extremely wide processing range, featured with a flood cooling system and a water-cooled spindle, and it can process a variety of materials including wood, stone, aluminum, copper, stainless steel, and more.
    {{(goodsPrice)}}
    Add To Cart Contact Now
    • Brand: CATEKCNC
    • Model: CK-1325-WSP-W
    • Tags: Spire Series, Flood Cooling
    • Share:
    Description
    Parameters
    Reviews

    CATEK · Spire

    Boost Productivity & ROI with Unmatched Stability and All-Material Machining Capability

    The core advantage of the Spire 1325 CNC Router with Flood Cooling lies in completely breaking through material limitations—enabling efficient processing of virtually any material on a single machine. It also incorporates user‑friendly maintenance design, significantly reducing production and long‑term upkeep costs. Choosing Spire means more than purchasing a high‑performance machining tool; it means empowering your entire operation with all‑material capability to comprehensively enhance product quality, production efficiency, and return on investment.

    Core Advantages of Spire 1325 CNC Router with Flood Cooling: Four Dimensions to Reshape the Standards of High-Efficiency Production

    01.
    Universal Industrial-Grade Machining Core,
    All-Material Capability.
    The Spire 1325 CNC Router is a true industrial-grade machining center that delivers universal material capability. It handles a vast range of materials—wood, stone, metal, plastic, and other common engineering materials—with high efficiency across diverse processes like cutting, engraving, grooving, and milling. At its heart is the CATEKCNC 5.5KW constant-power water-cooled spindle, delivering a remarkable 24,000 RPM and stable output across its entire range. This allows the machine to tackle both heavy-duty cutting and intricate engraving, fulfilling the core promise of "One Machine, All Products."
    02.
    Dust Collection/Cooling Dual Modes,
    Flexible Switching by Material.
    The Spire 1325 CNC Router offers professional dust and cooling solutions tailored to the material. For dust-prone materials like wood, a high-power dual-bag dust collector rapidly removes debris, maintaining a clean workspace. For materials requiring cooling, such as stone and metal, a stainless steel circulating water with a multi-stage filtration system provides effective tool and workpiece cooling. This flexible two-mode approach ensures each material is processed under optimal conditions for superior efficiency and quality.
    03.
    Heavy-Duty Foundation & Top-Tier Transmission,
    Foundation for Stable Machining.
    The Spire 1325 CNC Router is engineered with top-tier hardware for unmatched stability. It features CATEKCNC's proprietary 750W servo systems combined with Japan's Shimpo planetary gear reducers for powerful, responsive motion. These are integrated with Taiwan's Hiwin P-level linear guideways, TBI ground ball screws, and YYC ground helical racks, creating a high-rigidity, micron-precision transmission system. Combined with its heavy-duty bed and gantry structure, this foundation guarantees exceptional stability and sustained accuracy during high-speed, heavy-load machining, confidently meeting the demands of all-material machining.
    04.
    Exclusive Service & Total Peace of Mind,
    for Unmatched Assurance.
    The Spire's excellence extends to its comprehensive support and protection. We offer an industry-leading 5-year full machine warranty, backed by a dedicated one-on-one technical support team for rapid response. We also commit to lifetime free software upgrades and maintenance services, providing end-to-end, worry-free support. This ensures your Spire CNC Router remains the most stable, reliable, and value-generating core asset in your workshop.

    Choosing the
    Spire 1325 CNC Router
    with Flood Cooling
    means choosing

    True all-material coverage
    From wood and stone to metal, plastic, and beyond, it truly achieves "one-machine coverage for all materials", breaking through material limitations and unlocking greater business potential.
    Multi-process adaptability
    It performs a complete range of processes—cutting, milling, grooving, drilling, engraving—on various materials, balancing heavy-duty load capacity with precision machining to adapt to diverse production scenarios across industries.
    Maximized investment value
    A single machine replaces multiple standard units, significantly reducing equipment procurement costs, workshop floor space, and long‑term maintenance expenses, leading to a substantially improved return on investment.
    Superior product quality
    Powered by a top‑tier motion control system and CATEKCNC's proprietary servo and spindle technology, it delivers exceptional product quality, enhances detail finish and added value, and helps you stand out in a competitive market.

    Unshakable Foundation for Uncompromising Precision

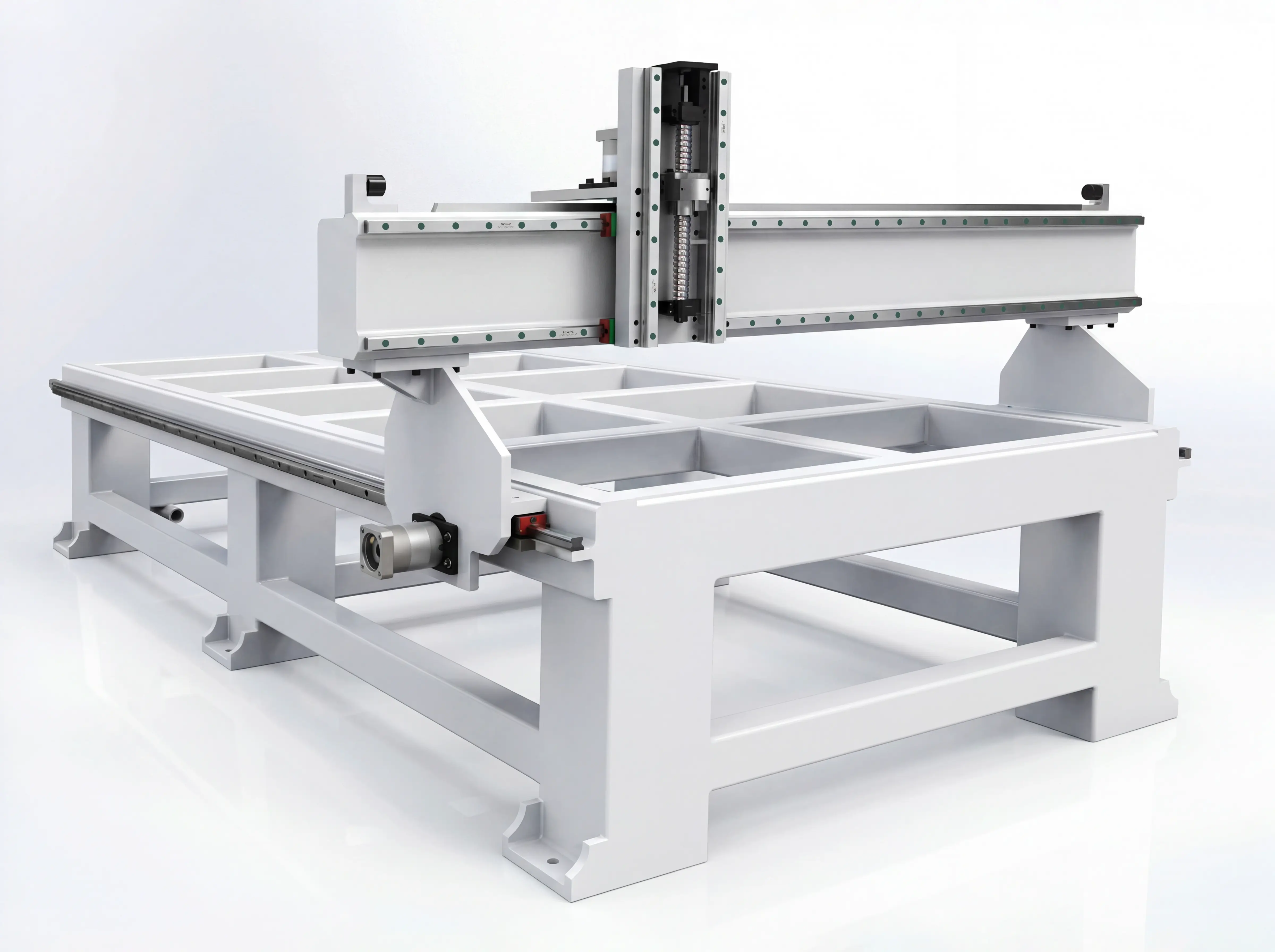

    Heavy-duty bed of Spire 1325 CNC router with flood cooling

    Special Heavy-Duty Bed for Spire, Ultra-Thick Base Material + Dual-Effect Treatment, Laying a Solid Foundation for Machining

    • The Spire-exclusive heavy-duty bed base features a main frame constructed from 4.5mm thickened square steel tubes with a large cross-section of 200-250mm, supplemented by supports of 4.5mm thick square steel tubes with a cross-section of 80-100mm. These two types of ultra-thick steel tubes are welded into a robust three-dimensional structure, which maximizes the bed's load-bearing capacity and vibration resistance and lays a solid foundation for the stable operation of the machine.
    • The bed surface is paved with 8mm thick steel plates and precision-machined integrally by a large five-axis gantry milling machine, achieving an ultra-flat reference surface and a highly unified installation datum. This minimizes the installation tolerances of core transmission components such as guide rails and racks, offers a solid underpinning for the machine's high-precision machining.
    • The entire bed is subjected to annealing and vibratory stress relief treatments, which completely eliminates the internal stress generated during welding and machining processes, greatly enhances the bed's torsion and deformation resistance, and effectively prevents precision attenuation caused by bed deformation after long-term operation.

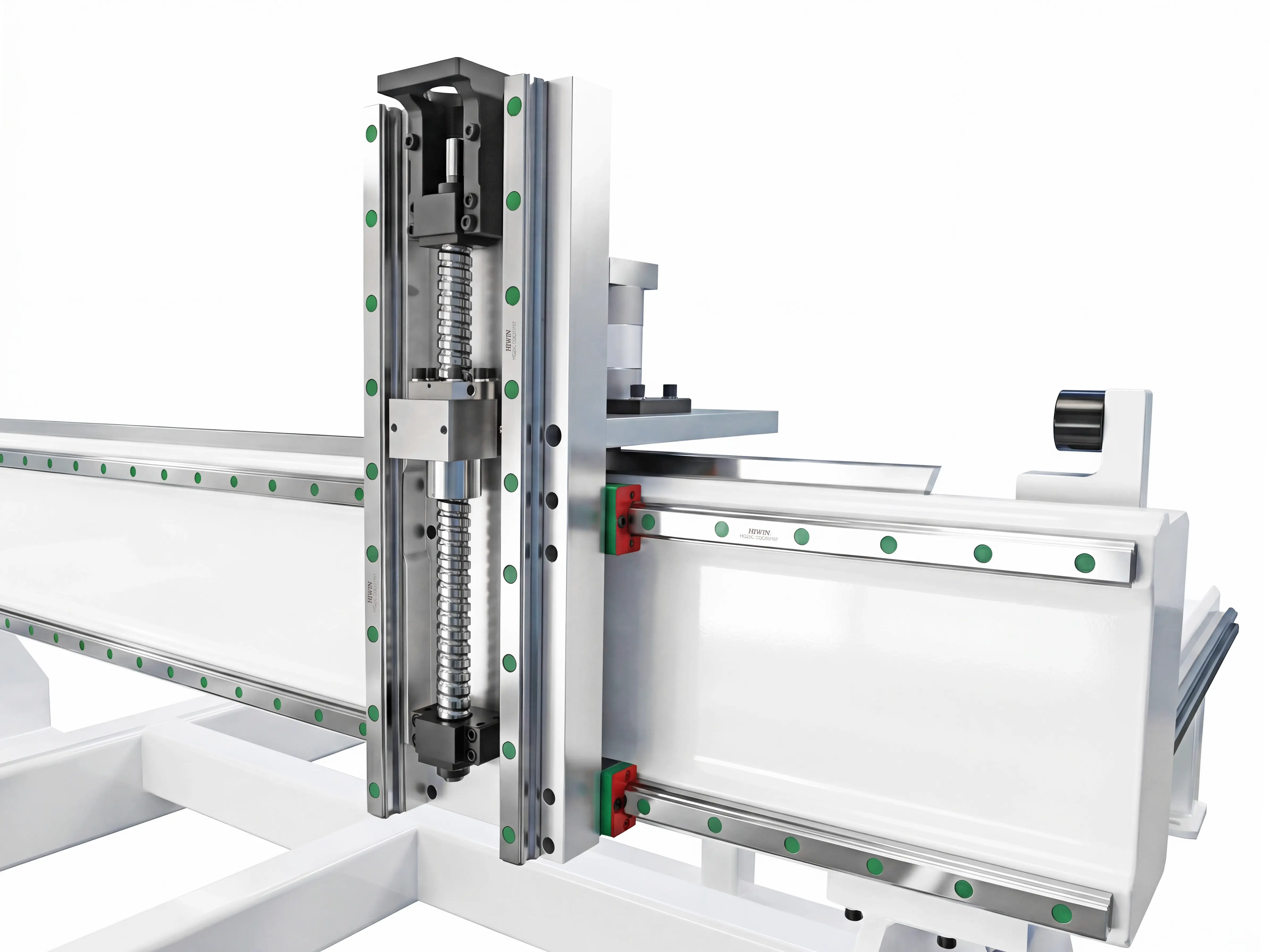

    High rigidity gantry crossbeam of Spire 1325 CNC router with flood cooling

    High-Rigidity Cast Iron Columns + Heavy-Duty Beams

    • The CNC router is equipped with an integrally formed beam of 8mm -thick and a 20mm-thick rack mounting base milled from high-quality steel strip, which can withstand longitudinal and transverse loads during high-speed operation and completely eliminate the sagging and deformation of the gantry. The thick steel strip features both impact and deformation resistance, capable of bearing the impact force from the high-speed reciprocating motion of the rack and ensuring smooth operation of the entire machine.
    • High-rigidity cast iron columns are fitted on both sides, boasting excellent shock absorption, rigidity and thermal stability to efficiently absorb high-frequency vibrations generated by high-speed machining. The fitting surfaces of the columns and the gantry are precisely milled by a gantry milling machine, providing a long-lasting and stable precision guarantee for engraving and cutting operations.
    • The bed, beam and columns are all milled by a large five-axis gantry milling machine, with the hole coordinates, depth and perpendicularity accurately controlled. This ensures the completely consistent spacing of all screw holes, fully eliminates installation tolerances, and guarantees the accuracy and stability of the transmission system from the source.

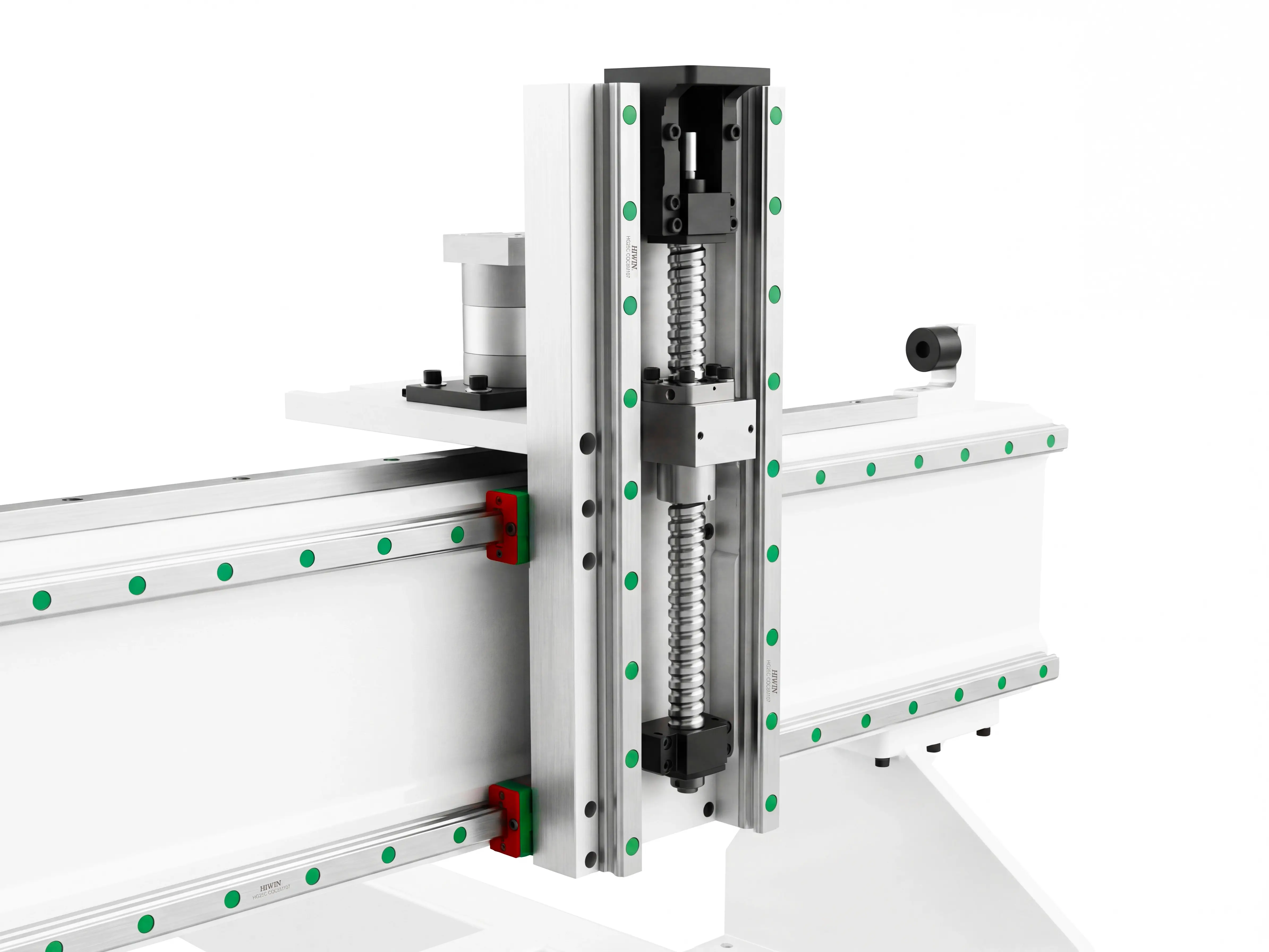

    Anodized aluminum z-axis mounting plate of Spire 1325 CNC router with flood cooling

    High-Strength Hard Anodized Aluminum Alloy Spindle Mounting Plate

    • The spindle mounting plate is made of high-strength aluminum alloy with a thickness of 46mm, which greatly improves structural rigidity and load-bearing performance. It can stably bear the weight of high-power spindles, strongly resist the impact force generated by the Z-axis during high-speed lifting and frequent start-stop, eliminate precision deviations caused by mounting plate deformation, and provide a stable support guarantee for high-precision machining.
    • The surface of the mounting plate has undergone professional hard anodizing treatment to form a dense and wear-resistant protective film, which has excellent corrosion resistance, wear resistance and dust adhesion resistance. Facing complex workshop environments such as workshop dust and cutting fluid, it does not wear, age or require maintenance and replacement after long-term use, greatly reducing later costs.
    • Compared with the mounting plates of ordinary CNC routers, the thickness of this spindle mounting plate far exceeds the thickness standard. The use of aluminum alloy can achieve a lightweight breakthrough of more than 40%, effectively reducing the gantry operation load, significantly improving the Z-axis response speed and movement flexibility, and perfectly balancing the dual needs of rigidity and dynamic response.

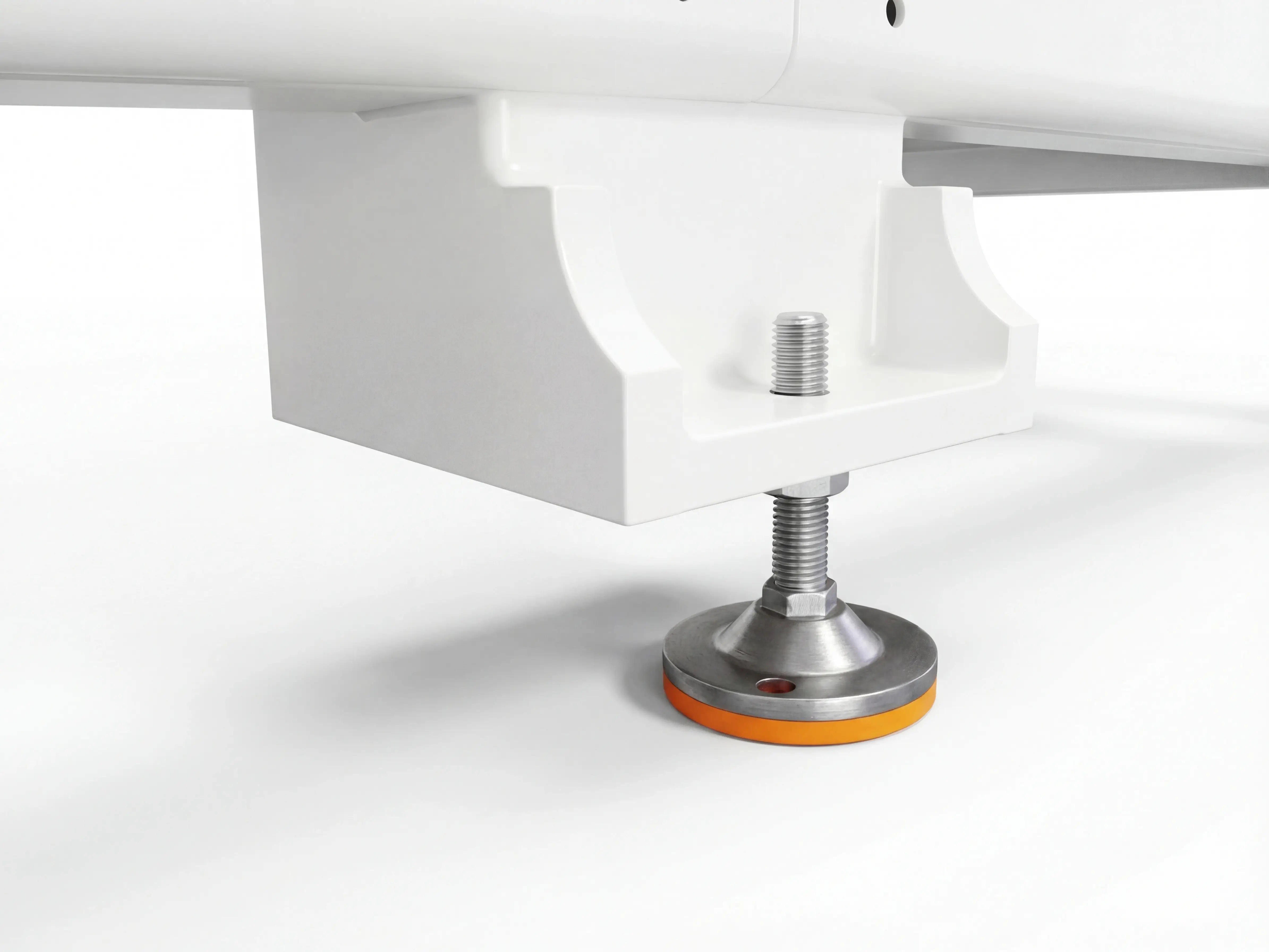

    Adjustable leveling feet for Spire 1325 CNC router with flood cooling

    Adjustable Supporting Feet

    • Each of the six supporting legs of this CNC router is equipped with high-strength adjustable supporting feet, which are integrally formed of reinforced steel with extremely strong compression resistance. They can evenly distribute the weight of the entire machine and provide a stable processing foundation for the machine.​
    • The supporting feet are equipped with convenient adjusting nuts, and height fine-tuning can be achieved by rotating. When facing the problem of uneven workshop floors, the levelness of the machine can be quickly corrected without professional tools.​
    • The bottom of the feet is equipped with non-slip rubber pads, which can not only increase the friction with the ground to prevent the machine from displacing during high-speed operation, but also effectively absorb the vibration generated by machining, reduce the impact of resonance, avoid chatter marks on the workpiece surface caused by vibration, and further improve workpiece quality.
    Click the icon labels to view different machine parts

    Smooth & Precise Motion: Powered by Globally Sourced Transmission Components

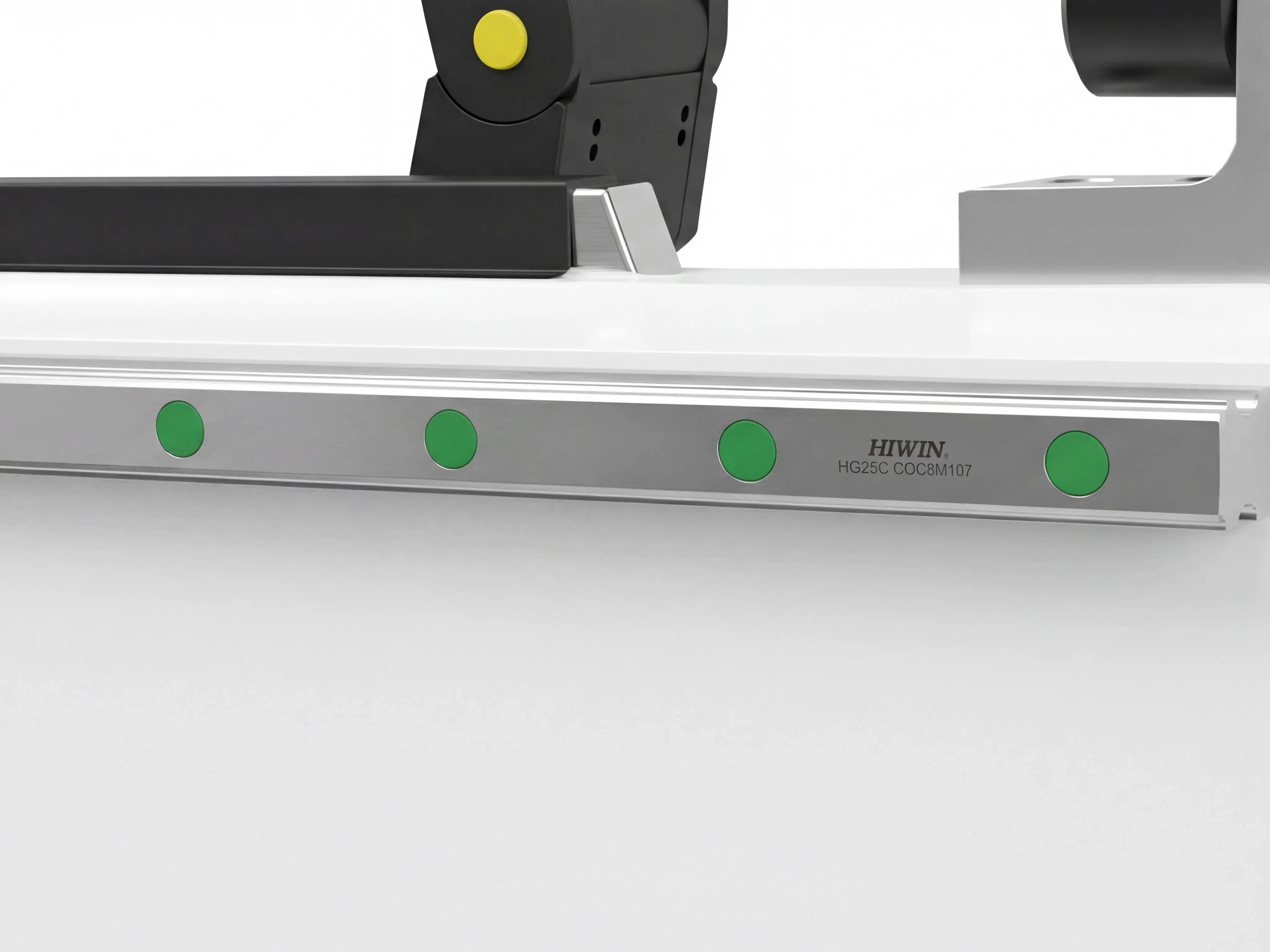

    Hiwin (Taiwan) P level 30 linear guideways of Spire 1325 CNC router with flood cooling

    HIWIN (Taiwan) P-Level 25mm Linear Guide/Slider

    • The CNC router machiane equipped with 25mm Hiwin heavy-load square rails and blocks, built to P-level precision standards for micron-level positioning and repeatability. The 25mm width provides exceptional load-bearing capacity, easily handling the dual demands of high-speed reciprocating motion and heavy-duty cutting, completely eliminating rail deformation and operational stuttering.
    • It features an optimized recirculating ball structure for zero-backlash smooth transmission and significantly reduced operating noise. With built-in self-aligning capability, they compensate for minor mounting surface deviations through ball elastic deformation, and ensuring precise motion trajectory.
    • It utilizing a four-row circular arc groove design with 45° contact angle, the guides achieve equal load capacity in all four directions, greatly improving force distribution uniformity. High-seal end caps on the blocks effectively block workshop dust, coolant, and debris, preventing wear on the ball and rail contact surfaces and substantially extending machine service life.

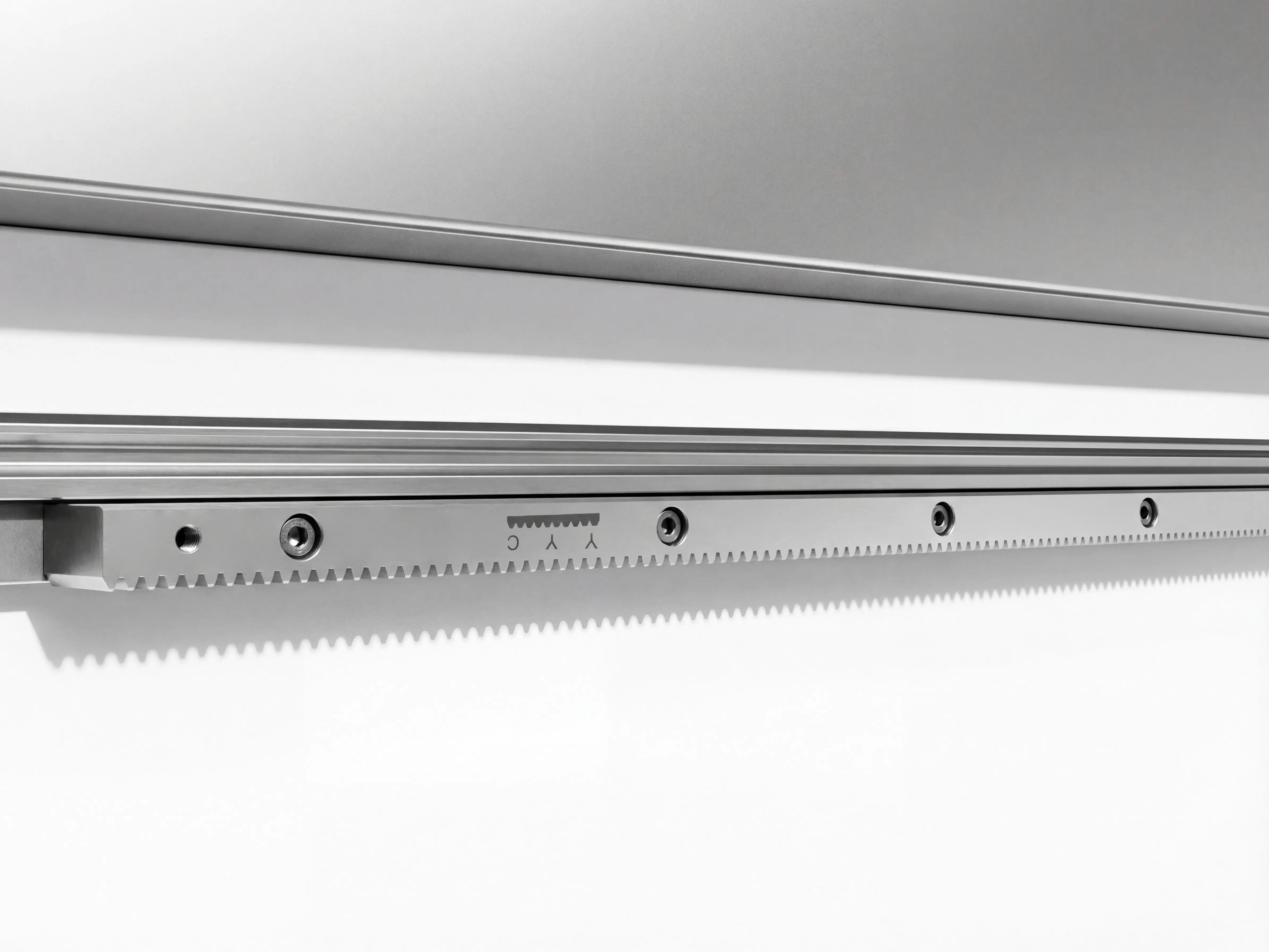

    YYC (Taiwan) Ground helical rack & pinion of Spire 1325 CNC router with flood cooling

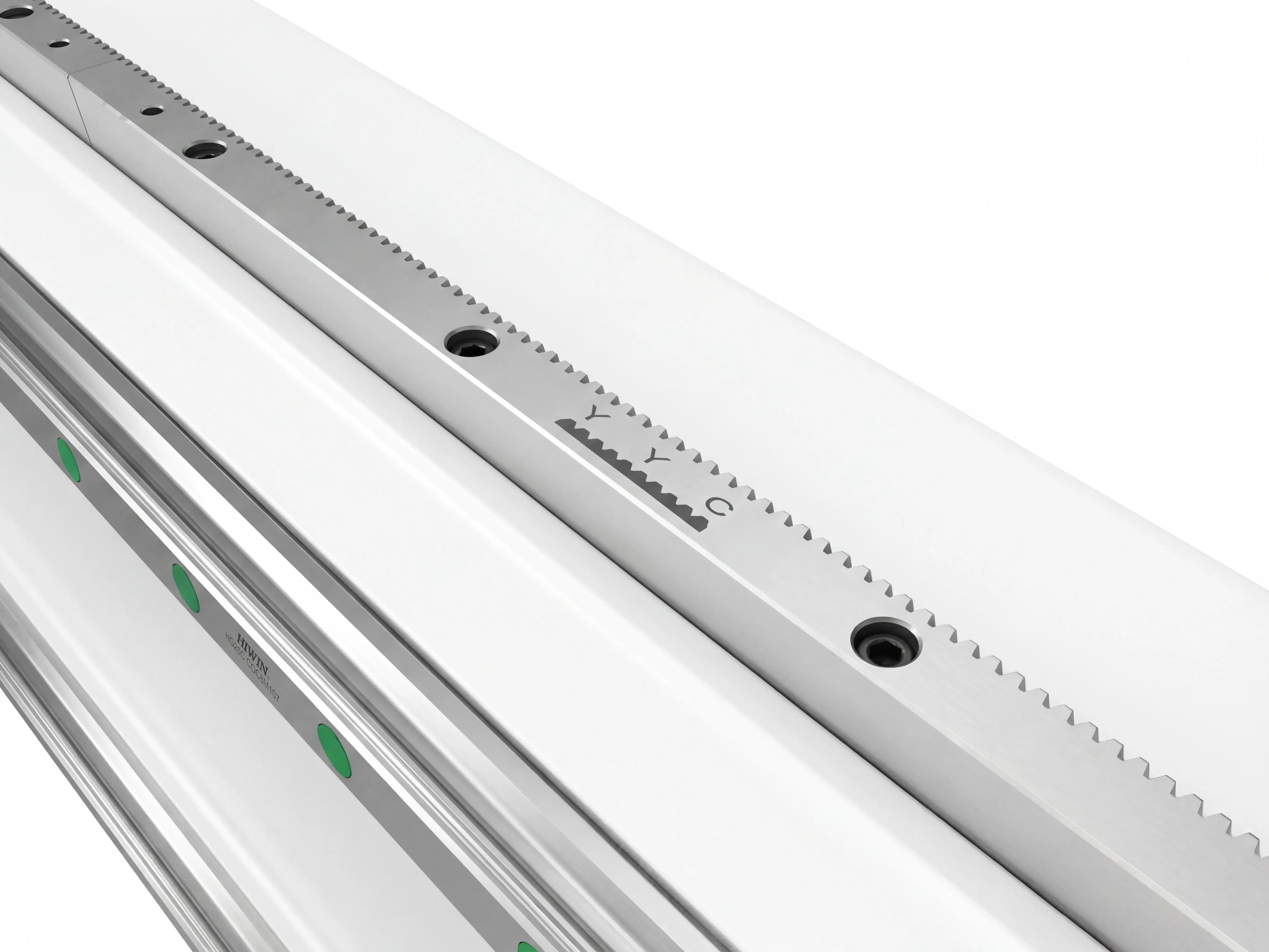

    YYC (Taiwan) Ground helical rack of Spire 1325 CNC router with flood cooling

    YYC (Taiwan) High-Precision Ground Helical Rack & Pinion

    • The rack is manufactured using Taiwan YYC's specialized grinding process, resulting in a superior tooth surface finish that eliminates burrs and machining tolerances common in standard racks. Its carefully designed tooth profile ensures stable linear transmission, precise motion control, and prevents machining deviations caused by transmission errors.
    • The tooth surface undergoes carburizing, quenching, and low-temperature tempering treatments, achieving extreme hardness with superior wear and impact resistance. Its service life is over twice that of ordinary racks. This durability significantly reduces maintenance frequency, providing reliable support for continuous, high-efficiency production.
    • Compared to spur racks, the YYC ground helical rack increases tooth contact area by over 30%. Its progressive engagement ensures more uniform force distribution, effectively dispersing impact forces during high-speed transmission. Even under heavy loads and high-frequency reciprocating conditions, transmission stability is maintained.

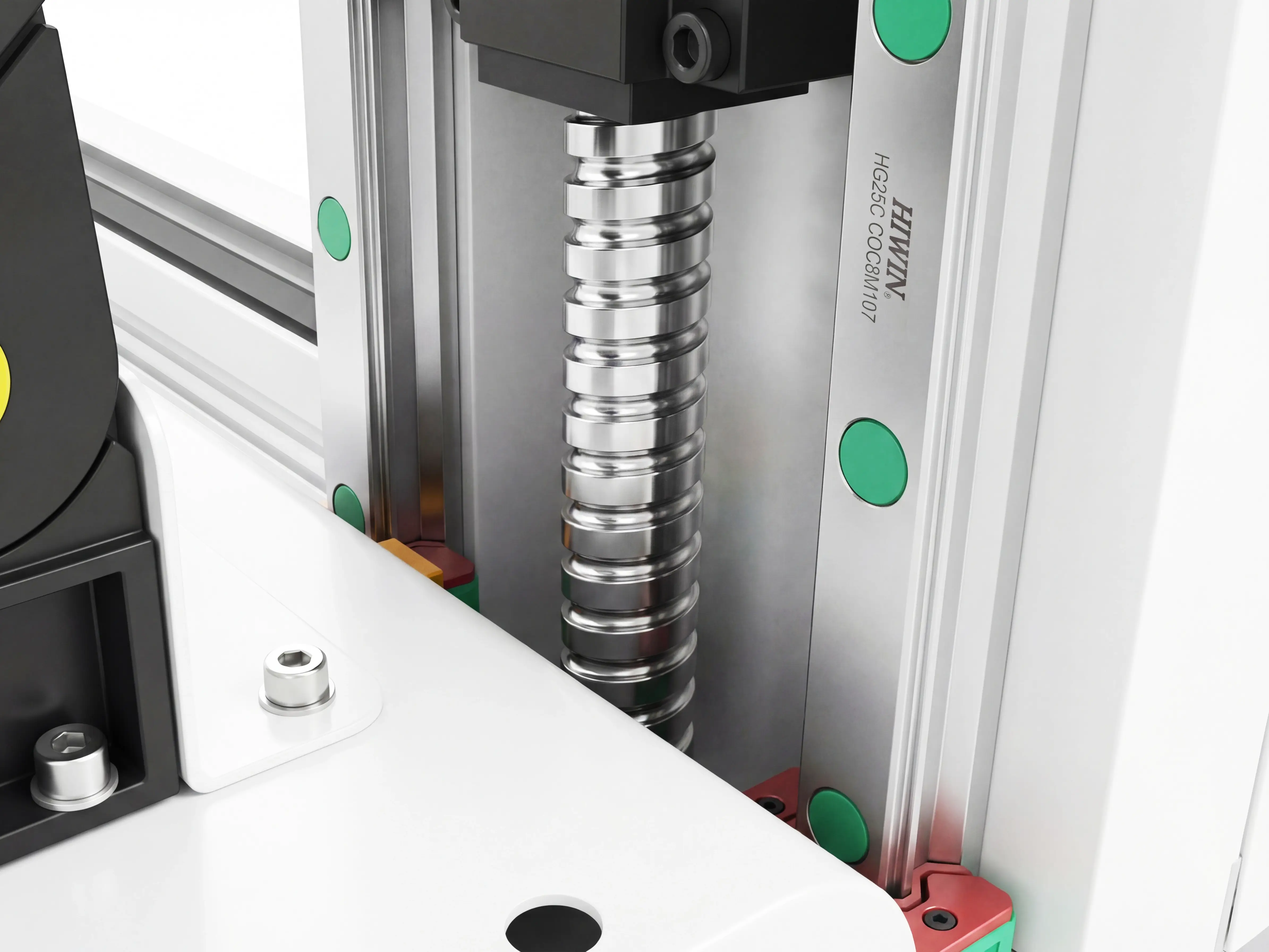

    TBI (Taiwan) Ground ball screws of Spire 1325 CNC router with flood cooling

    TBI (Taiwan) High-Precision Ground Ball Screw

    • The Z-axis is driven by a TBI 2505 ground ball screw, manufactured with precision grinding to control pitch error within micron levels. Its positioning and repeatability far exceed those of rolled screws, enabling precise control of Z-axis feed height, eliminating machining errors from backlash, and meeting the stringent accuracy demands of high-end processing.
    • The screw incorporates a professional preload structure. Through precise adjustment of the nut-to-screw clearance, it significantly enhances axial rigidity while ensuring smooth transmission. This high rigidity effectively withstands instantaneous impact forces generated during rapid direction changes and heavy cutting, maintaining the spindle's linear motion trajectory.
    • The optimized ball circulation path ensures smooth relative motion between the balls, screw, and threads. This enables high-speed feed and rapid start-stop performance on the Z-axis, significantly reducing machining cycle time.

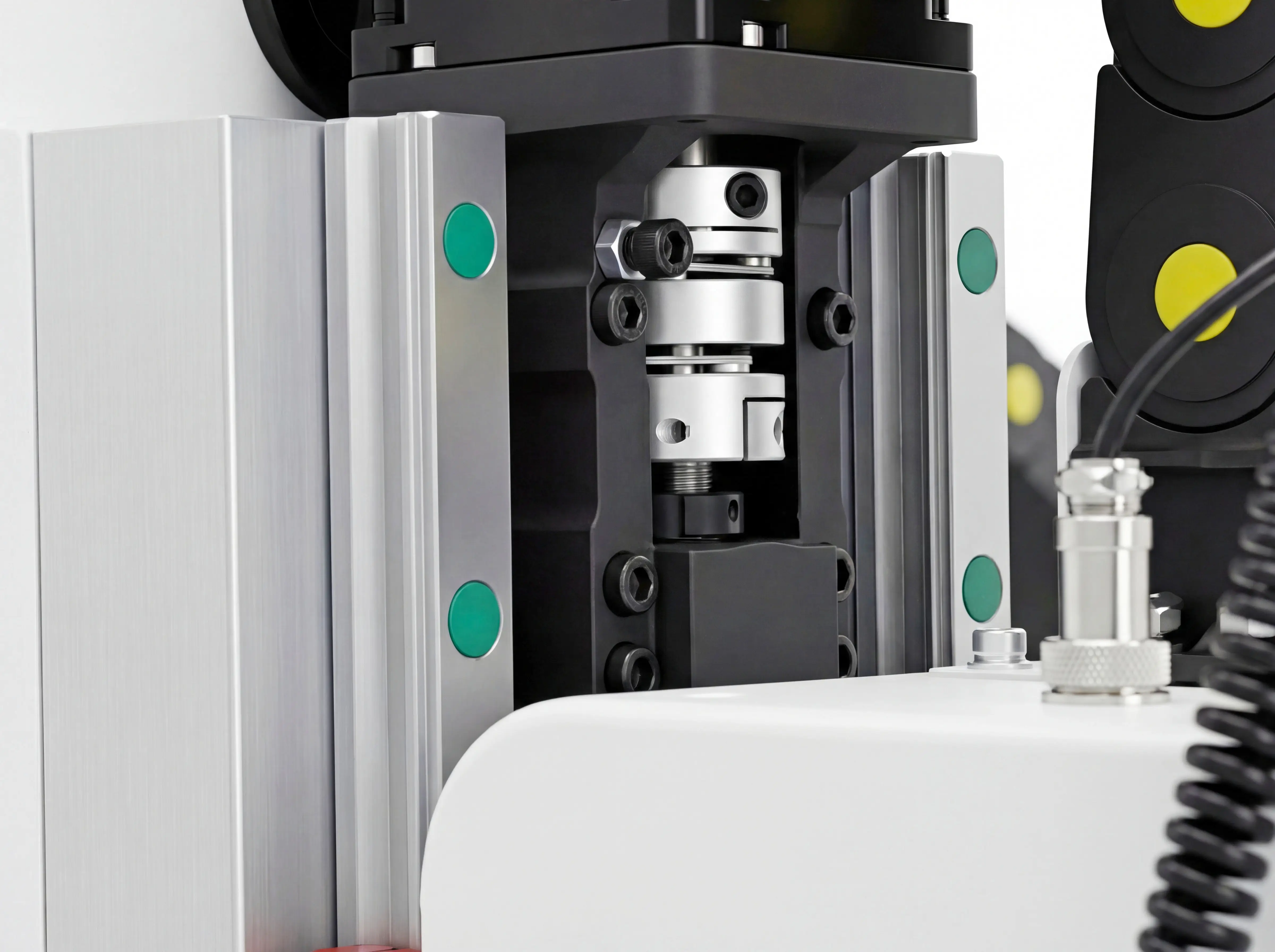

    High-precision diaphragm coupling of Spire 1325 CNC router with flood cooling

    Diaphragm Coupling

    • The coupling body is integrally formed from aluminum alloy, combining lightweight design with high strength, effectively reducing the transmission load and meeting the high-frequency motion demands of CNC routers. The stainless steel diaphragm offers excellent resistance to deformation and fatigue.
    • The double diaphragms feature a symmetrical design, enabling precise compensation for installation coaxiality tolerances and completely eliminating the jitter issues caused by gaps in traditional standard couplings, thereby enhancing machining accuracy.
    • The diaphragm's flexible connection buffers the impact vibrations generated during high-speed operation of the servo motor and ball screw, preventing component wear associated with rigid connections.

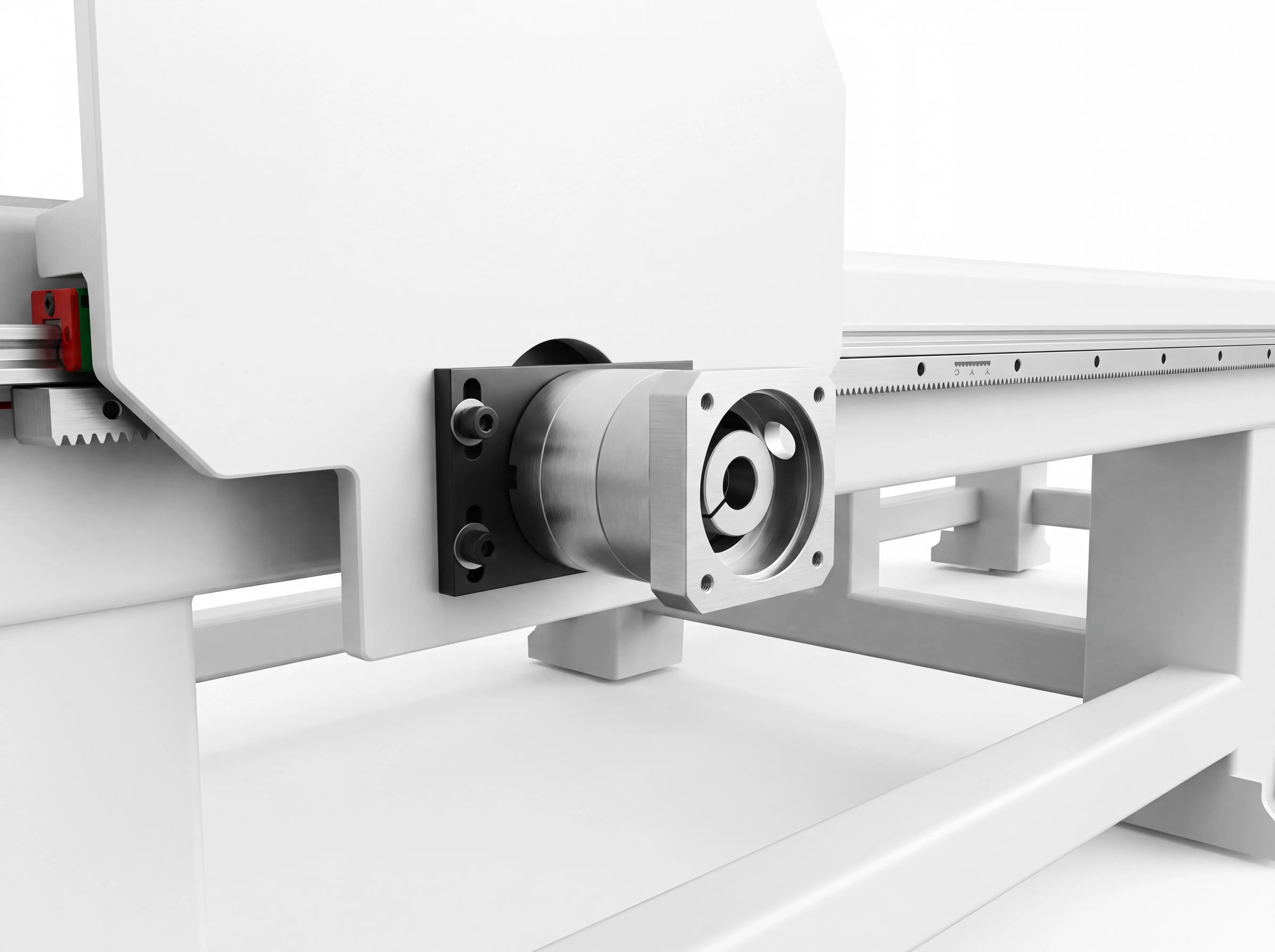

    Shimpo (Japan) planetary of gear reducers of Spire 1325 CNC router with flood cooling

    SHIMPO (Japan) Planetary Gear Reducers

    • The CNC router's X & Y axes are equipped with a Japan Shimpo planetary gear reducer with an 8:1 gear ratio, amplifying the servo motor's output torque to easily handle heavy-duty operations such as cutting and milling.
    • The reducer's symmetrically distributed planetary gears provide an instant overload capacity of up to 3.5 times the rated torque. Its precision-ground gear structure ensures zero-delay power transmission, guaranteeing precise synchronous motion between the rails and rack.
    • It is designed with a servo-motor-specific flange, it seamlessly integrates with CATEKCNC's proprietary servo motor without additional adapters. Transmission efficiency exceeds 96%, with installation coaxiality error ≤0.02mm.

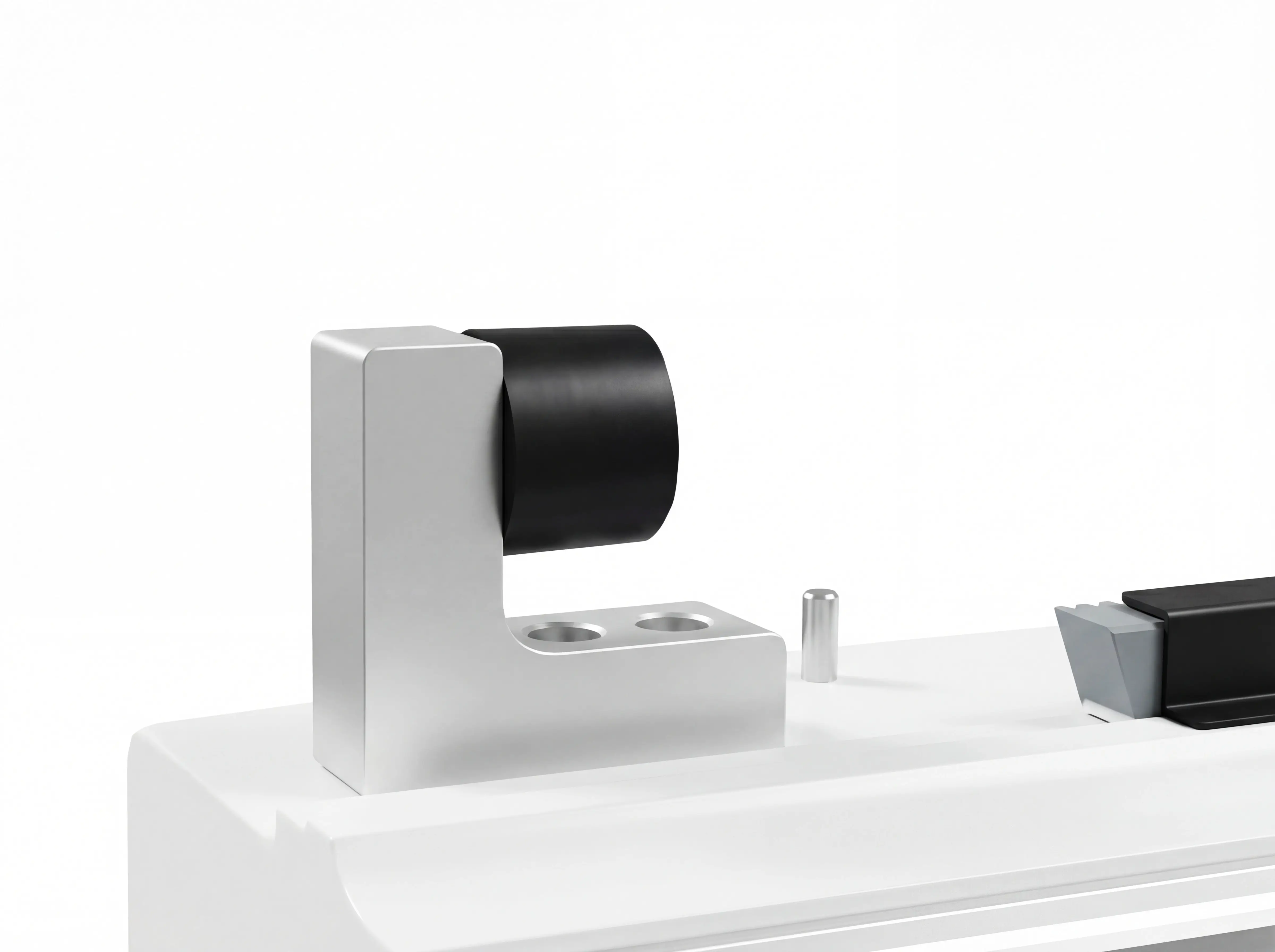

    High-strength aluminum alloy limit bumpers of Spire 1325 CNC router with flood cooling

    High-Strength Aluminum Alloy Limit Bumpers

    • These bumpers consist of an integrated aluminum alloy base and a highly elastic rubber component. The aluminum alloy base provides exceptional strength and rigidity, capable of withstanding forceful impacts caused by axis overtravel, thereby protecting core components such as the machine frame and rails from damage. The rubber buffer features outstanding anti‑aging properties, retaining its elasticity even under repeated impacts to effectively absorb kinetic energy and dampen vibrations.
    • They are designed to be lightweight and compact, so the bumpers do not intrude into the effective travel range after installation. They remain fully compatible with limit switches and do not interfere with the machine's normal operation, thus significantly boosting overall reliability and operational safety.
    Click the icon labels to view different machine parts

    CATEKCNC 5.5KW Constant-Power Spindle: Born for Long-Run Heavy Machining

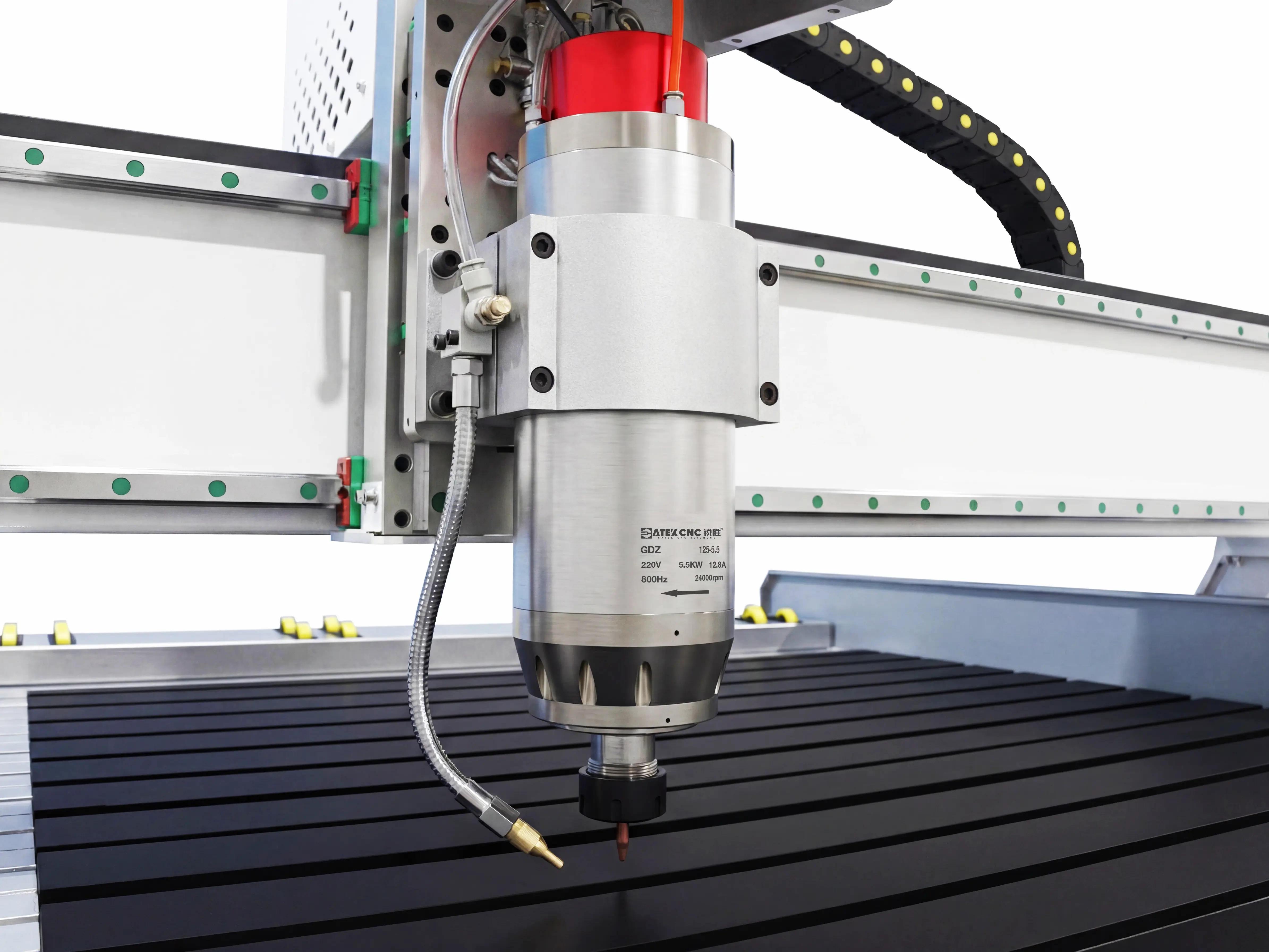

    CATEKCNC self-developed 5.5KW constant-power high-speed water-cooled spindle of Spire 1325 CNC router with flood cooling

    CATEKCNC Self-Developed 5.5KW Constant-Power High-Speed Water-Cooled Spindle

    • The spindle adopts an efficient water-cooling design, featuring an internally integrated and optimized water circulation loop. This system provides uniform and highly effective heat dissipation, rapidly removing the heat generated during high-speed operation. Even under the demanding conditions of 24/7 uninterrupted machining, the spindle temperature remains stable and controllable, fundamentally eliminating the risk of downtime caused by overheating.
    • With a maximum speed of 24,000 RPM, each spindle undergoes precise dynamic balancing calibration before factory delivery, ensuring minimal radial runout. During operation, the tool rotates smoothly and vibration-free, effectively eliminating chatter marks on workpiece surfaces and significantly enhancing the finish and precision of machined parts. Paired with a frequency control system, its speed can be precisely and steplessly adjusted to suit different material and process requirements, delivering wide machining adaptability.

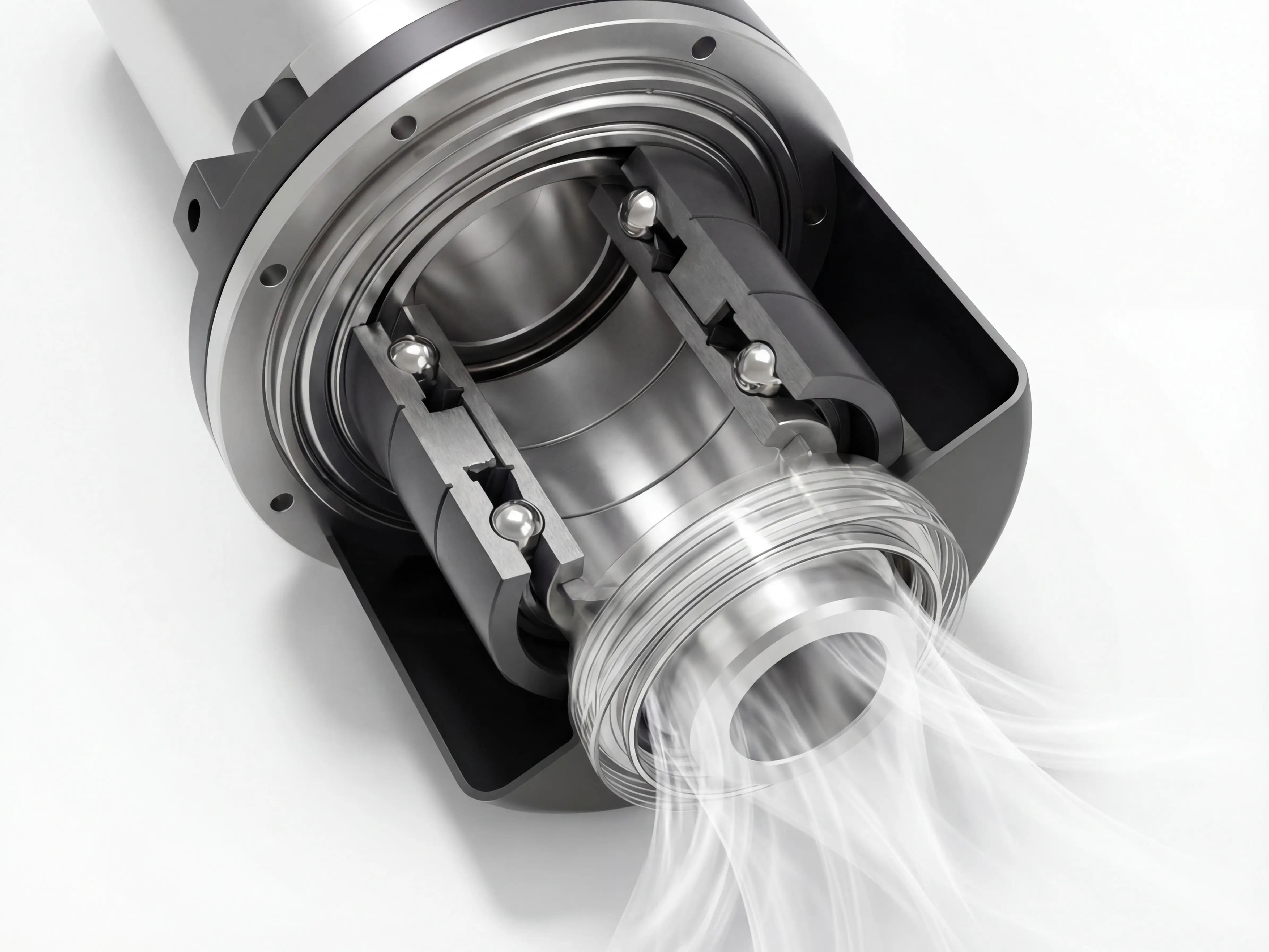

    Multi-seal for long-term spindle stability of Spire 1325 CNC router with flood cooling

    Multi-Seal for Long-Term Spindle Stability

    • The spindle is equipped with an advanced air curtain seal function. By continuously delivering compressed air, an effective gas barrier is formed at the spindle front end, actively blocking contaminants such as dust, chips, and coolant from entering the internal bearings and core transmission areas. This greatly reduces the risk of wear, corrosion, and failure caused by contamination.
    • It innovatively combines a triple-protection mechanism: "Air Curtain Seal (Active Protection) + Labyrinth Seal (Path Extension) + Contact Sealing Ring (Static Seal)." The air curtain is responsible for active isolation, the labyrinth structure extends the contaminant intrusion path, and the sealing ring ensures reliable static sealing—together forming a robust "active + passive" dual defense. Even in harsh operating environments with high temperature, humidity, and dust, this system ensures long-term stable spindle operation and significantly extends service life.
    Click the icon labels to view different machine parts

    CATEKCNC Servo System: Unmatched Speed, Control & Response for CNC Routers

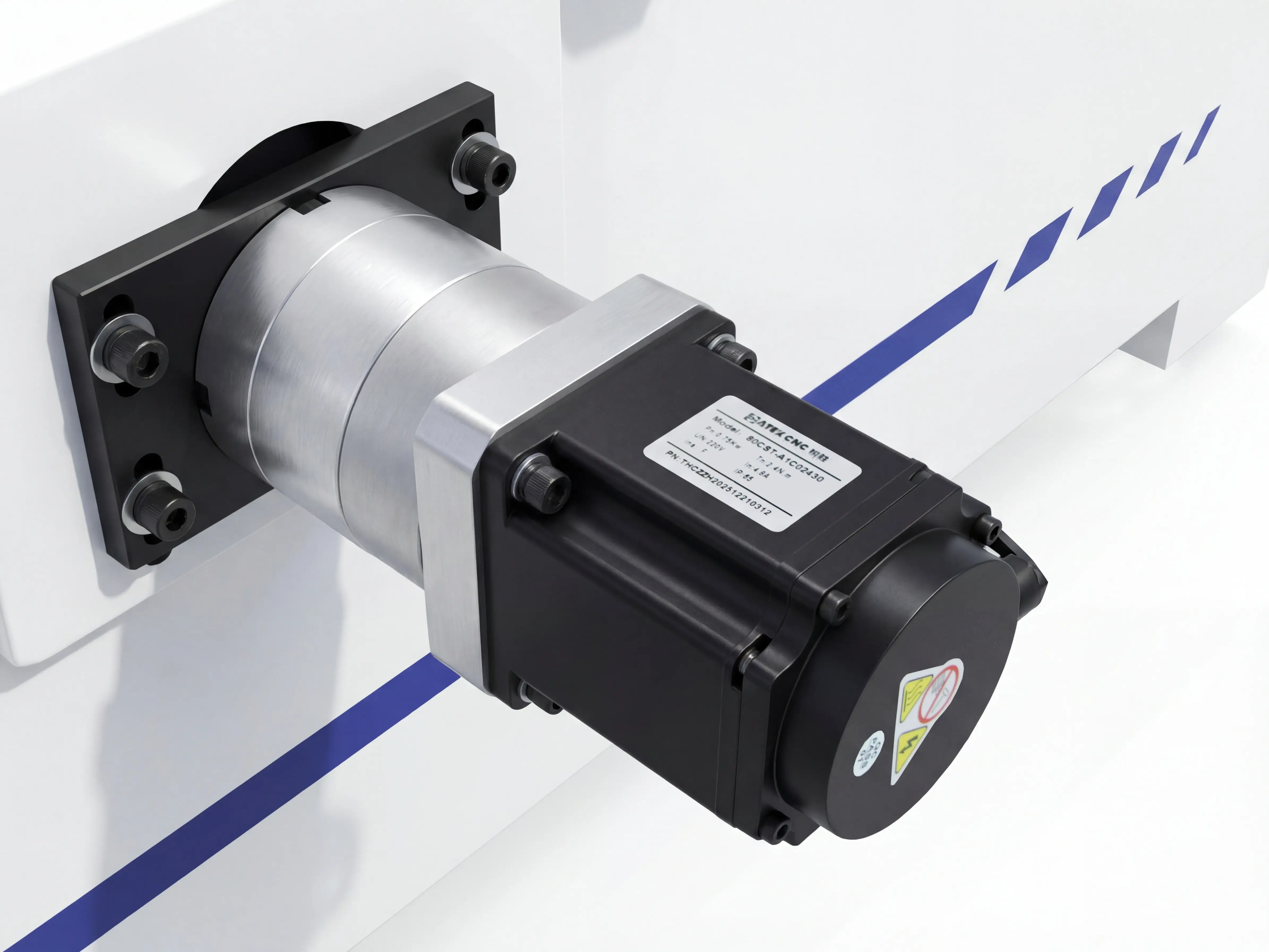

    CATEKCNC self-developed servo motor and Shimpo (Japan) planetary gear reducers for Spire 1325 CNC router with flood cooling

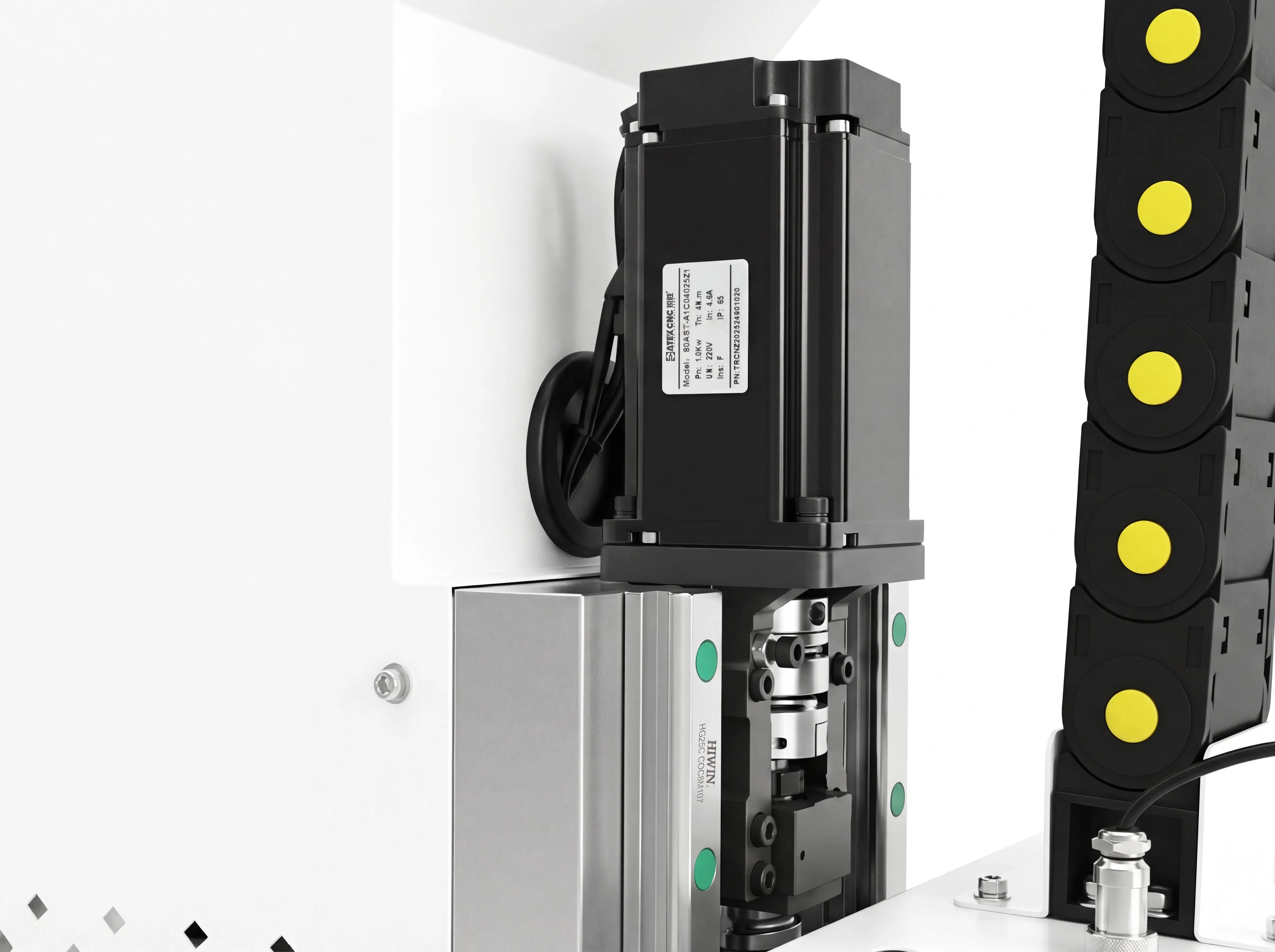

    CATEKCNC self-developed 1000W servo motor for Spire 1325 CNC router with flood cooling

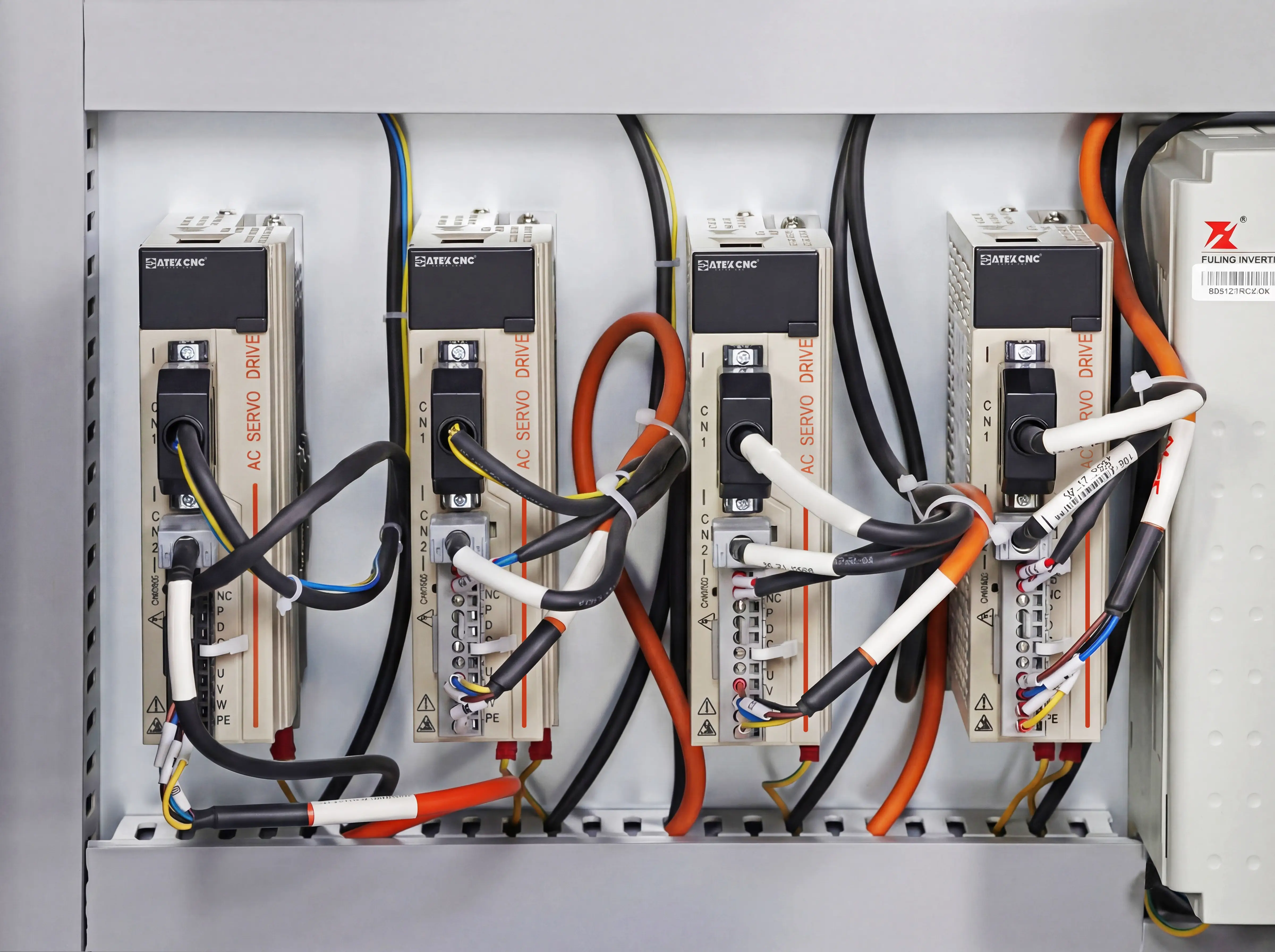

    CATEKCNC self-developed servo drive for Spire 1325 CNC router with flood cooling

    CATEKCNC Self-Developed Servo System

    • Both three linear axes (X, Y, Z) are equipped with CATEKCNC's self-developed 750W/1000W high-performance servo system, which has been specially tuned for CNC routers to deliver powerful output and rapid response.
    • The Y-axis features double-motor bilateral drive, effortlessly supporting high-speed reciprocating motion of large-span gantry structures and ensuring precise machining trajectories. The Z-axis 1000W servo motor is equipped with an brake, enabling instantaneous mechanical locking upon power loss to prevent spindle descent due to its own weight, thereby avoiding collisions between the tool and the workpiece or worktable.
    • This servo system offers over 3.5 times short-term overload resistance, allowing it to handle sudden resistance encountered during hard material cutting with ease and ensuring smooth, uninterrupted processing. The servo motors are deeply integrated with the machine, achieving millisecond-level signal transmission delays. Whether for woodworking, aluminum cutting, or stone engraving, it performs effortlessly.

    Control. Redefined. A Modern Control for Effortless Operation

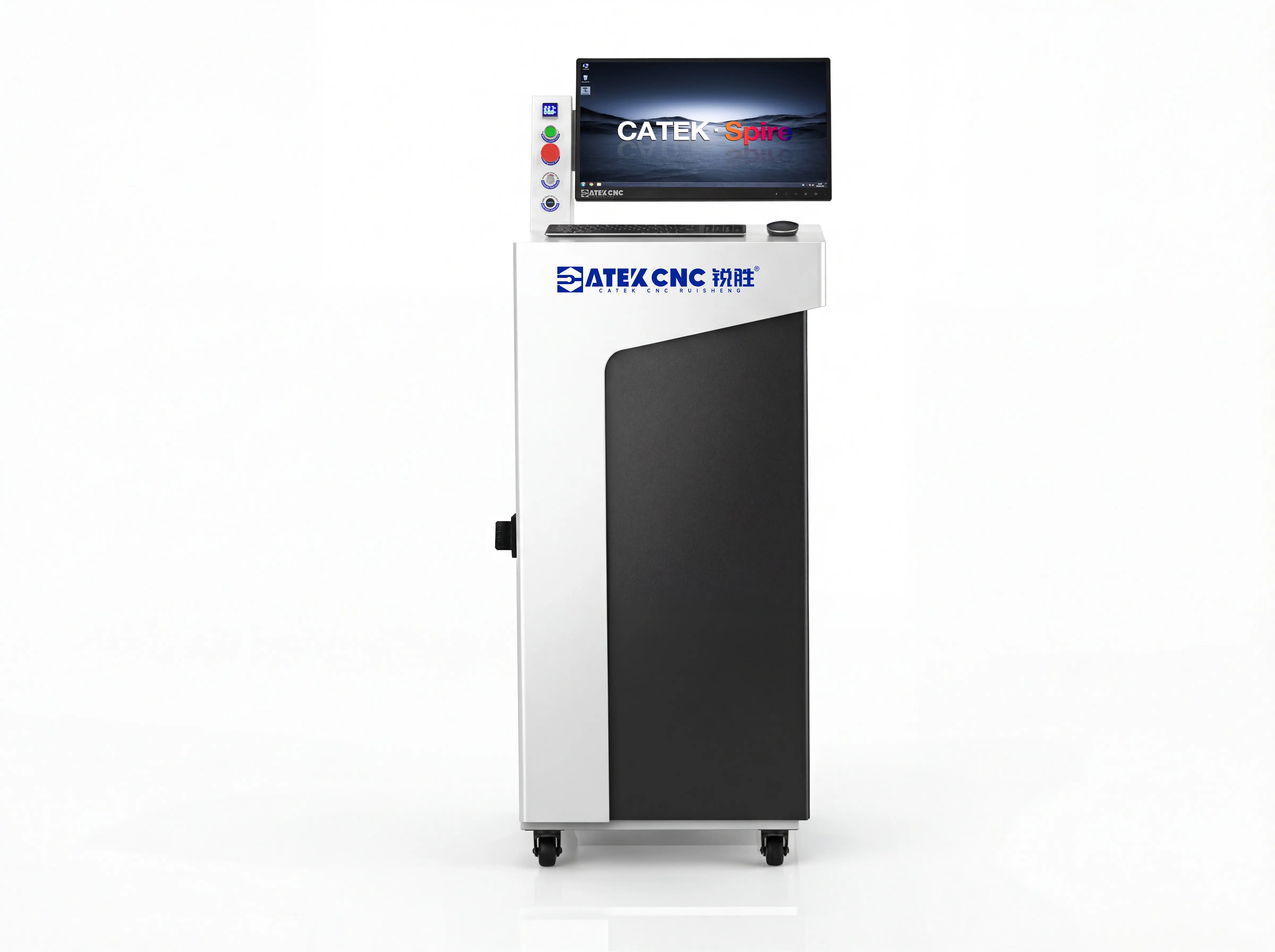

    CNC system for Spire 1325 CNC router with flood cooling

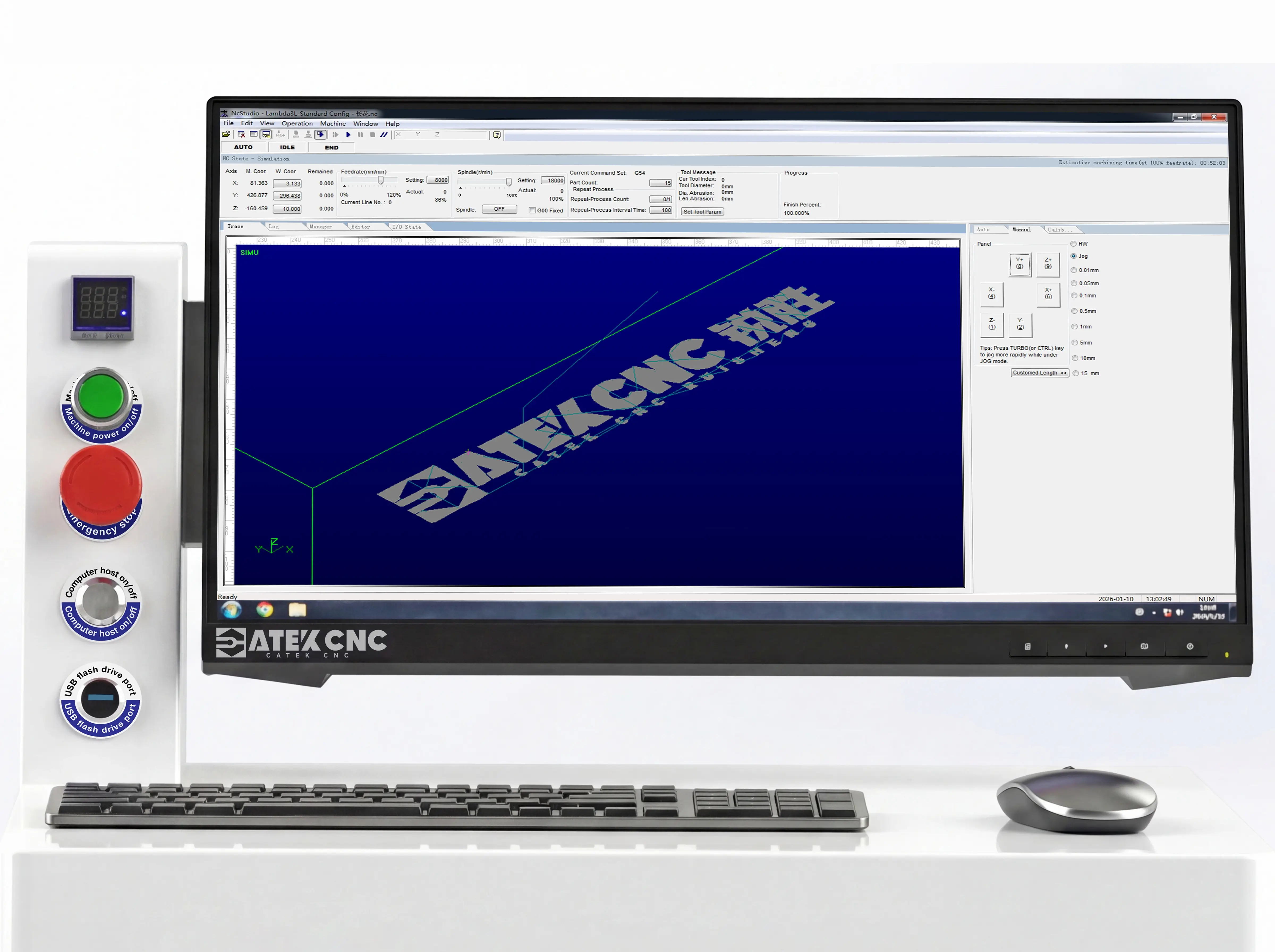

    The inerface of Spire 1325 CNC router with flood cooling

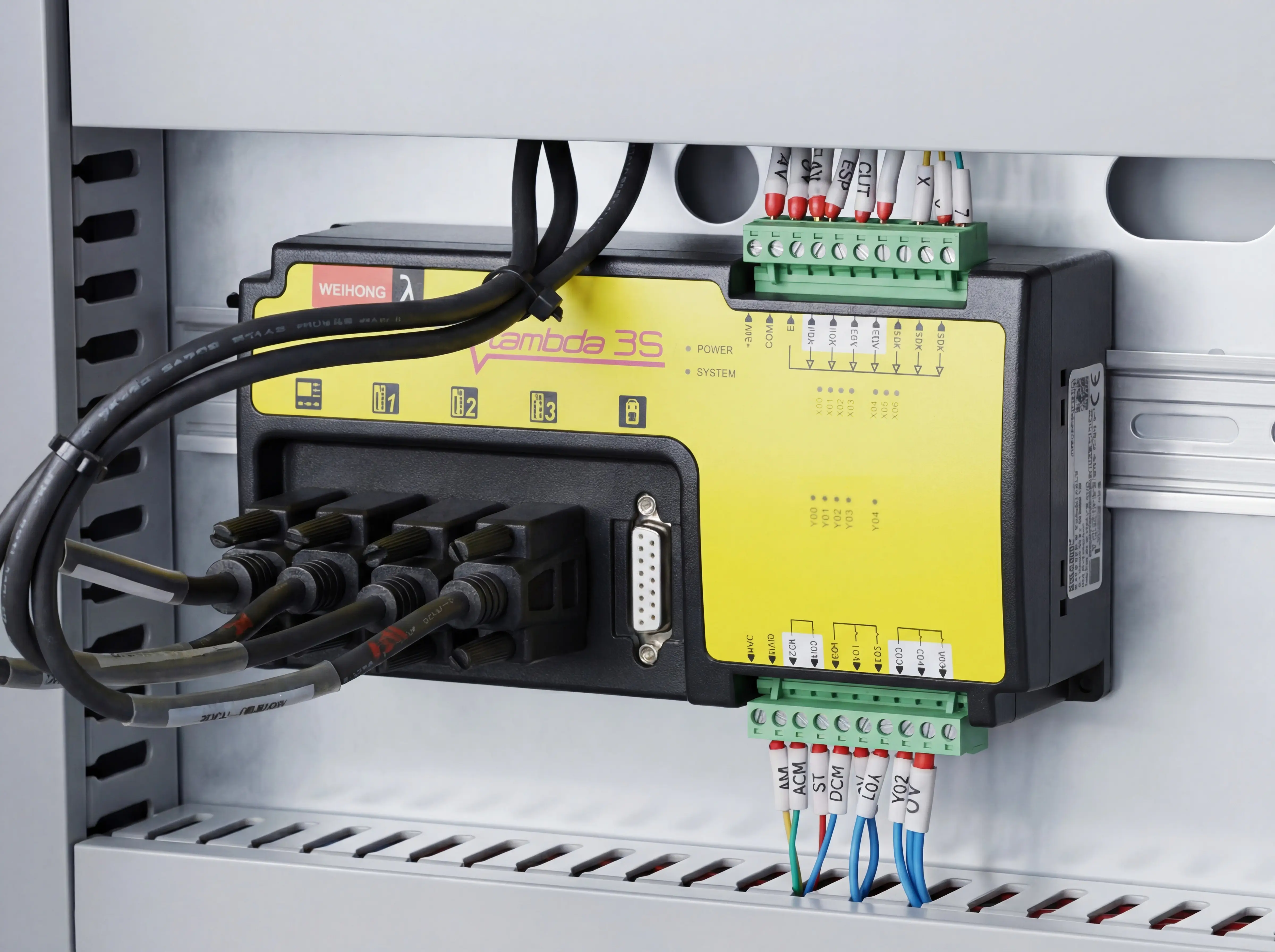

    Weihong Lambda 3S slave controller for Spire 1325 CNC router with flood cooling

    Weihong PM95A Control System

    • Equipped with the Weihong PM95A PCI‑E motion control card, integrated with NcStudio's intelligent trajectory planning algorithm, it adapts to various high‑speed and high‑precision machining scenarios, providing precise control whether for large‑span gantry high‑speed movement or delicate engraving tasks.
    • NcStudio runs on the standard Windows platform and supports file formats such as G‑code, NC, ENG, and PLT. It can directly read output files from popular CAD/CAM software including ArtCAM, PowerMill, Mastercam, and UG, thereby lowering the barrier to use.
    • The system supports advanced functions like automatic tool setting, breakpoint resume engraving, and toolpath simulation, reducing workpiece waste and shortening preparation time. Combined with NcStudio's visual interface, the learning curve is minimal—even beginners can quickly become proficient. Real‑time status monitoring and automatic alarm notifications in case of machine anomalies further simplify troubleshooting and ensure smooth operation.

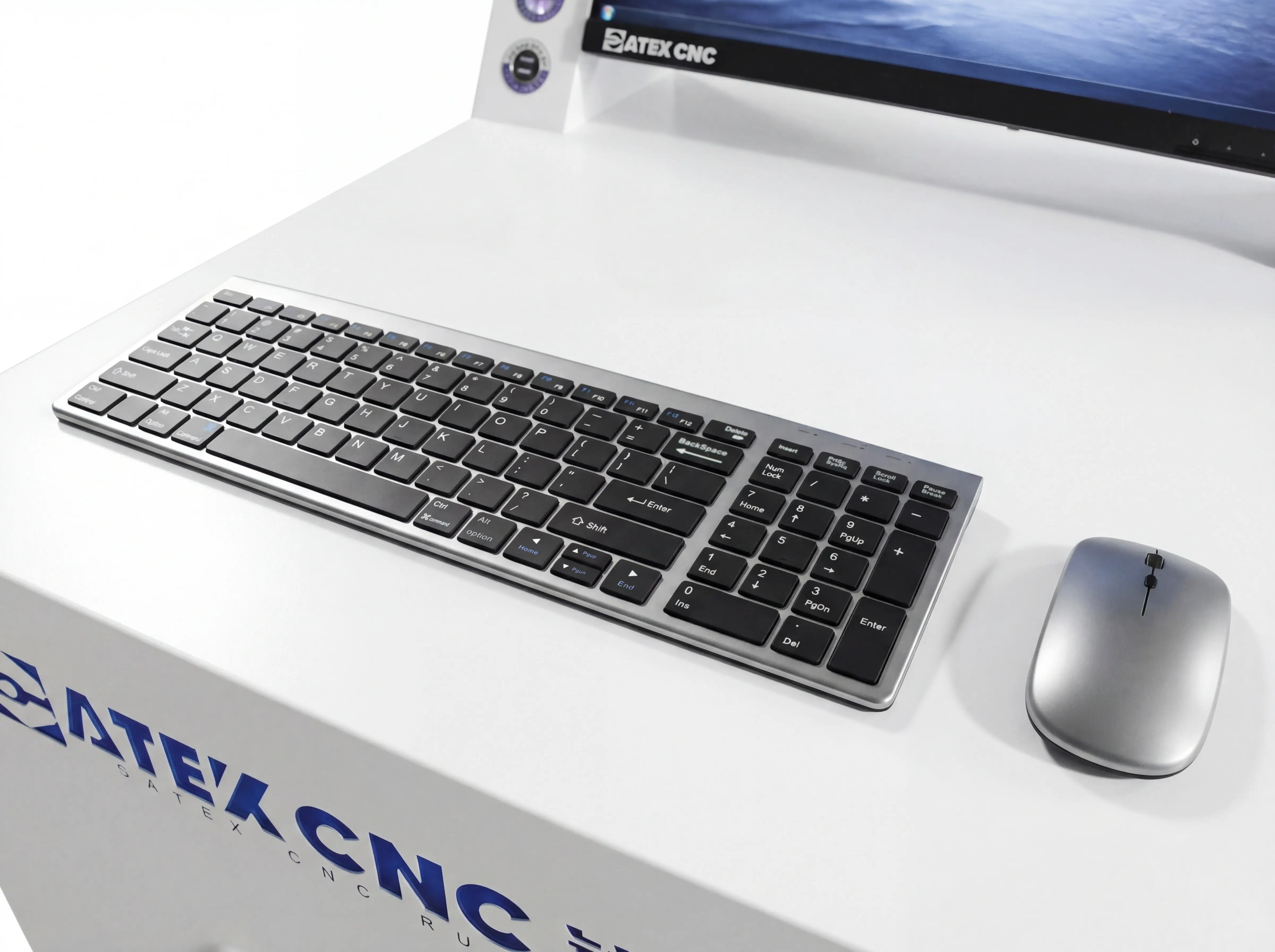

    Wireless keyboard and mouse for Spire 1325 CNC router with flood cooling

    Wireless Keyboard / Mouse

    • Equipped with an industrial-grade wireless keyboard and mouse that feature 2.4GHz anti-interference communication technology, ensuring stable operation in complex workshop electromagnetic environments. Keys are highly responsive, meeting the frequent start/stop and parameter adjustment needs of CNC router machines.
    • The keyboard is housed in a sealed aluminum alloy casing, effectively resistant to workshop dust and cutting fluid. Keys are made from oil-proof and wear-resistant materials, providing durability against abrasion and aging, and capable of withstanding over a million presses.
    • Designed with rechargeable battery functionality, it significantly reduces consumable costs compared to disposable batteries, balancing durability with economy.
    Click the icon labels to view different machine parts

    Engineered to Last, Superior Electricals Ensure CNC Router Reliability

    • Fuling Variable Frequency Drive
    • Interlock and Short-Circuit Protection Switch
    • High-Quality Power Switches
    • Schneider Electrical Components
    • Piping and Interface Labeling
    • Fully Enclosed High-Strength Cable Carrier
    • High-Quality Terminal Blocks

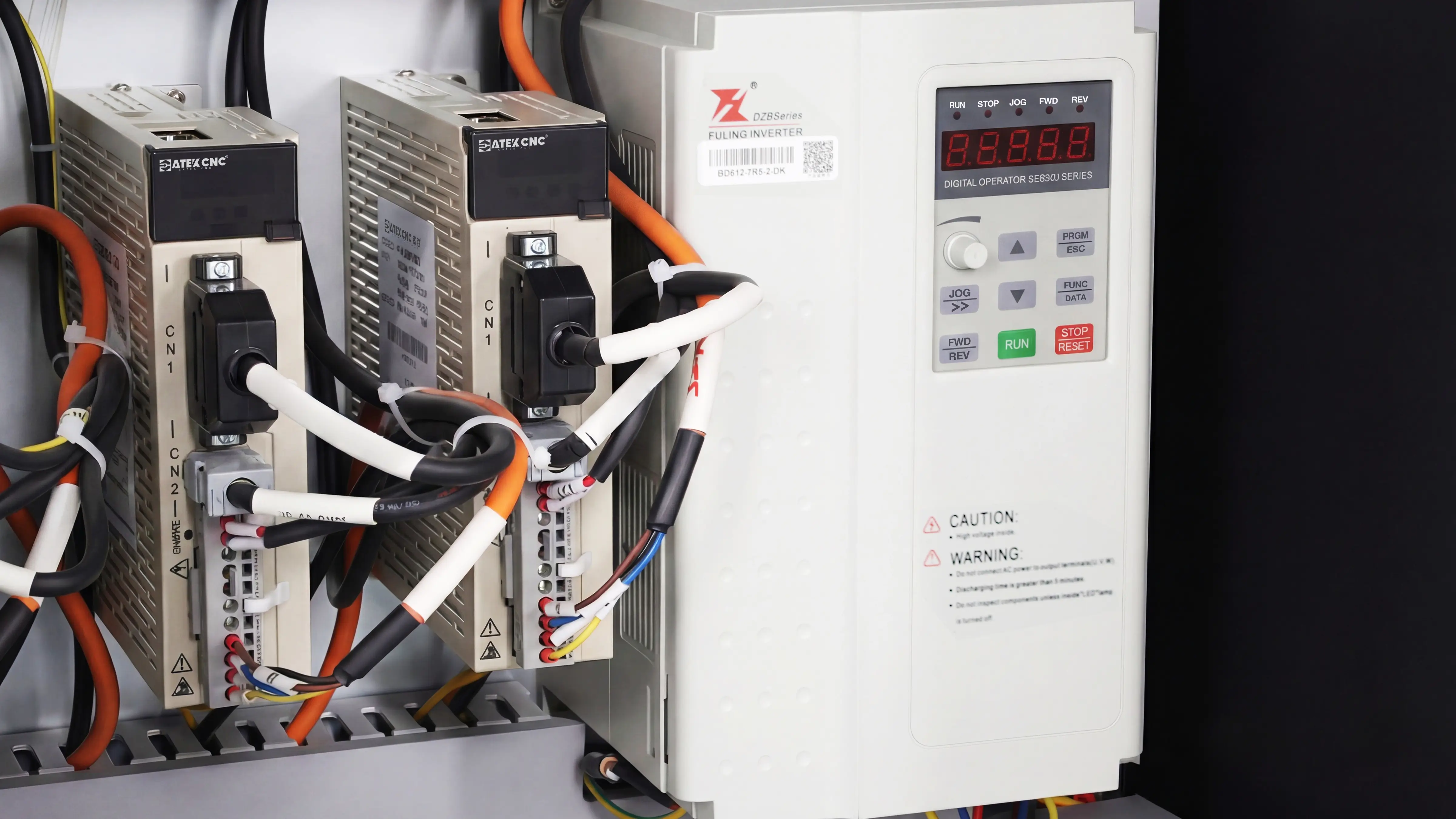

    • Fuling variable frequency drive of Spire 1325 CNC router with flood cooling

      Fuling Variable Frequency Drive

      • High-performance vector control technology delivers high torque output, ensuring stable and uninterrupted operation when machining hard materials such as metals and stone. Pre-installed with dedicated CNC router macro codes, it supports one-click adaptation to Weihong control systems, and seamless compatibility with the CATEKCNC 24,000rpm water-cooled spindle, while allowing output frequency adjustment as needed.
      • Supports ±15% wide voltage input, effectively handling workshop voltage fluctuations. Equipped with multi-speed settings and S-curve acceleration/deceleration functions, it precisely adapts to the processing requirements of different materials. The built-in independent cooling duct improves heat dissipation efficiency by over 30%, enabling stable operation under prolonged heavy-duty machining conditions.
      • Features multiple protection mechanisms, including overcurrent, overvoltage, overheating, and overload safeguards. Real-time monitoring of operational parameters enables early warning of abnormal conditions, supporting 24/7 continuous and uninterrupted processing to enhance overall production efficiency.

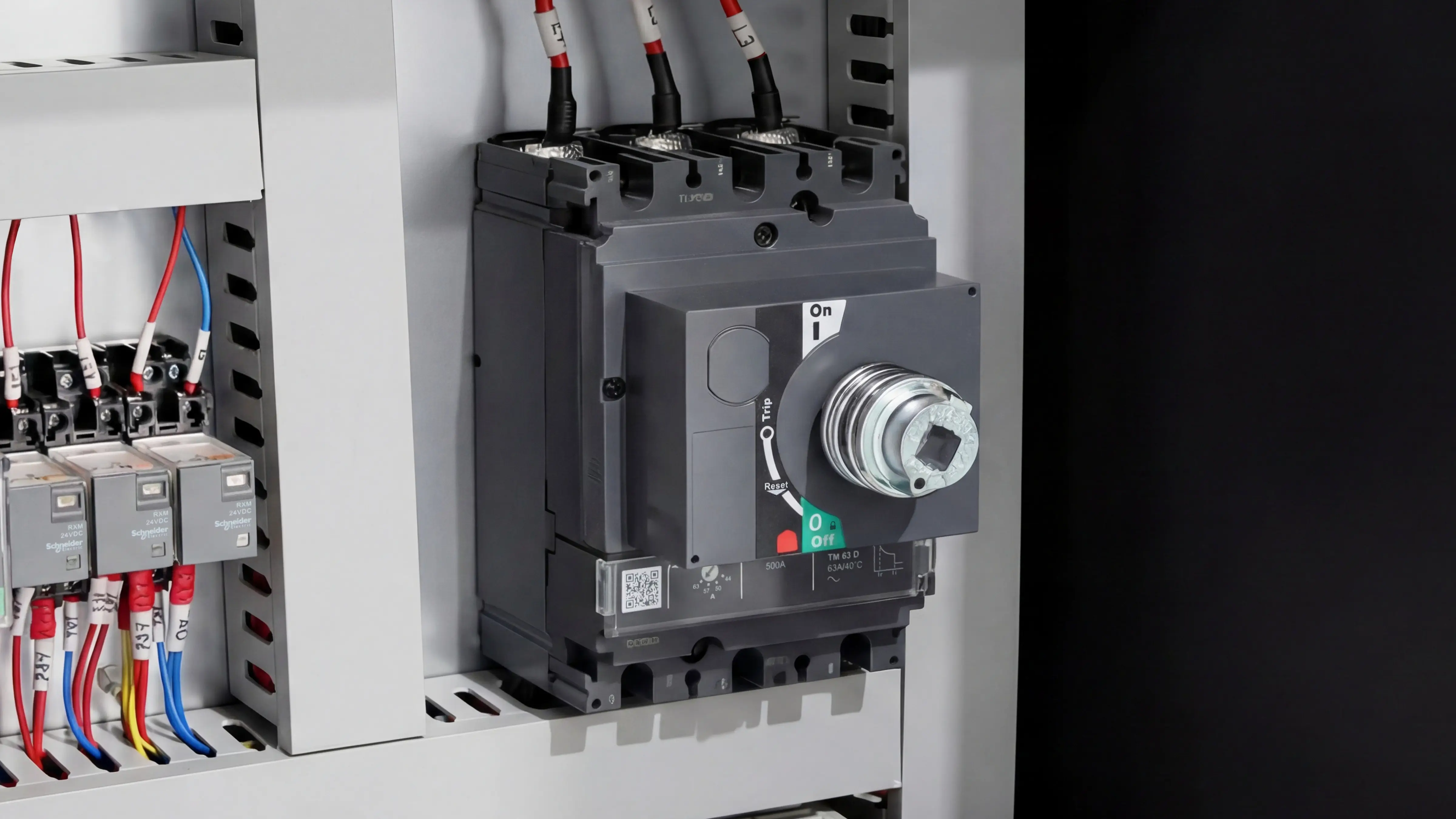

    • Interlock and short-circuit protection switch of Spire 1325 CNC router with flood cooling

      Control Cabinet Interlock and Short-Circuit Protection Switch

      • The control cabinet is equipped with a power interlock protection switch, integrating dual functions of power management and safety interlock. Opening the cabinet door triggers automatic power cut-off, while power is restored only after the door is securely closed and reset. This design fundamentally eliminates the risk of accidental electric shock during maintenance.
      • The switch also features rapid-response overload and short-circuit protection, capable of instantly cutting off the circuit. Paired with high-reliability Schneider electric components, it significantly reduces the probability of electrical failures, ensuring comprehensive protection for both equipment and personnel.
      • Both the upper and lower parts of the cabinet door are fitted with dedicated cabinet locks. This dual-lock design not only prevents unauthorized personnel from accessing the cabinet, but also greatly enhances its sealing performance—effectively keeping workshop dust out and protecting the internal electrical components.

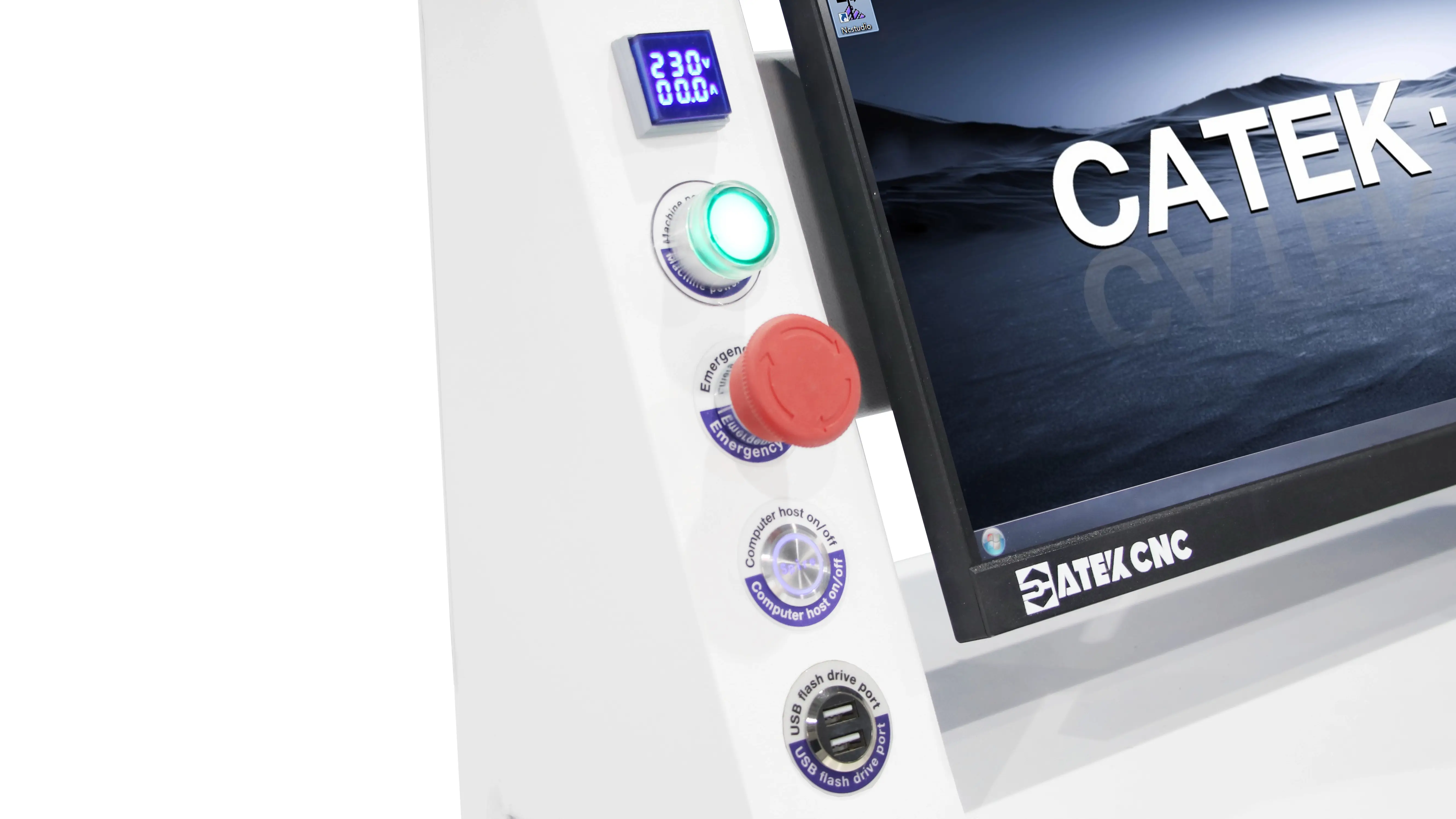

    • High-quality power switches of Spire 1325 CNC router with flood cooling

      High-Quality Power Switches

      • The start/stop switch utilizes silver-alloy contacts, offering resistance to arcing, wear resistance, and stable engagement, making it suitable for the demanding high-frequency start/stop operations of CNC engraving machines. The switch is also waterproof and dustproof, capable of withstanding splashes of cutting fluid and dust erosion in workshop environments. The emergency stop button features a classic red color for easy identification, allowing for immediate power shutdown with a single press to effectively handle sudden situations such as tool collisions or processing abnormalities.
      • Equipped with a high-precision current and voltage meter, it provides real-time, intuitive display of the machine's operating voltage and current data. Operators can quickly assess whether the machine's voltage is normal, facilitating the early detection of potential faults.
      • Features an independent computer power switch for one‑click control of the industrial PC's startup and shutdown. An external USB expansion port supports reading files via USB drives, enabling quick import of machining programs—particularly convenient for small‑batch custom processing with multiple production runs.

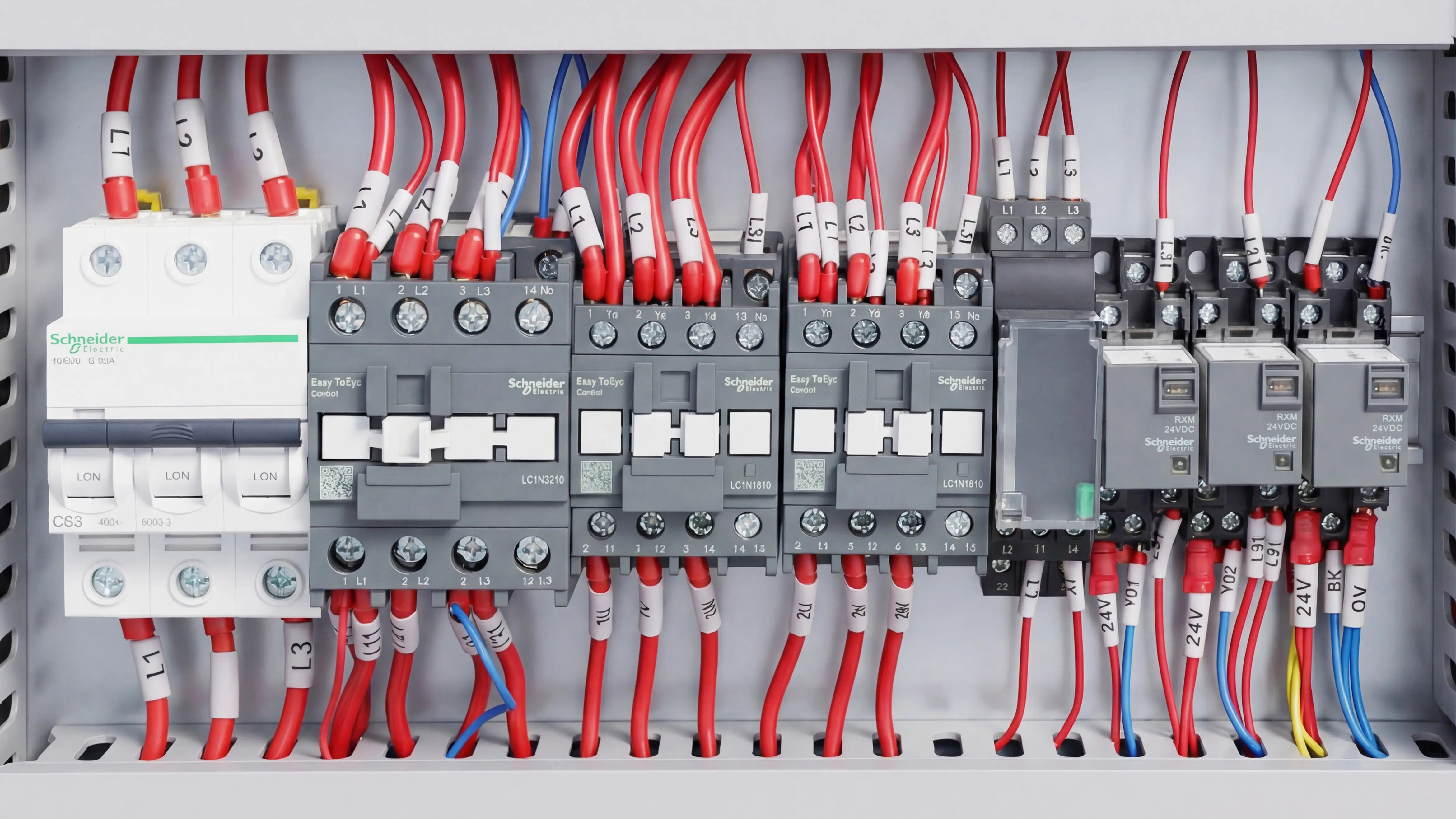

    • Schneider electrical components of Spire 1325 CNC router with flood cooling

      Schneider Electrical Components

      • This CNC router is equipped with Schneider circuit breakers, AC contactors, phase sequence protectors, relays, and a 24V DC power supply, delivering stable and reliable performance to meet stringent industrial requirements while establishing a robust foundation for electrical safety.
      • The AC contactor's contacts are designed to withstand arc impact, ensuring stable engagement for smooth operation of high-power components such as the spindle and dust collector.
      • The relay system links the control system with the spindle, chiller, and dust collector, enabling start/stop control and mode switching for each subsystem. The Schneider 24V DC regulated power supply delivers stable, ripple‑free output, providing safe and reliable DC power for the control system, sensors, indicator lights, and other components.

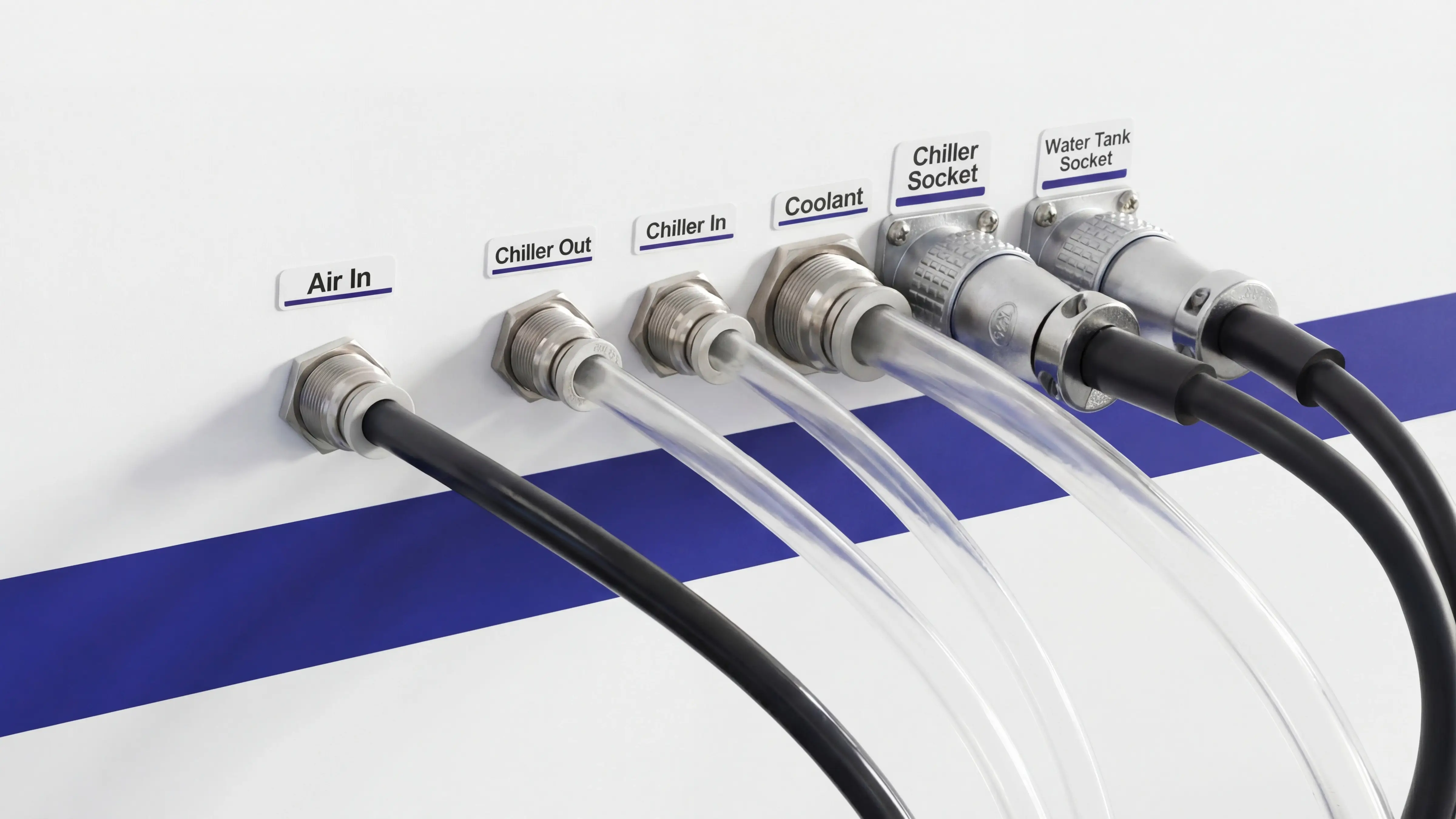

    • Piping and interface labeling of Spire 1325 CNC router with flood cooling

      Piping and Interface Labeling

      • All externally connected pipelines on this machine are managed uniformly and systematically according to functional zones. Each interface is affixed with a color‑coded label clearly indicating the component name. This design completely eliminates connection errors caused by numerous external components in industrial settings, significantly reducing machine inspection and maintenance time.
      • The chiller socket and circulation water tank socket are connected via industrial aircraft‑style connectors. These connectors feature an industrial‑grade anti‑loosening design with an IP65 rating for waterproof and dustproof performance. They are resistant to vibration, interference, and accidental disconnection.
      • The air hoses, coolant pipes, and chiller inlet/outlet hoses are made of specialized high‑pressure and corrosion‑resistant tubing. This material can withstand long‑term exposure to cutting fluids and coolants, effectively eliminating the risk of leakage.

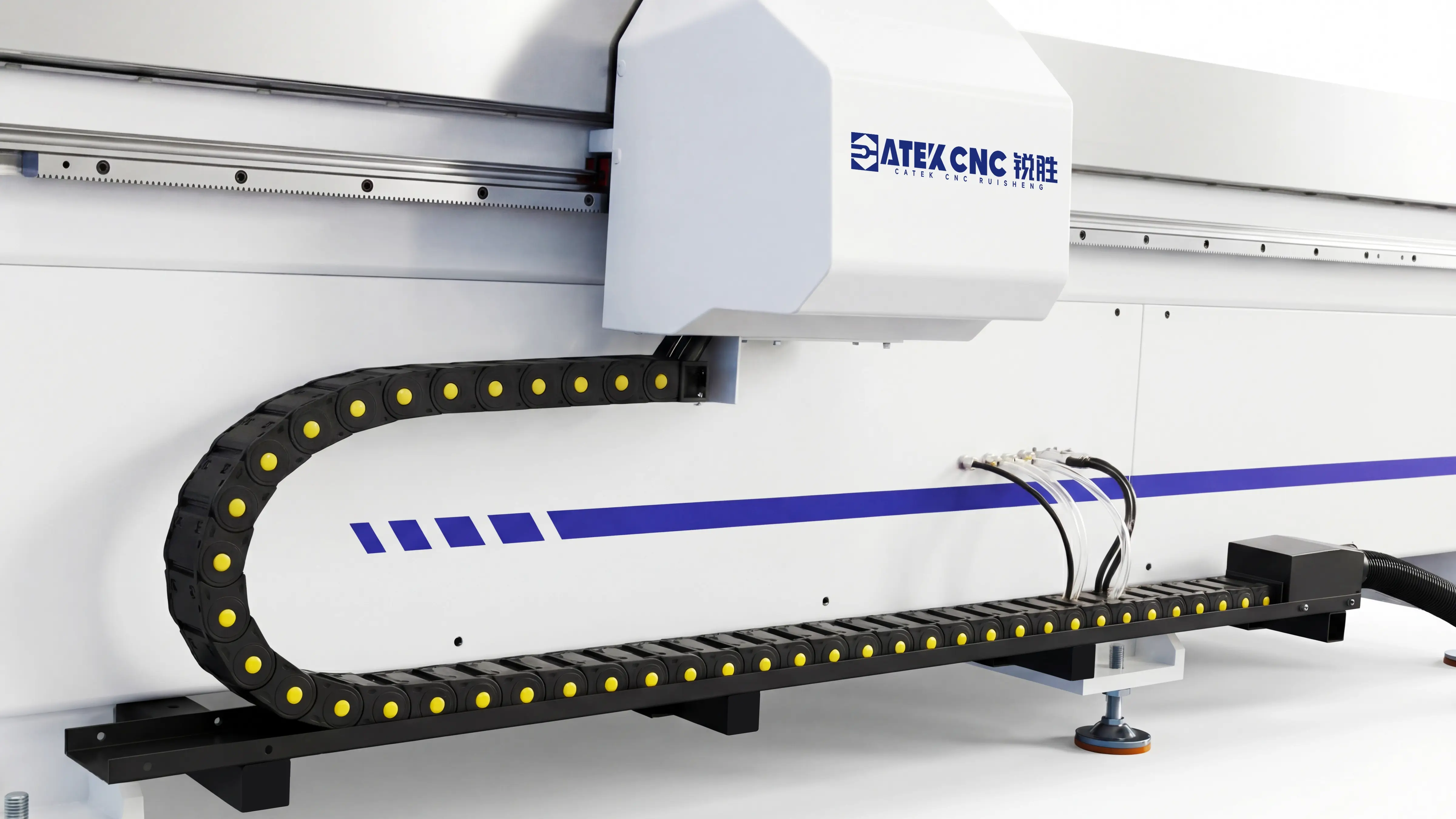

    • Fully enclosed high-strength cable carrier of Spire 1325 CNC router with flood cooling

      Fully Enclosed High-Strength Cable Carrier

      • Equipped with fully enclosed reinforced cable carriers that organize power lines, signal lines, and control cables. This design ensures tidy and clear wiring layout, reduces electromagnetic interference, simplifies later maintenance and troubleshooting, and significantly improves equipment operational efficiency.
      • The cable carrier is made of high-strength nylon material, with tightly fitted chain links forming a fully enclosed protective space. This effectively isolates workshop dust and cutting fluid, preventing wire harness wear and aging.
      • The cable carrier features a quiet and wear-resistant structural design, operating with low noise. It is fully compatible with the high-speed reciprocating motion of each axis of the CNC router, ensuring long-term reliability without deformation or jamming.
    • High-quality terminal blocks of Spire 1325 CNC router with flood cooling

      High-Quality Terminal Blocks

      • The main power supply, dust collector, and vacuum pump are each connected via independent terminal blocks, enabling partitioned wiring and separate power supply for these three high-power systems. This design prevents electromagnetic interference to the CNC system caused by instantaneous current fluctuations during the startup and shutdown of the dust collector and vacuum pump, ensuring stable and precise transmission of equipment commands.
      • The terminal blocks are constructed from industrial-grade flame-retardant insulating material and equipped with insulated protective covers, complying with industrial safety standards. Maintenance on a single system can be performed by isolating its power supply without shutting down the entire machine, significantly reducing troubleshooting and repair time while minimizing operational downtime.
      • Featuring excellent high-current carrying capacity, the blocks utilize a secure screw-clamp connection structure that resists workshop vibration, eliminating risks of loose connections. This ensures long-term reliable operation of the electrical system.

    Simplified Tool Setting: Precision Meets Convenience

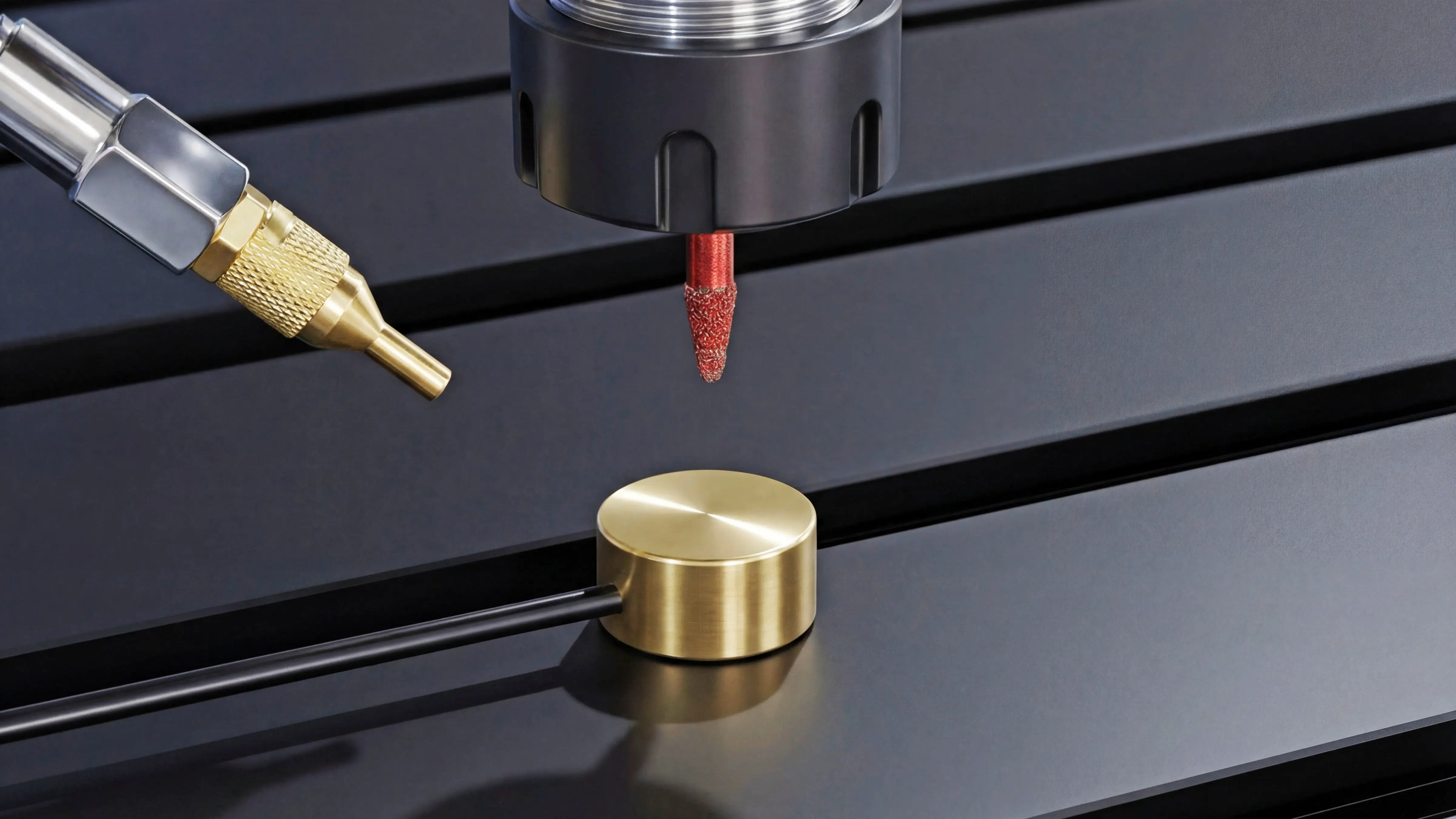

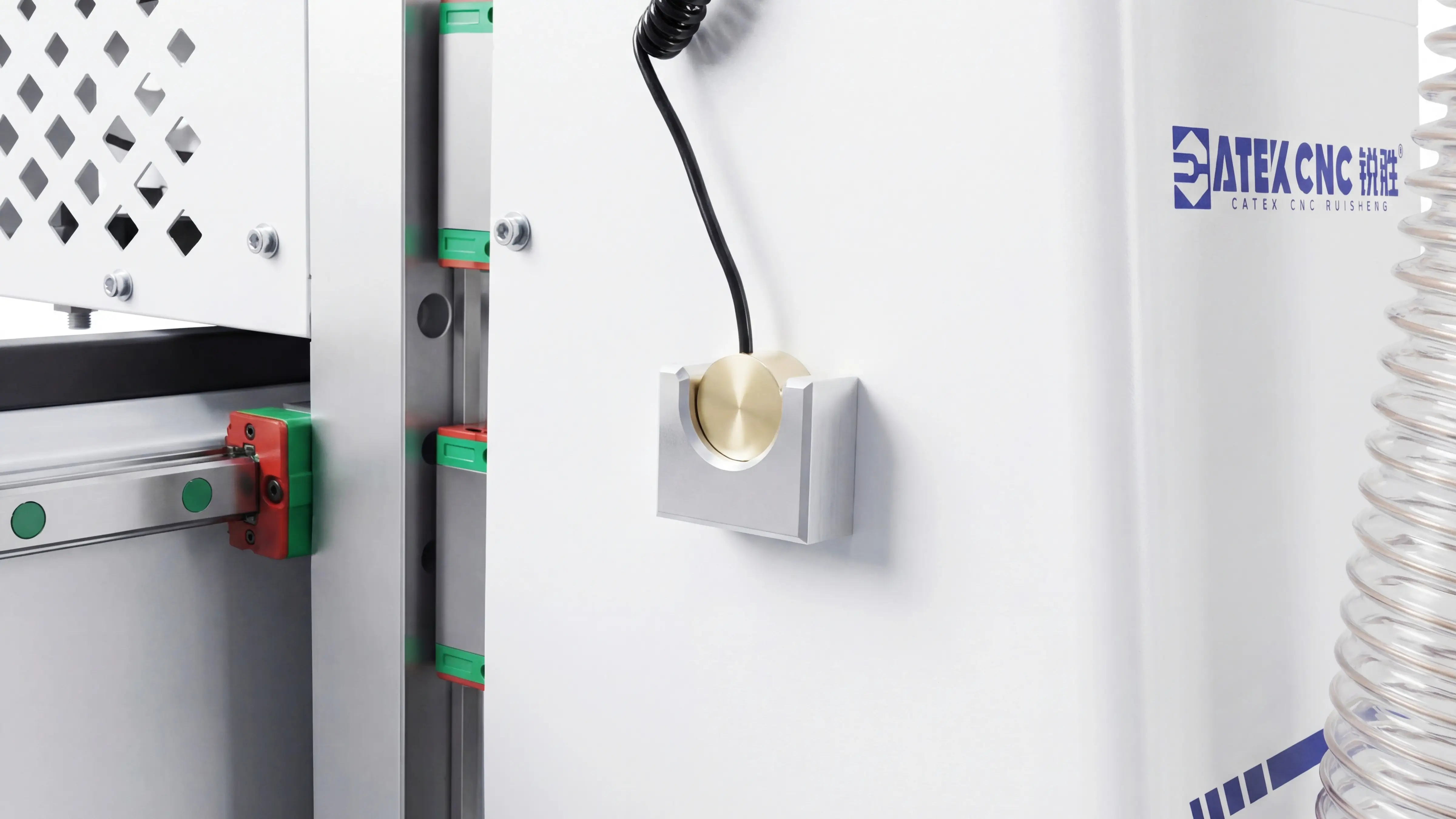

    Automatic Tool Setter

    • The CNC router is equipped with a high-precision tool setter with an accuracy of ±0.01mm. Controlled by the CNC system, it enables one-click tool setting, which automatically detects tool length and generates the corresponding compensation values.
    • Housed in an integrated all-copper casing with a tight seal, it is designed to withstand erosion from cutting fluids, dust, and other contaminants during machining, making it suitable for various complex and harsh working environments.
    • It is fully compatible with a wide range of tool types, including flat-end mills, ball-nose cutters, and pointed tools. After tool changes, tool length can be measured quickly and conveniently, effectively reducing downtime for tool replacement and improving machining efficiency.
    Automatic tool setter for Spire 1325 CNC router with flood cooling
    Automatic tool setter for Spire 1325 CNC router with flood cooling

    Easy Setup, Machine Anything: Effortless Fixturing and Active Cooling for All Materials

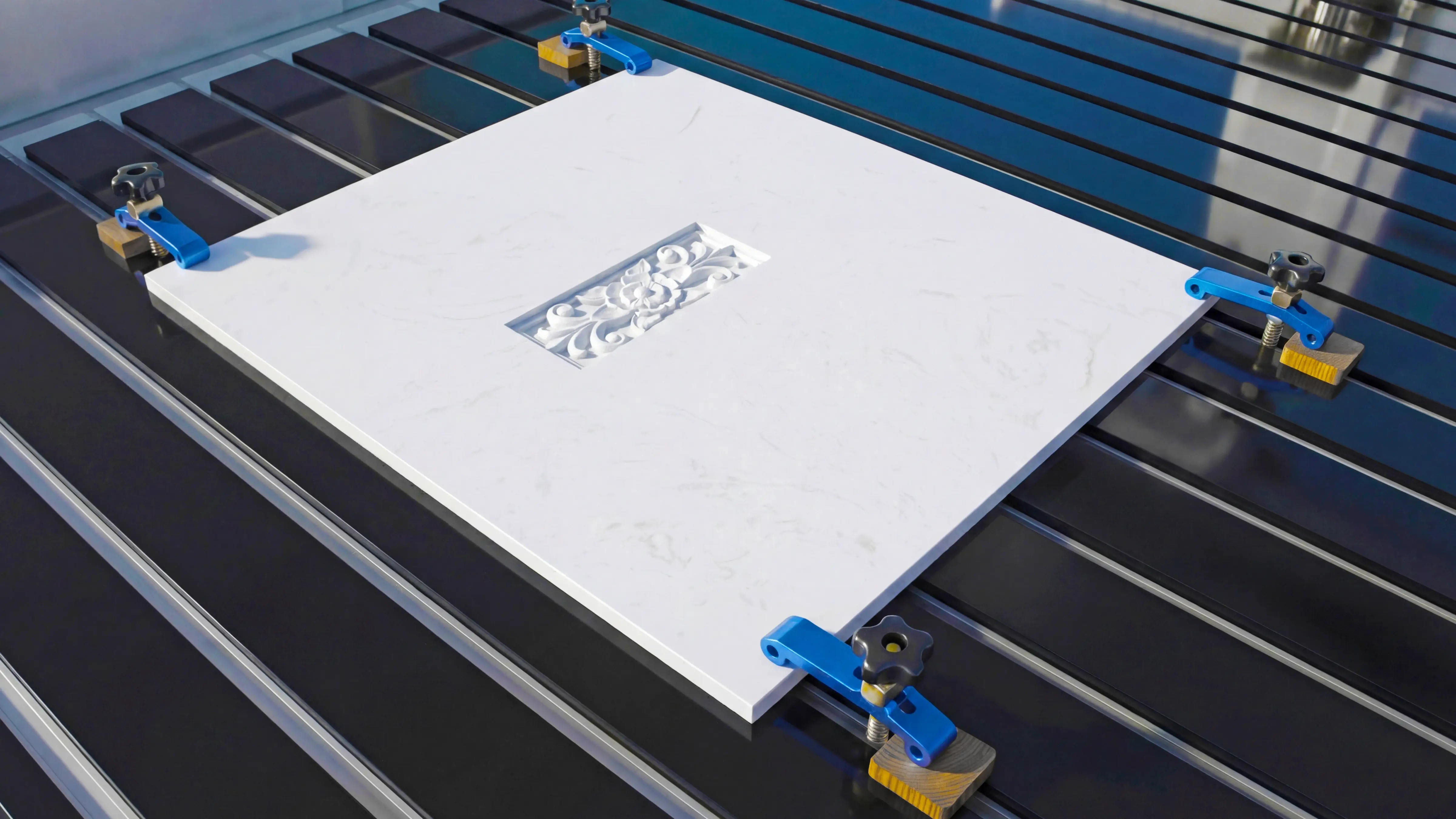

    Aluminum alloy T‑slot worktable of Spire 1325 CNC router with flood cooling

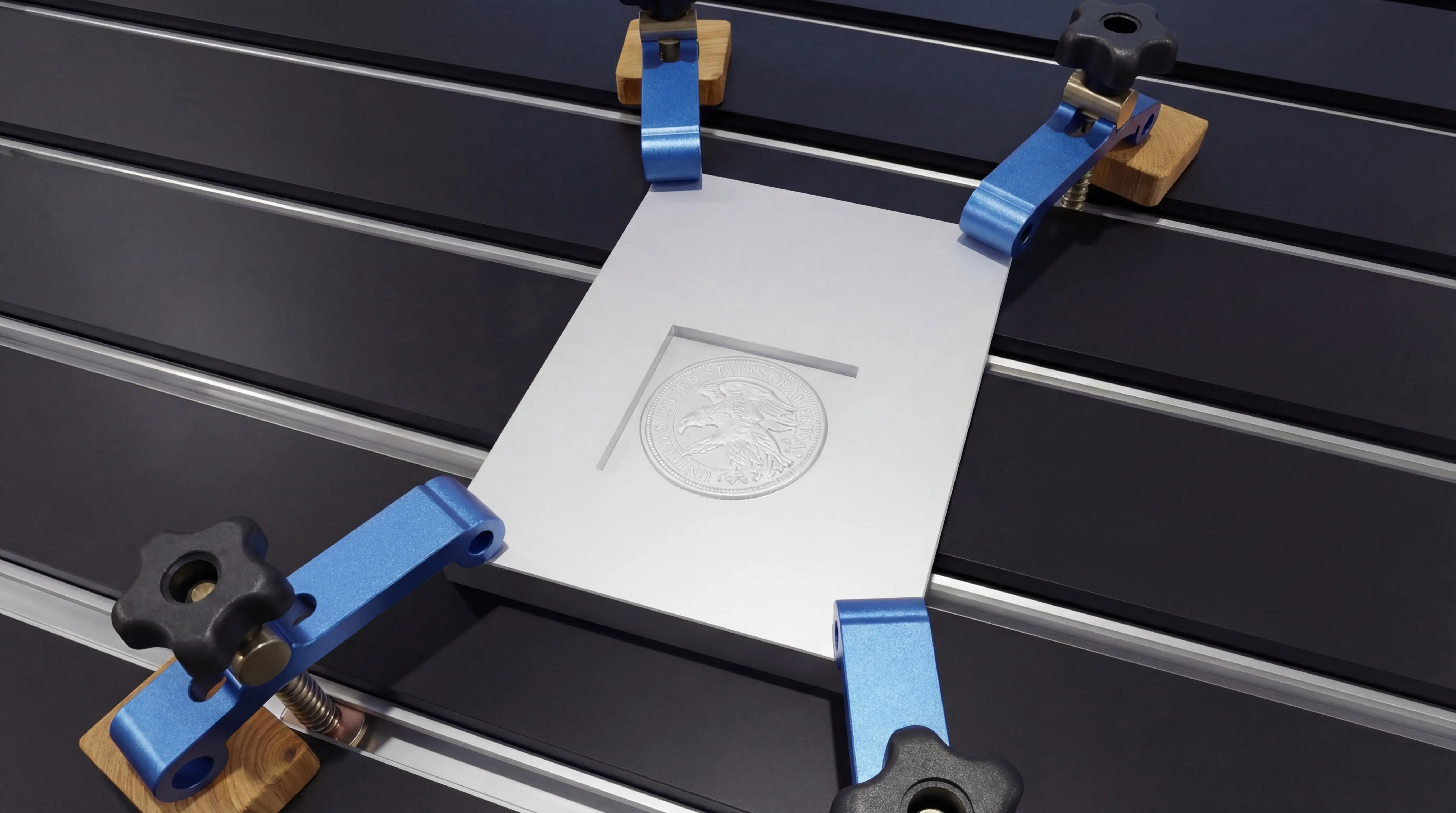

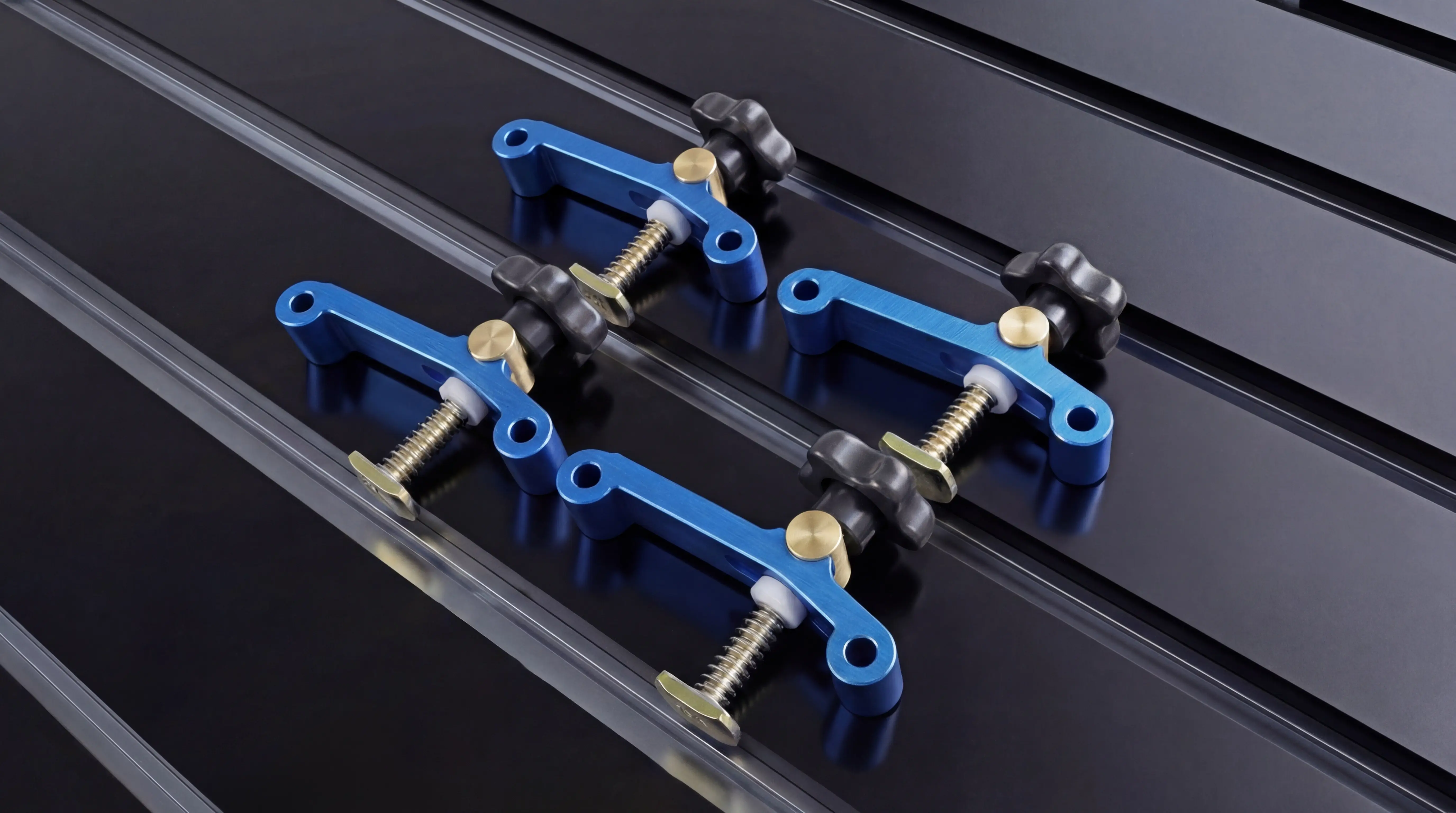

    Hold-down clamps for Spire 1325 CNC router with flood cooling
    Hold-down clamps for Spire 1325 CNC router with flood cooling

    High‑Strength Aluminum Alloy T‑Slot Worktable

    • The worktable is constructed from aluminum alloy profiles, the structure offers exceptional rigidity and a lightweight advantage, ensuring stable support for large‑sized workpieces and preventing worktable deformation. It also maintains strong corrosion and rust resistance when exposed to cutting fluids and coolant.
    • The profile surface is covered with an 8mm‑thick rigid PVC plate, providing toughness, wear resistance, scratch protection, and corrosion resistance. This layer protects the aluminum alloy profiles from damage caused by long‑term workpiece friction and cutting fluid exposure. Additionally, the PVC plate offers a cushioning effect, reducing impact damage when workpieces are placed.
    • T‑slots are compatible with hold-down clamps for workpiece fixation, offering wide adaptability and high locking force. Clamping position and tightness can be adjusted according to the size and thickness of different workpieces. Whether for regular plates or irregularly shaped materials, the system ensures secure clamping and effectively prevents workpiece displacement during machining.

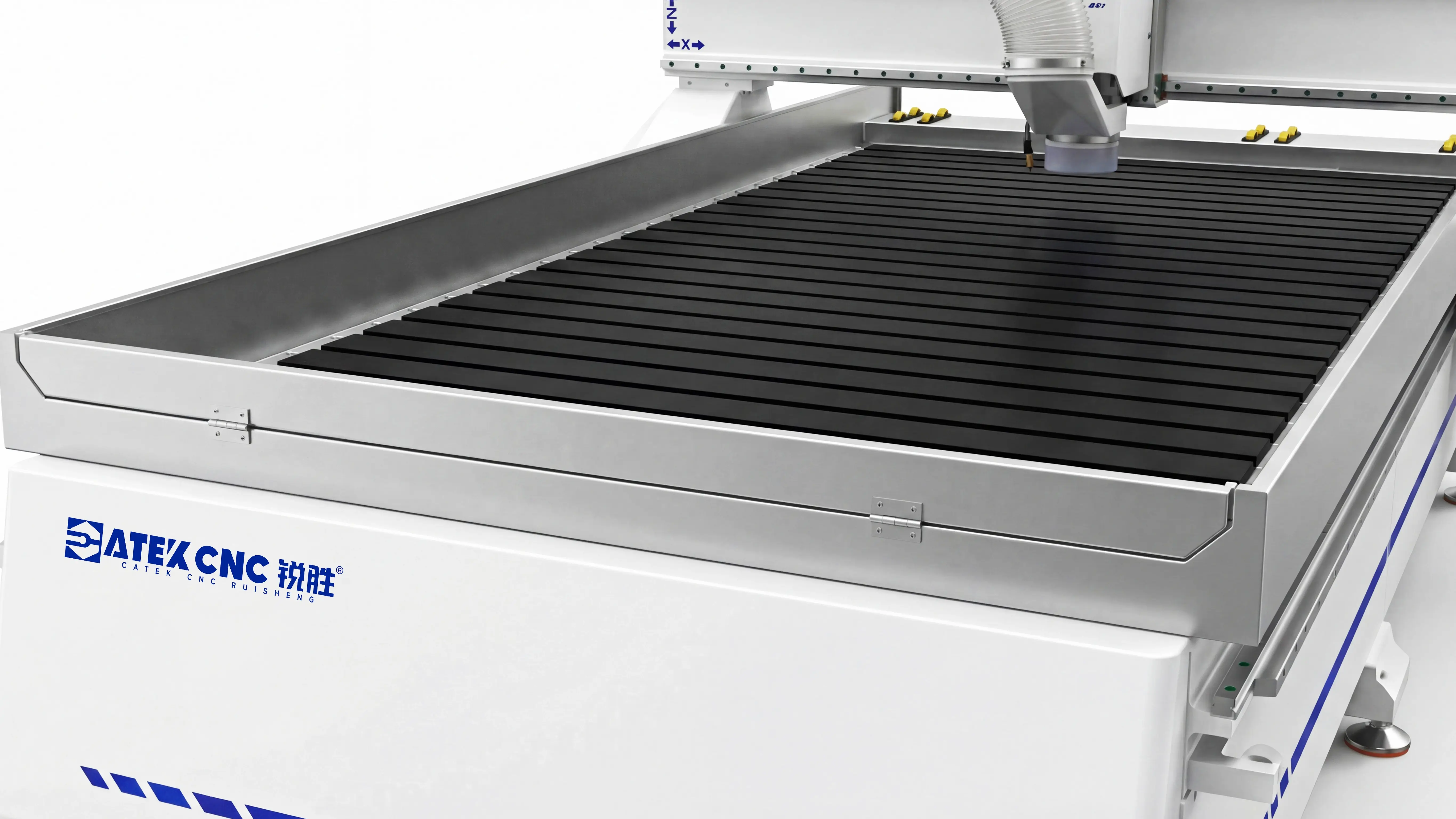

    Reinforced Stainless Steel Recirculating Water Sink

    • Fabricated from thickened stainless steel plates through seamless welding, it delivers excellent corrosion and impact resistance, completely preventing deformation and water leakage after prolonged use. It effectively withstands erosion from cutting fluid, dust, and debris, extending its service life by more than three times compared to traditional steel-plate water sinks.

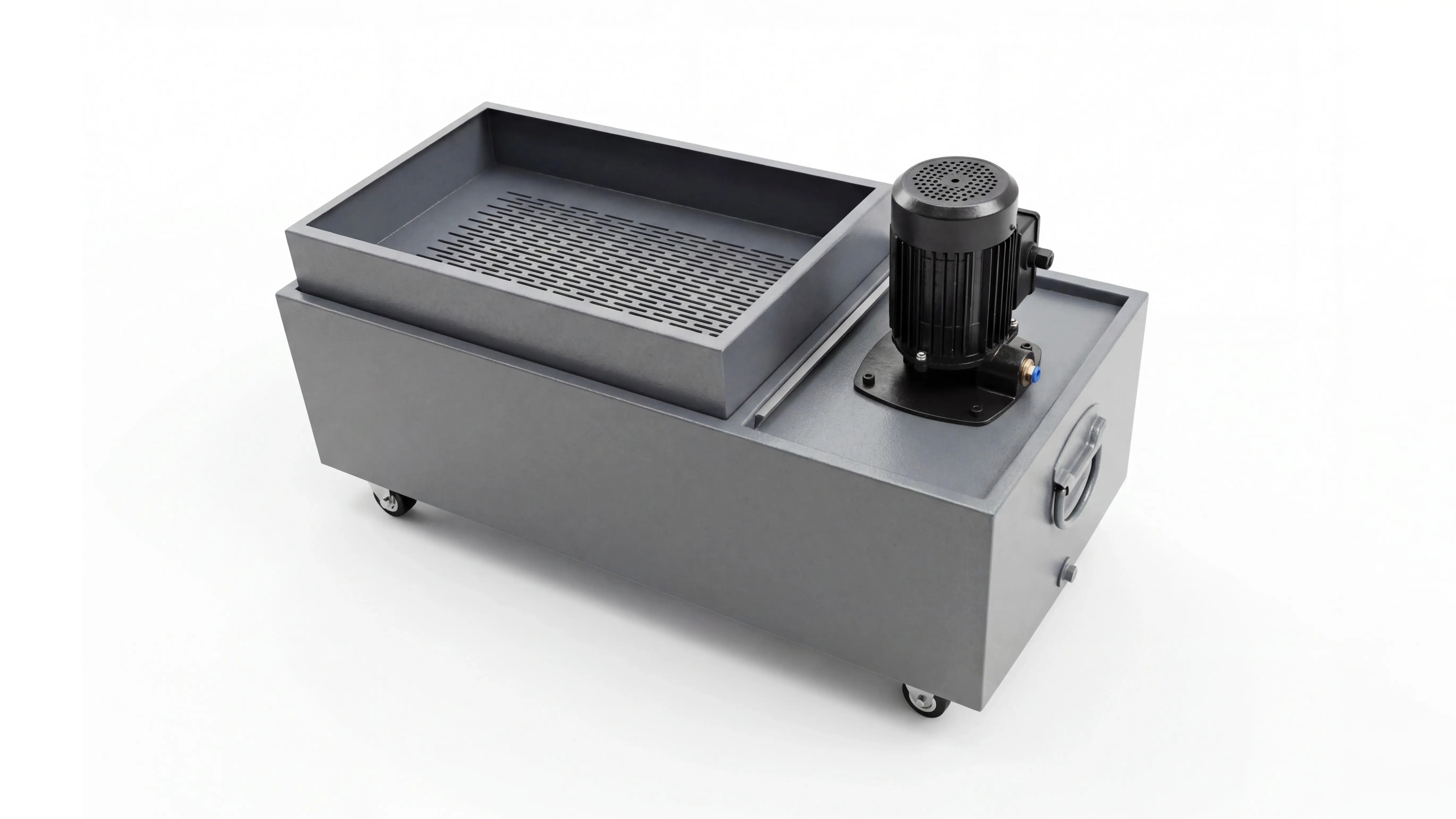

    • Paired with a circulation water tank, it forms a closed-loop cooling system that provides constant-temperature cooling for cutting tools. High-pressure water flow is precisely directed to the cutting area, reducing tool temperature rise and extending tool life by over 40%. It also effectively suppresses dust dispersion, improving the workshop working environment.
    • The water sink is equipped with a primary filtration device that intercepts large debris and waste on the table surface. The water circulation tank features a dual-layer filtration structure to capture milling chips and finely filter impurities. This triple-stage filtration ensures full-path purification of cutting fluid, preventing impurities from entering the circulation cooling system and causing malfunctions.
    Stainless steel recirculating water sink for Spire 1325 CNC router with flood cooling

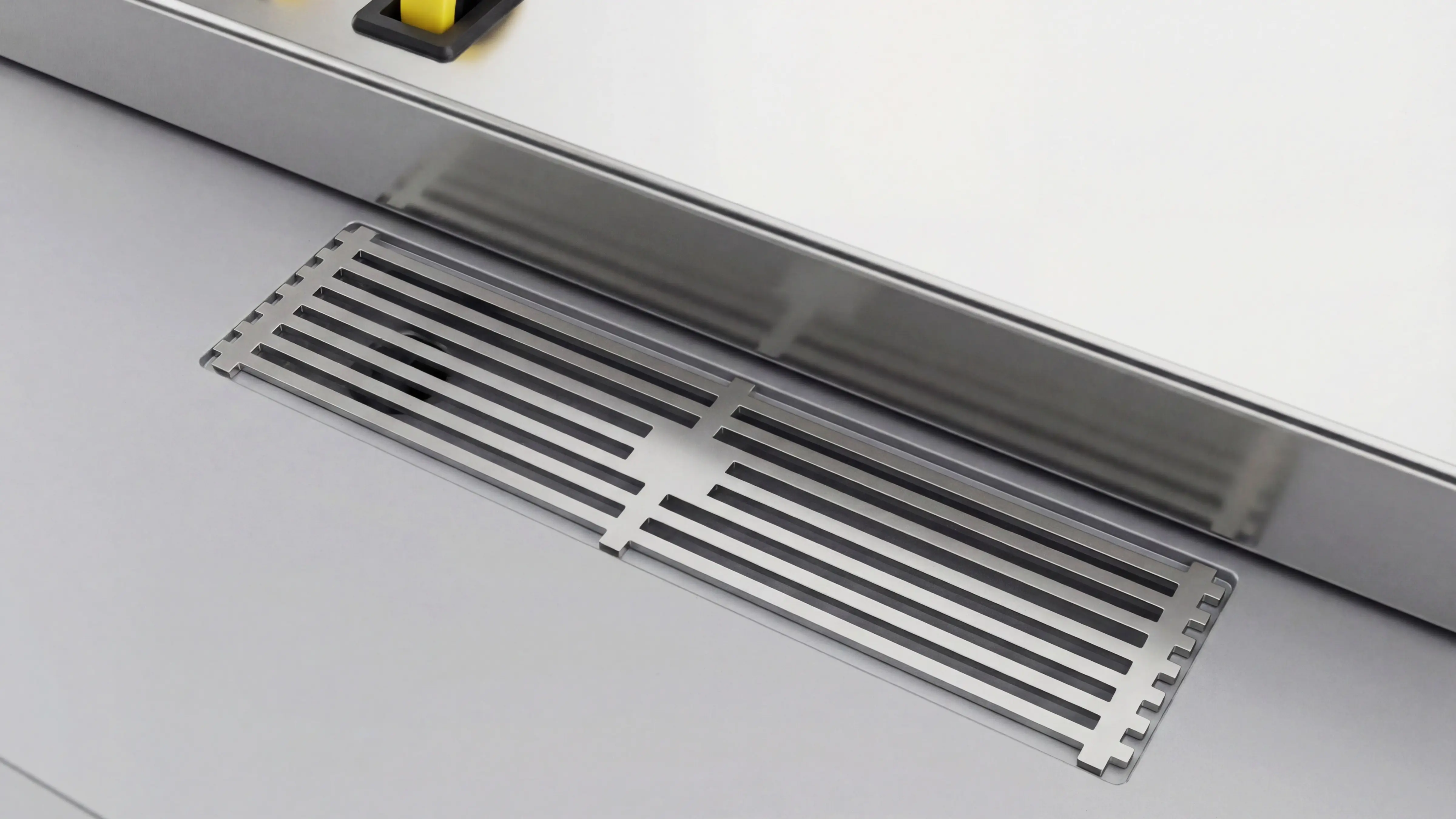

    Sink filter for Spire 1325 CNC router with flood cooling

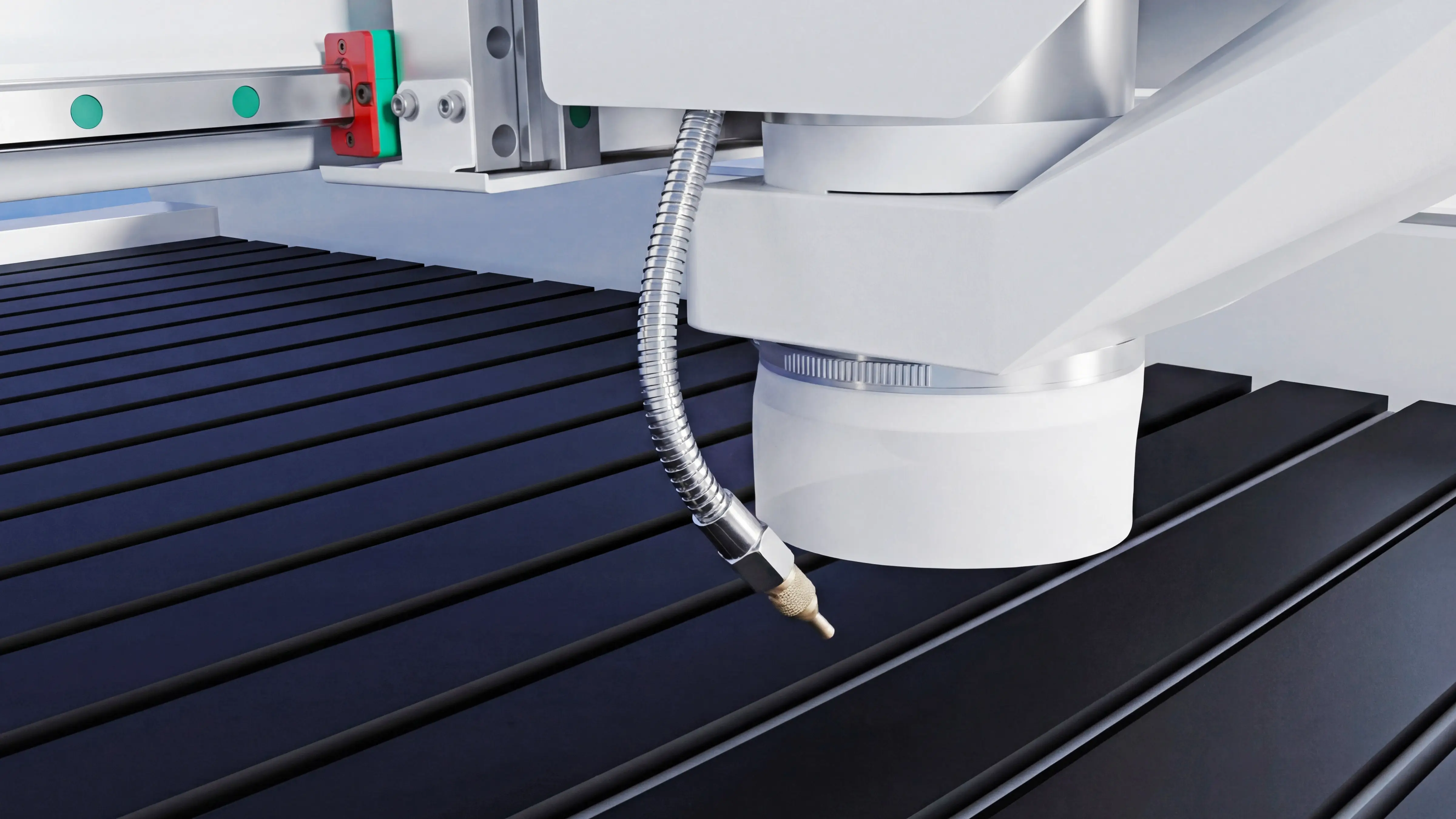

    Flood cooling outlet pipe for Spire 1325 CNC router with flood cooling

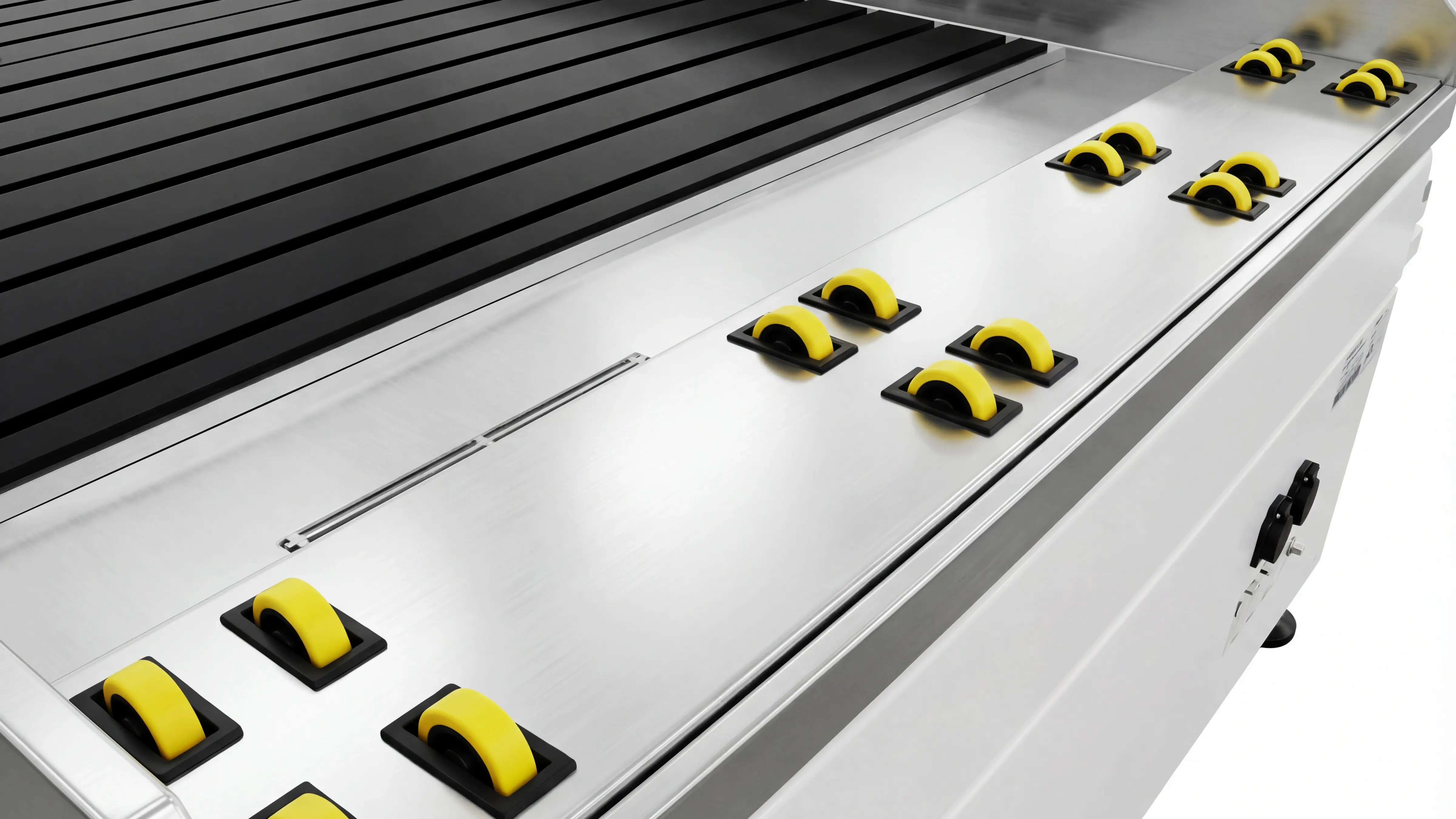

    Rear auxiliary loading rollers for Spire 1325 CNC router with flood cooling

    Rear Auxiliary Loading Rollers

    • The rear of this CNC router is equipped with 8 rows of 16 rollers, specifically designed for loading large-area, heavy panels. This system effectively addresses the issues of labor-intensive handling and panel misalignment during the loading of oversized materials.
    • The rollers rotate smoothly, with 30% lower rolling resistance compared to traditional rollers. A single operator can easily push large panels into place, increasing loading speed by over 40% and significantly reducing manual labor intensity. Made from high-strength polyurethane material, the rollers combine high load-bearing capacity with superior panel protection.
    • Once panels are smoothly transferred onto the worktable via the rollers, they can be quickly secured using clamping plates. This creates a complete workflow—loading, fixing, and processing—enhancing overall machining efficiency and operational safety from start to finish.

    Total Support for CNC Router: From Dust Extraction to Temperature Control

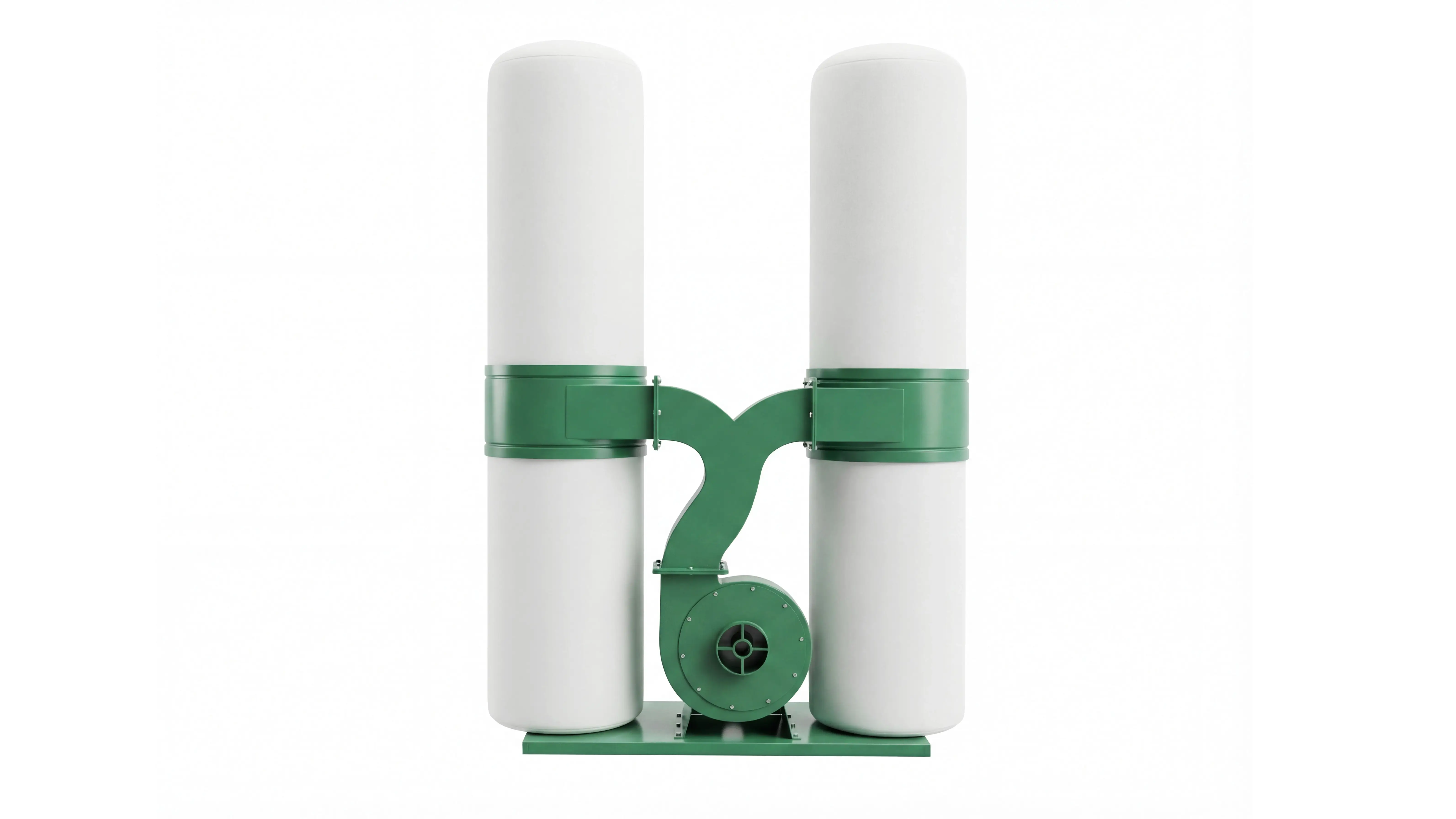

    3KW Dual-Bag Dust Collector of Spire 1325 CNC router with flood cooling

    3KW Dual-Bag Dust Collector

    • Equipped with a 3KW three-phase asynchronous motor, this unit delivers an airflow of 3150 m³/h and a wind speed of 35-40 m/s. It provides strong and stable suction, rapidly creating a consistent negative pressure to efficiently capture wood chips and dust generated during CNC router operations.
    • Featuring a symmetrical dual-bag design, the dust collector significantly increases dust capacity compared to single-bag models. The bags are made of 200-mesh anti-static, corrosion-resistant polyester fabric, combined with efficient cyclone dust collection technology, enabling effective handling of large volumes of dust and maintaining a clean working environment.
    • Built with a high-strength frame structure, the unit includes lockable universal rubber wheels at the base, allowing both stationary operation and flexible mobility to adapt to various workshop layouts.
    Dual-bag design
    Cyclone vacuum cleaner

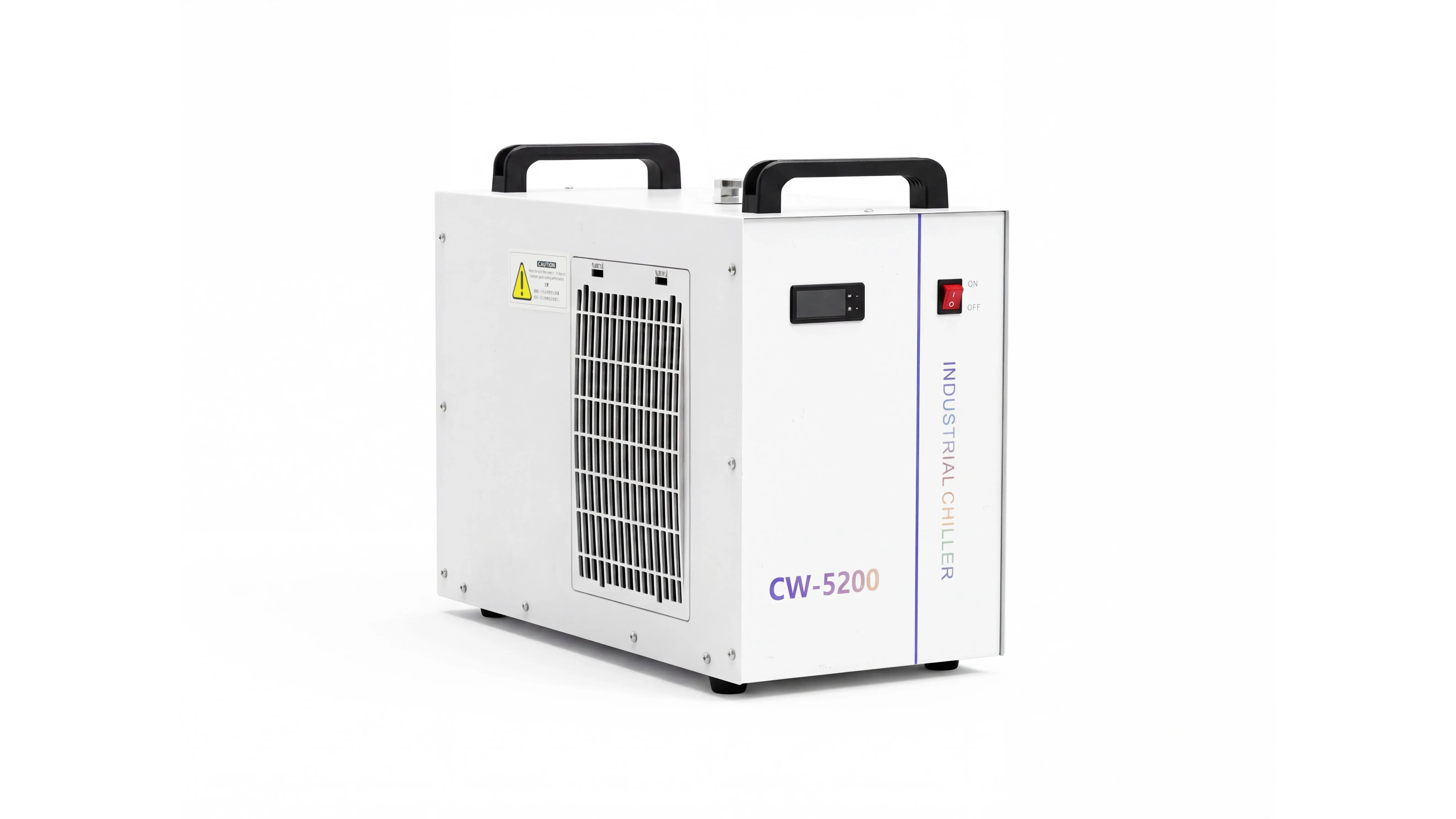

    S&A CW-5200 constant-temperature chiller of Spire 1325 CNC router with flood cooling

    S&A CW-5200 Constant-Temperature Chiller

    • This CNC router is equipped with the industrial-grade S&A CW-5200 chiller, which features high-precision temperature control. It provides consistent cooling for the 5.5KW constant-power water-cooled spindle, effectively suppressing temperature rise during high-speed operation and preventing machining accuracy deviations at the source.
    • The chiller supports both constant-temperature and intelligent dual-temperature control modes. It can automatically adjust operation based on ambient temperature without frequent manual intervention, ensuring stable spindle performance across the entire speed range and effectively extending spindle service life.
    • The chiller is equipped with multiple safety protection functions, including flow anomaly, low water level, and temperature abnormality alarms. In case of any irregularities, the system automatically issues warnings, eliminating potential damage risks to the CNC router.
    1430W
    5°C to 35°C
    ±0.3°C
    Circulating water tank of Spire 1325 CNC router with flood cooling

    Circulating Water Tank

    • Constructed from thickened sheet metal with seamless welding technology, the tank effectively prevents leakage and deformation caused by prolonged immersion in cutting fluid. It offers excellent corrosion and impact resistance, capable of withstanding the scouring of processing debris and the erosion of cutting fluid.
    • Equipped with a dual coarse-fine filtration structure, combined with the primary filtration of the stainless steel circulating water sink, it forms a three-layer filtration system for deep, layered purification of the cutting fluid. The primary and secondary filtration stages screen out large particles of waste, rapidly separate heavy impurities, and reduce subsequent filtration pressure. The tertiary filtration precisely removes milling residues, ensuring cutting fluid cleanliness standards are met while preventing clogging in the water circuit.
    • Powered by a high-efficiency pump motor, it delivers high torque, low vibration, and minimal noise, providing the CNC router with a uniform and sufficient circulating flow and head. This ensures the continuous and stable operation of the circulating system.
    Triple-stage filtration
    Corrosion-resistant

    Programmable Auto Lubrication: Set It and Forget It

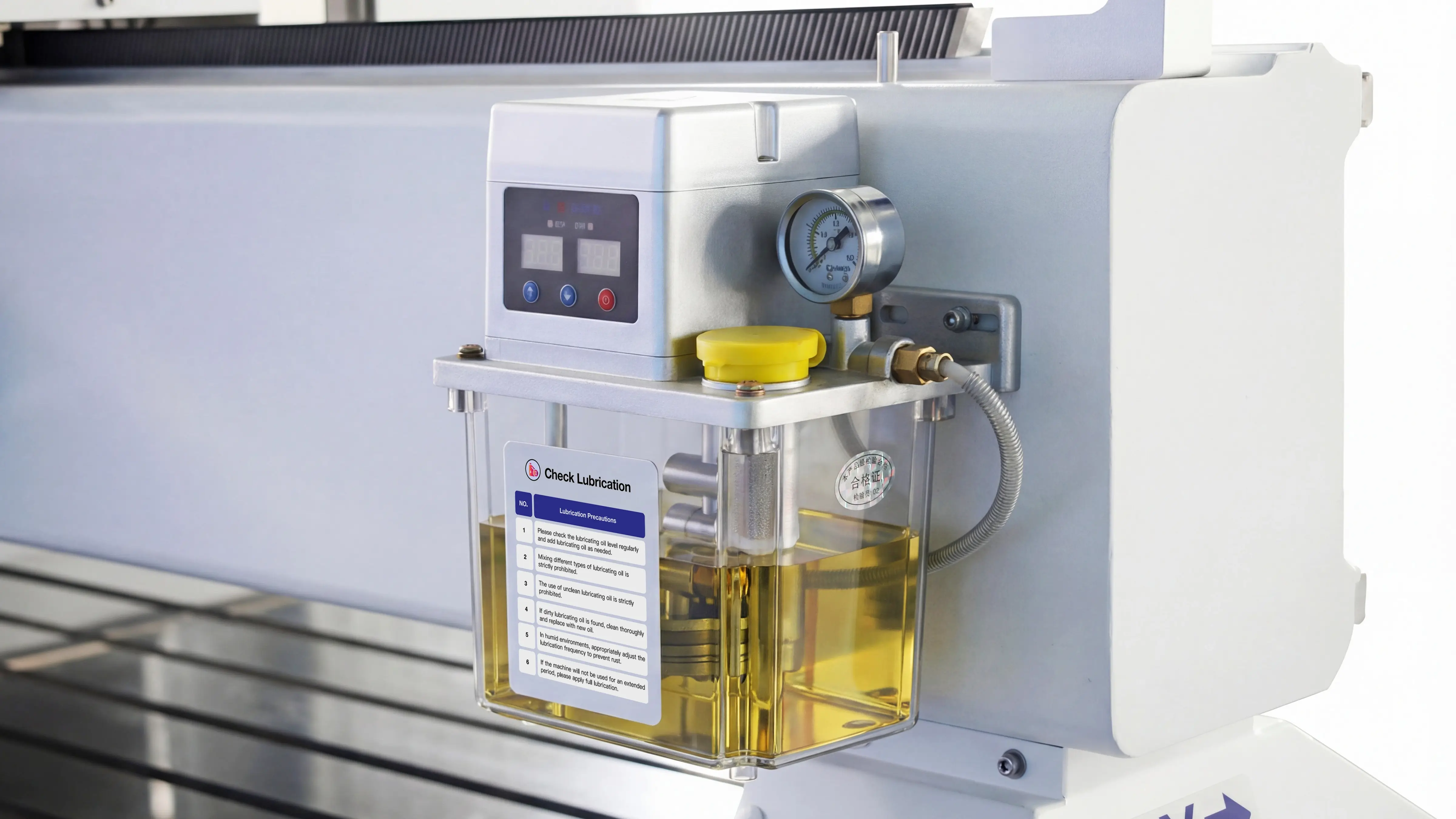

    Large-Capacity Automatic Lubrication System

    • The 1.5L large-capacity oil pot meets the lubrication demands of CNC router high-frequency operations. Utilizing an electrically pressurized oil supply mechanism, the system features an external pressure gauge for clear monitoring of supply pressure. It delivers consistent, controllable oil output, precisely lubricating core transmission components such as guide rails and ball screws.
    • The system is programmable, allowing preset intervals, durations, and oil quantities for automatic, on-demand lubrication.
    • Constructed from high-strength, corrosion-resistant material in a seamless design, the pot ensures long-term, secure storage of lubricant. Equipped with a quick refill port, it requires only periodic oil replenishment—eliminating the inefficiency and inconsistency of manual lubrication and significantly reducing equipment maintenance time.
    Automatic lubrication system for Spire 1325 CNC router with flood cooling

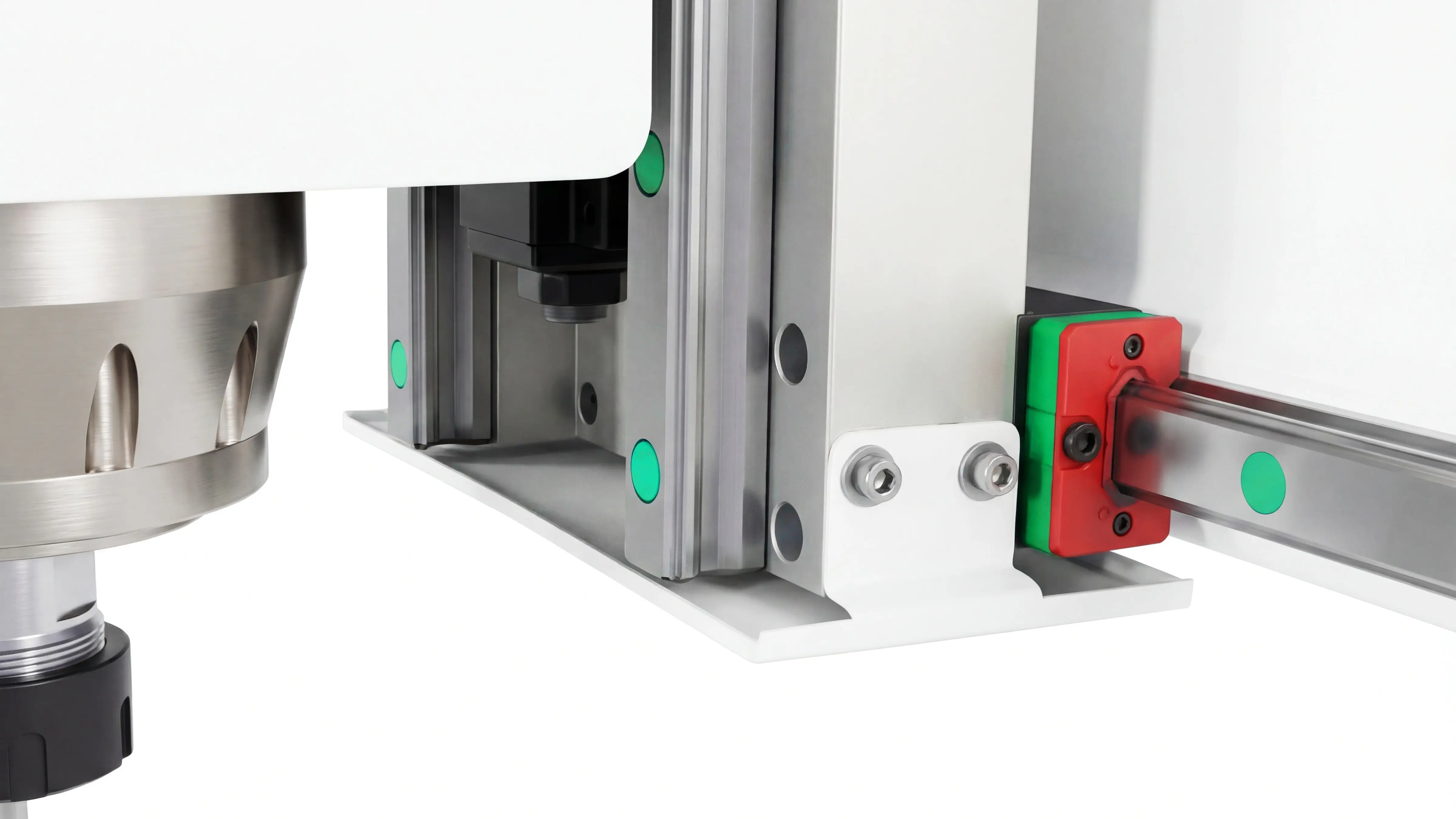

    Oil Drip Tray for Z-Axis

    • Equipped with an oil tray to catch excess dripping lubricant, preventing contamination of the worktable and workpieces. The tray features a raised edge to prevent overflow, ensuring oil residue is not flung out even during high-speed reciprocating motion of the Z-axis.
    • The oil tray is screw-mounted, allowing operators to quickly remove and clean accumulated oil residue. Its powder-coated surface resists oil adhesion, enabling easy cleanup with simple wiping. It is also designed to withstand prolonged exposure to lubricants and workshop dust, ensuring long-term durability.
    • The compact design of the tray does not interfere with the Z-axis travel range or operational accuracy. It enables the collection and reuse of waste oil, supporting clean machining operations while promoting resource efficiency and reducing long-term operating costs.
    Oil drip tray for Spire 1325 CNC router with flood cooling

    Your Success, Fully Supported: Dedicated Service, 5-Year Warranty & Complete Documentation

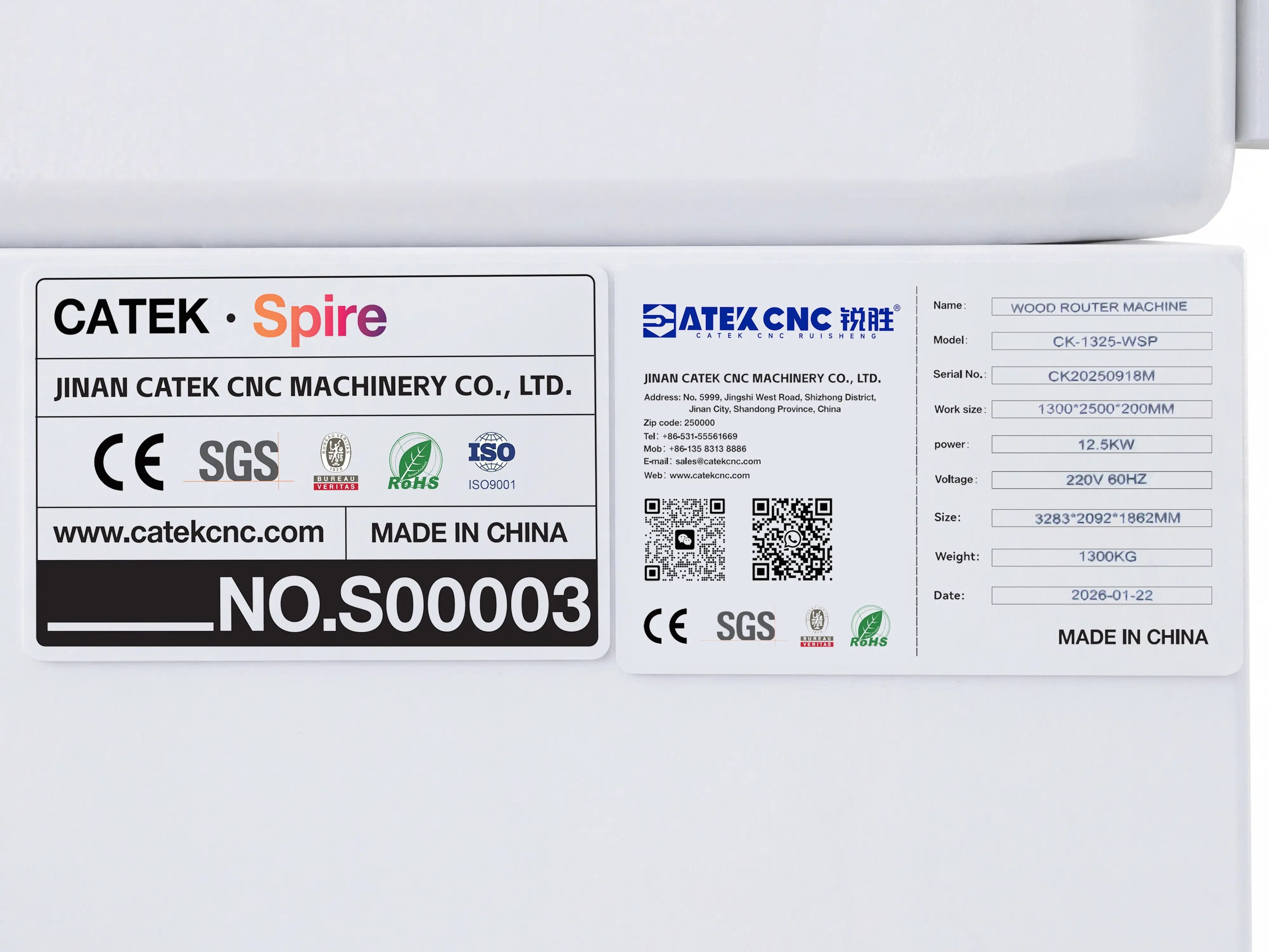

    Spire series exclusive serial number of Spire 1325 CNC router with flood cooling

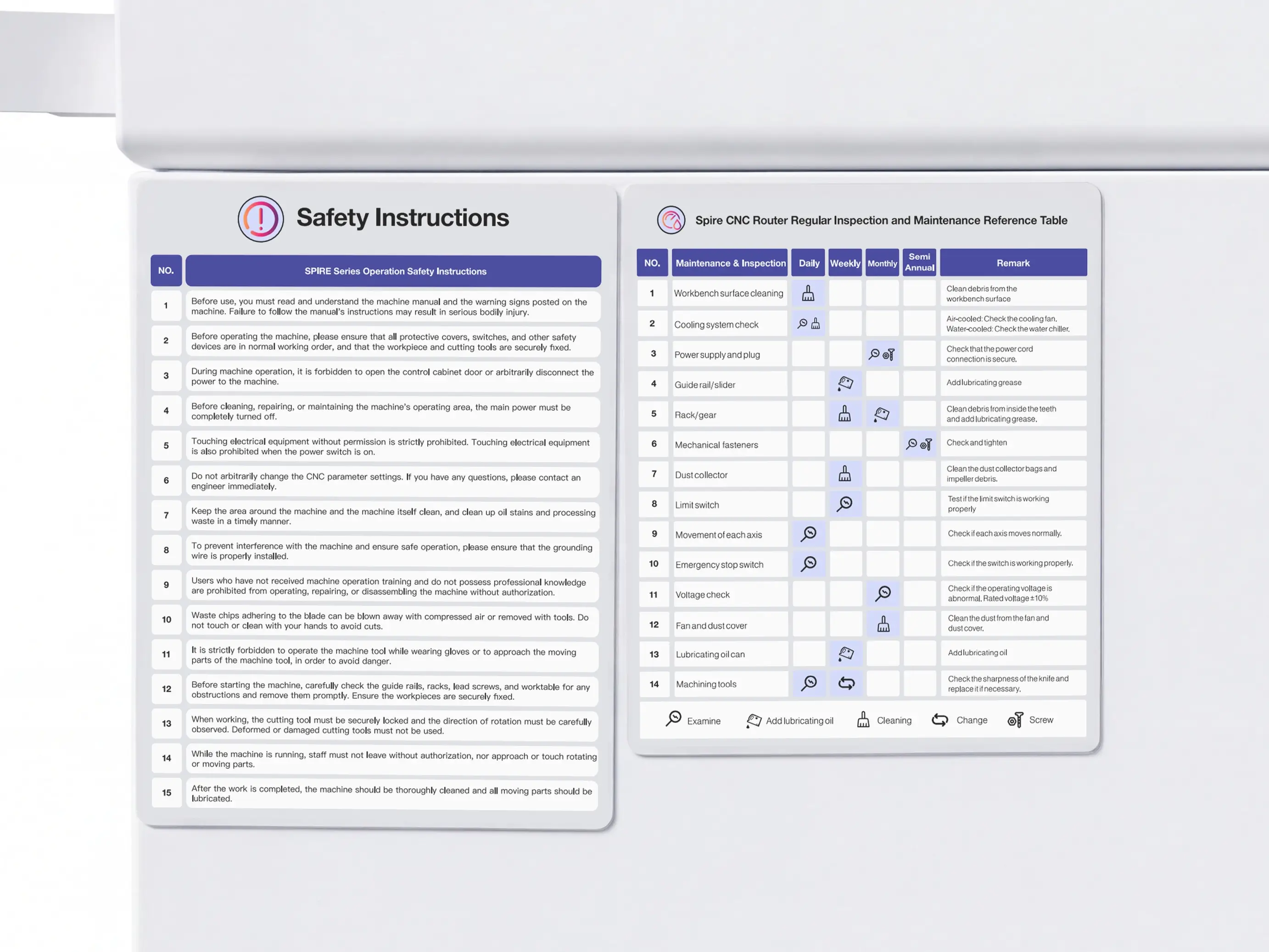

    Maintenance instructions of Spire 1325 CNC router with flood cooling

    Spire Series Exclusive Serial Number and After-Sales Support

    • Each Spire Series CNC Router is assigned a unique serial number, which serves as both the machine's identification credential and the key basis for accessing exclusive services. This enables full lifecycle traceability and assists users in enjoying dedicated after-sales benefits and lifelong support.
    • By using this serial number, users gain access to one-on-one service from the Spire exclusive support team, where senior engineers provide end-to-end assistance and rapid response to troubleshooting inquiries, bypassing the complexities of standard after-sales processes. Furthermore, users are entitled to lifetime free maintenance and software upgrades, ensuring the equipment consistently operates at peak performance and sustains long-term, stable production.
    • The rear of the equipment is affixed with a detailed usage and maintenance guide label. Made of durable PVC material, the label clearly outlines essential procedures, including daily lubrication points and scheduled maintenance intervals. This allows operators to quickly grasp key maintenance processes.
    User manual, warranty card, quick guide, machine certificate and letter of thanks

    Exclusive Warranty Card / Certificate of Conformity / Quick Start Guide / Operation Manual

    • Each Spire Series CNC Router comes with a complete documentation package, including the Spire series warranty card, quick-start guide, warranty statement, factory compliance certificate, and a comprehensive installation and operation manual, providing full support for equipment setup, operation, and warranty coverage.
    • Every machine undergoes rigorous factory testing and is accompanied by a factory compliance certificate, ensuring that each unit meets industrial production standards. The warranty statement and warranty card offer an industry-leading five-year extended warranty, clearly defining the scope and terms of coverage, enabling users to quickly understand their warranty rights for worry-free operation.
    • The machine adopts a dual manual configuration to balance comprehensiveness and convenience. The main manual features color illustrations and easy-to-understand content, covering all aspects including equipment specifications, installation steps, operation procedures, troubleshooting, and daily maintenance, with step-by-step instructions and diagrams for different components. The quick-start guide focuses on three key areas: core installation, basic machining, and troubleshooting, enabling operators to quickly master practical operations and significantly reducing the learning curve.

    Production-Ready from Day One: Complete Toolkit & Spares Included

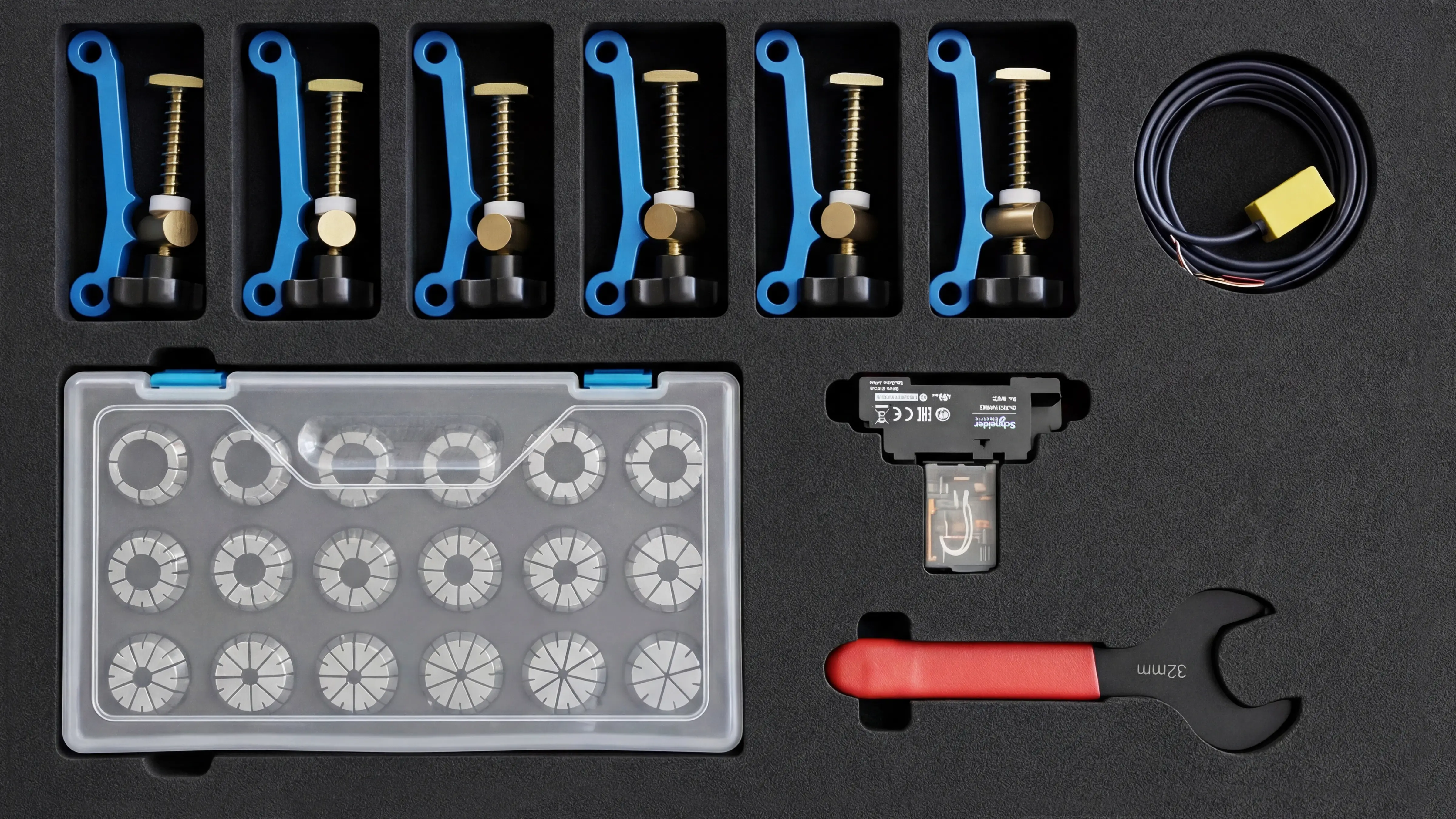

    Toolbox first layer of Spire 1325 CNC router with flood cooling

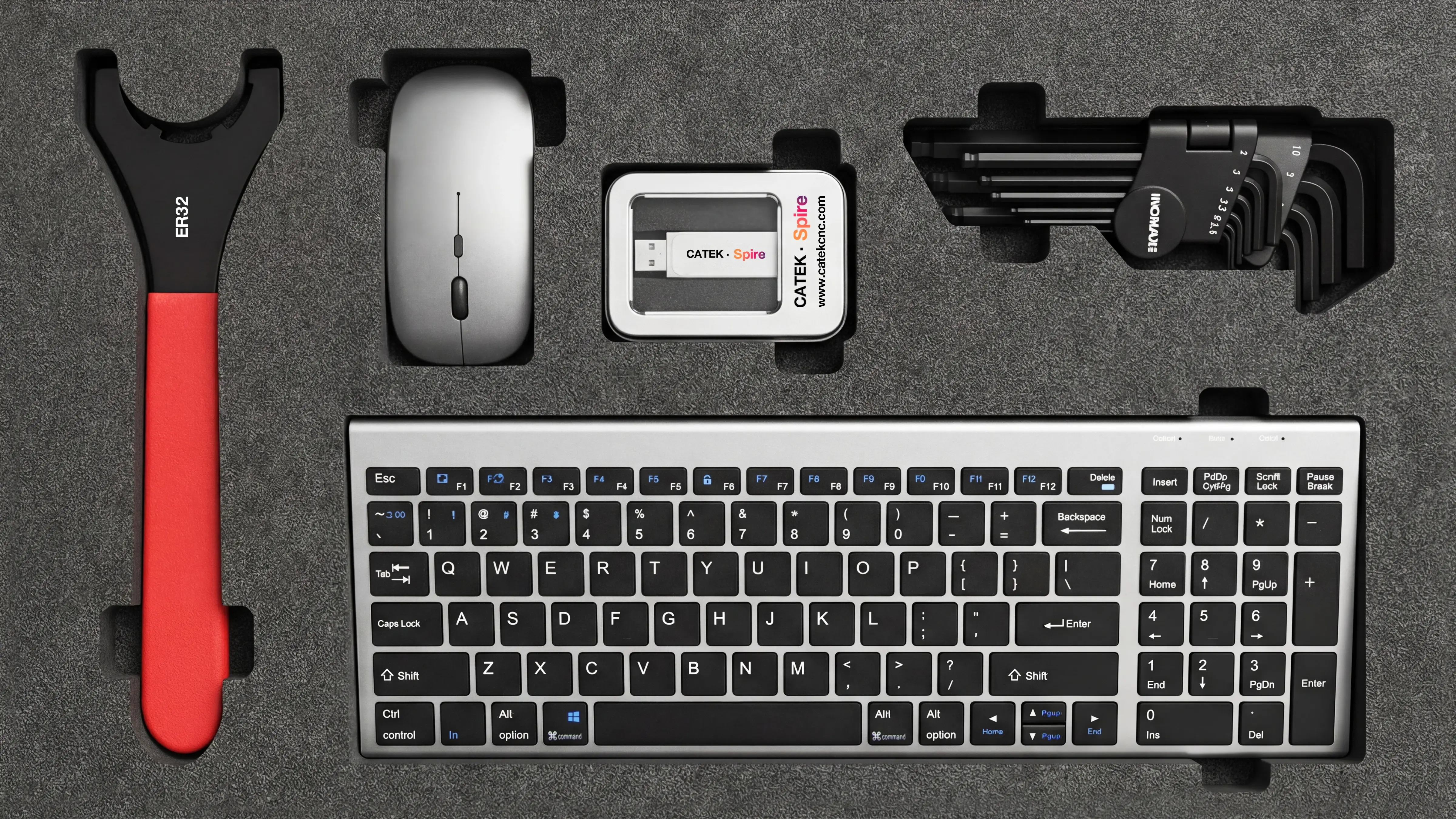

    Toolbox second layer of Spire 1325 CNC router with flood cooling
    Tool set of Spire 1325 CNC router with flood cooling

    Free Accessory Kit for Diverse Machining Needs

    • The machine includes a double-layer anti-impact tool case, featuring a dual-layer partitioned design for organized storage of accessories.The case contains 18 AA-grade ER32 high-precision collets with a clamping accuracy of 0.008 mm, ensuring secure clamping with minimal runout during rotation.
    • The tool case is also equipped with specialized tools such as hex keys and spindle wrenches to meet daily installation, debugging, and maintenance needs. Additionally, a USB drive is included, preloaded with test machining drawings, operation videos, and supporting software. Spare relays and limit switches are provided for quick replacement in case of equipment failure. Six sets of hold-down clamp kits are included to accommodate workpieces of different sizes, enabling immediate machining upon receiving the machine.
    • Furthermore, we provide a 35 tool set, covering a full range of specifications including flat-end mills, ball-nose cutters, and shaping cutters, suitable for engraving, cutting, and grooving materials such as solid wood, acrylic, and aluminum alloy. This comprehensive set meets all tooling needs from roughing to fine milling, eliminating the need for additional initial purchases and significantly reducing initial consumable costs.
    Toolbox First Layer Toolbox Second Layer Machining Tool Set Machining Tool Collet Set

    Applicable Industries

    The Spire easily handles everything from furniture and cabinet making to signage and tombstone production across materials like wood, metal, stone, acrylic, resin, and graphite.

    Technical Parameters

    Series
    CATEK · Spire
    Model
    CK-1325-WSP-W
    XYZ Working Travel
    1300*2500*200mm
    Bed
    Spire-specific machining center processed reinforced bed base, independent anti-interference control cabinet
    Gantry
    Reinforced aged steel gantry, heavy-duty stress-relieved steel beam
    Spindle Mounting Plate
    46mm thick hard-anodized aluminum mounting plate
    Spindle
    CATEKCNC self-developed 5.5kw high-speed variable frequency water-cooled spindle
    Spindle Speed
    Max speed 24000RPM
    Variable Frequency Drive
    Fuling 7.5KW VFD
    Tool Holder Type
    ER32 φ20mm
    Tool Setting Method
    Automatic tool setter
    Drive Method
    CATEKCNC self-developed 750W servo motor * 4 (Z-axis brake motor)
    Reducer
    Japan Shimpo planetary gear reducer
    Table
    Aluminum alloy T-slot table + stainless steel circulating water sink
    Transmission Method
    XY-axis high-precision ground helical rack and pinion + Z-axis high-precision ground TBI ball screw
    Guideways
    Taiwan HIWIN high-precision 25 linear guide rails / linear bearings
    Loading
    Rear auxiliary loading rollers
    Dust Collection Method
    3KW dual-bag dust collector
    Tool Cooling Methods
    Flood cooling (Circulating water tank with triple-stage filtration)
    Spindle Cooling Method
    S&A CW-5200 constant-temperature water chiller
    Cables
    Pure copper high-flexibility bend-resistant cables
    Cable Carrier
    Fully enclosed reinforced cable carrier
    Electrical Components
    Schneider surge protector / phase sequence protector / AC contactor / 24V power supply / relay
    Control System
    Weihong PM95A CNC control system (NcStudio)
    Monitor
    21.5-inch LCD monitor
    Keyboard and Mouse
    2.4GHz wireless keyboard and mouse
    Lubrication System
    Centralized lubrication oil maintenance system
    Safety System
    Omron limit switch
    Working Voltage
    AC380V/50Hz
    Repeat Positioning Accuracy
    ±0.02mm
    Max. Movement Speed
    80,000mm/min
    Max. Processing Speed
    20,000mm/min
    Dimensions
    3235*2100*1950mm
    Weight
    1500kg

    * These parameters are specific to this CK-1325-WSP-W unit; configurations can be customized to meet specific requirements.

    Review

    0 Reviews of CK-1325-WSP-W.

    5.0
    Based on 0 reviews
    5
    0
    4
    0
    3
    0
    2
    0
    1
    0
    • All (0)
    • With Photos/Videos (0)
      No reviews yet
      View more reviews

      Enjoy Spire's exclusive top-level service

      Reliability, confidence, and ease

      • Five-years free warranty
        Five-years free warranty
        Enjoy Spire VIP service, providing free warranty and maintenance for the entire machine, bringing you a worry-free experience.
      • Exclusive private customer service and after-sales team
        Exclusive private customer service and after-sales team
        7*24 hours online service, on duty around the clock, to solve any problems for you as soon as possible.
      • The matching CNC software is given for free
        The matching CNC software is given for free
        Enjoy lifetime free software upgrades, supporting software updates and free programming services.

      Spire Exclusive

      VIP Customer Service

      Customer service
      Let Us Chat
      • Dedicated service butler

        Dedicated Service Butler

      • Professional question answers

        Professional Question Answers

      • 24-hour quick response

        24-Hour Quick Response

      • Dedicated after-sales team

        Dedicated After-Sales Team

      Contact Us

      Learn more about how the CATEK Spire Series can bring you more production efficiency.

      Submit
      Get quote
      CATEKCNC

      This website uses cookies

      We use cookies to personalise content and ads, to provide social media features and to analyse our traffic. We also share information about your use of our site with our social media, advertising and analytics partners who may combine it with other information that you’ve provided to them or that they’ve collected from your use of their services.

      You may modify your privacy preferences at any time by accessing the "Your Privacy Choices" link located at the bottom of the page.

      Show Details
