7×10ft ATC CNC Router with Horizontal/Vertical Drilling Capabilities
7×10ft ATC CNC Router with Horizontal/Vertical Drilling Capabilities
- Jul 15, 2025

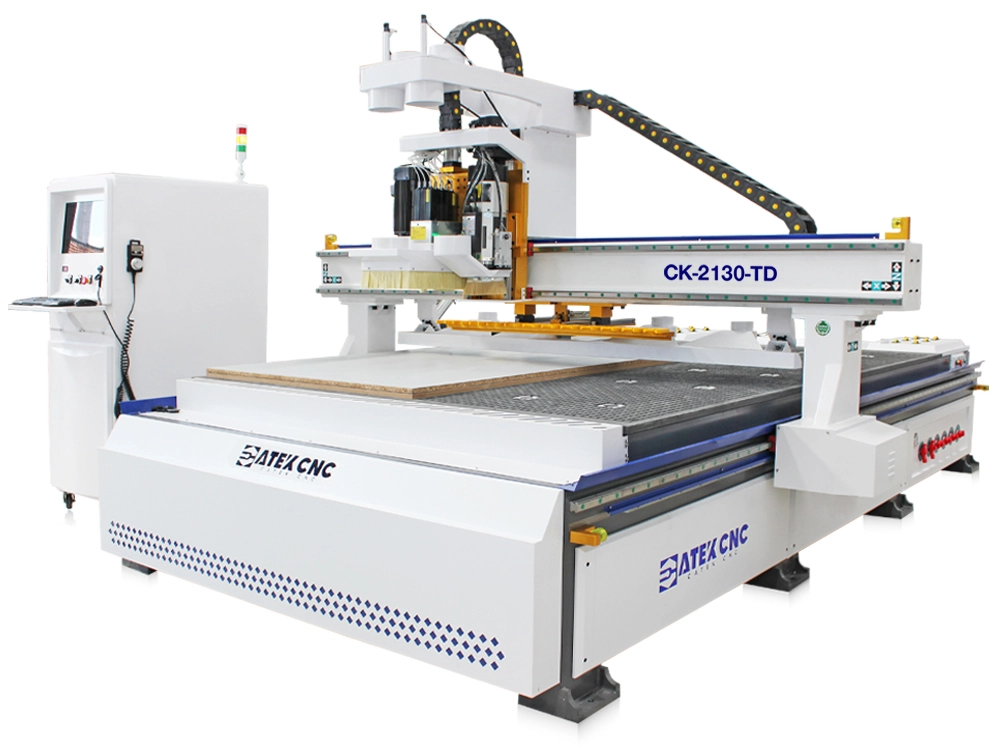

The CK-2130-TD is a 7x10ft ATC CNC router machine equipped with a 9+8 drilling unit. The so-called "9+8 drilling unit" means the device can accommodate 9 vertical drill bits and 8 horizontal drill bits. The 9 vertical drill bits are arranged in an L-shaped 5+4 configuration for vertical drilling on the surface of the board, while the 8 horizontal drill bits, used in conjunction with vacuum adsorption blocks, are for drilling on the sides of the board.
Additionally, the machine features a large vacuum worktable capable of processing boards up to 2100*3000mm in size. It is equipped with an ATC function and a linear tool magazine, enabling on-demand tool changes during processing.
Beyond conventional machining, the drilling unit makes the machine particularly convenient for processing panel furniture such as cabinets, wooden doors, and tables (which often require drilling for installing various connectors).
