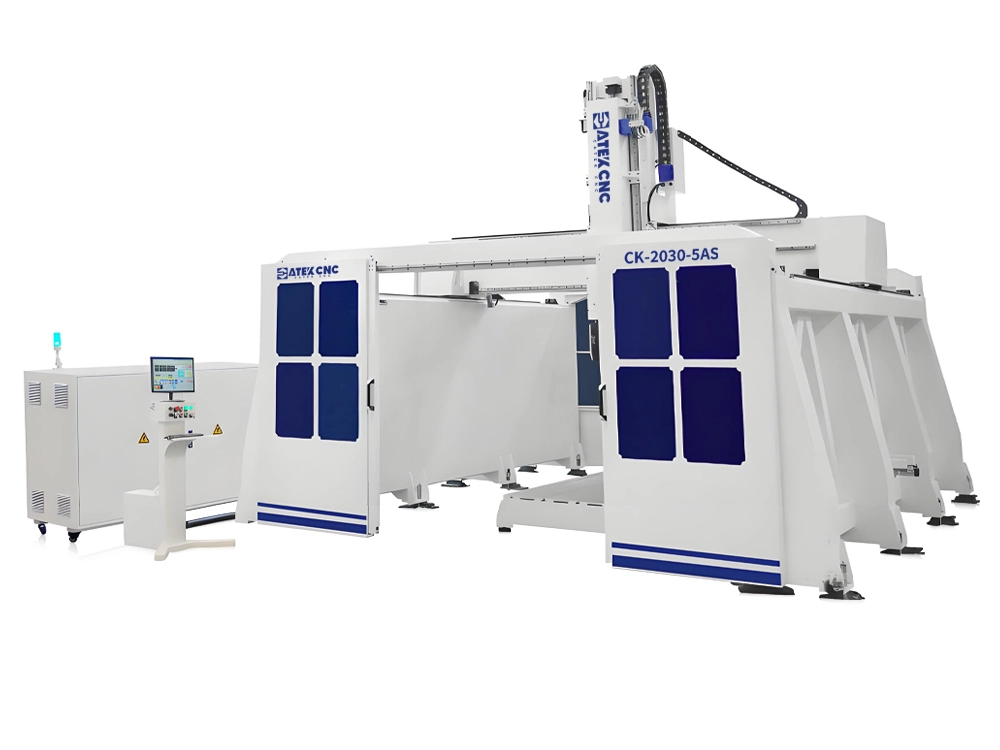

2025 Best Rated Five-Axis CNC 3D Model Making Machine

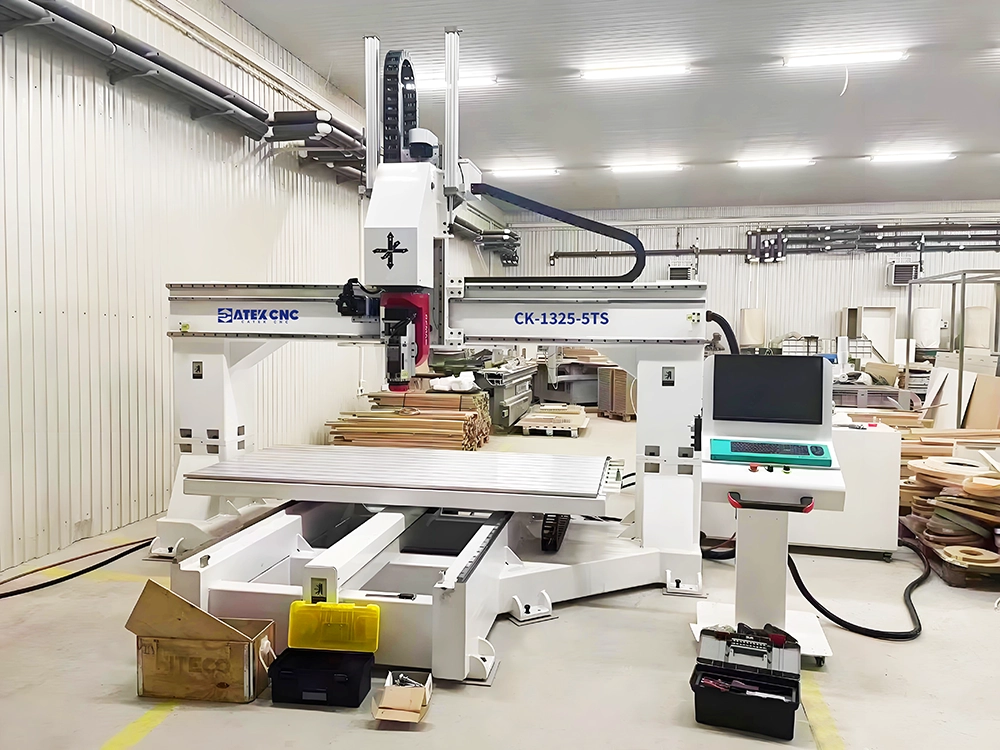

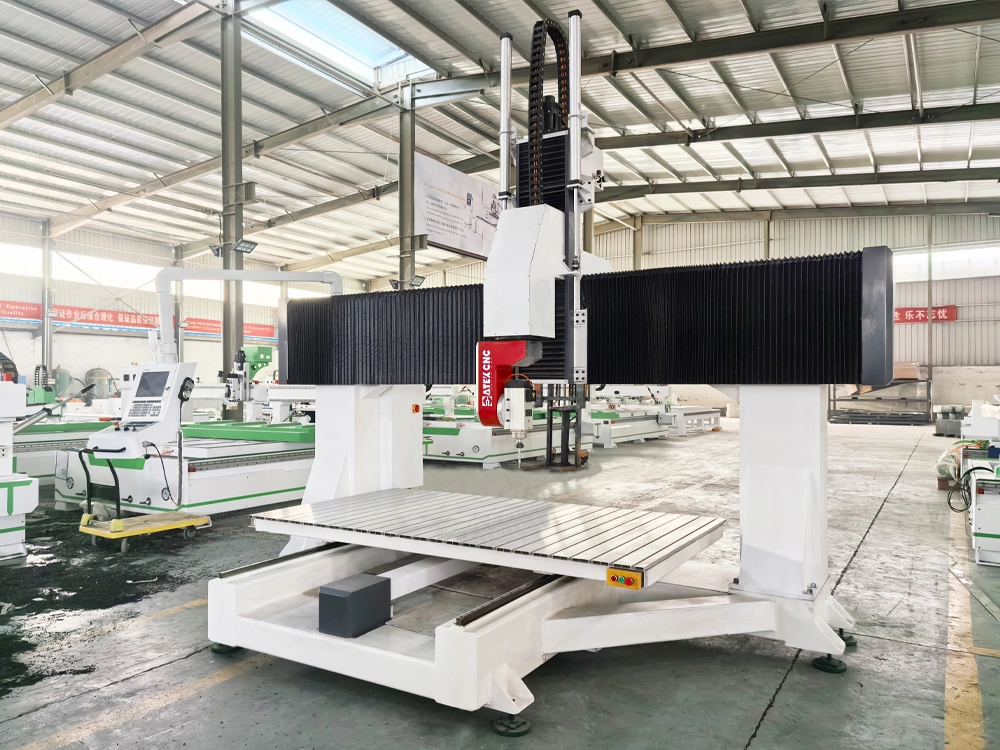

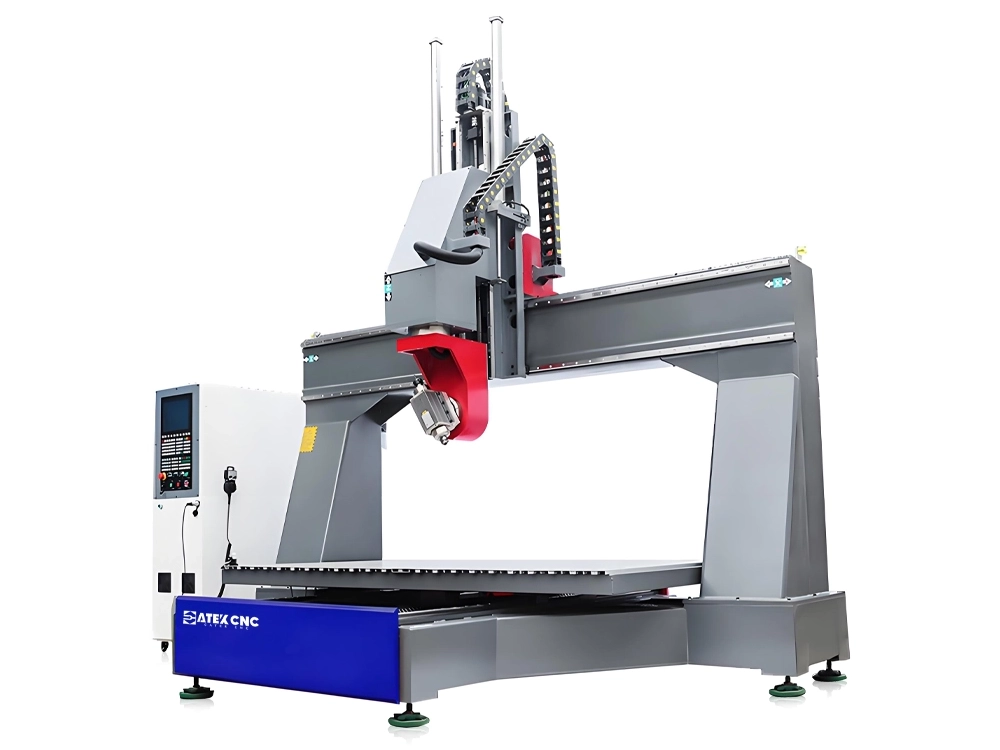

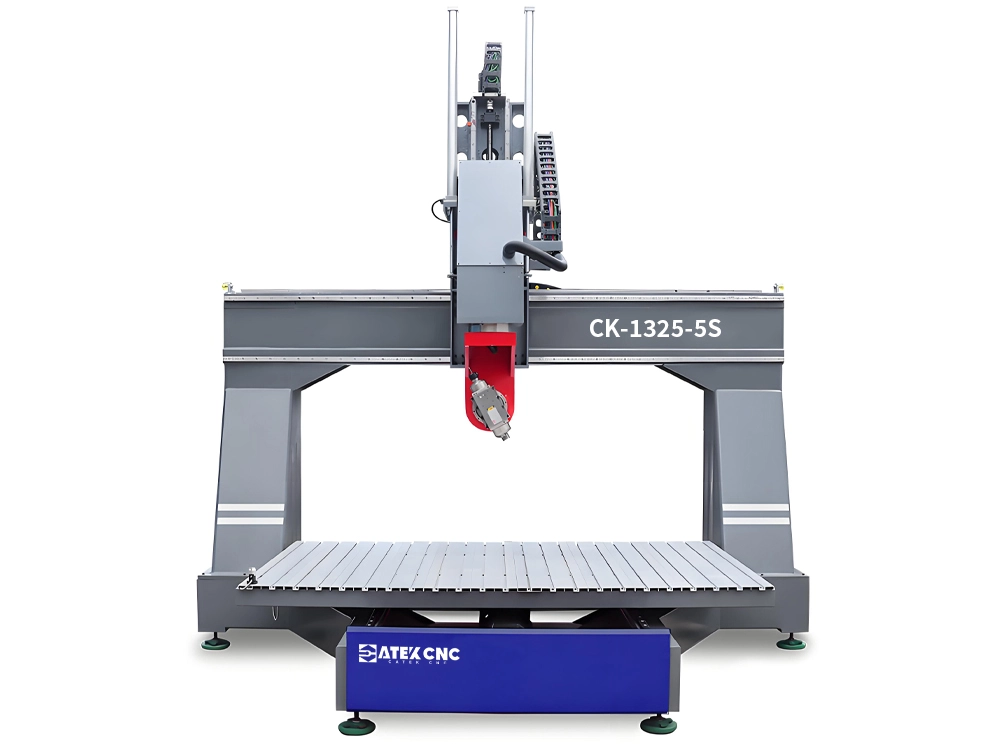

Compared to the gantry structure of a conventional three-axis router, this five-axis CNC router adopts a bridge-type design. This design provides a significantly greater distance between the beam and the tabletop, making it more suitable for placing three-dimensional workpieces and facilitating 3D machining. Its columns are fixed to the bed, so the transverse slide can only move along the X-axis, while the Y-axis movement is achieved through the front and back movement of the tabletop. Compared to gantry movement, the tabletop movement bears a smaller load and has lower motion inertia, allowing the use of high-precision ball screws only in the middle of the tabletop for transmission. This makes it easier to control movement accuracy and speed while reducing vibrations, resulting in finer machining outcomes. The transverse slide is equipped with two rotational axes: one allows for circumferential rotation, and the other enables the machining tool to tilt at a certain angle. Through the coordinated movement of the three linear axes and these two rotational axes, it can perform complex 3D machining tasks that are unachievable with conventional three-axis or four-axis machines, offering higher machining precision and flexibility, and significantly improving work quality.

Advantages of Industrial-Grade Tabletop Moving Five-Axis CNC Router

• Compared to traditional three-axis or four-axis CNC routers, the five-axis CNC router can effectively improve product quality and precision. Its tool can process products from various angles, reducing machining errors and significantly enhancing the quality of processed parts, resulting in a smoother surface finish.
• The five-axis CNC router excels in handling complex shapes, whether they are various polygons, grooves, or intricate curved surfaces. It supports a variety of machining processes such as cutting, engraving, drilling, milling, and grooving, meeting diverse production needs.
• Industrial-grade five-axis CNC routers are assembled with top-tier components, ensuring higher precision and efficiency. For example, they are equipped with Yaskawa servo motors, TBI ball screws, and TAIYUAN control systems, providing a solid foundation for efficient and stable production.
• The high flexibility and precision of the five-axis CNC router make it an ideal choice for solving complex part machining challenges. It can effectively shorten the development cycle of new products and increase the success rate of development.
• Simple operation and high efficiency. Industrial-grade five-axis CNC routers come with automatic tool setters, allowing for one-click tool setting and machining, making operation simple and convenient, greatly improving work efficiency.
• We offer a variety of optional configurations and OEM services, allowing for comprehensive machine configuration and appearance customization according to your requirements, meeting your personalized production needs.

Details of the Best Five-Axis CNC Router with Movable Tabletop

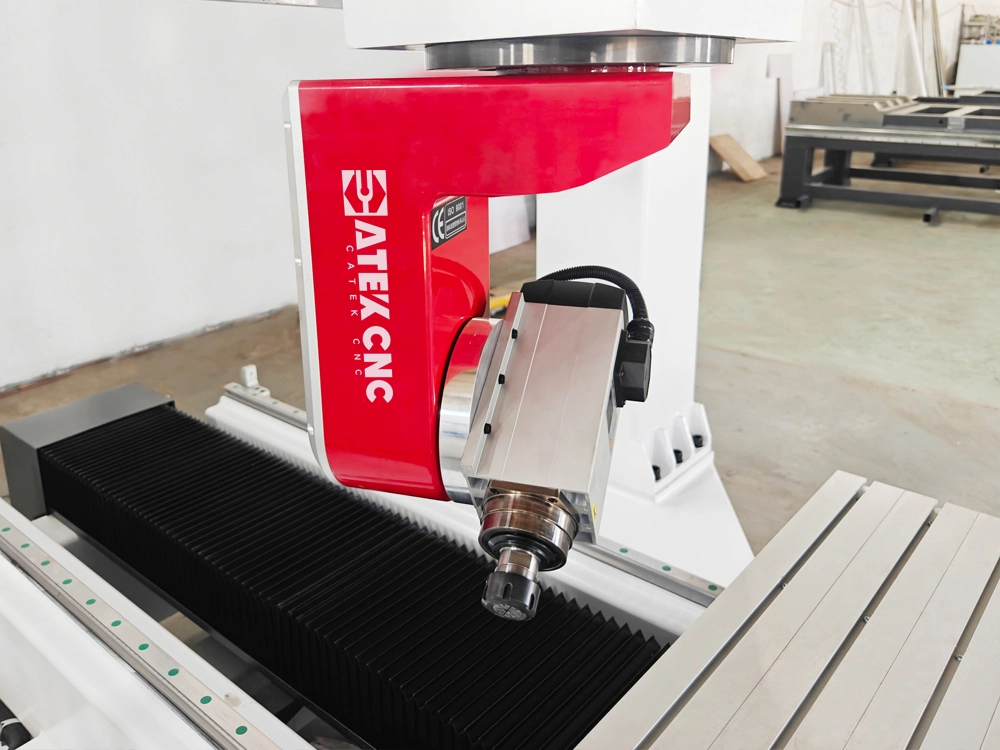

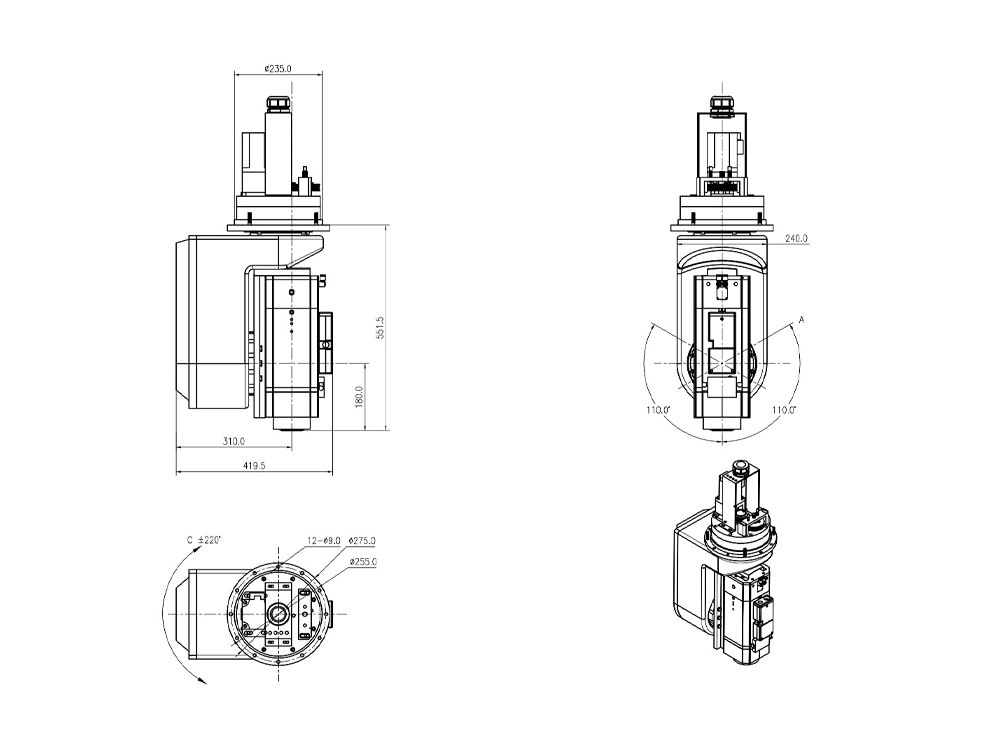

Five-axis machining head

The machining head is equipped with two rotary axes, allowing rotation in the horizontal and vertical planes respectively.

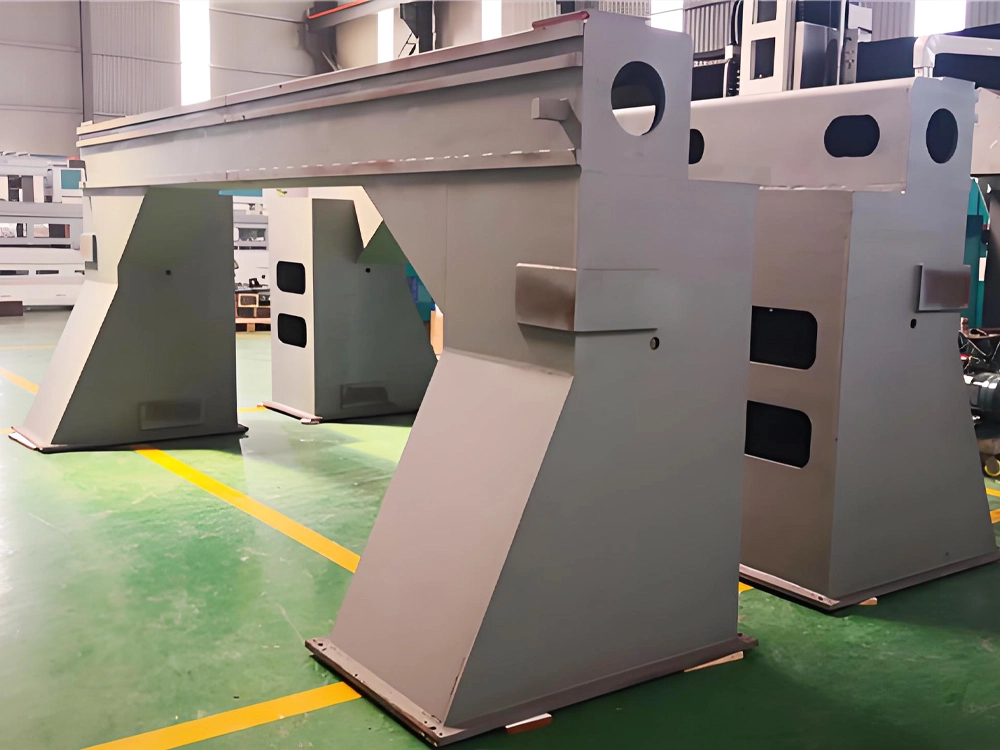

Machine frame

The heavy-duty frame is welded with thick steel, which is reliable and durable without deformation.

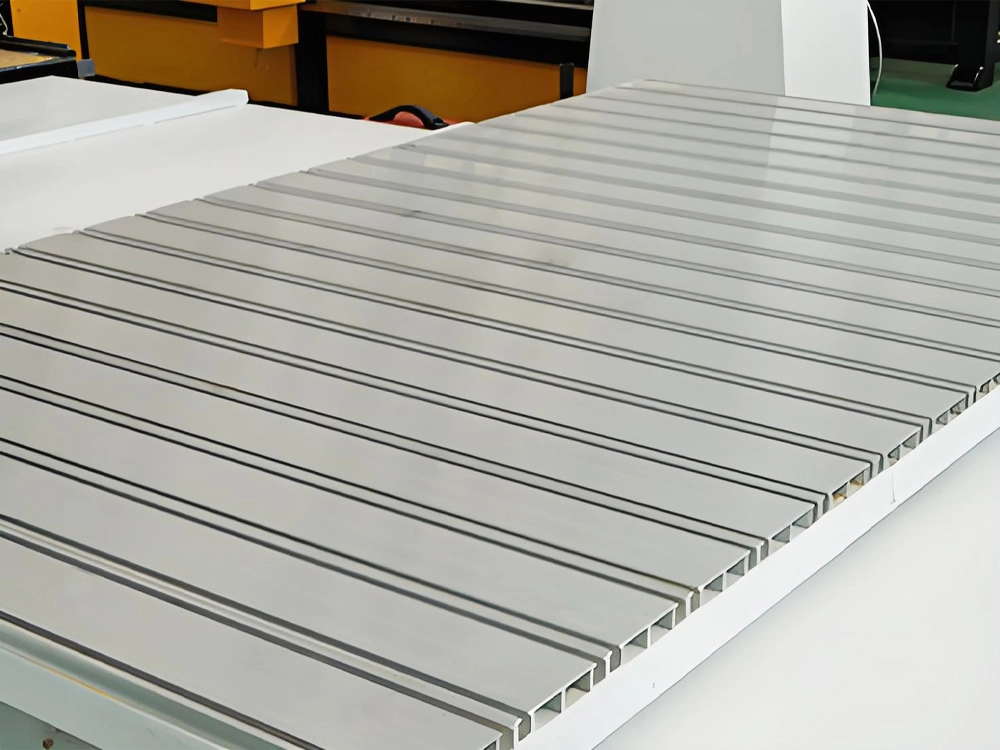

Standard T-slot workbench

No vacuum pump and electricity consumption are required, workpiece clamping is more flexible, and it is more suitable for processing special-shaped workpieces.

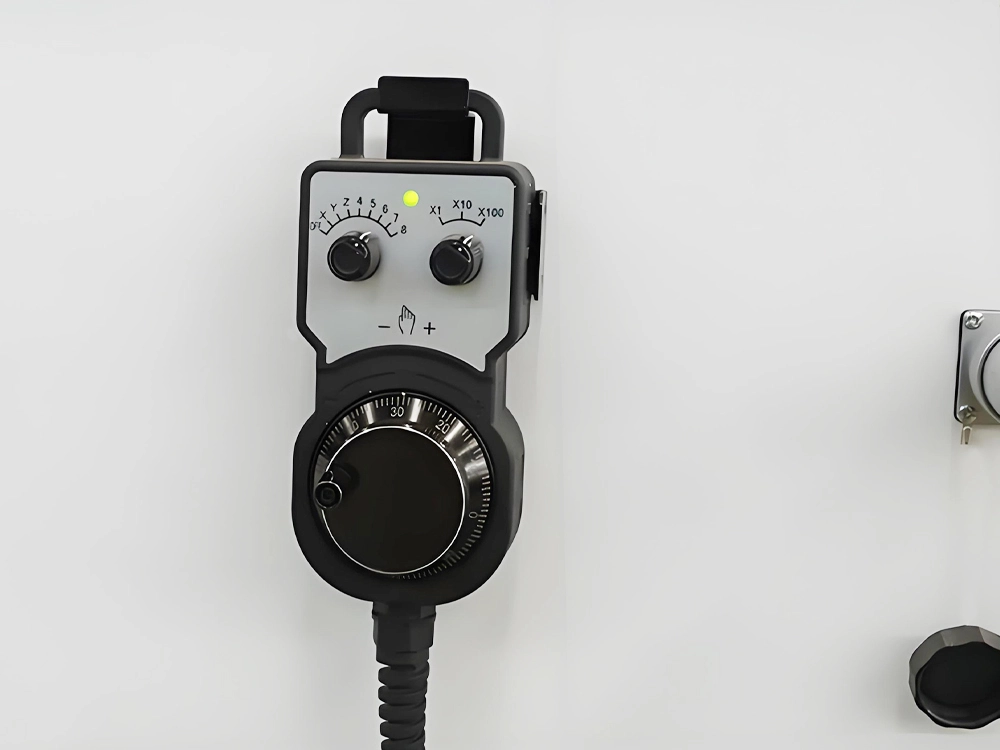

Pulse handwheel

Direct adjustment of the machine axes.

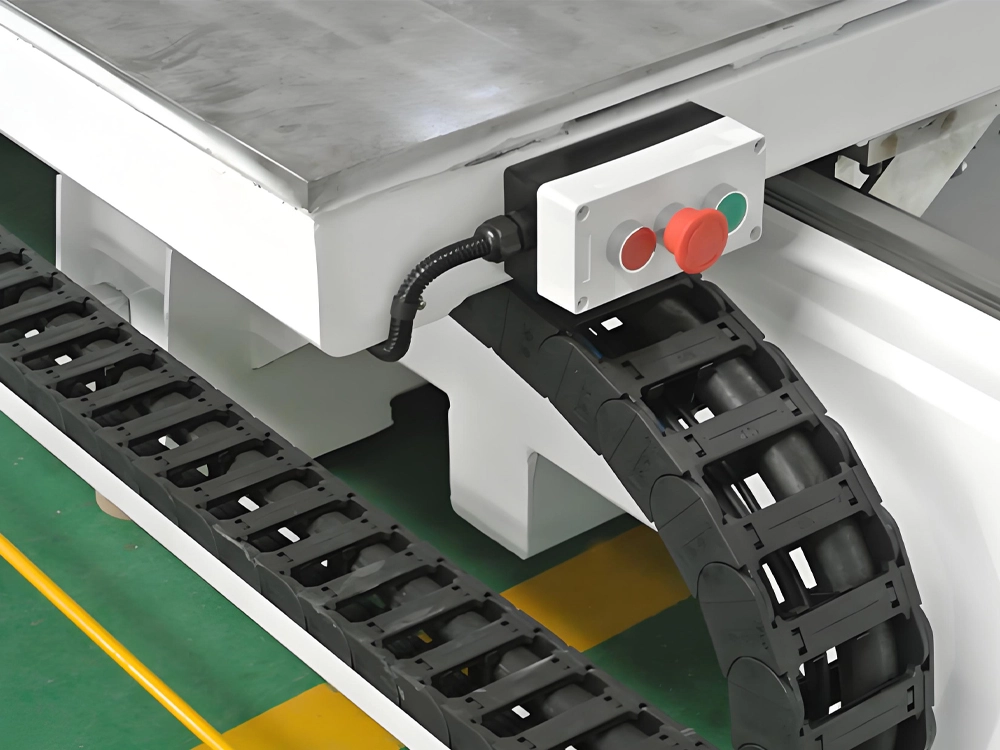

Drag chains

High strength flame retardant nylon drag chain, organize and protects cables and oil lines.

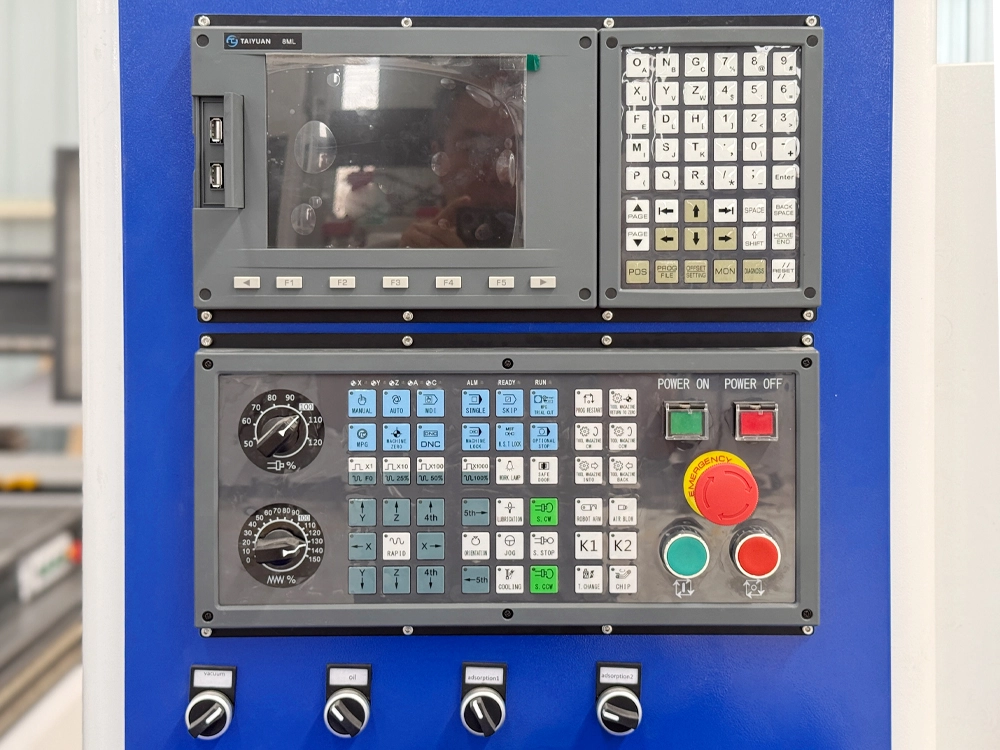

TAIYUAN five-axis control system

TAIYUAN control system has advanced functions, easy operation, high precision, and supports five-axis linkage control and RTCP function.

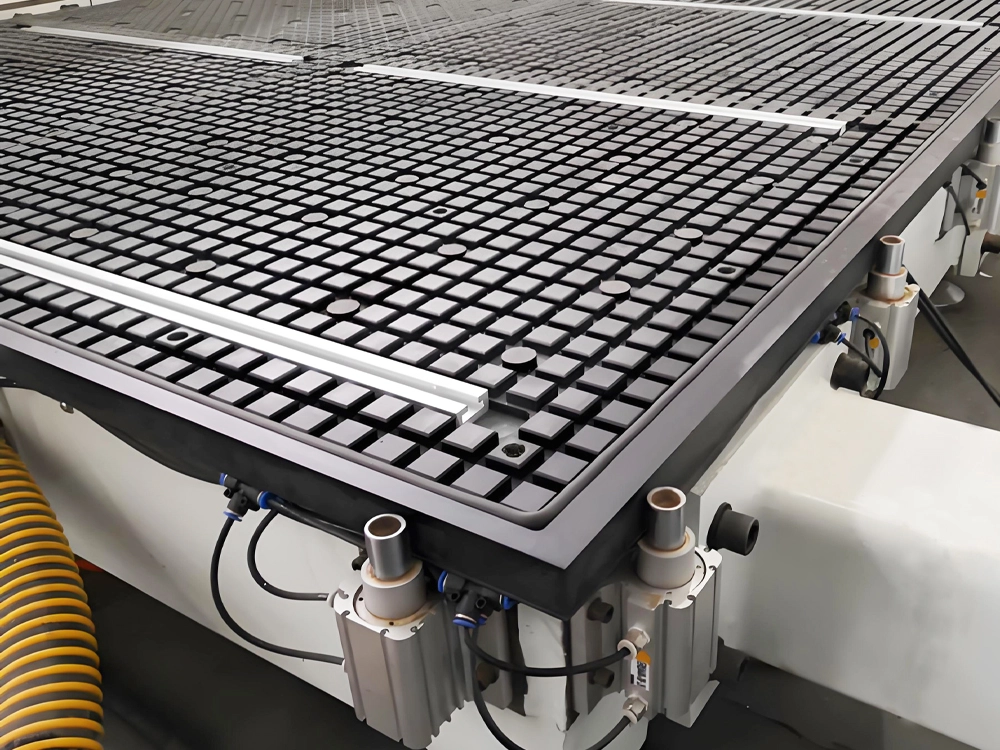

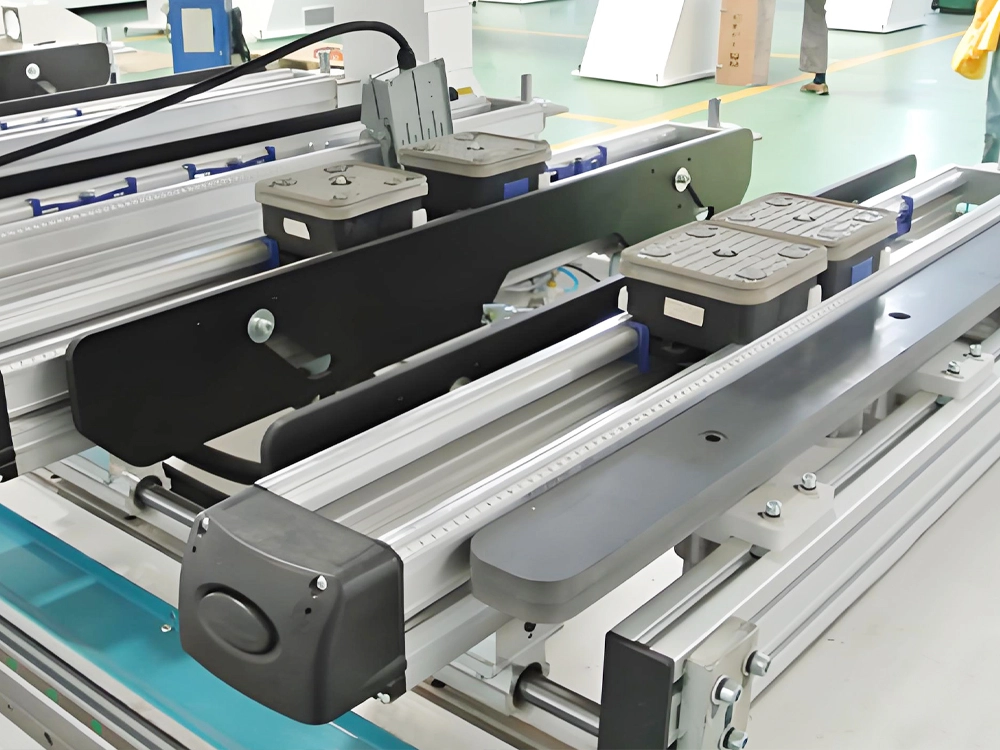

Optional vacuum workbench or vacuum cup

Used for rapid adsorption of plates or flat bottom materials.

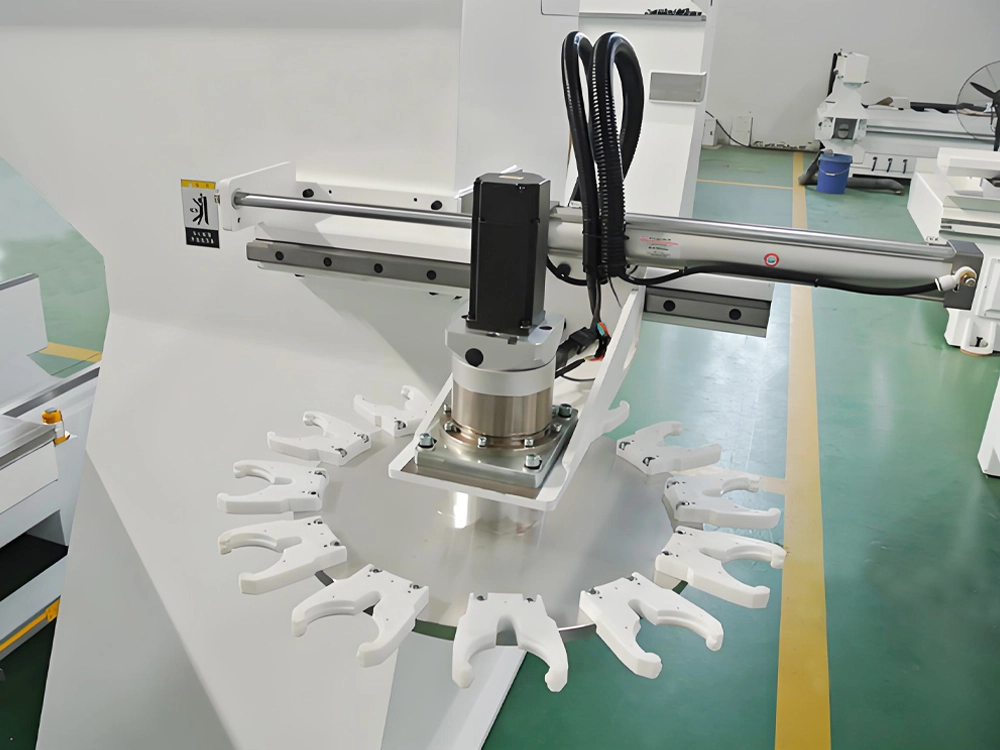

Optional HSK 63F/ISO 30 carousel tool magazine

Large-capacity carousel tool magazine with wide compatibility of tool holder standards.

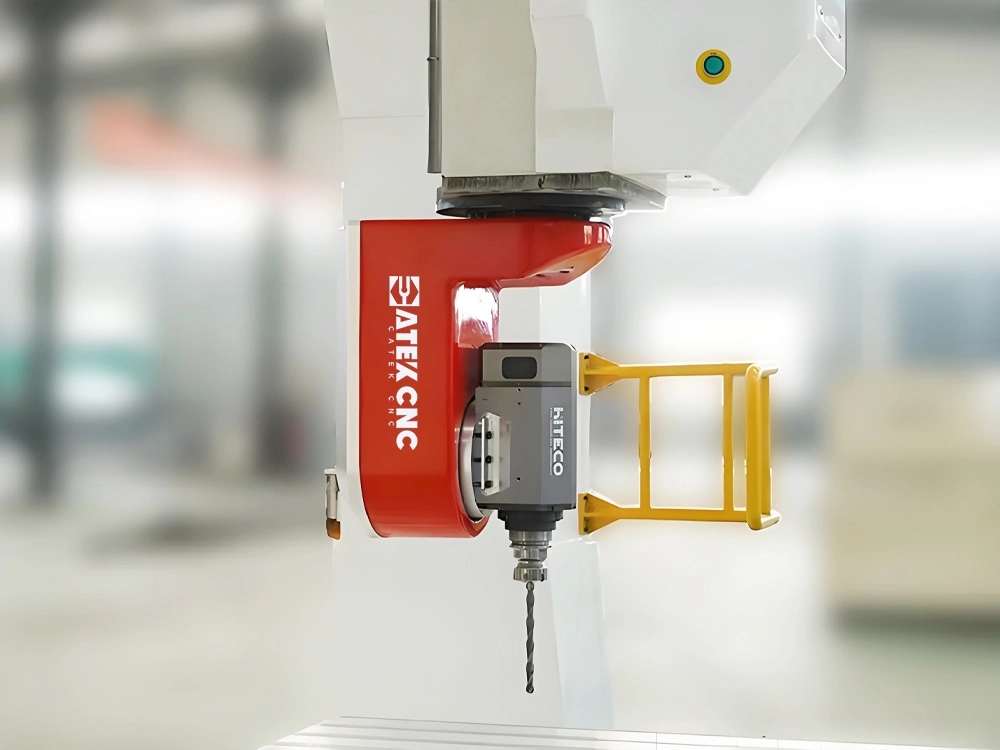

Optional Hiteco automatic tool changing spindle

high precision and fast speed, support automatic tool change.

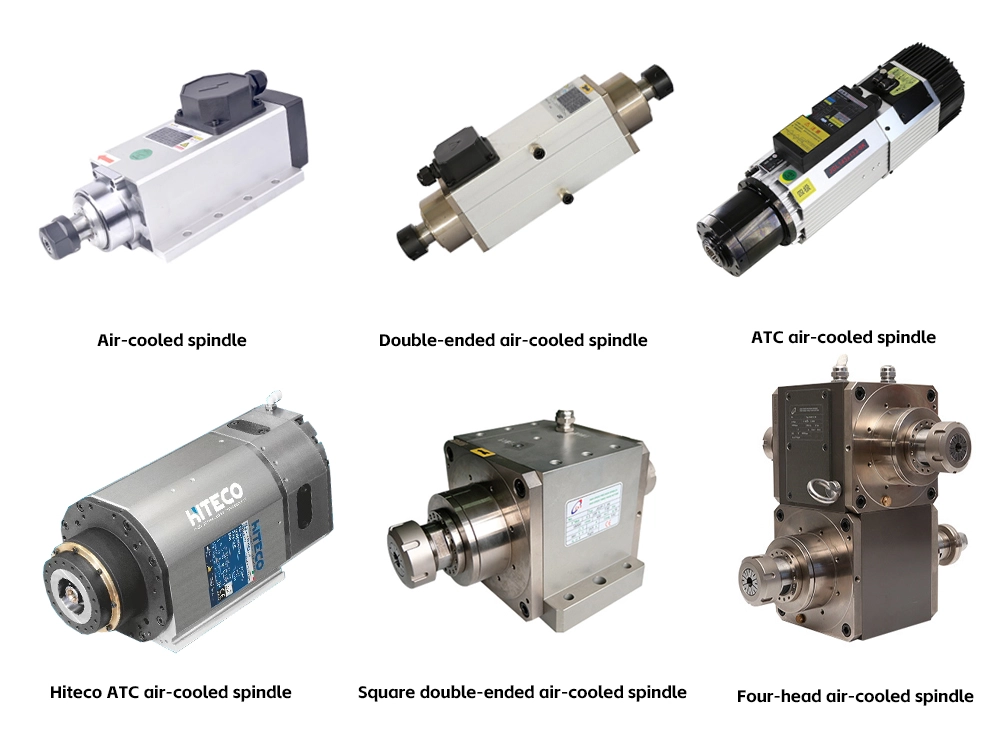

A variety of spindles are available

Support various types of spindles to meet diverse processing needs.

Special export wooden box packaging

The five-axis CNC router is packaged and shipped by export-specific plywood boxes.

Technical Parameters of Professional-Grade Tabletop Moving Five-Axis CNC Router Machine

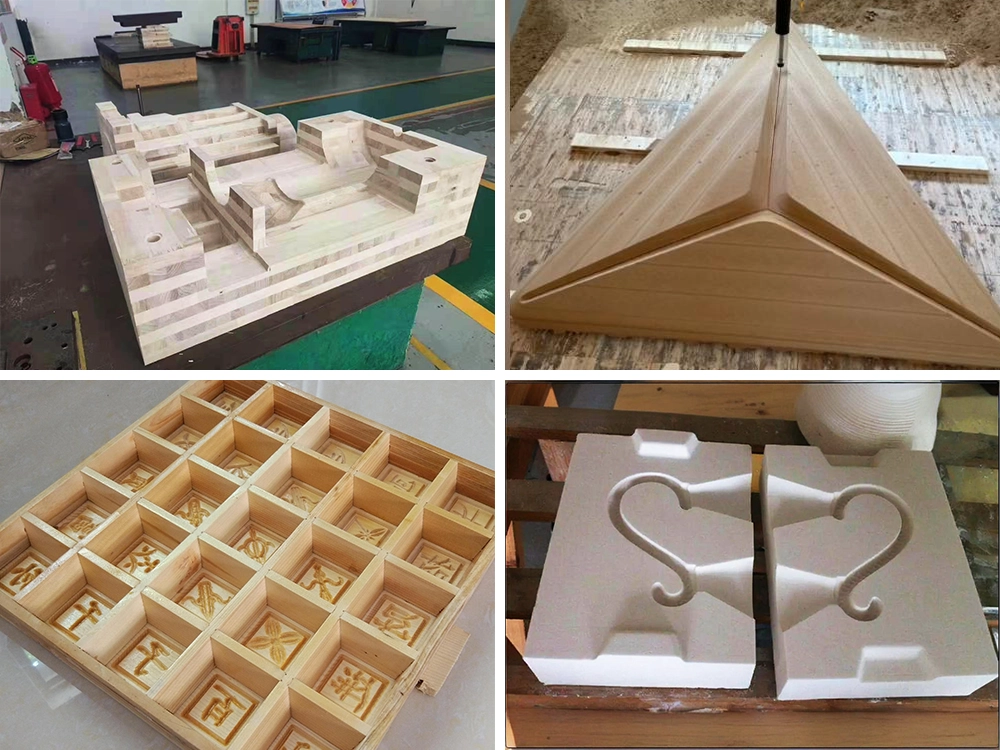

What Can The Multifunctional Five-Axis CNC Router Process?

Applicable Materials:

Wood, bamboo, plastic, PVC, acrylic, artificial marble, foam, plexiglass, MDF, multilayer board, copper, aluminum, carbon fiber, etc.

Application industries:

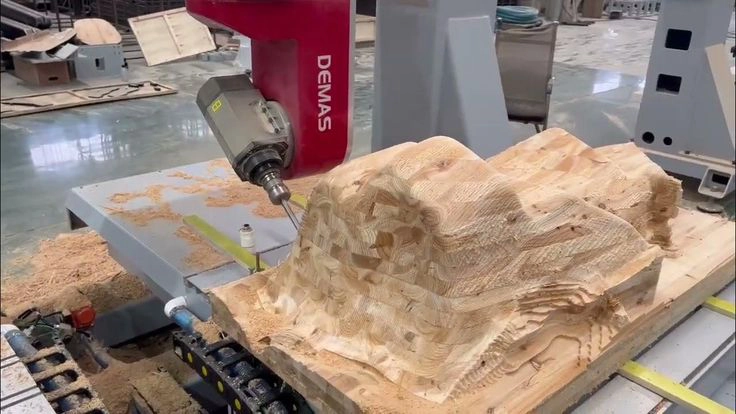

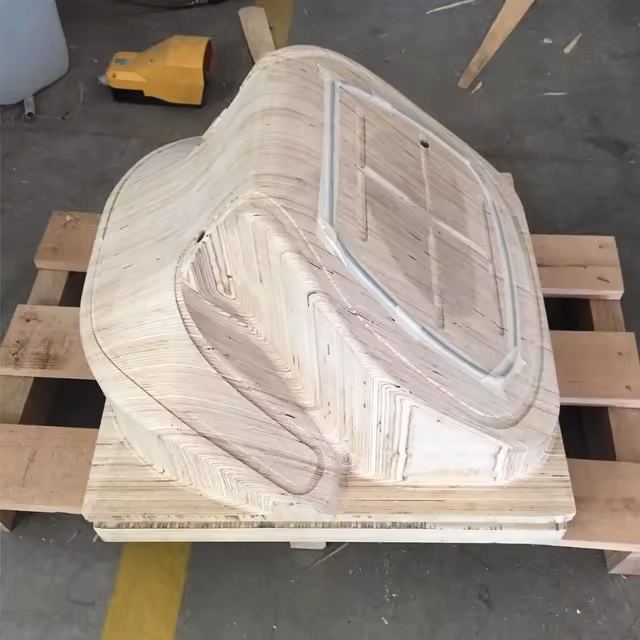

• Mold industry: large molds, foam molds, construction molds, wooden boat molds, wooden models, aircraft parts molds, automobile molds, etc.

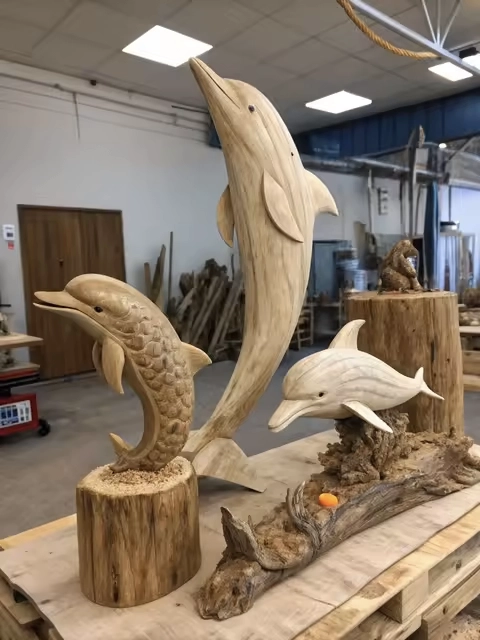

• Toy industry: plastic toys, outdoor toys, large outdoor sculptures, decorative models, artwork sculptures, etc.
• Furniture decoration: wooden furniture accessories, musical instrument accessories, audio shells, toy shells, decorative shells, etc.
• Manufacturing and processing industry: furniture manufacturing, accessories manufacturing and production, 3D modeling and cutting, etc.

Frequently Asked Questions About Five-Axis CNC Routers

Will the software for five-axis CNC routers be given away?

Of course, we all use world-renowned brand CNC systems, which are compatible with various CAD/CAM software. System operation manuals and free software are given away for free.

How do I learn to operate a five-axis CNC machine?

We will provide free training manuals. If you plan to come to China, you can visit our factory for free. If you need on-site installation training, we can also arrange for engineers to provide on-site guidance. At the same time, we can provide free remote training guidance through video calls, WhatsApp, telephone, email, etc.
