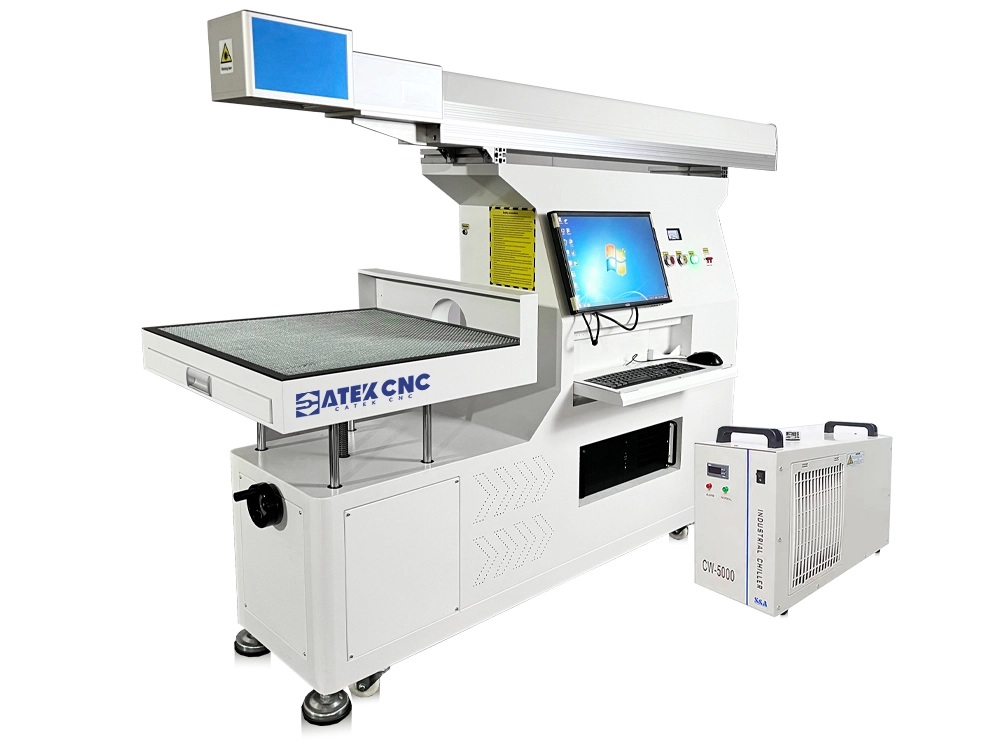

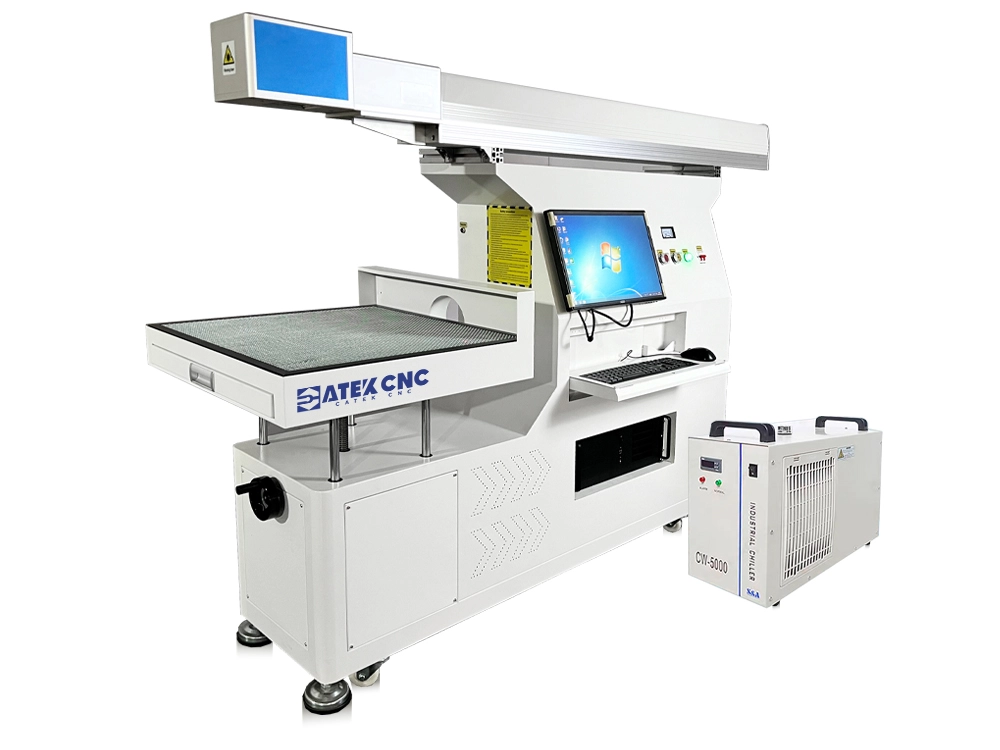

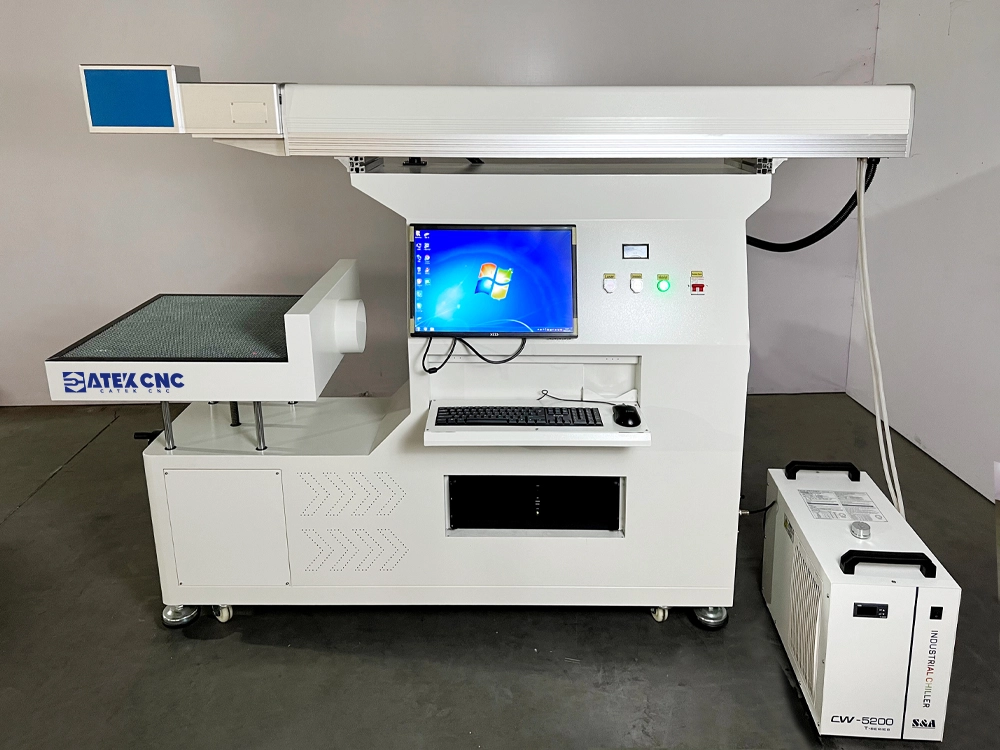

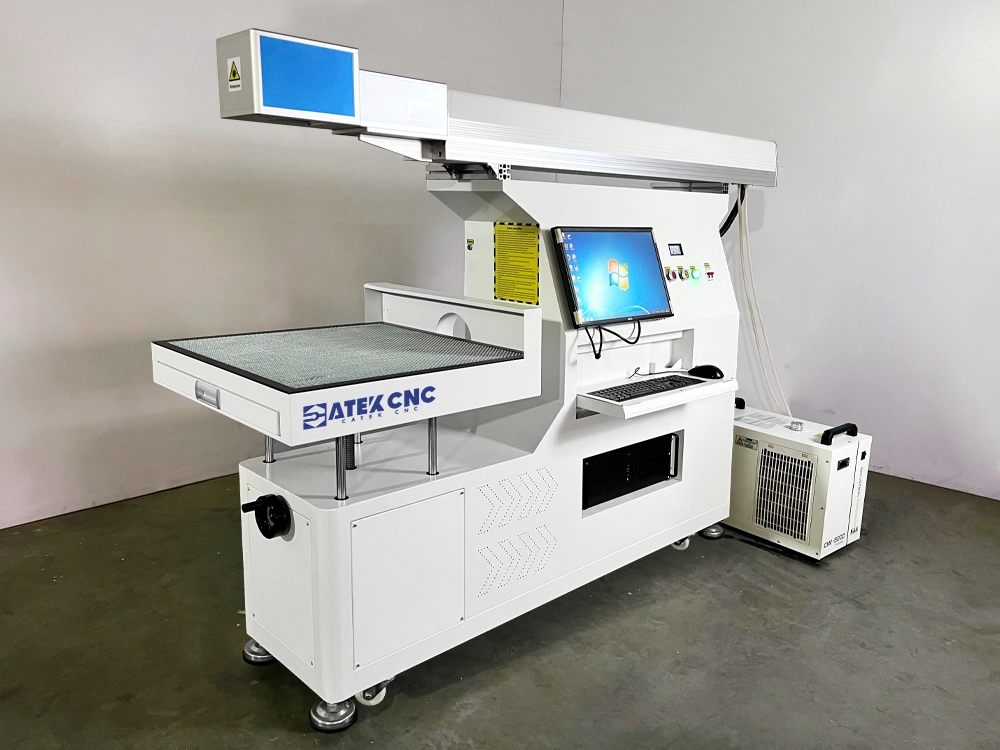

Large-Format CO2 3D Marking Machine for Wood, Plastic and Acrylic

What Is a Large Format CO2 Laser Marking Machine?

Large-format CO2 laser marking machine is a laser marking equipment used for processing large-area parts, with high precision, high speed and applicable to a wide range of materials processing capacity. The marking machine adopts CO2 laser tube as the core component, which emits 10.64μm wavelength laser in the mid-infrared frequency band, with the help of advanced dynamic focusing technology, the laser beam passes through a series of precision optical components such as beam expanding mirror, focusing mirror, etc. to amplify and focus, and ultimately produces a high energy density and good monochromatic beam, which accurately acts on the surface of the workpiece to leave a clear and permanent marking on the surface of the material through gasification or chemical reaction. Through vaporization or chemical reaction, it leaves a clear and permanent mark on the surface of the material. The processing speed is greatly improved compared with ordinary CO2 laser engraving machine, which greatly improves the production efficiency.

The machine has a large format working area, whether it is a wooden box, cardboard box, or fabric, leather, fabric and other large-area materials, can be efficiently processed on this platform. In terms of running cost, it requires only electricity supply without any other consumables, which greatly reduces the cost of long-term use. In terms of operation, this marking machine is extremely easy to use, so even inexperienced novices can get started quickly without the need for professional maintenance. The operator only needs to enter the graphics, text or symbols to be marked in the control software and locate the marking position through the software to easily start the marking processing process.

In addition, the non-contact processing mode of the laser beam avoids the direct contact between the mechanical parts and the parts, which fundamentally eliminates the possibility of damage to the surface of the parts, and is especially suitable for parts processing scenarios with extremely high requirements for precision.

Features of Large Area CO2 Laser Marking Machine

• The processing range is larger, and it can process non-metallic materials and some metal surfaces with a maximum size of 500*500mm.
• It has extremely high processing accuracy and processing speed, with an accuracy of up to 0.01mm, and the processing depth can be adjusted arbitrarily.
• Environmentally friendly and energy-saving, pollution-free, no consumables, very low operating costs, symbols of rohs and other environmental protection requirements, can work continuously for 24 hours without maintenance.
• Simple operation, powerful software functions, even novices can easily edit and adjust the marking content and position.
• The marking is clear, not easy to wear, has good durability, is not easy to be erased, and has good anti-counterfeiting performance.
• Supports a variety of processing methods, can be cut, deep engraved, marked, and can process various complex graphics.
• English operation interface, supports a variety of file formats, and is compatible with a variety of software, such as PLT, BMP, JPG, AI, DXF and other formats.
• No fear of harsh production environment, it can still operate stably in dusty or humid environment and can work uninterruptedly for a long time.

Details of Large Format CO2 Laser Marking Machine

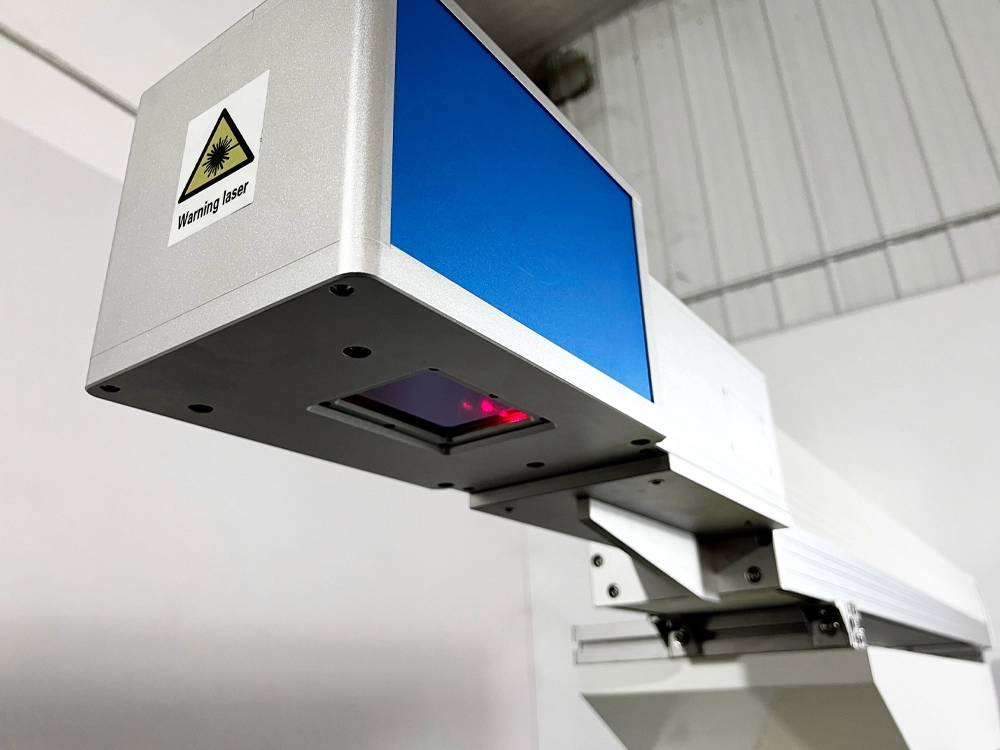

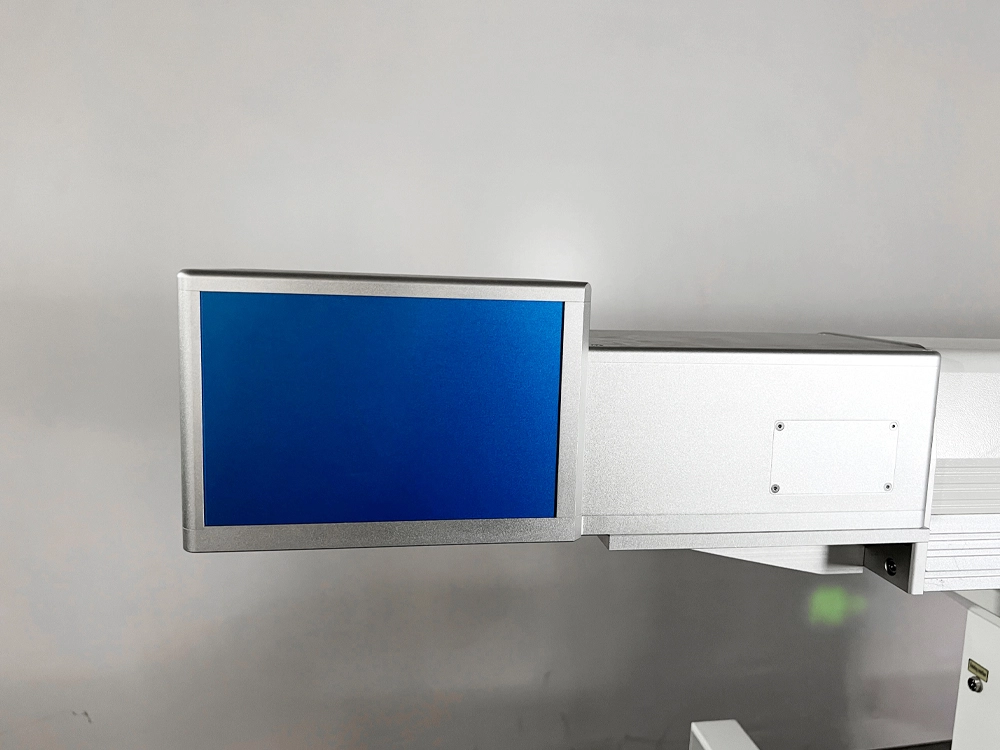

Sino-Galvo dynamic galvanometer scanner

It adopts an advanced optical design, featuring low light loss, compact size, high positioning accuracy, fast marking speed, and strong anti-interference capability. It is suitable for various laser precision processing applications, including large surfaces, complex surfaces, and deep engraving.

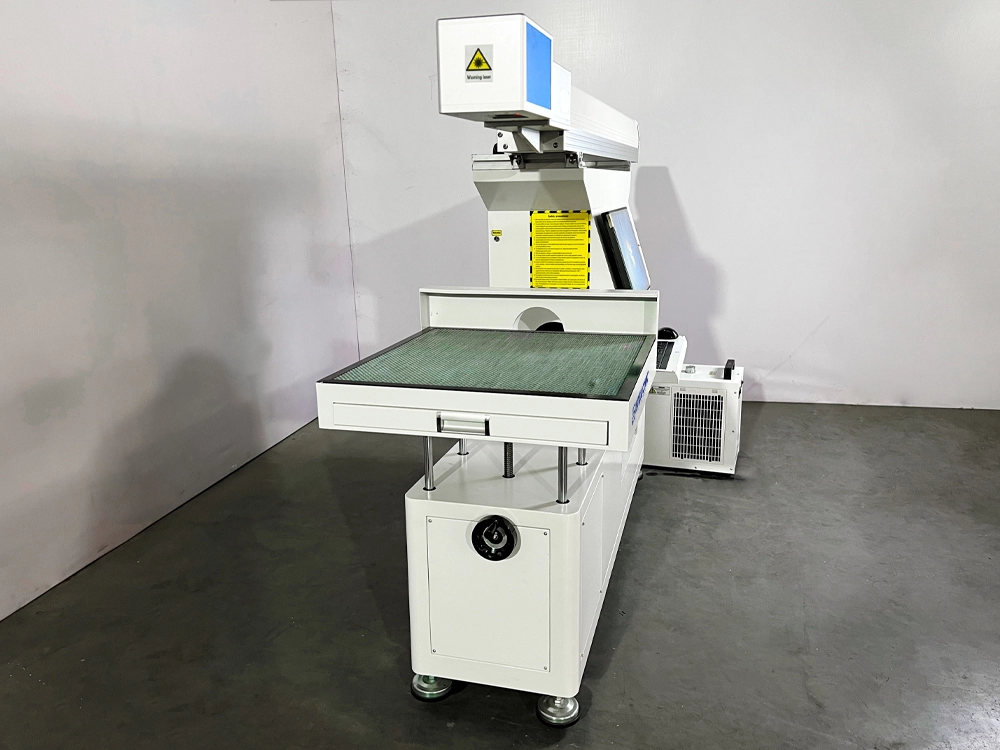

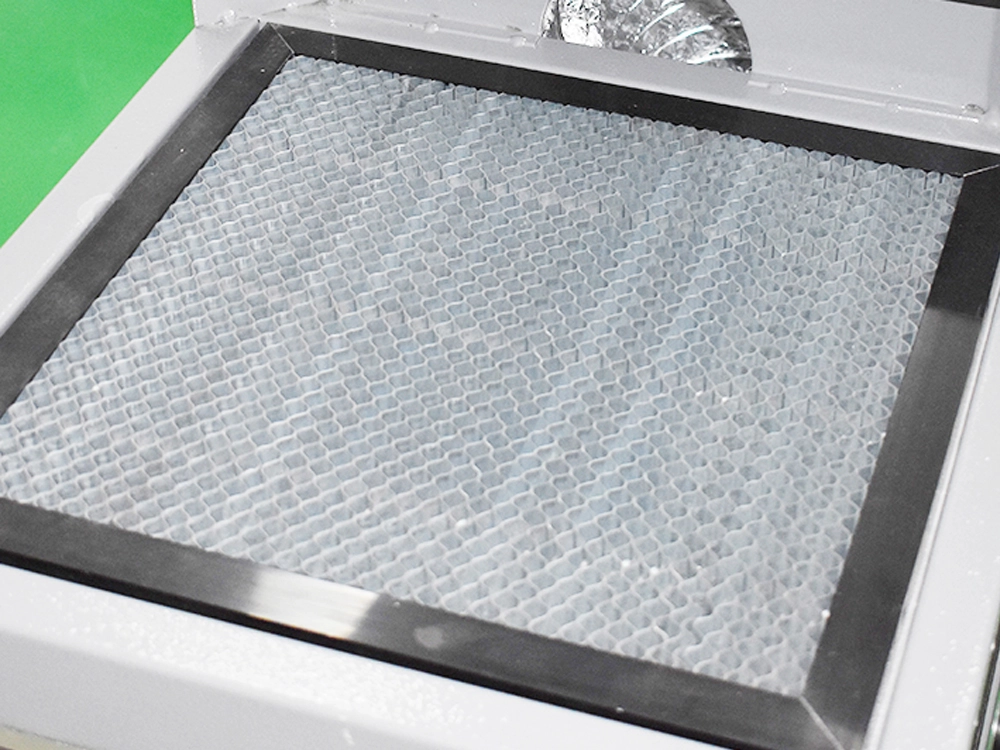

Workbench

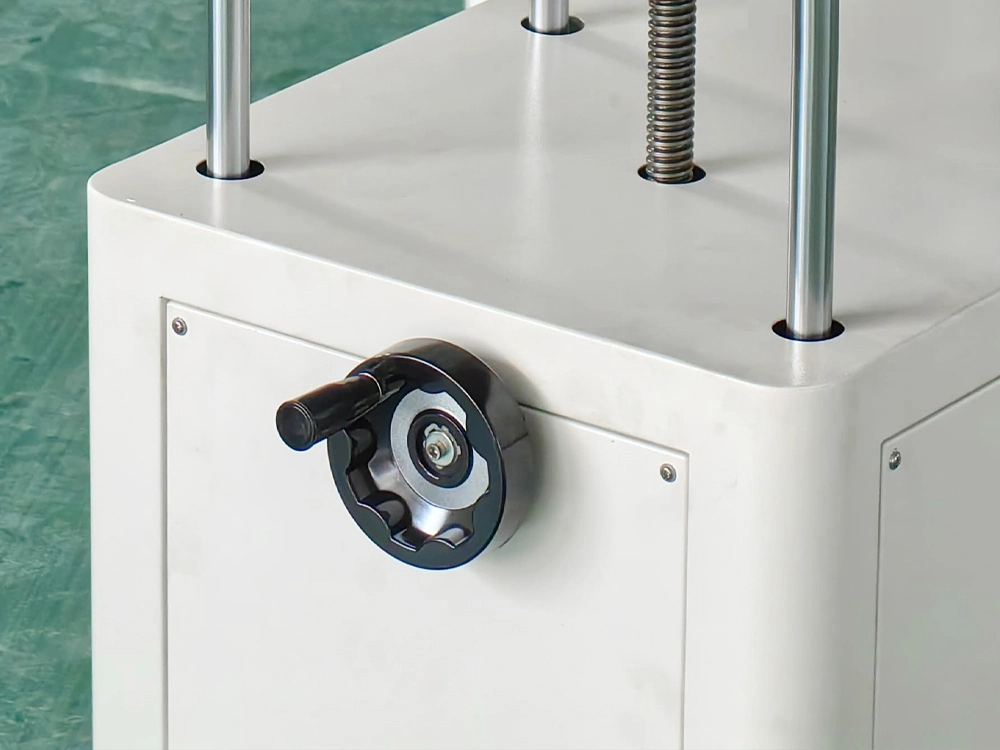

Using the honeycomb board working worktable, the processing platform is wider and easier to operate. Parts can be placed and positioned arbitrarily, and the working platform can be freely raised and lowered according to different focal lengths.

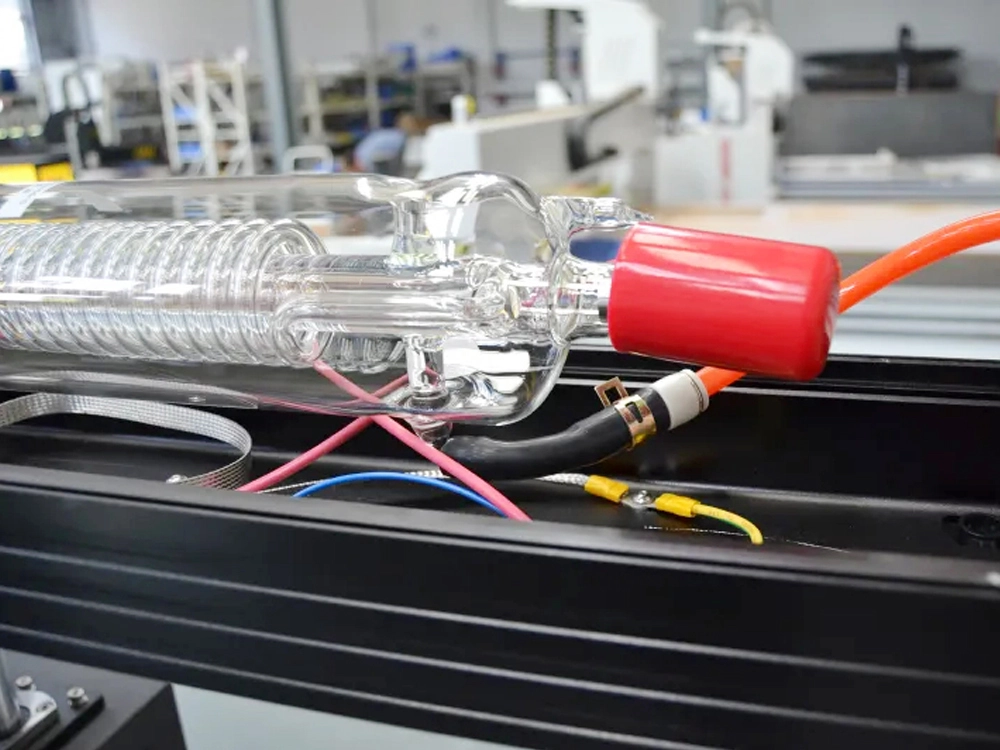

Closed DC CO2 laser glass tube

It uses the Reci 130W closed DC CO2 laser glass tube, which has high power and can be used for cutting, marking, burning, etc.

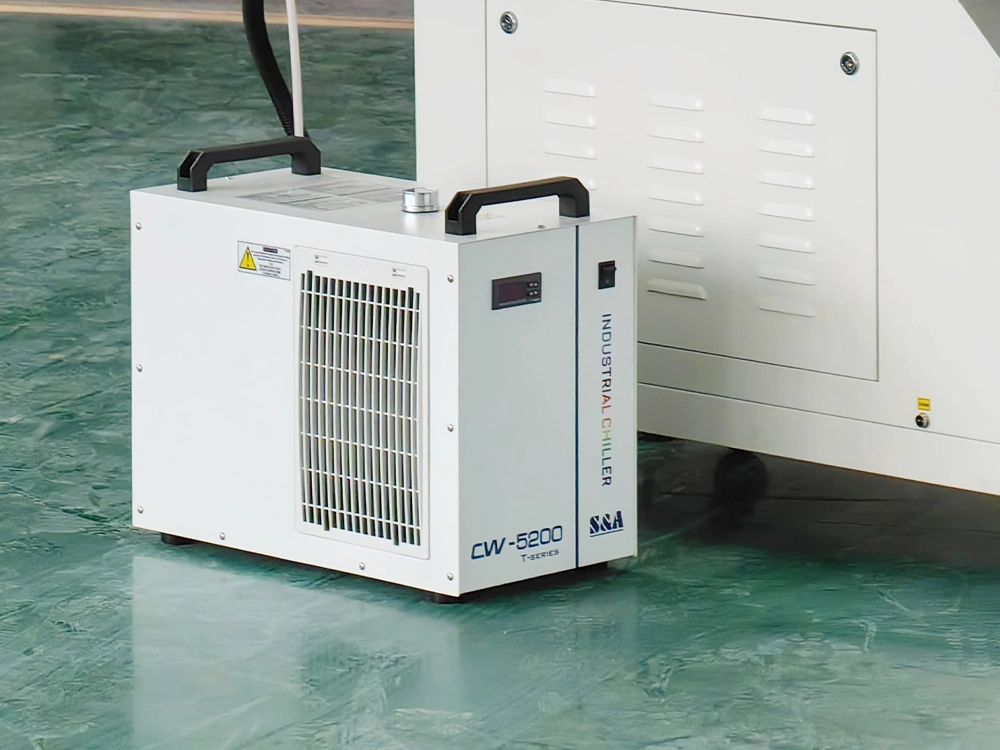

Water chiller

S&A water chiller CW-5200 can offer highly reliable cooling for up to 130W DC CO2 laser or 60W RF CO2 laser. Having a temperature stability of ±0.3°C and a cooling capacity of up to 1430W, this small water chiller keeps your CO2 laser more stable and efficient multiple choices of pumps are available and the whole chiller system conforms to CE, RoHS and REACH standards.

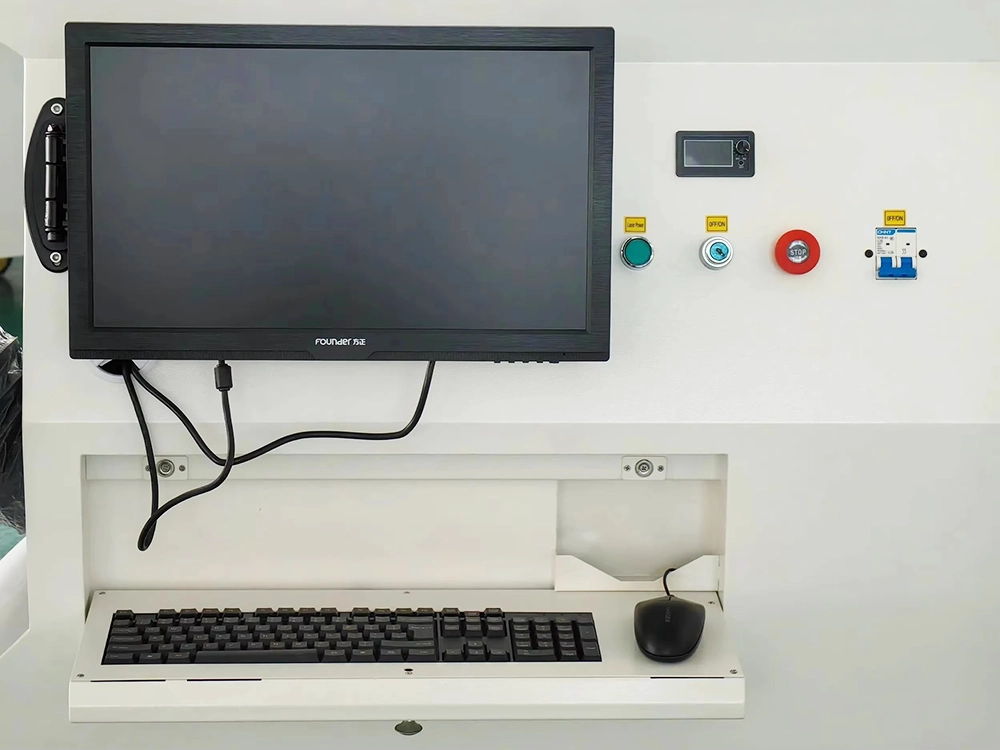

Control panel

The control panel is located on the right side of the monitor for easy operation. It is equipped with a large-size monitor and a foldable keyboard stand.

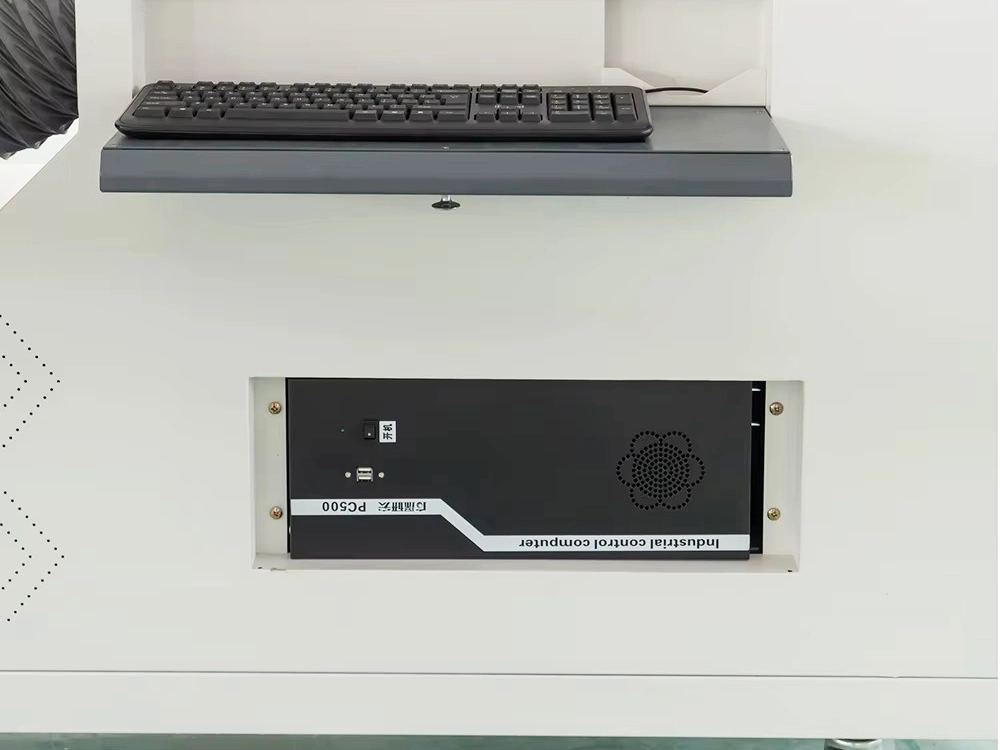

The industrial PC is located below the keyboard and is equipped with a separate power button and USB expansion interface.

Technical Parameters of Large Format CO2 Laser Marking Machine

What Products Can Be Processed by Large-Area CO2 Laser Marking Machines?

Applied to the processing of non-metallic materials and some metal materials, such as: leather products, bags, belts, clothes, cloth, denim, wood, acrylic, PVC board, ABS, PC and other plastic materials, corrugated boxes, label paper, packaging boxes, billboards, circuit boards, electronic components, rubber, ceramics, tiles, glass, stone, marble, etc.

Widely used in: packaging industry, textile industry, clothing industry, electronic component manufacturing industry, printing industry, handicraft industry, toy industry, etc.

Optional Accessories for CO2 Laser Marking Machine

• Rotating axis: It can adjust the angle by 180 degrees and rotate by 360 degrees, with a clamping diameter of 80mm, suitable for processing round rod products such as cigarette holders and bearings.
• Two-dimensional workbench: Can be moved sideways in all directions, suitable for processing various flat-type products.
• Rolling rotating axis: Can rotate 360 degrees, suitable for processing glass cups, cans, cups, bottles and other products.
• Hollow clamp: It can be freely adjusted to tighten and loosen on both sides, suitable for processing various thin parts such as tin foil.
• Small size rotating axis: Can rotate 360 degrees, the clamping direction can be adjusted 135 degrees, suitable for processing various small size parts such as rings, bottle caps, pendants, jewelry, etc.
• Rotating worktable: 360-degree rotation, the rotation angle and speed can be freely adjusted, suitable for processing various long parts such as pens, ballpoint pens, cosmetic pens, etc.
