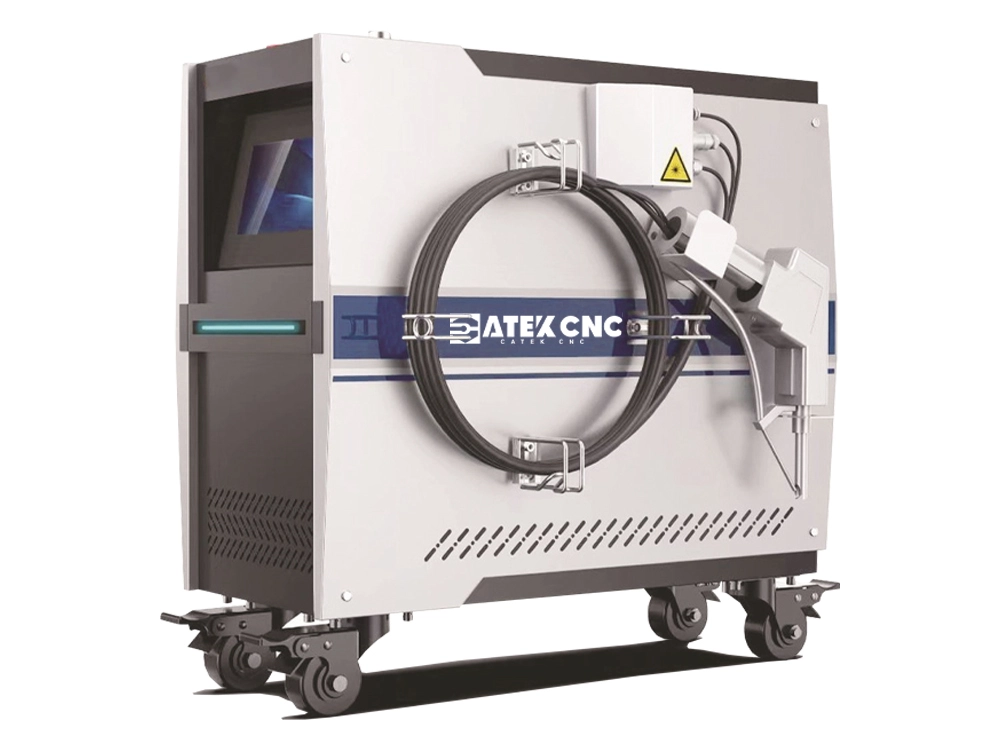

3-In-1 Multifunctional Laser Welding Machine for Welding, Cutting and Cleaning

This machine is a 3-in-1 air-cooled handheld laser welding machine. It adopts a fan-based cooling system, eliminating the need for bulky water pumps in water-cooling systems or coolant, avoiding issues like coolant leakage. It can operate normally in low-temperature or cold environments without worrying about coolant freezing, while also significantly reducing energy consumption and maintenance costs. Compact and lightweight, it is easy to carry and move, making it suitable for various outdoor operations or scenarios requiring frequent relocation. Moreover, the machine is simple to operate, allowing users to get started without complex training, making it more suitable for beginners and non-professionals. This 3-in-1 air-cooled laser welding machine supports welding, cutting, and seam cleaning function, meeting the demands of various work scenarios. It is widely used in automotive manufacturing, aerospace, jewelry processing, electronic component production, signage fabrication, metal door/window processing, and many other fields.

Features and Advantages of 3-In-1 Air-Cooled Laser Welding Machine

Multi-functionality

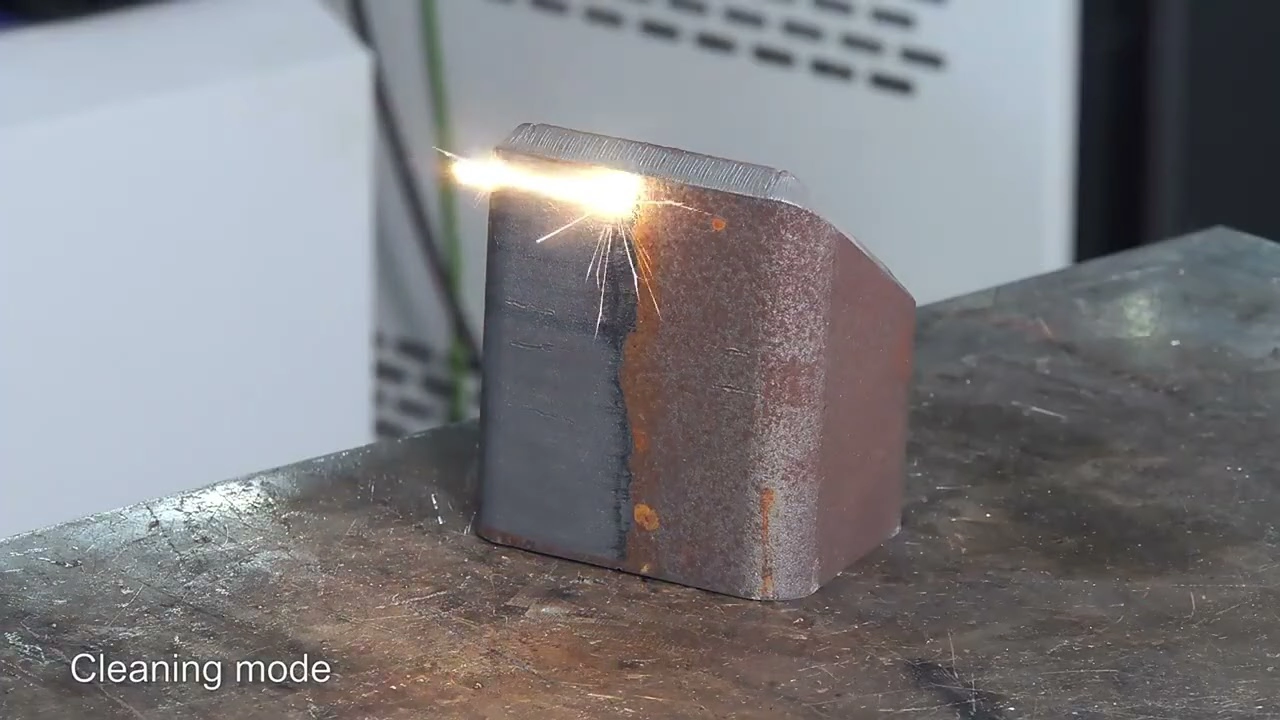

It has three core functions: welding, cutting and cleaning. It not only welds and cuts metal materials but also cleans rust or stained surfaces.

Excellent portability

The air-cooled laser welding machine uses fan-based cooling, eliminating the need for bulky laser water chillers, allowing for a more compact design. With a volume of less than 0.2 m³ and lightweight construction, it is highly portable and easy to move. It can fit easily into a car trunk, making it suitable for outdoor operations, small workshops, and on-site repairs.

Overheat protection

The control system monitors the laser’s internal temperature in real time, preventing damage to components due to excessive heat.

Safety interlock circuit

The device is equipped with multiple safety circuits. The laser only activates when the handheld welding nozzle contacts the metal workpiece, preventing accidents caused by misuse and ensuring operator safety.

Easy operation

Featuring an intelligent operating system, even beginners can use it effortlessly. Preloaded with multiple welding presets, it’s ready to work right after startup.

High-speed task

With high power output and fast response, its welding speed is 5x faster than conventional welders, supporting 24/7 continuous operation.

Cost efficiency

The 3-in-1 handheld air-cooled laser welder consumes less energy, significantly reducing electricity costs compared to water-cooled welders of the same power. Additionally, its simple maintenance (no complex water cooling system) further lowers production costs.

Details of 3-In-1 Air-Cooled Handheld Laser Welding Machine

Supports three major functions: laser welding, laser cleaning, and laser cutting, equipped with a handheld triple-in-one integrated welding torch that is lightweight, flexible to operate, and easy to use. It can switch working modes flexibly according to different application scenarios. The system incorporates multiple active and passive safety alarms as well as minor fault settings, featuring high reliability and strong stability. Additionally, the machine supports quick replacement of focusing lenses and protective lenses.

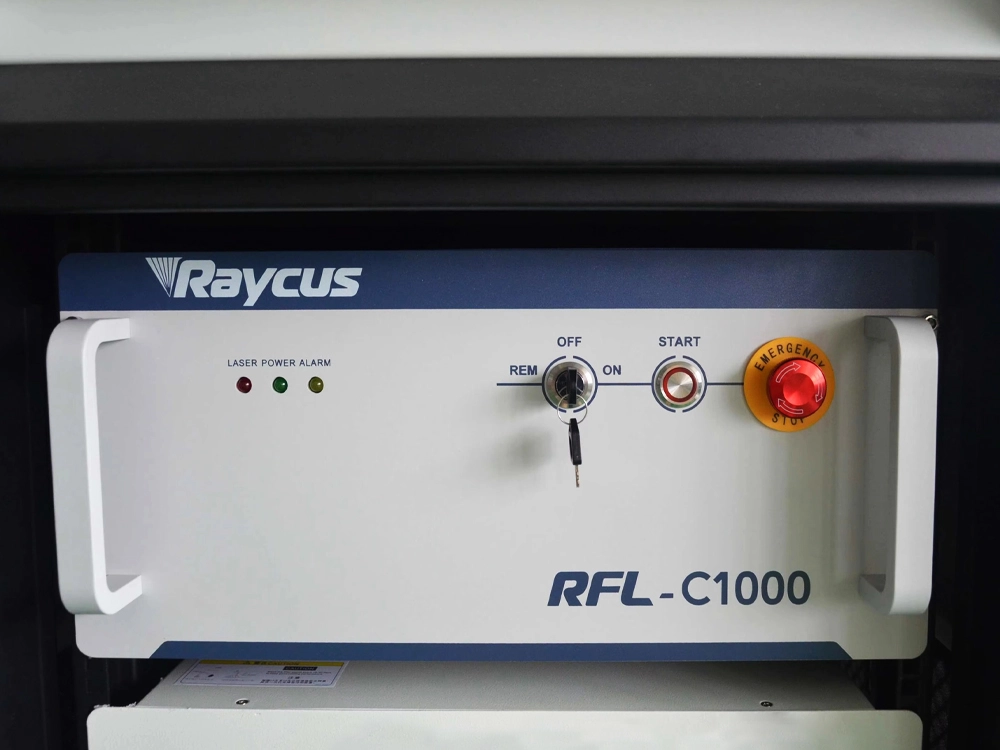

Laser source

Raycus laser is standard, JPT, RECI, MAX, BWT are optional.

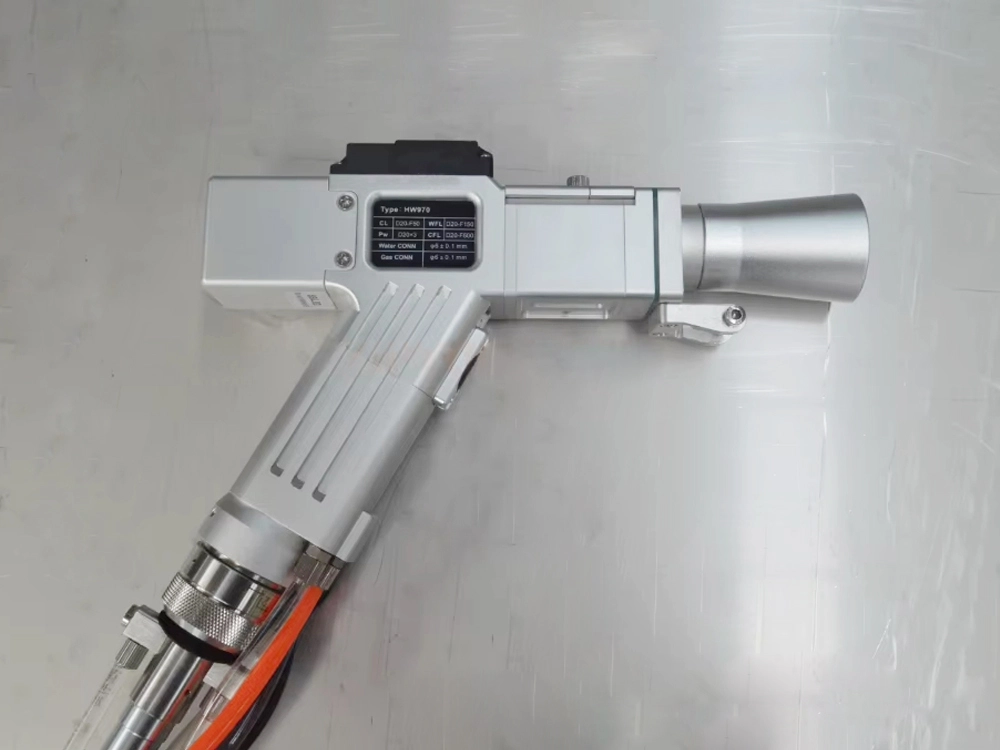

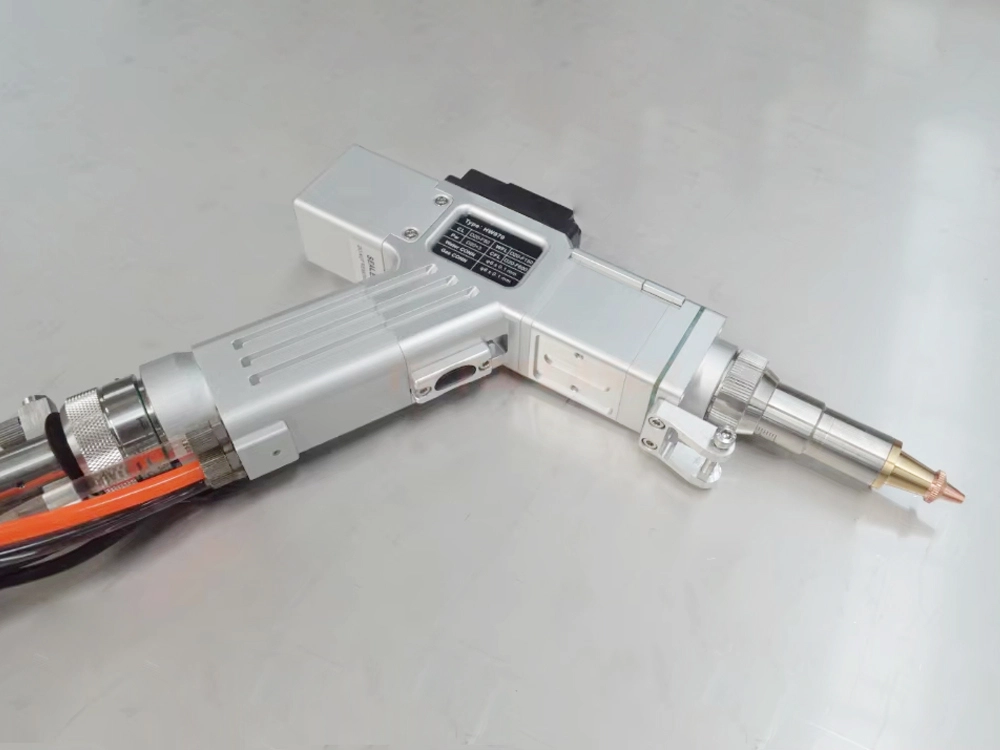

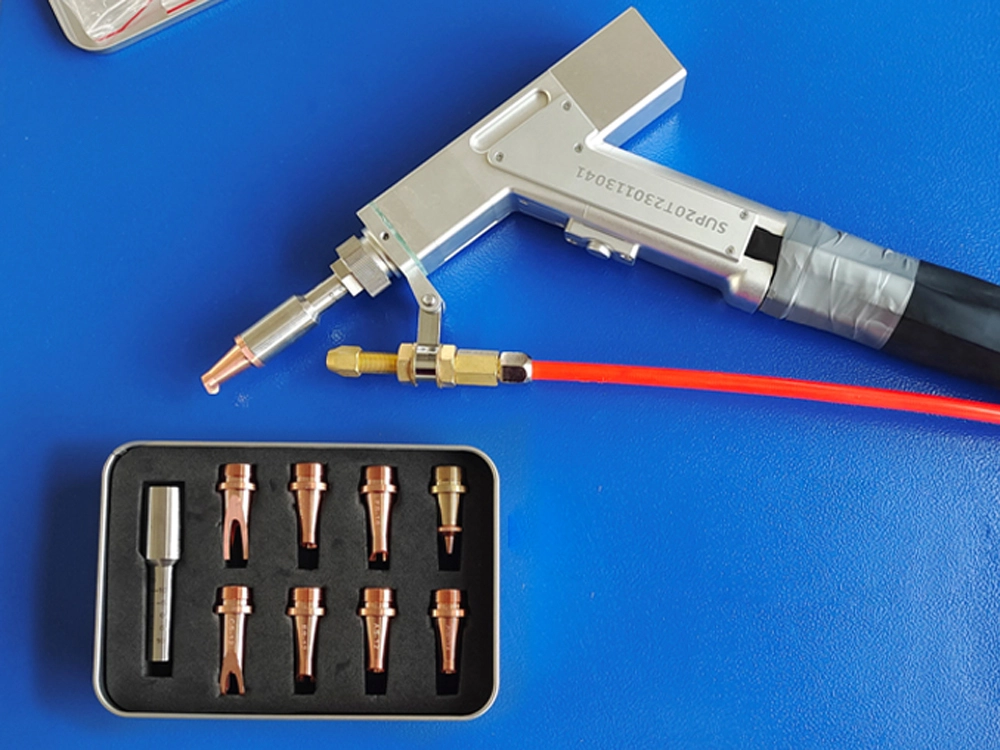

Handheld laser welding gun

The G-fast handheld 3-in-1 laser welding gun has the function of quick nozzle replacement and can realize laser welding, laser cutting and laser cleaning functions.

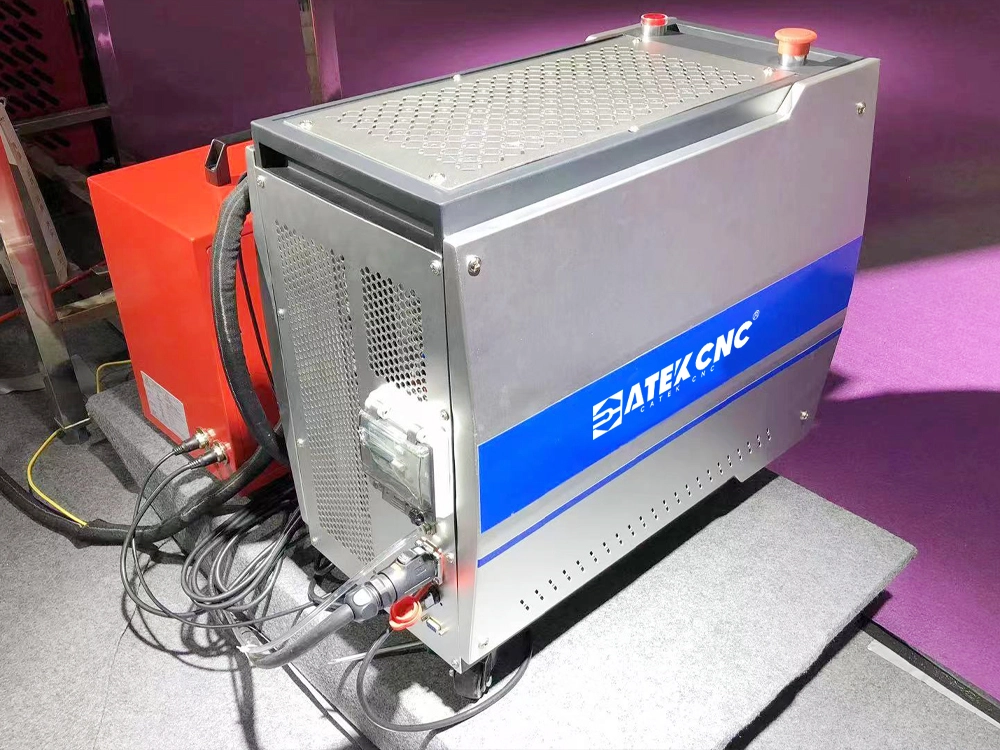

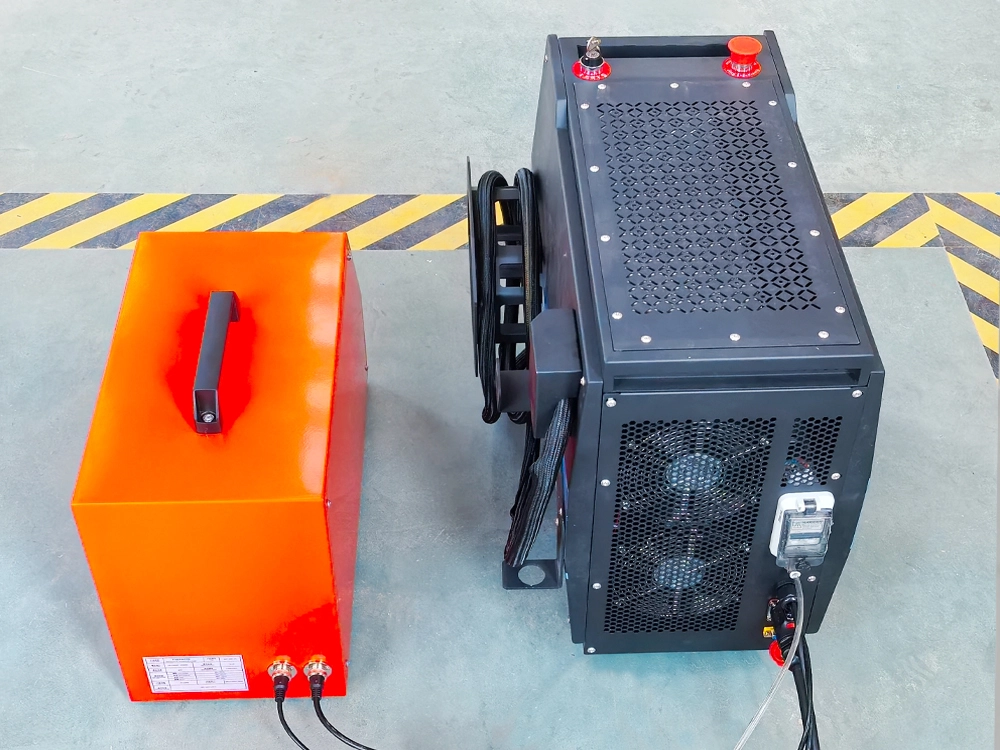

Cooling system

Air-cooled heat dissipation window, utilizing air-cooling technology to cool the laser source, equipped with high-power fans and air-cooled condensers for effective heat dissipation and laser source protection.

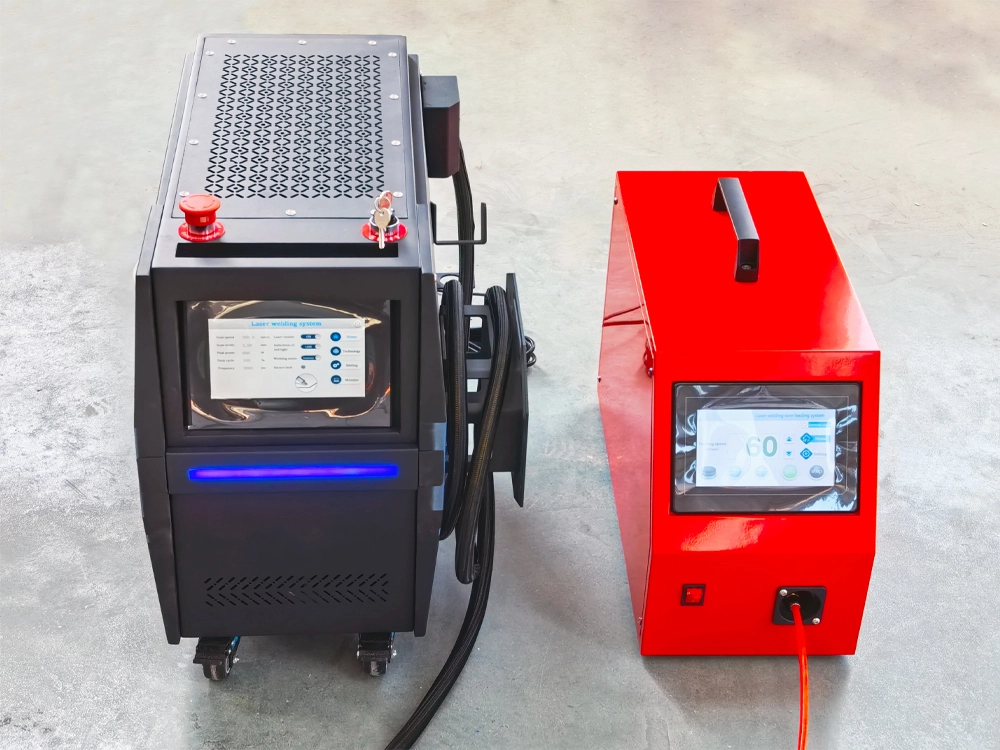

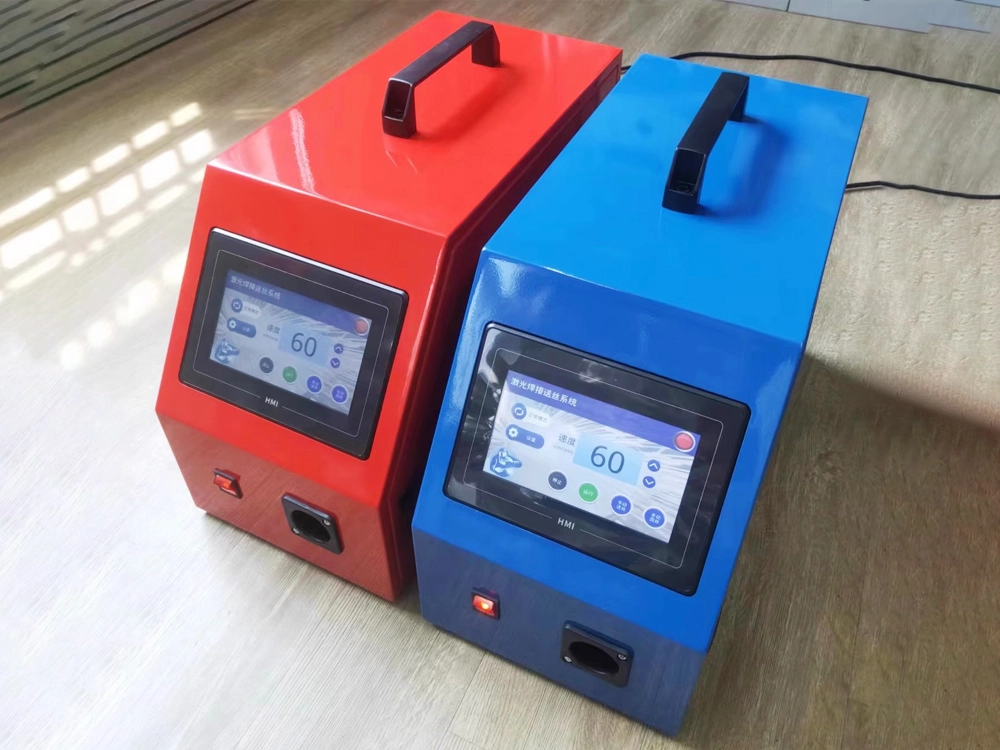

Wire feeder

Specialized wire feeder for laser welding machine, capable of rapid, continuous wire feeding with precise speed and quantity control to ensure welding quality and seam smoothness. Equipped with automatic wire feeding, retraction, and replenishment functions. Supports manual/automatic mode switching for various complex welding applications.

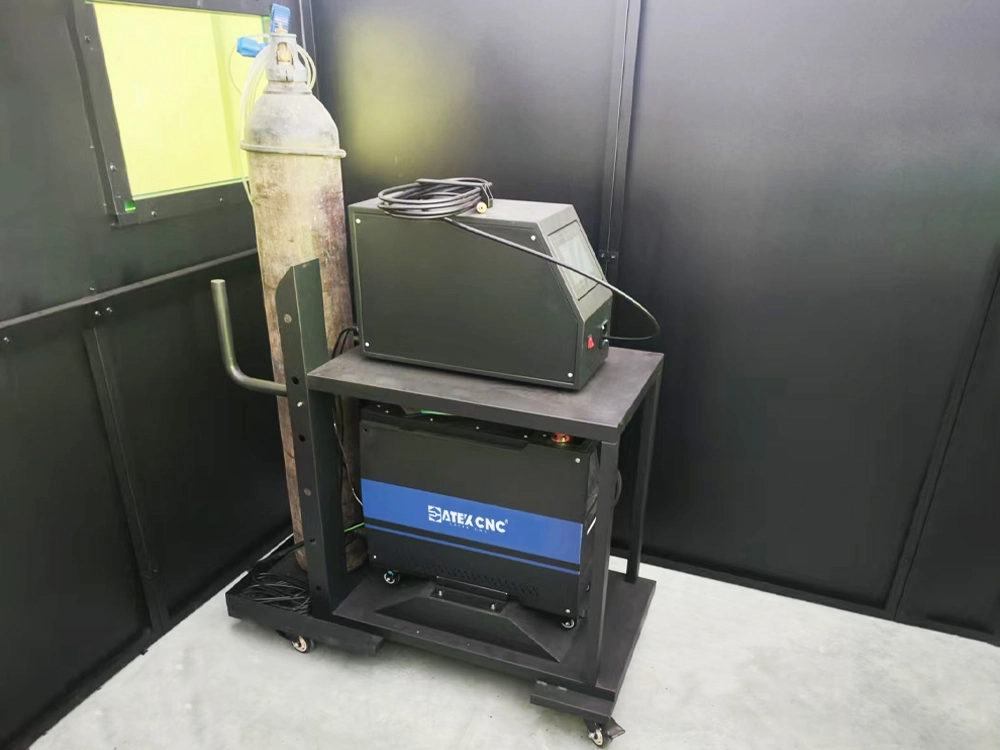

Handcart

Equipped with a dedicated laser welding machine handcart for effortless mobility across different worksites, significantly enhancing operational convenience.

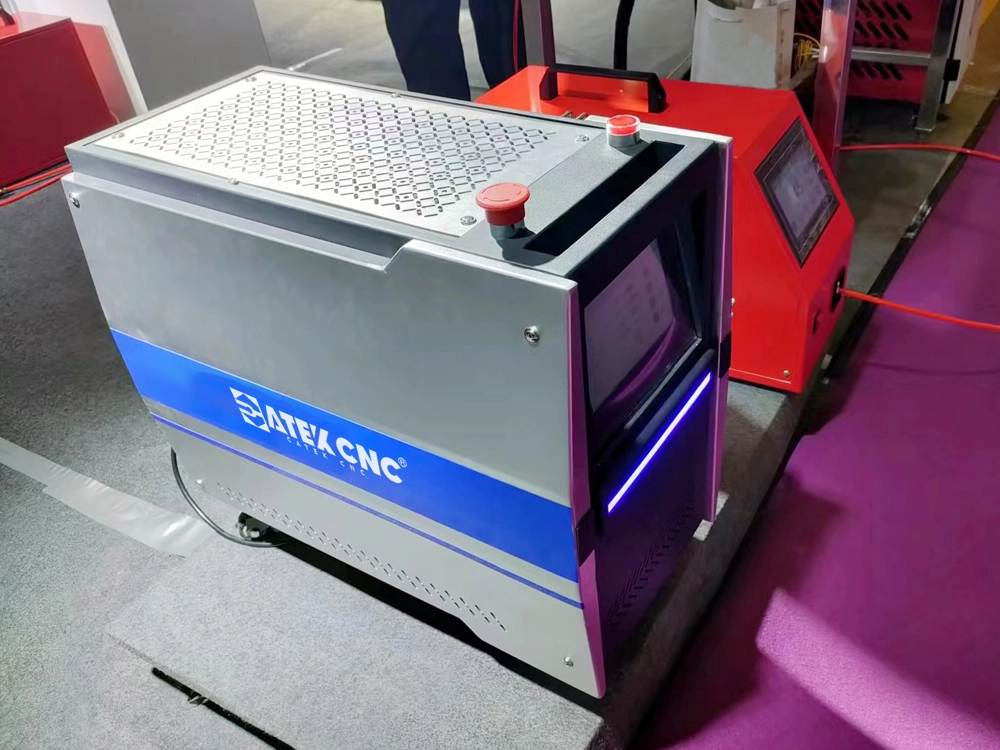

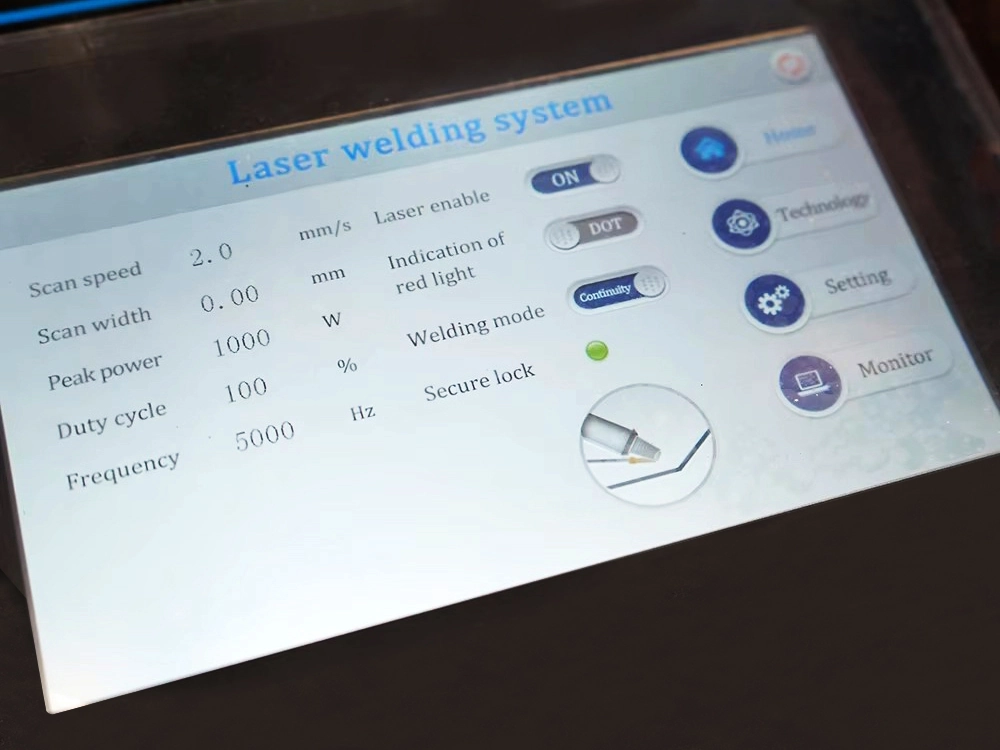

Control panel

Adopting G-fast control system, the control panel features a large touchscreen display supporting three core functions: laser welding, laser cutting, and laser cleaning. Equipped with multiple safety alarms, active power shutdown, and laser cutoff functions, it enables real-time monitoring of the entire system to proactively prevent potential issues.

Technical Parameters of 3-In-1 Air-Cooled Laser Welding Machine

Application of the Air-Cooled 3-In-1 Laser Welding Machine

The air-cooled 3-in-1 welding machine can weld various metals, such as: carbon steel, stainless steel, galvanized steel, aluminum, aluminum alloys, copper, brass, titanium alloys, nickel-based alloys, zinc, magnesium, silicon steel plates and other metal materials. It is widely used in automotive manufacturing, mechanical processing, home appliance manufacturing, furniture manufacturing, architectural hardware, welding repair and other industries. Meanwhile, due to the lightweight and portable design of the handheld laser welding machine, it is more suitable for mobile operations and confined space work.

How Is the Laser Welding Machine Packaged and Shipped?

1. The machine and related accessories are tightly wrapped with dust-proof, moisture-proof, and impact-resistant foam and PP stretch film, then packed in a stable plywood crate with high-hardness, high-compression-resistant plywood support feet at the bottom.
2. Critical components such as fiber optic cables and wire feeders are stored and secured separately to prevent crushing or damage during transportation.
3. The shipment includes an instruction manual, operation guide, and tutorial videos to ensure smooth operation upon receipt.
4. Shipping options include sea, land, rail, or air freight.
5. The entire machine comes with a 36-month free warranty and lifetime free maintenance.
6. CATEKCNC after-sales engineers provide 24/7 online support for service and troubleshooting.
