    CATEK · Spire

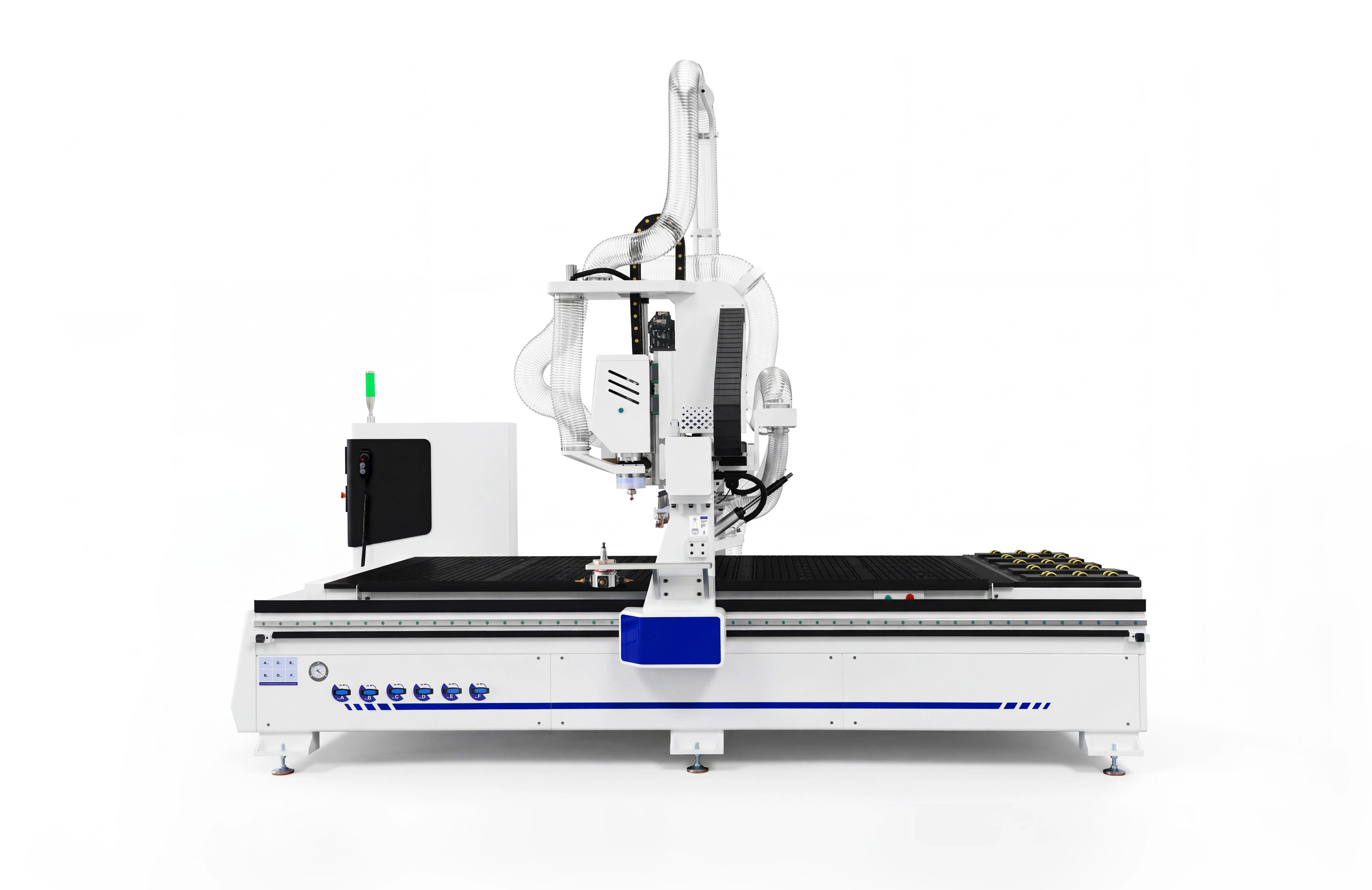

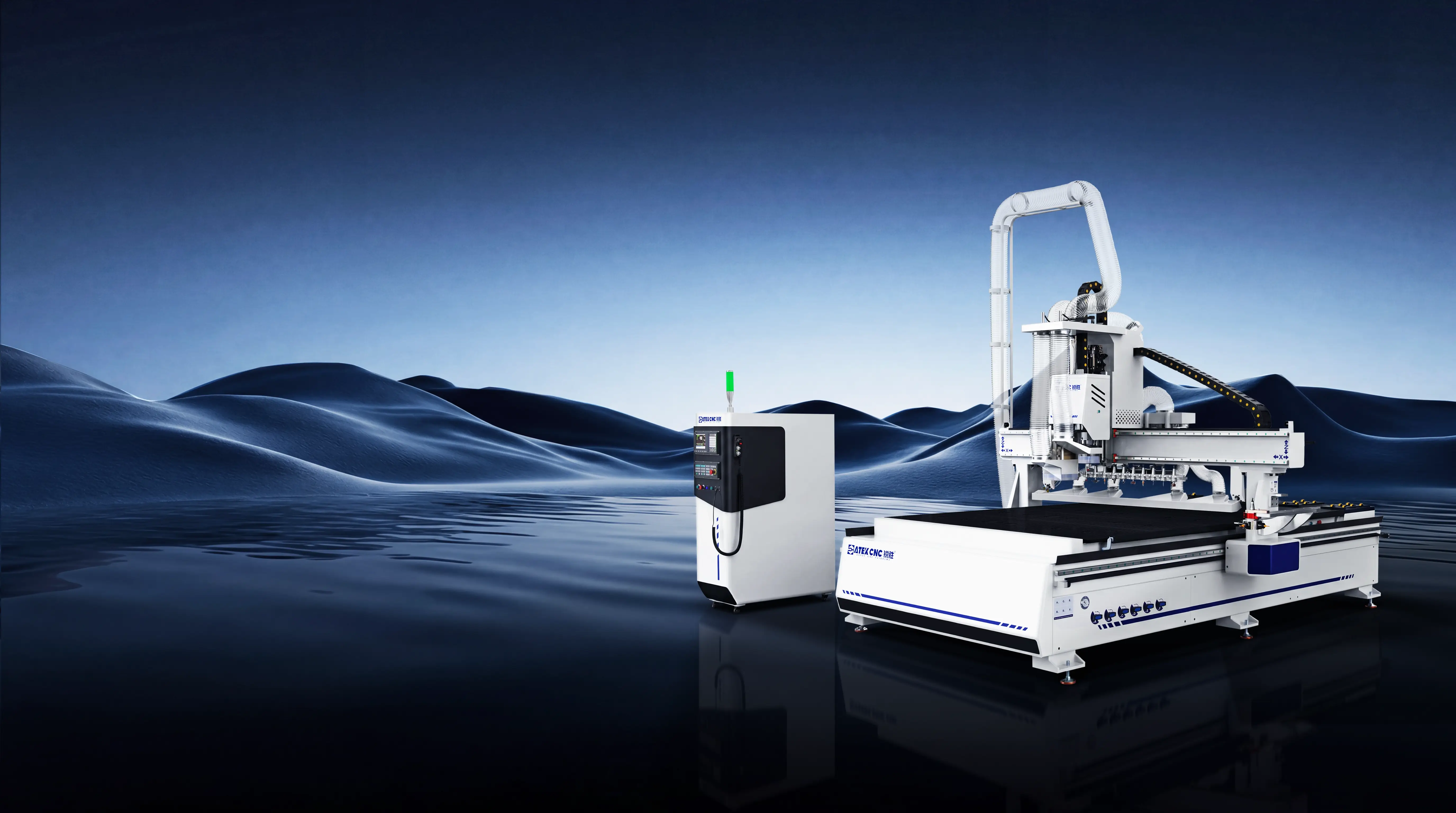

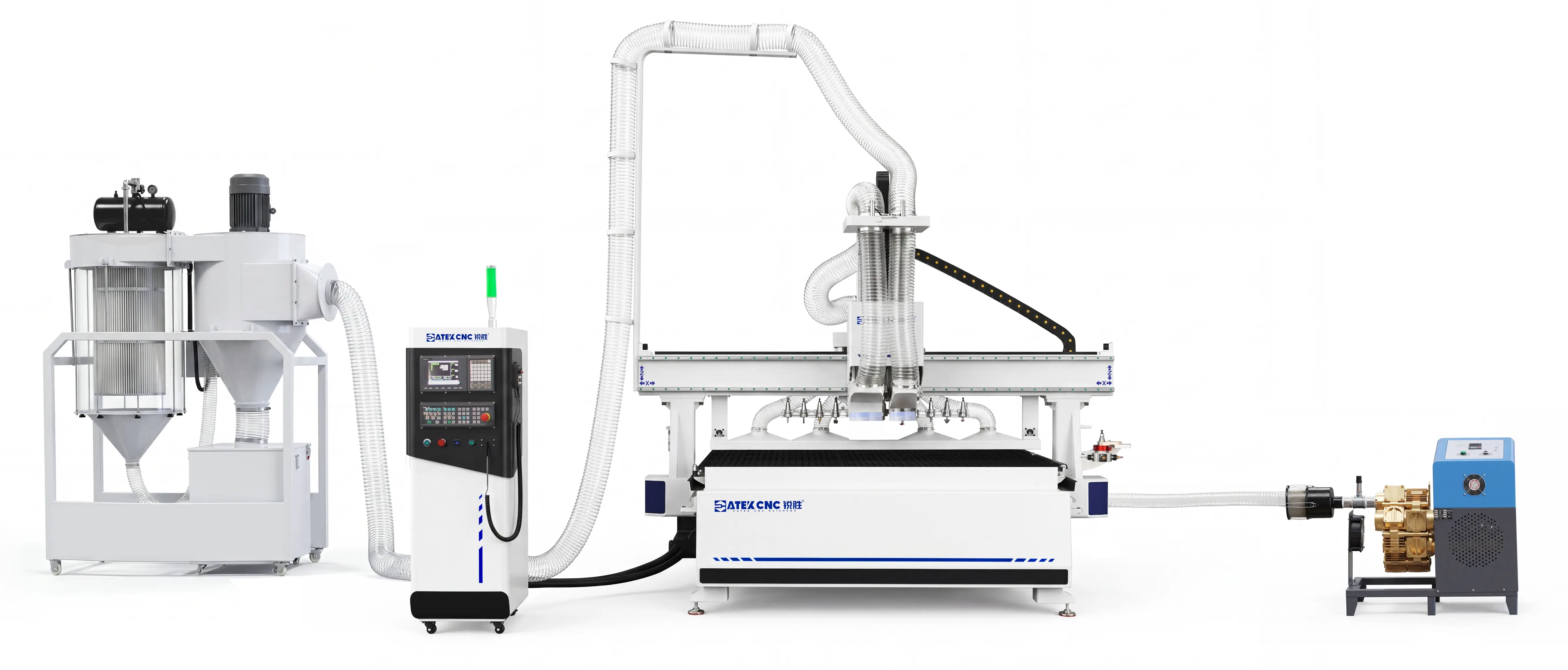

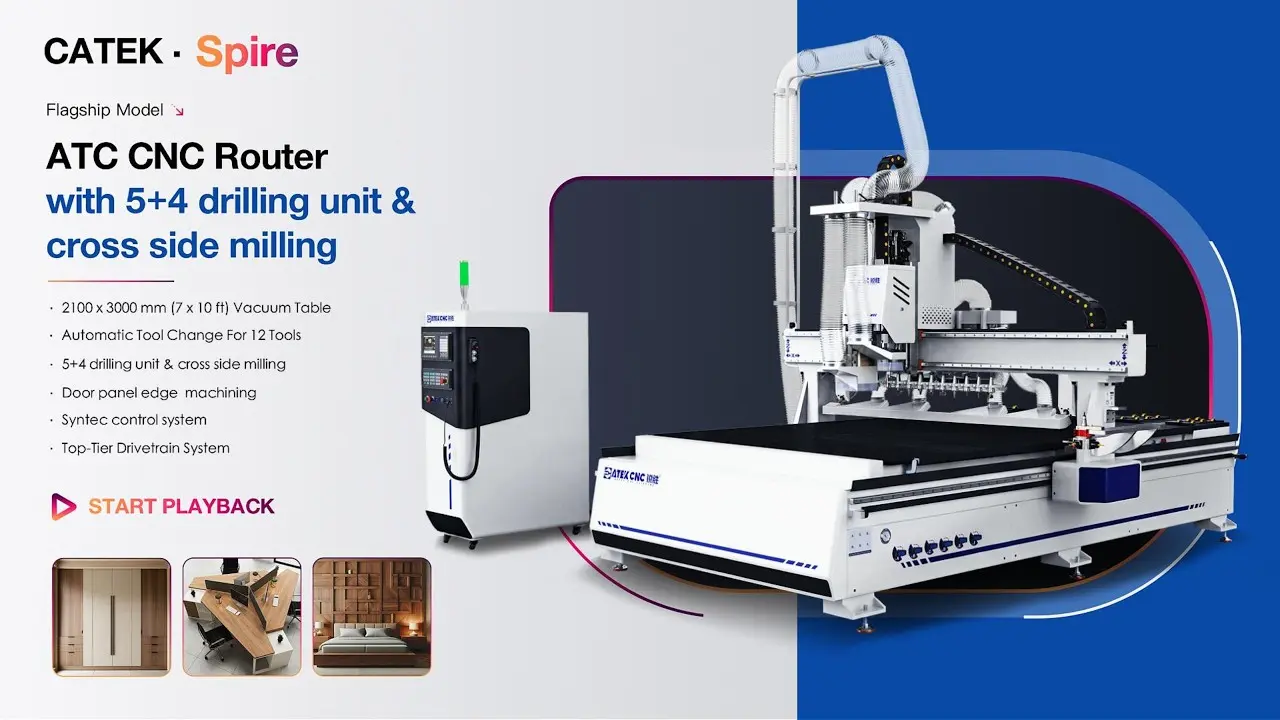

    2130 Linear ATC CNC Router with Drilling Bank and 4-Sided Angle Head

    5.0 Rating (0 customer reviews)
    · Function Description ·
    This is a 7x10ft linear ATC CNC wood router, equipped with a drill bank and 4-sided aggregate unit. It is highly efficient for drilling holes on panel furniture, as well as side drilling, slotting, milling and other machining.
    {{(goodsPrice)}}
    Add To Cart Contact Now
    • Brand: CATEKCNC
    • Model: CK-2130-RSP-TDM
    • Tags: Spire Series, ATC, Multi-Function
    • Share:
    Description
    Parameters
    Reviews

    CATEK · Spire

    Achieve Full-Size Coverage and Multi-Function Machining with a Single Machine to Maximize Productivity

    The core highlight of the Spire 2130 Multi-functional CNC Router lies in its muti-size, all-in-one machining capability, which meets diverse machining demands for various panels within a 7'×10' working area. Equipped with an HSD automatic tool change spindle, 5+4 vertical drilling unit, and 4-sided aggregate unit (angle head), this machine integrates cutting, engraving, drilling, and side processing into one unit, truly realizing multi-function machining on a single machine. Meanwhile, it delivers stable and reliable performance with simple and user-friendly operation, bringing tangible improvements to your productivity, product quality, and return on investment (ROI).

    Core Advantages of Spire 2130 ATC CNC Router: Four Dimensions to Reshape the Standards of High-Efficiency Production

    01.
    All-Round Functions,
    One Machine for All Processes.
    The Spire 2130 Multi-Functional CNC Router is equipped with three core machining units: an Italian HSD ATC spindle, a 5+4 vertical drilling unit, and an angle head. It integrates automatic tool change, high-speed drilling, side slotting, and four-side milling in single machine. It completes processes that traditionally require multiple machines, without repeated clamping. From cabinets and door panels to profiling and hole positioning, it fully meets diverse production requirements.
    02.
    Any Size Sheet,
    One Machine Handles All.
    The Spire 2130 Multi-Functional CNC Router boasts an extra-large machining area of 2100×3000mm, perfectly suitable for panels of various sizes up to 7'×10'. There is no need to cut large panels before machining; it supports everything from small workpieces up to full-size panels of 7'×9'. Whether cutting, profiling, slotting, engraving, drilling or chamfering, all processes can be easily achieved, truly satisfying all size and processing requirements with one machine.
    03.
    Effortless Workflow,
    Seamless Loading to Fixing.

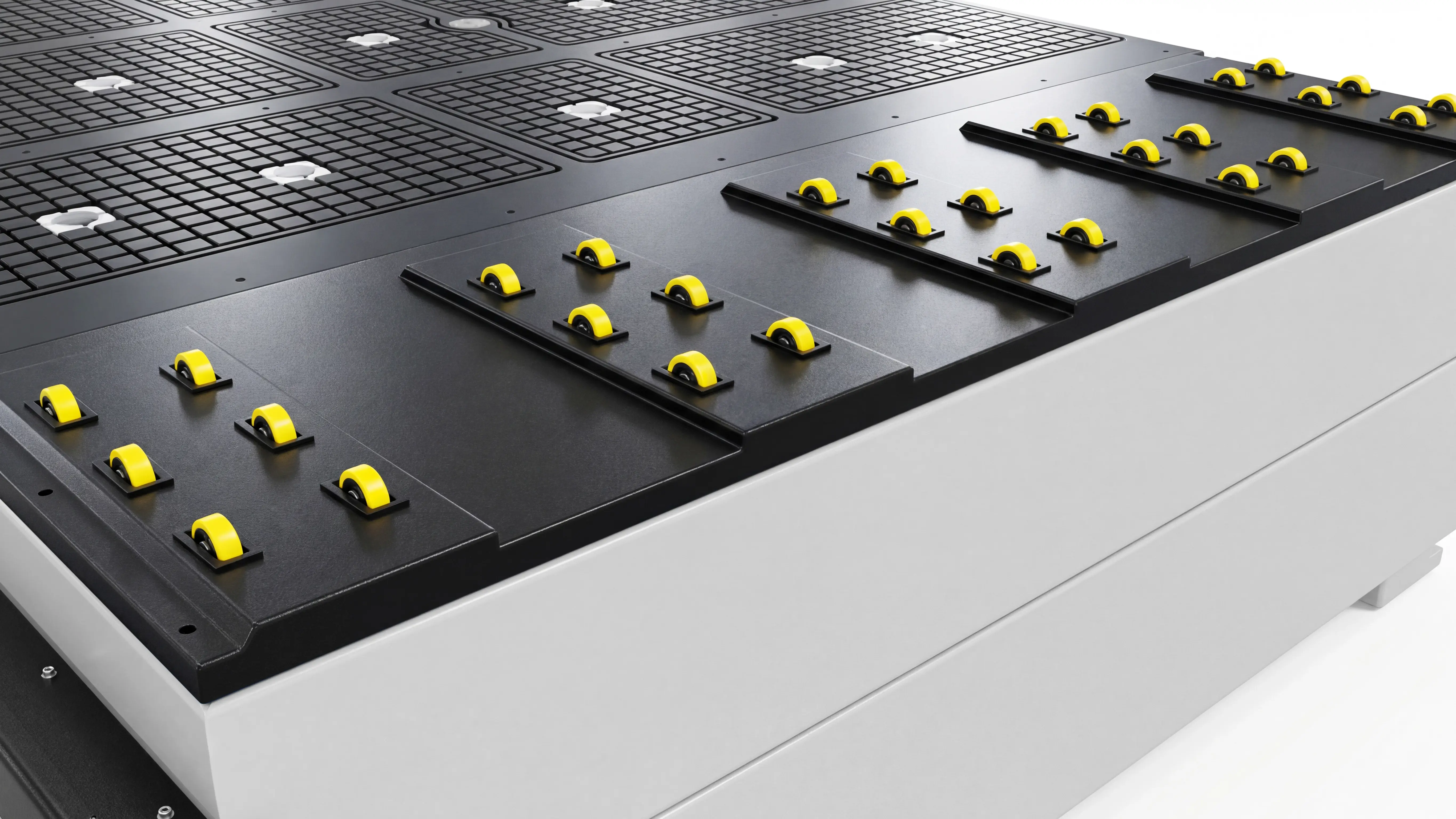

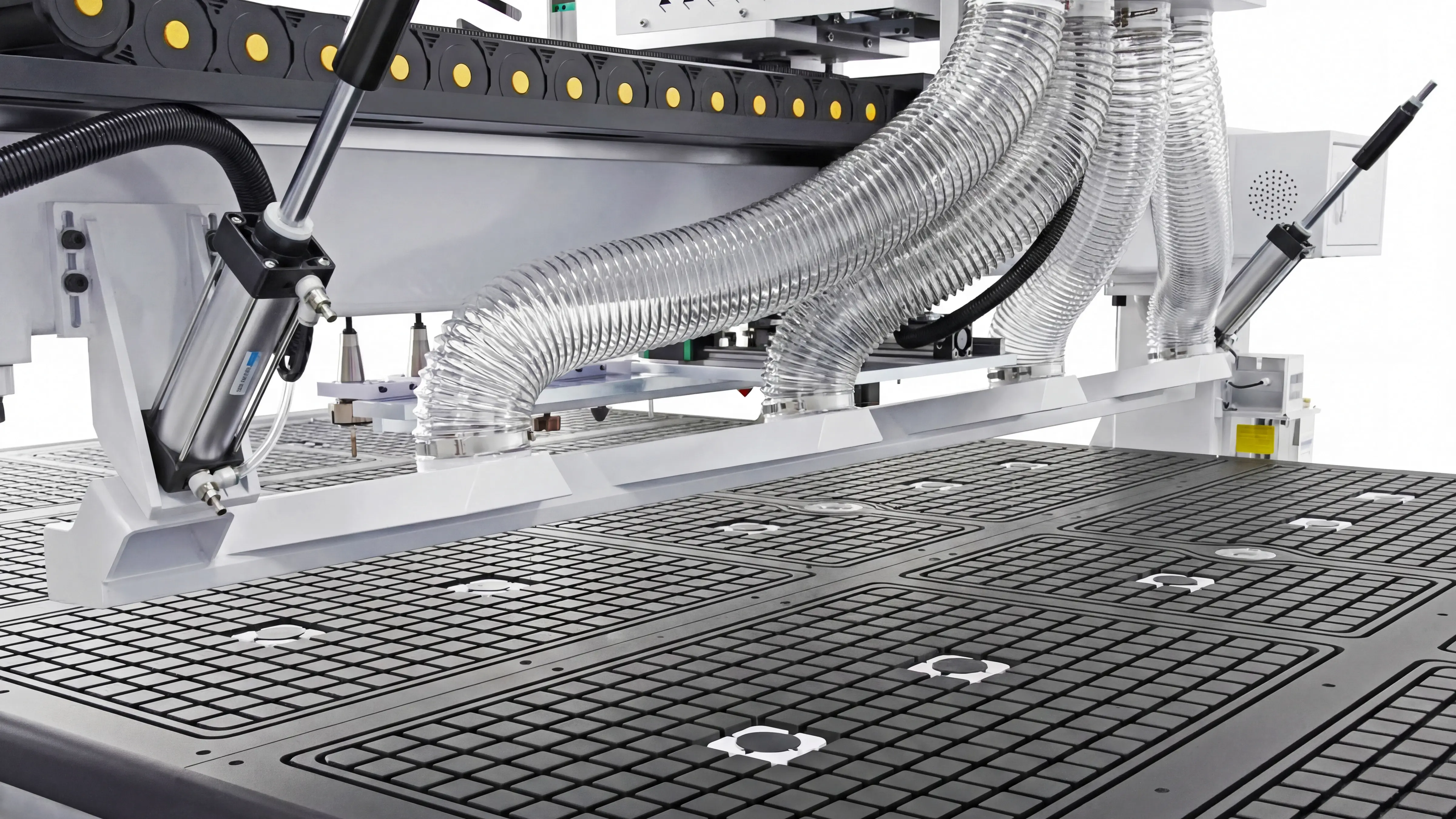

    This machine features a complete auxiliary system, including rear auxiliary loading rollers, side rubber rollers, 4+3+4 positioning cylinders, a 15-zone vacuum table (independently controllable), and matching vacuum cups. The auxiliary rollers allow easy panel loading; the positioning cylinders can lift independently for fast and accurate panel alignment; the vacuum table adapts flexibly to different panel sizes; the vacuum cups work with the angle head to support side machining. From loading and positioning to panel fixing, the entire process is efficient and stable.
    04.
    Full Lifecycle Care,
    From Installation to Lifetime Maintenance.
    The Spire's advantages are further reflected in attentive after-sales service. This series offers one-to-one dedicated after-sales support, with a professional engineer team providing fast response and efficient solutions. The whole machine is covered by an extended 5-year free warranty, with lifetime free maintenance and lifetime free upgrades for the control and programming software. From installation and operation to routine maintenance, troubleshooting and updates, we protect your production throughout the entire lifecycle.

    Choosing the
    Spire 2130 ATC CNC Router
    means choosing

    More comprehensive functions
    Integrated with automatic tool change system, drilling bank and angle head, it meets various process requirements including cutting, engraving, drilling, slotting, profiling and side machining.
    Full-size coverage
    Equipped with an extra-large 2100×3000mm worktable, it can process all panels within 7'×10'. Single machine can meet most size machining requirements on the market.
    Stable, reliable and easy to use
    The whole machine adopts a heavy-duty thickened frame design for stable operation and high precision even after long-term use. It comes with a detailed manual and one-to-one guidance from professional engineers. It is simple to operate and quick to learn, even for new users.
    Safer operation
    Equipped with high-quality Schneider electrical system and multiple safety devices, including emergency stop, anti-collision and overload protection, ensuring smoother operation, safer operation and more reliable use.

    The Foundation of Precision: Built Tough from the Ground Up

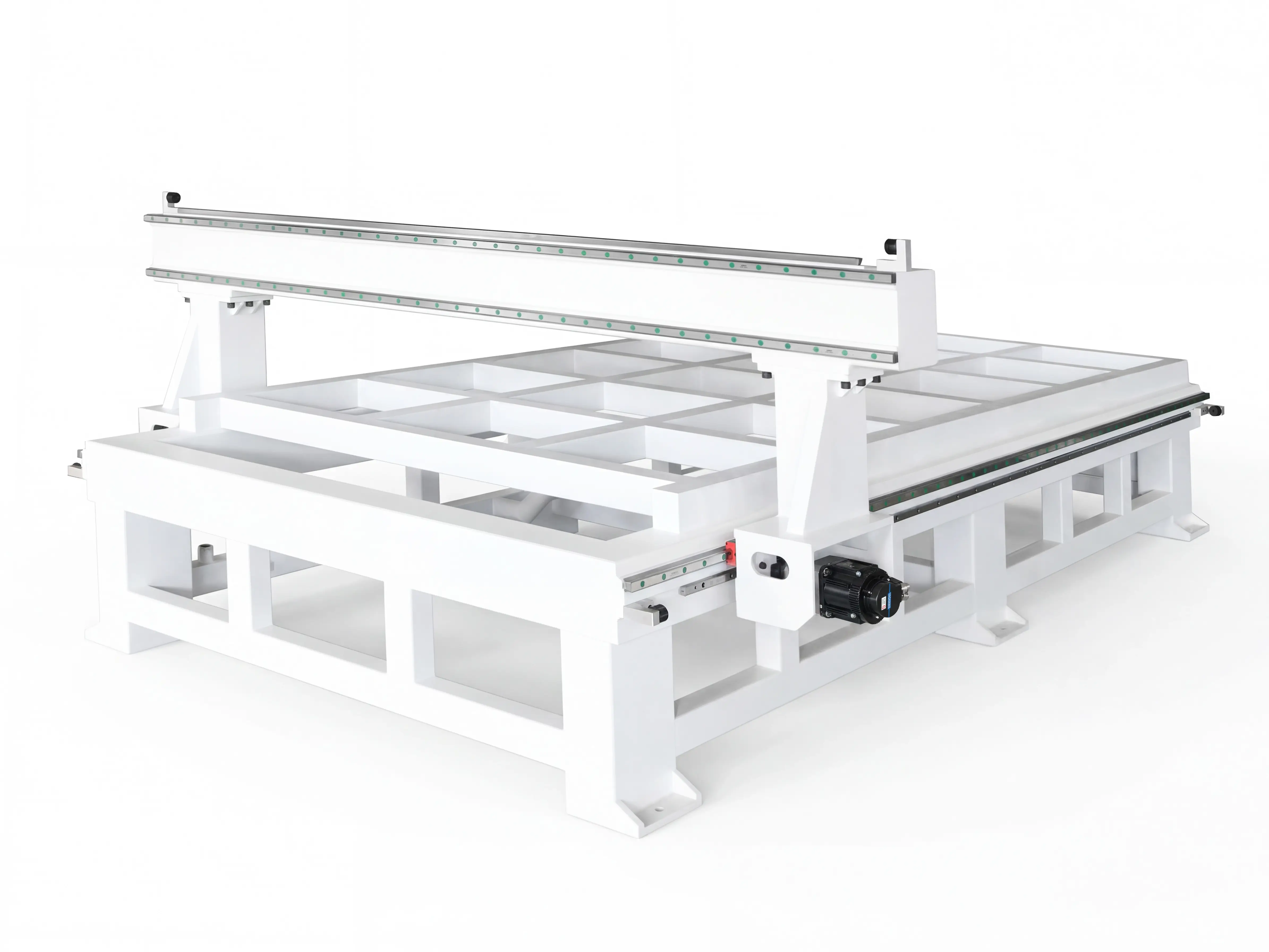

    Heavy-duty bed of Spire 2130 ATC CNC router

    Heavy-Duty Thickened Double-Layer Bed Frame

    • The main body of the bed frame is made of 6mm thick steel tubing, precisely welded by full penetration welding with uniform and firm welds. It fundamentally guarantees the load-bearing capacity and long-term stability of the bed frame, and effectively solves problems of bed frame deformation and vibration that may occur during machining.
    • Equipped with six 150×250mm thickened support legs and 150×200mm thickened transverse load-bearing beams, combined with a double-layer ring beam structure tabletop covered with 8mm thick steel plate, the overall rigidity is greatly improved to ensure even stress distribution, maintaining stability even under high-speed cutting and heavy-load machining.
    • After forming, the bed frame undergoes professional annealing and stress-relief treatment to eliminate internal stress and avoid deformation after long-term use. Finally, 20 mm thick steel strips are welded onto the mounting surfaces for the guide rails, racks on worktable, before being finely machined by a large 5-axis gantry milling machine, making the machine run more smoothly and position more precisely, significantly improving machining accuracy and service life.

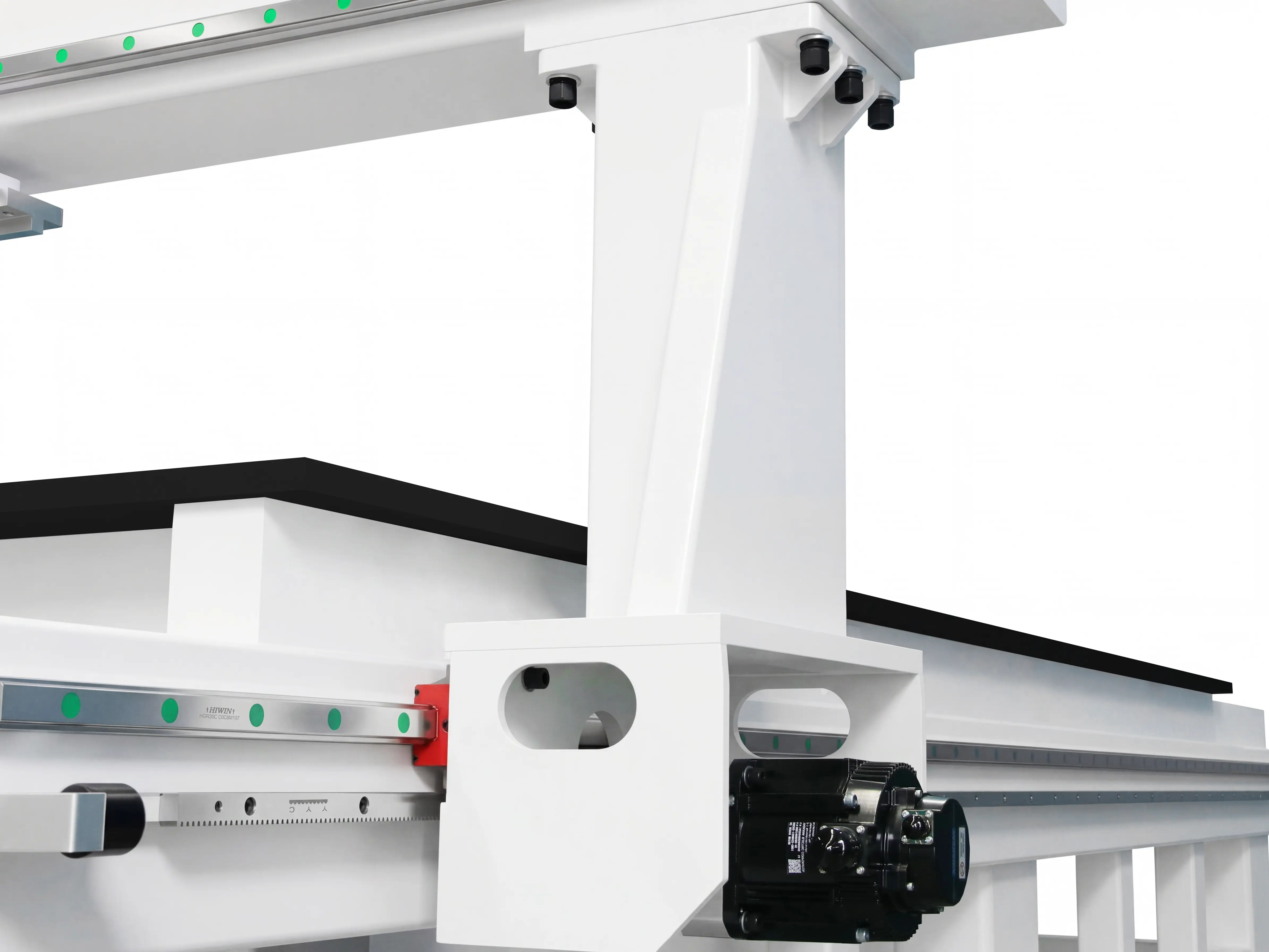

    High rigidity gantry columns of Spire 2130 ATC CNC router

    Reinforced Columns and Beams

    • The heavy-duty columns and beams are specially designed for long-time, high-load machining conditions, with overall improved rigidity and stability compared with ordinary CNC routers. The servo motor stations on both sides of the columns adopt 20mm ultra-thick steel plates, greatly enhancing structural strength, effectively eliminating vibration and deformation, and ensuring the machine remains stable and reliable during high-speed and heavy-load machining.
    • The main body of the gantry is made of 200×250mm square steel with 8+10mm (main body 8mm + steel strip 10mm) wall thickness, featuring high overall strength and excellent bending and torsion resistance, providing stable support for the movement of the head. The gantry rack mounting surface is made of 10mm thick high-strength strip steel to ensure firm and tight installation of the rack.
    • The overall structural layout and stress design are deeply optimized through professional finite element analysis, with a scientific and reasonable structure. The connecting surfaces of guide rails, racks, beams and columns are all processed by large-scale 5-axis gantry milling to ensure extremely high flatness, parallelism and perpendicularity.

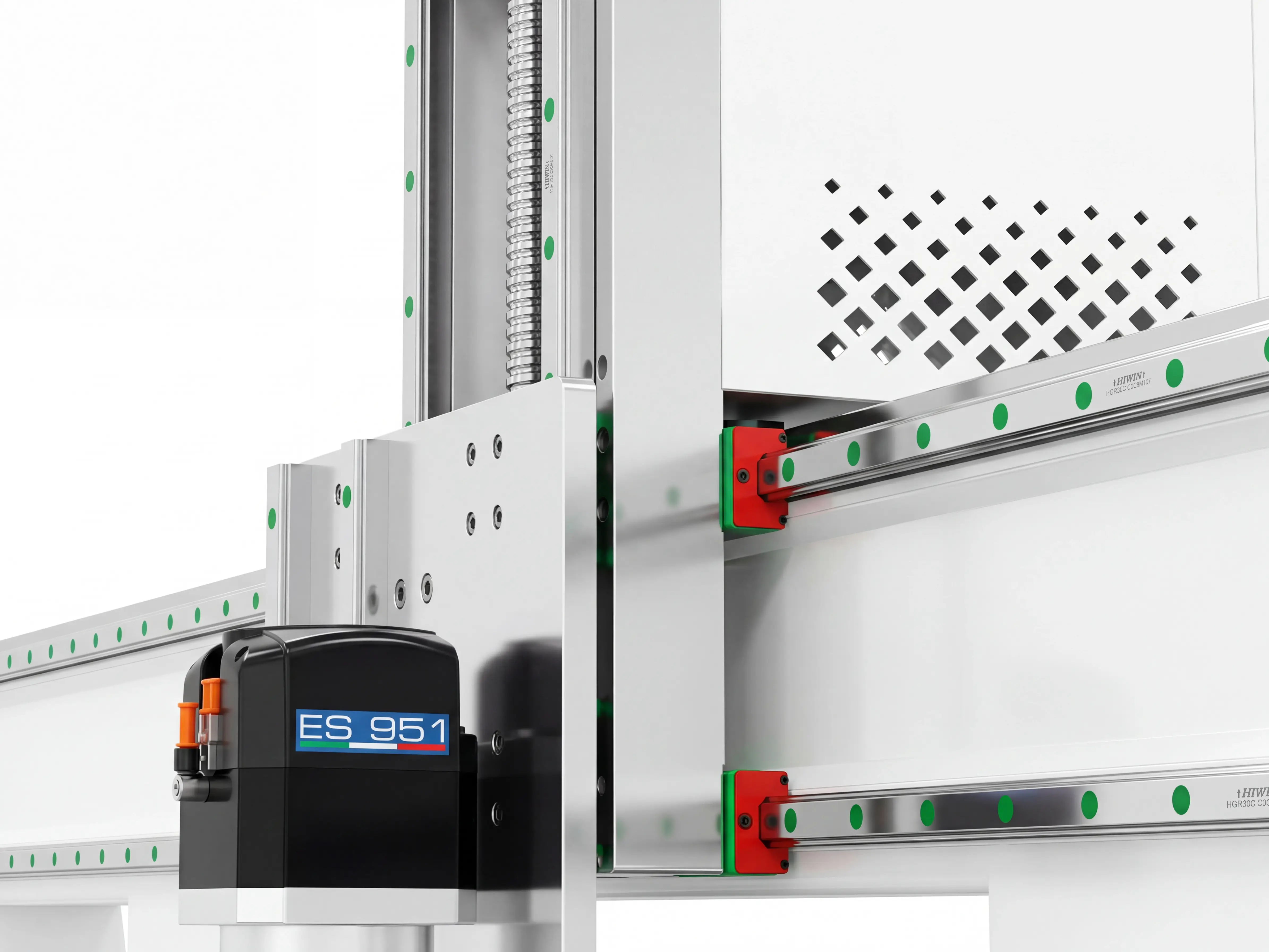

    Anodized aluminum z-axis mounting plate of Spire 2130 ATC CNC router

    70mm Ultra-Thick Anodized Aluminum Alloy Mounting Plate

    • The Z-axis mounting plate is made of 70mm thick anodized aluminum alloy, which combines high rigidity, deformation resistance and lightweight advantages. Compared with steel mounting plates, it can greatly improve the dynamic response of the Z axis and reduce crawling and shaking during operation.
    • With professional hard anodizing treatment, the surface is dense, wear-resistant and corrosion-resistant, maintaining good appearance and structural accuracy after long-term use, effectively extending the service life of the machine. The guide rail mounting surfaces on the plate are precisely processed by a high-precision milling machine with extremely high flatness and parallelism, ensuring tight assembly and even stress on the guide rails, providing a solid foundation for high-precision machining.
    • The ball screw mounting position and servo motor connection position are also precisely processed to ensure coaxiality of the screw, motor and mounting plate, effectively reducing installation tolerance and making Z-axis lifting more stable and accurate.

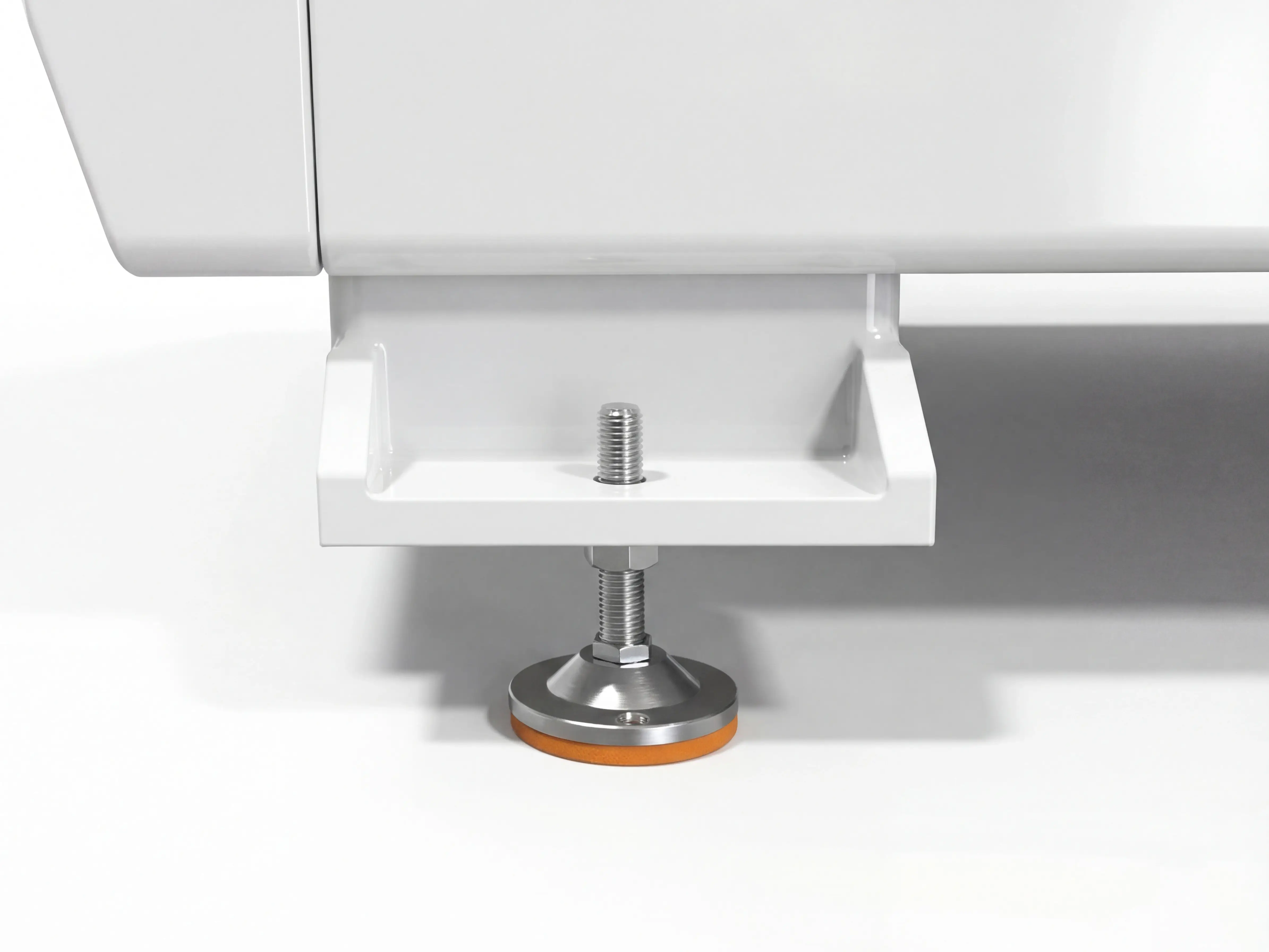

    Adjustable leveling feet for Spire 2130 ATC CNC router

    High-Strength Adjustable Support Feet

    • All six support legs are equipped with adjustable support feet, specially designed for heavy-duty CNC routers, which can effectively adapt to different site ground conditions, providing stable and even support for the machine, and fundamentally eliminating vibration and deviation caused by uneven ground.​
    • Anti-slip rubber pads are installed at the bottom of the feet, with excellent anti-slip, shock-absorbing and noise-reduction performance. They can increase friction with the ground to prevent machine displacement during operation, and effectively absorb vibration generated during machining, reduce resonance transmission, ensure machine accuracy and lower operating noise.
    • The support feet are adjusted by nuts with simple operation and precise adjustment. The machine height can be flexibly adjusted according to site conditions to quickly correct levelness, ensure even stress on the bed frame, and keep the whole machine in the best machining condition.
    Click the icon labels to view different machine parts

    High-Precision Transmission System: Stable, Durable, Built for Heavy Loads

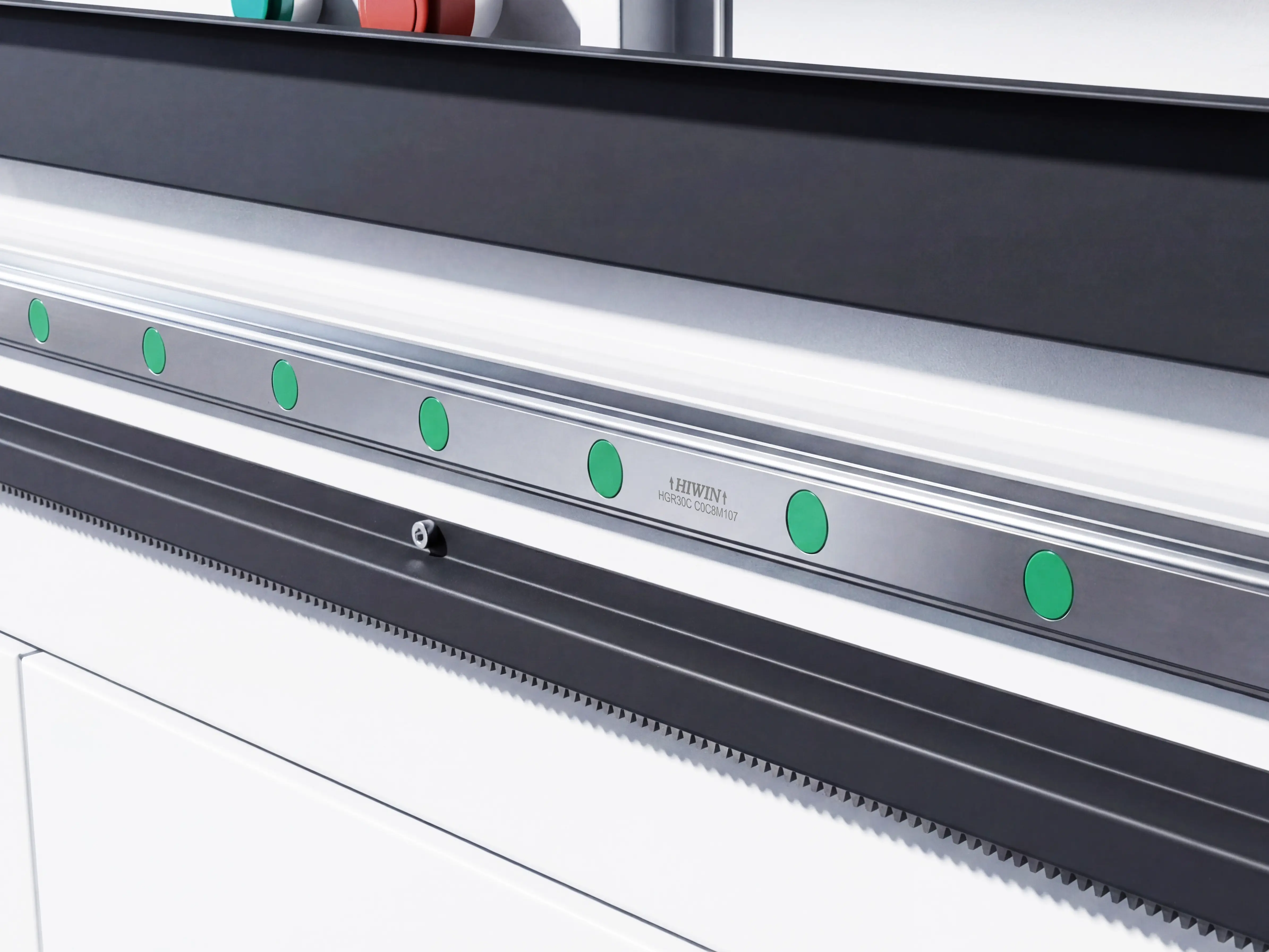

    Hiwin (Taiwan) P level 30 linear guideways of Spire 2130 ATC CNC router

    HIWIN (Taiwan) P-Level 30mm Linear Guideways

    • Adopts Taiwan HIWIN P-level 30mm linear guideways, featuring high rigidity and low backlash, ensuring stable and reliable performance under heavy-duty, high-speed and long-term operation, fundamentally improving machine accuracy and service life.
    • The 30mm guideways provide larger contact area with stronger bending and torsion resistance. Compared with ordinary light-duty guideways, their load capacity is significantly enhanced, effectively withstanding loads from high-power cutting and high-speed machining, and greatly improving overall machining stability.
    • The guideways are built with multiple rows of balls, enabling smooth operation, low noise and minimal wear, making the three-axis movement more fluent and stable, effectively improving positioning accuracy and surface finish, while reducing maintenance costs.

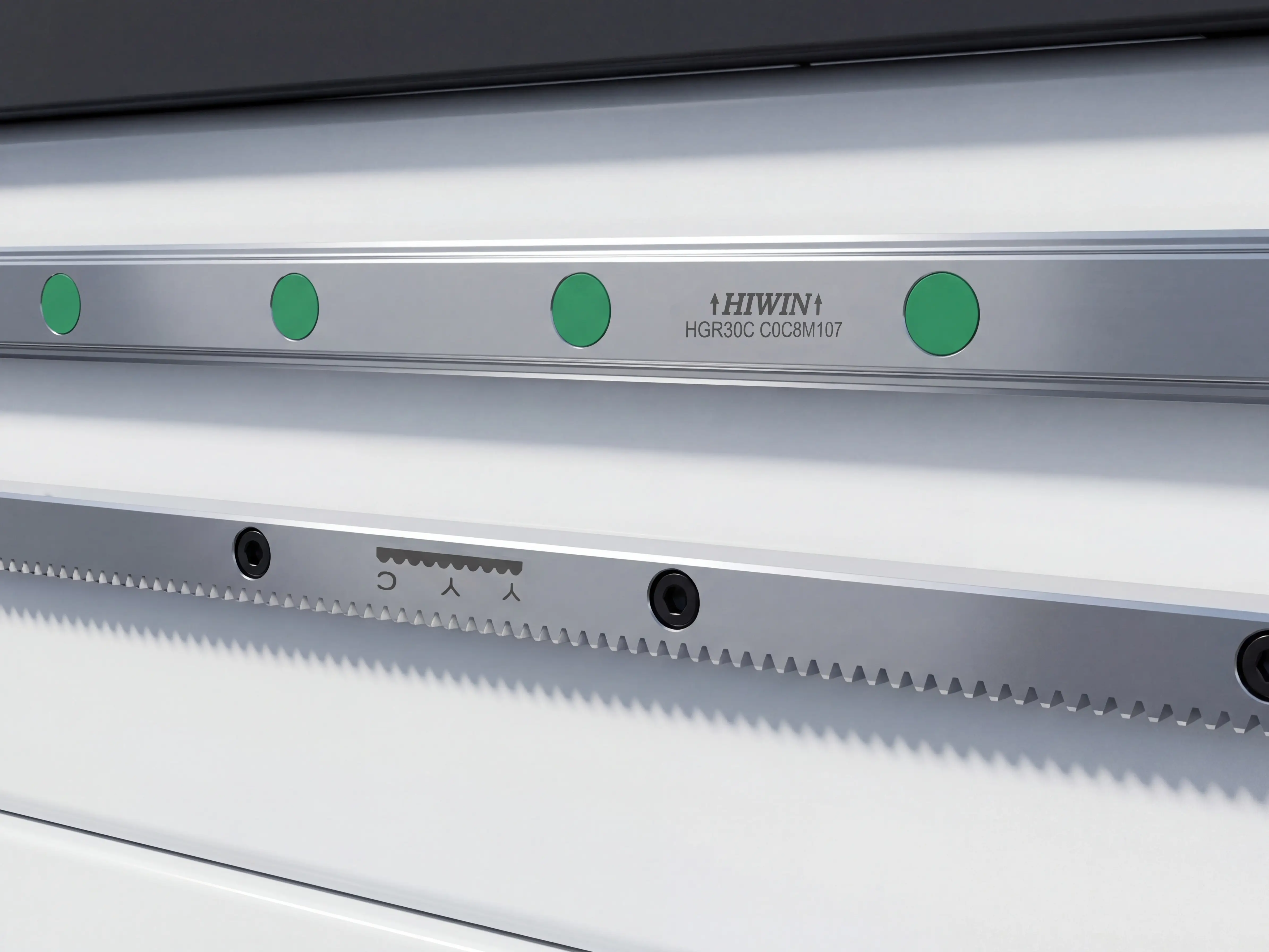

    YYC (Taiwan) Ground helical rack & pinion of Spire 2130 ATC CNC router

    YYC (Taiwan) High-Precision Ground Helical Rack & Pinion

    • The X and Y axes adopt Taiwan YYC high-precision helical racks and pinion transmission. The tooth surfaces are precision-ground with high accuracy, minimal pitch error and cumulative error, ensuring precise positioning of linear axes.
    • The helical rack design provides larger meshing area and more even stress distribution, with advantages of strong heavy-load capacity, low noise, low vibration and smooth transmission. Compared with straight-tooth transmission, it is more suitable for heavy-duty machining applications.
    • Both racks and pinions undergo professional heat treatment for high surface hardness and excellent wear resistance, capable of withstanding loads and shocks from long-time continuous operation, with low deformation and wear after long-term use.

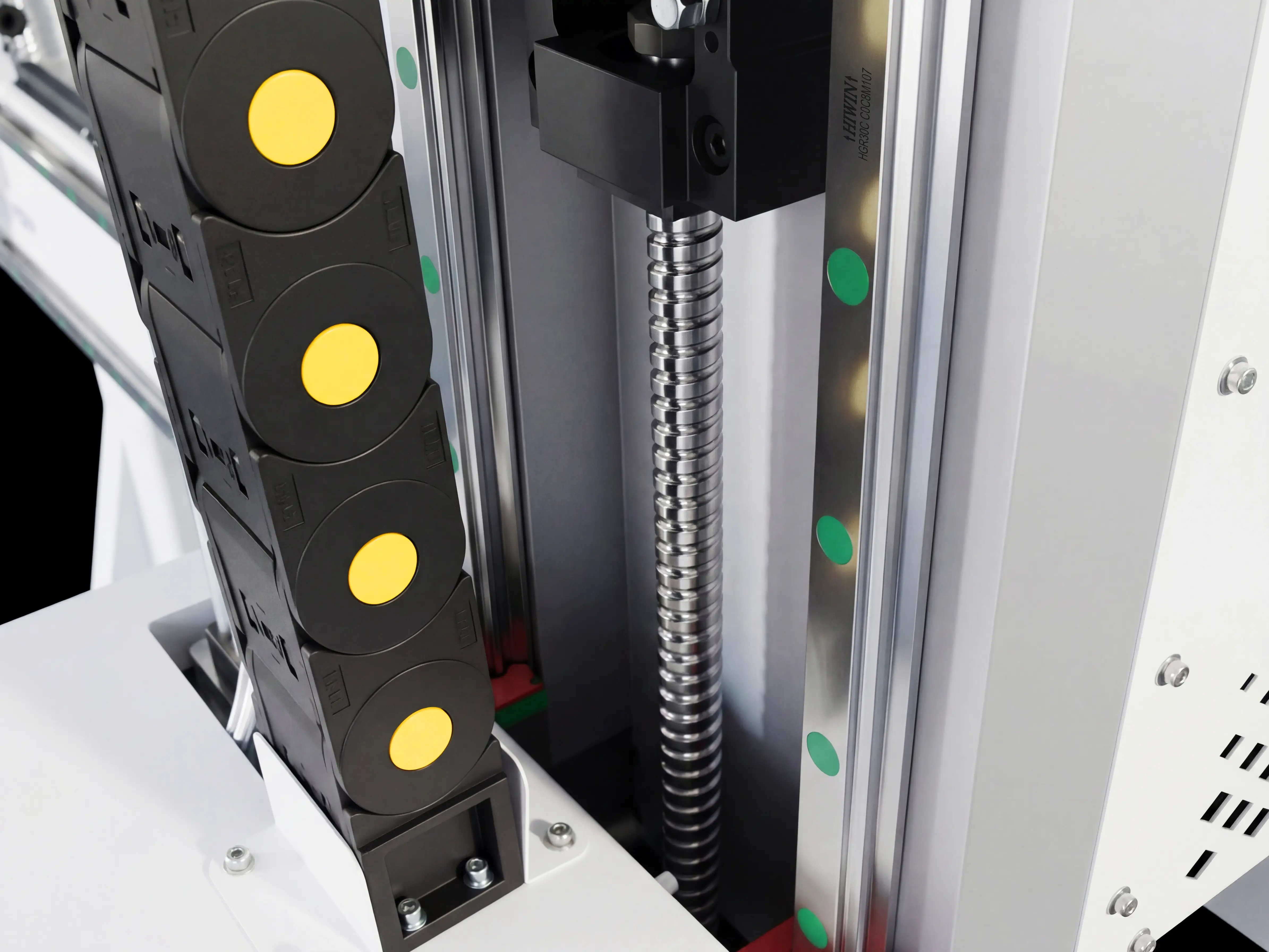

    TBI (Taiwan) Ground ball screws of Spire 2130 ATC CNC router

    TBI (Taiwan) High-Precision Ground Ball Screw

    • The Z axis adopts Taiwan TBI ground ball screw transmission, featuring high transmission rigidity, high precision and long service life, especially suitable for low-speed and precise movement of the Z axis.
    • Manufactured with precision grinding process, the thread raceways feature high accuracy and smooth surface. After preloading, the transmission backlash is extremely small, effectively eliminating vibration, crawling and abnormal noise during machining. The machine achieves fast response and precise positioning under rapid traverse, fine machining and heavy-duty cutting.
    • Compared with rolled ball screws, ground ball screws feature higher accuracy, low deformation and wear after long-term use, greatly reducing machine failure rate and maintenance costs, achieving efficient and stable machining.

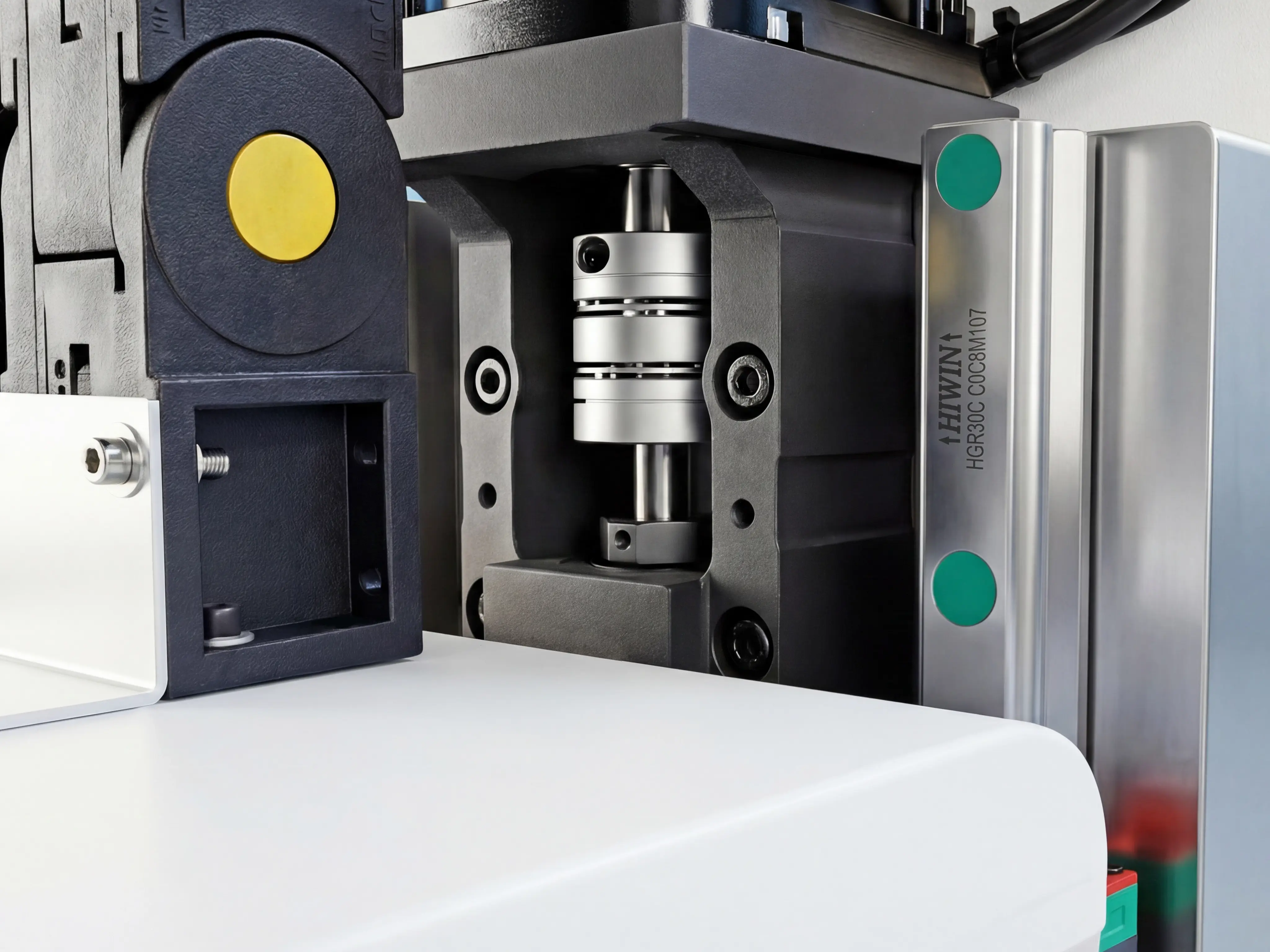

    High-precision diaphragm coupling of Spire 2130 ATC CNC router

    Diaphragm Coupling

    • This component connects the Z-axis servo motor and Z-axis ball screw. It features compact structure and high concentricity, stably transmitting the torque of the servo motor. It ensures no backlash during forward and reverse rotation, transferring the motor’s rotary motion to the screw without loss, which is critical for machining applications with frequent start-stop and direction changes such as engraving and tapping.
    • Adopts a double-diaphragm elastic structure with excellent deviation compensation ability, compensating radial, angular and axial installation deviations between the motor and screw, reducing vibration and noise caused by tolerances, protecting the screw and motor, and extending the service life of transmission parts.
    • The double-diaphragm structure provides higher rigidity and can withstand higher torque, ensuring stable and accurate transmission even under high-power cutting and heavy-duty machining.

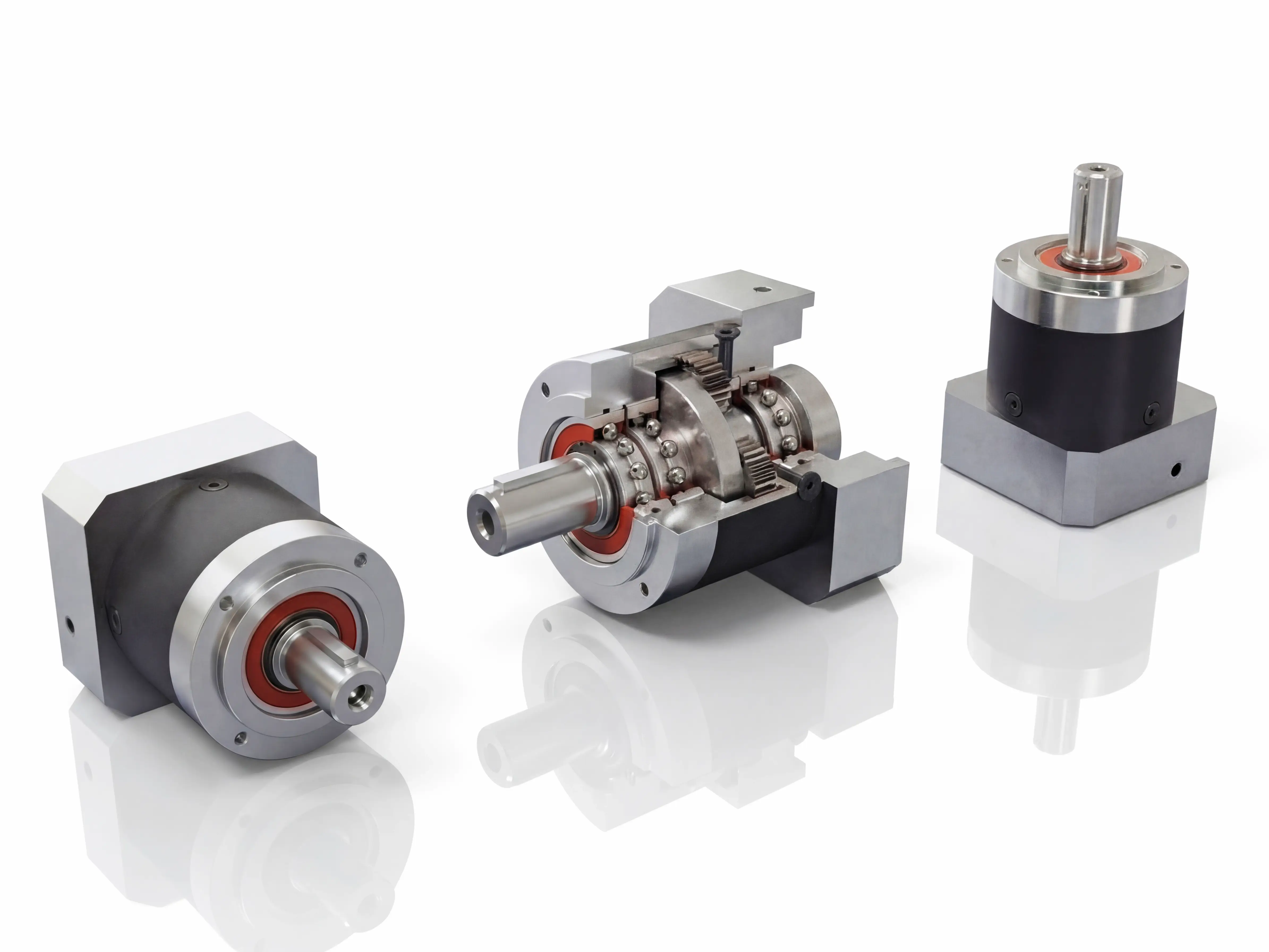

    Shimpo (Japan) planetary of gear reducers of Spire 2130 ATC CNC router

    SHIMPO (Japan) Planetary Gear Reducers

    • The X and Y axes are equipped with Japanese Shimpo planetary gear reducers. The reducers adopt a precision planetary gear structure, with internal gears processed by high-precision grinding to ensure tight and even meshing, providing stable, efficient and reliable power transmission for the X and Y axes.
    • The reducers feature high transmission accuracy, small backlash and high torsional rigidity, effectively eliminating running vibration. They remain responsive and stable under harsh conditions such as high-speed start-stop, frequent direction change and heavy-duty cutting, significantly improving overall machining accuracy.
    • Equipped with high-strength integrally formed housing, it provides excellent impact and deformation resistance, effectively protecting the internal precision gear set from external environment. Meanwhile, the optimized structure facilitates heat dissipation and suppresses thermal deformation, ensuring stable accuracy and reliable operation during long-time continuous operation.

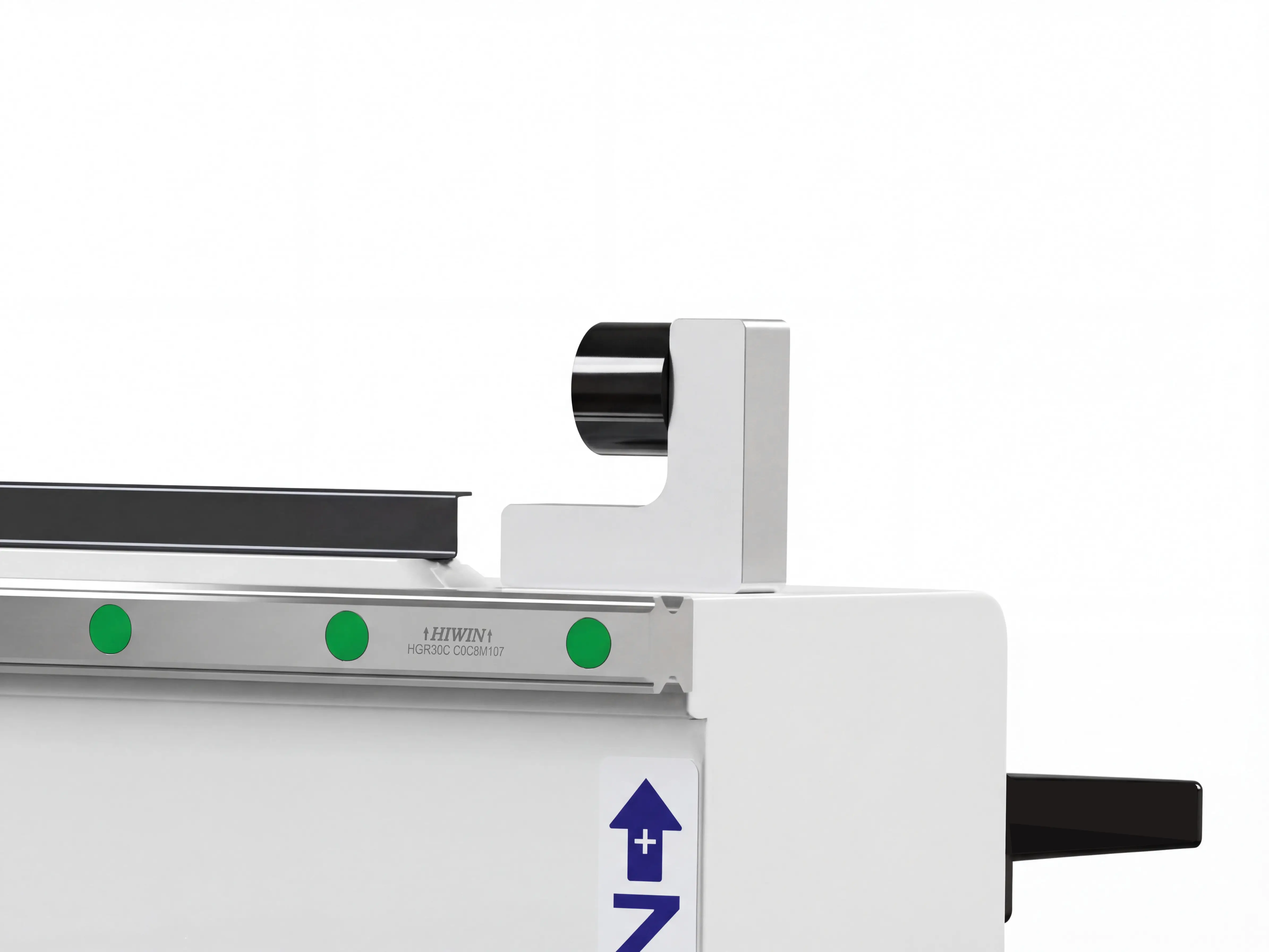

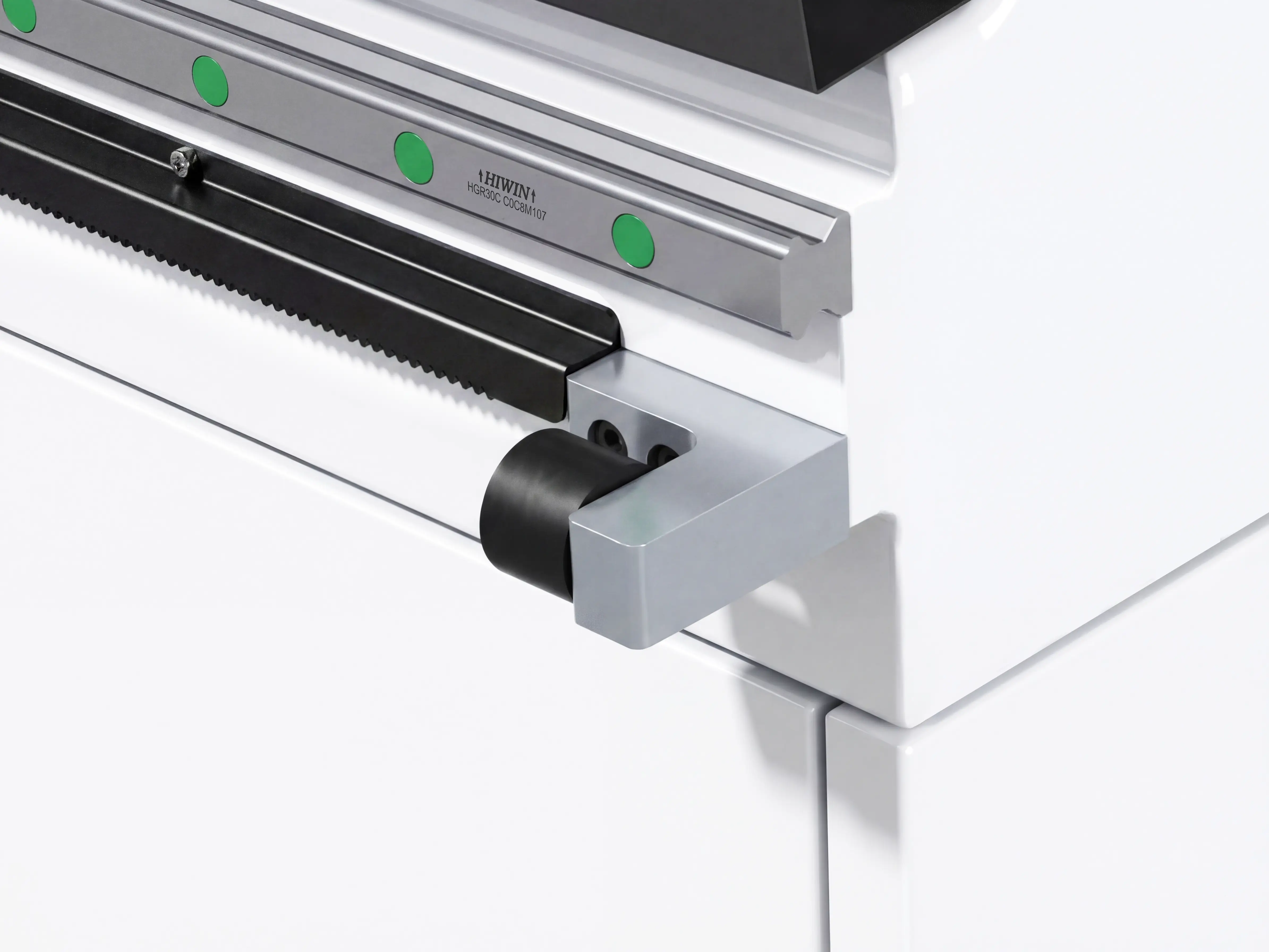

    High-strength aluminum alloy limit bumpers of Spire 2130 ATC CNC router
    High-strength aluminum alloy limit bumpers of Spire 2130 ATC CNC router

    High-Strength Aluminum Alloy Limit Bumpers

    • The X and Y axes are both equipped with high-strength aluminum alloy bumpers. The base is integrally formed of aluminum alloy, featuring impact resistance, no deformation, corrosion resistance and lightweight. It provides reliable hard limit protection when the machine travels to the stroke limit.
    • The end of the bumper is equipped with a high-elastic rubber cushion, which can effectively absorb the impact force caused by machine overtravel, protect the mechanical structure from damage and extend the service life of the equipment.
    • The buffer-integrated hard limit greatly improves the operation safety of the machine, effectively reduces the risk of accidental collision caused by overtravel, and lowers the user’s maintenance and repair costs.
    Click the icon labels to view different machine parts

    Multi-Function Machining: Spindle, Drilling Bank & Multi-Directiona Angle Head

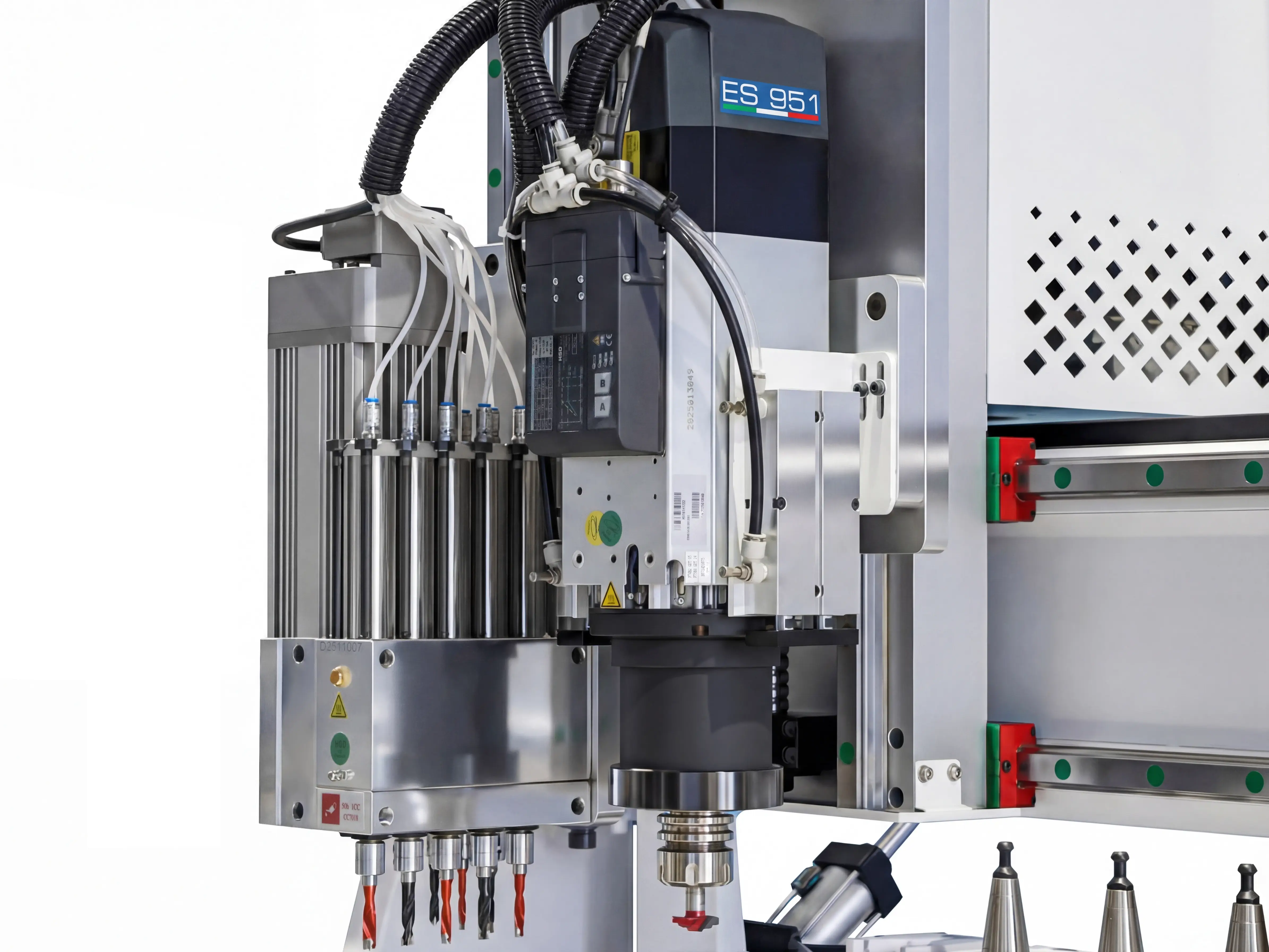

    HSD (italy) 9kw automatic tool changer spindle of Spire 2130 ATC CNC router

    HSD (Italy) 9kW Automatic Tool Changer Spindle

    • This machine adopts an Italian HSD 9kW air-cooled automatic tool change spindle, with a maximum speed of 24,000rpm and strong, stable power output. The spindle is equipped with a high-efficiency air cooling system, ensuring stable operation under long-term continuous heavy-duty working conditions.
    • The spindle supports ISO30 collets and ER32 tool holders, featuring high clamping accuracy, excellent concentricity and minimal radial runout. It can hold various milling cutters, engraving tools and other tools with a shank diameter within 20mm.
    • This spindle supports automatic tool change with fast tool changing speed, enabling continuous automatic machining with multiple processes, effectively improving production efficiency, machining accuracy and operational safety.

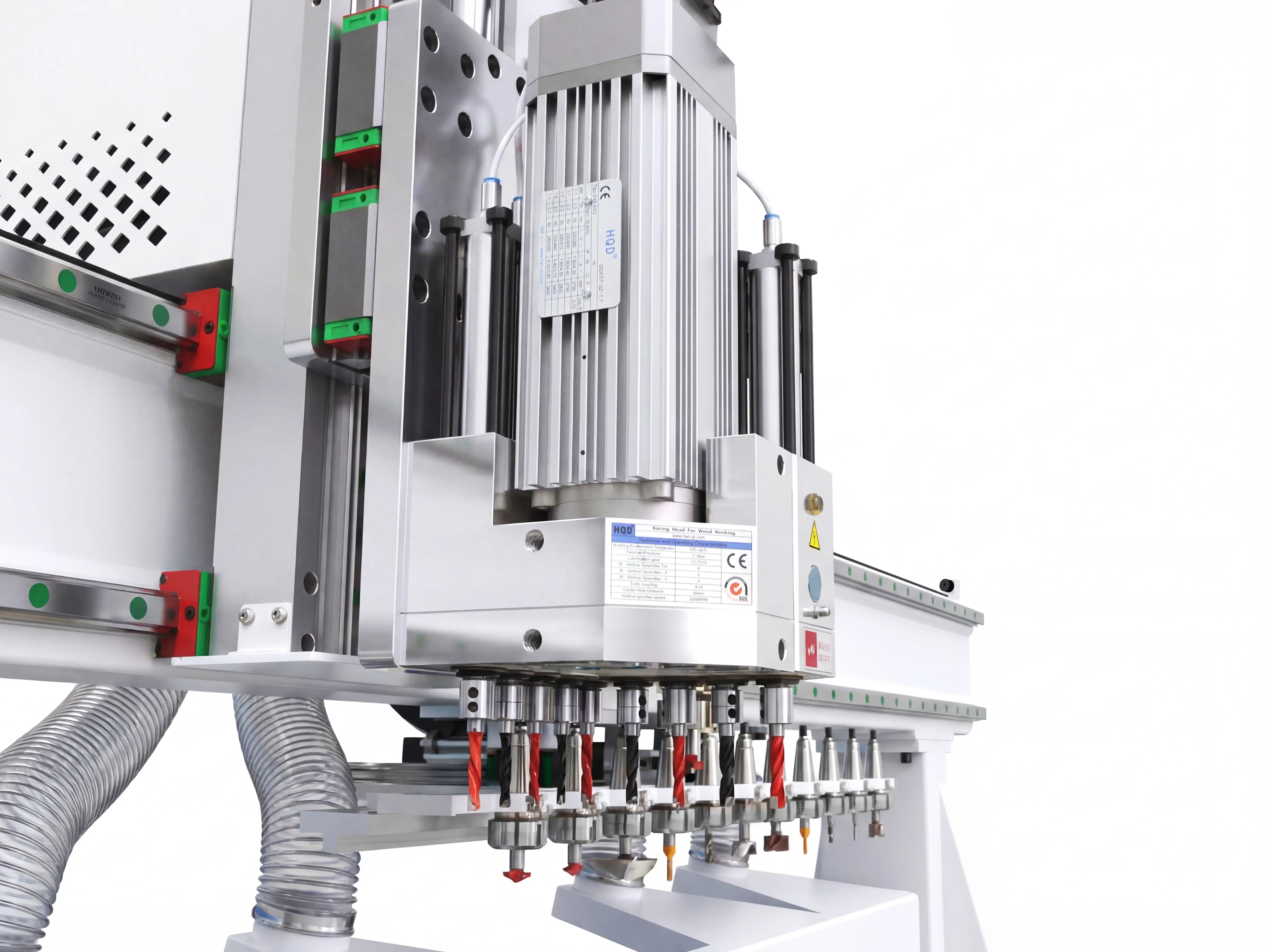

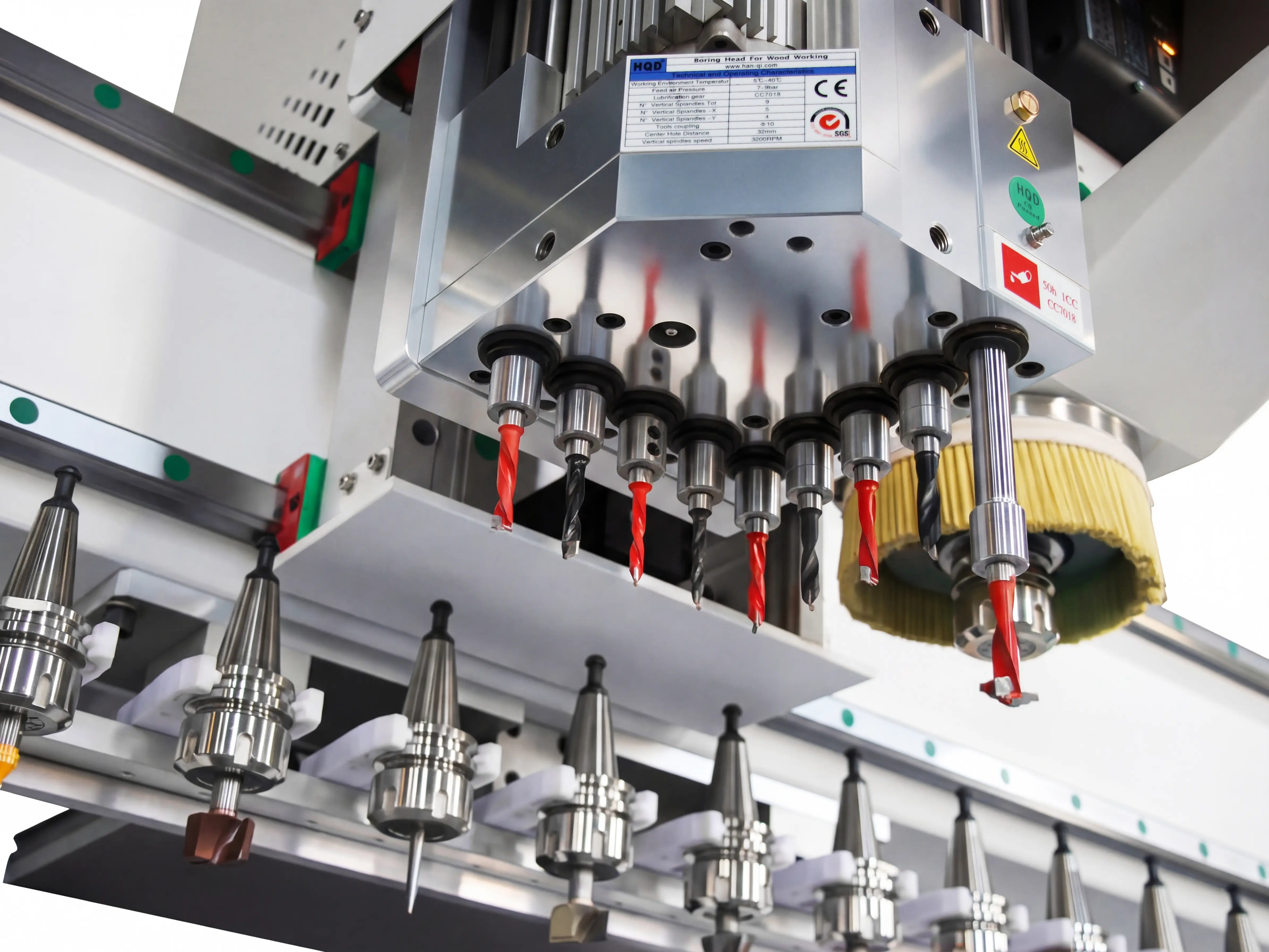

    HQD 5+4 vertical drilling unit of Spire 2130 ATC CNC router
    HQD 5+4 vertical drilling unit of Spire 2130 ATC CNC router

    HQD 5+4 Vertical Drilling Unit

    • The CNC router is equipped with an HQD vertical drilling bank, specially designed for drilling processes of panel furniture such as cabinets and door panels. The 9 drills adopt a classic 5+4 arrangement, which can complete a large number of vertical holes of various types in one operation, avoiding frequent tool changes and greatly improving drilling efficiency for panel furniture.
    • The drill speed reaches up to 3,200rpm with stable rotation, sufficient drilling force, fast hole forming and excellent hole quality. It can be equipped with 9 drills of different specifications and types, compatible with various common furniture hole processing requirements. Pneumatic quick switching is adopted between drills with fast response, further improving process connection speed and machining efficiency.
    • The drill spindles are precisely machined and dynamically balanced with high concentricity and minimal running vibration, ensuring stable drilling accuracy. The machined holes have smooth walls without chipping or burrs on the edges, meeting high-precision drilling requirements for cabinet side panels, shelves, door panels and partitions, effectively shortening workpiece processing cycles and improving production efficiency.

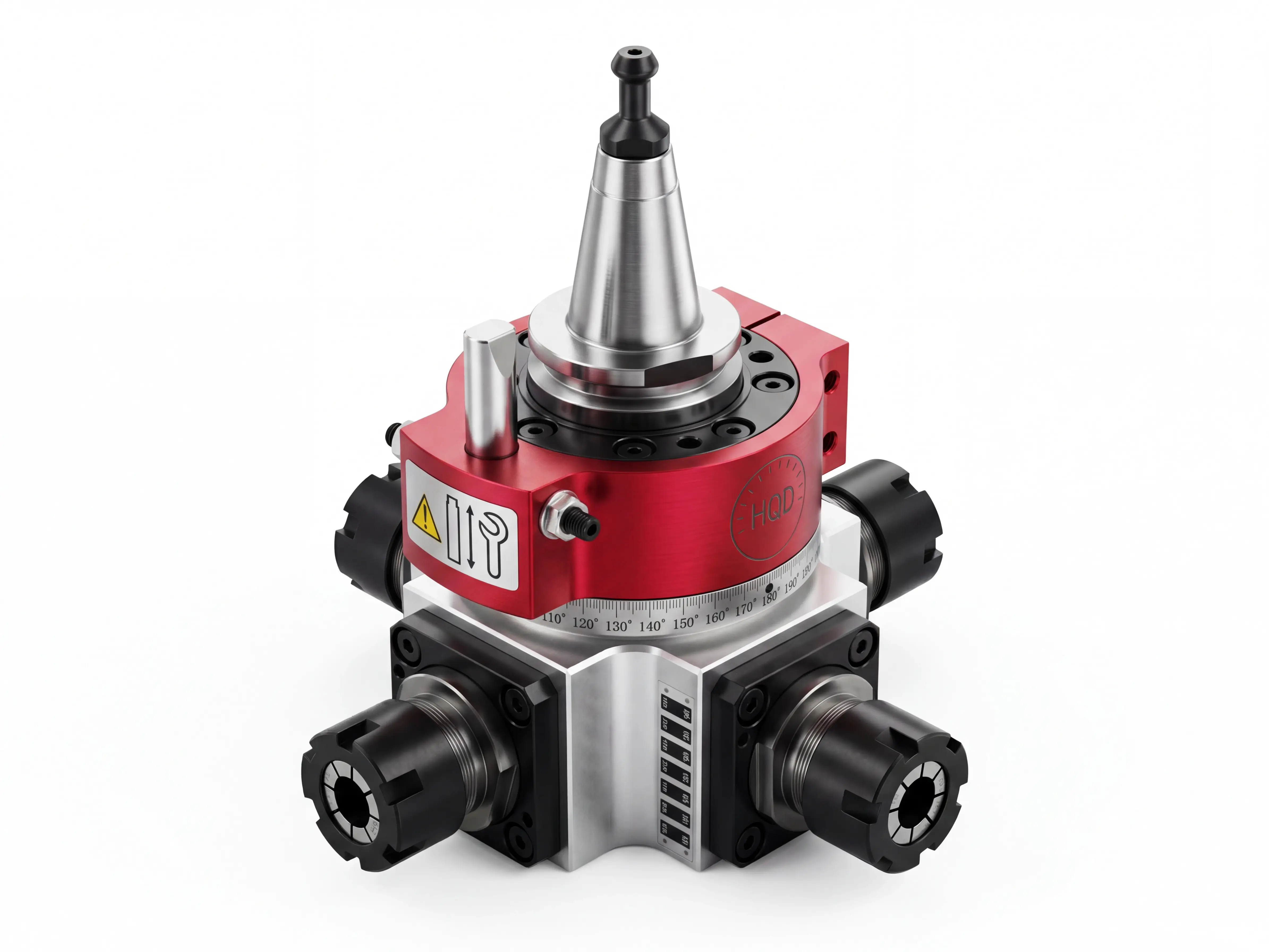

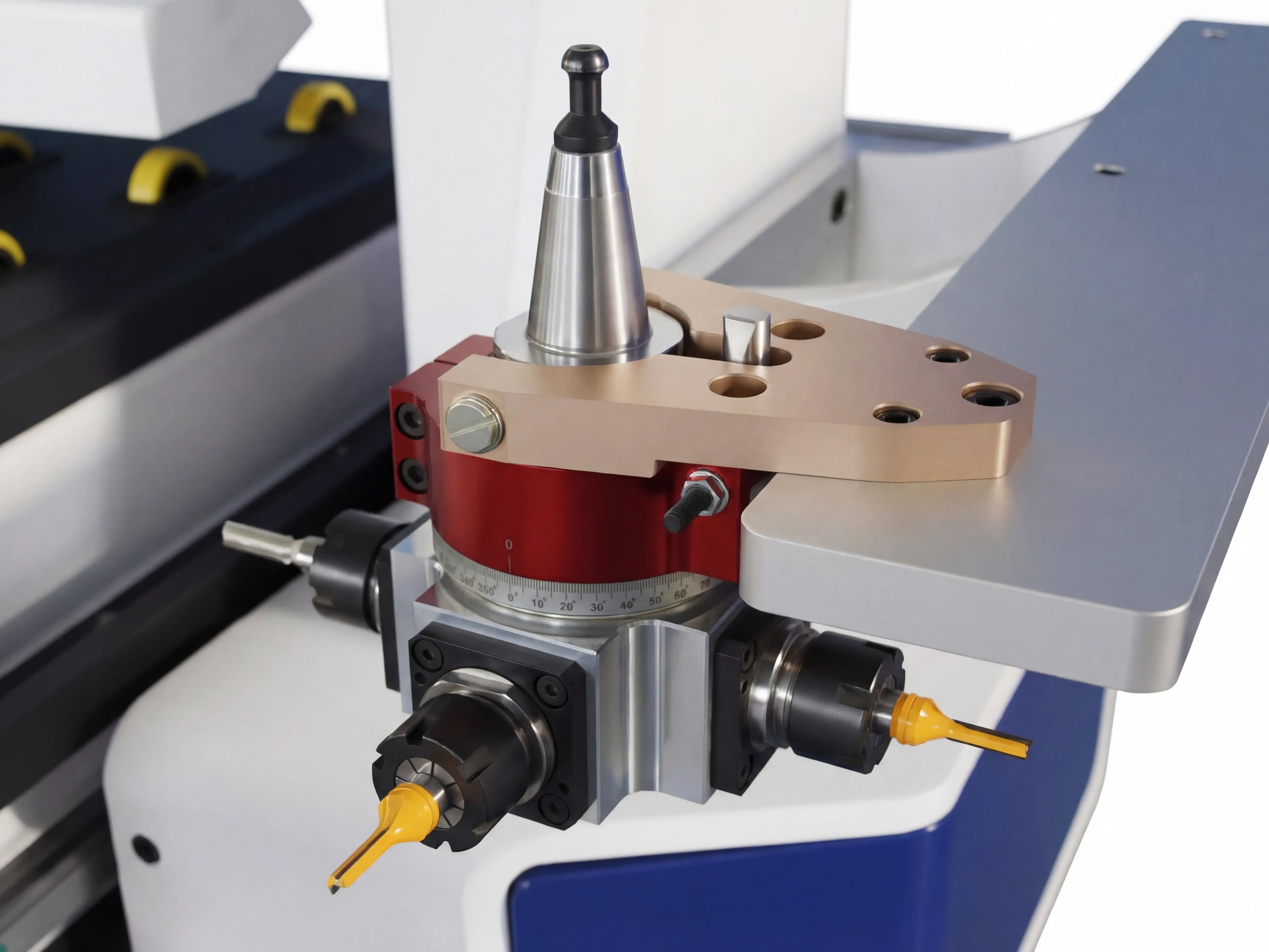

    HQD angle head (4-sided aggregate) of Spire 2130 ATC CNC router
    HQD angle head (4-sided aggregate) of Spire 2130 ATC CNC router

    HQD Angle Head (4-Sided Aggregate)

    • The CNC router is equipped with an HQD side milling angle head, specially designed for side machining of panel furniture, cabinet doors and door panels. This angle head adopts a four-side omnidirectional design with four-direction machining capability, enabling multi-sided machining of workpieces in one clamping without changing machines, improving production efficiency and machining consistency.
    • This angle head is equipped with an independent tool magazine mounted on the side of the machine. It uses ISO30 collets, perfectly matching the HSD automatic tool change spindle, and can participate in the automatic tool change process together with various milling cutters in the linear tool magazine. The angle head supports ER25 tool holders and can hold four tools at the same time to meet four-direction machining requirements.
    • This angle head has a maximum speed of 12,000rpm and can perform various complex machining processes such as door lock holes, hinge slots, side holes and four-side slotting. The machined holes are neat with smooth edges, effectively improving the machine’s automation level and finished product quality.
    Click the icon labels to view different machine parts

    Precision in Motion: Powered by Yaskawa Servo Technology

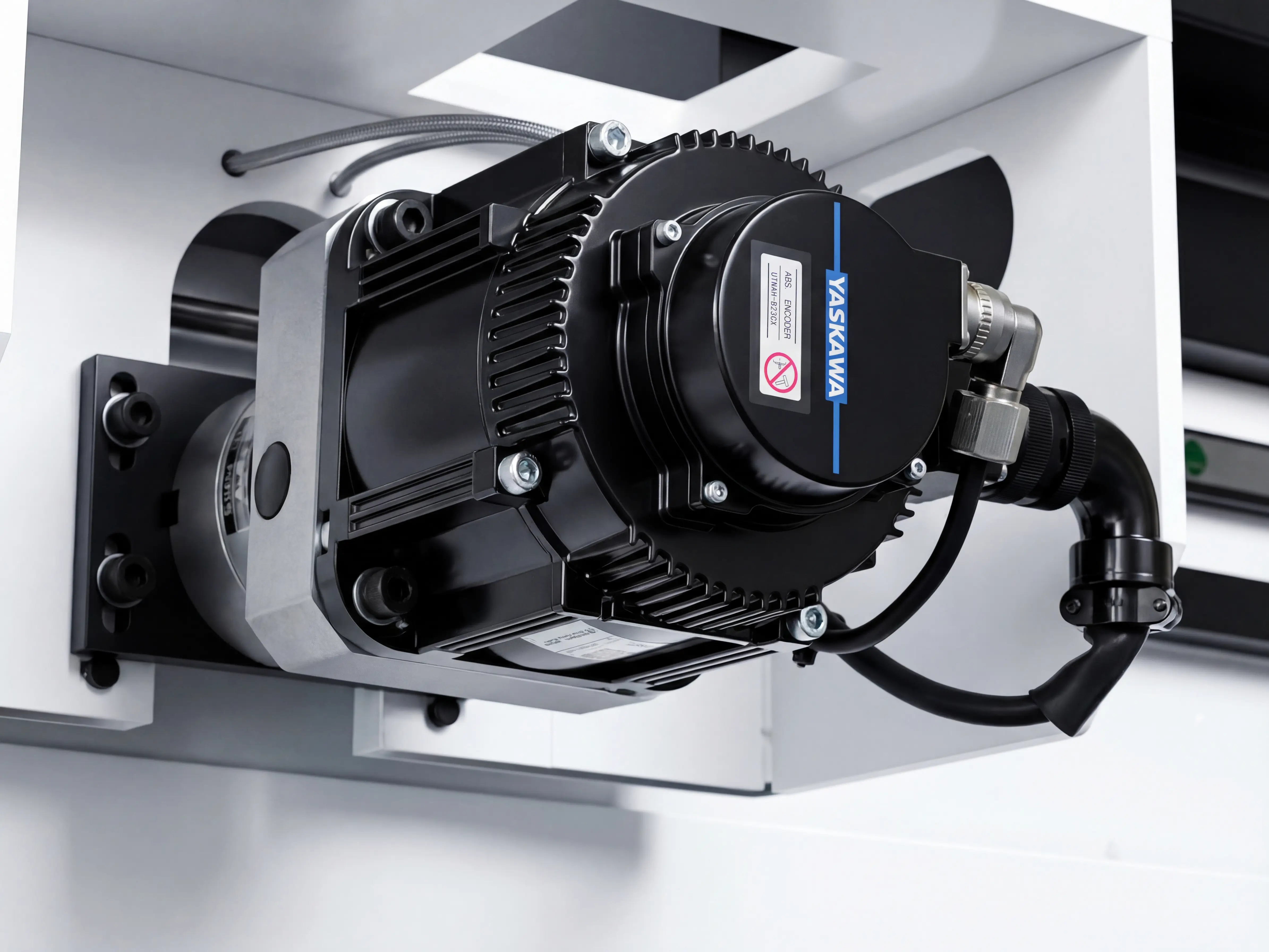

    Yaskawa (Japan) 1300W bus servo motor for Y-axis of Spire 2130 ATC CNC router

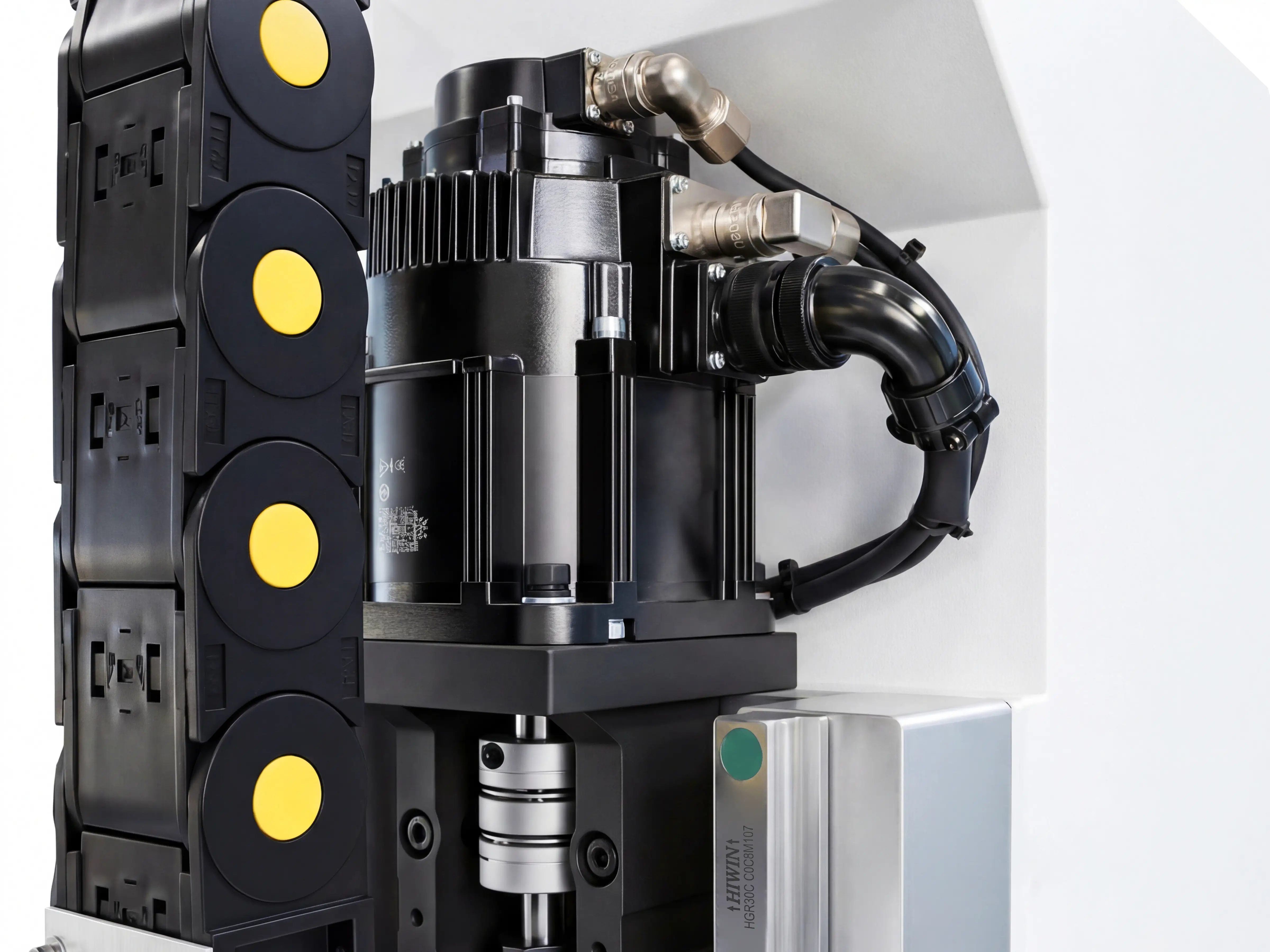

    Yaskawa (Japan) 1300W bus servo motor for Z-axis of Spire 2130 ATC CNC router

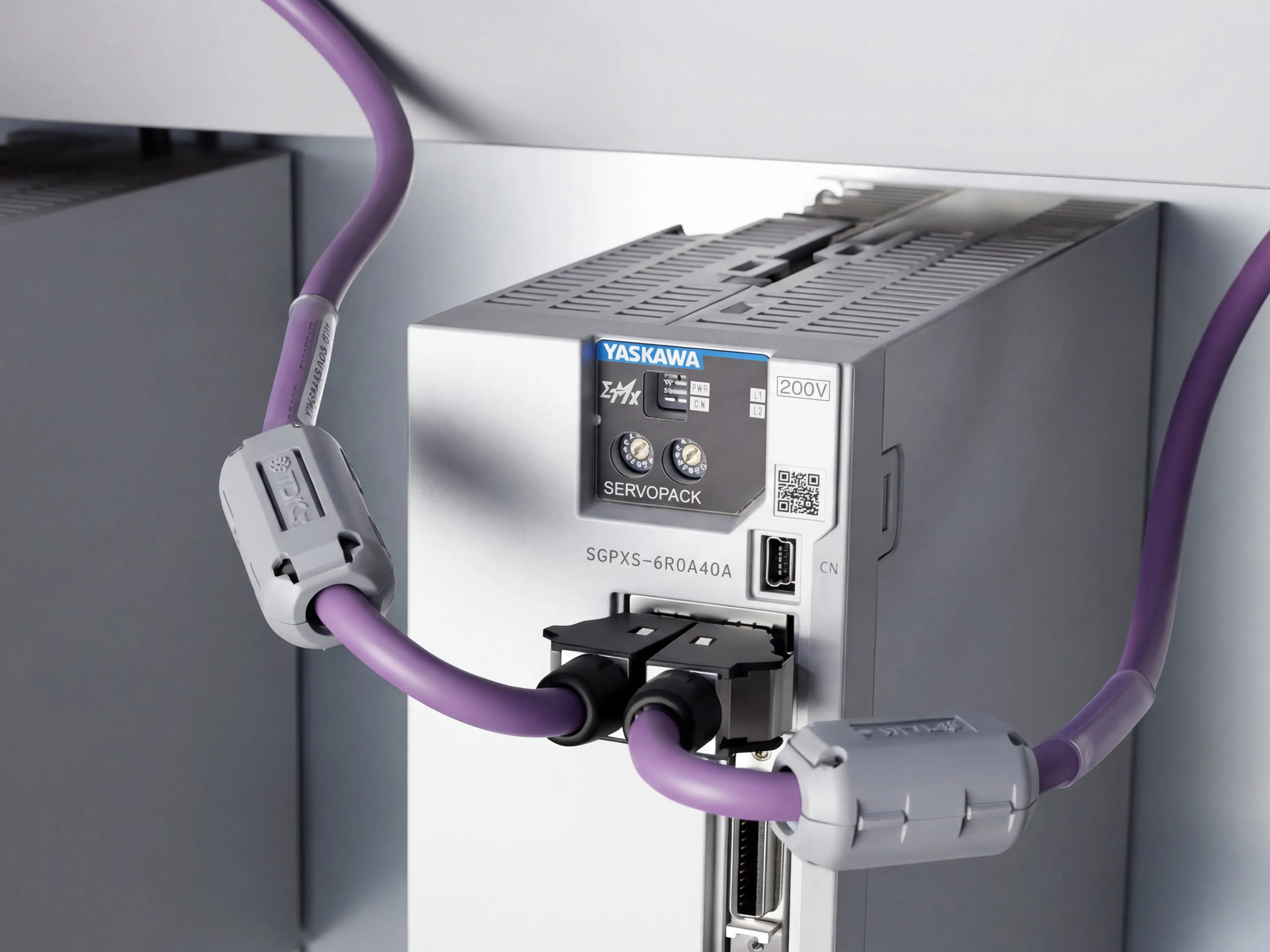

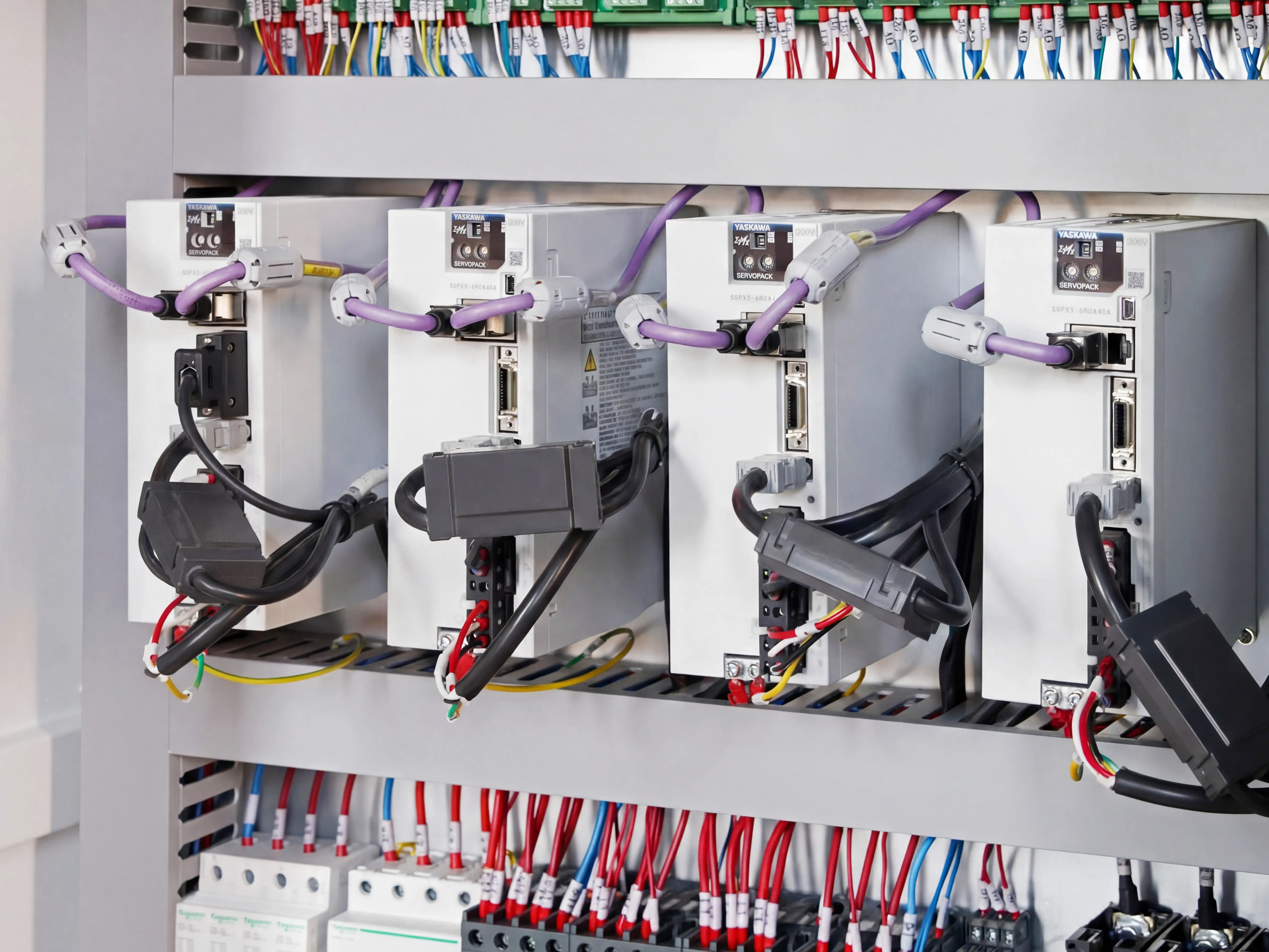

    Yaskawa (Japan) 1300W bus servo drive of Spire 2130 ATC CNC router
    Yaskawa (Japan) 1300W bus servo drive of Spire 2130 ATC CNC router

    Yaskawa (Japan) 1300W Bus Servo System

    • The CNC router machine is equipped with four sets of Yaskawa 1300W servo systems adopting bus communication, featuring faster and more stable signal transmission and stronger anti-interference ability. Built-in absolute encoders allow direct machining without homing at each startup, greatly improving operation efficiency and positioning reliability.
    • The Y-axis adopts dual servo motors for synchronous driving, effectively enhancing the stability and synchronization of the gantry movement, avoiding vibration during high-speed movement and heavy-load cutting, ensuring smoother machine operation, more balanced wear of transmission parts, and better overall durability. The Z-axis uses a servo motor with brake function, which automatically locks immediately when power is off to prevent the head from falling, effectively protecting tools, workpieces and equipment safety.
    • The XY-axis servo motors are both matched with Shimpo planetary gear reducers, which can amplify the output torque of the servo motors, enhance the dynamic response of the transmission system, and better cope with heavy-duty machining conditions.

    SYNTEC 60W-E: Powerful Control, Effortless Operation

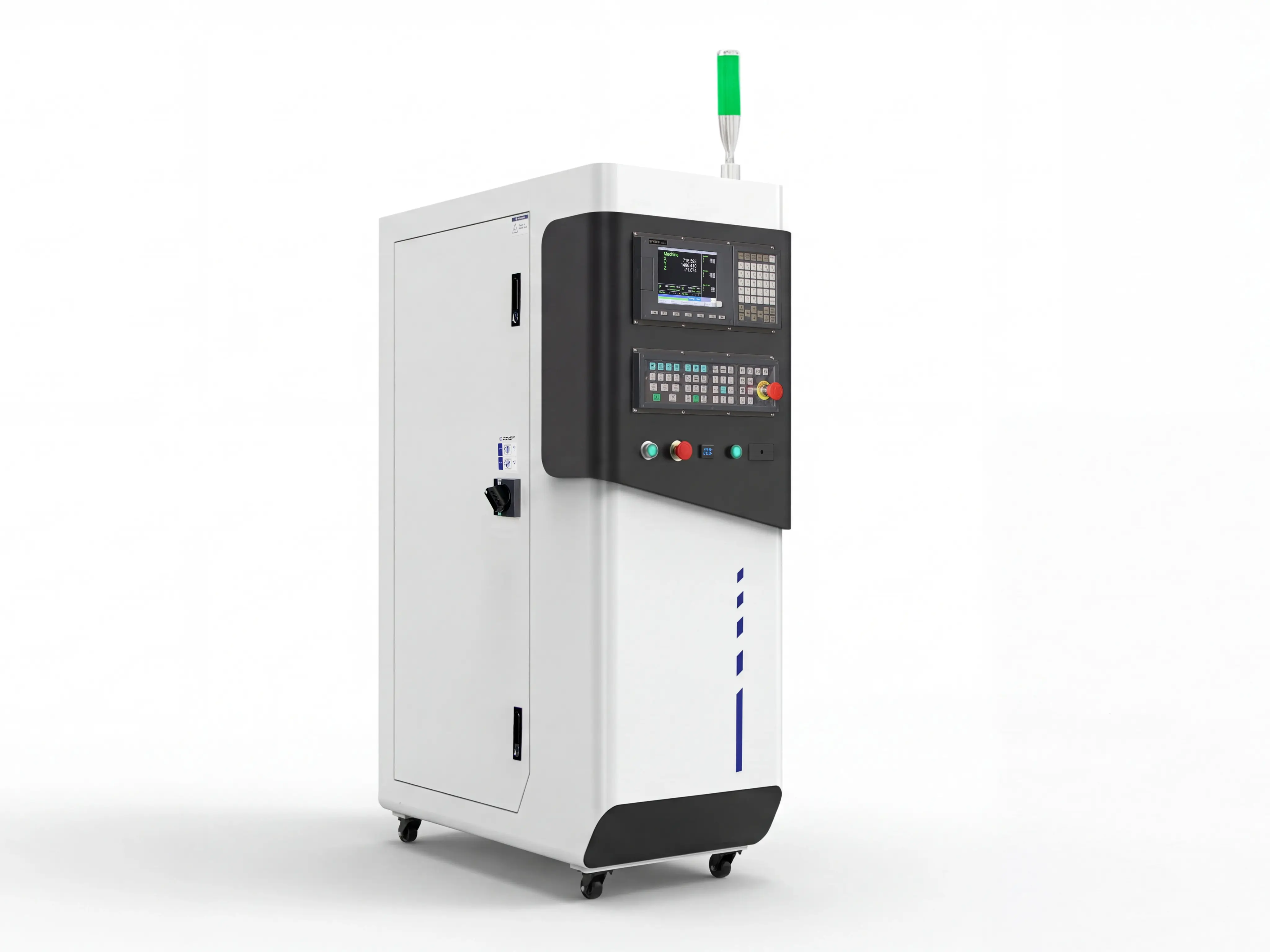

    Control cabinet for Spire 2130 ATC CNC router

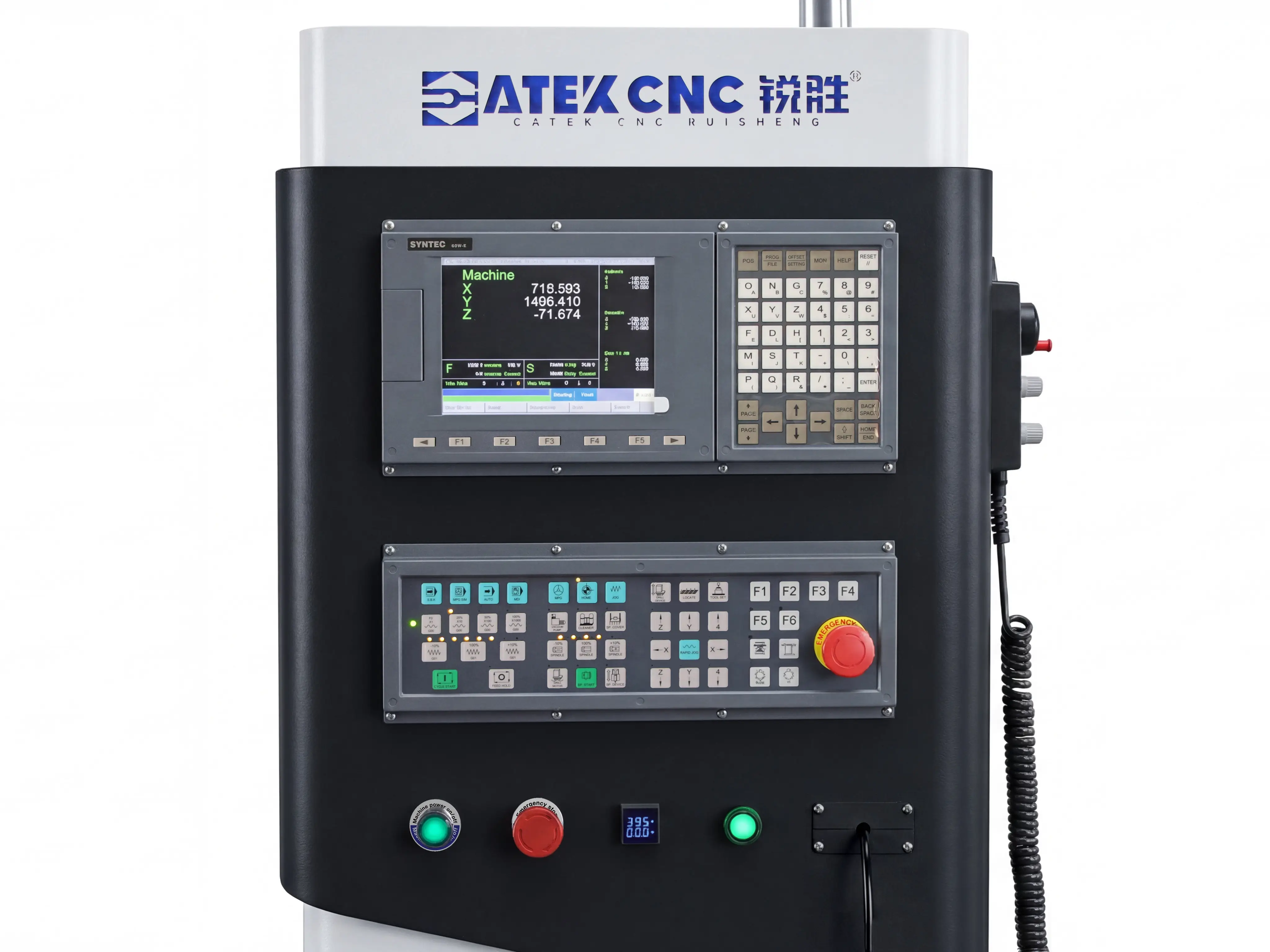

    Taiwan Syntec 60-WE CNC system for Spire 2130 ATC CNC router

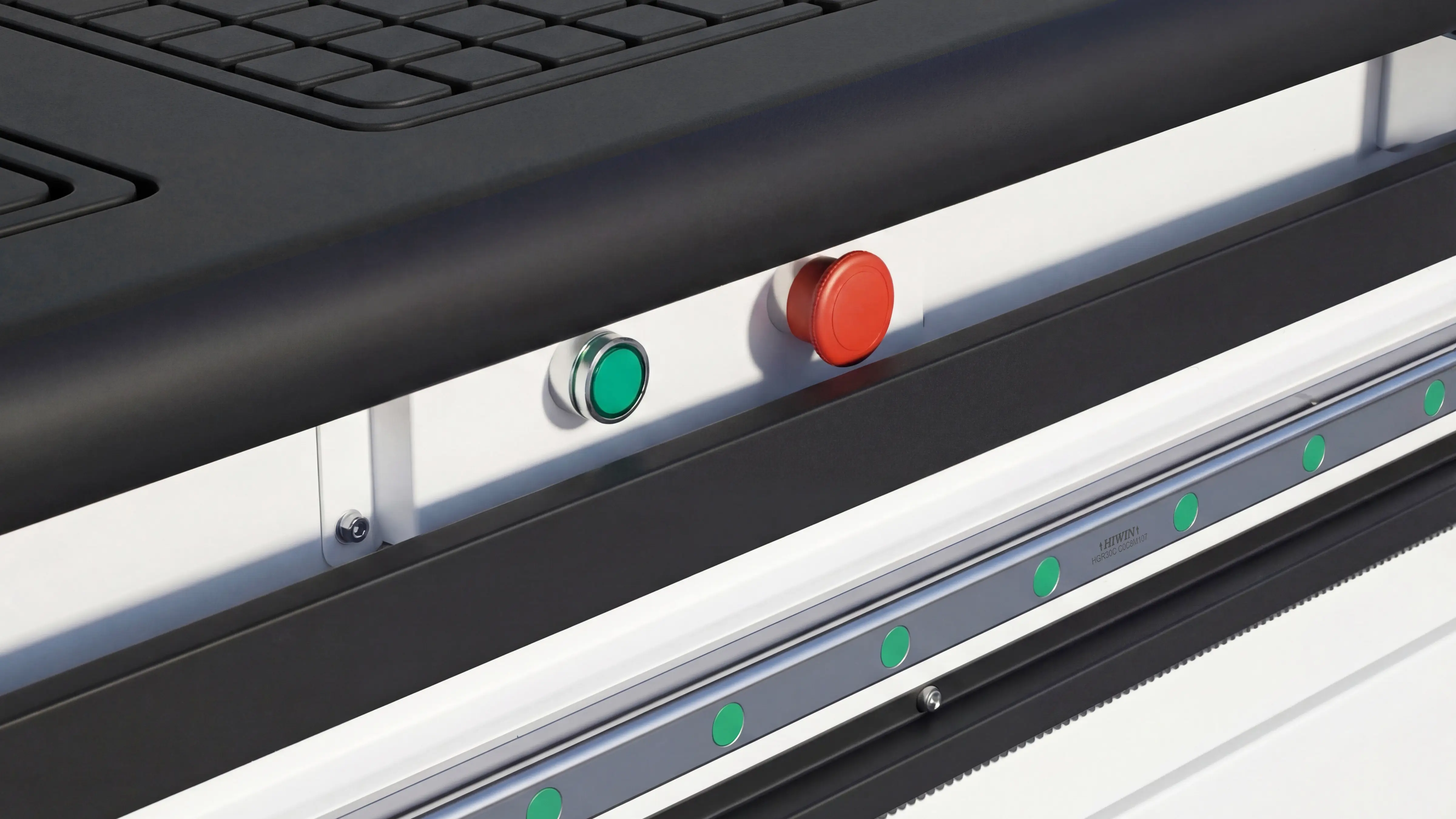

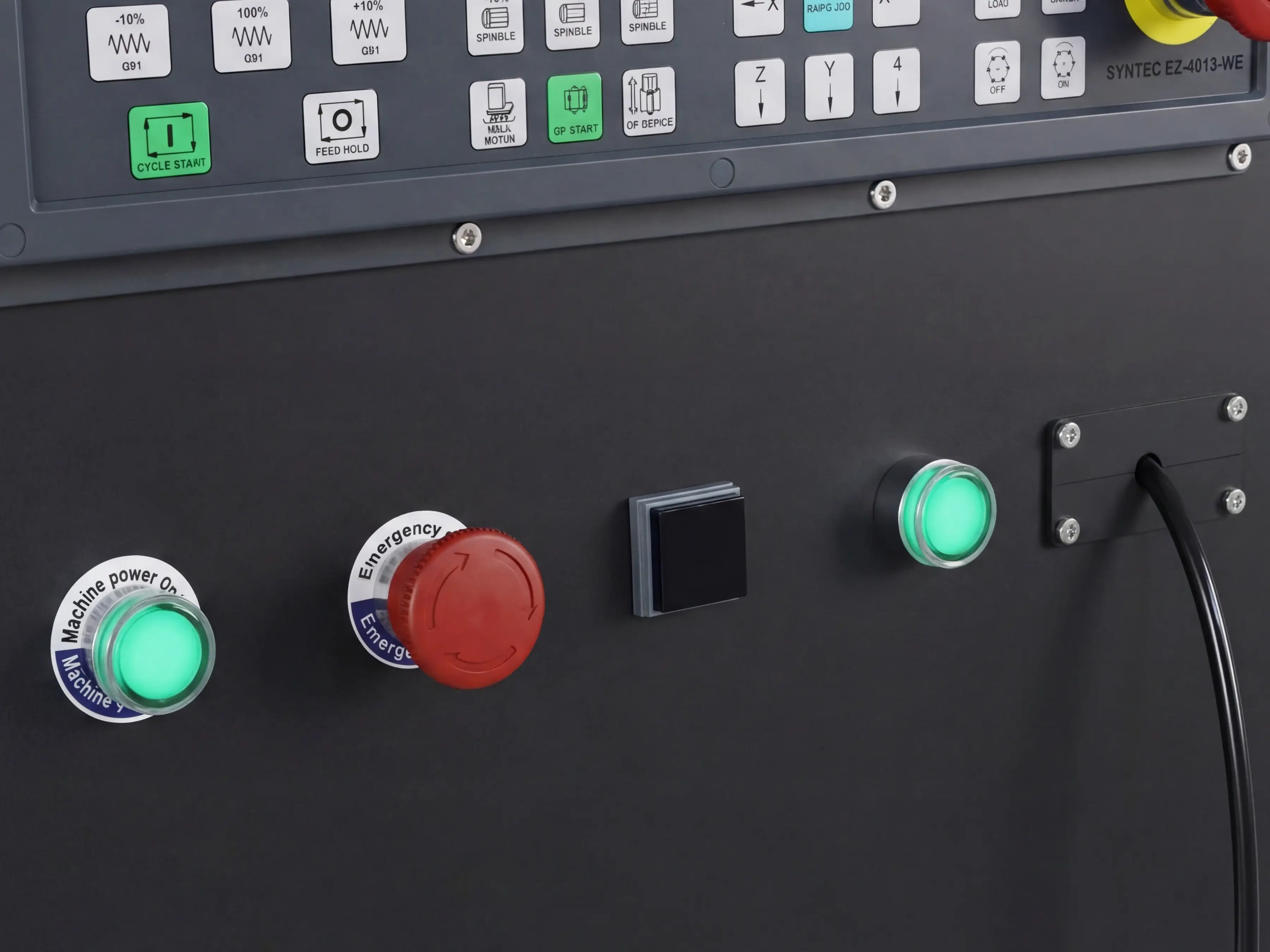

    Switches for Spire 2130 ATC CNC router

    SYNTEC (Taiwan) 60W-E Bus Control System

    • The CNC router is equipped with the Taiwan Syntec 60W-E bus control system, adopting a high-performance industrial computing chip and stable bus control architecture, it features fast data processing and can easily handle complex machining paths.
    • It is compatible with a variety of CAD/CAM programming software and can perfectly connect with various nesting software, supporting a wide range of file formats. The system supports Chinese/English interface switching and can be extended to multiple languages via language packs to meet the needs of global users. It is equipped with complete protection and alarm functions, making machine operation more stable and safer.
    • It supports an external pulse handwheel to realize tool fine-tuning, tool positioning, handwheel simulation and other functions, greatly improving convenience in debugging and tool calibration.

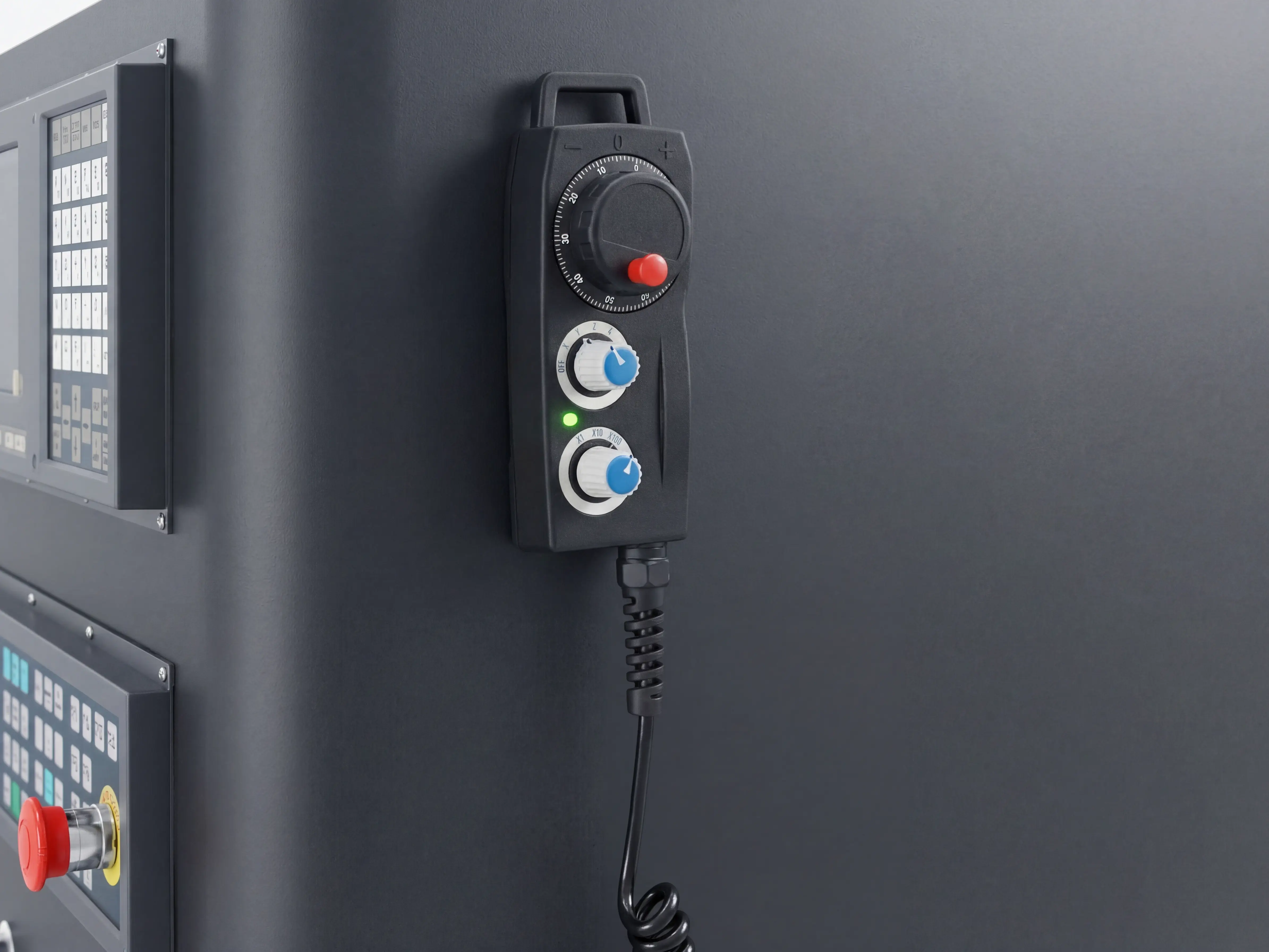

    Electronic pulse handwheel for Spire 2130 ATC CNC router

    Electronic Pulse Handwheel

    • The CNC router is equipped with a high-precision electronic pulse handwheel with industrial-grade pulse signal output, it features sensitive adjustment and strong anti-interference ability. It is perfectly compatible with the Taiwan Syntec 60W-E bus control system, providing convenient and efficient operation support for machine debugging and tool setting.
    • It supports multi-axis switching and multi-speed adjustment, allowing users to flexibly select movement speed and feed rate according to actual needs. It performs excellently in both large-range positioning and precise tool calibration.
    • The handwheel handle offers smooth operation and precise control. Rotating the handle can accurately control linear axis movement, effectively improving operational flexibility and convenience, reducing operation difficulty and enhancing work efficiency.
    Click the icon labels to view different machine parts

    The Backbone of Reliability: High-Quality Electrical Components

    • Delta Variable Frequency Drive
    • Interlock and Short-Circuit Protection Switch
    • High-Quality Power Switches
    • Schneider Electrical Components
    • Servo Motor Braking Resistor
    • High-Reliability Aviation Plugs
    • Fully Enclosed High-Strength Cable Carrier
    • High-Quality Terminal Blocks

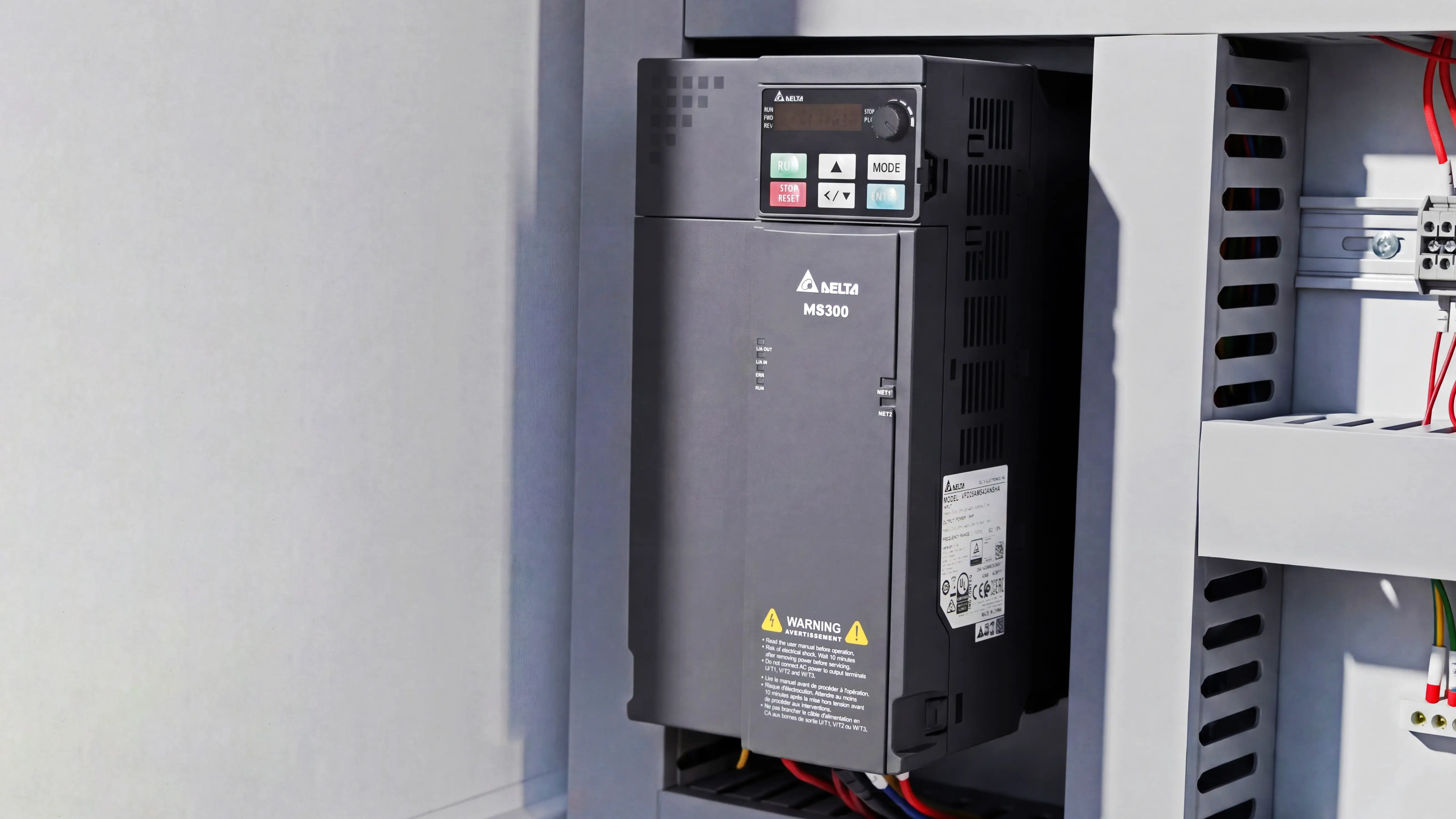

    • Hpmont variable frequency drive of Spire 2130 ATC CNC router

      Delta (Taiwan ) MS300 High-Performance VDF

      • Adopts Delta (Taiwan) MS300 11kW high-performance vector VFD, supporting wide frequency output and fast dynamic response. It remains stable and reliable under complex working conditions such as heavy load, variable speed and long-term operation. Equipped with overcurrent, overvoltage, overload, overheating and multiple other protection functions, it features strong anti-interference ability and effectively ensures smooth spindle operation.
      • Specially optimized for HSD spindles, it perfectly matches the full-range speed requirements of HSD spindles from high-speed cutting to low-speed finishing, achieving precise speed control, smooth acceleration and deceleration, low noise operation and minimal speed fluctuation, making the machining process more stable.
      • Features smooth startup, sufficient torque, fast response and high efficiency. It can not only control spindle operation accurately, but also provide real-time monitoring and intelligent protection for the spindle, avoiding spindle damage caused by abnormal conditions, and greatly reducing machine failure rate and maintenance costs.

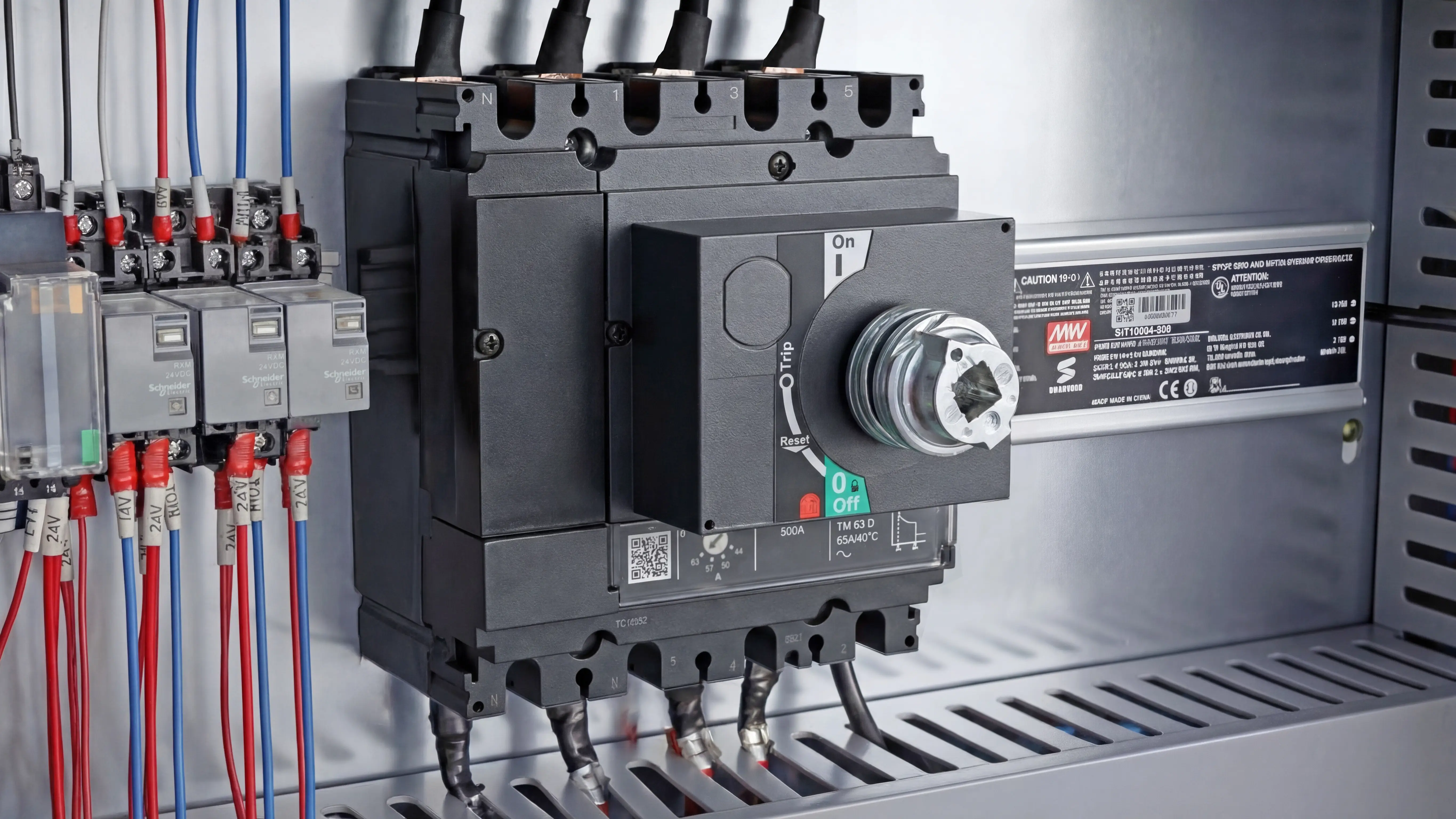

    • Interlock and short-circuit protection switch of Spire 2130 ATC CNC router

      Control Cabinet Interlock and Short-Circuit Protection Switch

      • The control cabinet is equipped with an interlock switch that provides hardware interlock with the machine main power. When the switch is unlocked, the machine power is automatically cut off, ensuring the maintenance crew works in a completely de-energized state during cabinet inspection and debugging, fundamentally preventing electric shock and ensuring personnel safety.
      • The interlock switch forcibly disconnects the power supply when the cabinet door is open, effectively avoiding risks such as short circuits and burnout caused by accidental contact with internal wiring, driver modules, or live maintenance of electrical components, greatly improving the safety and reliability of the electrical system.
      • The linked design of the switch and power supply simplifies maintenance procedures. Maintenance personnel do not need to unplug power cords or look for the main breaker; the power is cut off when the cabinet is open and restored when closed, providing intuitive and convenient operation.

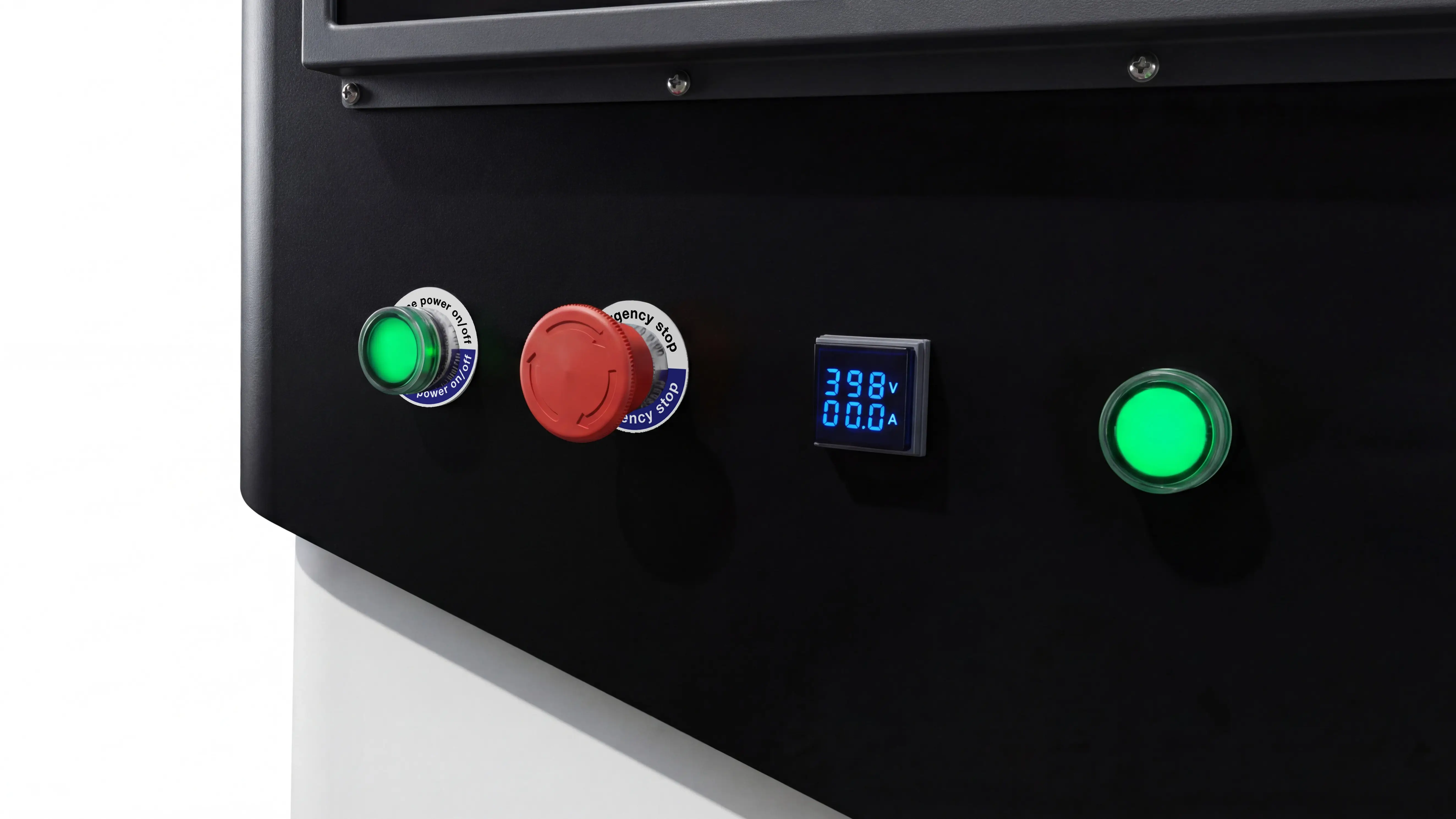

    • High-quality power switches of Spire 2130 ATC CNC router

      High-Quality Power Switches

      • The power switch and E-Stop are both Schneider brand, with clear pressing feedback, fast response and long service life. They feature IP65 dustproof and waterproof rating, ensuring stable and reliable performance even in harsh working environments, effectively protecting operators and equipment safety.
      • The E-Stop adopts a press-to-stop, twist-to-reset design: in case of emergency, pressing the button instantly cuts off machine power and stops all movements for the fastest safety shutdown. After troubleshooting, rotating the button clockwise resets the system, maximizing operational safety.
      • Equipped with high-precision voltage and current meters to display real-time working voltage and current. Operators can directly monitor power status, promptly detect voltage fluctuations, abnormal loads and other issues, facilitating early fault detection and treatment, further improving the safety and reliability of equipment operation.

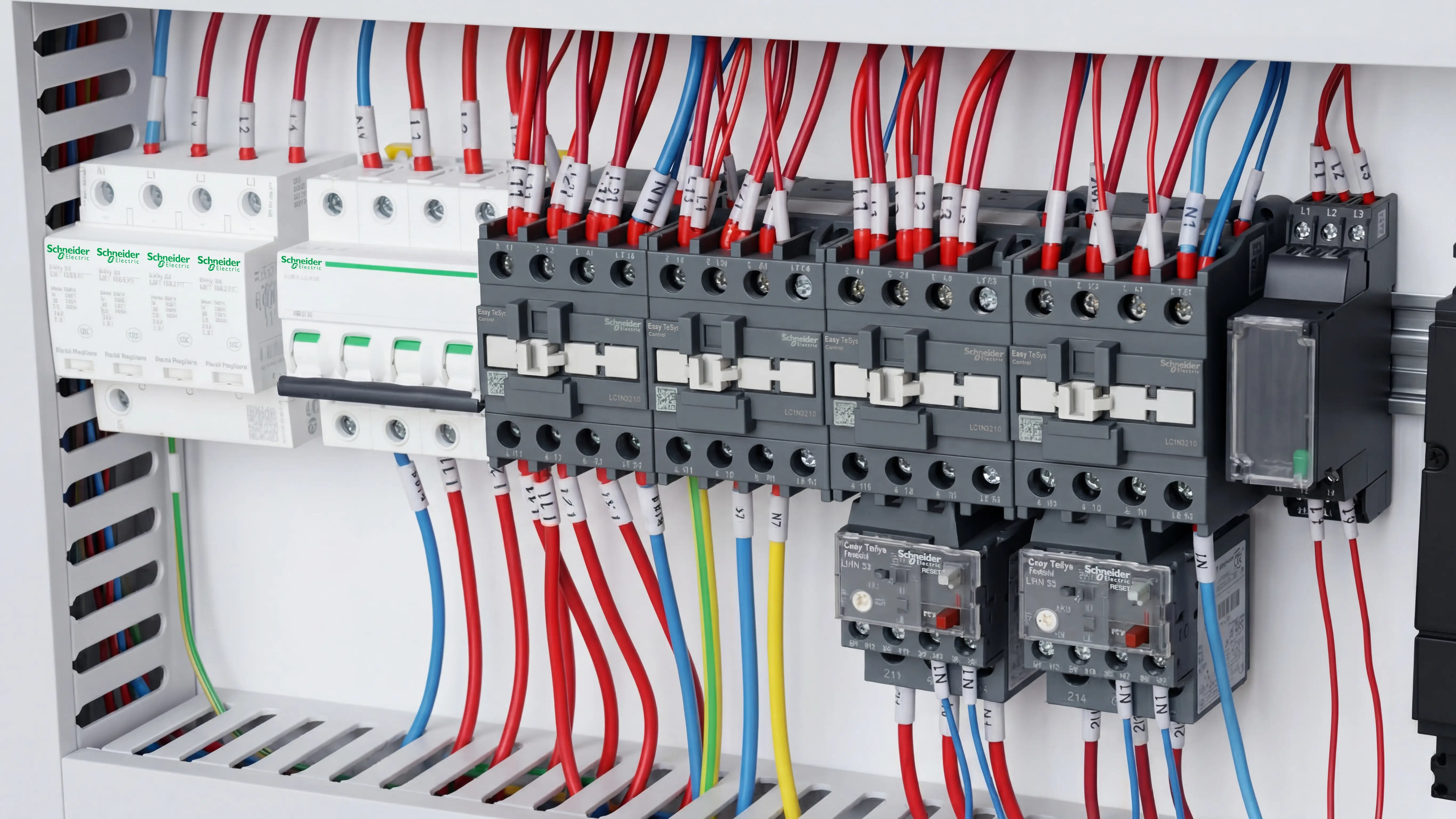

    • Schneider electrical components of Spire 2130 ATC CNC router

      Schneider Electrical Components

      • The electrical system extensively uses Schneider electrical components, including circuit breakers, AC contactors, intermediate relays, 24V power supplies, phase sequence protectors and surge protectors. From power input to signal control, it forms a complete, stable and safe electrical control and protection system, fundamentally improving the stability, safety and durability of the machine.
      • Circuit breakers provide overload, short-circuit and overcurrent protection for the whole machine, with fast breaking speed and the ability to quickly cut off the circuit in case of electrical faults. AC contactors ensure reliable on-off control for stable start/stop operation of high-power components such as spindles and drilling units. Intermediate relays are used for signal switching with fast response, ensuring stable transmission of control commands. The 24V power supply outputs stable DC voltage, providing reliable power for the control system, sensors, solenoid valves and other components. Phase sequence protectors monitor power phase in real time to prevent machine damage caused by phase loss or phase reversal. Surge protectors can quickly discharge instantaneous high voltage caused by lightning strikes or voltage fluctuations, effectively protecting the machine from damage.

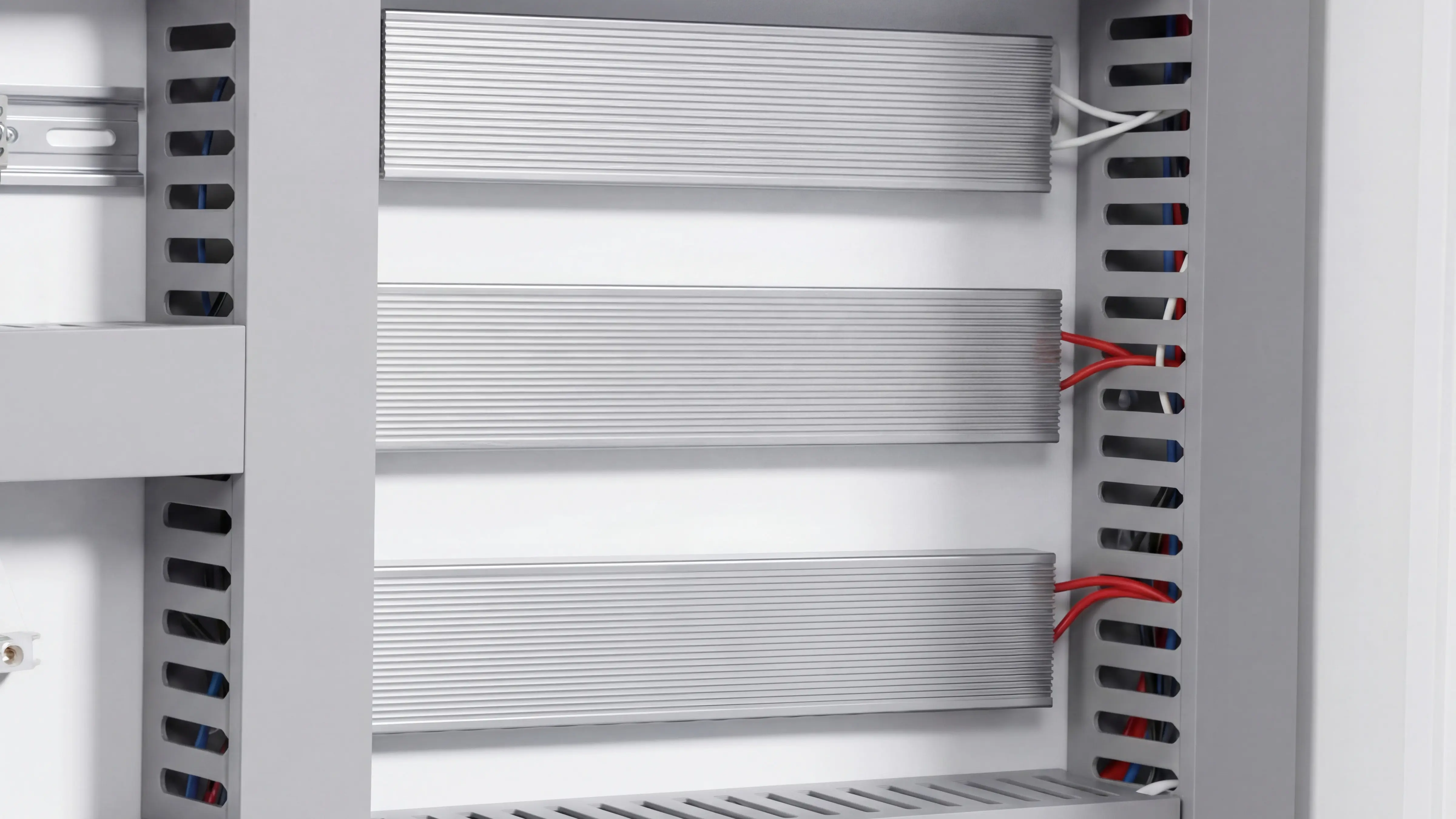

    • Servo motor braking resistor of Spire 2130 ATC CNC router

      Servo Motor Braking Resistor

      • The XY-axis servo motors are equipped with high-quality braking resistors. These resistors convert regenerative energy generated during emergency stops and deceleration into heat for dissipation, preventing voltage fluctuations caused by feedback to the power grid. They feature precise resistance, strong overload capacity, high temperature resistance and fast heat dissipation.
      • Adopting an integrated aluminum alloy housing with external cooling fins, the thermal conductivity of aluminum alloy is about four times that of steel. The cooling fins increase the surface area by 1–2 times. It ensures stable operation under long working conditions, effectively reduces machine failure rate and maintenance costs, and provides solid support for stable equipment operation.

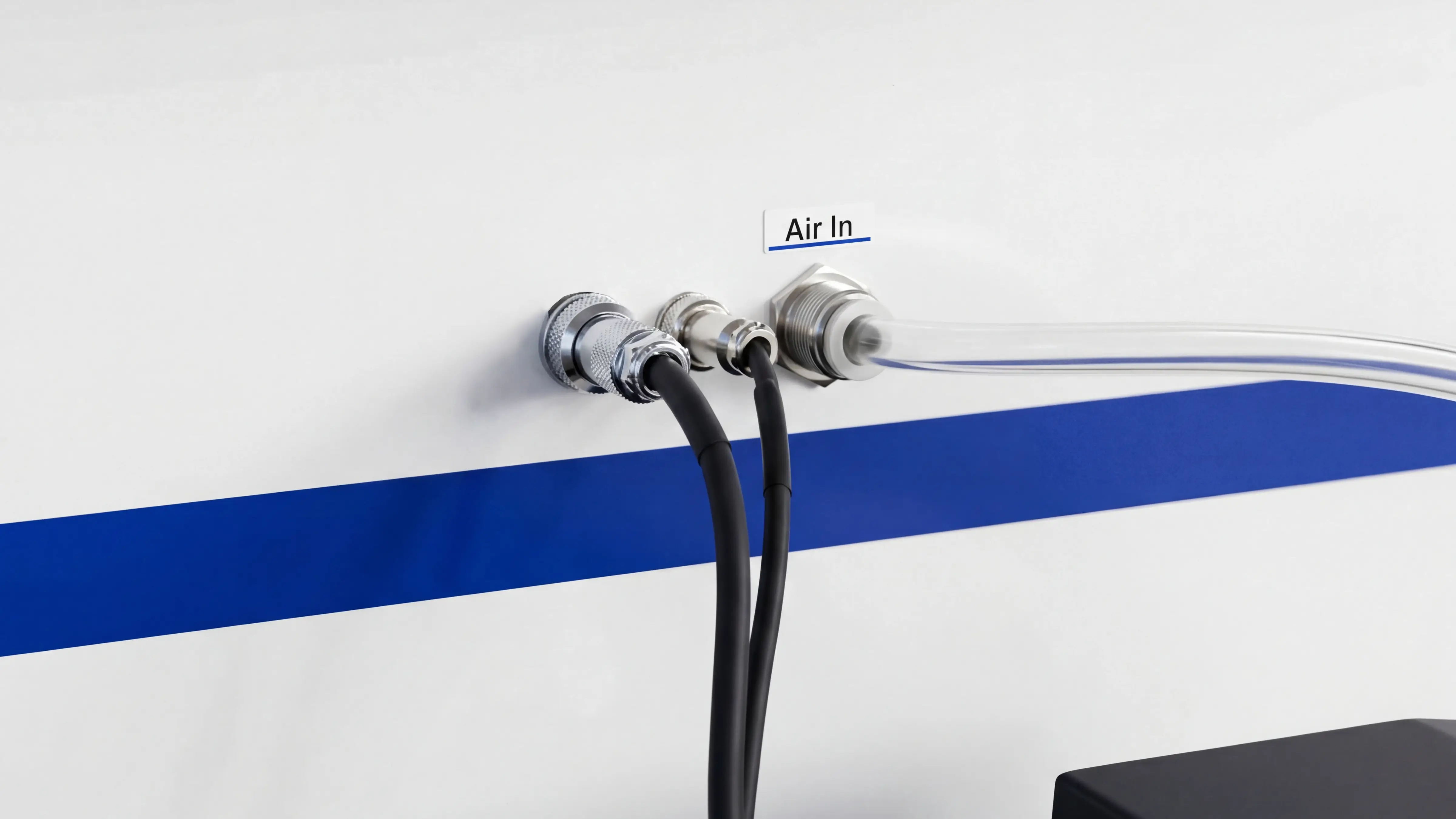

    • High-reliability aviation plugs of Spire 2130 ATC CNC router

      High-Reliability Aviation Plugs

      • High-quality aviation connectors are used for the connection of control signals and power cables. They feature low contact resistance and excellent electrical conductivity, ensuring stable transmission of control commands and power, and effectively avoiding signal interruptions or equipment malfunctions caused by poor contact.
      • They provide outstanding dustproof and waterproof performance with a high protection grade of IP65. They can effectively resist erosion from wood chips, dust, coolant and other external factors, maintaining reliable electrical connections even in harsh machining environments.
      • The connectors are comfortable to grip, smooth to plug and unplug, with precise positioning. They support quick connection and disconnection, greatly improving the efficiency of equipment installation, debugging and disassembly.

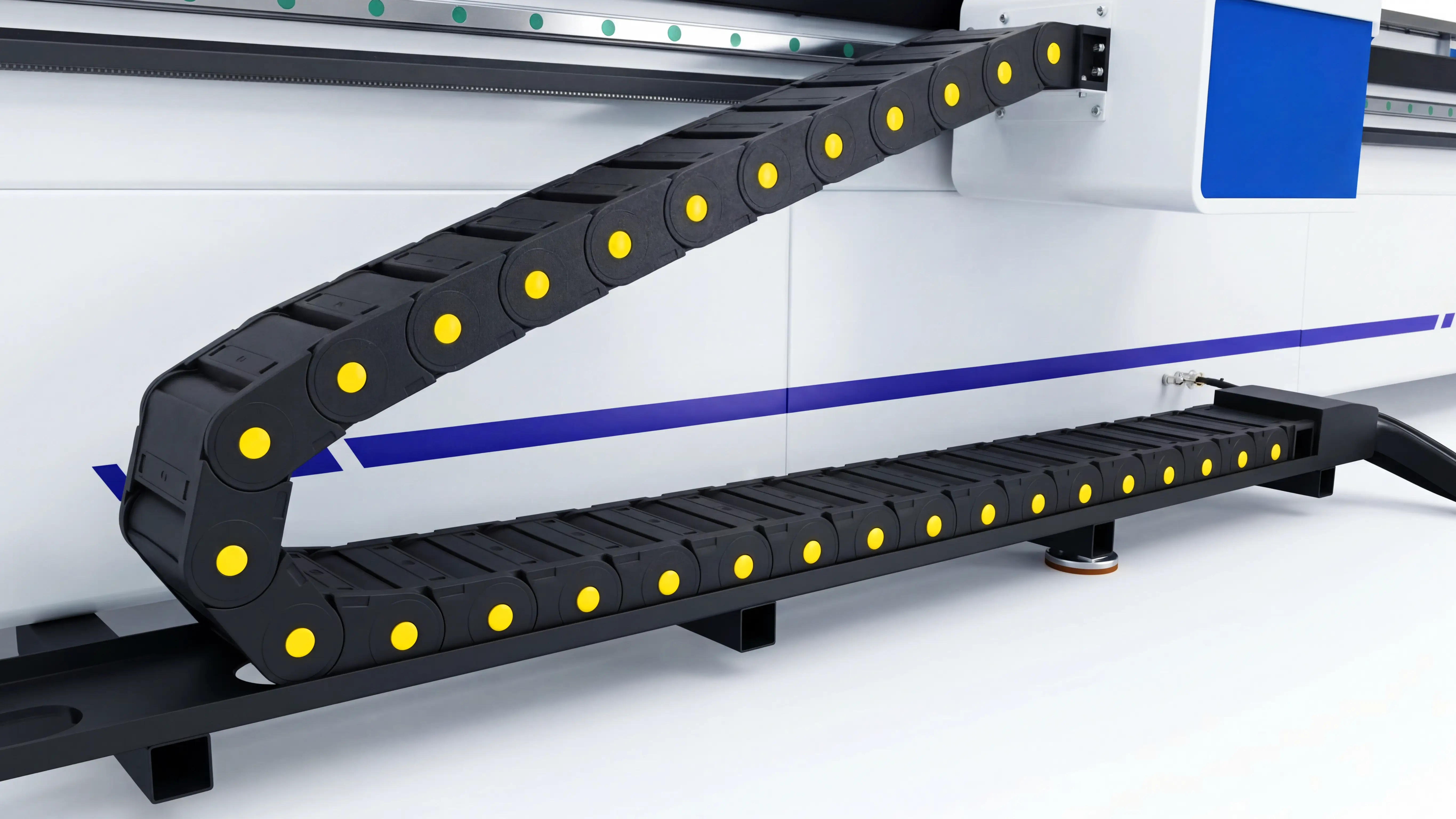

    • Fully enclosed high-strength cable carrier of Spire 2130 ATC CNC router

      Fully Enclosed High-Strength Cable Carrier

      • All three linear axes are equipped with cable carriers to organize and protect key cables and hoses, including power cables, control signal wires, and air hoses. The cable carriers effectively prevent twisting, tangling, and bending during reciprocating movement, while blocking dust and wood chips from entering the interior. This reduces wear and corrosion from the external environment, prevents accelerated aging caused by dust accumulation, fundamentally eliminates machine failures caused by damaged cables, and significantly extends the service life of cables and hoses.
      • The cable carriers feature a neat layout that ensures smooth, interference-free movement and a tidy internal wiring arrangement, facilitating later inspection, troubleshooting, and maintenance. In addition, each link of the cable carrier can be disassembled individually, allowing operators to perform targeted maintenance on specific sections of the cable harness, further improving maintenance efficiency and convenience.

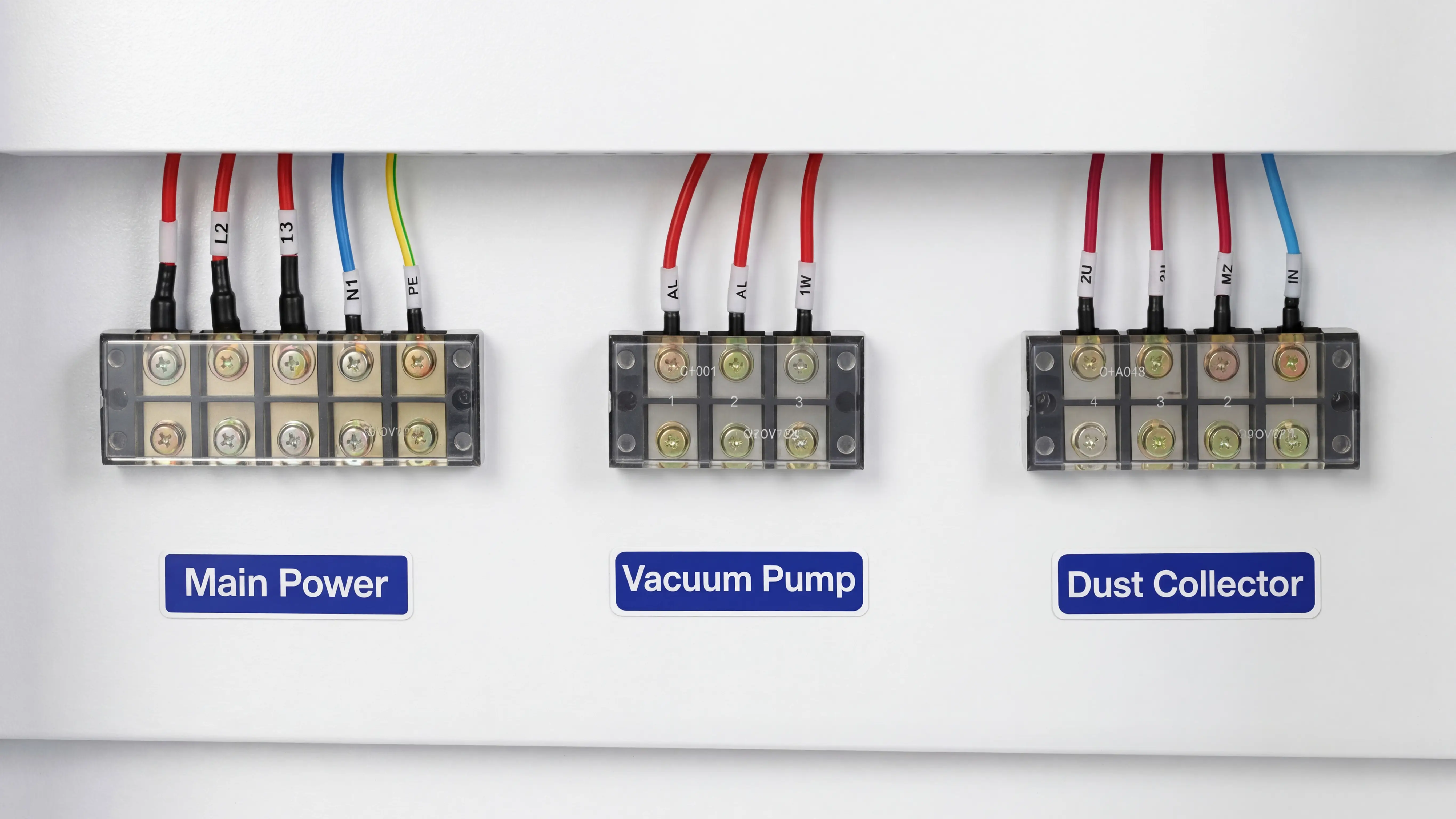

    • High-quality terminal blocks of Spire 2130 ATC CNC router

      High-Quality Terminal Blocks

      • The main power supply, vacuum pump, and dust collector of the machine are connected to three separate terminal blocks respectively, effectively reducing interference between these high-power devices and fundamentally improving the operational stability of the CNC router.
      • The terminal block housing is made of flame-retardant engineering plastic, featuring excellent insulation performance and high-temperature resistance. It maintains structural stability under long-term continuous operation, providing reliable protection for electrical connections.
      • The terminal blocks adopt the classic screw-clamp wiring method, ensuring firm and reliable connections. They will not loosen even under long-term machine vibration, effectively avoiding failures caused by poor contact.

    Tooling System: ATC, Setter & Holder Disassemble

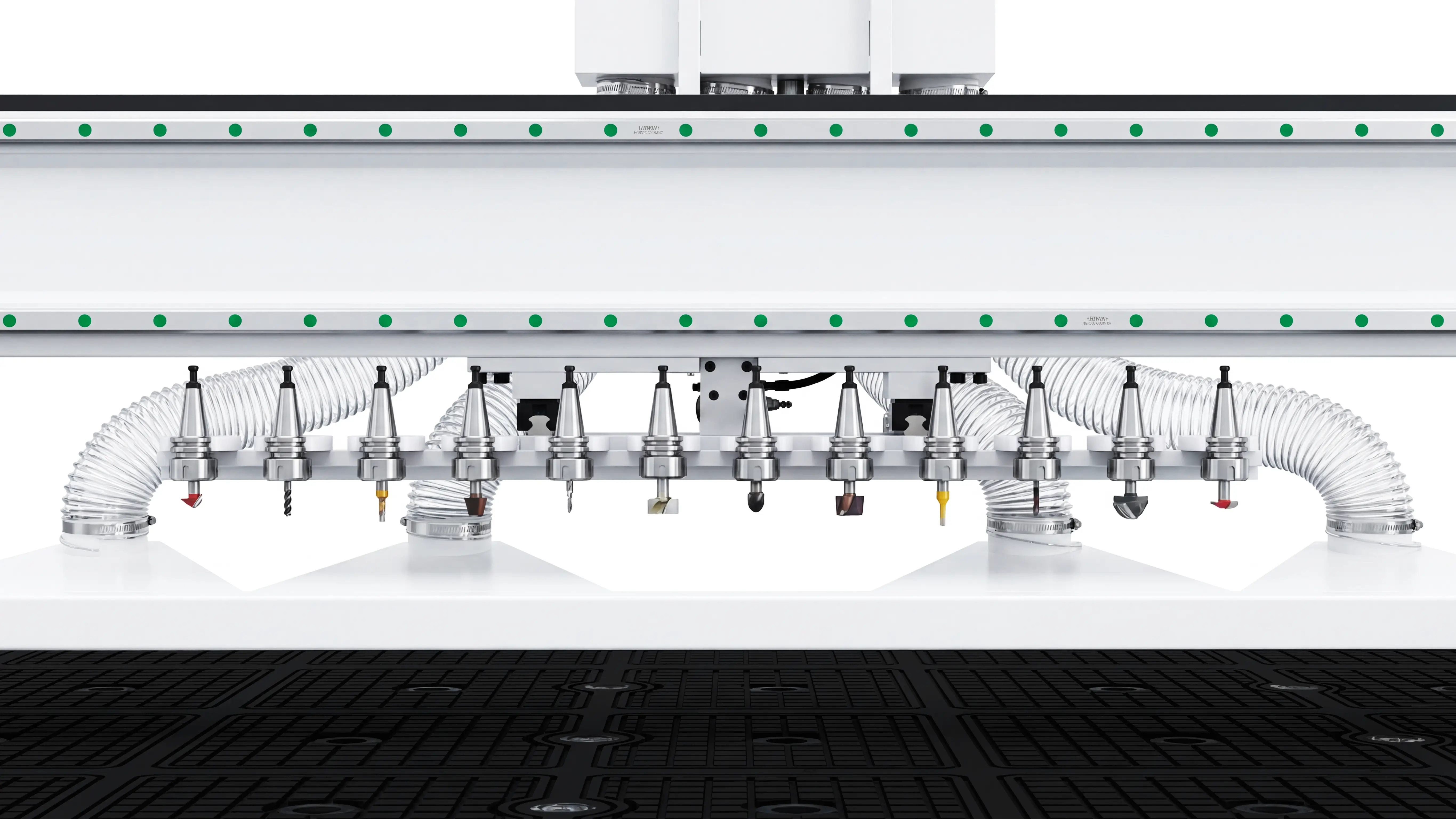

    Linear Automatic Tool Changer (ATC) Magazine

    • The linear tool magazine features a compact layout and can hold 12 tools, including various types and specifications for cutting, drilling, slotting, chamfering and trimming. The control system automatically selects the required tool number according to the machining program to achieve fully automatic tool change, effectively reducing manual operation, avoiding human errors, and improving machining continuity and production efficiency.
    • The tool magazine is installed under the gantry and moves with it, resulting in a short spindle travel path during tool change and fast tool change speed, which enhances overall equipment efficiency.
    • The linear tool magazine has a simple structure with no complex mechanical transmission parts, fundamentally eliminating the risk of mechanical failure. It requires no daily maintenance, lowers operating costs, and ensures long-term stable operation of the machine.
    Linear automatic tool changer (ATC) magazine

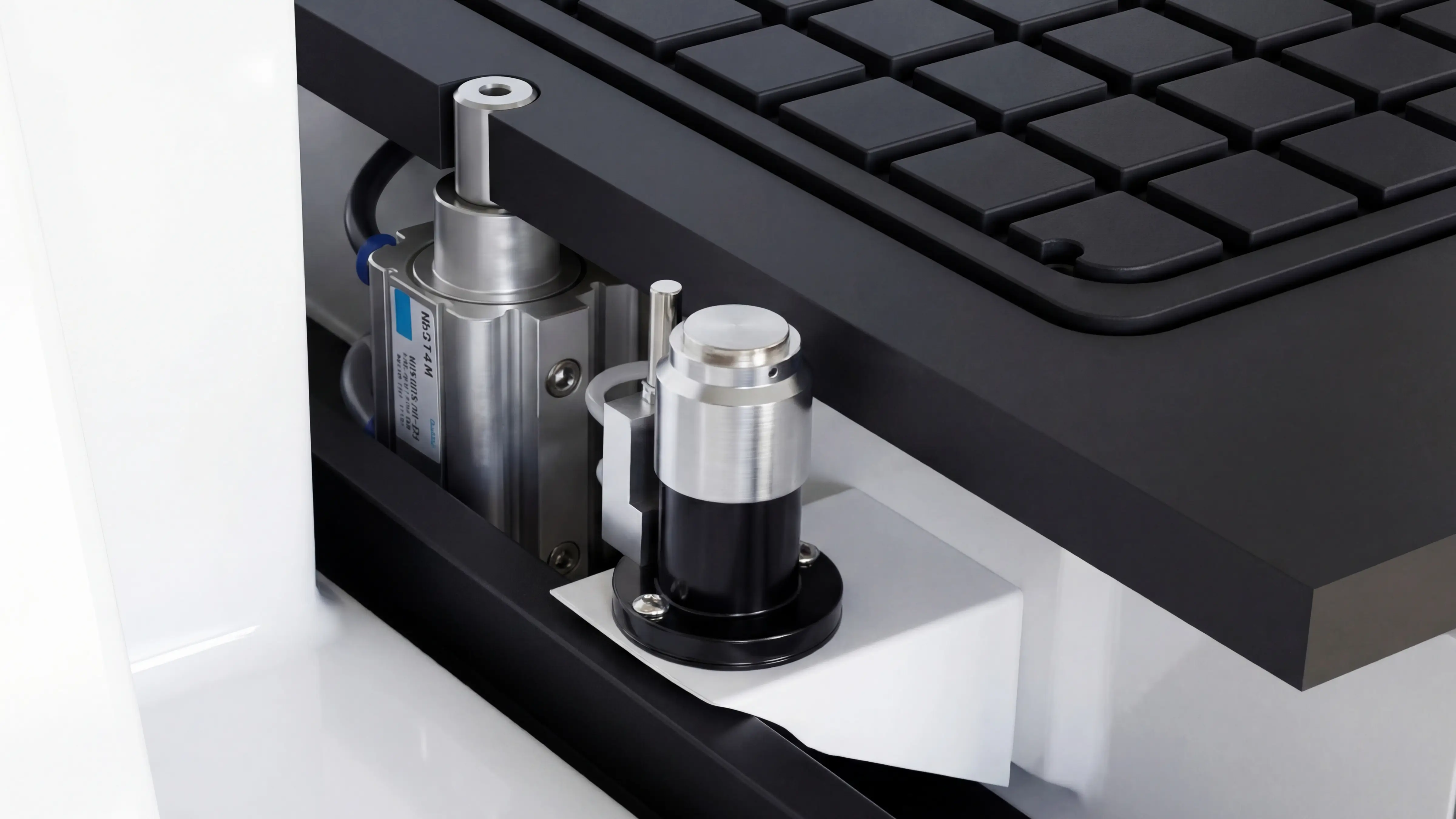

    Automatic Tool Setter

    • This automatic tool setter integrates automatic cleaning, tool length measurement and coordinate compensation, specially designed for dusty and wood-chip-heavy working conditions in panel furniture machining. After each tool change, the machine automatically activates high-pressure air blowing to clean wood chips and dust off the tool setter surface, ensuring a clean detection area and effectively preventing interference with tool setting accuracy.
    • After cleaning, the system immediately performs a high-precision contact tool setting procedure to accurately measure tool length and send real-time data to the control system for automatic compensation. The entire process requires no manual intervention or manual measurement/parameter input, and works seamlessly with the automatic tool change system and spindle, ensuring consistent tool depth and stable, accurate machining dimensions after tool changes.
    • This design effectively prevents machining debris from affecting tool setting accuracy, realizes automatic tool setting after tool changes, and improves automation and continuity. It also eliminates errors from manual tool setting, increasing workpiece yield and production efficiency.
    Automatic tool setter for Spire 2130 ATC CNC router

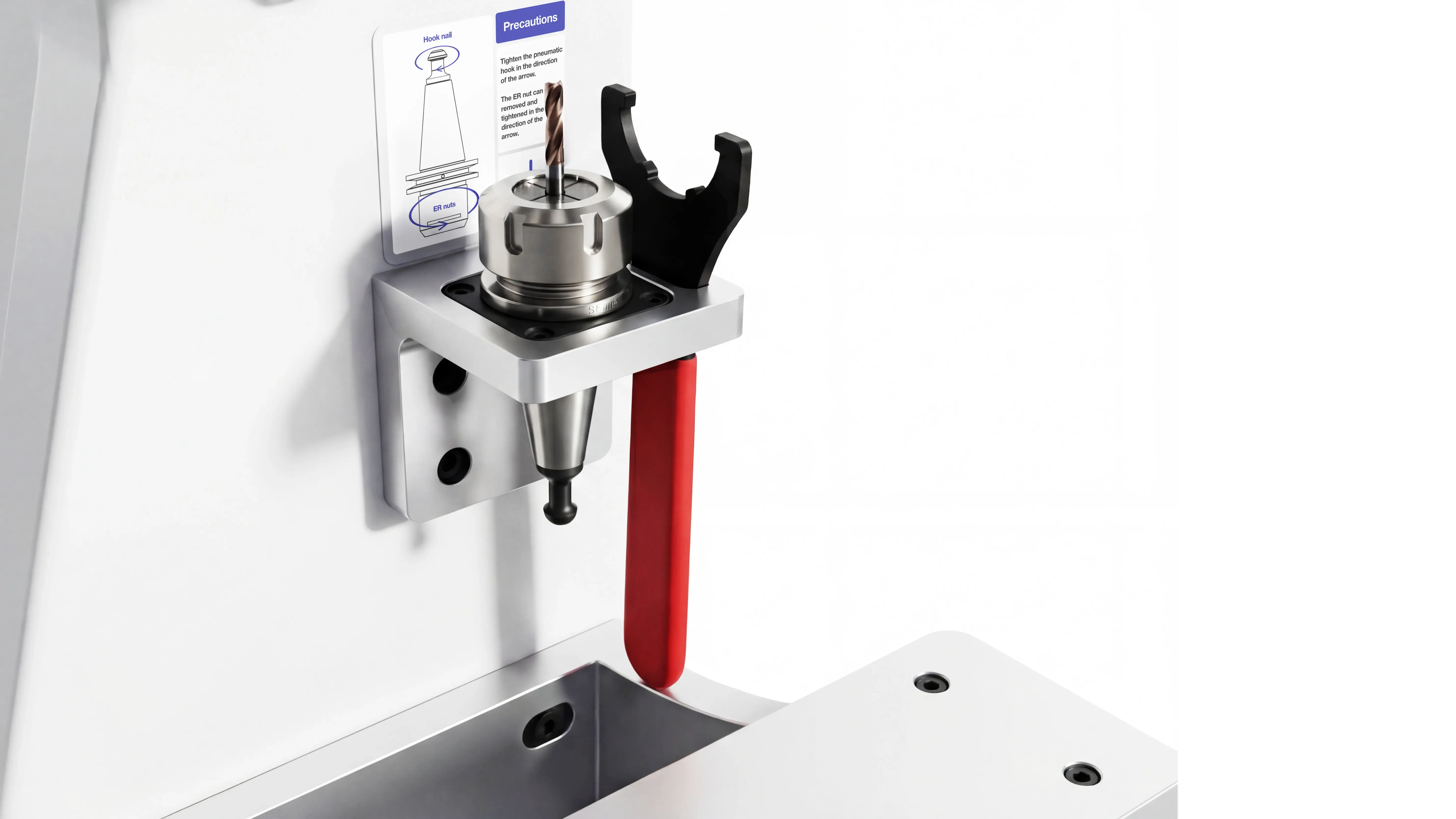

    ISO Tool Holder Disassembly Station

    • An auxiliary tool holder dismounting device is installed on the right side of the machine, specially used for removing ISO tool holders and taking out ER32 collets and cutting tools. The device is integrally formed from high-strength aluminum alloy with a sturdy structure, ensuring stability during disassembly without scratching or damaging the tool holder surface, effectively protecting the accuracy and appearance of the tool holders.
    • During operation, place the ISO tool holder into the special slot for fixing, and use an ER32 wrench to easily loosen and tighten the tool holder nut. The operation is simple and fast, greatly shortening tool change time and improving tool change efficiency.
    • This device is designed specifically for ISO tool holders with precise slot positioning and even force distribution during disassembly. It effectively prevents thread damage caused by uneven force, extends tool holder service life, and reduces tool replacement costs.
    ISO tool holder disassembly station for Spire 2130 ATC CNC router

    Engineered for Easy Operation: From Loading, Positioning to Machining

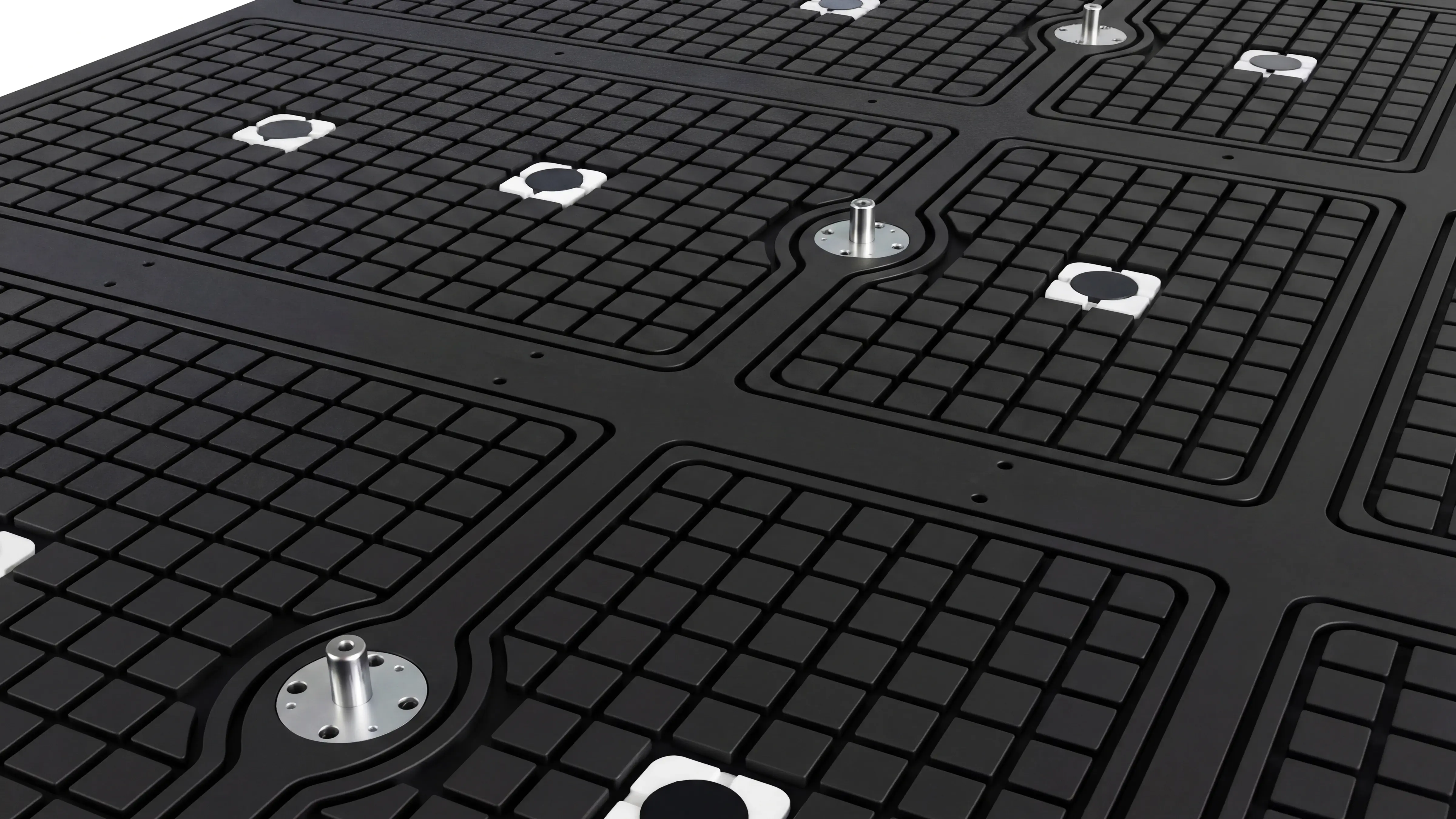

    Vacuum worktable for Spire 2130 linear ATC CNC wood router

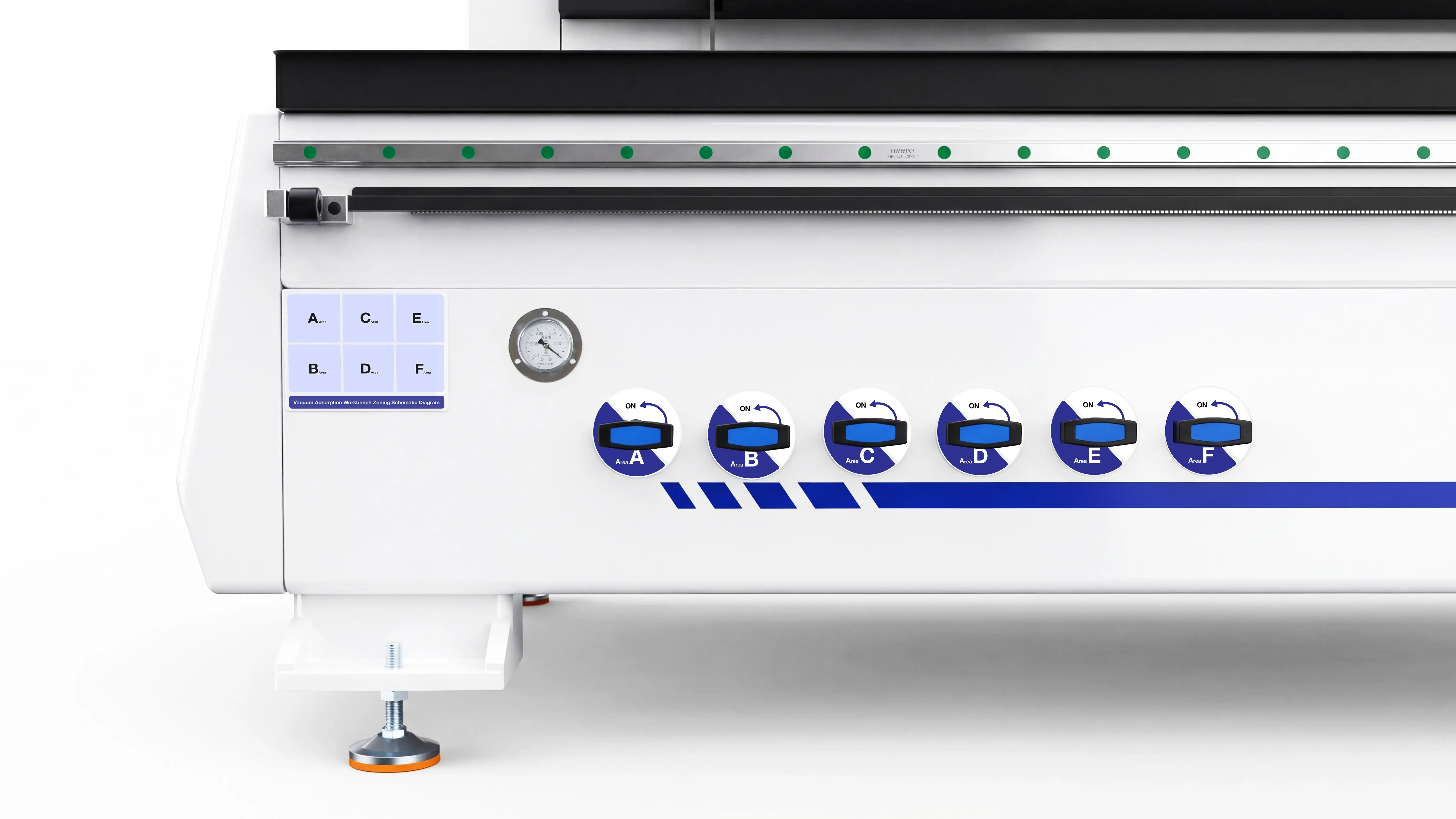

    Vacuum zone control switches for Spire 2130 linear ATC CNC wood router

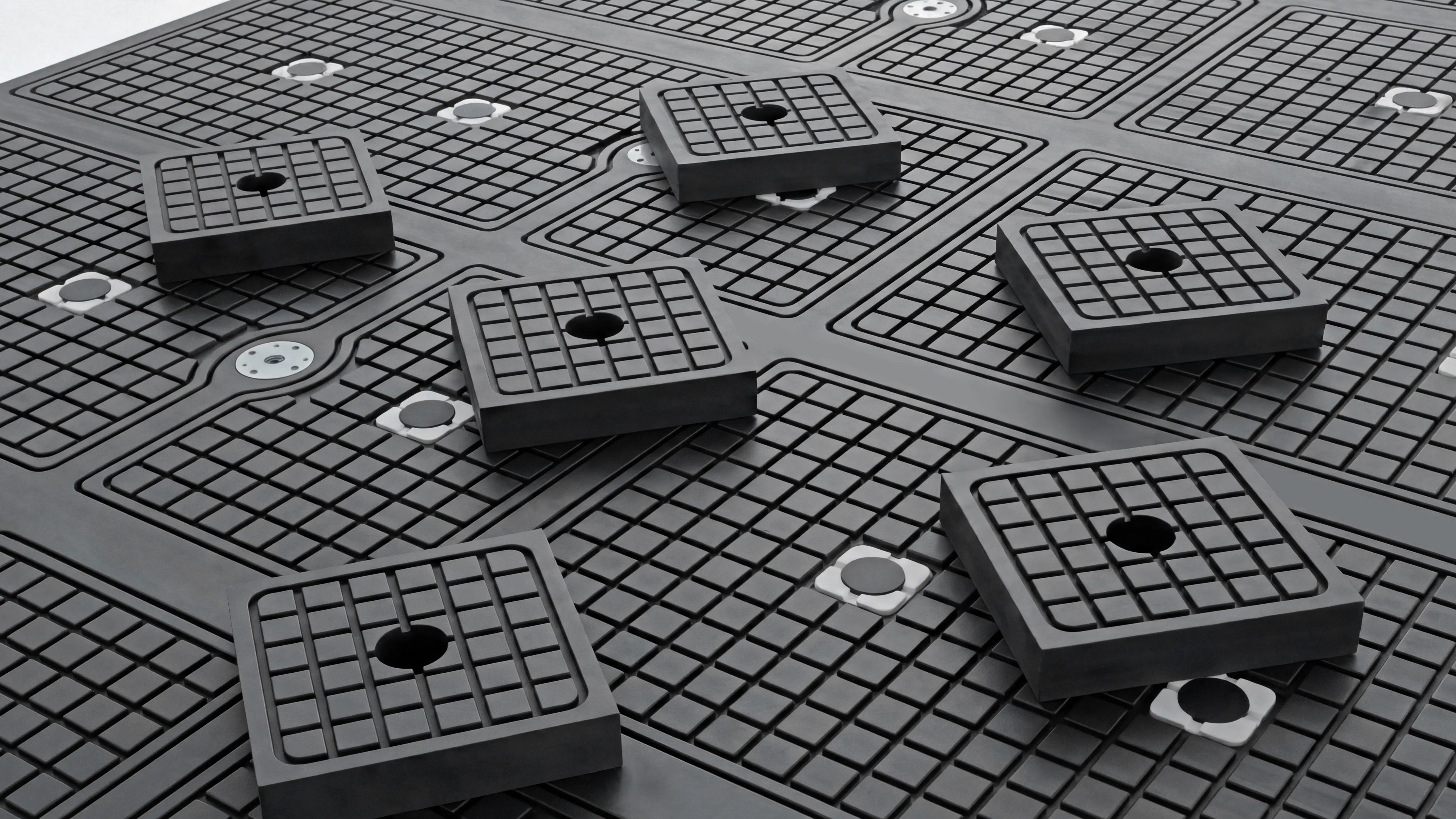

    Vacuum riser suction cups for Spire 2130 linear ATC CNC wood router

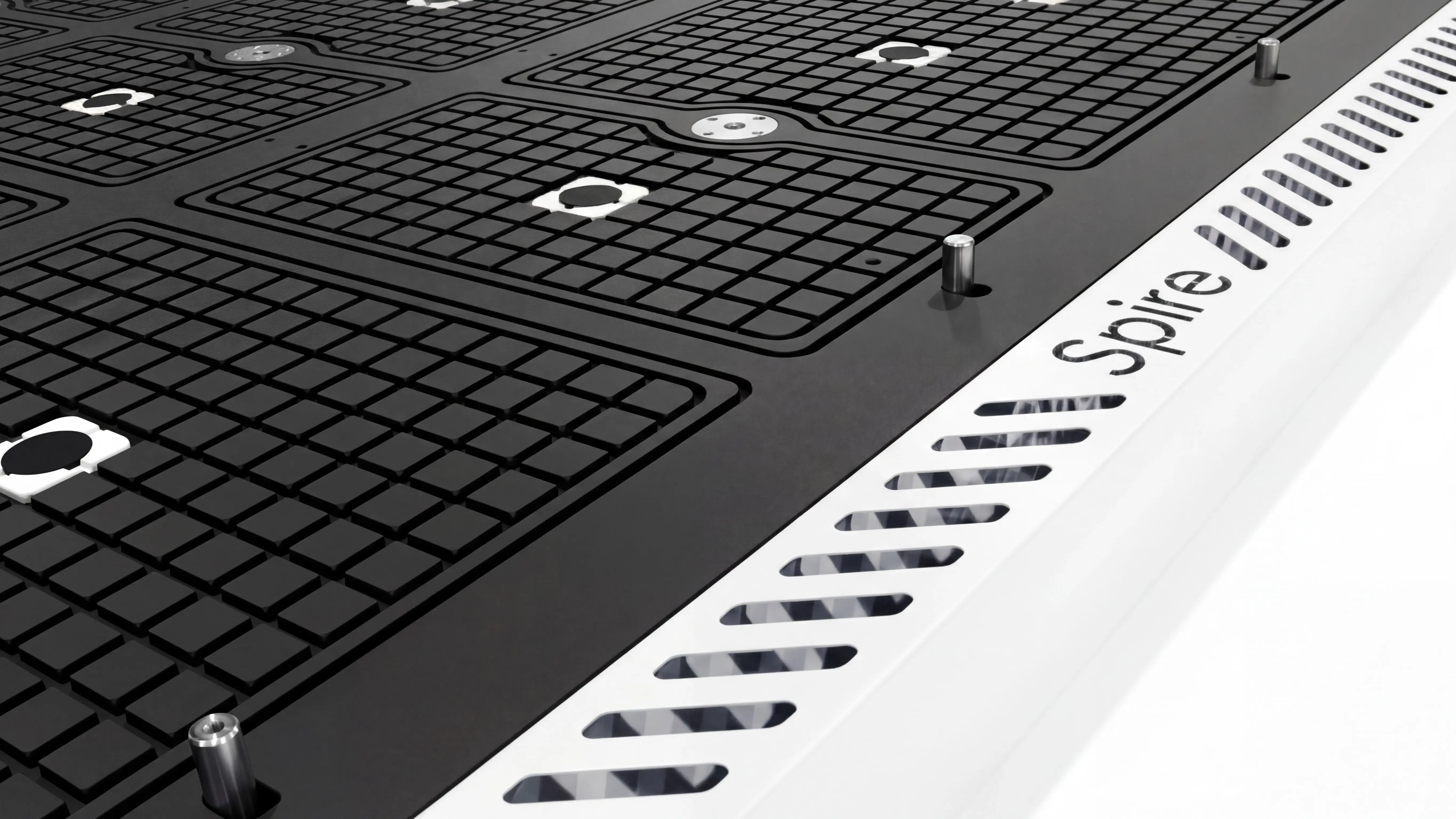

    4+3+4 positioning cylinders for Spire 2130 linear ATC CNC wood router
    Auxiliary loading rollers for Spire 2130 linear ATC CNC wood router
    Rear automatic panel pusher for Spire 2130 linear ATC CNC wood router
    Rear control switches for Spire 2130 linear ATC CNC wood router

    Vacuum Worktable

    Vacuum Zone Control Switches

    Vacuum Riser Suction Cups

    4+3+4 Positioning Cylinders

    Auxiliary Loading Rollers

    Rear Automatic Panel Pusher

    Rear Control Switches

    • The vacuum worktable has 15 zones and 25 holes, covered with rigid PVC sheets with strong load-bearing capacity, providing stable, even and strong adsorption for various panels to ensure no displacement during machining.
    • Specified zones can be activated according to panel size, shape and fixing position, concentrating negative pressure and enhancing adsorption force, flexibly adapting to large, small or special-shaped panels.
    • The worktable is equipped with 25 standard adsorption holes with reasonable layout and balanced force distribution. No manual clamping or fixtures are needed; panels can be fixed quickly with one click after loading, greatly shortening clamping time, improving efficiency and avoiding surface indentations.
    • The 15 vacuum zones are controlled by 6 switches using high-quality pure copper ball valves, which offer excellent sealing, smooth operation, rust resistance and long service life. Users can flexibly turn on or off the corresponding zones according to the actual panel size, avoiding wasted suction and making the holding force more concentrated.
    • A clear and intuitive vacuum gauge is installed beside the zone switches to display the real-time working negative pressure value. Operators can directly monitor the suction strength without extra tools, ensuring the adsorption force meets machining requirements.
    • A zone diagram is pasted next to the switches, clearly marking which zones each switch controls. This allows quick reference for operators, greatly simplifying operation and reducing the learning curve.
    • The machine comes with 6 vacuum riser suction cups to elevate panels and provide clearance for side machining. They can be quickly installed by placing them into the corresponding vacuum holes and removed directly without tools.
    • After installation, panels are firmly held by vacuum pressure. The elevated height allows the angle head to extend below the panel edge for side slots, lock holes, and hinge slots without hitting the worktable, protecting the machine.
    • Working with the vacuum system, the riser cups ensure stable, non-shifting fixation during side machining, greatly improving accuracy.
    • The CNC router is equipped with a panel positioning system consisting of positioning cylinders, which can quickly align panels to the desired machining position without manual adjustment. It saves labor and greatly improves finished product precision. For panels requiring symmetric machining on both sides, the system ensures consistent coordinate positioning, significantly improving quality while avoiding tedious manual measurement and repeated alignment.
    • 7 positioning cylinders are arranged in a 4+3 layout at the edge of the worktable. After the cylinders rise, the loading device pushes the panel against them to complete positioning rapidly. This layout fits all kinds of large panels up to 2100×3000mm, with fast and accurate positioning.
    • 4 extra independently controlled positioning cylinders are added in the middle of the worktable. When machining standard or small-sized panels, all 11 cylinders (7 outer + 4 middle) can be raised to work together, further enhancing positioning stability and applicability for small panels.
    • The rear of the machine bed is equipped with 30 auxiliary loading rollers (3 rows × 10 columns) with even distribution and stable load-bearing capacity. During loading, panels can be easily pushed forward on the rollers.
    • The rollers are made of nylon with moderate damping and smooth rolling, preventing damage to the panel surface. They provide multi-point uniform support for large and heavy panels, making loading easier and avoiding friction damage against the worktable.
    • Two rubber‑coated loading rollers are installed on the side of the worktable for side loading. The rubber coating increases friction while protecting panels from scratches.
    • This device is used to push finished panels out of the worktable. Mounted on the gantry, it is lifted and lowered by a pneumatic cylinder. After machining is completed, the control system automatically commands the cylinder to lower the device to the panel level, and the gantry then moves to push the panel out of the machining area.
    • The device can cooperate with a conveyor unloading table to realize automatic unloading. Panels are pushed onto the unloading platform, which conveys them to the downstream production line, forming a complete production flow.
    • Connected to the dust extraction system, the pusher activates automatic dust collection during movement. It performs secondary cleaning on the worktable, thoroughly removing residual wood chips, dust and debris to keep the table clean for the next production cycle.
    • The rear of the machine is equipped with a high‑quality external switch set including a start button and an emergency stop button. Both switches are Schneider brand, featuring long service life, high reliability, dust resistance and strong anti-interference ability, suitable for harsh industrial environments.
    • The rear switches have exactly the same functions as the main control panel. Operators can flexibly choose the control position according to their working location. After finishing loading, positioning and clamping at the rear, they can start machining immediately without walking back to the main panel, effectively reducing downtime and improving production efficiency.
    • The switch set is installed on the side of the rear bed, protected by an overhanging worktable above and dust baffles below. The switches are recessed to form an effective protective structure, preventing accidental activation of start or emergency stop, further improving operational safety and equipment reliability.

    Eco-Friendly Clean Solutions: High-Efficiency Dust Collector & Energy-Saving Vacuum Pump

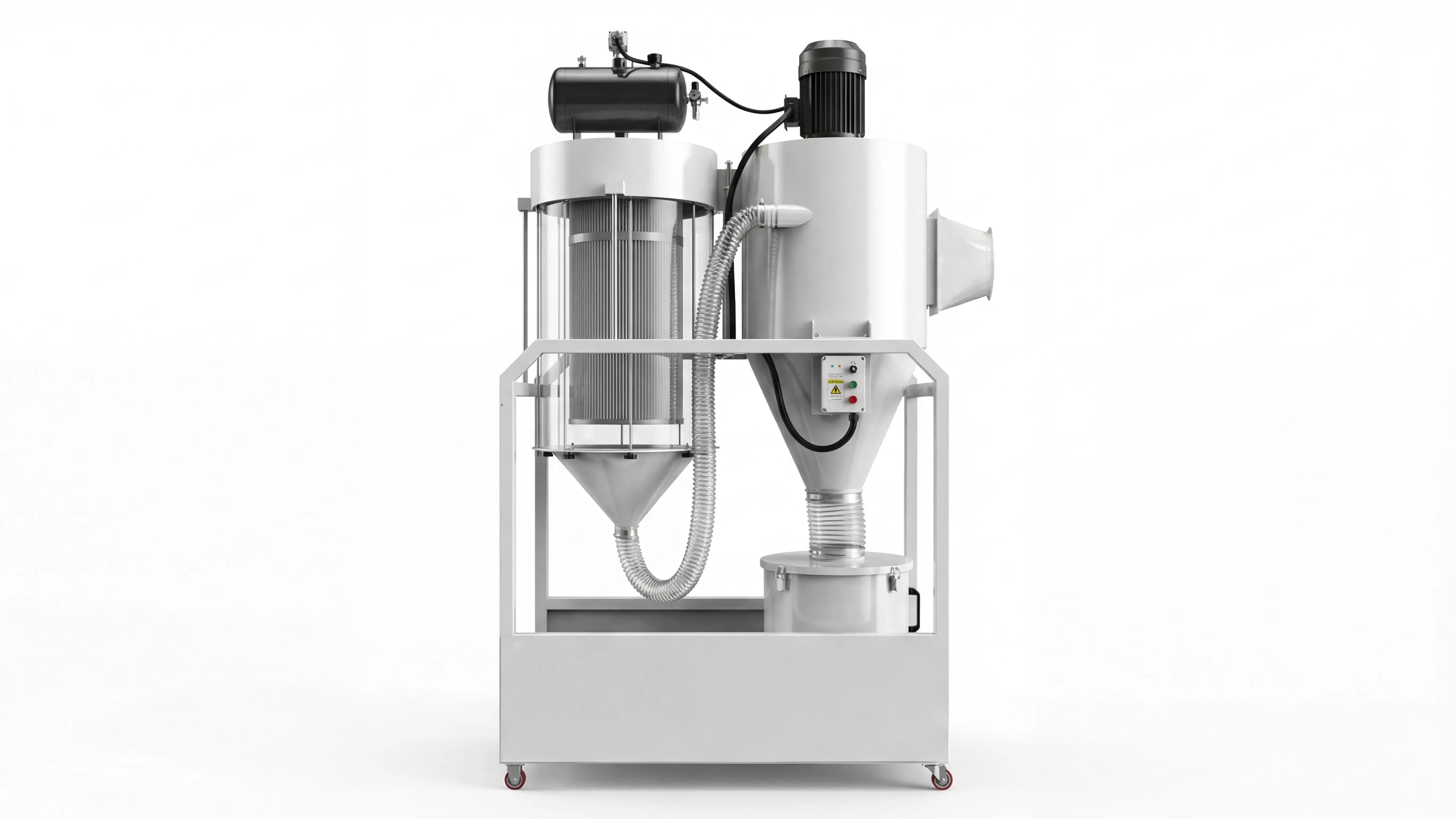

    7.5kW pulse cyclone dust collector dust collector of Spire 2130 ATC CNC router

    7.5kW Pulse Cyclone Dust Collector

    • The 2130 ATC CNC router is equipped with a 7.5kW high-power cyclone pulse dust collector. The cyclone suction ensures both large chips and fine dust are drawn in. Air containing dust enters through the inlet, spiraling down along the inner wall. Under centrifugal force, dust is thrown against the wall and falls into the collection drum by gravity.
    • The dust collector features an automatic pulse cleaning function that periodically back-blows the filter cartridge, preventing clogging and ensuring consistent, non-declining suction. No manual cleaning is required, significantly reducing maintenance workload and keeping the machine in efficient dust collection mode during prolonged continuous operation.
    • Equipped with a 150mm diameter hose directly connected to the HSD spindle, drilling unit, and pushing device, the system achieves high dust collection efficiency of up to 99%. This protects operator health while meeting environmental standards.
    Pulse cleaning
    Cyclone dust collection

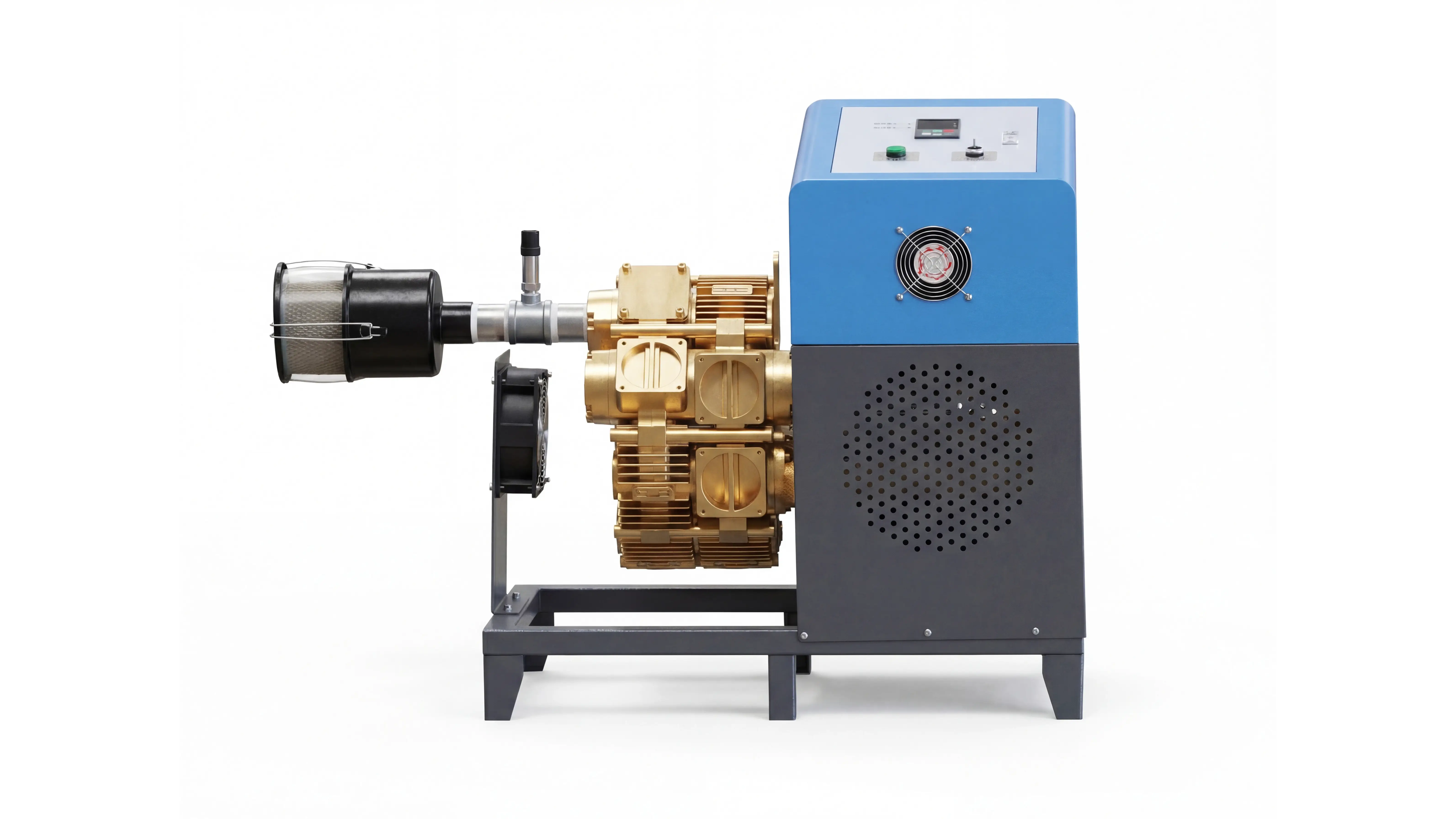

    11kW variable frequency vacuum pump of Spire 2130 ATC CNC wood router

    11kW High-Power Variable Frequency Constant Pressure Vacuum Pump

    • The 2130 ATC CNC router is equipped with an 11kW variable frequency constant pressure vacuum pump featuring intelligent frequency conversion technology. It automatically adjusts speed and power output according to vacuum adsorption demand, maintaining stable negative pressure and uniform suction while significantly reducing energy consumption and operating noise.
    • Adopts an oil‑free and water‑free design, ensuring clean and pollution‑free operation. Except for regular filter replacement, it requires almost no extra maintenance, greatly reducing operating and maintenance costs.
    • The vacuum pipe inlet is equipped with a dedicated filter, which effectively filters dust, wood chips and other impurities, preventing wear or blockage inside the pump chamber, protecting key components and significantly extending the service life of the vacuum pump.
    Variable Frequency
    -50KPa
    880m³/h

    Set It and Forget It: Automatic Centralized Lubrication

    Large-Capacity Automatic Lubrication System

    • This CNC router is equipped with a 1.5L large-capacity oil pot, one refill supports long-time continuous operation, greatly reducing manual lubrication frequency and maintenance workload, perfectly suitable for high-intensity, long-hour production in factories.
    • The single lubrication duration and interval can be custom-set based on actual working conditions, ensuring sufficient and even lubrication for linear guides, ball screws and other key transmission parts, guaranteeing transmission accuracy and operational stability.
    • The system performs lubrication automatically without manual supervision – truly "set it and forget it”. It effectively reduces friction and wear of moving parts, lowers running noise, improves machine stability, significantly extends service life, and greatly reduces later maintenance costs and failure rate.

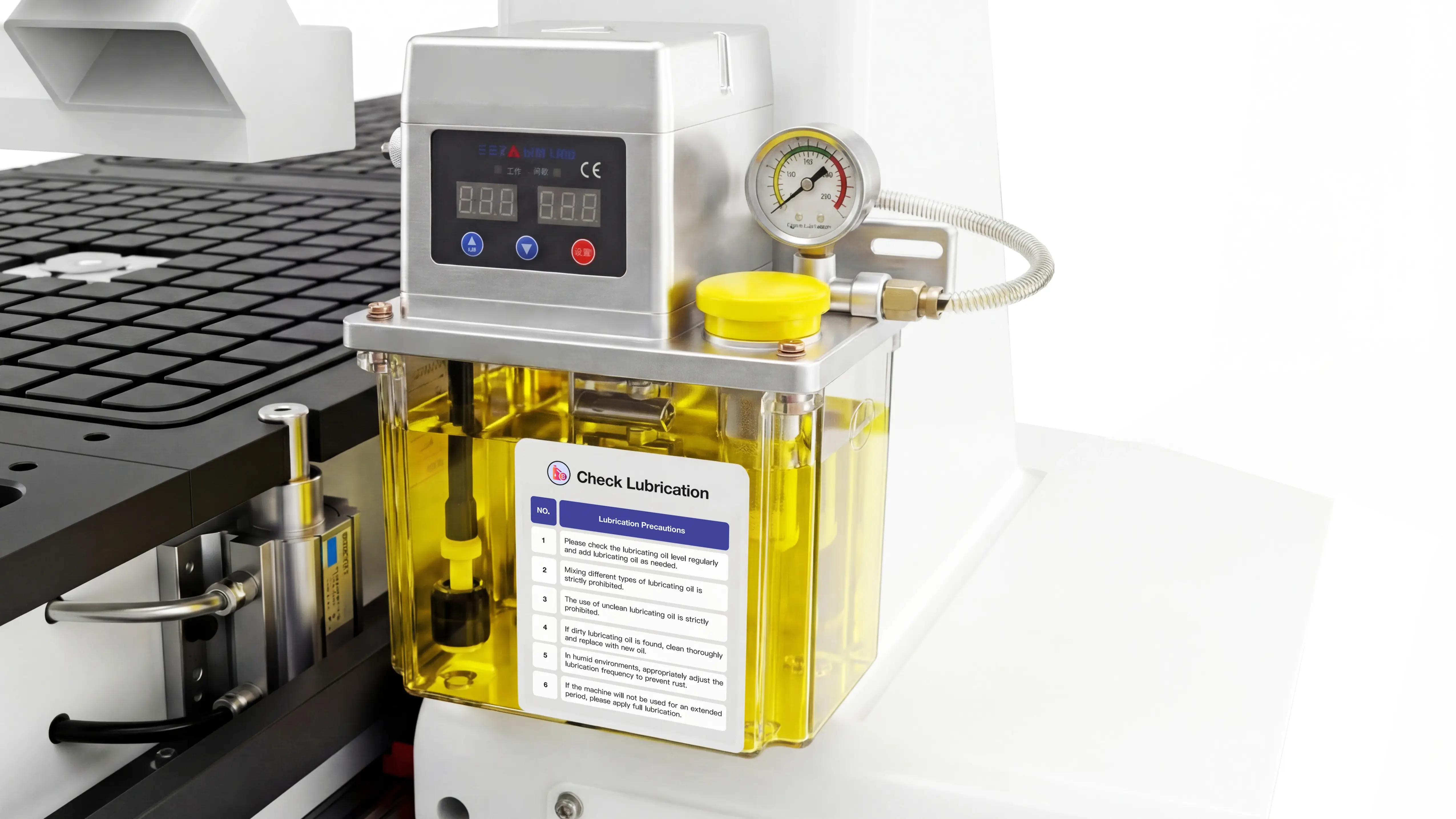

    Automatic lubrication system for Spire 2130 ATC CNC router

    One Machine, One Number, Exclusive Service for Worry-Free Use

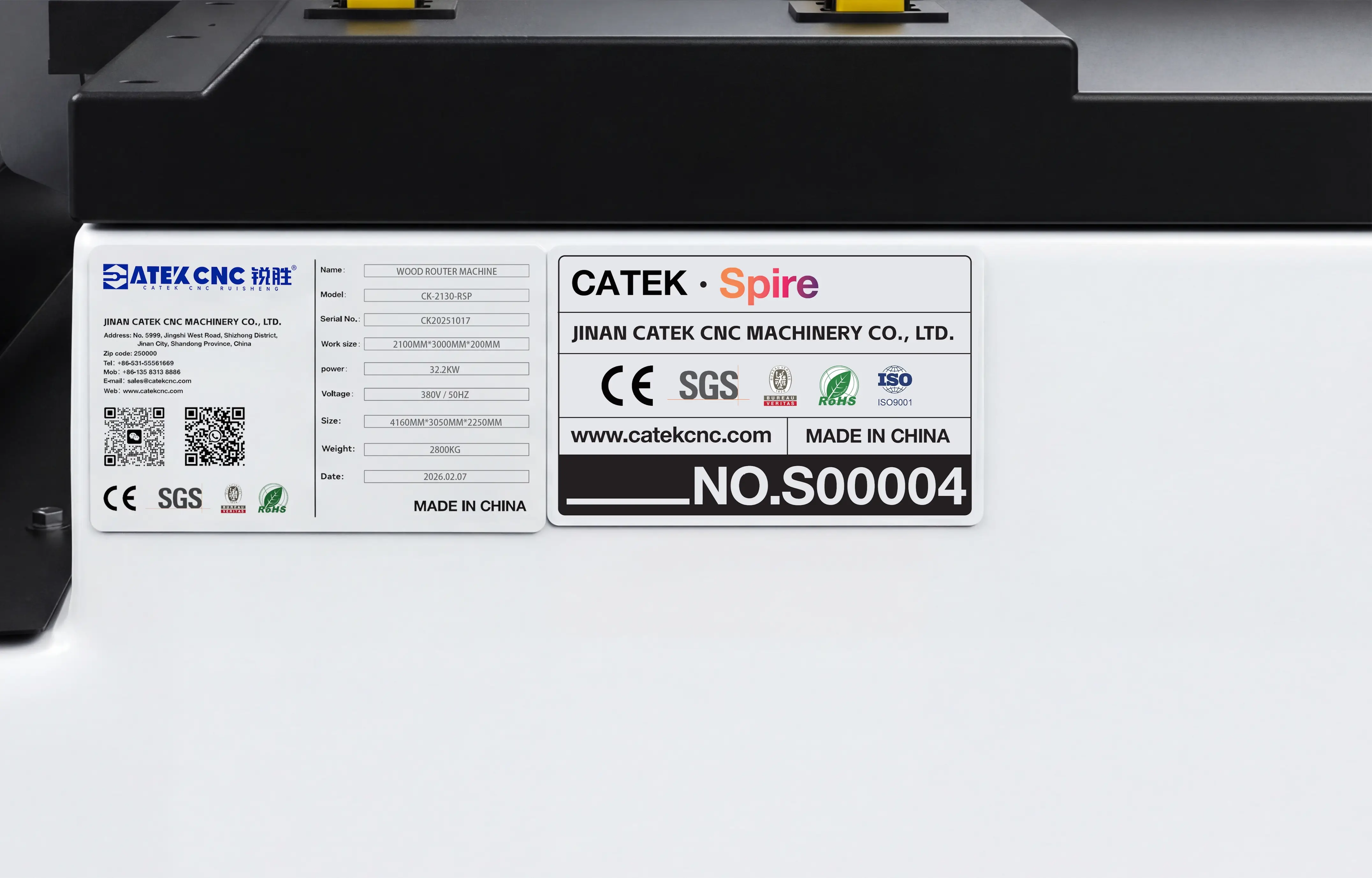

    Spire series exclusive serial number of Spire 2130 ATC CNC router

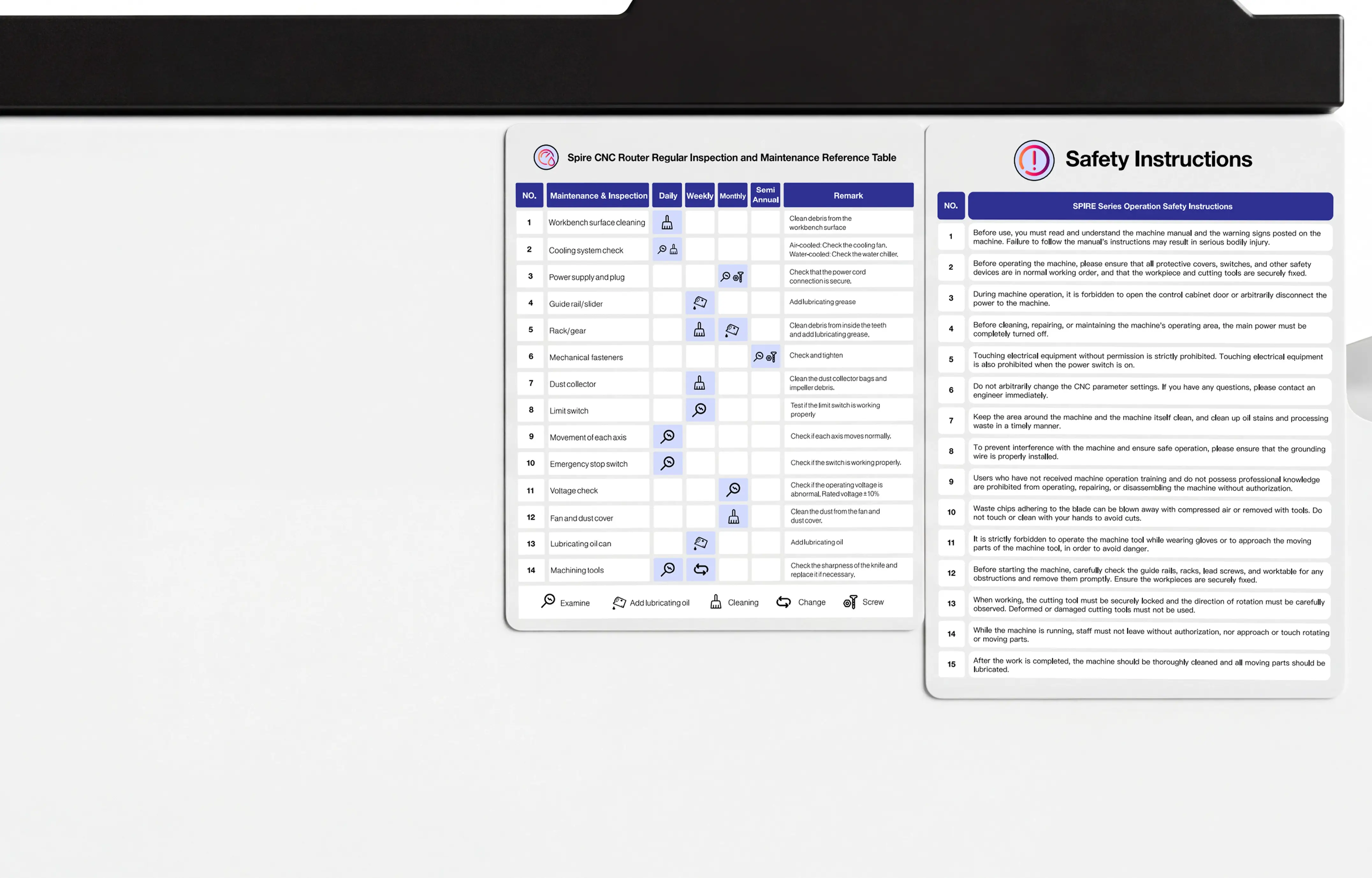

    Maintenance instructions of Spire 2130 ATC CNC router

    Spire Series Exclusive Machine ID & Service

    • A unique Spire Series CNC Router identification nameplate and serial number are attached to the rear of each machine. Every unit has an independent identity, enabling full traceable management from production, assembly and operation to after-sales support, ensuring accurate tracking and targeted service for each machine.
    • With the exclusive serial number, users enjoy an extra-long 5-year free warranty for the entire Spire machine, far exceeding industry standards. A dedicated after-sales team provides one-to-one service, including lifetime free maintenance for the machine and lifetime free upgrades for the supporting programming software. From hardware protection and software updates to troubleshooting and routine maintenance, we provide comprehensive, reliable support for stable machine operation.
    • Detailed operating precautions and maintenance guidelines are also posted on the rear of the machine, clearly marking the service intervals of all key components. Users can quickly master daily maintenance procedures to effectively extend service life, reduce failure rates, and keep the machine in optimal condition with high precision and efficiency.
    Quick guide for Spire 2130 ATC CNC router
    User manual for Spire 2130 ATC CNC router
    Warranty card for Spire 2130 ATC CNC router
    Machine certificate for Spire 2130 ATC CNC router
    Letter of thanks for Spire 2130 ATC CNC router

    Spire Series Complete Documentation Kit

    • The machine is delivered with a complete set of Spire Series documents, including Certificate of Conformity, Warranty Card, Warranty Terms, Quick Start Guide, User Manual, and Thank‑You Letter. The Certificate of Conformity clearly states the production date, machine serial number, and quality inspection results. The Warranty Card serves as valid proof for warranty services. The Warranty Terms specify all coverage details to provide full after-sales protection.
    • The Quick Start Guide covers the parts list, electrical connection, quick installation of the vacuum pump and dust collector, basic operation, and common troubleshooting. It helps users complete installation, power-on, and testing in the shortest time, greatly reducing the learning curve.
    • The User Manual provides detailed instructions on installation, operation, and maintenance, with complete explanations and illustrations for component structure, setup, operation, and care. It includes step-by-step beginner guides, full troubleshooting solutions, electrical diagrams, and key maintenance points, making machine operation simple and convenient.

    Open the Box, Start the Job: The Ultimate Spire Accessory Kit

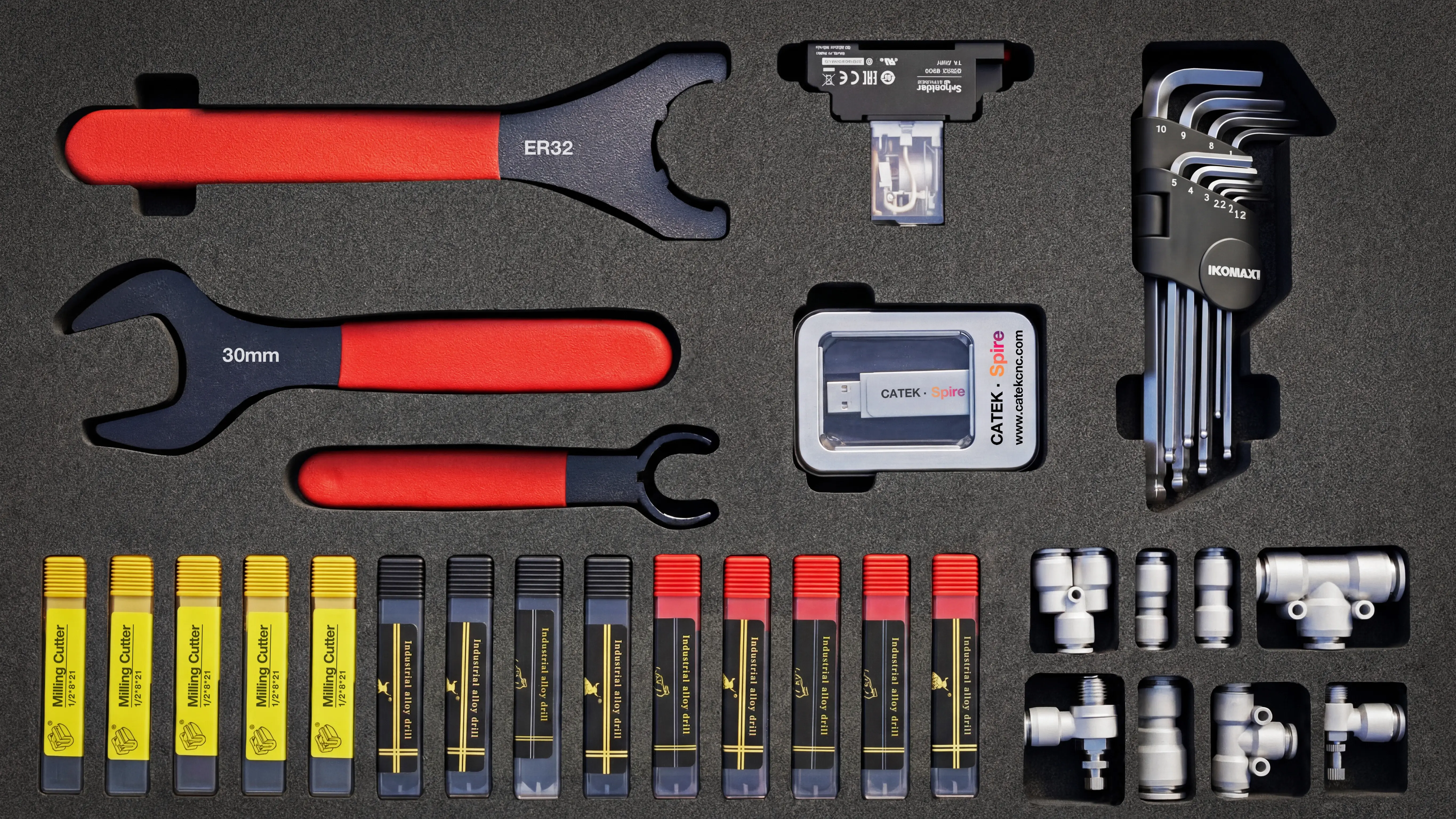

    Toolbox first layer of Spire 2130 ATC CNC router

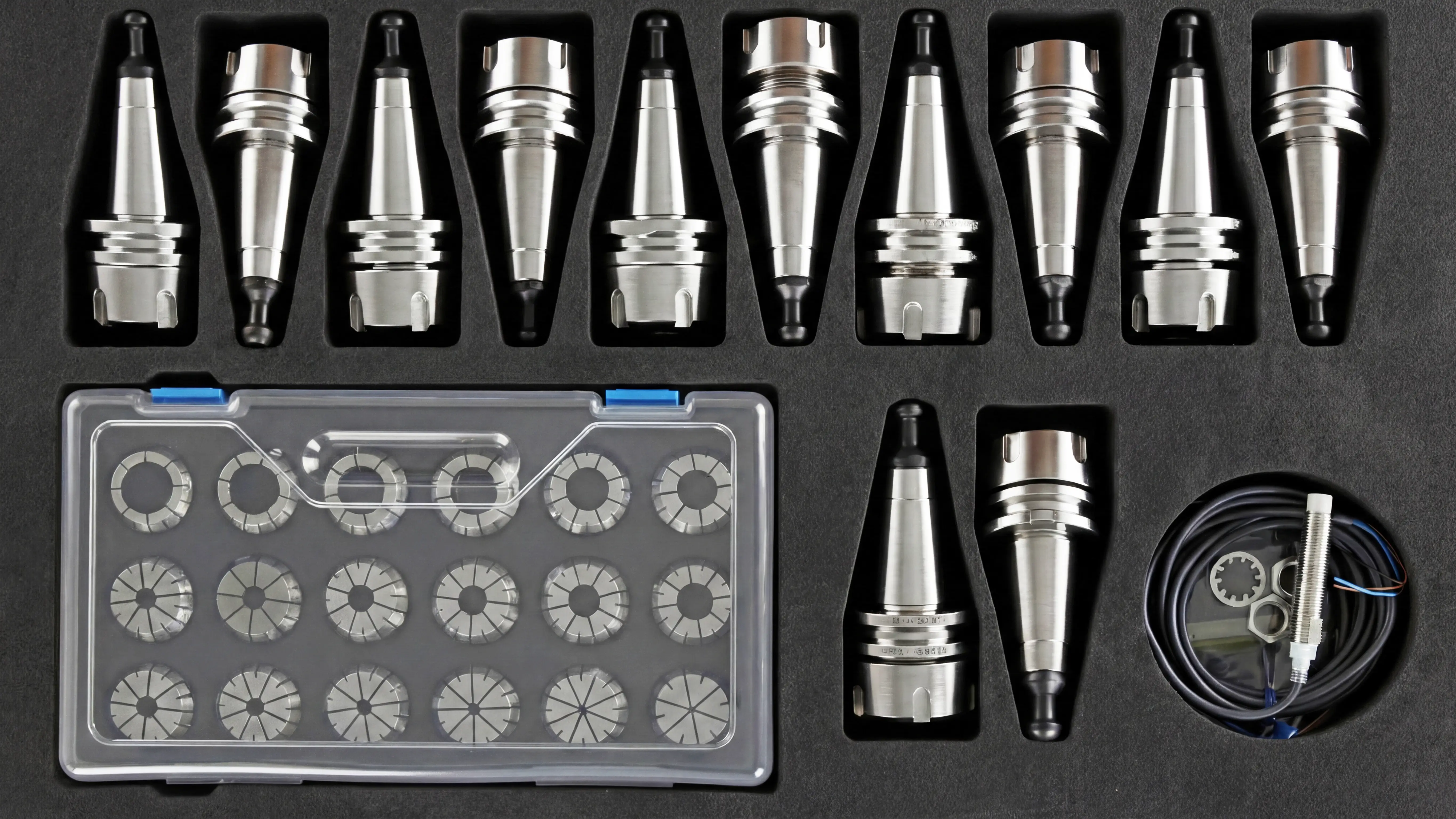

    Toolbox second layer of Spire 2130 ATC CNC router

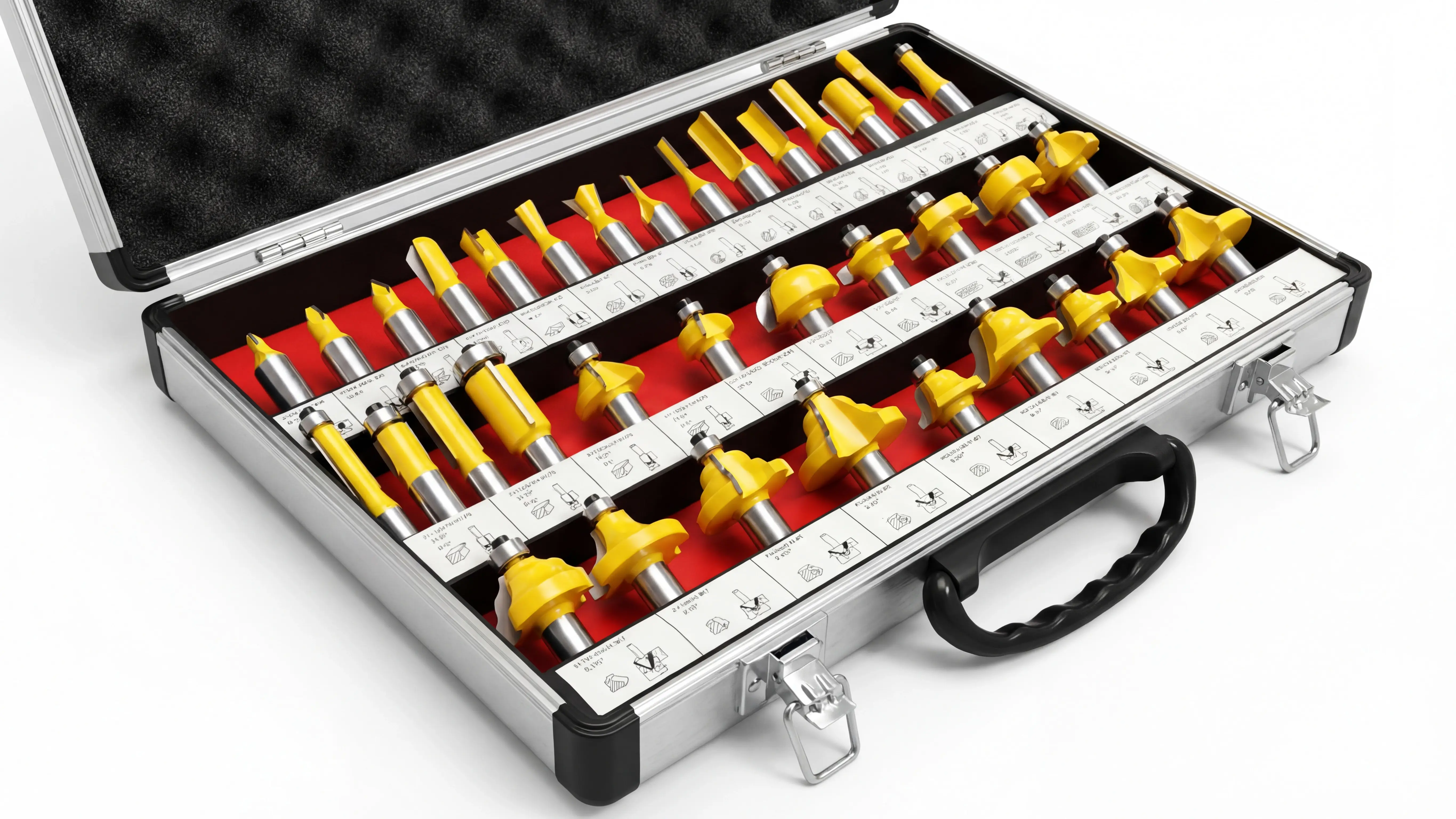

    Tool set of Spire 2130 ATC CNC router

    Free Accessory Kit for Diverse Machining Needs

    • The machine comes with a double-layer shockproof toolbox containing all necessary tools for installation, commissioning and daily maintenance, including hex key sets, spindle ER wrenches, angle head disassemble wrenches, and wearing parts such as spare air pipe fittings, relays and limit switches for quick maintenance and replacement.
    • A large-capacity data USB drive is also included, with a complete set of electronic documents: user manual, operation videos, test run drawings and software, allowing users to access support anytime for fast troubleshooting. The package also includes a 12-piece ISO tool holder set and an 18-piece AA-grade ER collet set with complete high-precision specifications to meet various tool clamping requirements.
    • A full set of machining tools is provided: 9 special drills for the drilling bank, 5 milling cutters for the angle head, and a 35-piece universal tool set including straight cutters, round-bottom cutters, ball nose cutters and slotting cutters, covering processes such as cutting, slotting, drilling and engraving to fully meet diverse machining needs.
    Toolbox First Layer Toolbox Second Layer Machining Tool Set Machining Tool Collet Set

    Applicable Industries

    Whether it's furniture making, wooden doors, wardrobes, cabinets, or wood carving, billboards, musical instruments, etc., The Spire can handle it all with ease.

    Technical Parameters

    Series
    CATEK · Spire
    Model
    CK-2130-RSP-TDM
    XYZ Working Travel
    2100*3000*200mm
    Bed
    Spire-specific machining center processed reinforced bed base, independent anti-interference control cabinet
    Gantry
    Reinforced aged steel gantry, heavy-duty stress-relieved steel beam
    Spindle Mounting Plate
    70mm thick hard-anodized aluminum mounting plate
    Spindle
    Italy HSD 9KW high-speed variable frequency air-cooled ATC spindle
    Spindle Speed
    Max speed 24000RPM
    Drilling Unit
    HQD 5+4 Vertical Drilling Bank
    Drilling Speed
    3200RPM
    Angle Head
    4-sided aggregate
    Variable Frequency Drive
    Taiwan Delta MS300 11KW VFD
    Tool Magazine
    12-tool linear tool magazine
    Tool Holder Type
    ISO30 ER32 φ20mm
    Tool Setting Method
    Automatic tool setter with blowing
    Drive Method
    Japan Yaskawa 1300W bus-type absolute servo motor * 4 (Z-axis brake motor)
    Reducer
    Japan Shimpo planetary gear reducer
    Table
    Vacuum table, 15 zones, 25 holes
    Transmission Method
    XY-axis high-precision ground helical rack and pinion + Z-axis high-precision ground TBI ball screw
    Guideways
    Taiwan HIWIN high-precision 30 linear guide rails / linear bearings
    Loading
    Rear auxiliary loading rollers + side double-rod auxiliary loading rollers
    Positioning
    4+3+4 positioning cylinders (pneumatic pop-up pin)
    Unloading
    Automatic finished-product pushing cylinder
    Dust Collection Method
    7.5KW pulse cyclone dust collector
    Vacuum Pump
    11KW oil-free constant-pressure variable-frequency vacuum pump
    Cables
    Pure copper high-flexibility bend-resistant cables
    Cable Carrier
    Fully enclosed reinforced cable carrier
    Electrical Components
    Schneider surge protector / phase sequence protector / AC contactor / 24V power supply / relay
    Control System
    Taiwan SYNTEC 60W-E CNC control system
    Handwheel
    Pulse electronic handwheel
    Lubrication System
    Centralized lubrication oil maintenance system
    Safety System
    Omron limit switch
    Working Voltage
    AC380V/50Hz
    Repeat Positioning Accuracy
    ±0.02mm
    Max. Movement Speed
    135,000mm/min
    Max. Processing Speed
    35,000mm/min
    Dimensions
    4160*3050*2250mm
    Weight
    2800kg

    * These parameters are specific to this CK-2130-RSP-TDM unit; configurations can be customized to meet specific requirements.

    Review

    0 Reviews of CK-2130-RSP-TDM.

    5.0
    Based on 0 reviews
    5
    0
    4
    0
    3
    0
    2
    0
    1
    0
    • All (0)
    • With Photos/Videos (0)
      No reviews yet
      View more reviews

      Enjoy Spire's exclusive top-level service

      Reliability, confidence, and ease

      • Five-years free warranty
        Five-years free warranty
        Enjoy Spire VIP service, providing free warranty and maintenance for the entire machine, bringing you a worry-free experience.
      • Exclusive private customer service and after-sales team
        Exclusive private customer service and after-sales team
        7*24 hours online service, on duty around the clock, to solve any problems for you as soon as possible.
      • The matching CNC software is given for free
        The matching CNC software is given for free
        Enjoy lifetime free software upgrades, supporting software updates and free programming services.

      Spire Exclusive

      VIP Customer Service

      Customer service
      Let Us Chat
      • Dedicated service butler

        Dedicated Service Butler

      • Professional question answers

        Professional Question Answers

      • 24-hour quick response

        24-Hour Quick Response

      • Dedicated after-sales team

        Dedicated After-Sales Team

      Contact Us

      Learn more about how the CATEK Spire Series can bring you more production efficiency.

      Submit
      Get quote
      CATEKCNC

      This website uses cookies

      We use cookies to personalise content and ads, to provide social media features and to analyse our traffic. We also share information about your use of our site with our social media, advertising and analytics partners who may combine it with other information that you’ve provided to them or that they’ve collected from your use of their services.

      You may modify your privacy preferences at any time by accessing the "Your Privacy Choices" link located at the bottom of the page.

      Show Details
