Best-Selling Industrial Three-Station Pool Cue Automatic Lathe

Overview of 3-Station Pool Cue Milling CNC Lathe

The three-station pool cue CNC woodworking lathe is a CNC machine designed specifically for pool cue production factories. It has the characteristics of fast processing speed, high production efficiency and high precision. It can produce three pool cues at a time, with a maximum processing length of 1500mm. It can directly mill split pool cues and integrated pool cues. When milling pool cues, the equipment can perform layered processing according to the characteristics of wood raw materials or products, and can also set the processing volume of each layer separately. Whether it is a pool cue shaft and butt of different lengths, or some cues with special shapes and segmented arcs, they can all be processed separately in layers. Its CNC system has a built-in storage function, which can store more than 5,000 pool cue processing drawings at one time. When facing processing requirements of different sizes, there is no need to connect to a computer, just select the drawings to be processed in the control system. In addition, the machine is connected to an external pulse handwheel, after the pool cue is processed, if the finished product needs to be slightly adjusted in size, the size adjustment can be easily completed by moving the X-axis and Z-axis of the machine using the pulse handwheel, which is very convenient to use. Of course, the CNC woodworking lathe for pool cues is not only used for pool cues processing, but can also be used to process crutches, canes, wooden handles, rolling pins, tapered round legs, shovel handles and other products.

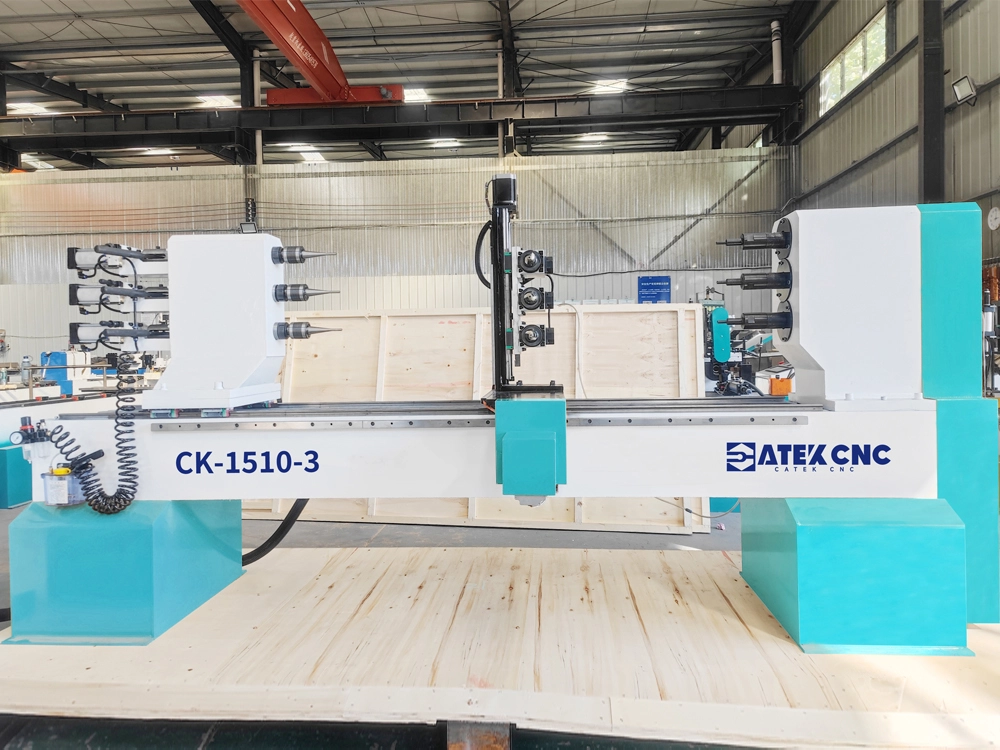

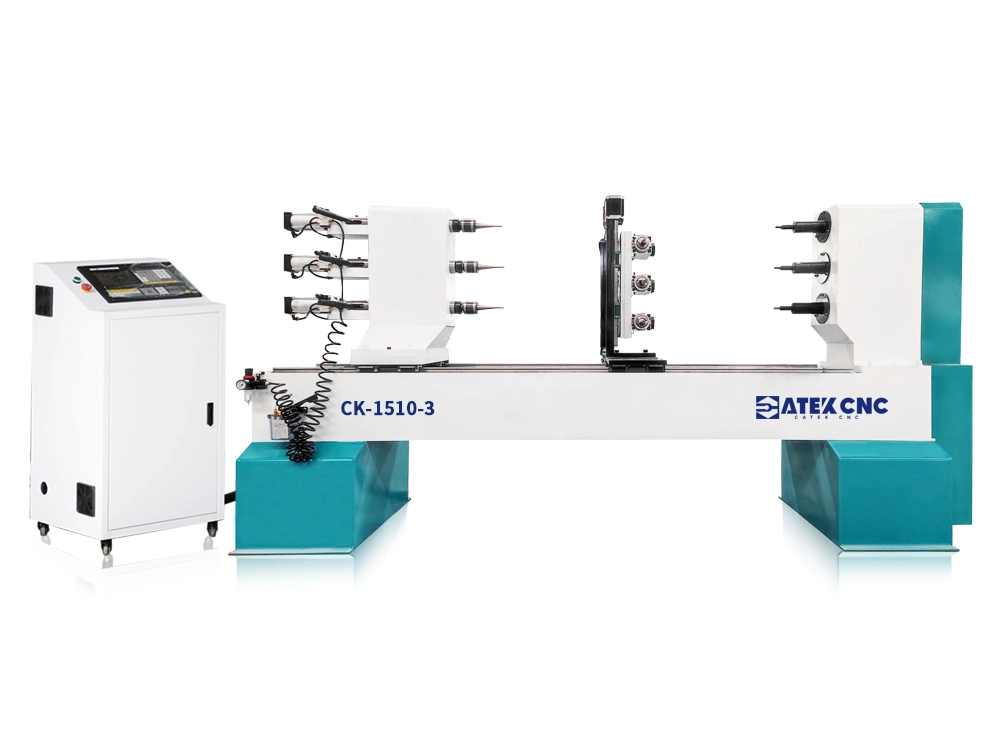

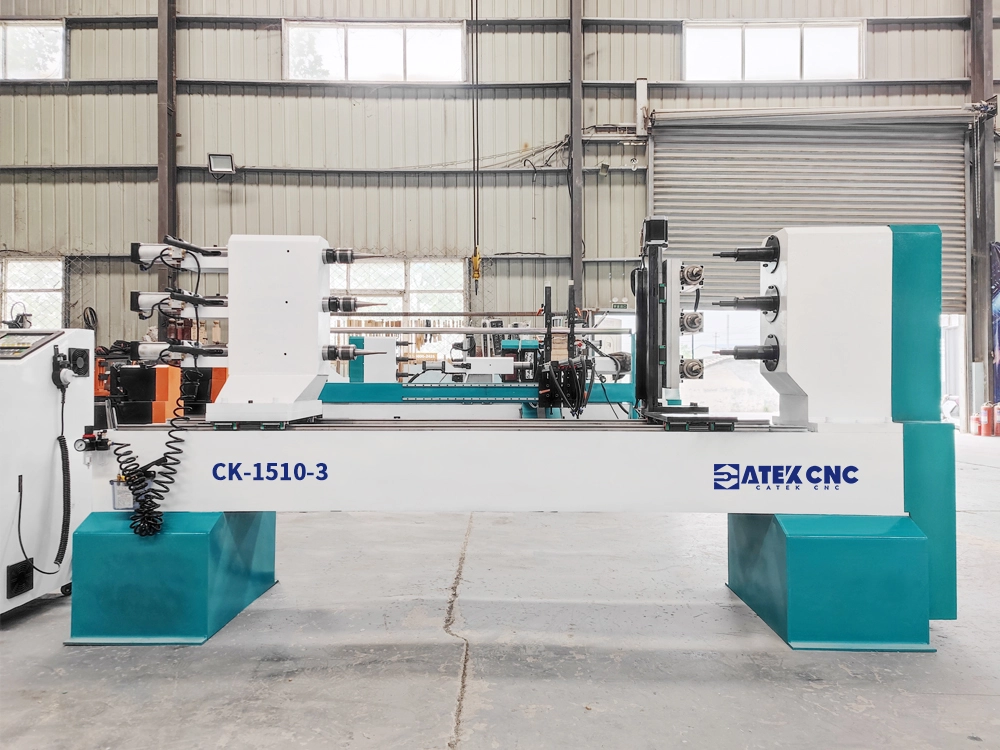

Advantages of CK-1510-3 Pool Cue CNC Lathe

• Suitable for processing all kinds of slender products, using high-speed variable frequency air-cooled spindle for rapid milling, smooth surface and high efficiency.
• Using gray cast iron bed, headstock, tailstock, the machine assembly accuracy is strictly controlled, and the processing product accuracy can be controlled within 0.05mm.
• The main motor uses a 5.5KW high-speed motor, equipped with an independent frequency converter, the speed can be adjusted within 3000 rpm according to products of different lengths, and it is easy to use.

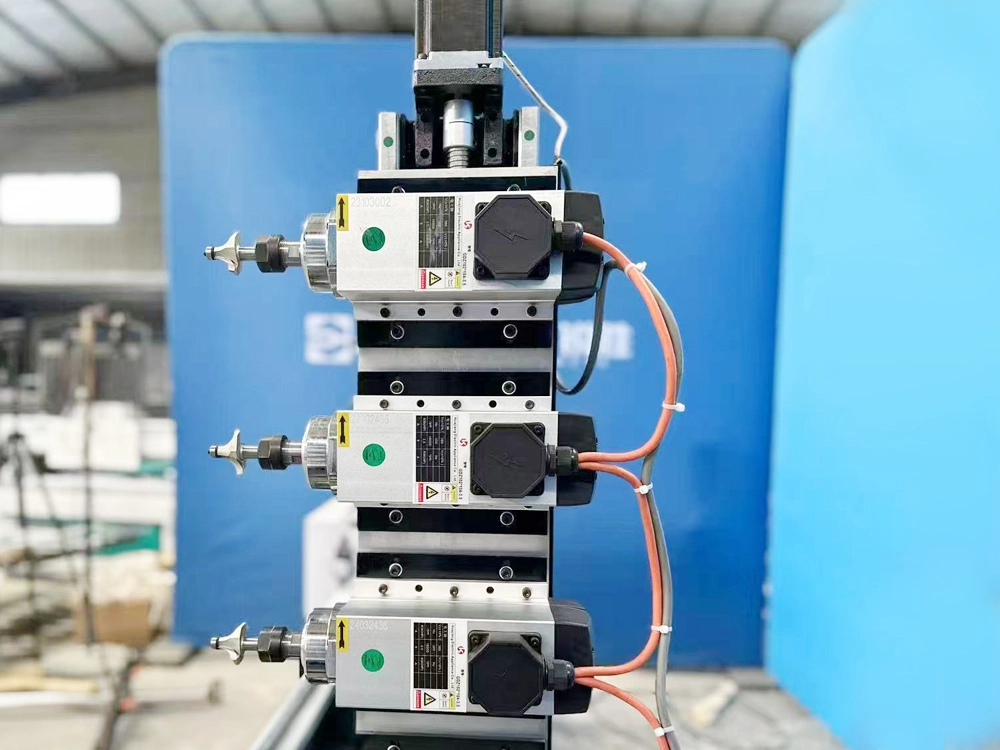

• Using three 3.5KW high-speed air-cooled spindles, the speed can reach up to 18000r/m during processing, and three blanks can be quickly processed at the same time.
• CK-1000TC dedicated CNC system, external pulse handwheel, can adjust the product to a small size within 0.01mm.
• The CNC system is easy to operate, and you only need to enter a simple G code to start milling, which is also very friendly to novices.
• The processing tools can be various cutters such as radius cutters, T-shaped cutters, small saw blades, etc., which can be replaced as needed.
• The tool position is equipped with a full-surround dust collection protective cover, which can automatically collect the wood chips generated by processing and effectively protect the safety of the staff.

Details of 3-Station CNC Wood Lathe for Pool Cues

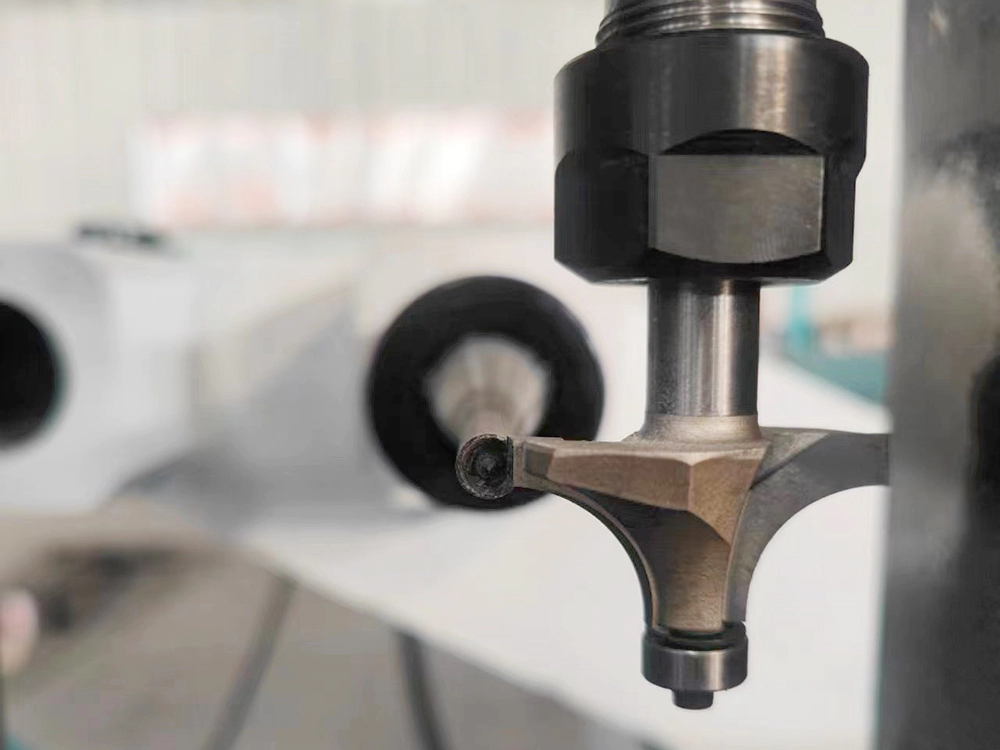

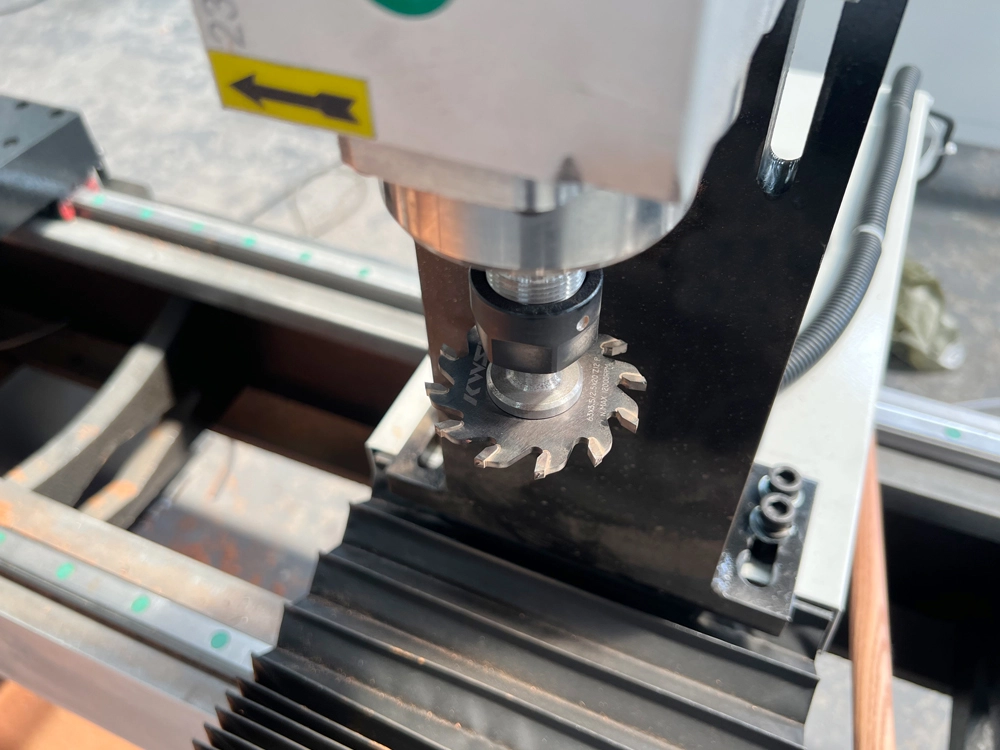

Processing tools

Cutters for pool cue milling, either radius cutter or saw blades can be clamped.

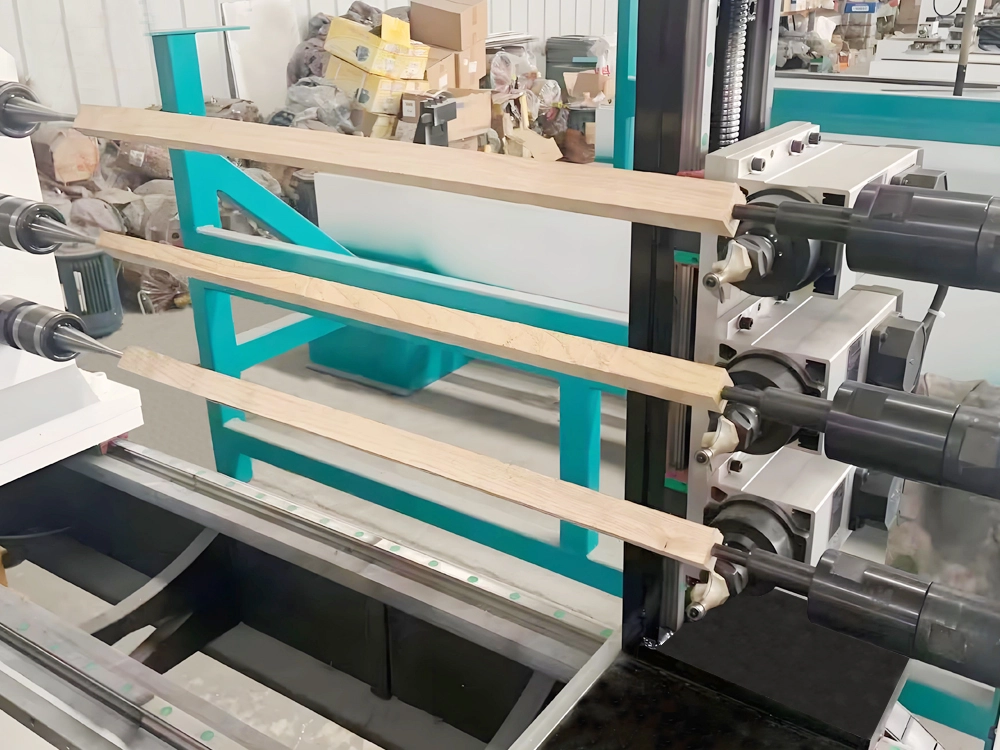

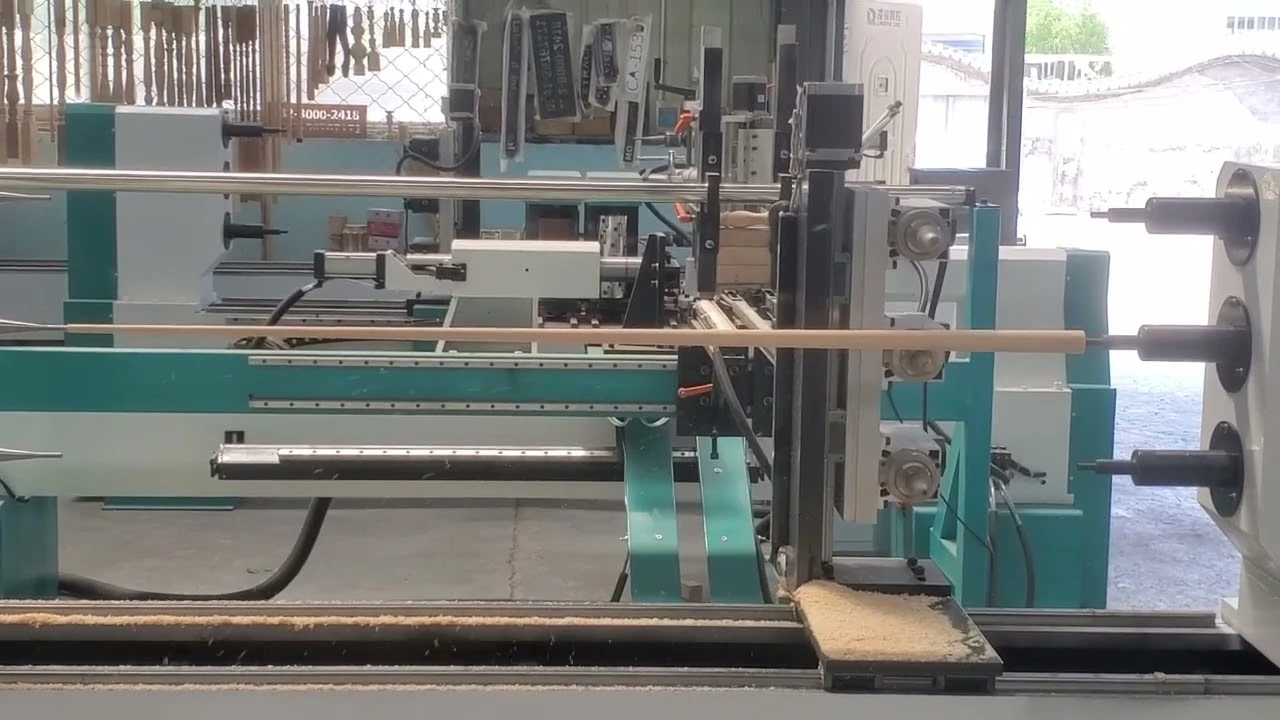

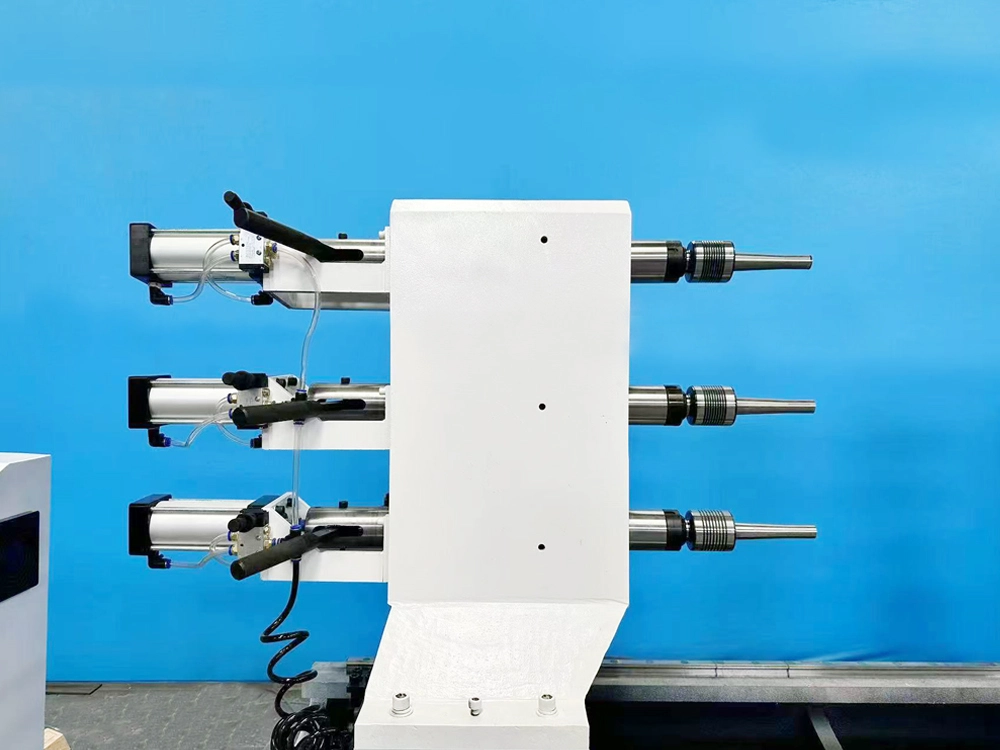

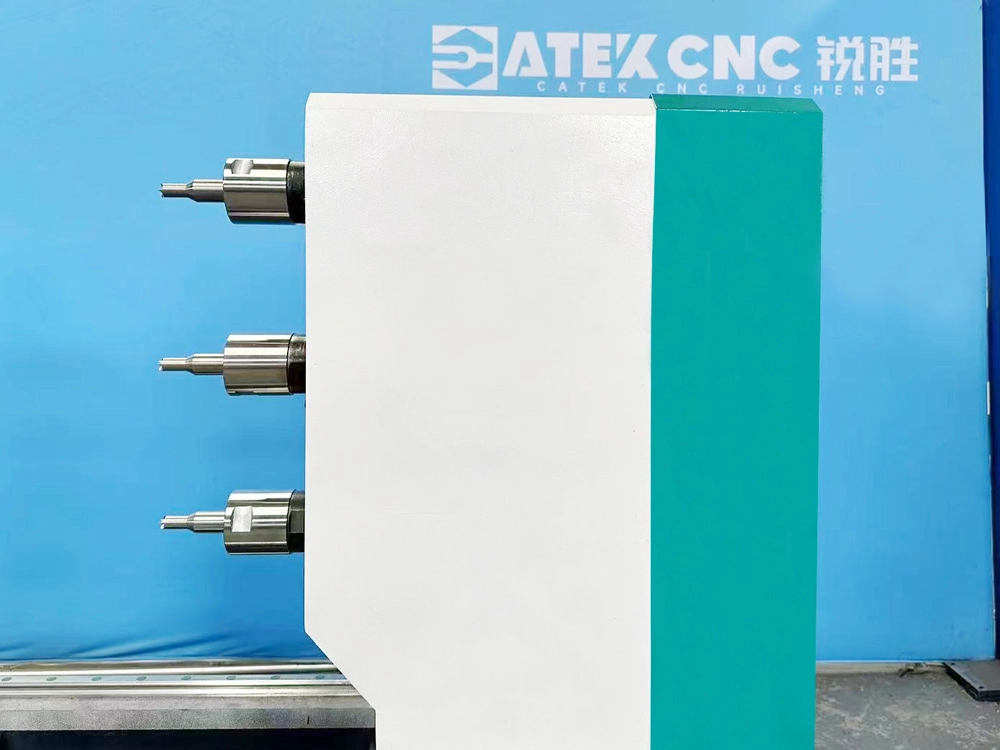

Three station design

Each station is equipped with an independent lathe center and milling spindle, which can process three products at a time.

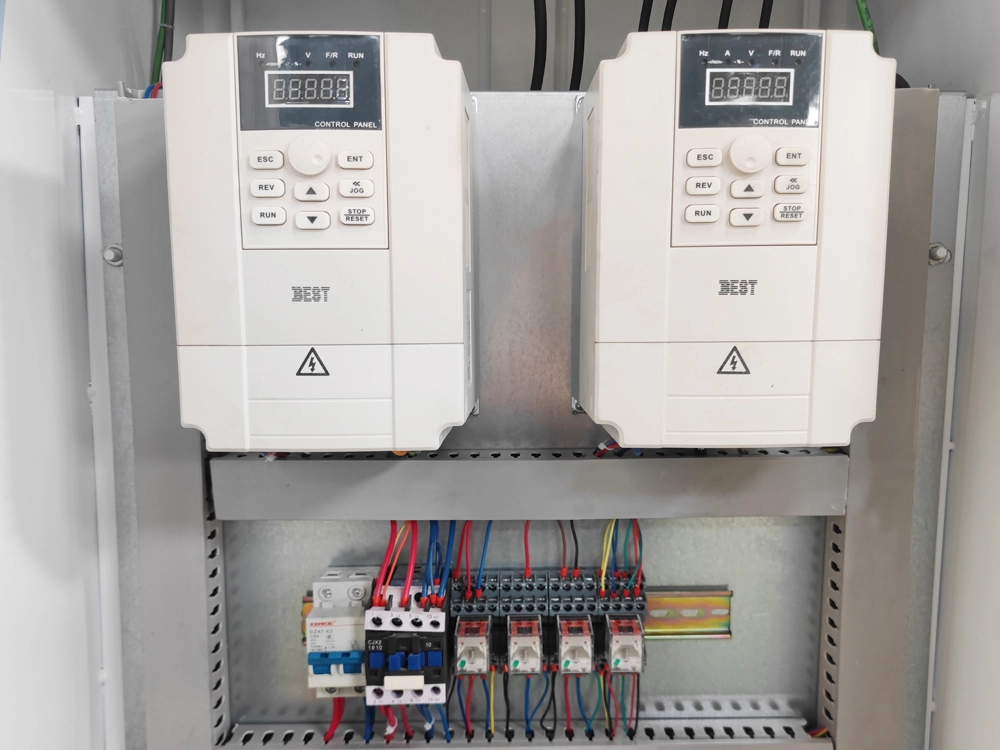

Drive system

Equipped with two high-power inverters, the main motor and air-cooled spindle motor are controlled separately, which is stable to use.

Technical Parameters of CNC Wood Lathe That Can Process Three Billiard Cues at a Time

Application Scope of 3-Station CNC Wood Lathe For Pool Cue

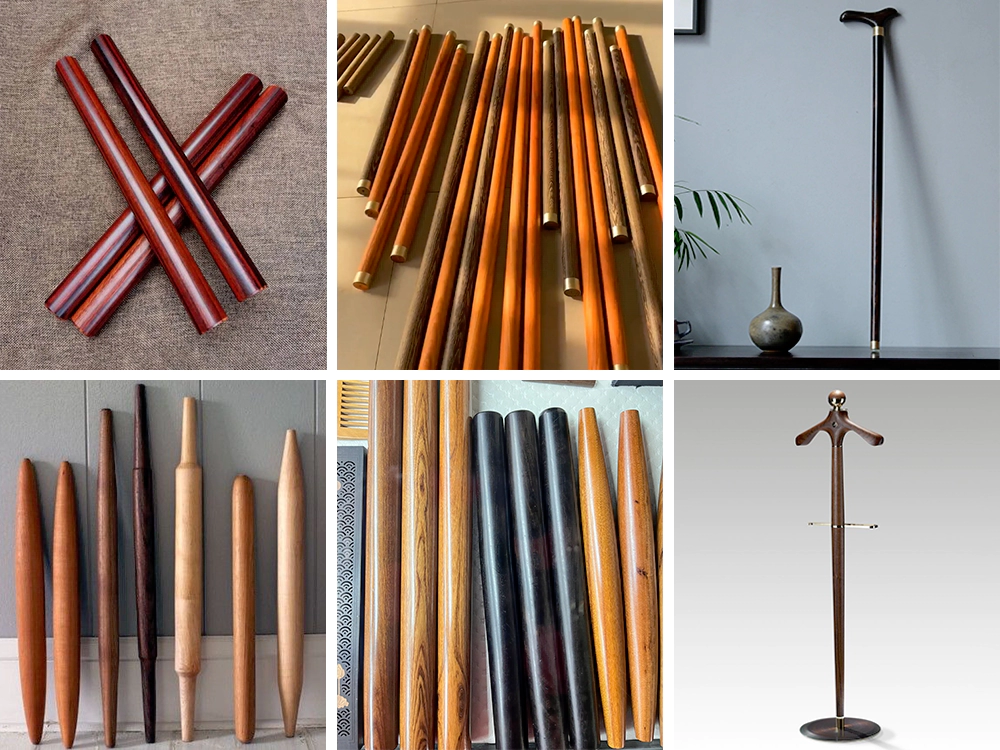

It can be used to process various types of products such as billiard cues, crutches, wooden sticks, wooden handles, canes, trekking poles, round table legs, round coat racks, tapered legs, etc. Moreover, it can be used not only to process wood, but also to process various synthetic materials such as plastics, acrylic, glass fiber, carbon fiber, resin, etc., with a wide range of applications.

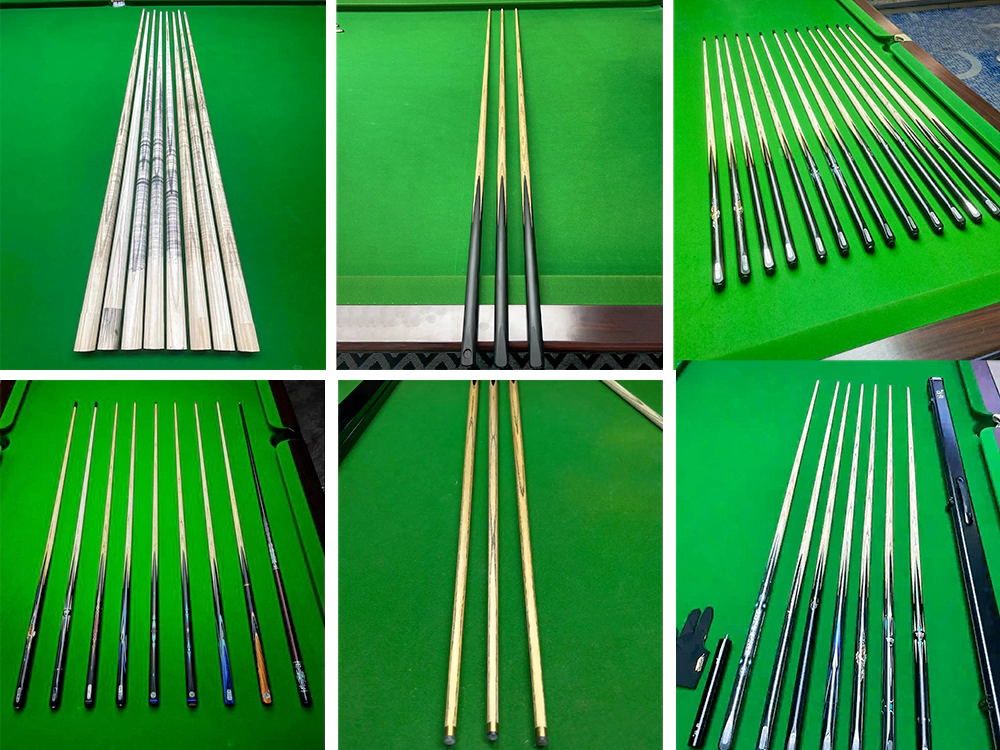

Types of pool cues that can be processed: Chinese black eight-ball cue, American eight-ball cue, nine-ball cue, snooker cue, big-head cue, small-head cue, English cue, American cue, half-cue, three-quarter-cue, pool cue with extended handle, etc.

The Following Are the Processable Products of 3-Station Wood Lathe For Pool Cue
