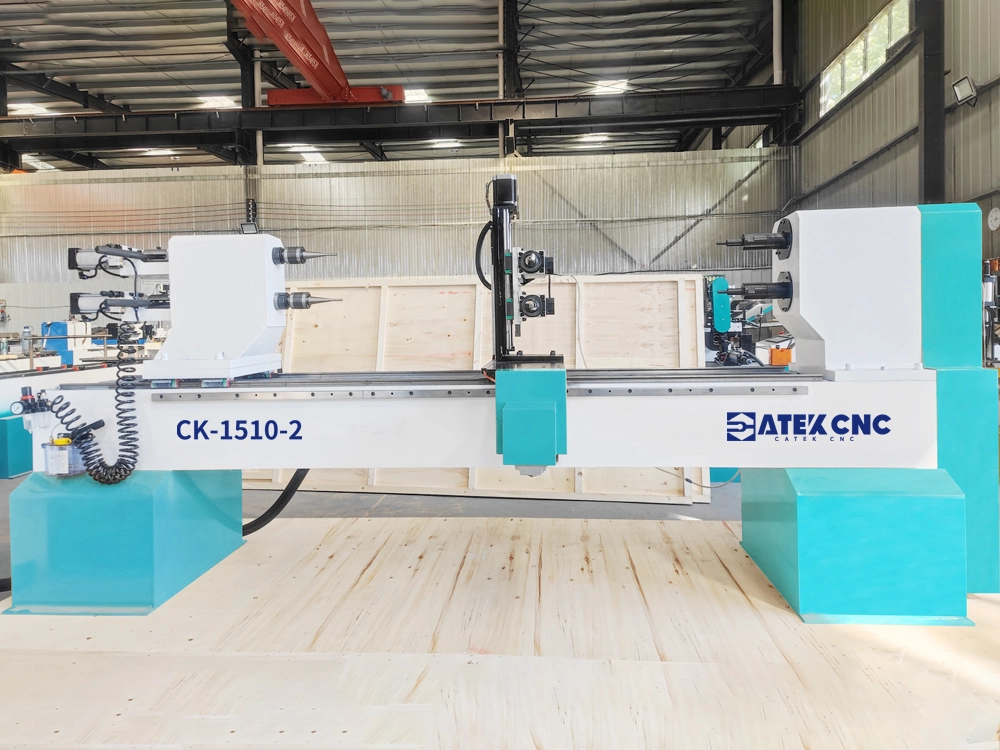

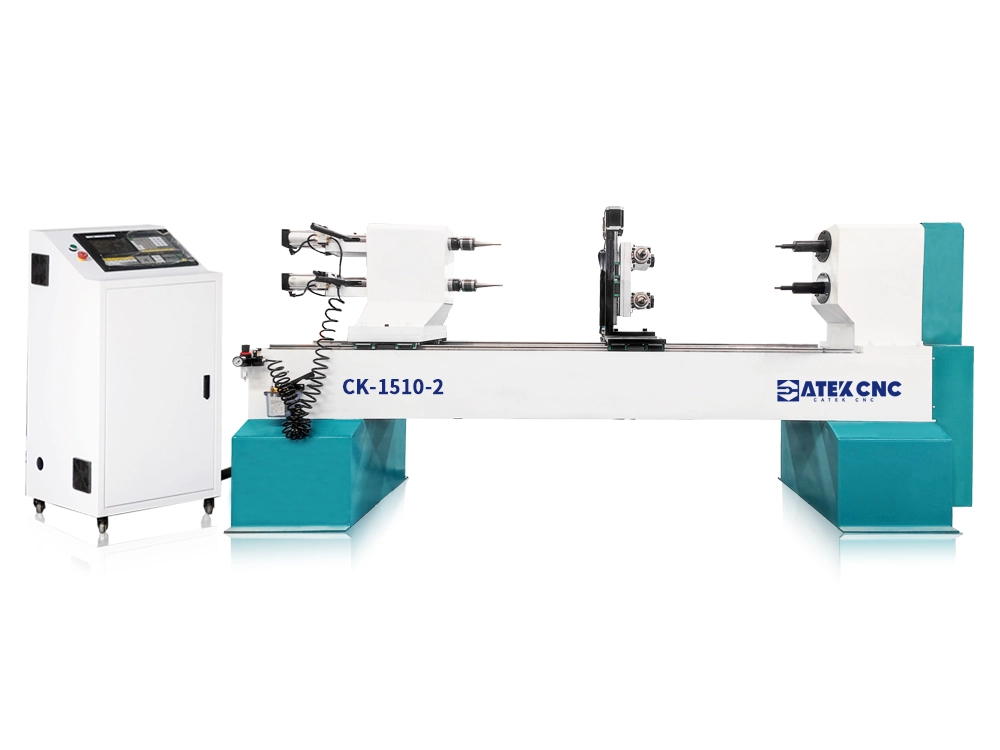

2-Station Tapering Machine, Process Two Pool Cues at Once

CK-1510-2 pool cue CNC wood lathe is specially designed for pool cues, can be used for various types of pool cues machining, standard machining length of 1500mm, equipped with two machining stations, can complete the machining of two pool cues at a time, the use of two rotational speed of up to 18,000rpm air-cooled spindle clamping milling cutter for high-speed milling of blanks, with high precision, high efficiency features, can meet the requirements of dimensional accuracy and surface quality strict requirements, the accuracy can be controlled within ± 0.01mm. Professional grade pool cue CNC wood lathe using cnc numerical control system, full English interface, easy to operate, the use of g-code control machine for processing, according to the processing needs of the free adjustment of milling feed and processing speed, etc., in addition to pool cues, can also be used for processing crutches, sticks, shovels, agricultural implements handles and so on.

Advantages of CNC Wood Lathes That Can Process Two Pool Cues at a Time

• Two stations, milling two blanks at a time, double productivity, can use a single station production and processing can also be used at the same time two stations.
• Processing length of 1500mm, the length can be adjusted within 1500mm according to processing needs, high flexibility.
• Simple operation, only need to enter a few lines of simple G code to start processing, novice can also be easily set up.
• Flexible processing mode, through the parameter setting can adjust the processing speed, but also can set the layered processing, both can be completed at a time processing, but also can carry out a number of layered milling.
• Each station is controlled by an independent cylinder, which can control the clamping and fixing of materials individually.
• Using high-precision helical tooth rack and gear, fast moving speed and high positioning accuracy.
• 3.5kw air-cooled spindle, fast rotating speed, can quickly milling material processing, whether it is soft or hard material can be easily dealt with.
• The standard Dust-absorbing shield, fully encircling the tool, sucking up the wood chips of the processed products, in line with environmental protection requirements.
• Can manually edit the code, at the same time compatible with cad/cam type software, support dxf, nc, txt, dbf and other files.

Details of 2-Station Pool Cue Wood Lathe

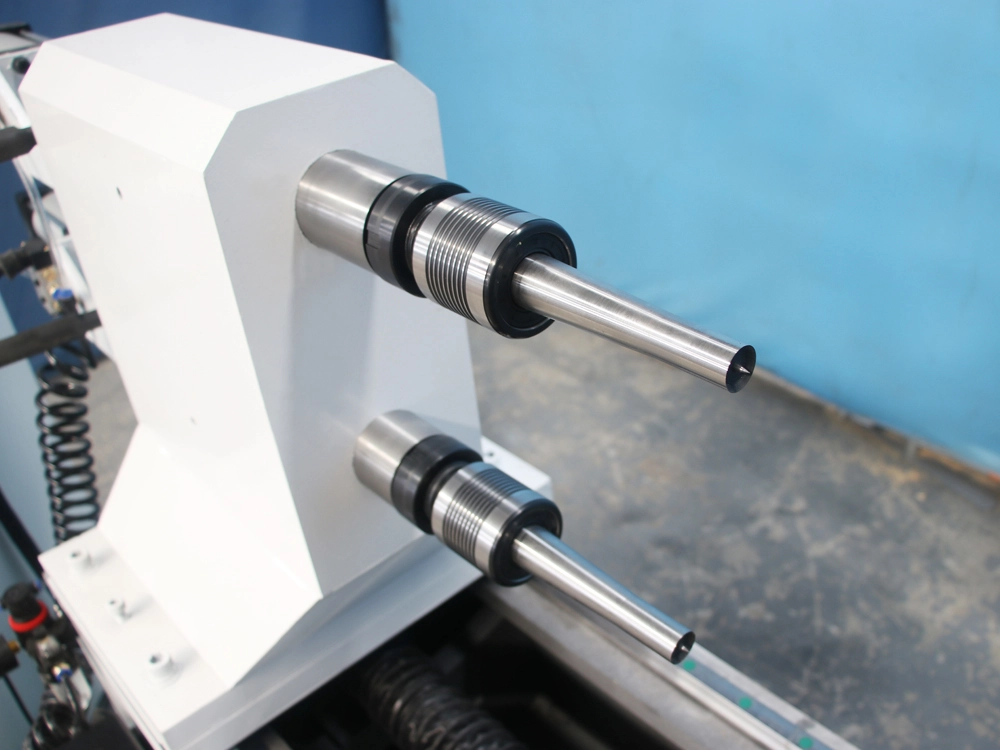

Two-station design

Each station is equipped with an independent lathe center and milling spindle, which can process two identical products at one time.

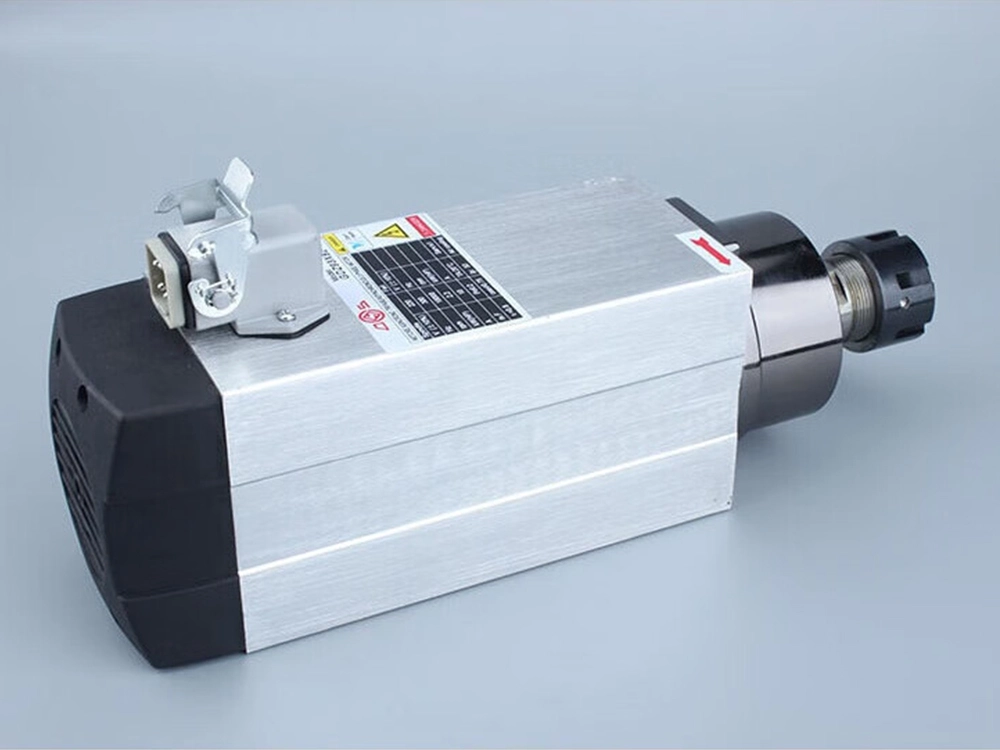

High speed air-cooled spindle

Two 3.5KW high-speed air-cooled spindles, four ceramic bearing structures, high-speed and stable rotation, capable of 24-hour processing.

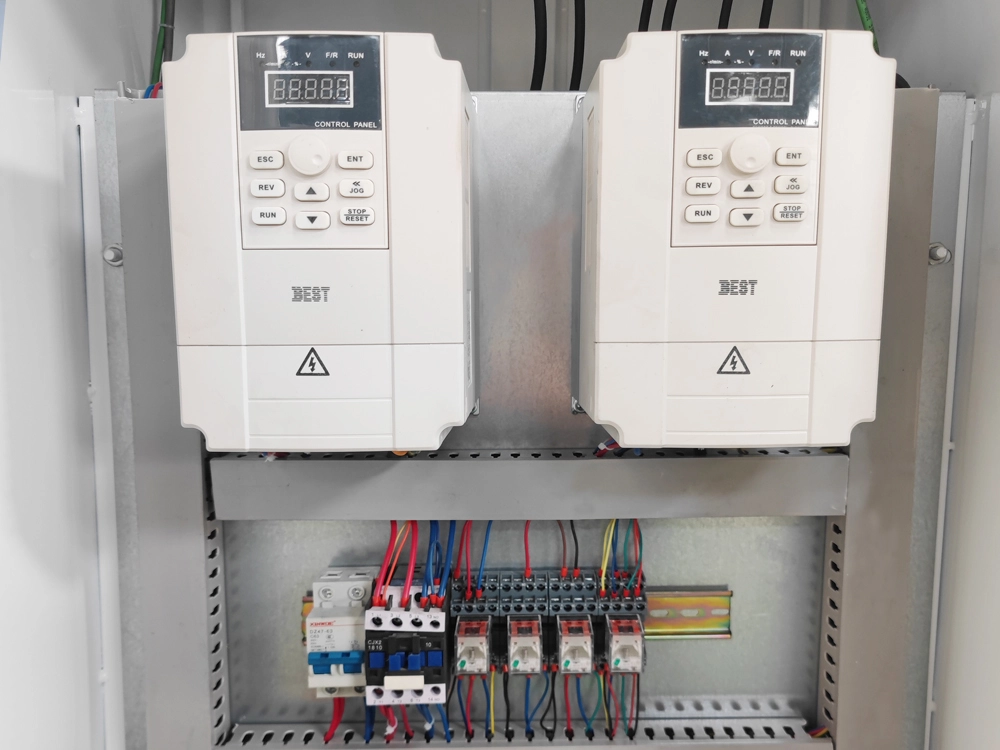

Best Inverter

Equipped with two high-power and high-torque BEST inverters.

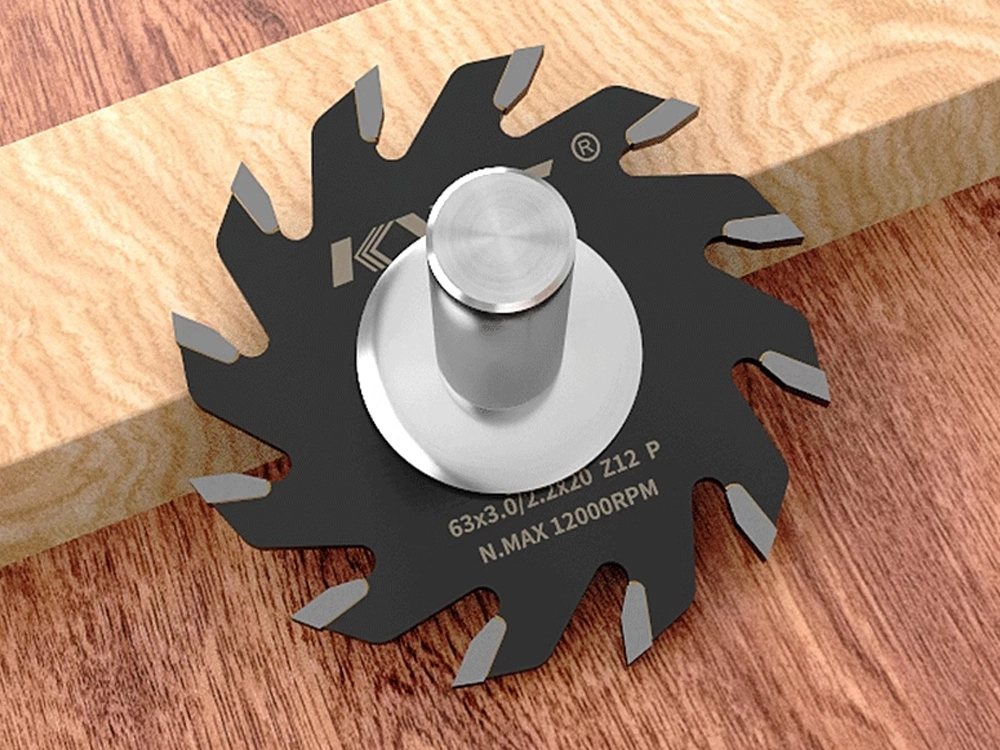

Optional saw blade

Saw blades can be used to mill the pool cues, with fast milling speed and smooth surface without burrs.

Technical Parameters of 2-Station Pool Cue Woodworking CNC Lathe

Application Scope of 2-Station Wood Lathe For Pool Cue

It can process various materials such as ash, maple, ebony, chacate preto, rubber wood, purple heart wood, sandalwood, oak, walnut, acrylic, plastic, carbon fiber, etc. It can process billiard cues, carbon fiber cues, carbon billiard cues, big head cues, small head cues, punch cues, jump cues, punch jump cues, three-quarter cues, half cues, English cues, American cues, nine-ball cues, snooker cues, crutches, wooden sticks, trekking poles, round table legs, tapered table legs, etc.

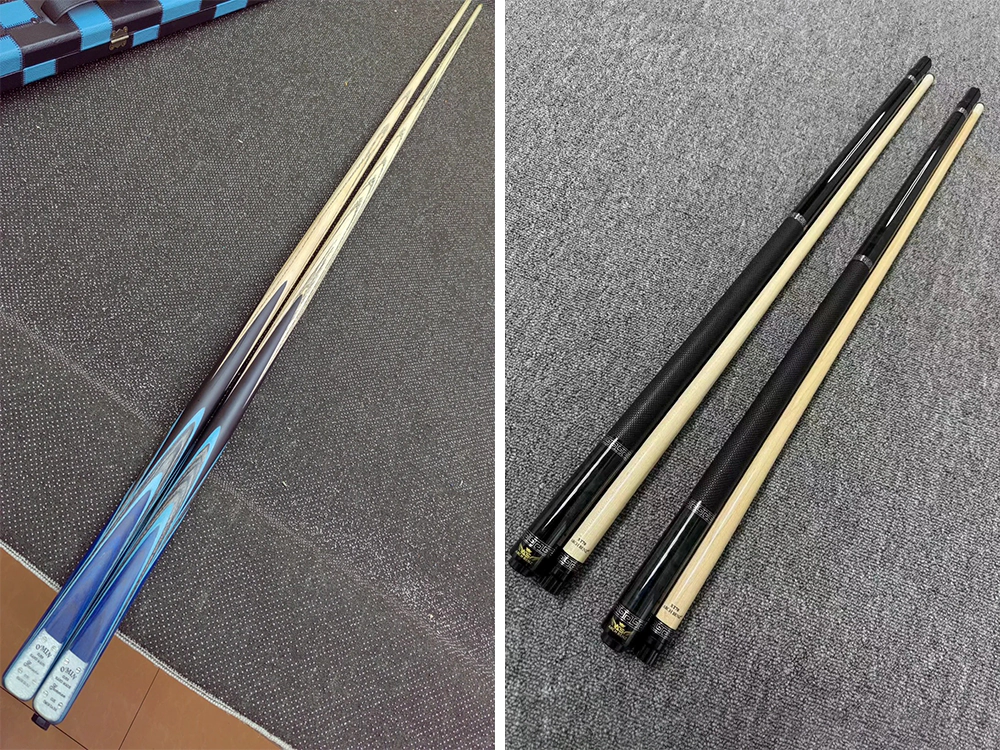

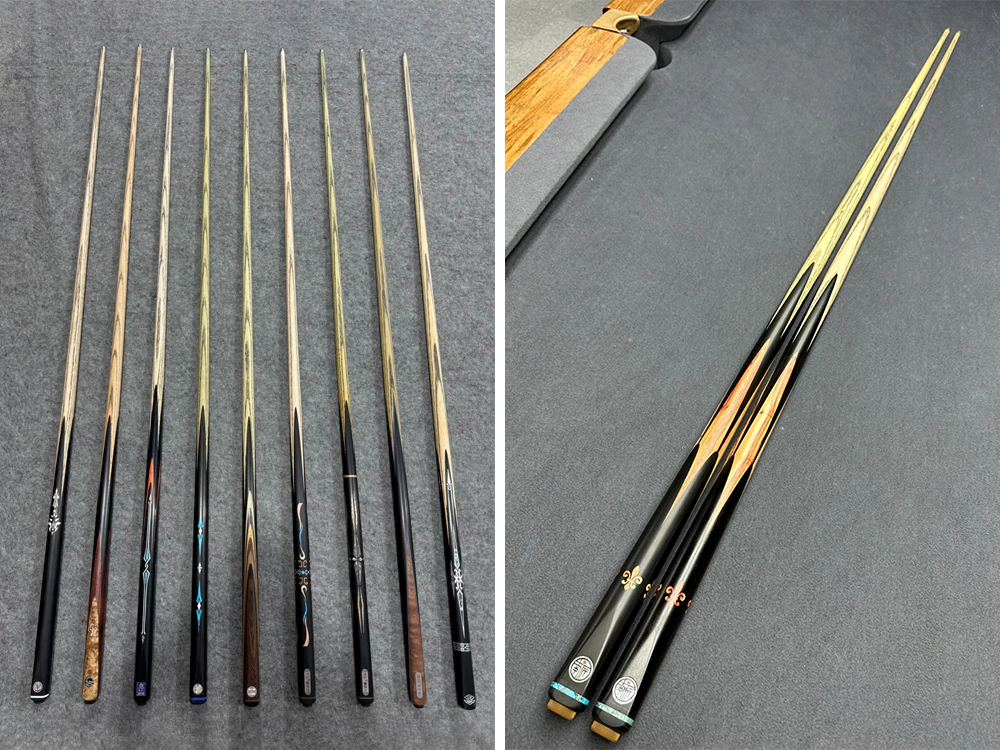

The Following Are the Processable Products of 2-Station Wood Lathe For Pool Cue
