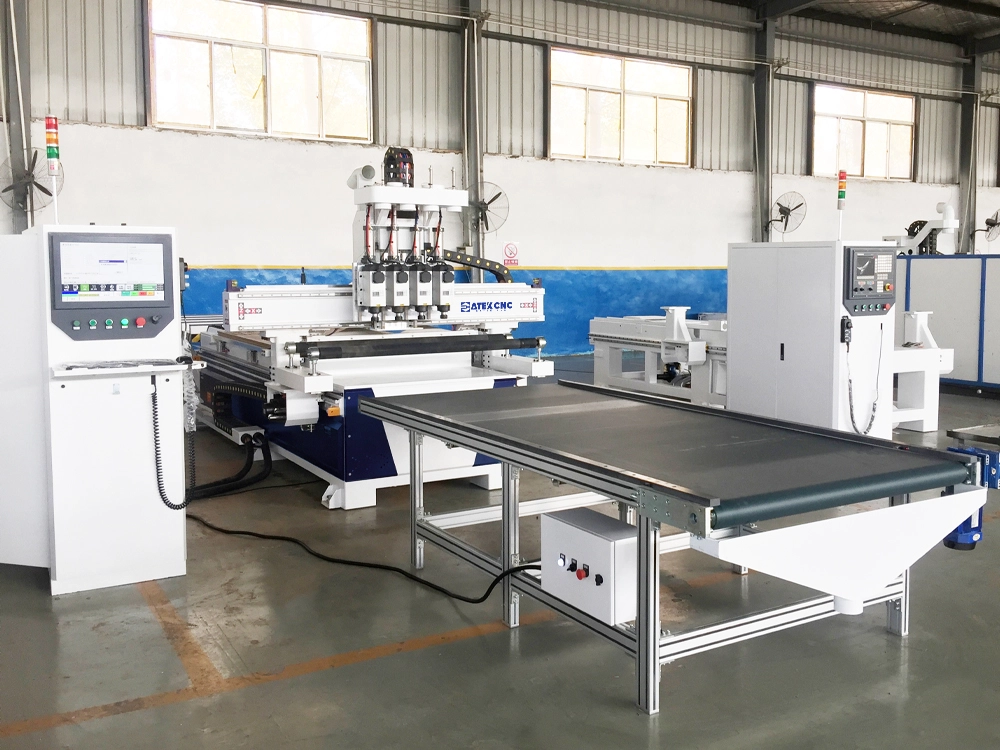

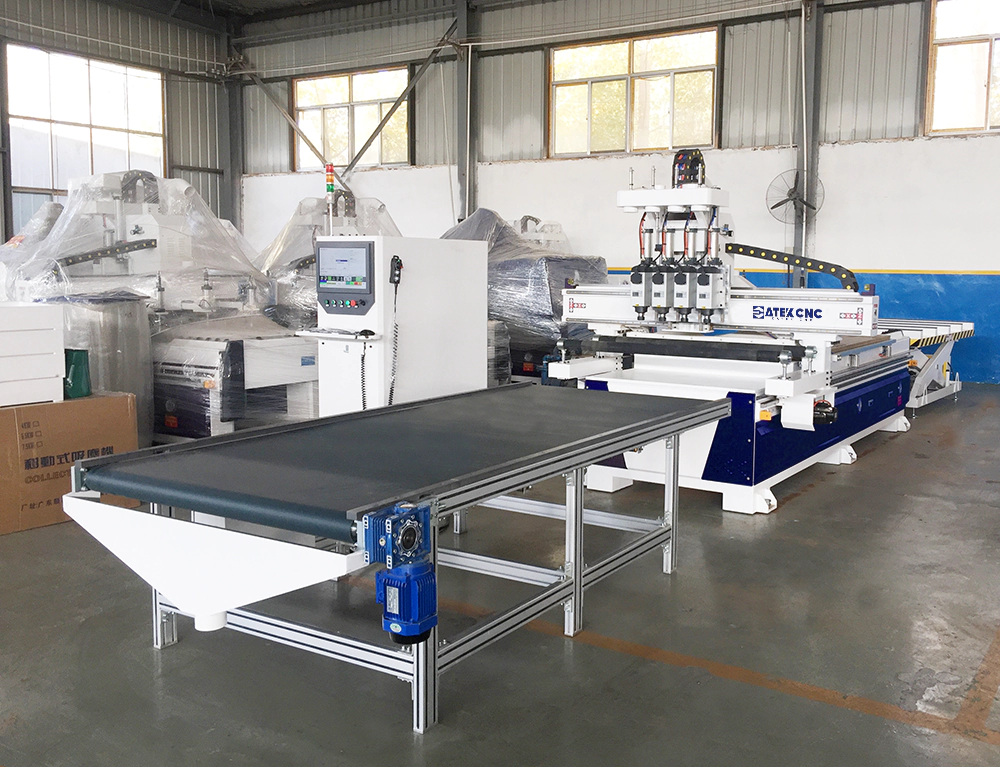

CNC Furniture Making Machine with 4-tool Switch and Automatic Loading and Unloading

CK-1325-A-4T is a highly automated CNC router with high-efficiency processing capabilities. It has automatic loading and unloading functions and four automatically switchable spindles. It is mainly used for the processing of panel furniture, cabinet doors, wooden doors and other products. At the same time, it combines the automatic loading and unloading system and the multi-spindle automatic switching function, which can realize the cutting, drilling, grooving, engraving and other processes of the plate, which can greatly improve the production efficiency and processing accuracy.

The automatic loading and unloading system is an important part of the four-spindle CNC router with automatic loading and unloading platform, which realizes the automatic loading and unloading of plates by means of the lifting and lowering structure and the rolling conveyor function. These functions work in tandem to ensure that the plates are accurately transported and positioned during the machining process, thus guaranteeing the quality of the machining. The machine is equipped with four spindles, each of which can be fitted with different tools for cutting, punching and grooving. It can automatically switch spindles according to different processing needs, avoiding the time wasted on manual tool changing and enabling the machine to complete multiple processes in a single run, effectively improving productivity.

Workflow of Four-Function-Switch CNC Wood Router with Plate Feeding

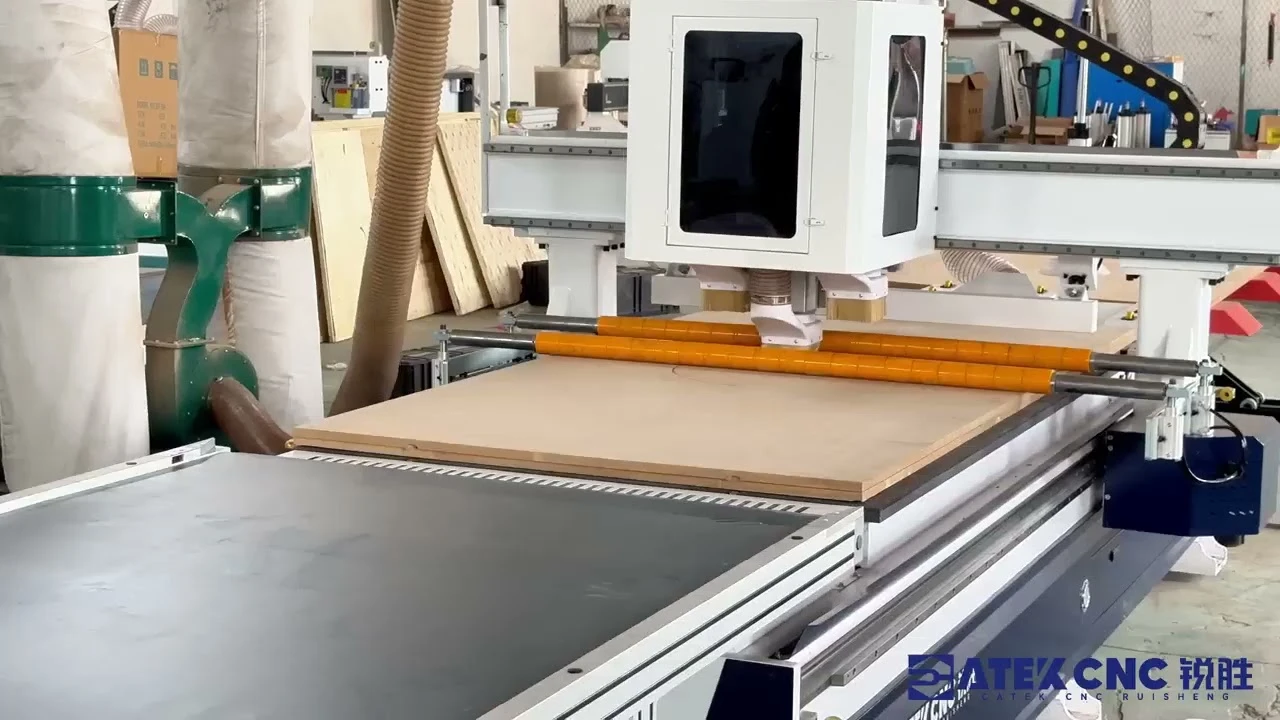

1. Automatic loading: The hydraulic lifting automatic loading device can automatically adjust the height according to the thickness and quantity of the plate. The plate is dragged from the loading platform to the vacuum adsorption workbench with the help of the suction cup device behind the gantry bracket, and then the plate is fixed to the processing position through the 4+2 positioning cylinder and side push cylinder of the workbench.
2. Automatic processing: The four spindles are equipped with different tools respectively, which can be automatically switched according to different processing tasks to accurately perform cutting, drilling and grooving operations on the plate. It is controlled by the CNC system. After the processing parameters are input, the servo motor drives each axis to move to complete various processing needs.
3. Automatic unloading: After machining, the finished plate is automatically pushed to the unloading table by utilizing the pushing system. The conveyor belt of the unloading table is designed so that even if the plate is cut into several pieces during processing, the unloading operation can be completed efficiently without moving the position of each finished product, avoiding secondary transportation. At the same time, the pushing system carries out secondary dust removal on the working table to keep the table surface clean.

Features of Four-Function-Switch CNC Router with Plate Feeding for Mass Production

• four 6KW air-cooled spindles, four ceramic bearings are used inside, with stable speed and low noise.
• Taiwan LNC CNC system, highly automated control, complete functions, fully automatic operation, simple operation.
• Each spindle is independently equipped with a dust cover, which automatically removes dust during processing and is environmentally friendly.
• Vacuum adsorption workbench, 6 zones and 24 holes, can adsorb various small-sized parts.
• High-power water-cooled vacuum pump, high vacuum extraction efficiency, stable negative pressure.
• Lifting automatic loading platform, can load more than 3000kg, hydraulic power.
• Conveyor belt unloading platform, can be connected to various production lines, and transferred to the designated location after processing, saving the time wasted by manual unloading of materials.
• Helical rack/gear, Hiwin guide rail, linear bearing, stable operation, high positioning accuracy.
• 1500W high-power servo motor, large output torque, low operating noise, fast speed.
• Compatible with various cad/cam type software, supports various nesting software, recognizes G code operation, and has a very low operating threshold.
• Free nesting software is provided, equipped with operation manual and operation video.

Details of 4x8 Four-Function-Switch CNC Router with Automatic Loading and Unloading

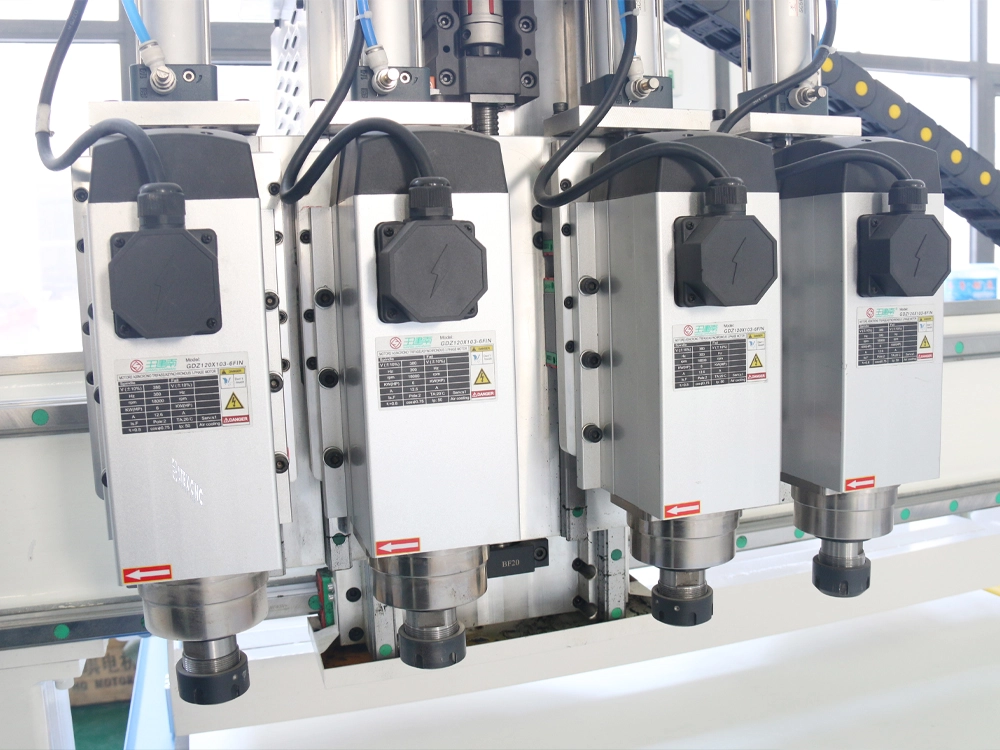

Four switchable spindles

Four 6KW air-cooled spindles, 18000r/mim, stable speed.

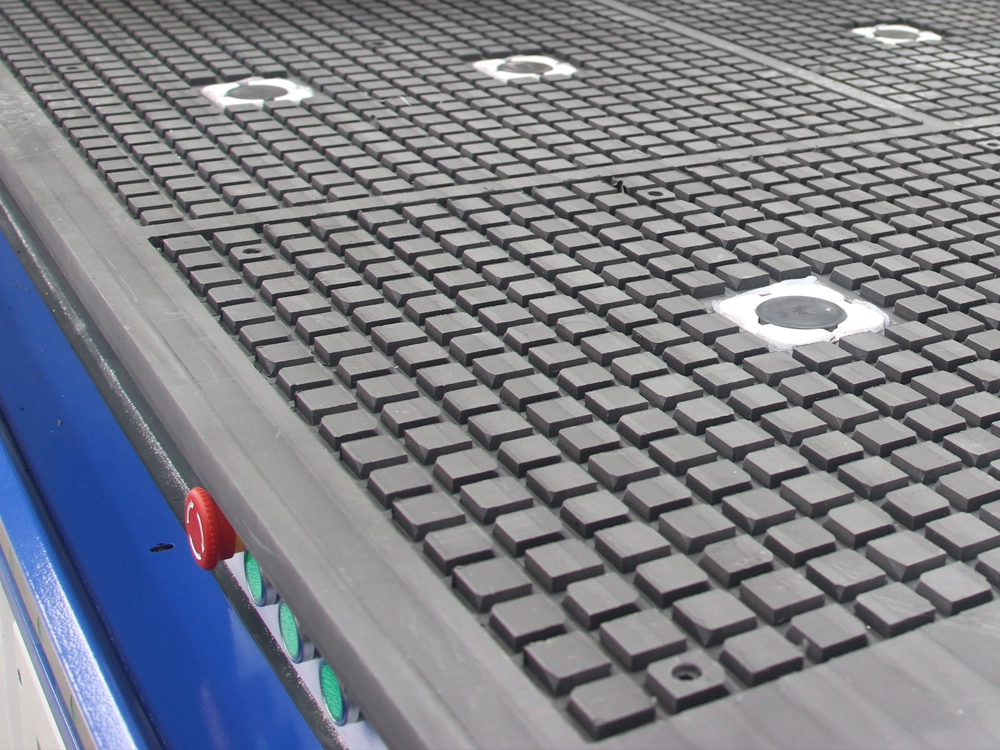

Vacuum adsorption platform

Using an 11KW vacuum pump with a 6-zone 24-hole vacuum adsorption platform can strongly adsorb plates of different sizes, ensuring that the plates will not move or offset during processing, thereby improving processing accuracy and efficiency.

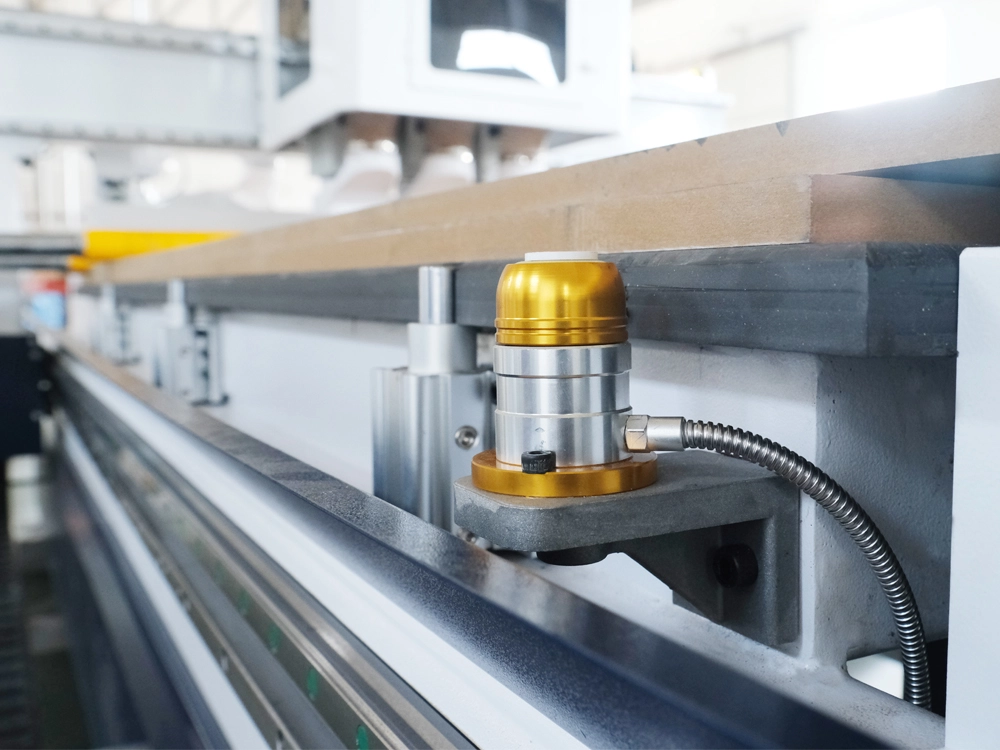

Automatic tool setting device

Even if the four spindles are equipped with tools of different lengths or diameters, the zero point can be automatically calibrated.

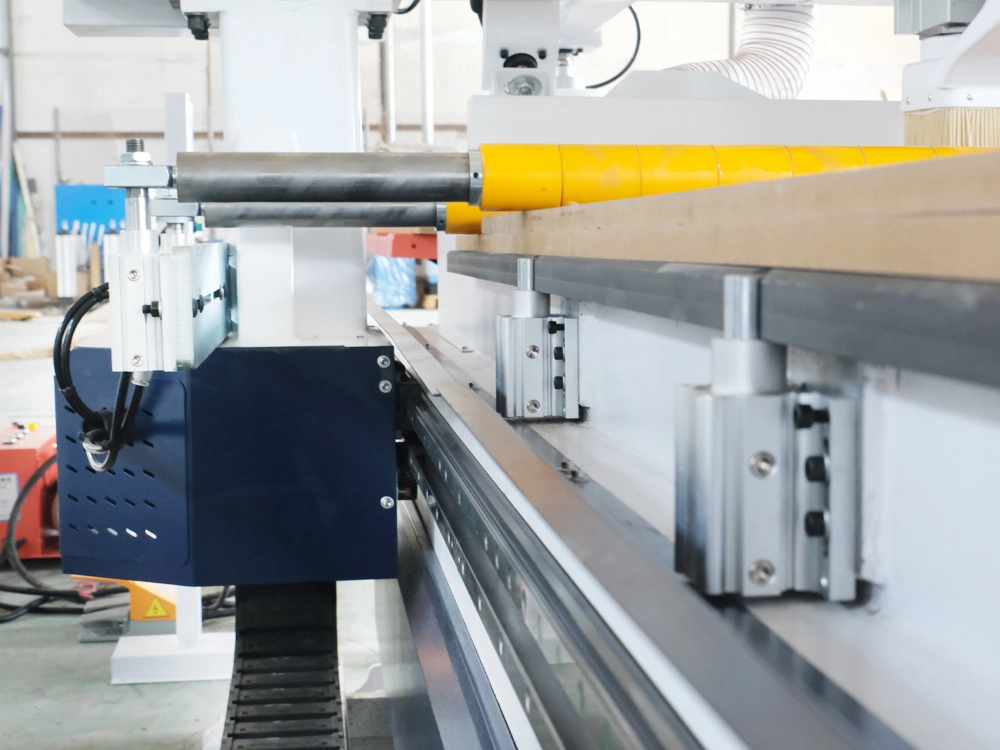

4+2 positioning cylinder

It can realize rapid positioning of full-size plates.

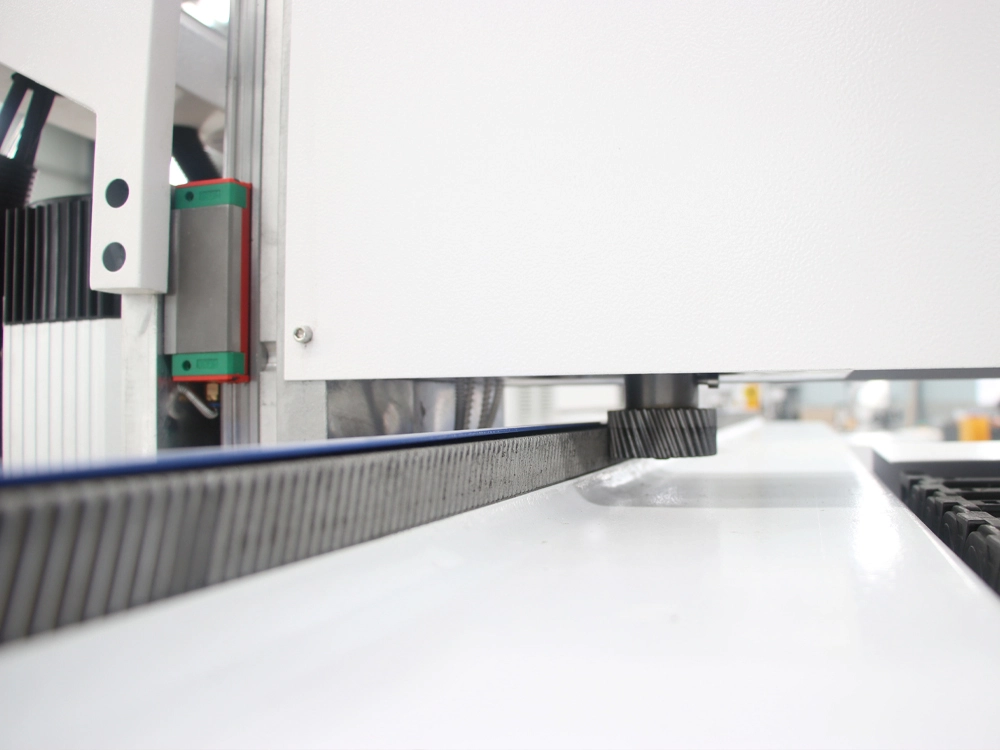

Transmission system

High-precision helical racks and gears, Taiwan Hiwin 30 guide rails.

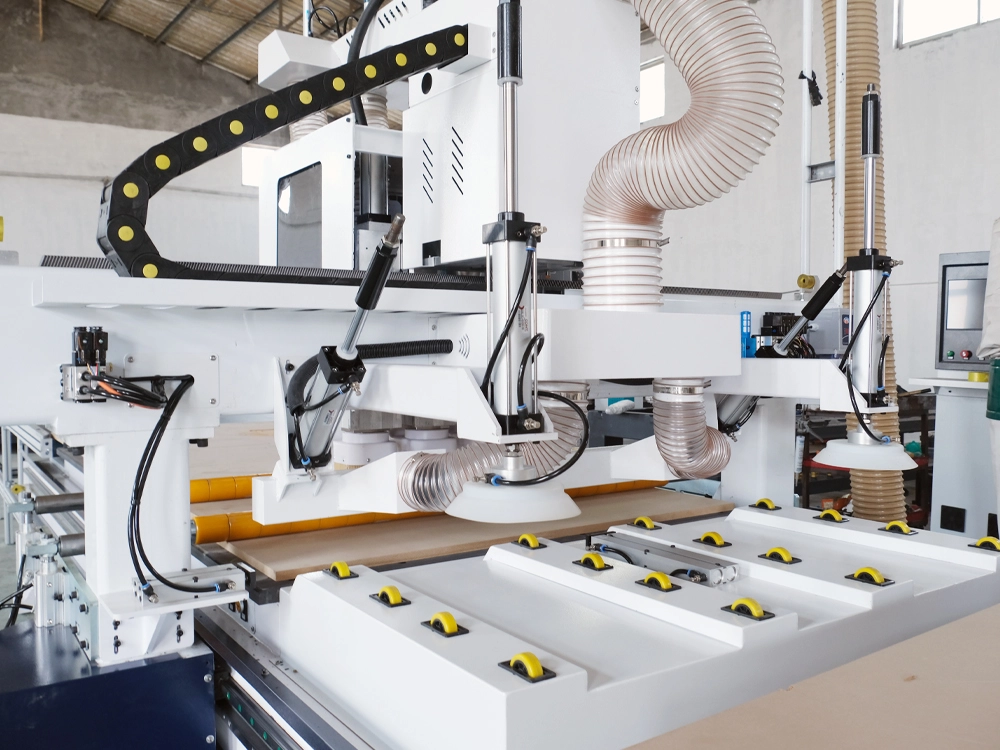

Feeding suction cups

Double automatic feeding suction cups, adsorbing the plate more stably.

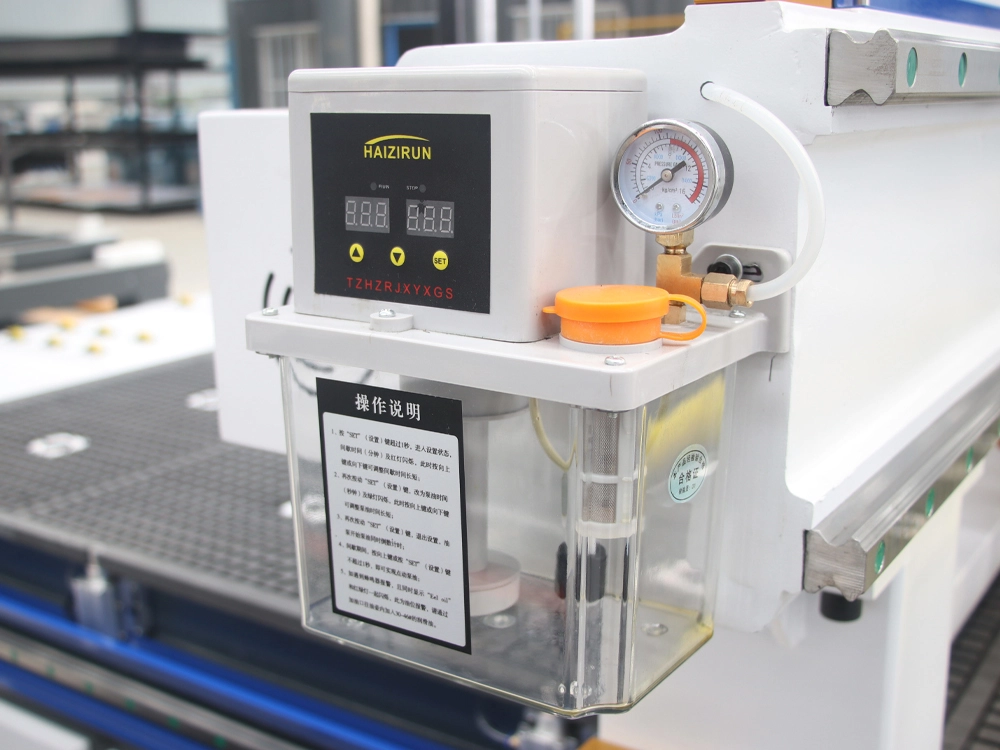

Automatic lubrication system

The lubrication interval and lubrication duration can be set to achieve automatic lubrication.

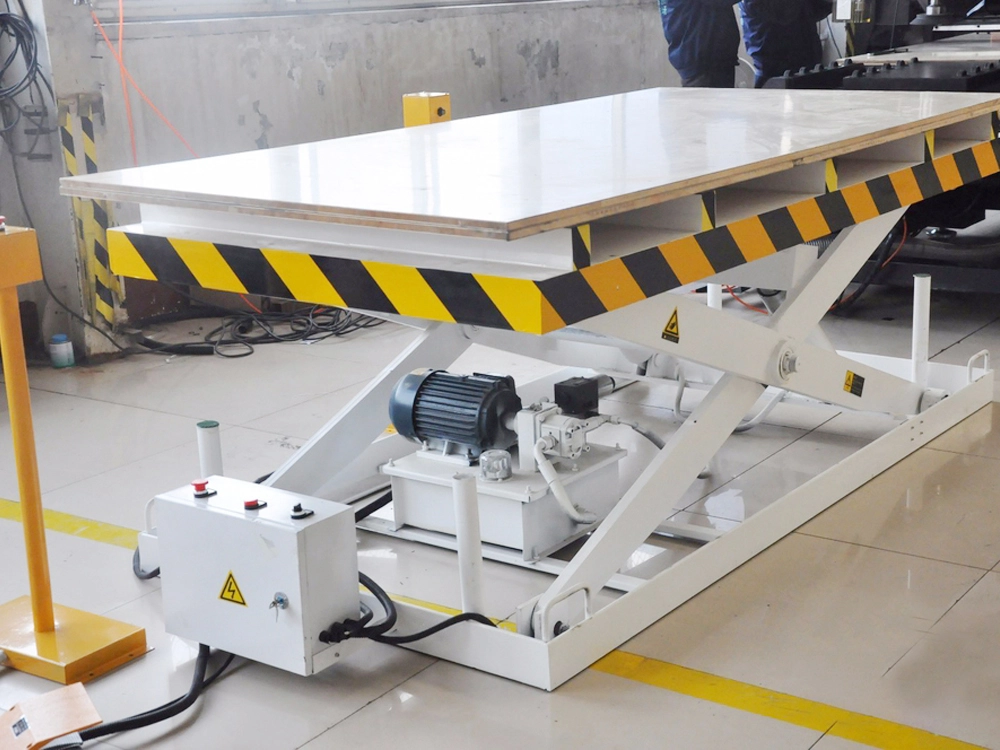

Automatic loading platform

The loading platform can hold multiple panels and can be automatically raised and lowered.

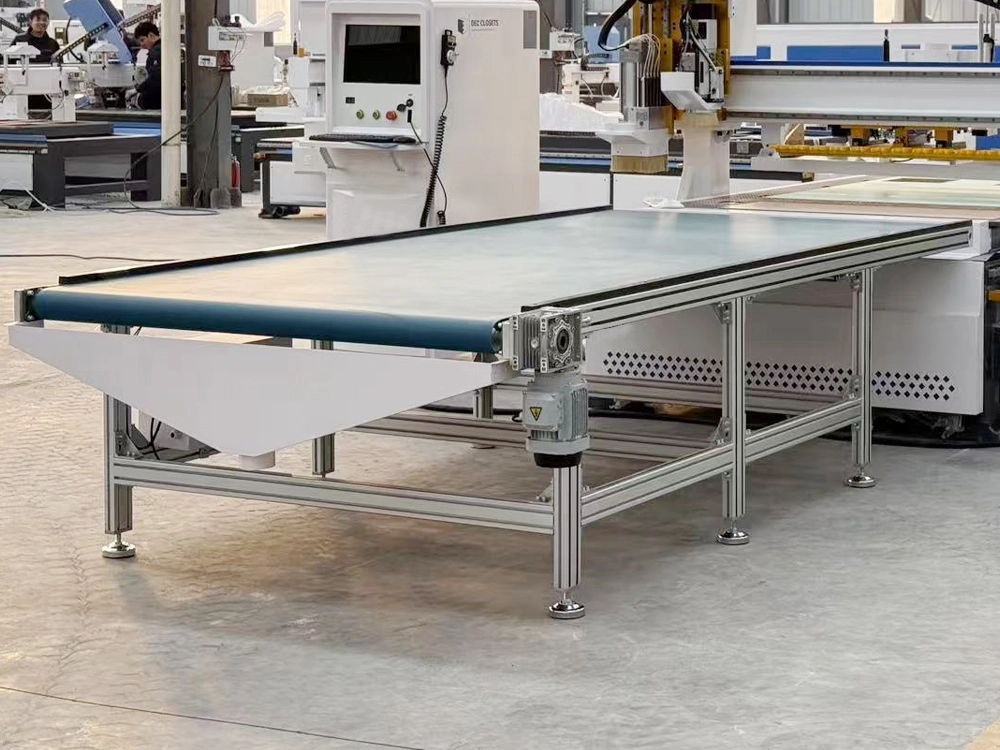

Automatic unloading platform

The unloading platform is equipped with a conveyor belt to realize the automatic transfer of the plates.

Technical Parameters of 4x8 Four-Function-Switch CNC Router With Automatic Loading & Unloading

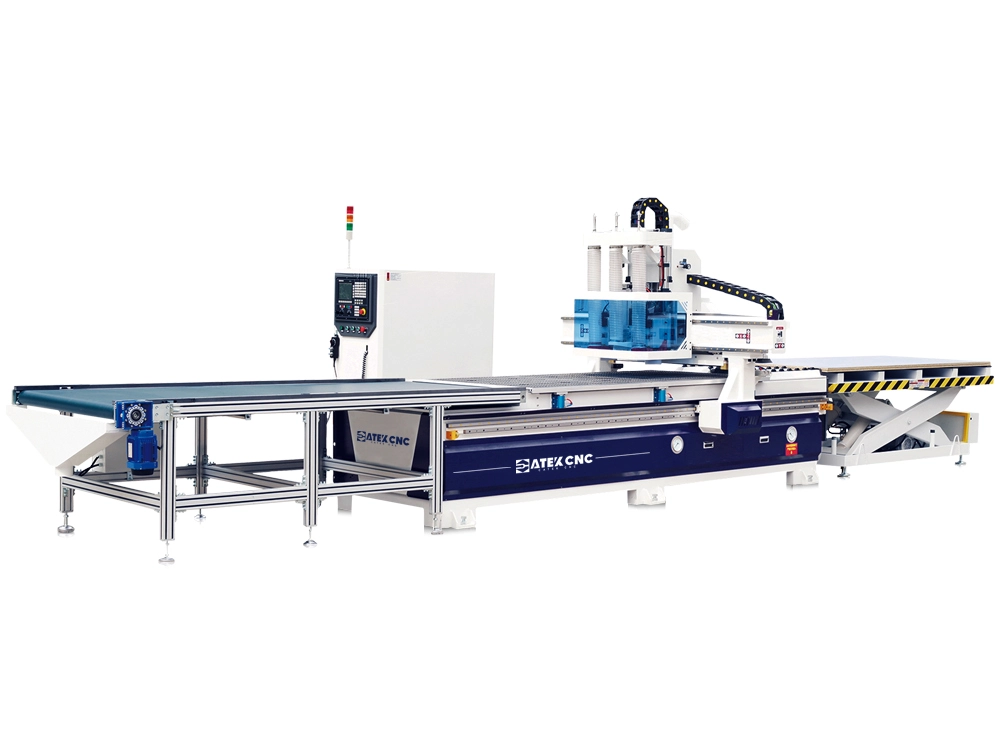

Model	CK-1325-A-4T
XYZ Working Travel	1300*2500*200mm (customizable according to processing requirements)
Gantry	Thickened aged steel gantry, reinforced steel beams
Bed	Heavy duty integral fully cast bed body, independent anti-interference control cabinet
Spindle	CATEKCNC dedicated 6KW high power air-cooled spindle * 4
Spindle Speed	6000-18000r/min
Driving Mechanism	1.5KW servo motor drive (Z-axis brake motor)
Reducer	Japan Shimpo reducer
Table	Double-layer vacuum table with 6 zones and 24 holes
Vacuum Pump	11KW water ring vacuum pump
Transmission Mechanism	XY axis high-precision ground helical rack + Z axis high-precision TBI ball screw
Guideway	Taiwan high precision 30 linear square rail / 30 flange slider
Equipment Cable	Pure copper anti-bending high-flexible cable
Dust Extraction	3KW dual-bag dust collector
Control System	Taiwan LNC / Mach3
Lubrication System	Centralized electric oil-lubrication system
Operating Voltage	AC380V/220V 50/60Hz
Compatible Software	Artcam, type3, CAD, CDR, JDpaint, etc.
Engraving Instruction	Standard G code
Positioning	4+2 positioning cylinder
Security System	Photoelectric over-travel limit protection on three linear axes
Repeat Positioning Accuracy	±0.02mm
Pushing	Fully automatic push cylinder device
Loading	Automatic lifting loading platform
Unloading	Automatic rolling conveyor unloading platform
Max. Rapid Traverse Speed	25000mm/min
Max. Working Speed	18000mm/min
Weight	4500kg
Dimensions	9500*2150*2250mm

Application Scope of 4x8 Four-Function-Switch CNC Router

CNC wood router can process all kinds of insulation parts, plastic sheets, bakelite sheets, solid wood sheets, multilayer sheets, density sheets, particle boards, finger-jointed sheets, plywood, aluminum honeycomb sheets, acrylic sheets, PVC sheets, aluminum-plastic sheets, PCB sheets, etc.

Furniture industry application

It can be used for cutting MDF, HDF and other sheets to make all kinds of furniture, including: wooden doors, wardrobes, cabinets, wine cabinets, solid wood furniture, panel furniture, office furniture, small and medium-sized cabinets, cabinet doors, guest furniture, bedroom furniture, dining room furniture, study furniture, coffee tables, computer tables, bedside tables, sideboards, shoe cabinets, bookcases, entrance cabinets, display cabinets, etc.

Woodworking industry application

• Casket and coffin production.
• Relief and hollowing craftsmanship of solid wood doors, photo frame carving.
• Wood mold cutting, 3D carving.
• Production of corrugated boards, grooved boards, decorative boards, and special-shaped cutting of artificial boards.
• Screen and window processing.

Musical instrument industry applications

Parts of speakers, pianos, guitars, violins, wooden boxes and other musical instrument accessories.

Advertising industry applications

Advertising letters, crystal letters, mini letters, acrylic letters, advertising signs, acrylic light boxes, signboards, etc.
