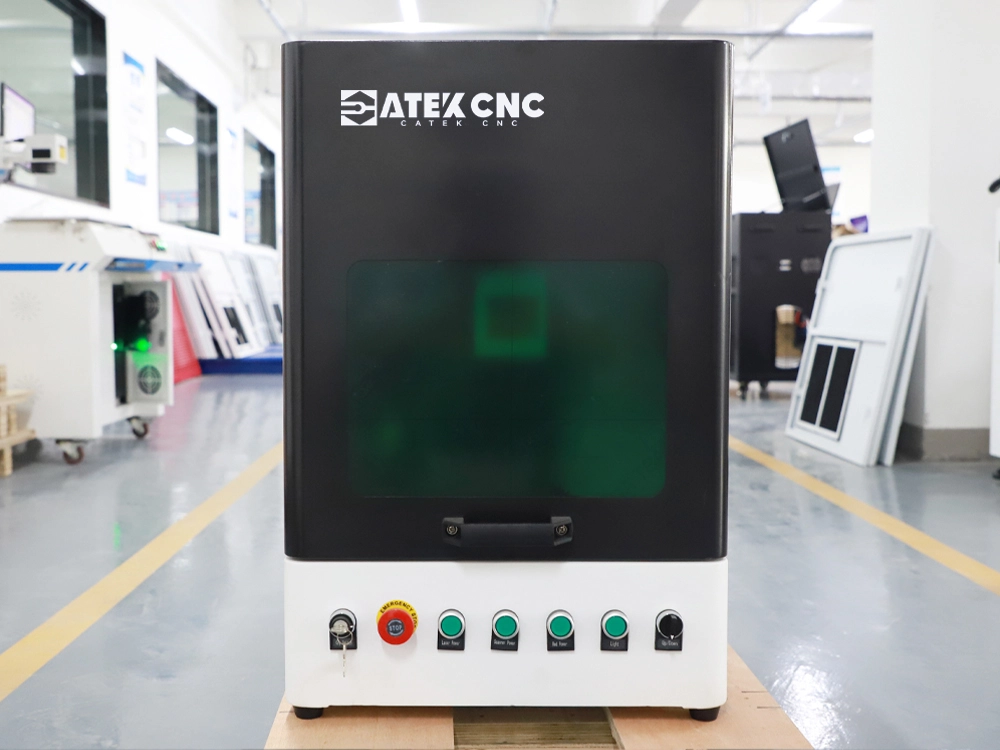

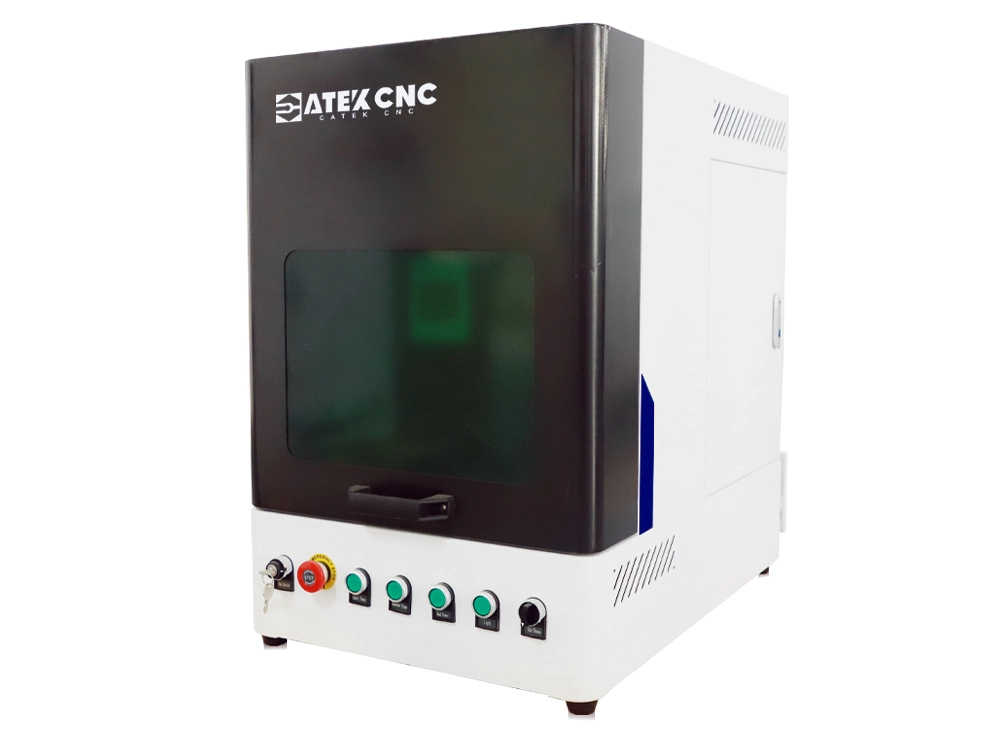

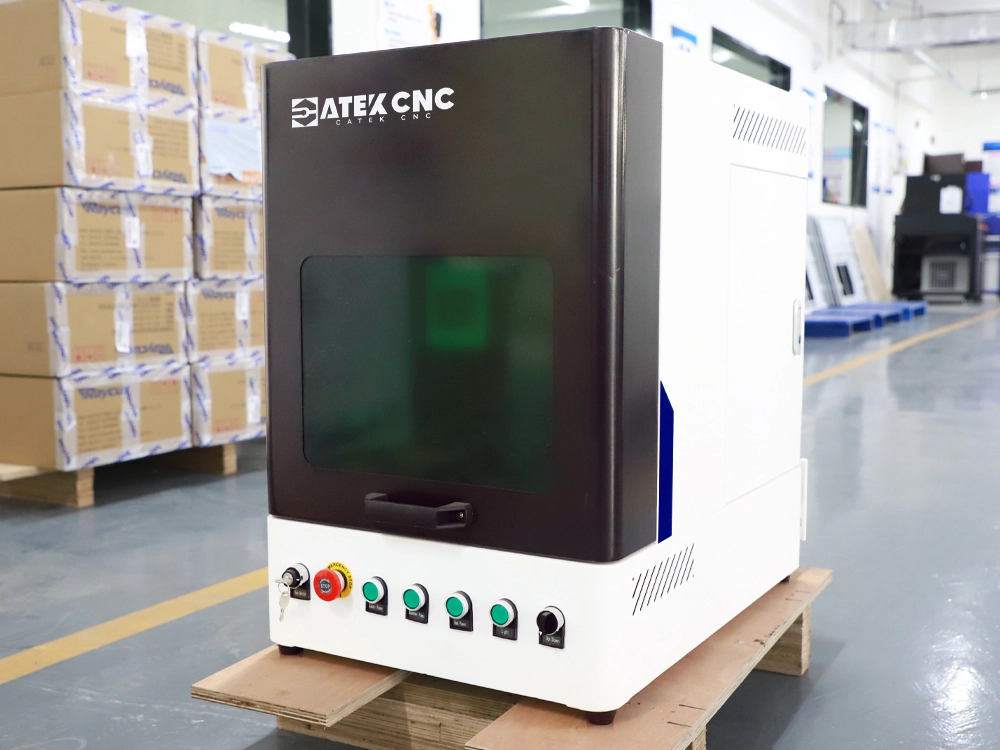

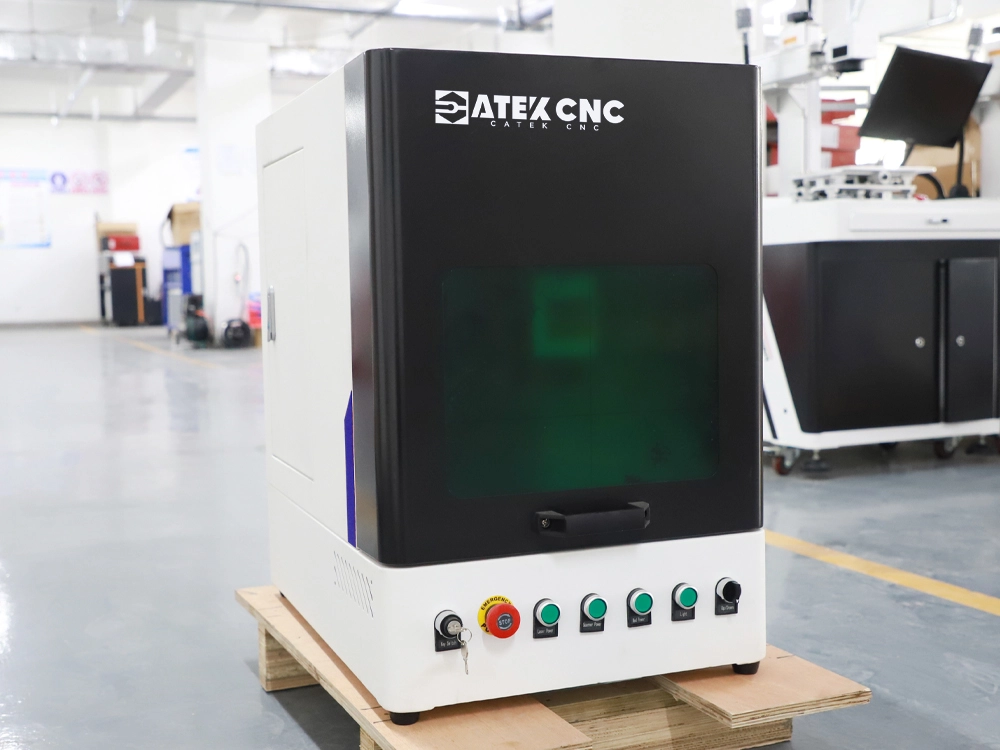

20W/30W/50W Closed Fiber Laser Marking Machine

The fully enclosed laser marking machine features a fully enclosed safety enclosure, which effectively prevents contamination and odors during the processing. Utilizing laser marking technology, it employs a non-contact processing method, eliminating hazardous factors such as sparks during operation and providing a safer working environment. With an integrated structure and an air-cooling system, it reduces optical pollution and offers high efficiency with minimal maintenance requirements.

The fully enclosed safety enclosure, combined with an exhaust fan, completely removes smoke and odors generated during processing, minimizing indoor air pollution. Equipped with an electric lifting scale and a lifting platform, it allows for easy adjustment of the focal length based on the height of the product being processed, making it suitable for marking products of various heights. Additionally, it can be optionally fitted with a rotary axis for processing 3D products.

Advantages of Fully Enclosed Fiber Laser Marking Machine with Safety Enclosure

• Equipped with a robust safety enclosure and cover-opening protection, it effectively prevents laser exposure to operators. Additionally, it features a laser-protective glass observation window, allowing operators to monitor the processing results and progress in a safe environment.
• Utilizes a high-quality fiber laser with excellent electro-optical conversion efficiency and superior beam quality. The extremely small spot size enables ultra-fine marking, making it suitable for intricate and complex patterns.
• Offers stable operation, high positioning accuracy, and a long service life. With low operating costs, it can typically run maintenance-free for over ten years, significantly reducing processing costs. Its compact design is dustproof and moisture-resistant, suitable for use in various challenging environments.
• Features air cooling and a fully automatic exhaust fan to remove odors and smoke generated during processing. It produces no optical pollution or power loss, operates quietly, and complies with EU environmental standards.
• The fully enclosed safety enclosure not only protects against laser exposure but also shields the machine from dust and humid air in complex environments, ensuring it remains in optimal condition.
• Can be customized with various functions to meet specific needs. It supports marking of numbers, letters, Chinese characters, graphics, QR codes, and more. The powerful software allows optional additions such as a 3D rotary axis, automatic lifting platform, manual lifting platform, and auto-focus functionality.
• Suitable for processing various materials, especially advantageous for marking high-hardness, high-melting-point, and brittle materials. It is widely used in industries such as electronic components, automotive parts, medical devices, and home appliances.

Details of Laser Marking Machine with Safety Enclosure

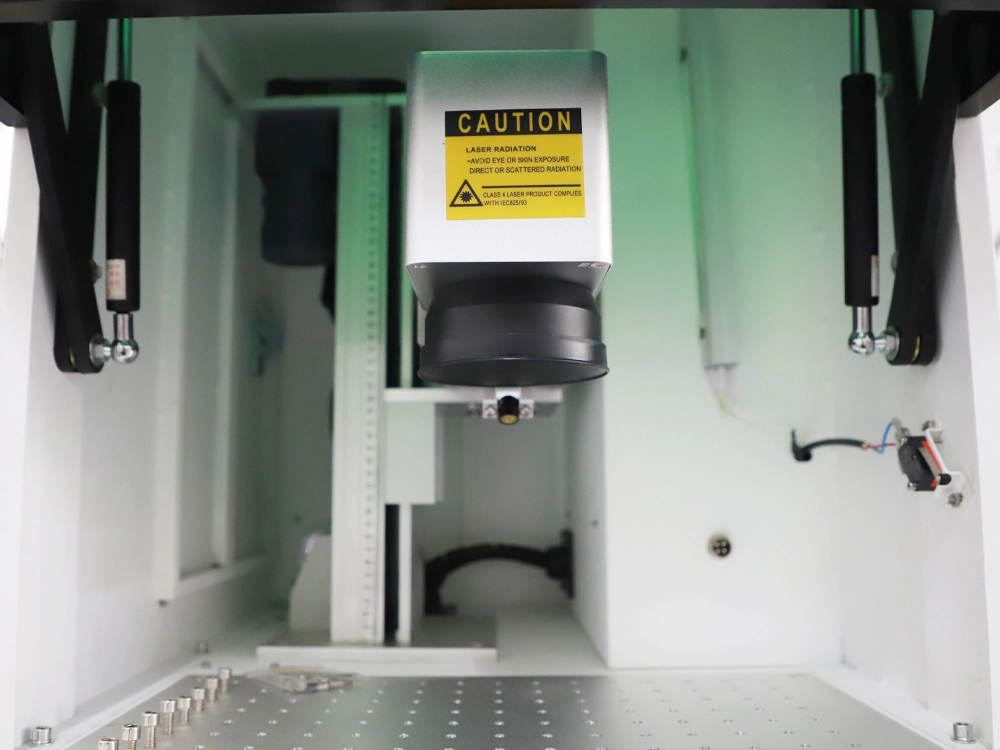

Enclosed safety enclosure

Sino-Galvo high-speed galvanometer, zero drift, fast speed, small size, running low temperature.

Enclosure effectively prevents laser exposure and protects the human body from harm, and this machine equipped with electric lifting bracket for easy operation.

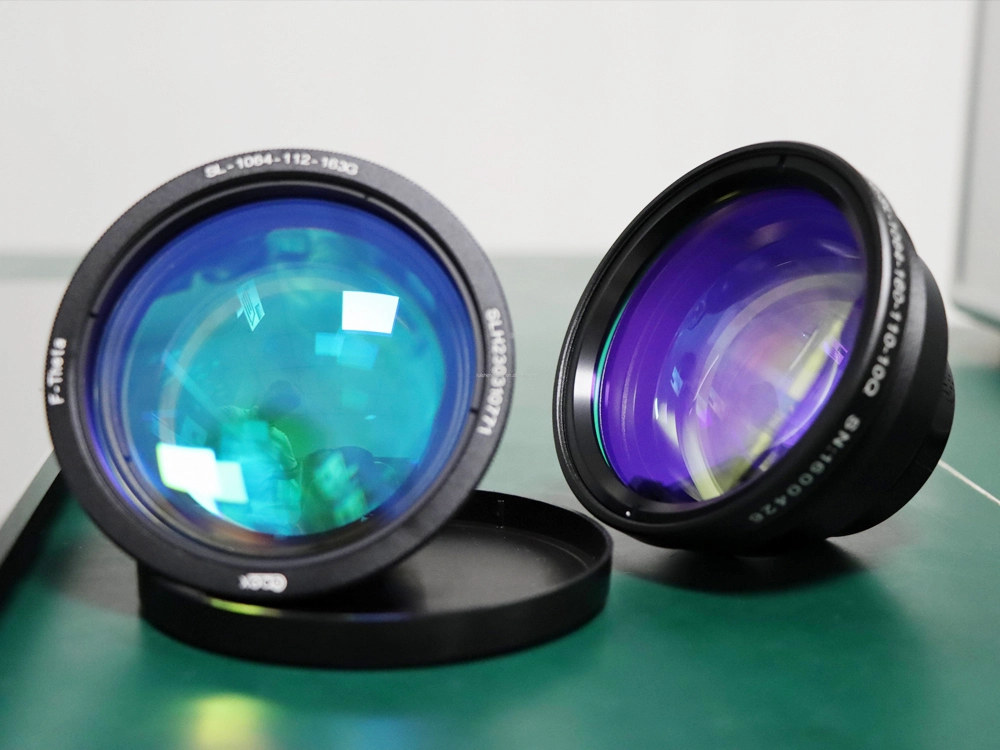

Field lens

Zinc selenide (ZnSe) field lens, features imported coated lenses with a wide focal range, excellent light sensitivity, and uniform illumination.

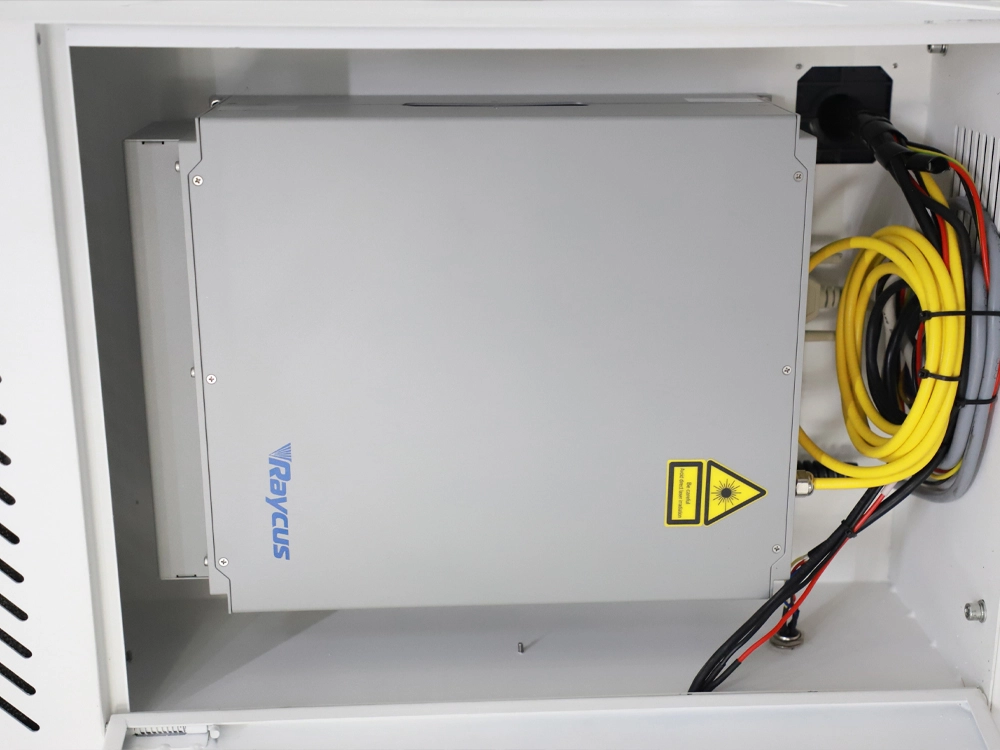

Laser source

High-quality laser source, offers high photoelectric conversion efficiency, air cooling, long service life, and stable power output.

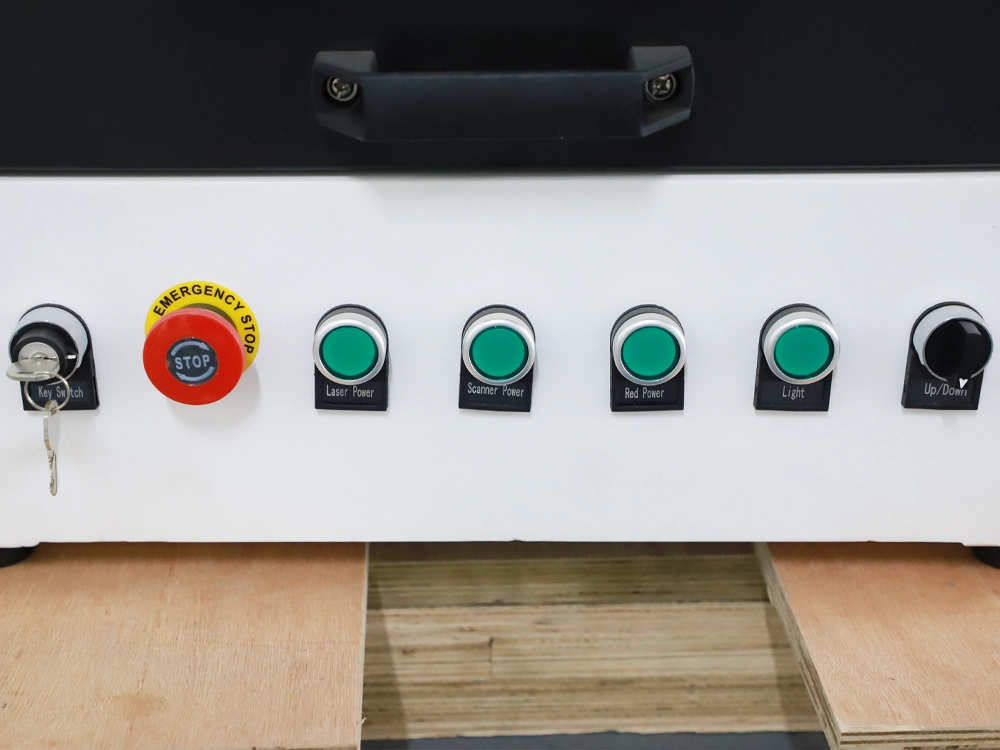

Control panel and software

The control panel has independent control switches for each function and is equipped with a lock.

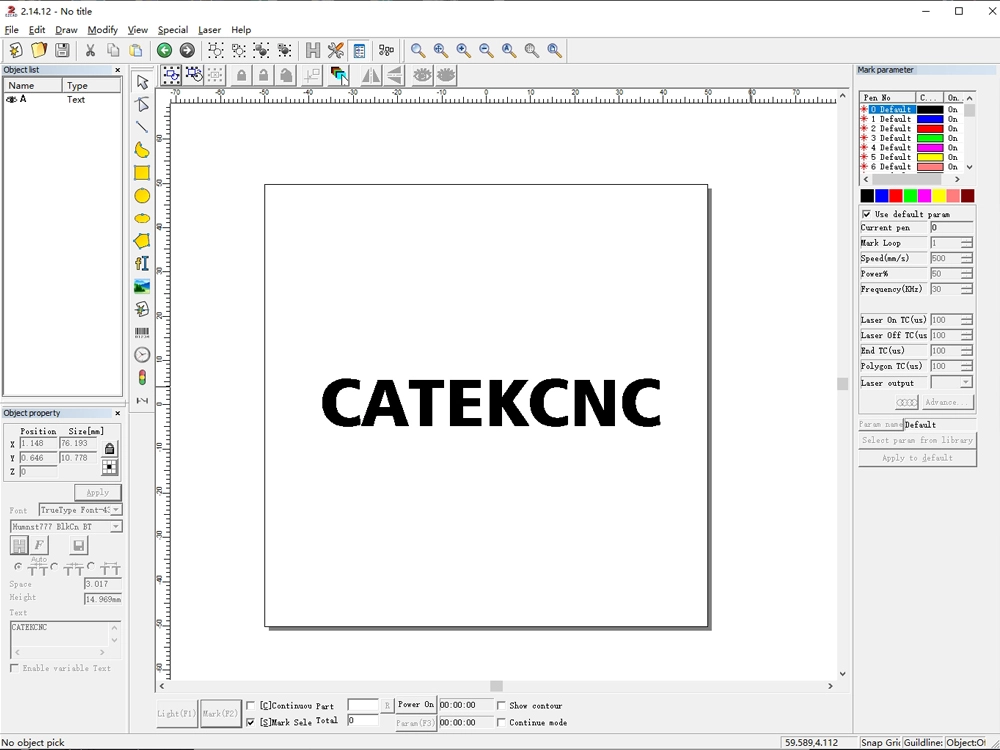

Ezcad control software supports multiple languages and features galvanometer 3D correction. Compatible with vector formats such as SVG, AI, PLT, DXF, STL, DST, GBR, NC, JPC, BOT, and bitmap formats like BMP, JPG, JPEG, GIF, TGA, PNG, TIF, TIFF.

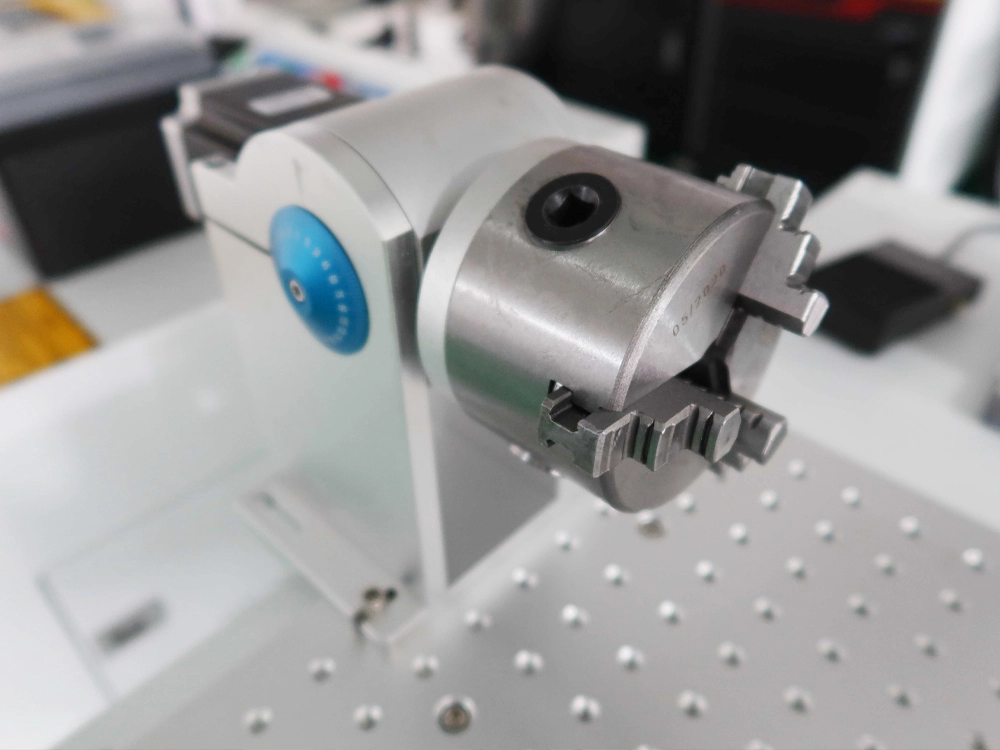

Indexing rotary axis (optional)

The device can hold the workpiece and rotate it to process the surfaces-of-revolution or multiple surfaces of the workpiece.

Technical Parameter of Enclosed Fiber Laser Marking Machines

Application Scope for Laser Marking and Engraving Machines with Safety Enclosure

The enclosed fiber laser marking machine can engrave and mark various metal materials and some opaque non-metal materials, especially suitable for fields that require higher precision and smoother finishes.

• Metal materials: Common carbon steels (S25C, S35C, S45C), iron-based materials (SS400), mold steels (SKD11, SKD61, SCM, etc.), stainless steels (304, 316, 303, SUS440C, etc.), high-temperature alloys, ultra-high-strength steels, high-speed steels, powder metallurgy steels, alloy steels (1018, 1215, etc.), aluminum and aluminum alloys (5052, 6061, 7075, etc.), copper and copper alloys (C3604, phosphor bronze, pure copper, brass, tungsten copper, beryllium copper, etc.), titanium alloys (such as medical titanium alloys, aerospace titanium alloys), magnesium alloys, niobium-hafnium alloys, platinum, silver, gold, etc.
• Non-metal materials: ABS, PE, PP, PVC, POM (Polyoxymethylene), nylon (PA6, PA66, etc.), PEEK, PTFE (Polytetrafluoroethylene), Ultem (Polyetherimide), etc., acrylic (PMMA), polycarbonate (PC), phenolic resin (PF), epoxy boards, fiberglass cloths, etc.

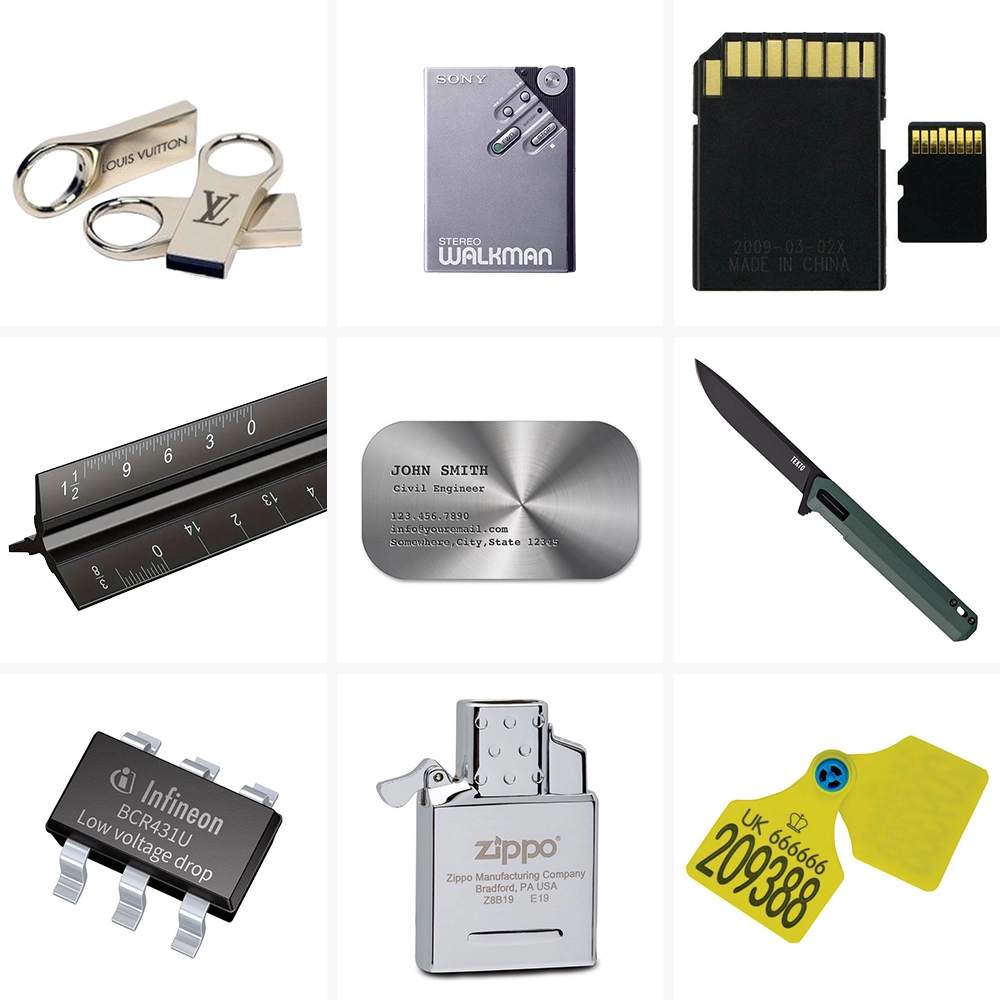

The Following Are the Processable Products of Enclosed Fiber Laser Marking Machine

Usage Steps of a Fully Enclosed Fiber Laser Marking Machine

Startup

1. Check whether the power cord is correctly connected and in good condition, and whether it is properly grounded.
2. Connect the main power supply, turn on the main power switch, and release the emergency stop switch to put it in the released state.
3. Turn on the computer and enter the marking software.

Marking

1. Place the workpiece on the marking table and position it properly.
2. Turn on the laser power button, and then press the galvanometer mirror switch button. All fans should start running.
3. Call up the pattern or file to be marked, press the red light switch button, adjust the lifting worktable until the two red light areas overlap. At this time, it is the optimal focal length for laser marking.
4. Start marking, and adjust parameters such as the marking speed, frequency, and laser power as needed.

Shutdown

1. After marking is completed, turn off the power of each component: the laser switch, the galvanometer mirror switch, the red light switch, and the key switch.
2. Exit all computer programs and turn off the computer.
