[Function Description]
The cabinet fiber laser marking machine uses fiber laser to mark permanent marks on metal surfaces such as iron, stainless steel, aluminum, brass, etc. or partially opaque non-metal surfaces. The high-power laser marking machine also has deep engraving function. The cabinet structure integrates key components such as the laser generator, control system, and cooling system in a closed cabinet. The appearance is neat and convenient for maintenance, easy to install and move, and comes with a work surface, suitable for processing in various environments.
The cabinet fiber laser marking machine is a highly efficient, precise, and versatile industrial laser device widely used for marking, engraving, and coding on various materials. Its core component is the fiber laser, which utilizes advanced fiber laser technology, offering high beam quality, exceptional stability, and a long lifespan. The cabinet design ensures a compact structure with a small footprint, while its excellent sealing effectively prevents dust and external environmental interference, making it suitable for use in complex environments such as factory workshops. This equipment is applicable for marking both metal and non-metal materials, including stainless steel, aluminum alloy, copper, titanium, plastics, ceramics, glass, and more. It is widely used in industries such as electronics, hardware, automotive, medical devices, jewelry, and packaging.
The working principle of the cabinet fiber laser marking machine involves the generation of a high-energy-density laser beam by the fiber laser. This beam is reflected and focused by a galvanometer system, then directed onto the material's surface, causing physical or chemical changes in the surface layer to form permanent marks. The marking results are clear and precise, without causing mechanical stress or deformation to the material surface, making it particularly suitable for high-precision products. The device supports various marking content, including text, numbers, graphics, QR codes, barcodes, serial numbers, and more, meeting the identification needs of different industries.
Features of the CK-11-F Cabinet Fiber Laser Marking Machine
- Strong processing reliability: Utilizing a non-contact processing method, it ensures that workpieces remain undamaged and free from deformation. The marked graphics, text, and serial numbers are clear, wear-resistant, and form permanent marks that are difficult to replicate, effectively enhancing anti-counterfeiting performance.
- High precision and efficiency: The fiber laser marking machine employs a high-performance laser source with excellent beam quality, achieving a focused spot diameter of less than 20μm and enabling high-precision marking with an accuracy of 0.01mm. It is suitable for precise processing of various complex patterns and text. With a marking speed of over 7000mm/s, combined with high-speed galvanometers and a precision control system, it significantly improves production efficiency.
- Exceptional durability: The laser source has a lifespan of over 100,000 hours and can operate continuously for 24 hours. It uses air cooling, eliminating the need for complex water cooling systems, and requires minimal maintenance.
- Energy efficiency and environmental friendliness: The device has low energy consumption, requiring only electricity to operate, resulting in low running costs. It produces no pollution or waste gas, meeting environmental protection standards.
- Wide range of applications: The machine supports the processing of various metal and non-metal materials, making it suitable for industries such as electronics, automotive, medical devices, and jewelry. It can meet diverse industry requirements for depth, smoothness, and fineness, and can be equipped with functional components like 3D rotary axes to fulfill a variety of processing needs.

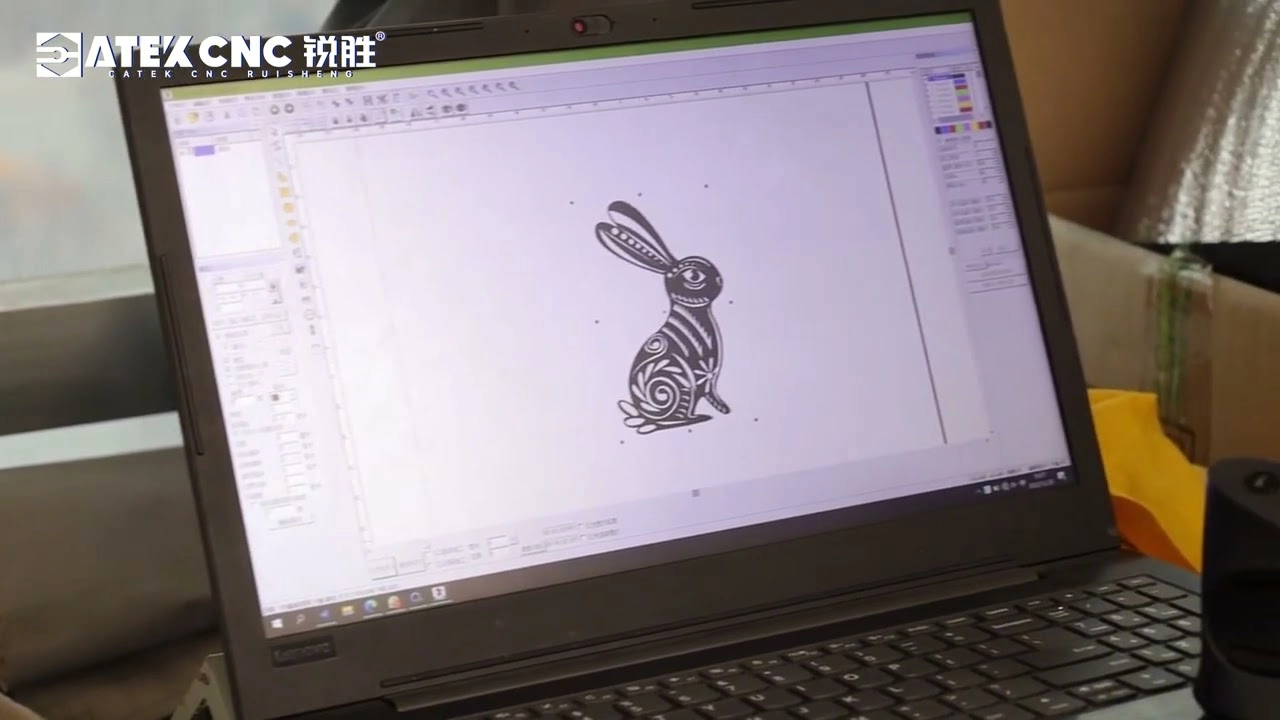

- Excellent compatibility: It is compatible with multiple file formats (e.g., JPG, DXF, PNG, DWG) and supports both vector and image files.
- Compact design and user-friendly operation: The device features a small, compact structure, flexible installation, and simple operation. It is easy to maintain and offers a high return on investment, making it suitable for various production requirements.

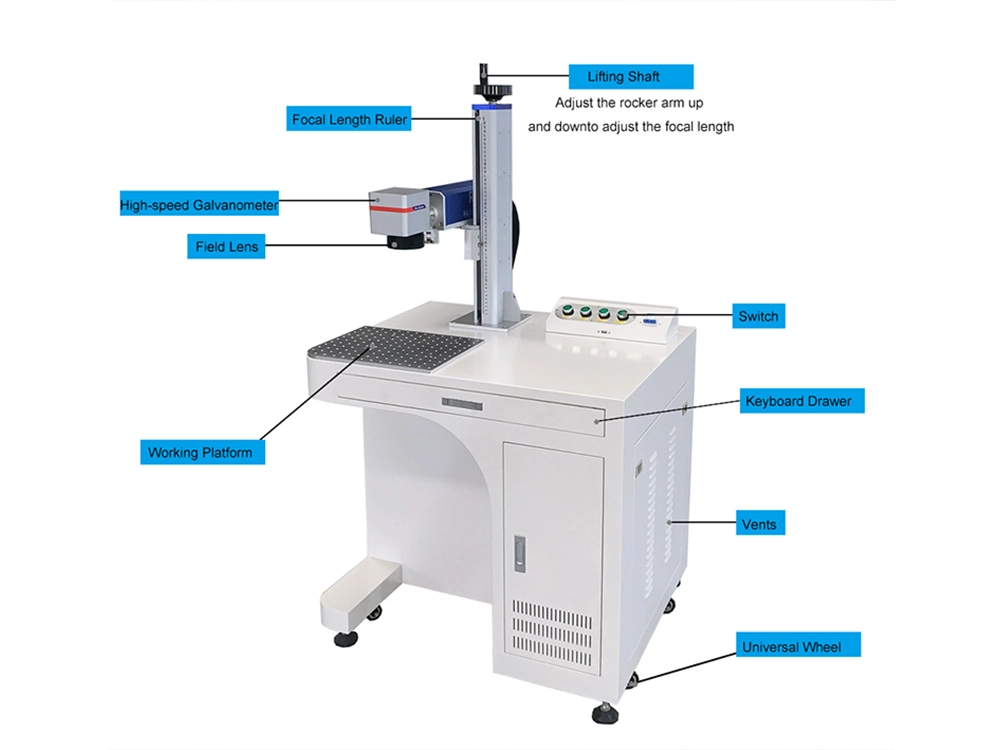

Details of Cabinet Fiber Laser Marking Machine

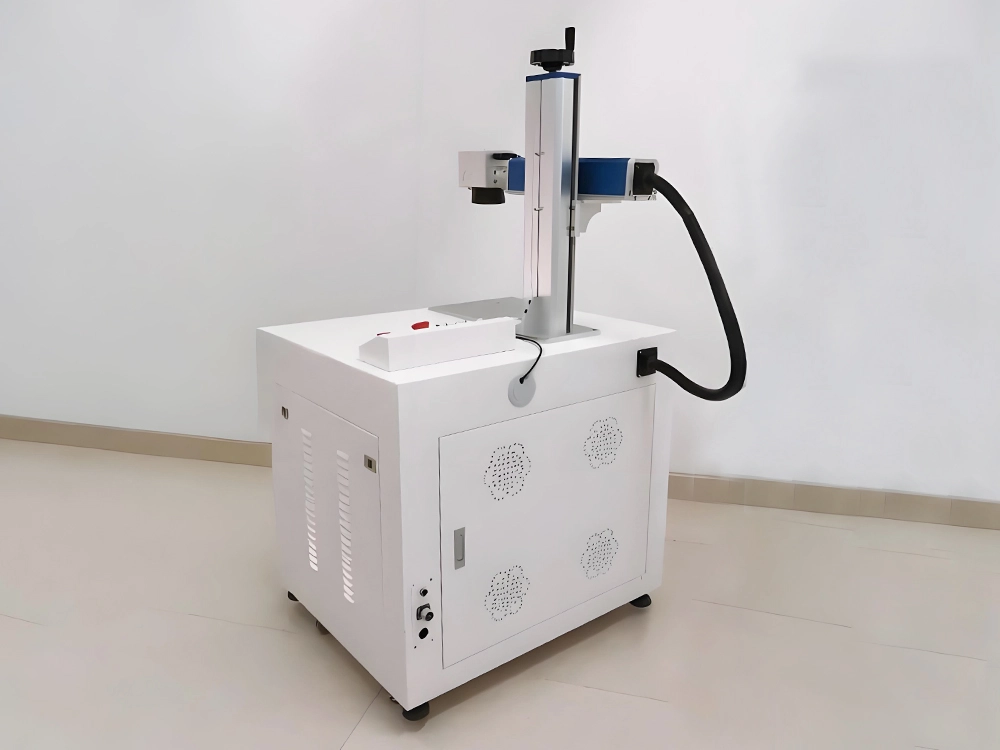

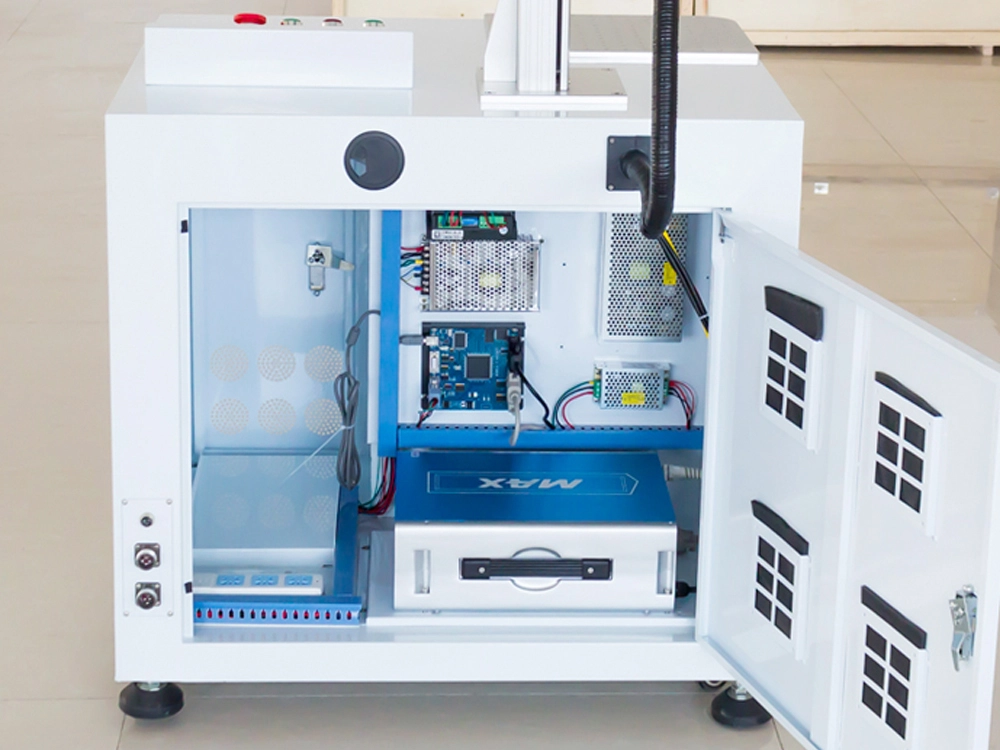

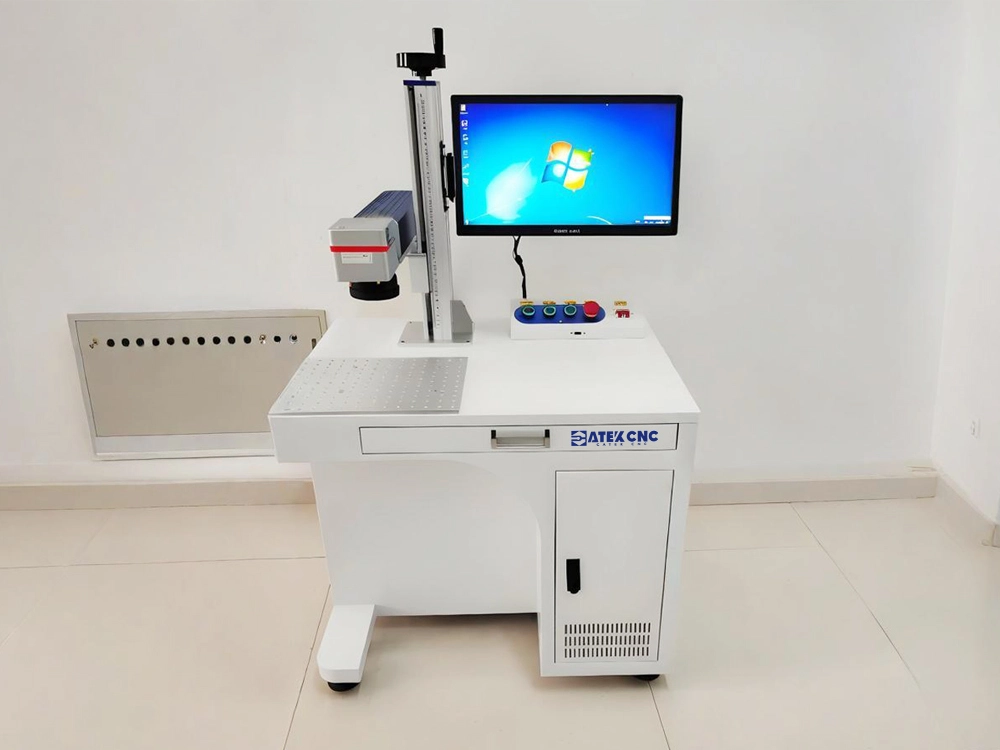

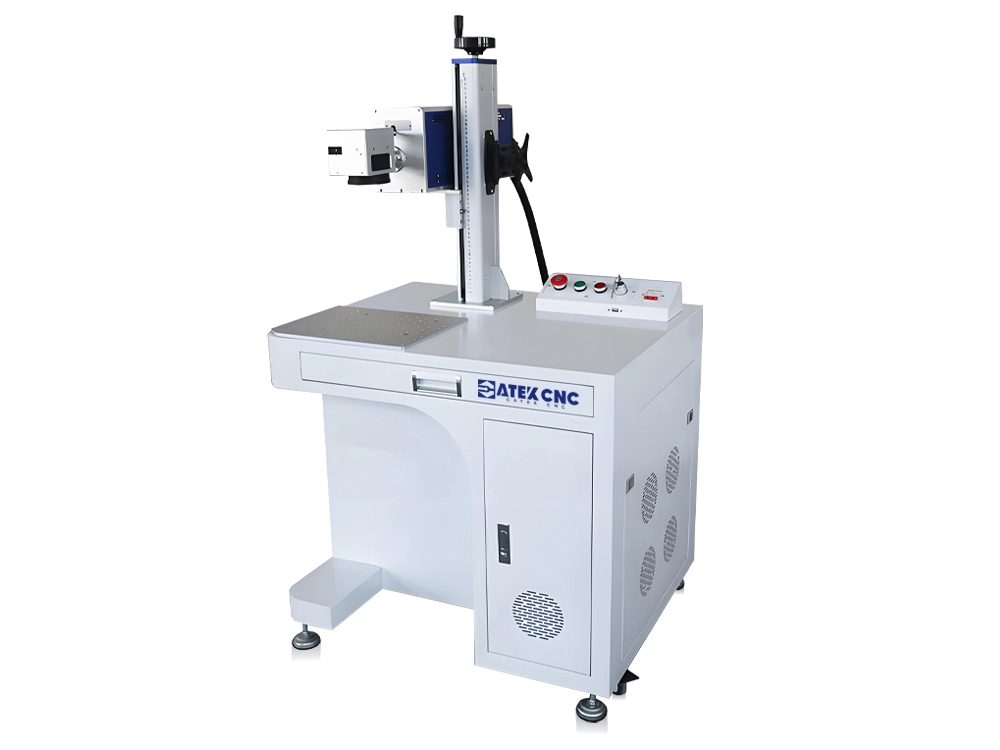

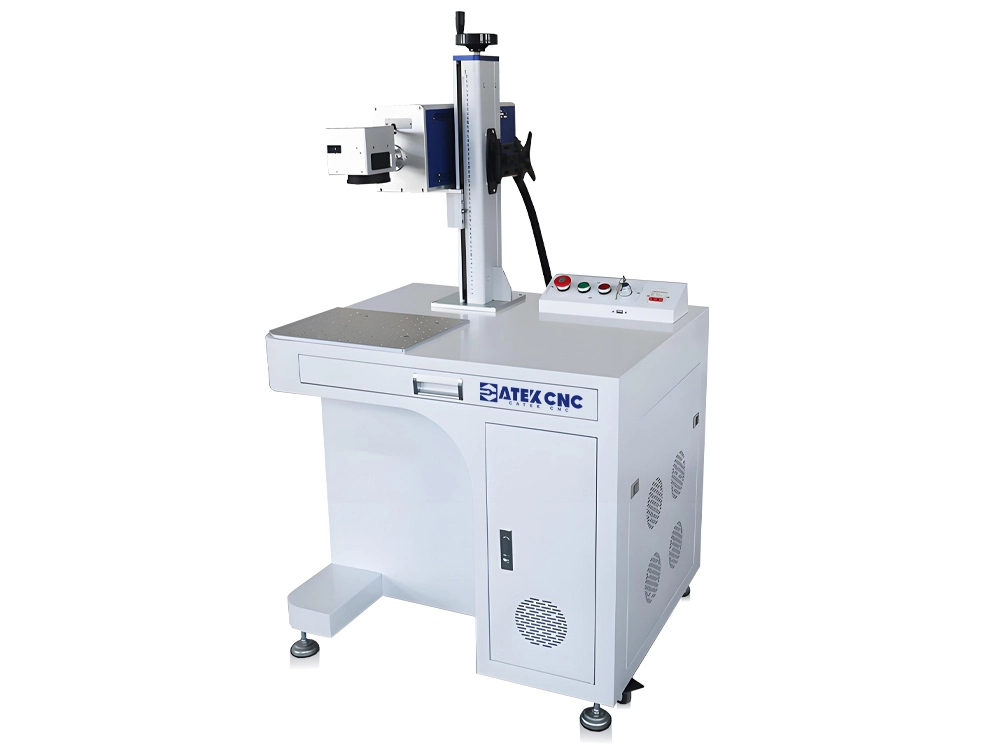

- Cabinet-type design
-
Integrated control cabinet, cabinet design with built-in work surface, convenient for placing and connecting to computer, easy to use.

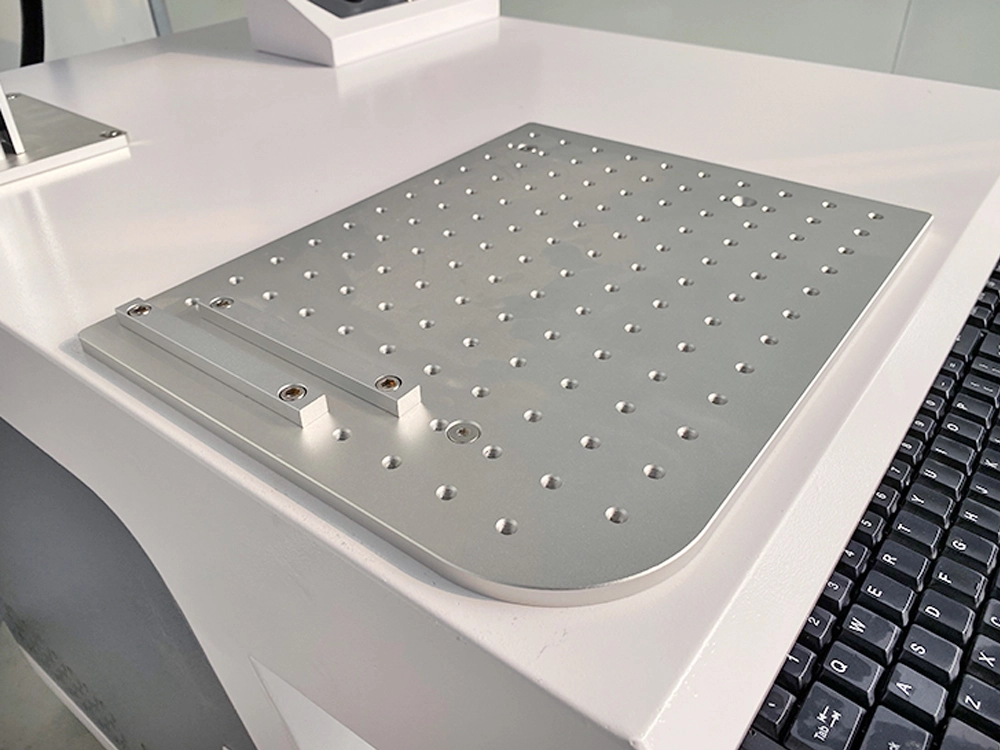

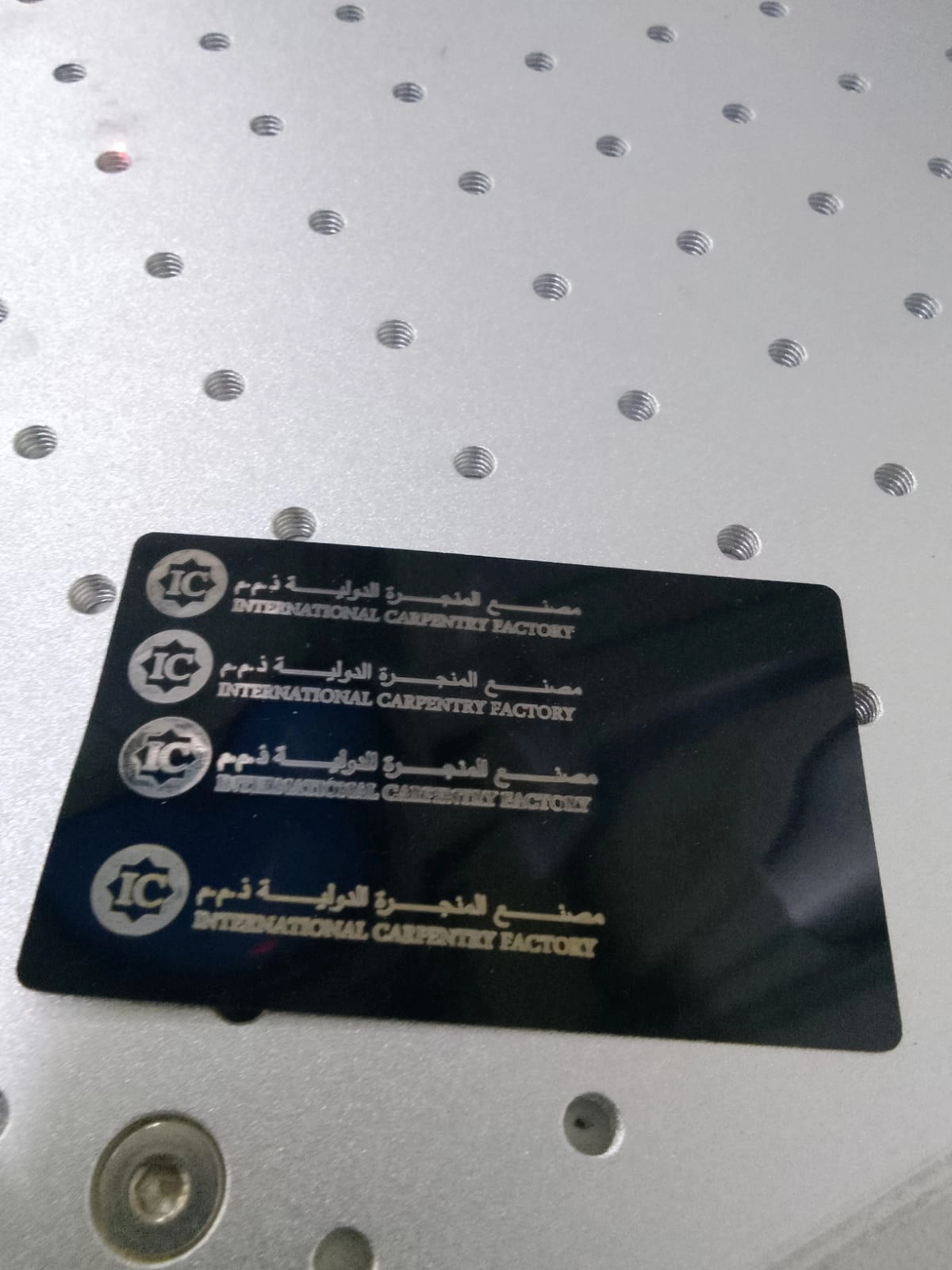

- Multi-hole aluminum alloy worktable
-
Equipped with standard clamping holes and a supporting backplate, it facilitates the secure fixing of various materials for marking.

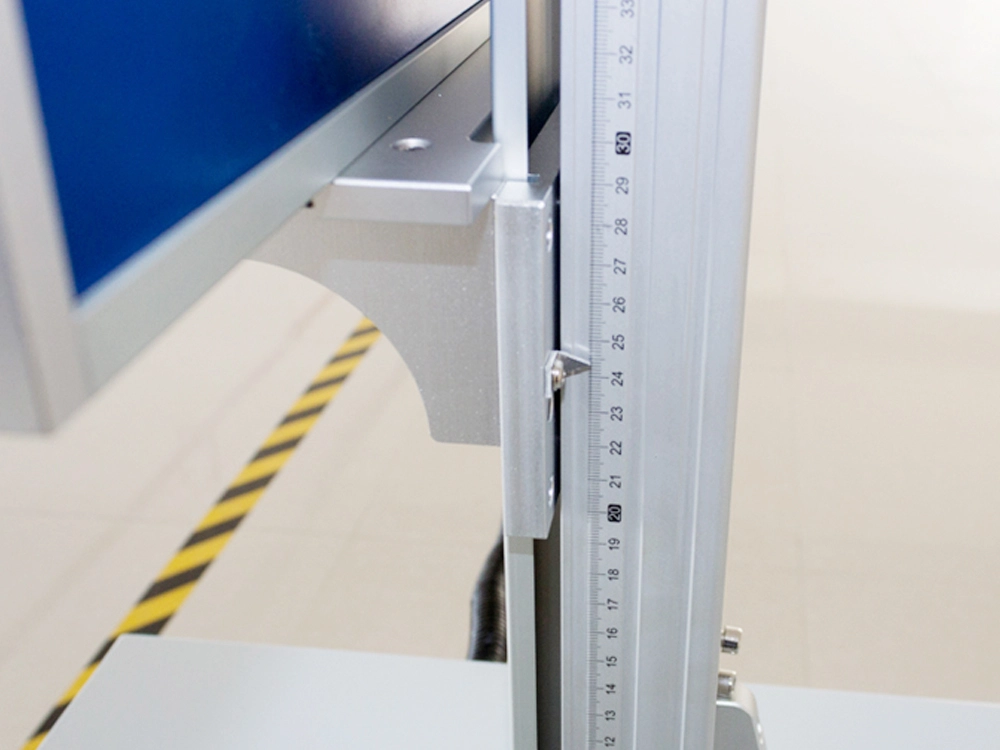

- Liftable aluminum alloy column
-
Manually adjustable aluminum alloy column for lifting, enables easier and more precise focal length adjustment.

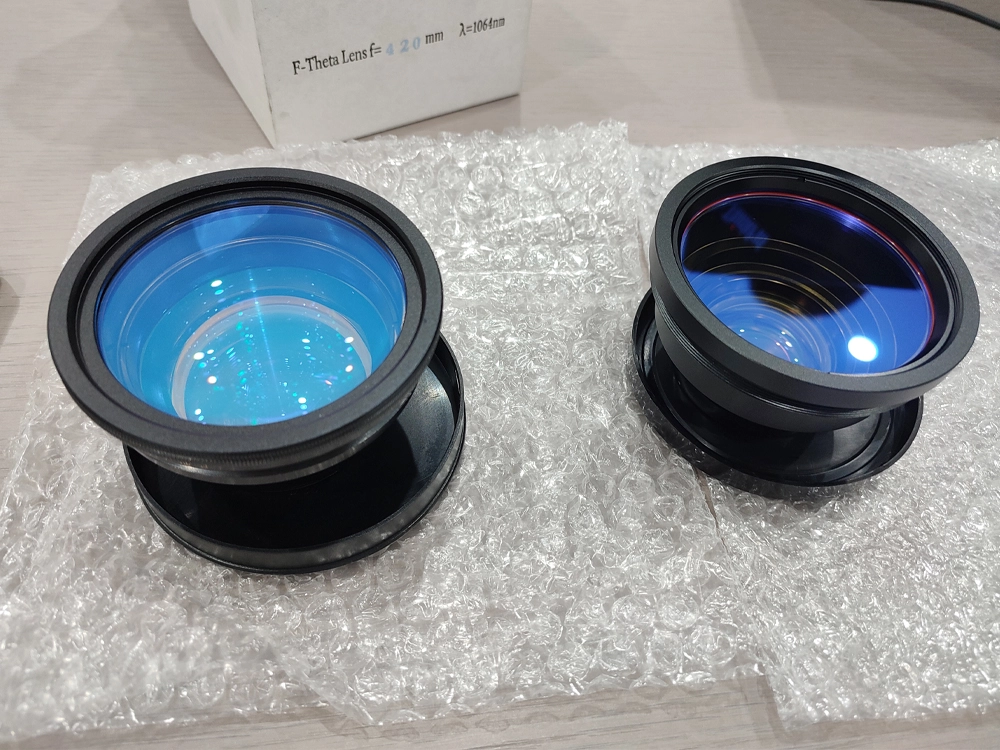

- High-quality field lens
-
Features anti-glare coating, wear resistance, and scratch protection. With a wide focal length adjustment range, it ensures clear focus and sharper marking results.

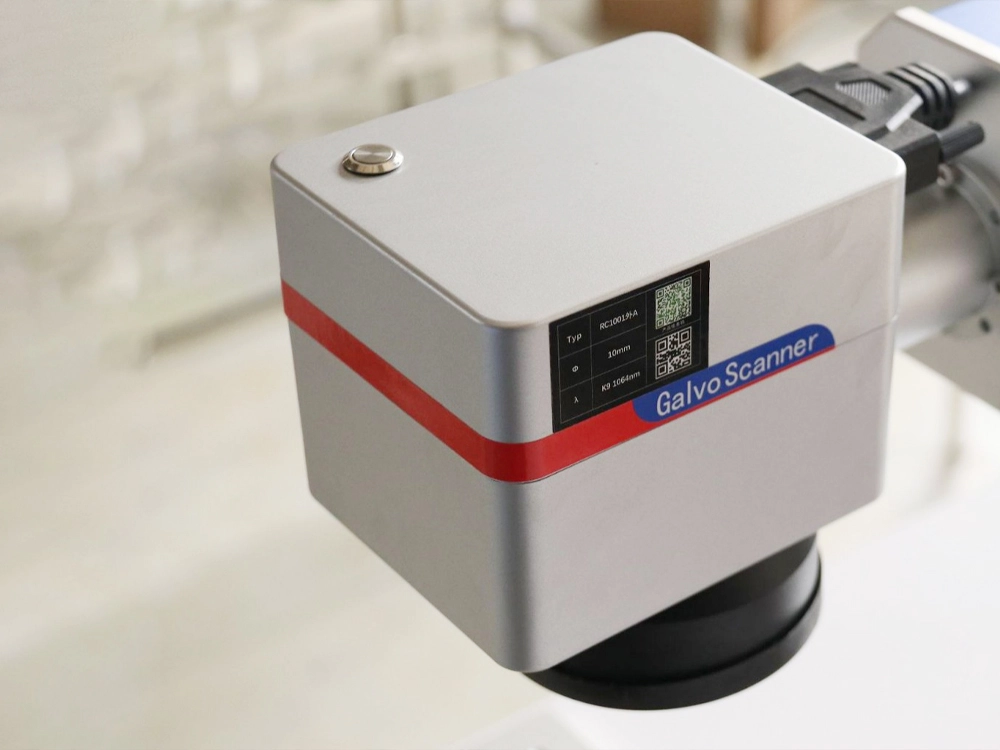

- High-speed scanning galvanometer
-
Offers high scanning accuracy, responsive performance, and precise focusing for optimal marking quality.

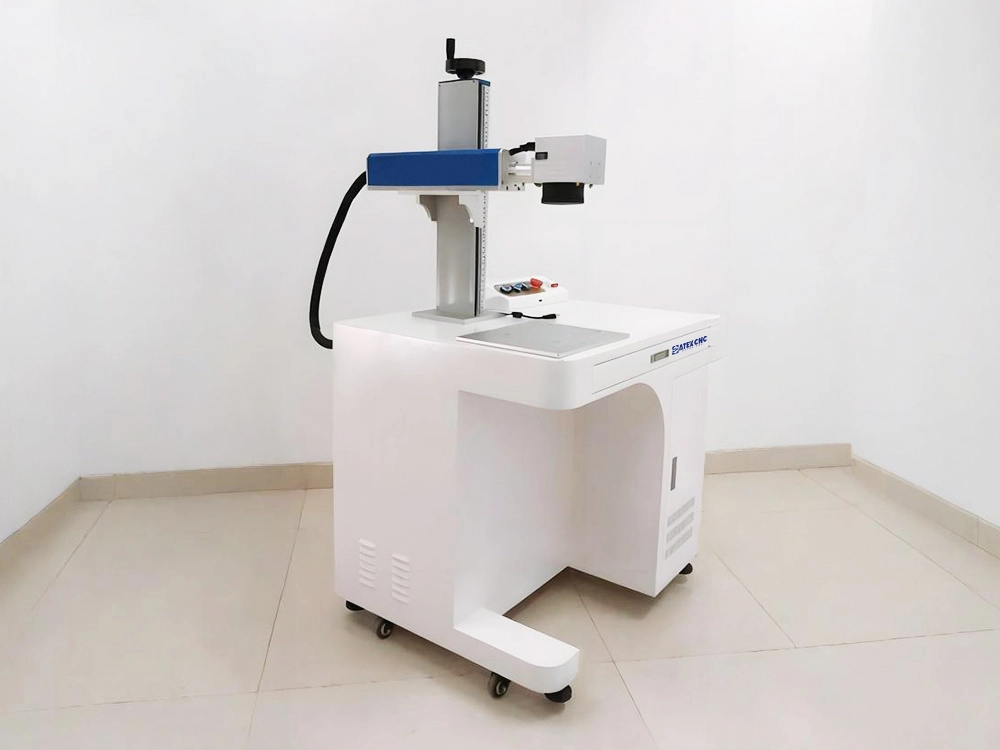

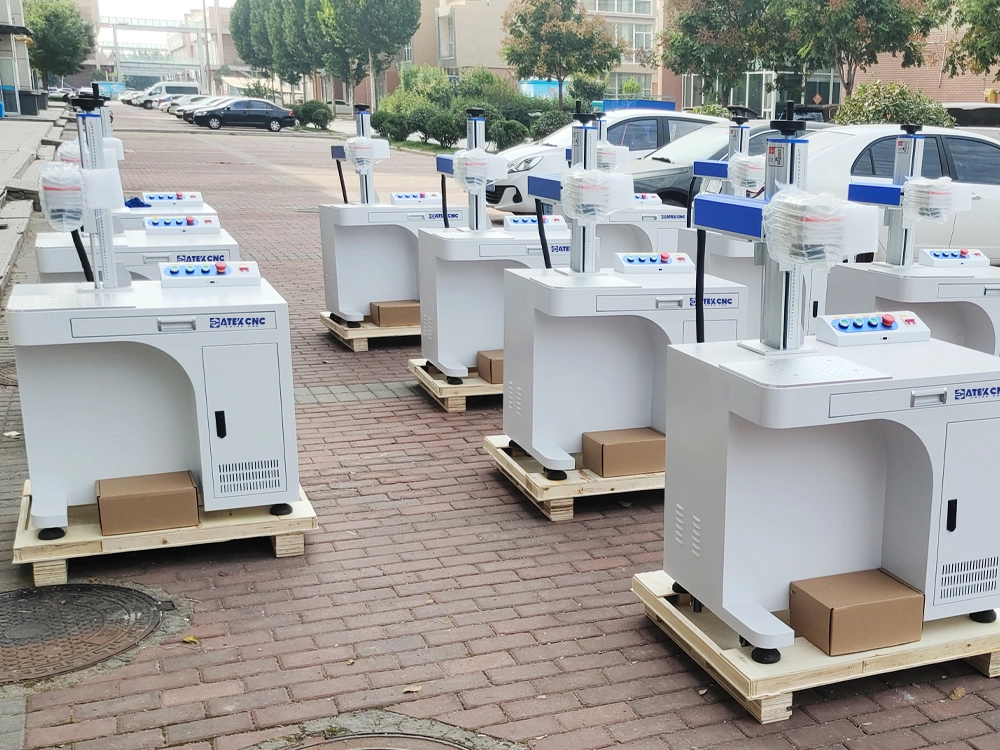

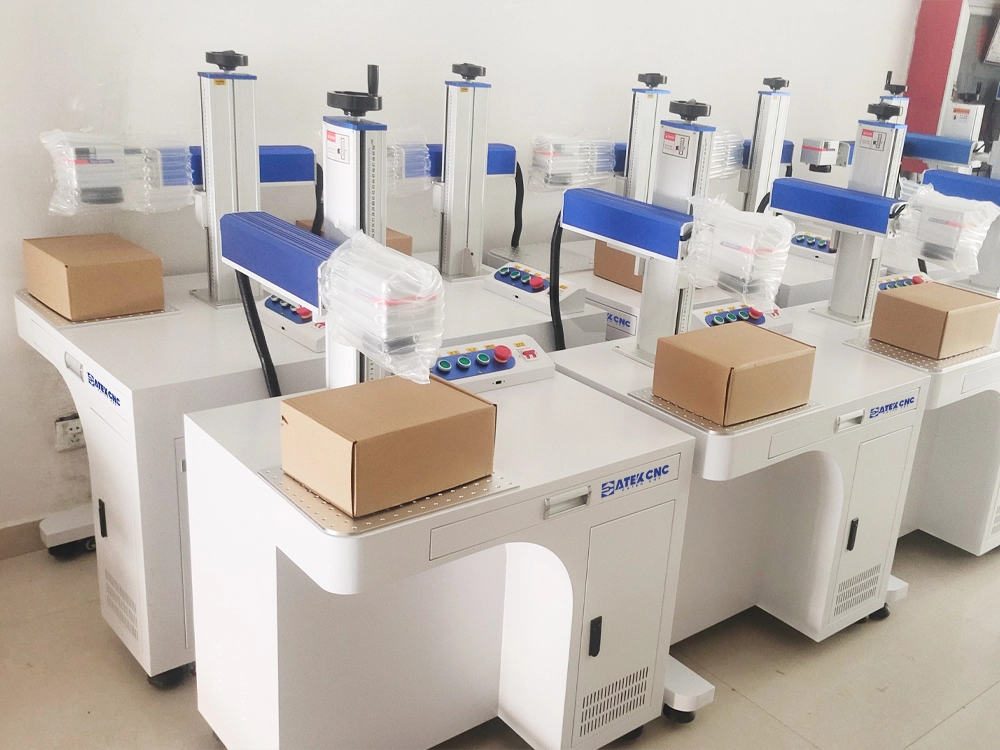

- Cabinet laser marking machines ready for shipment
-
Technical Parameters of Cabinet Fiber Laser Marking Machine
| Model | CK-11-FC |
| Laser Power | 20W/30W/50W/100W/200W/300W |
| Laser Wavelength | 1064nm |
| Pulse Width | 20ns |
| Repetition Frequency Range | 1-600kHz |
| M2 | <1.8 |
| Maximum Single Pulse Energy | 1.25mJ |
| Output Power Stability | <5% |
| Output Beam Diameter | 7±0.5mm |
| Power Range | 0-100% |
| Marking Range | 110*110mm/200*200mm/300*300mm |
| Minimum Line Width | 0.01mm |
| Minimum Number Of Characters | 0.1mm |
| Marking Speed | ≤7000mm/s |
| Marking Depth | Depends on the materials |
| Repeatability Accuracy | ±0.001mm |
| Marking Format | Graphics, text, bar codes, QRcode, automatically date, batch number, serial number, etc. |
| Supported Graphics Formats | Ai, plt, dxf, dst, svg, nc, bmp, jpg, jpeg, gif, tga, png, tiff, tif |
| Fiber Cable Length | 3m |
| Operating Voltage | 220V±10%/50Hz or 110V±10%/60Hz or Customized |
| Unit Power | <0.5kw |
| Working Environment | Clean and dust free or dust less |
| Working Condition Humidity | 5%-75%, 0-40 degree, free of condensed water |
| Laser Lifetime | >100000 hours |
| Weight | 120kg |
| Dimensions | 770*870*1200mm |
Applications of Cabinet Fiber Laser Marking Machine
Fiber laser marking machines are widely used in various fields, including electronic components, electrical appliances, IT industry, automotive and motorcycle parts, precision hardware, gift accessories, medical devices, home appliances, molds, wires, and cables. They are suitable for marking on a variety of metal materials and some non-metal materials.
- Electronics and communication products: Integrated circuit chips, computer accessories, electronic components, sensors, high and low-voltage electrical devices, batteries, keyboards, phone cases, 3C electronic products, LED components, etc.
- Automotive parts: Gaskets, accessories, automotive and motorcycle parts, car tires, aviation components, precision instruments, lithium battery casings, electrode plates, battery covers, engine blocks, pistons, crankshafts, transmission gears, bearings, etc.
- Watches and precision instruments: Clocks, glasses, watches, watch casings, eyeglass frames, molds, instrument components, etc.
- Home appliances and hardware tols: Knives, scissors, pliers, hammers, screwdrivers, wrenches, drill bits, saw blades, taps, carbide tools, steel rulers, gears, bearings, valves, steel pipes, pipe fittings, fasteners, etc.
- Jewelry and accessories: Rings, pendants, metal tags, necklaces, earrings, bracelets, bangles, etc.
- Other products: Stainless steel cups, pots, tableware, locks, souvenirs, bowls, chopsticks, spoons, forks, trophies, badges, etc.

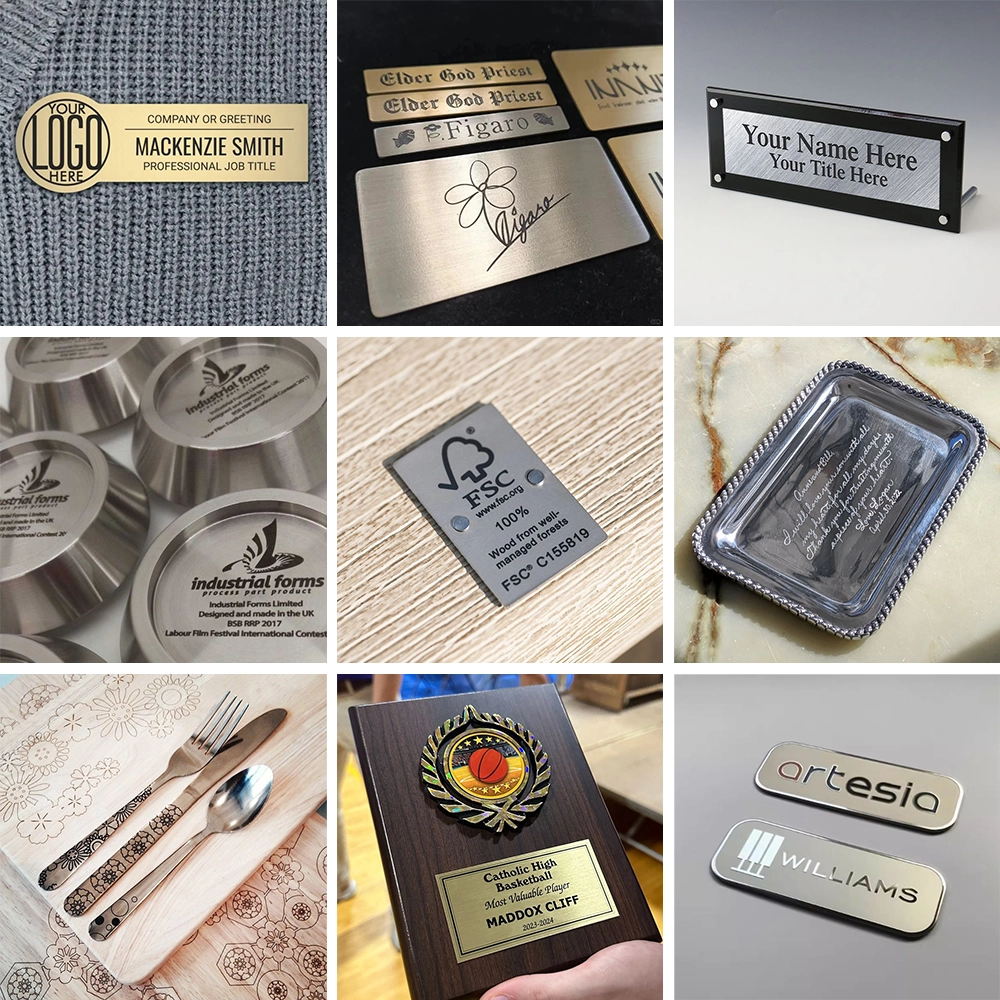

The Following Are the Processable Products of Cabinet Fiber Laser Marking Machine
| Model | CK-11-FC |
|---|---|
| Laser Power | 20W/30W/50W/100W/200W/300W |
| Laser Wavelength | 1064nm |
| Pulse Width | 20ns |
| Repetition Frequency Range | 1-600kHz |
| M2 | <1.8 |
| Maximum Single Pulse Energy | 1.25mJ |
| Output Power Stability | <5% |
| Output Beam Diameter | 7±0.5mm |
| Power Range | 0-100% |
| Marking Range | 110*110mm/200*200mm/300*300mm |
| Minimum Line Width | 0.01mm |
| Minimum Number Of Characters | 0.1mm |
| Marking Speed | ≤7000mm/s |
| Marking Depth | Depends on the materials |
| Repeatability Accuracy | ±0.001mm |
| Marking Format | Graphics, text, bar codes, QRcode, automatically date, batch number, serial number, etc. |
| Supported Graphics Formats | Ai, plt, dxf, dst, svg, nc, bmp, jpg, jpeg, gif, tga, png, tiff, tif |
| Fiber Cable Length | 3m |
| Operating Voltage | 220V±10%/50Hz or 110V±10%/60Hz or Customized |
| Unit Power | <0.5kw |
| Working Environment | Clean and dust free or dust less |
| Working Condition Humidity | 5%-75%, 0-40 degree, free of condensed water |
| Laser Lifetime | >100000 hours |
| Weight | 120kg |
| Dimensions | 770*870*1200mm |
YOU MAY ALSO LIKE
The MOPA laser color marking machine is an advanced laser marking device that uses MOPA (Master Oscillator Power Amplifier) technology, with significant technical advantages and a wide range of application scenarios. It can independently adjust the pulse duration, pulse frequency and pulse energy. By configuring appropriate parameters, a layer of semi-transparent oxide film with controllable thickness can be formed on a specific metal surface through thermal effect. When light is incident,...
$2,570.00~$4,900.00

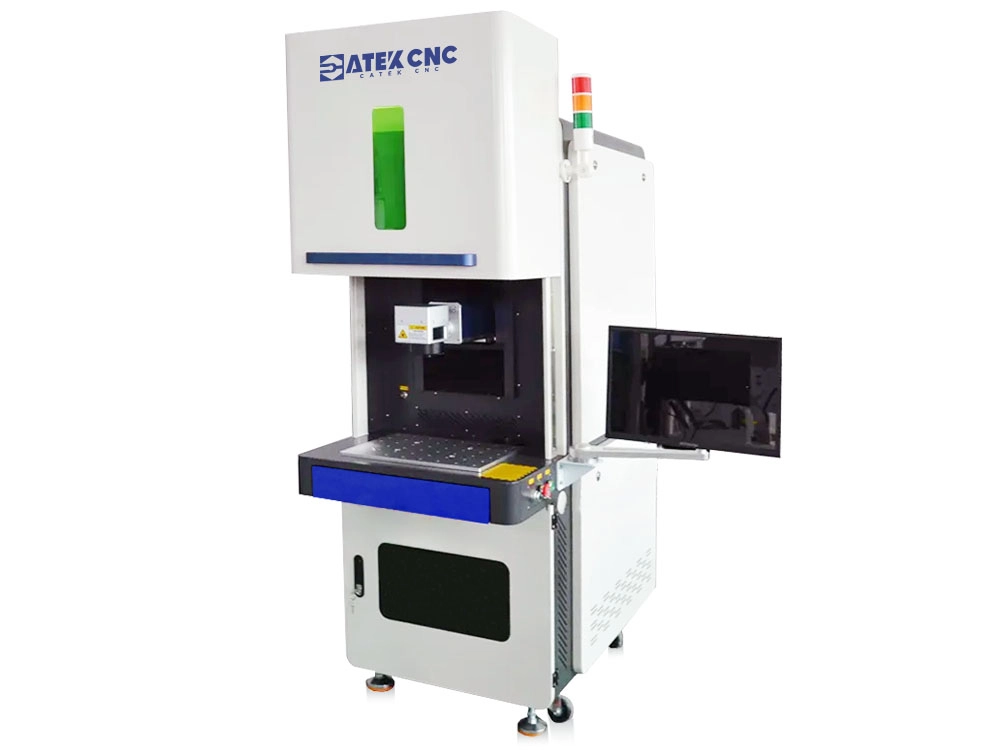

It adopts an integrated overall structure and air cooling system, equipped with a solid protective shell and cover protection function, reduces optical pollution, can effectively isolate smoke and odor during processing, and is equipped with a transparent observation window for the operator to monitor the processing process. This machine occupies a small area, and the integrated desktop design is easy to carry, which is more environmentally friendly and healthy.
