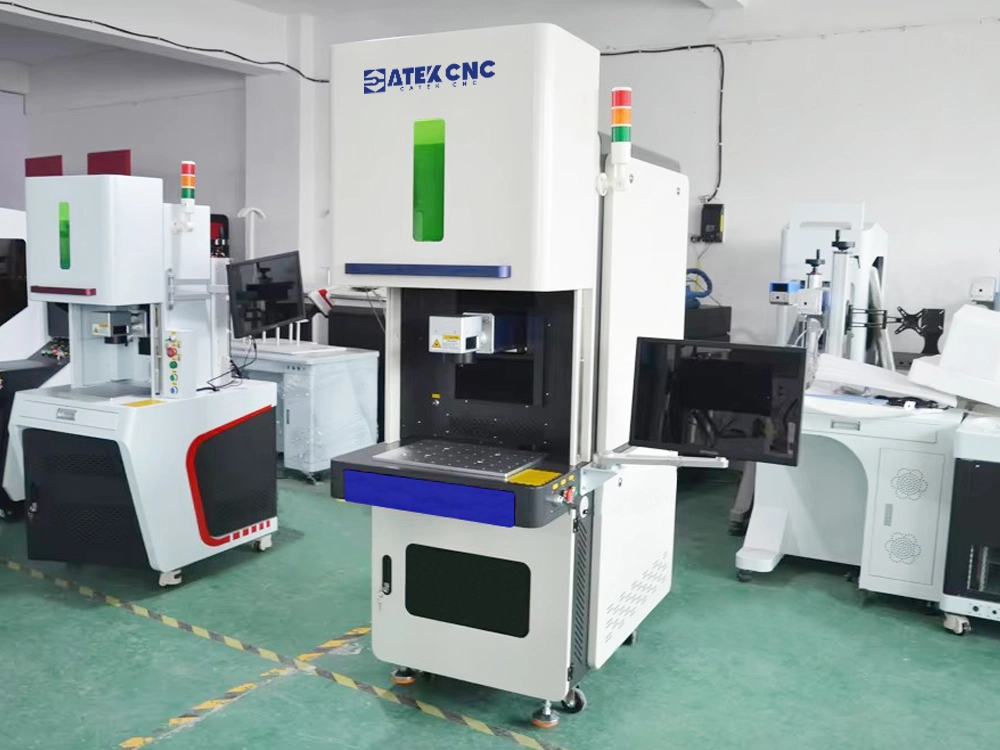

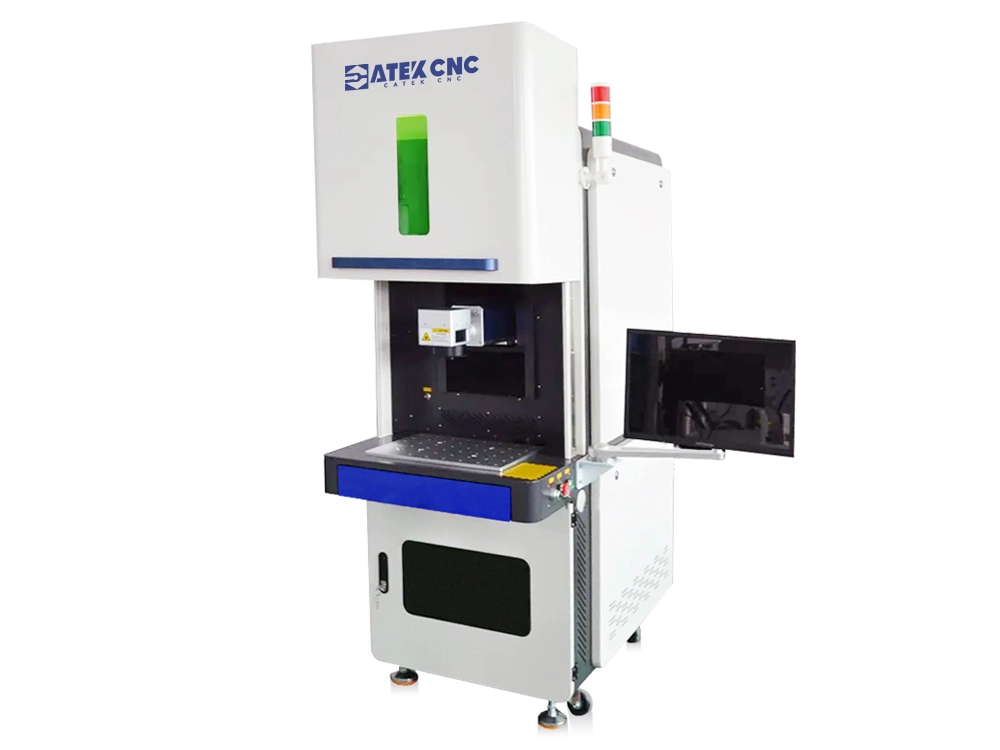

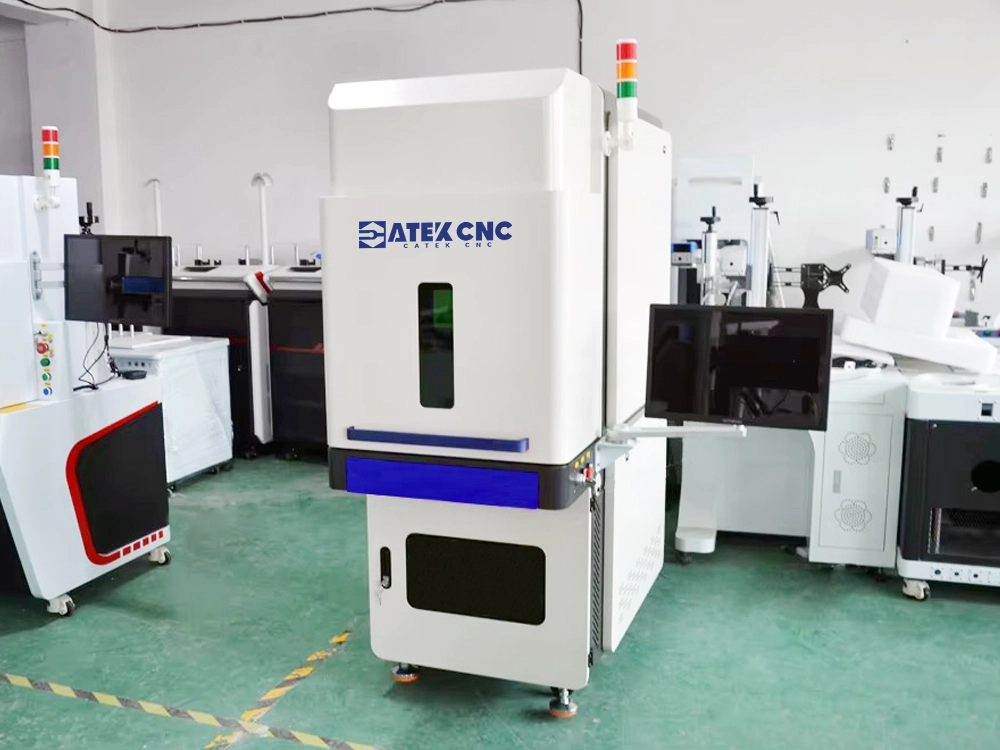

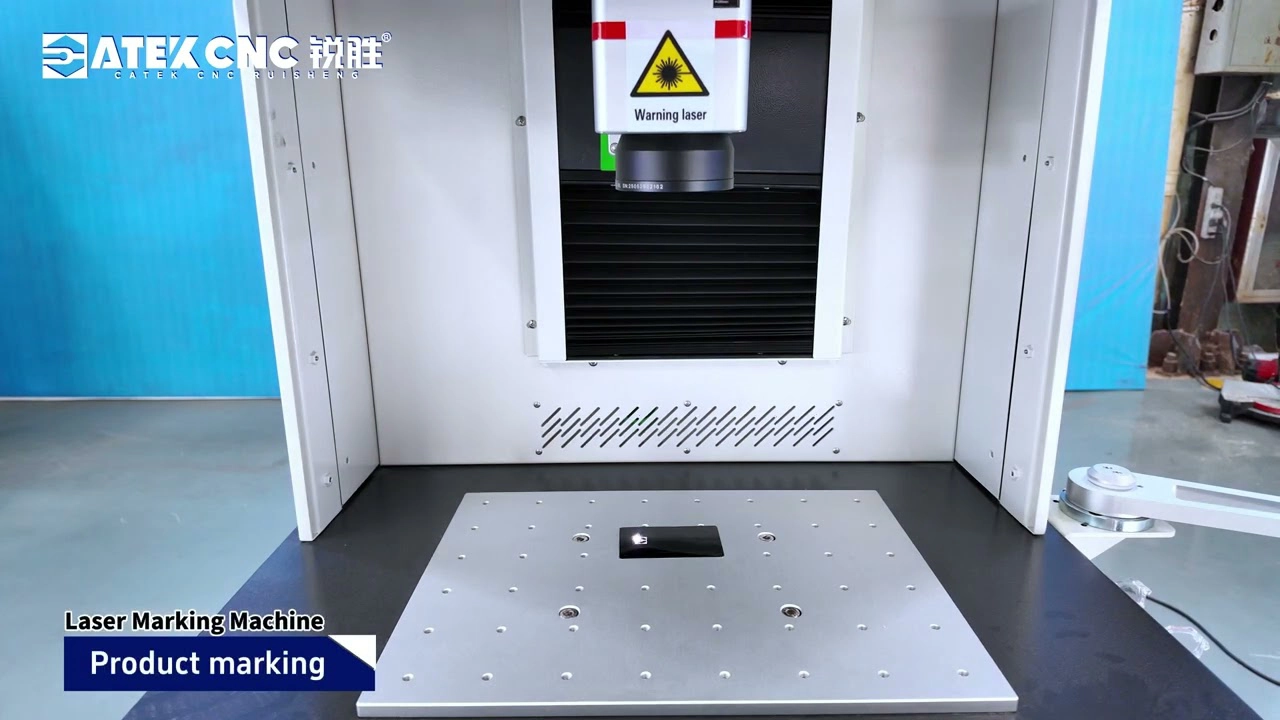

Industrial Cabinet-Type Fiber Laser Marking Machine for Packaging Marking

The enclosed cabinet-type laser marking machine adopts a fully enclosed integrated cabinet structure design, which can effectively reduce the impact of laser radiation on operators and the surrounding environment. The machine is equipped with a liftable protective door, effectively preventing harm to staff from laser and smoke generated during operation, enhancing the safety and comfort of the working environment. The fully enclosed design also effectively isolates dust, moisture, and other environmental factors, ensuring the machine can operate normally even in harsh conditions, improving the machine's stability and durability.

The fiber laser marking machine can process various metals and some non-metallic materials. It has significant advantages especially when marking high hardness, high melting point, and brittle materials. Laser marking is a non-contact processing method, which does not damage the parts, and there is no wear and tear of tools or other consumables. Additionally, its laser beam is fine, with minimal consumption of processing materials, a small heat-affected zone, fine processing effects, and clear and durable markings, offering better results than ink printing without any pollution.

Compared to other machines, the fiber laser marking machine has lower operating costs and is easier to maintain. It does not require a complex water cooling system or cumbersome optical path structure, effectively saving production and operating costs.

Advantages of Cabinet-Type Fiber Laser Marking Machine with Protective Enclosure

• Low operating costs, no consumables required, maintenance-free, and long service life.
• Cabinet-type integrated design, comes with a worktable, foldable monitor stand, and keyboard drawer, can perfectly embed a PC.
• Compact design, small size, occupies less space, equipped with universal wheels for easy movement, suitable for installation and use in various complex environments, highly adaptable.
• Equipped with a fully enclosed protective enclosure, safer to use, effectively avoids laser damage, no optical pollution or power coupling loss, complies with European standards, meets RoHS certification requirements.
• Laser spot size of only 0.01mm, finer processing effects, clear markings.
• Electro-optical conversion efficiency up to 70%, low energy consumption, low operating costs.
• Uses air cooling, no need for a water cooling system, saving production costs.
• Long laser life, can work continuously for over 100,000 hours without power decay, and is maintenance-free.
• Uses English control software, simply input the shape to be marked into the control software for one-click marking and processing, easy to operate.
• Marking effects do not fade, are not easily worn, and have strong durability.
• Fast scanning marking speed, up to 12000mm/s.
• Equipped with dual red light positioning function, convenient for positioning and marking.

Details of Closed Cabinet-Type Laser Marking Machine

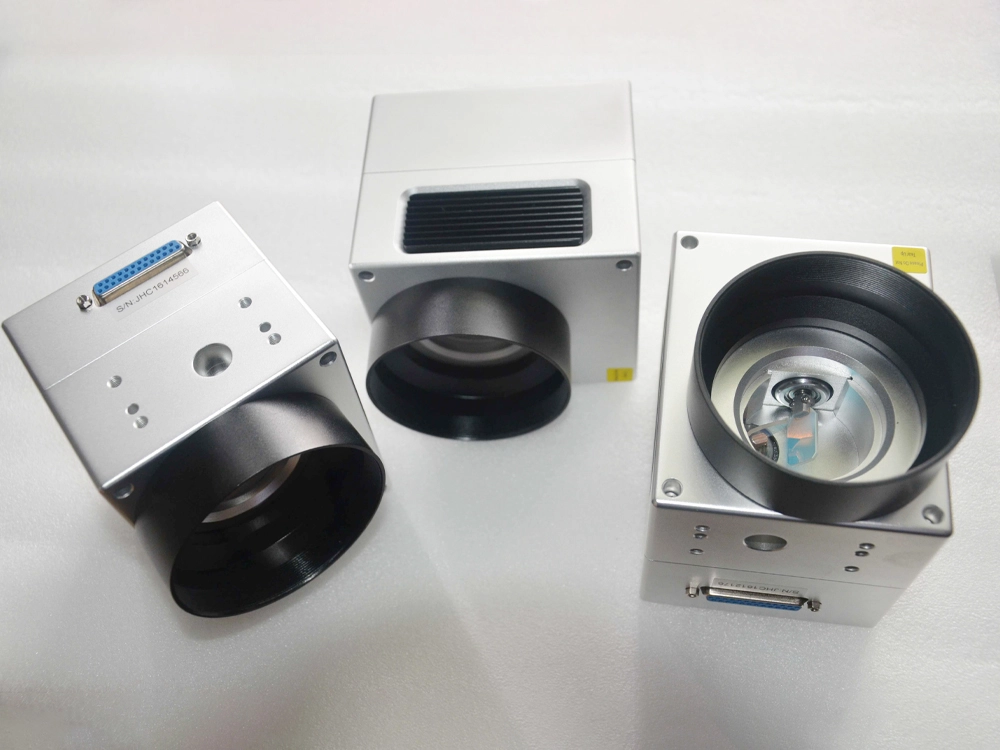

Laser marking system

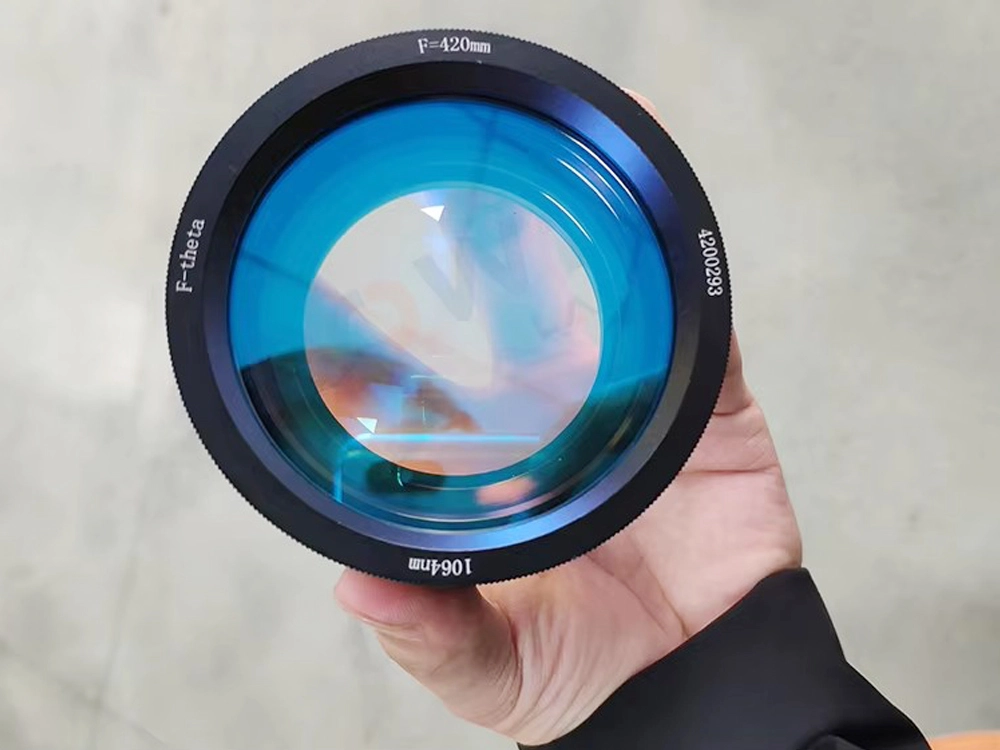

The optical system, composed of Sino-Galvo's galvanometer and high-quality multi-layer coated field lens, precisely focuses the laser beam onto the workpiece surface through the galvanometer scanning system and field lens focusing system, achieving high-precision marking and processing.

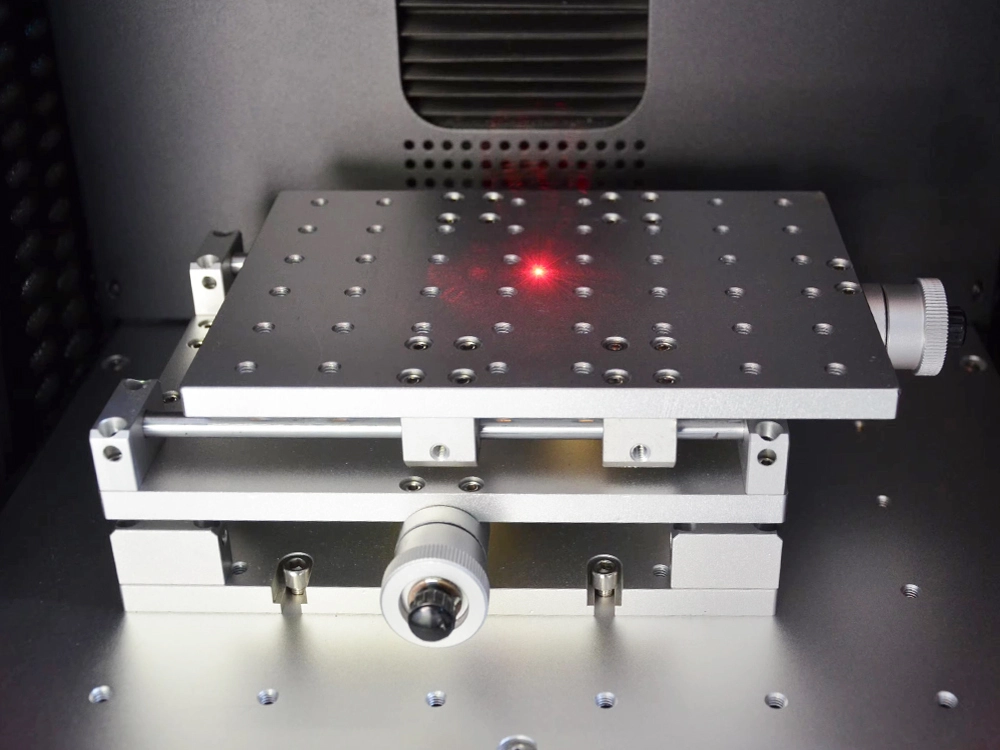

Worktable

The positioning fixture backing plate can be adjusted according to products of different sizes and shapes. Simply align the part with the backing plate to complete the positioning, making the operation straightforward.

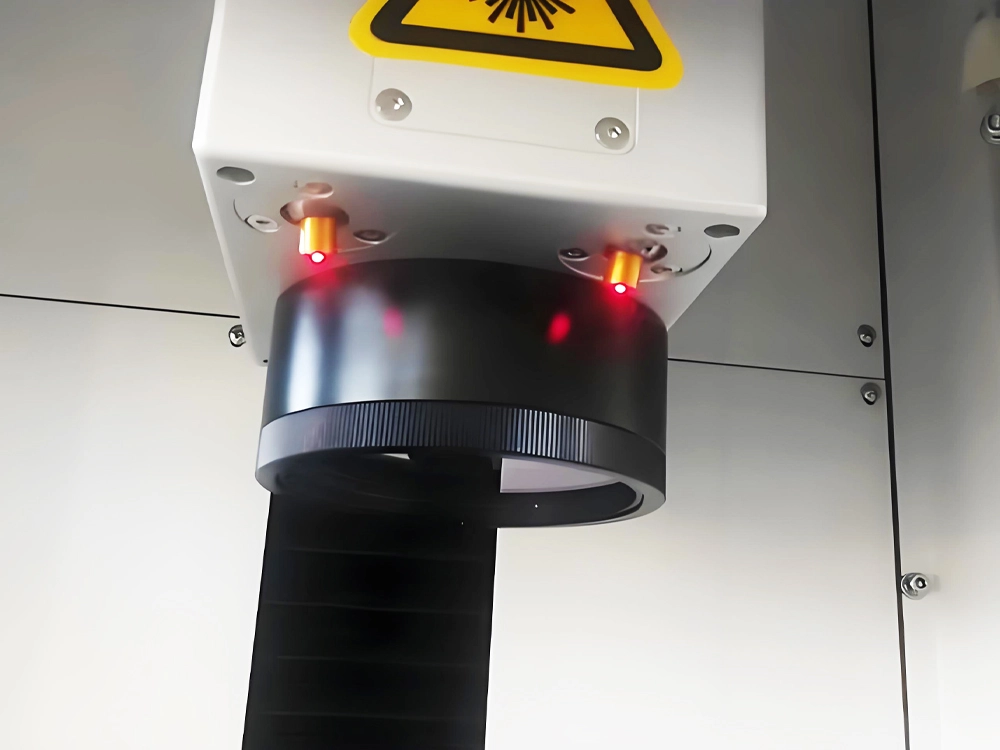

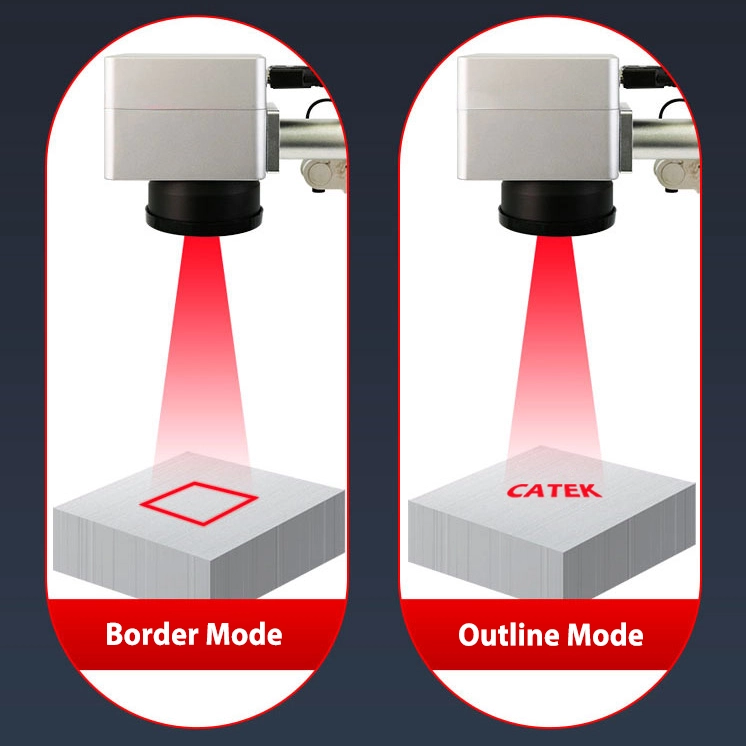

Double red light instructing

Equipped with double red light instructing, it supports outer frame preview and contour preview, making positioning and processing straightforward.

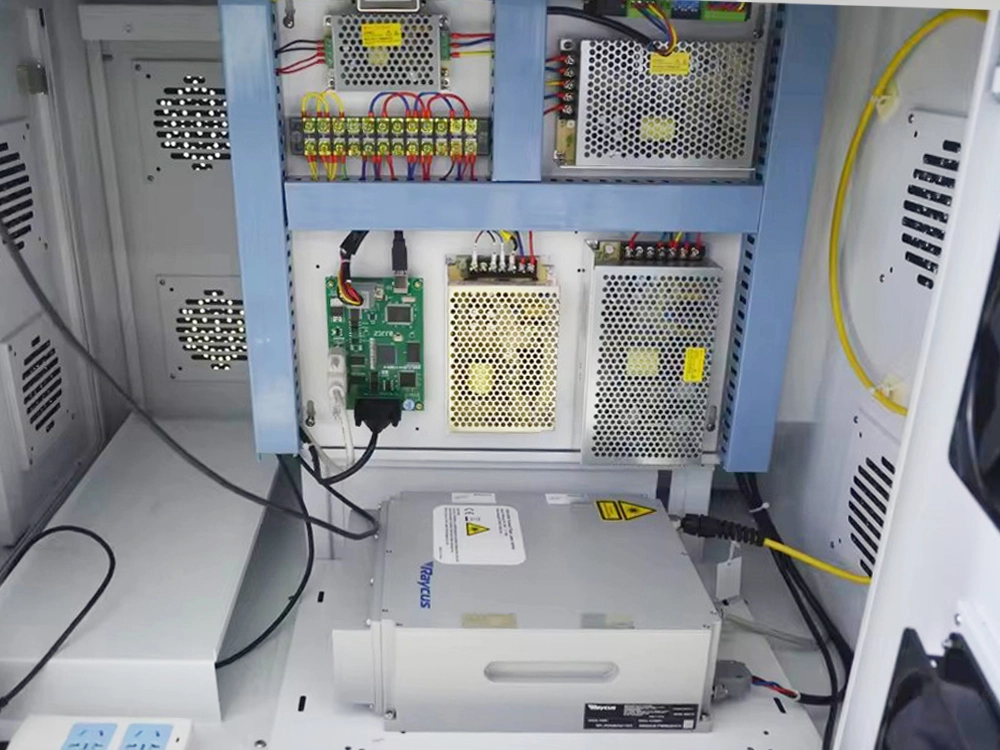

Inside the cabinet

There is ample space inside the cabinet, which can accommodate not only components related to the laser marking machine, but also computers, etc.

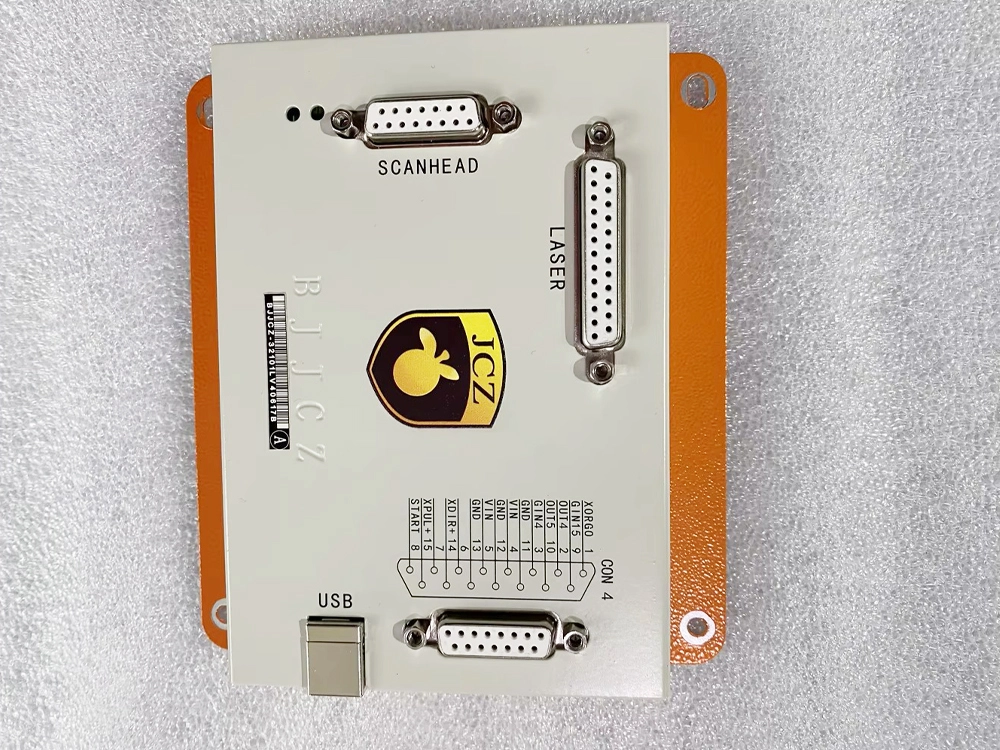

Beijing JCZ control system

Using Beijing JCZ control motherboard, the control software utilizes EZCAD, which is simple to operate and supports various bitmap and vector graphic files.

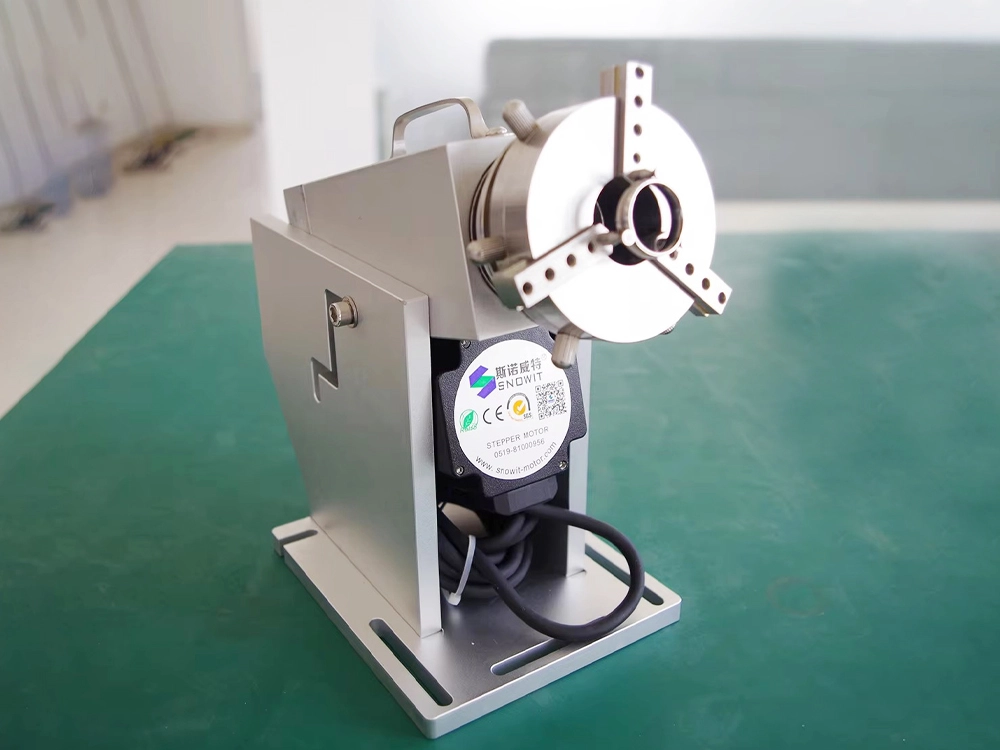

Optional rotary device

The workpiece can be clamped for rotational marking and used to process the curved surface of the workpiece.

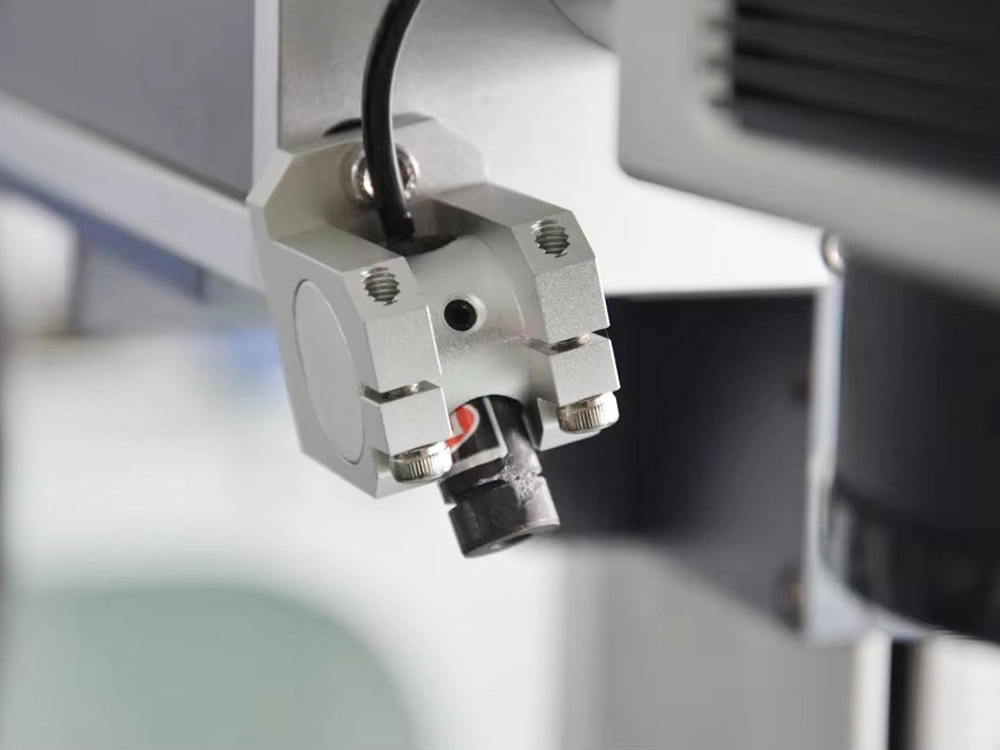

Optional focus adjustment aid device

The device is fixed on the laser head and emits a visible red dot. When adjusting the focal length, observe the positional relationship between this red dot and the red dot emitted by the red light emitter. When the two coincide, the workpiece is on the focal plane.

Technical Parameters of Closed Cabinet-Type Laser Marking Machine

What products can the enclosed fiber laser marking machine process?

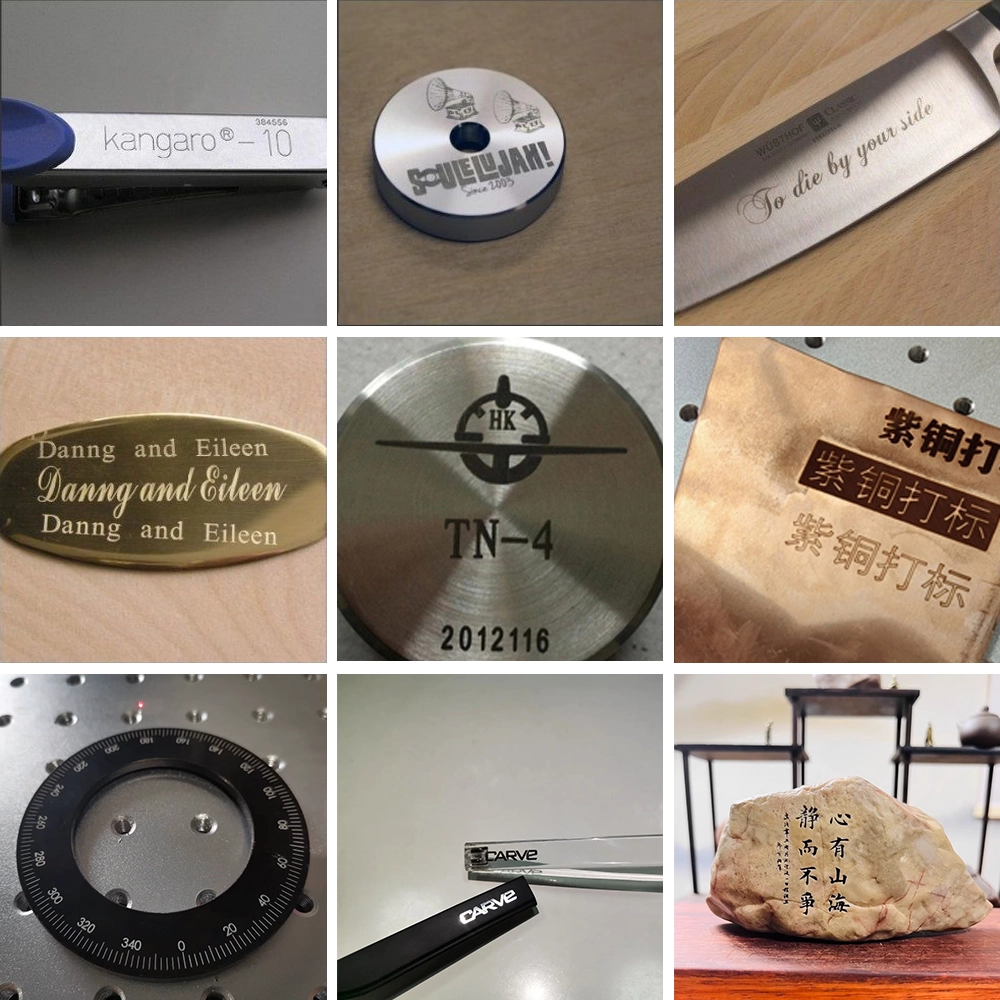

The fiber laser marking machine is an efficient, precise, and widely applicable marking and processing device, capable of marking or engraving on a variety of materials. Below are some examples of products processed by our customers for your reference:

Metal Materials: Iron, manganese, steel, stainless steel (304 stainless steel, 316 stainless steel, etc.), copper, aluminum, aluminum alloy, magnesium, titanium, titanium alloy, gold, silver, platinum, tin alloy, magnesium alloy, metal oxides, electroplated layers, oxide layers, etc.

Non-Metal Materials: ABS, PVC, epoxy resin, polyurethane, rubber, ceramics, stone, etc.

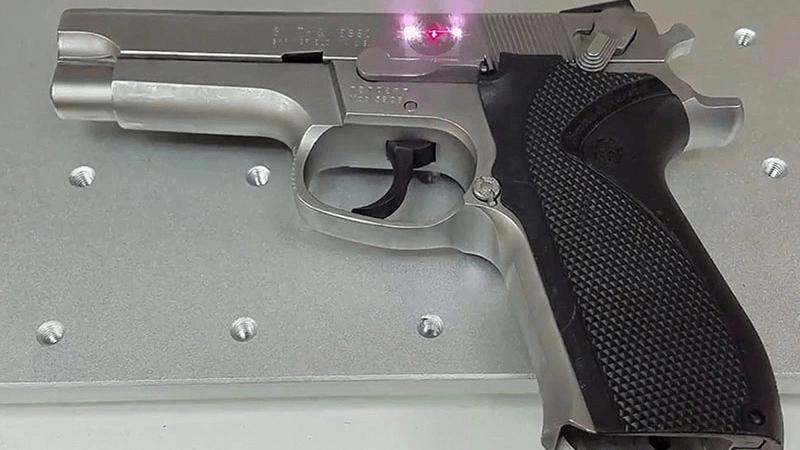

Application Products: Integrated circuit chips, computer accessories, mobile phone accessories, electronic components, automotive parts, aerospace equipment, household appliances, hardware tools, kitchen and bathroom products, gold and silver jewelry, watches, bearings, gears, tires, lighters, buttons, lids, glasses, and various other products.

Common Questions About Laser Marking Machines

What is the packaging like when shipped?

We use three layers of packaging. The outermost layer of the machine is packed with thickened plywood crates, safe and sturdy. The middle part is foam, securing the machine in the crate to ensure it does not shake during transport. The inner layer uses waterproof thickened plastic wrap to envelop the machine, ensuring the safety of the machine body and related accessories.

How to install and operate the machine?

When the machine is shipped, we include a USB drive and operation manual in the packaging. The USB drive contains complete installation and instructional videos, and engineers are available 24/7 to provide problem-solving support. They can offer machine training and usage methods through video chat, email, online chat, etc.

What should I do if the machine malfunctions?

We have a professional after-sales service team available 24/7. If you encounter any after-sales issues, our engineers will diagnose the problem within 10 minutes. If it's an operation or software issue, it will be resolved within 2 hours. If it's a hardware failure, we will arrange for the hardware to be shipped to you within 24 hours for replacement.

How long is the warranty for the machine?

The machine comes with a 3-year/36-month free warranty. During this period, if the machine suffers any non-human damage, we will provide you with free replacement parts. Additionally, we offer permanent free software upgrades and maintenance.

What is the risk of damage during transportation?

The packaging of all our machines takes into account various risk factors to ensure safe arrival. We choose to cooperate with renowned international freight companies, experienced in safe transportation, and all goods are insured to ensure their safety. So please don't worry, you will receive the machine intact.
