[Function Description]

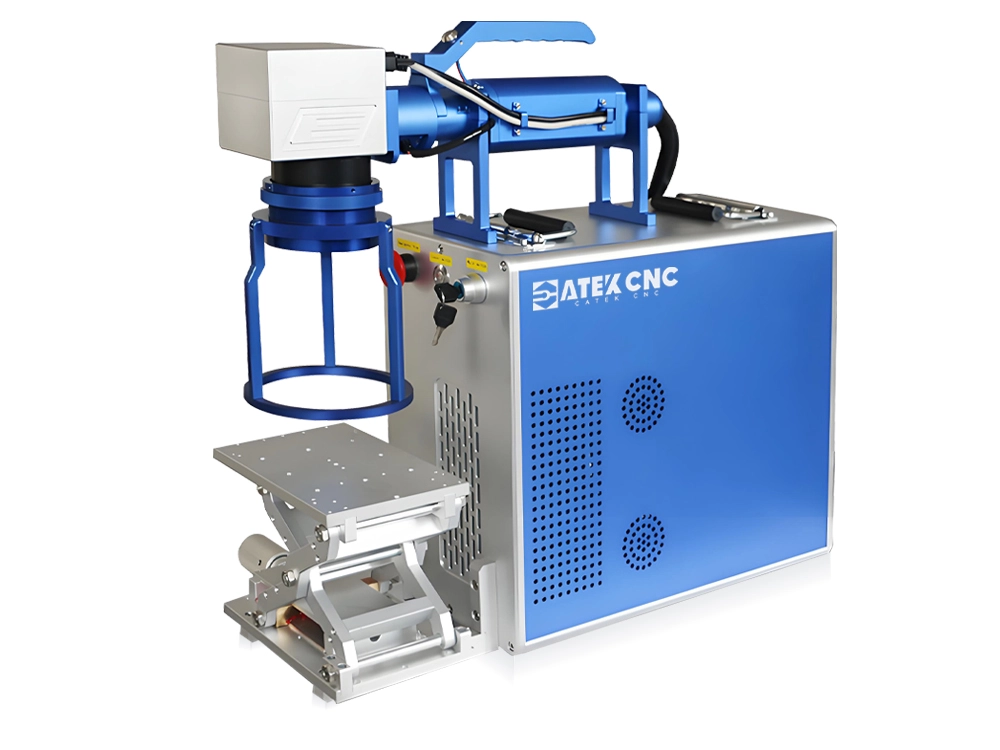

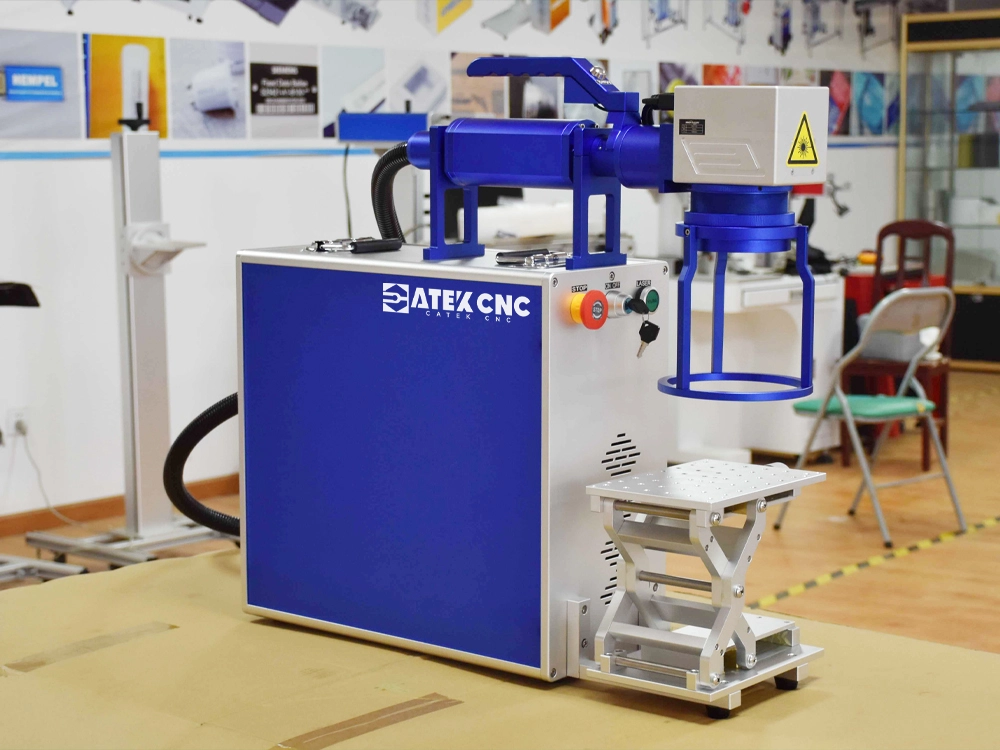

The split design is adopted, and the laser generator and the handheld laser head are separated. The handheld laser head is made of all aluminum, weighs only 3 kg, is compact and portable, easy to operate with one hand, and the distance bracket is adjustable and detachable. Due to its split design, it is suitable for processing some large, difficult to move or irregularly shaped workpieces that are inconvenient to process with traditional integrated machines, such as nameplates and model markings of some large die-casting workpieces in the construction industry, automobile industry, and shipbuilding industry.
The handheld fiber laser marking machine is equipped with a detachable handheld marking head, enabling it to easily handle marking tasks in narrow spaces or on large workpieces. The marking head features a lightweight and integrated design, weighing only 2kg, and supports one-handed operation for simple and convenient use. The device utilizes an air-cooling system, eliminating the need for external water cooling equipment. Its compact structure and flexible design make it highly portable and easy to transport. Additionally, the handheld laser head can be quickly combined with the main body to switch to table mode, making it suitable for fine processing of small crafts. This versatility allows the machine to adapt to various working scenarios, truly achieving multi-purpose functionality.
Advantages of Portable Handheld Fiber Laser Marking Machine

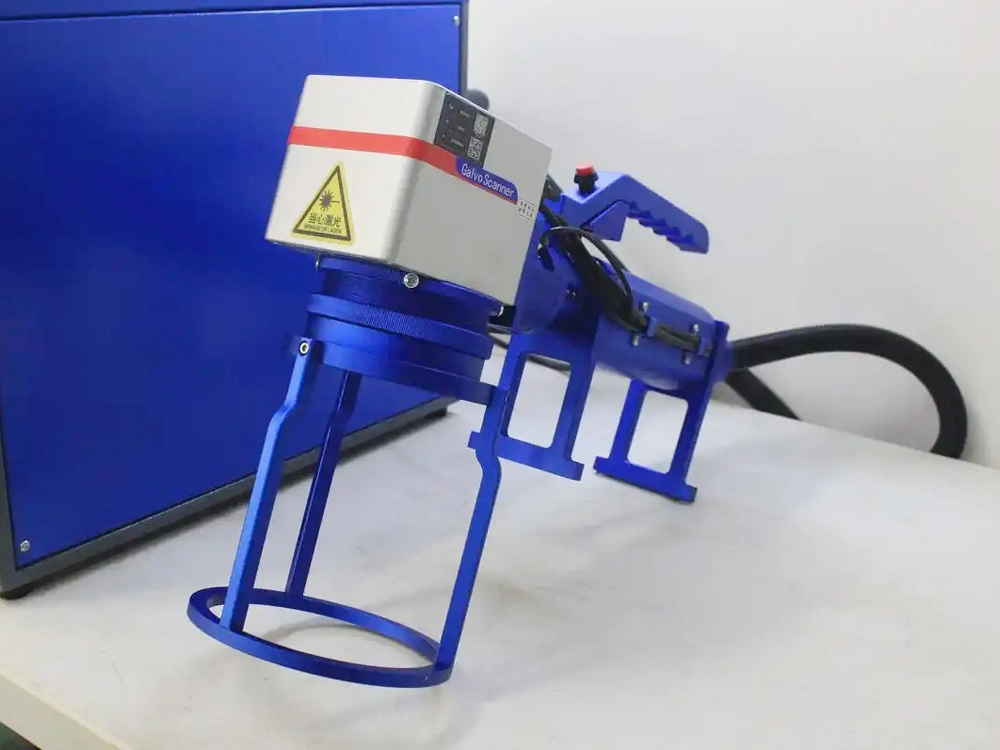

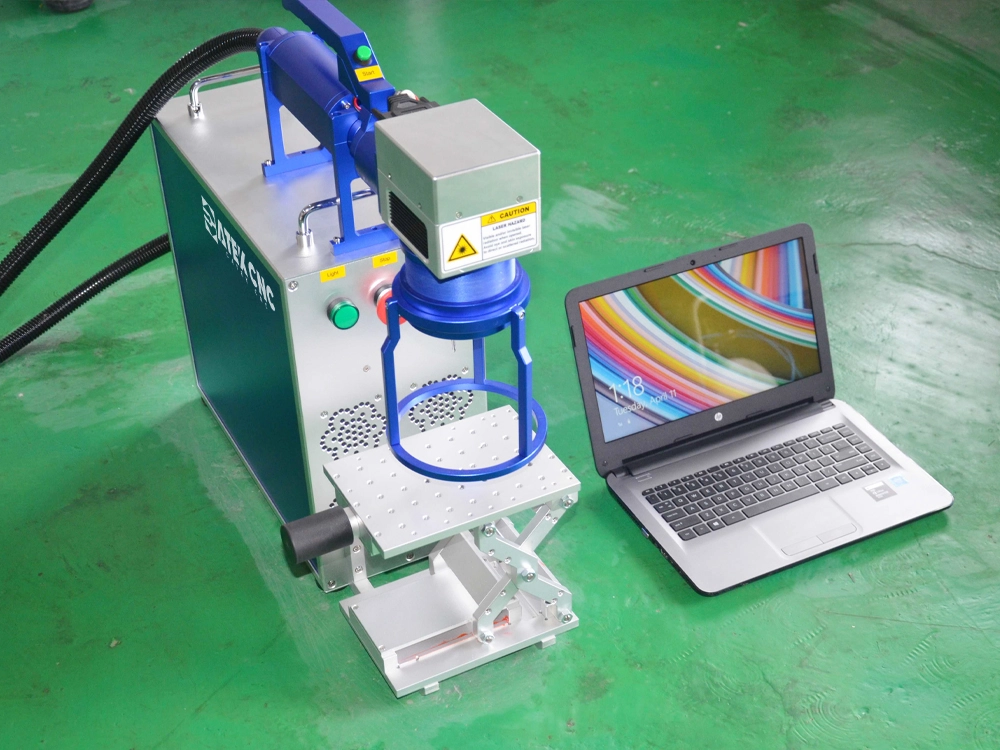

- The marking laser head adopts a detachable design, allowing users to perform marking operations handheld. This design is especially suitable for marking large and difficult-to-move products. The body is made of full aluminum alloy, weighing only 2 kilograms, making it compact, portable, and easy to operate with one hand. In addition, the distance bracket is not only detachable but also adjustable, making it suitable for various processing tasks.
- The overall machine is small in size and compact in design, making it easy to carry and move. The entire machine is comparable in size to a desktop computer host, offering flexible use.
- The aluminum alloy metal body is impact-resistant and can withstand high temperatures and dusty environments, making it suitable for use in various complex working conditions.
- The minimum character size for marking can reach 0.15mm, with a line width of 0.01-0.1mm, making it suitable for various precision marking tasks.
- The laser has a lifespan of up to 100,000 hours. Its fiber structure design is stable, and it uses an air-cooling method, requiring no maintenance, ensuring long-term reliability.
- Laser marking requires no consumables such as ink or chemical reagents, only electricity, reducing long-term usage costs.
- An optional lifting platform can be added to facilitate the processing of products of various heights. A rotary device can also be optionally installed for multi-surface processing, allowing the machine to extend beyond flat products to three-dimensional surfaces.
Details of Handheld Fiber Laser Marking Machine

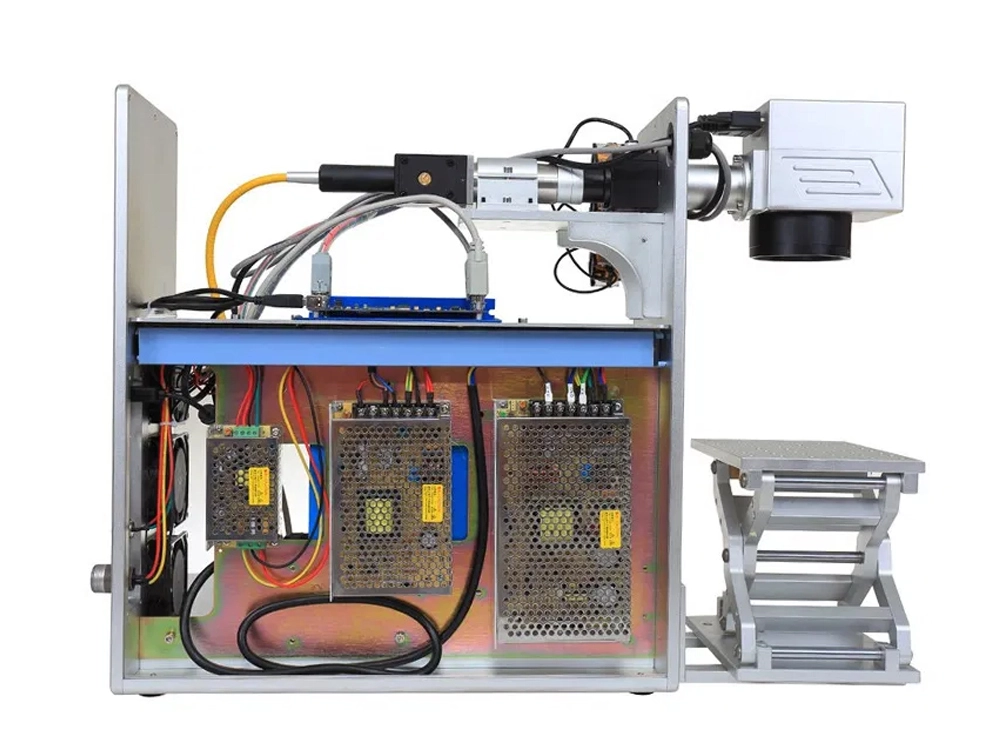

- Internal structure of the machine
-

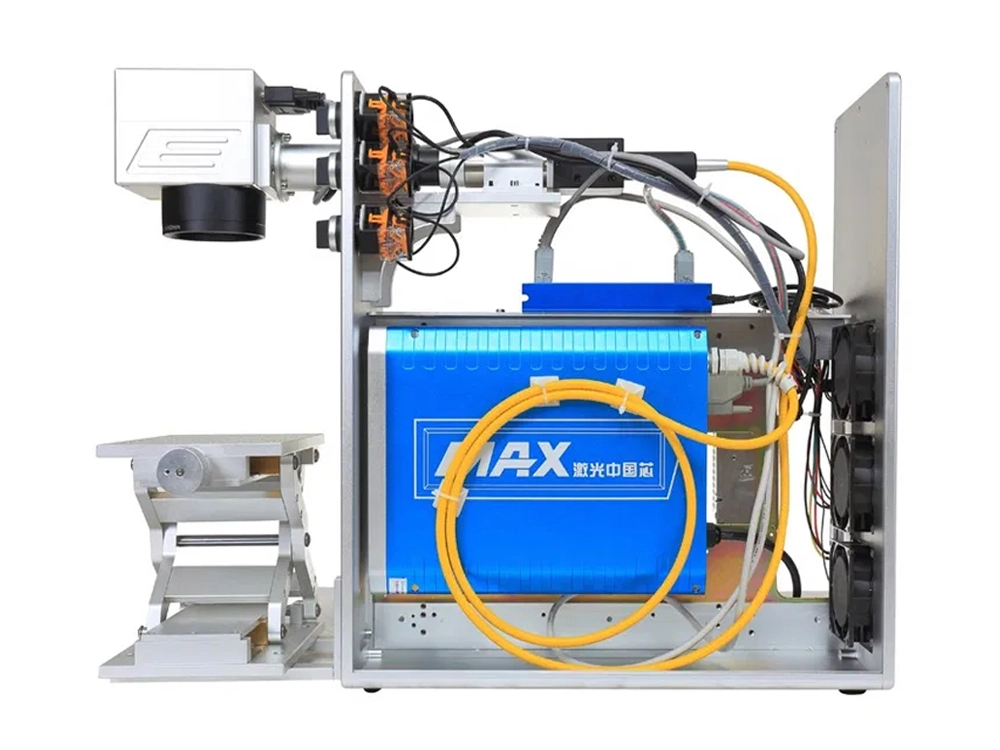

The split design distributes most of the machine's components inside the machine body, effectively reducing the weight of the marking head.

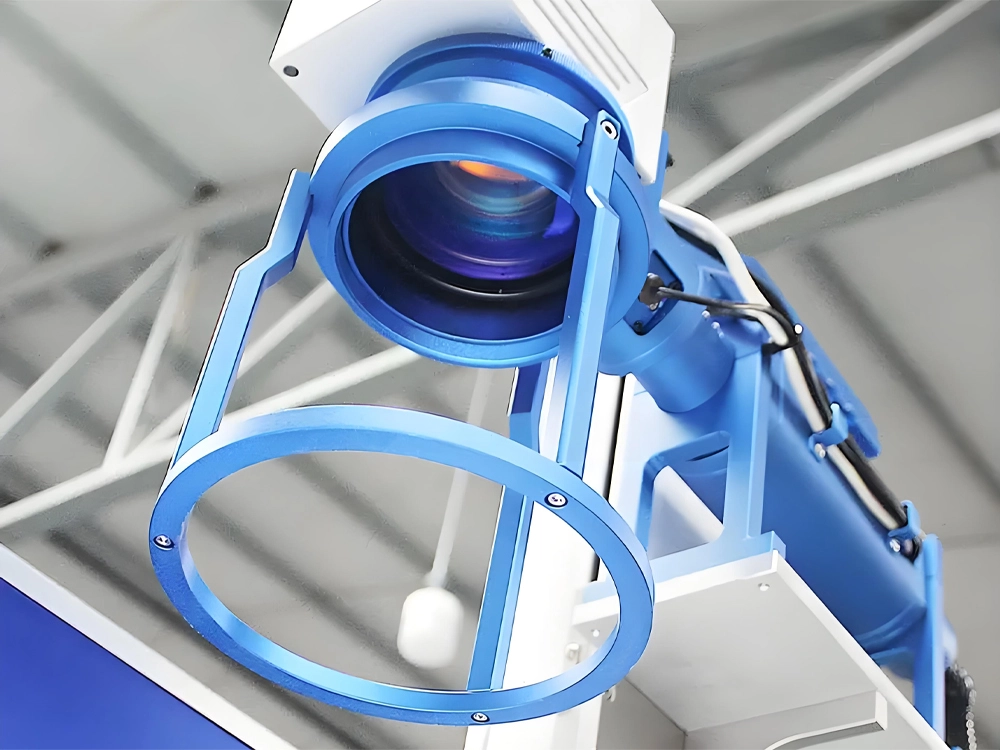

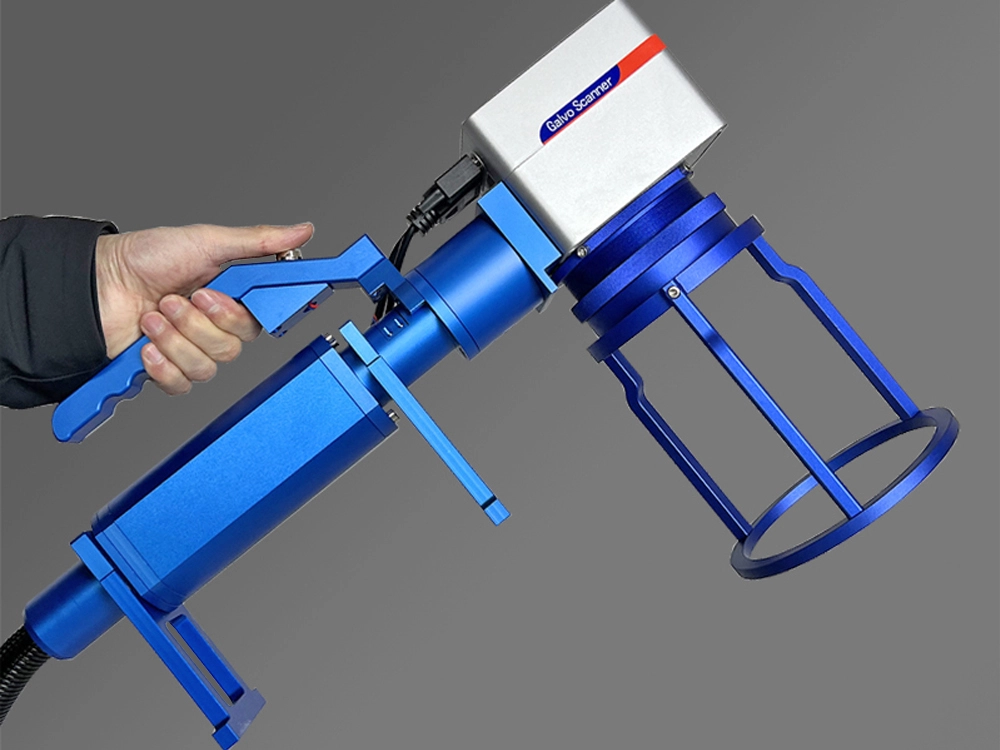

- Detachable handheld marking head
-
Lightweight, high strength, detachable, flexible and adaptable to various working scenarios.
A bracket is installed on the head, you only need to keep it close to the surface of the workpiece when marking, without manual focusing.
The marking head is designed with a quick switch, which can be quickly controlled when hand-held marking.
- High-quality galvanometer
-
Equipped with imported motors for excellent stability and built-in anti-shake compensation.
- Premium field lens
-
High light transmittance, uniform and dense spot, delivering finer marking results.

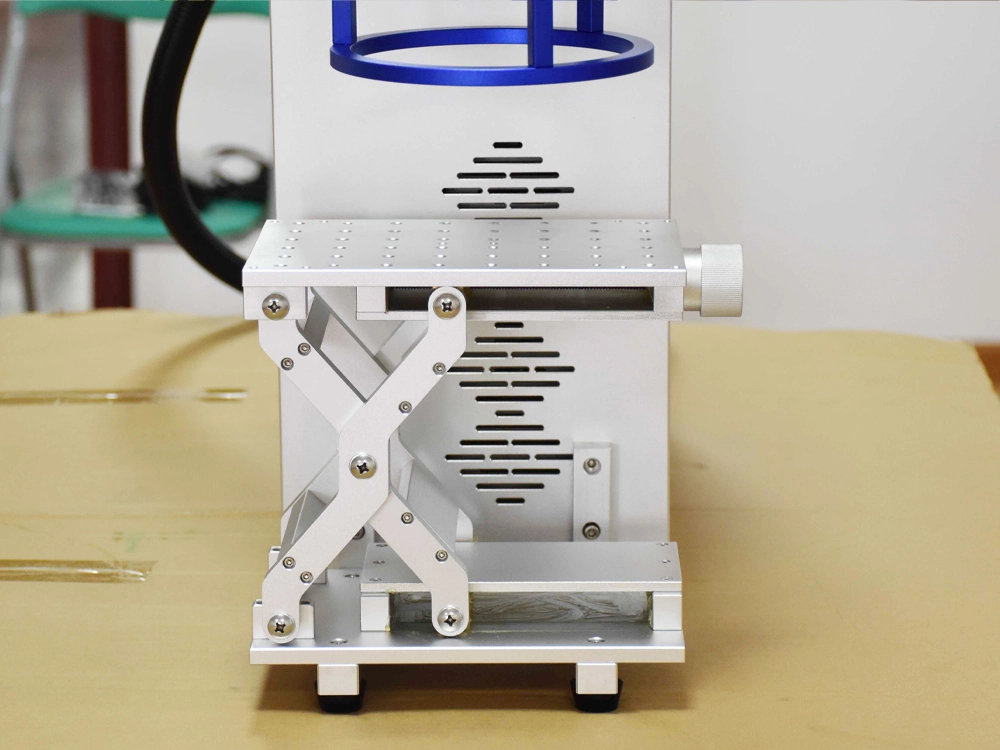

- Lifting multi-hole worktable
-
The lifting table is suitable for marking small workpieces, the table can be raised and lowered to adjust the focal length.
- External Interface
-

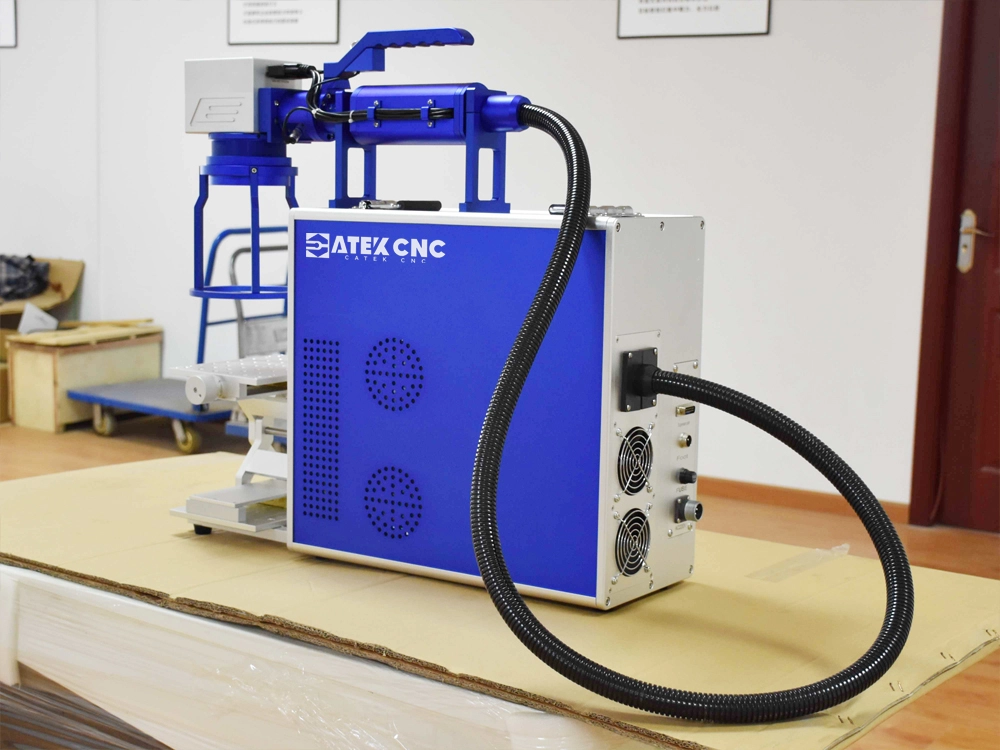

There are abundant external expansion interfaces on the back for connecting computers, foot switches, power supplies, etc.
Technical Parameters of Portable Handheld Laser Marking Machines Suitable for Marking Tires
| Model | CK-11-FH |
| Laser Power | 20W/30W/50W/100W/200W/300W |
| Laser Wavelength | 1064nm |
| Pulse Width | 20ns |
| Repetition Frequency Range | 1-600kHz |
| M2 | <1.8 |
| Maximum Single Pulse Energy | 1.25mJ |
| Output Power Stability | <5% |
| Output Beam Diameter | 7±0.5mm |
| Power Range | 0-100% |
| Marking Range | 110*110mm/200*200mm/300*300mm |
| Minimum Line Width | 0.01mm |
| Minimum Number Of Characters | 0.1mm |
| Marking Speed | ≤7000mm/s |
| Marking Depth | Depends on the materials |
| Repeatability Accuracy | ±0.001mm |
| Marking Format | Graphics, text, bar codes, QRcode, automatically date, batch number, serial number, etc. |
| Supported Graphics Formats | Ai, plt, dxf, dst, svg, nc, bmp, jpg, jpeg, gif, tga, png, tiff, tif |
| Fiber Cable Length | 3m |
| Operating Voltage | 220V±10%/50Hz or 110V±10%/60Hz or Customized |
| Unit Power | <0.5kw |
| Working Environment | Clean and dust free or dust less |
| Working Condition Humidity | 5%-75%, 0-40 degree, free of condensed water |
| Laser Lifetime | >100000 hours |
| Weight | 40kg |
| Dimensions | 330*500*770mm |
Applications of Portable Handheld Laser Marking Machine

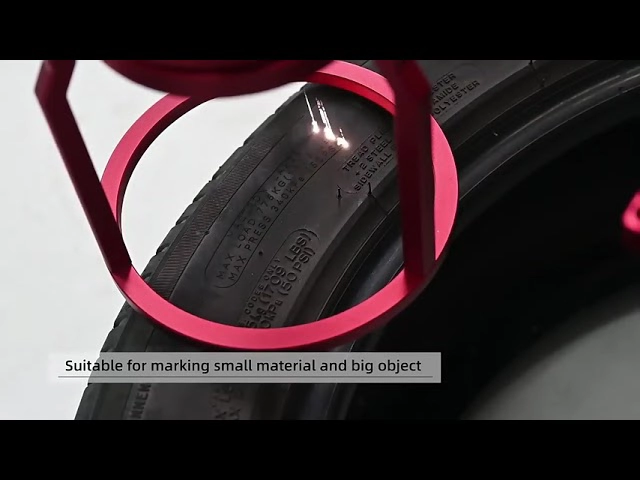

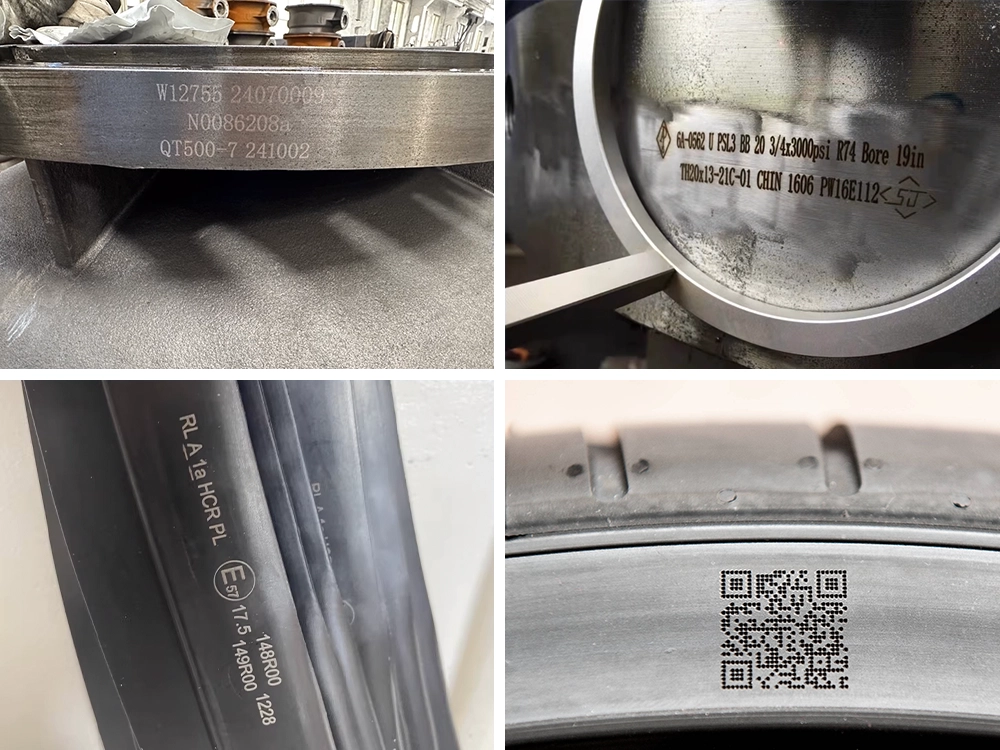

- Large parts
-
Automotive/motorcycle components (such as frames, engines, chassis), large machinery (such as rails, hubs), molds, bearings, tires, wind turbine blades, ship components, vehicle bodies, ships, yachts, and other large, difficult-to-move objects, etc.

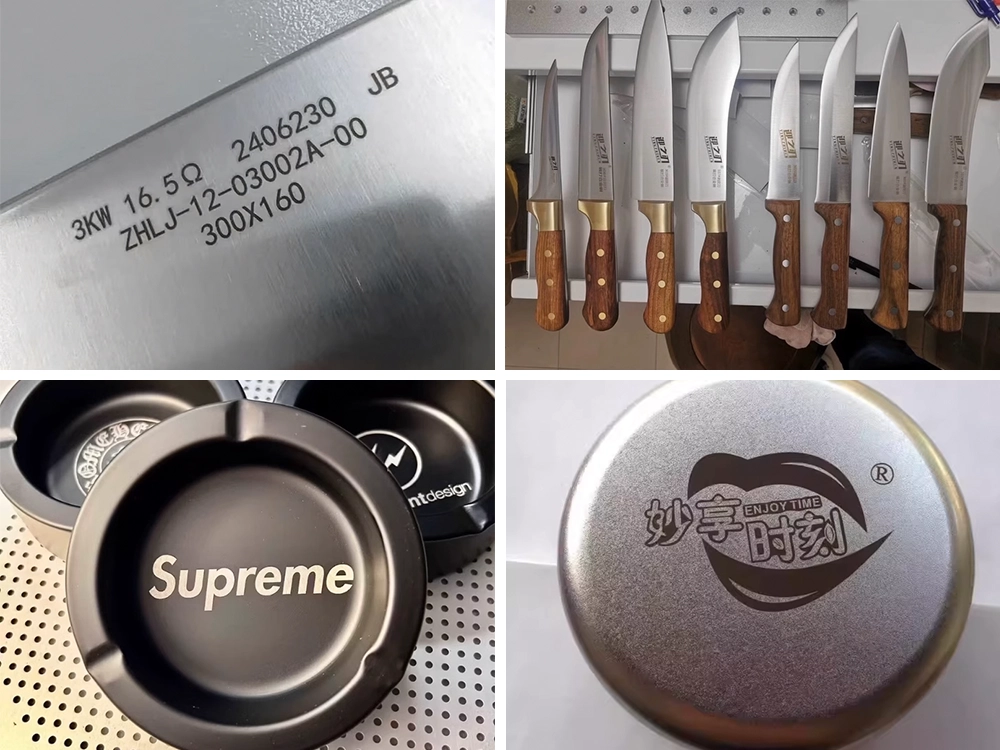

- Small Parts
-
Integrated circuit chips, computer accessories, mobile phone components, electrical appliances, jewelry, watches, eyeglass frames, faucets, food packaging, hardware tools (cutlery, kitchenware), home appliance parts, plastic products, aerospace components, medical devices, etc.
| Model | CK-11-FH |
|---|---|
| Laser Power | 20W/30W/50W/100W/200W/300W |
| Laser Wavelength | 1064nm |
| Pulse Width | 20ns |
| Repetition Frequency Range | 1-600kHz |
| M2 | <1.8 |
| Maximum Single Pulse Energy | 1.25mJ |
| Output Power Stability | <5% |
| Output Beam Diameter | 7±0.5mm |
| Power Range | 0-100% |
| Marking Range | 110*110mm/200*200mm/300*300mm |
| Minimum Line Width | 0.01mm |
| Minimum Number Of Characters | 0.1mm |
| Marking Speed | ≤7000mm/s |
| Marking Depth | Depends on the materials |
| Repeatability Accuracy | ±0.001mm |
| Marking Format | Graphics, text, bar codes, QRcode, automatically date, batch number, serial number, etc. |
| Supported Graphics Formats | Ai, plt, dxf, dst, svg, nc, bmp, jpg, jpeg, gif, tga, png, tiff, tif |
| Fiber Cable Length | 3m |
| Operating Voltage | 220V±10%/50Hz or 110V±10%/60Hz or Customized |
| Unit Power | <0.5kw |
| Working Environment | Clean and dust free or dust less |
| Working Condition Humidity | 5%-75%, 0-40 degree, free of condensed water |
| Laser Lifetime | >100000 hours |
| Weight | 40kg |
| Dimensions | 330*500*770mm |
