Stone CNC Router Machining Project – Quartz Stone Engraving with 2030 CNC Stone Router

When machining hard materials such as quartz, granite, marble, or engineered stone, it is necessary to increase the rigidity of the equipment to ensure machining quality and stability.Professional CNC stone router machines are specifically designed for high precision, high cutting force, and extended processing times.

This project demonstrates the process of engraving quartz using the 2030 CNC stone router machine. This machine is also suitable for processing a wide range of hard materials, including granite, marble, ceramic, engineered stone, limestone, and metal. With its robust machine structure, high-power spindle, and water-cooling system, the CATEKCNC CK-2030-S ensures stable performance during extended periods of stone engraving and cutting.

This article introduces the complete stone CNC engraving project, including machine configuration, machining workflow, recommended models, and suitable materials, helping users understand how to choose the right stone CNC router machine for different stone processing applications.

I.Overview of the Quartz Stone CNC Engraving Project

This project demonstrates the process of engraving and cutting stone using a CNC stone router machine. The CK-2030-S CNC router machine is one of the most commonly used models in large-scale stone processing. It is specifically designed for processing high-hardness materials and is used for engraving, cutting, drilling, and relief carving.

Quartz stone is one of the most popular materials for the following applications:

• Kitchen countertops
• Bathroom countertops
• Decorative panels
• Building materials
• Custom engraved parts

Compared to wood or plastic, quartz stone has greater hardness and density. During machining, the cutting tools must be continuously cooled to ensure optimal results, requiring more powerful and stable machinery rather than ordinary lightweight engraving machines.

In addition to quartz stone, the same CNC stone router machine can also process:

• Granite
• Marble
• Engineered stone
• Bluestone
• Limestone
• Ceramic slabs
• Engineered stone

Because these materials are relatively hard and generate heat during machining, the machine must be equipped with a cooling system and a high-power spindle to ensure stable operation.

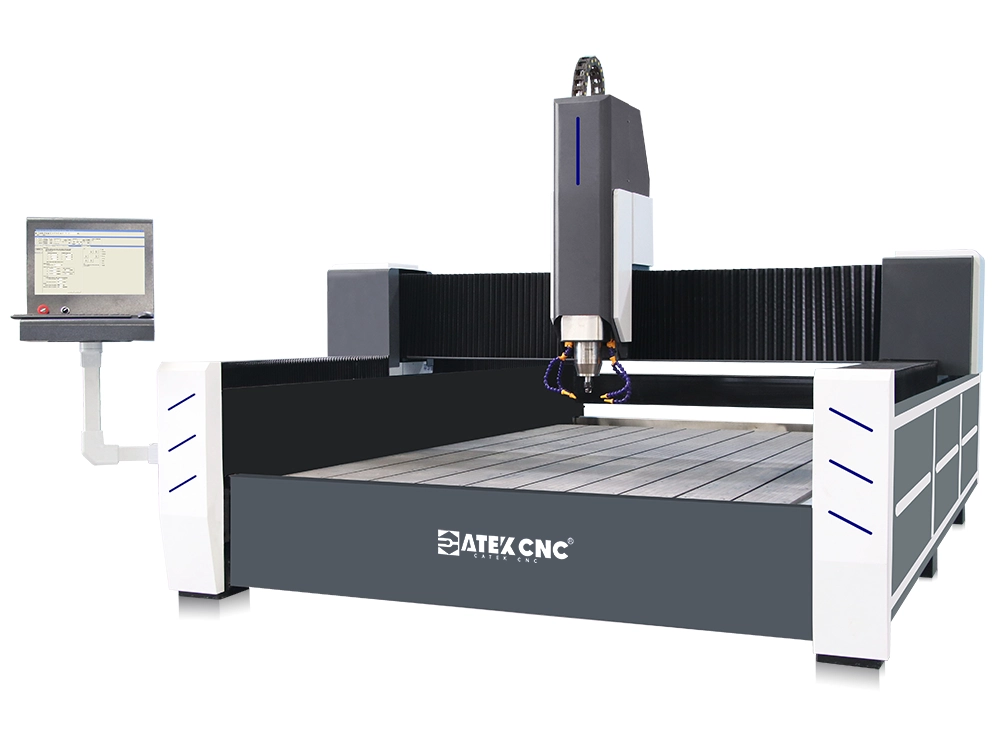

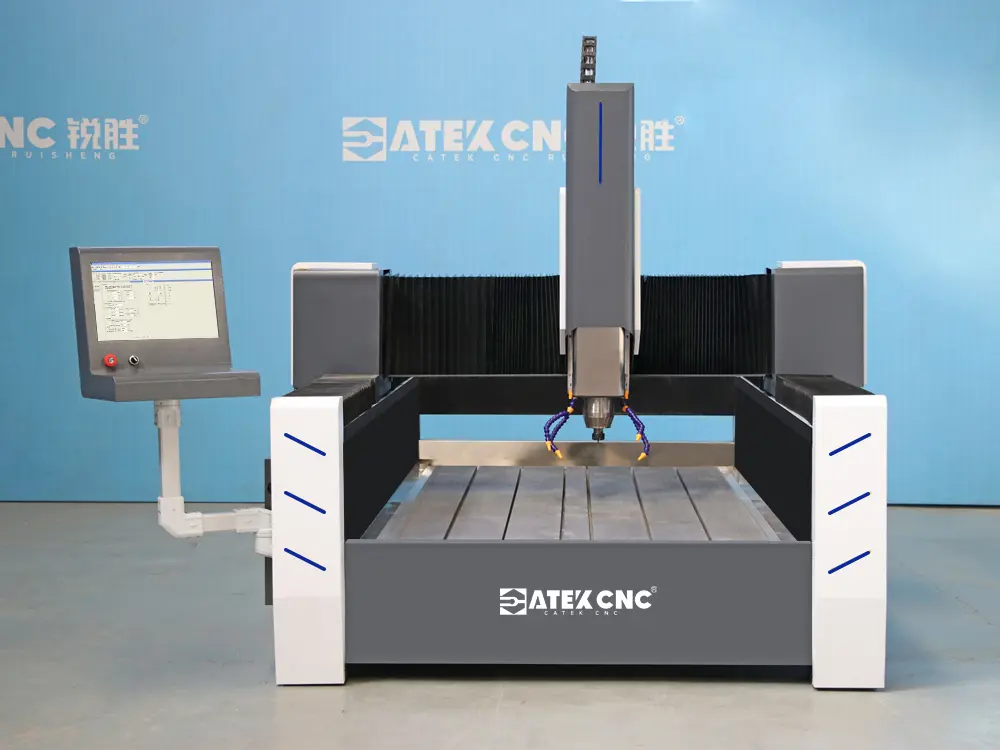

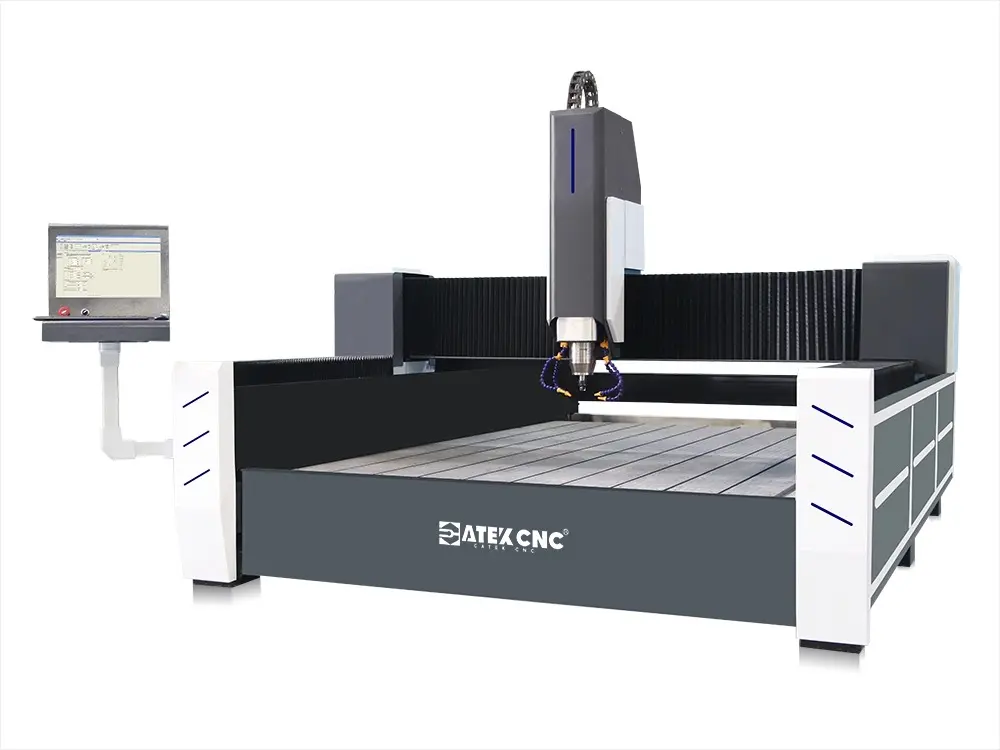

Based on the customer’s requirements, the machine used for this project is the 2030 Stone CNC router machine. It features a spacious 2000 x 3000 mm worktable and a reinforced bed, making it suitable for processing large slabs, countertops, tombstones, and architectural stone components.

II. Configuration Advantages of the 2030 CNC Stone Router Machine in Quartz Stone Processing

The 2030 CNC stone router machine used in this project is specifically designed for heavy-duty stone. The following are the machine’s key configuration advantages for engraving applications involving quartz stone (or other types of stone).

1.Heavy-Duty Welded Frame for High Stability

Stone materials such as quartz slabs and granite slabs are quite hard, so a sturdy machine frame is required to prevent vibration during the engraving process. The 2030 CNC stone router machine features a thickened welded steel frame that has undergone high-temperature stress-relief annealing. Compared to the crossbeams of ordinary CNC router machines, this significantly enhances rigidity and durability.

This reinforced structure offers several advantages:

• Higher load-bearing capacity for large stone slabs
• Reduced vibration during cutting and engraving
• More precise engraving results
• Longer machine service life

The machine’s low-center-of-gravity bed design helps maintain stability when processing heavy materials and facilitates the loading of large stone slabs.

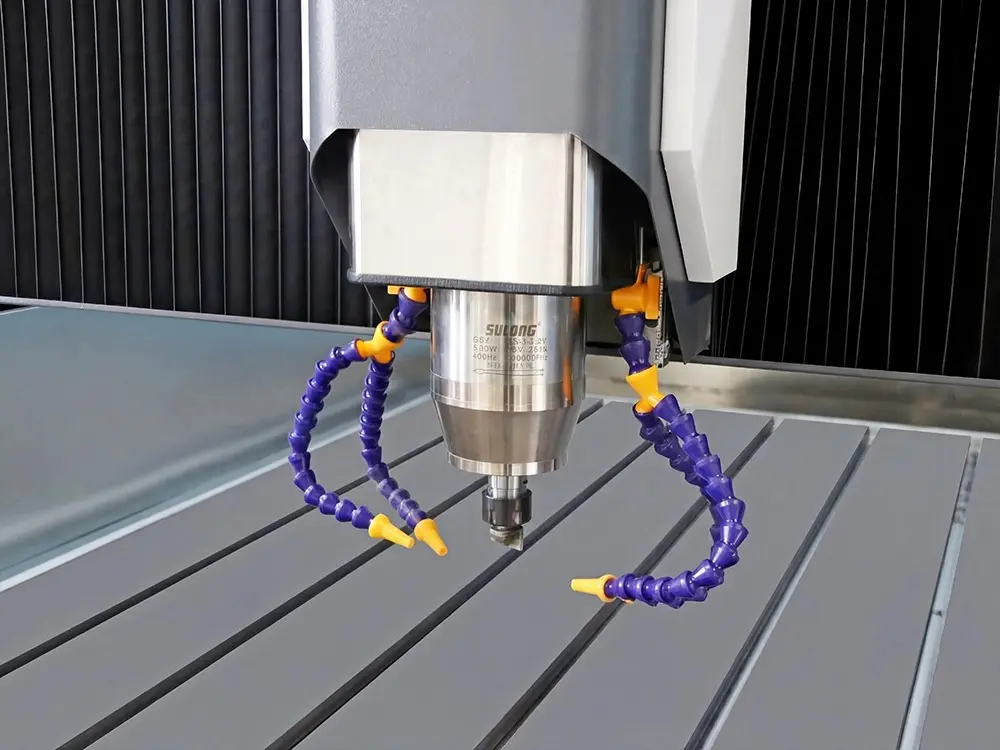

2. High-Power Water-Cooled Spindle for Cutting Hard Materials

Quartz stone is extremely hard, so the machine must use a high-torque spindle to ensure smooth cutting. The Model 2030 CNC stone router machine is equipped with a 5.5 kW water-cooled variable-frequency spindle designed specifically for stone engraving, supporting stepless speed control up to 24,000 RPM.

Advantages of the water-cooled spindle:

• Powerful cutting capability
• Stable speed under heavy loads
• Better heat dissipation performance than air-cooled spindles
• Excellent sealing performance, capable of withstanding the harsh conditions of stone processing

The constant-temperature cooling system maintains a stable spindle temperature, allowing the stone engraving machine to operate continuously without overheating.

3. Immersion Cooling System for Stone Carving

During the stone carving process, tools and materials generate a significant amount of heat. Without a cooling system, the following issues may arise:

• Tools wear out very quickly
• The stone surface may crack
• Excessive dust
• Poor cutting quality

Therefore, the 2030 Professional CNC Stone router Machine is equipped with an immersion cooling system. At high machining speeds, this system keeps tool temperatures low and flushes away stone dust, which helps improve carving quality and extend tool life—especially when machining quartz, marble, and granite. The integrated water tank also helps protect the guide rails and drive components from dust and moisture, enhancing the durability of the CNC stone router machine.

4. High-Precision Drive System

Quartz countertops, engraved panels, and decorative stone components demand a high degree of precision. To achieve this, the 2030 Stone CNC router machine is equipped with a high-precision drive system.

• The main components include:
• Taiwan HIWIN linear guides
• Helical rack and pinion drive
• Precision ball screw for the Z-axis
• Servo motor drive system

These components ensure the machine moves smoothly and positions accurately, even when processing large stone slabs. The high-precision guides and racks also help reduce vibration, thereby improving engraving quality and surface finish.

For any professional CNC stone engraving machine, a stable drive system is essential, especially when processing hard materials such as quartz.

5. Spacious working area, ideal for stone slabs

The 2030 model has a working area of approximately 2000 × 3000 mm, making it ideal for processing large stone slabs.

This working area is suitable for:

• Quartz countertops
• Granite slabs
• Marble decorative panels
• Tombstones
• Architectural stone components
• Engraved signs

The larger worktable size allows the stone CNC router machine to perform cutting, engraving, and drilling on a single machine, thereby improving efficiency and reducing manual labor. For factories processing medium to large stone slabs, the 2030 model is the most commonly used CNC stone engraving machine.

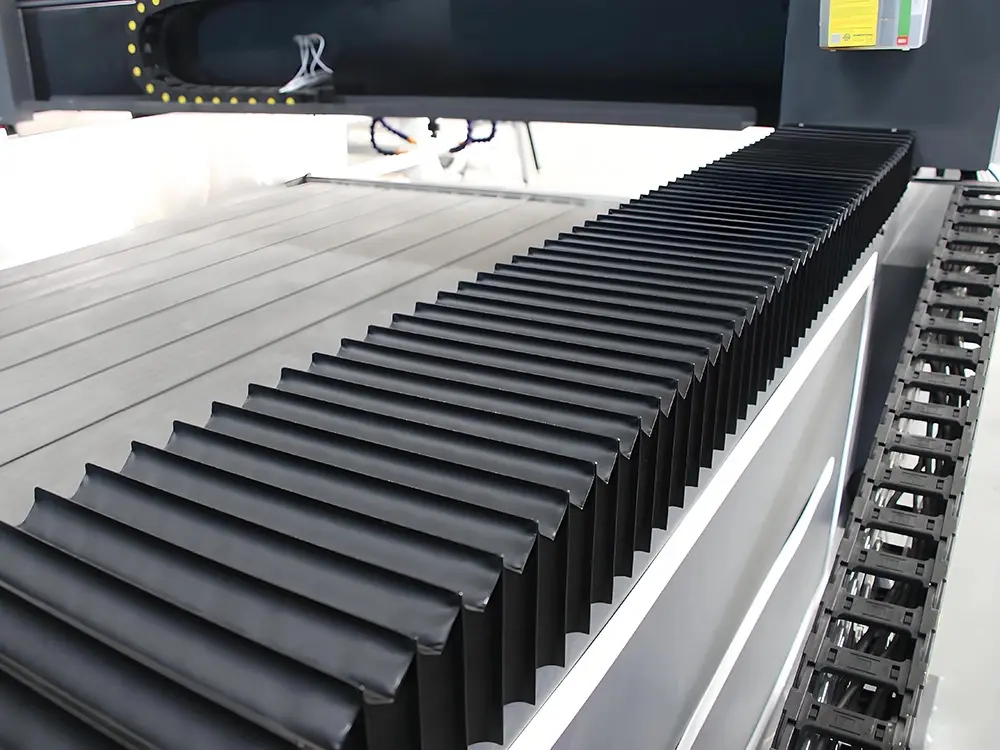

6. Designed for Harsh Processing Environments

Stone processing generates water, dust, and slurry, which can damage standard CNC machines. The Model 2030 CNC stone router machine is specifically designed to operate in these harsh conditions.

Special protective features include:

• Sealed drive components
• Guide rail covers
• Separate control cabinet
• Corrosion-resistant construction
• Dust- and water-resistant system

These features ensure the machine operates smoothly even during prolonged quartz engraving and granite cutting. Thanks to this design, the CNC stone router machine is widely used in countertop factories, monument workshops, and architectural stone processing plants.

III. Stone Processing Workflow

Stone carving and cutting using CNC stone router machines follow a standard processing workflow. Due to the high hardness and density of materials such as stone, each step must be performed with care to ensure precision, surface quality, and tool life. Professional stone CNC router machines can automate the entire process, thereby improving efficiency and reducing manual labor.

The following describes the typical stone processing procedure used in this project when carving quartz slabs with the 2030 CNC stone router machine.

1. Design

The first step in any CNC stone machining project is to create the design files. The 2030 stone CNC router machine is equipped with the Weihong control system and NCStudio software, which are compatible with CAD/CAM. Simply upload the files, and the design files will be converted into toolpaths. At this stage, parameters such as cutting depth must be set.

2. Securing the Stone Slab

Check the machine table for any debris, especially stone particles or large patches of stone dust, and be sure to remove them to avoid affecting the flatness of the material. Place the quartz or granite slab on the machine table and secure it firmly to prevent movement. Proper securing ensures machining accuracy and prevents tool damage.

3. Tools

Stone processing requires specialized tools. Unlike wood cutting, stone carving must be performed using diamond-tipped tools.

Common tools include:

• Diamond carving bits
• Diamond cutting tools
• Grooving tools
• Polishing tools

The appropriate tools must be selected based on the material’s hardness, cutting depth, carving details, and surface finish requirements.

4. Start the Cooling System

Cooling is one of the most critical steps in stone processing.

First, check the water level in the tank to ensure there is sufficient coolant in the circulation system. The machine is equipped with an immersion cooling system to ensure that water covers the cutting area without overflowing onto the worktable.

Next, start the cooling unit and observe whether the water flow is smooth. There should be a steady circulation of water in the tank, and the coolant should flow continuously through the spindle cooling lines and the cutting area.

Once you have confirmed that the cooling system is operating normally, you may proceed to the next step in the CNC stone router machine operation process. Never begin carving stone without the cooling system running, as this may cause serious damage to the machine and reduce machining accuracy.

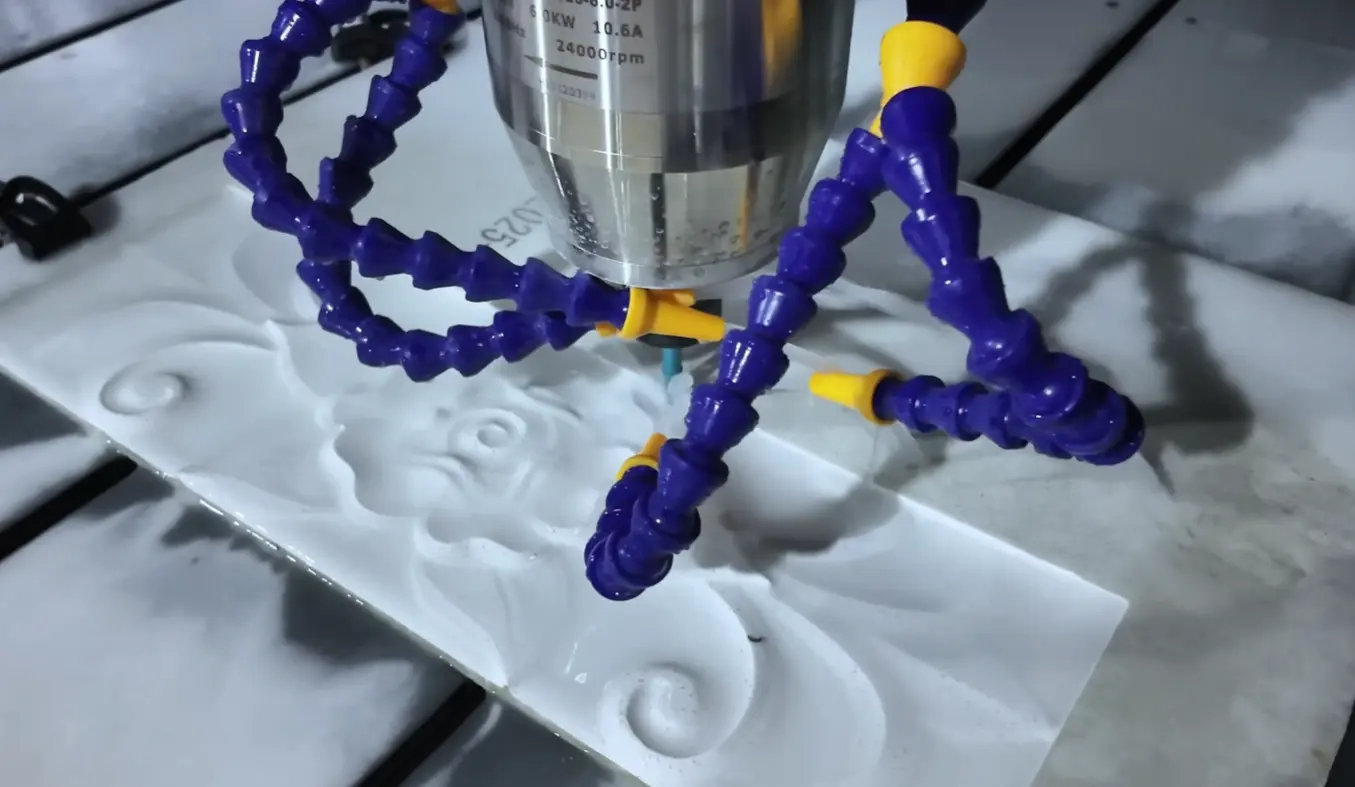

5. CNC Engraving and Cutting

Once the cooling system is operational, start the engraving machine. CNC engraving and cutting constitute the core stage of the machining process, during which the machine automatically performs operations such as engraving, cutting, and drilling on the stone according to pre-set toolpaths.

During the engraving process, operators should pay attention to the following points:

• Keep the cooling system running continuously
• Ensure that the tools are sharp and suitable for the stone
• Avoid excessive single-pass cutting depth
• Monitor spindle load and vibration
• Check that the workpiece is securely clamped

For thick stone slabs, processing typically involves multiple passes, with the machine removing material layer by layer until the final shape is achieved. This method reduces stress on the spindle and improves cutting quality.

6. Surface Polishing

Some factories use auxiliary polishing machines after CNC engraving is complete to improve efficiency in mass production. However, the high precision provided by professional CNC stone router machines makes the subsequent finishing process much easier, as the edges and shapes are already very well defined.

Once polishing is complete, carefully inspect the finished product. Check the dimensions, surface smoothness, edge quality, and overall appearance. If everything meets the requirements, the stone is ready for installation or packaging.

IV. Recommended CNC Stone Carving Machines

In stone carving projects, selecting the right stone CNC router depends on the workshop’s size, production volume, machining precision, and product type. Below are several machines recommended for different applications based on actual production needs.

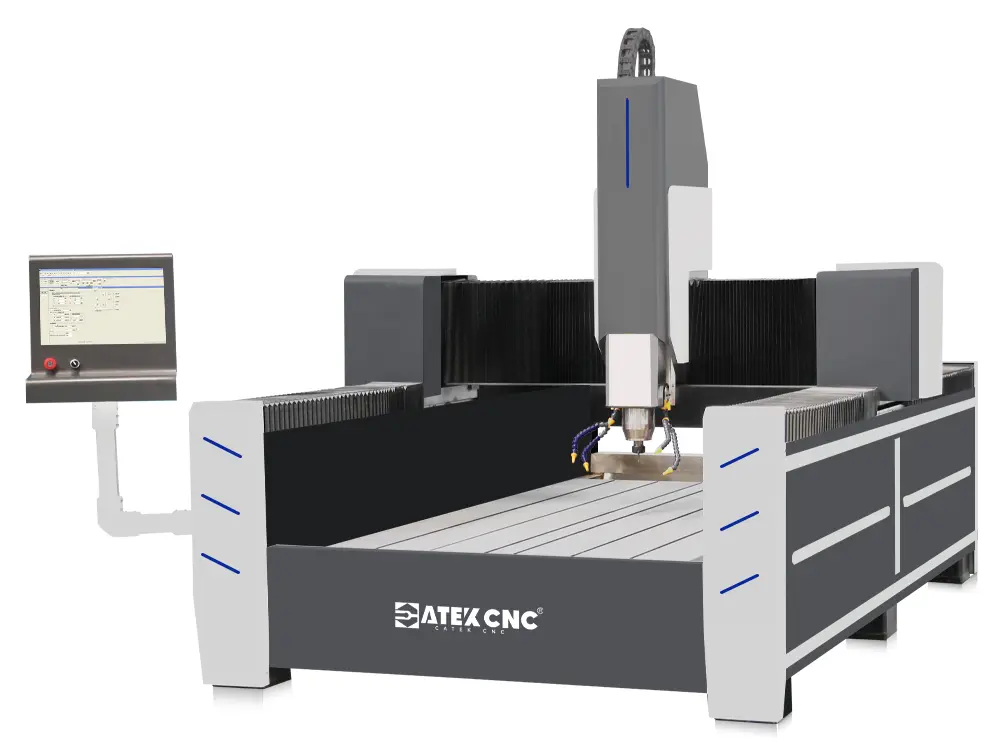

1. 1325 CNC Stone Router Machine

For customers with limited space or small-scale operations, the 4x8 CNC stone router is the most practical choice. This type of machine is suitable for small stone processing plants and custom engraving businesses.

• Lower cost compared to large-scale stone engraving machines
• Suitable for quartz, marble, granite, engineered stone, and more
• Ideal for engraving, cutting, lettering, and processing small slabs
• Equipped with a water-cooling system and heavy-duty frame structure
• Features a high-power, high-speed, water-cooled 7.5 kW variable-frequency spindle

2.2030 CNC Stone Router Machine

For most professional stone processing plants, the 2030 stone CNC router is the most commonly used model. Designed specifically for high-precision and heavy-duty processing, it can handle large stone slabs and is suitable for continuous production. Compared to smaller machines, the 2030 model features a larger working area (2000x3000 mm), making it suitable for processing entire slabs. Equipped with a robust machine frame, it is capable of heavy-duty cutting. Due to its balance of size, power, and cost, the 2030 CNC Stone router is considered the most versatile machine available.

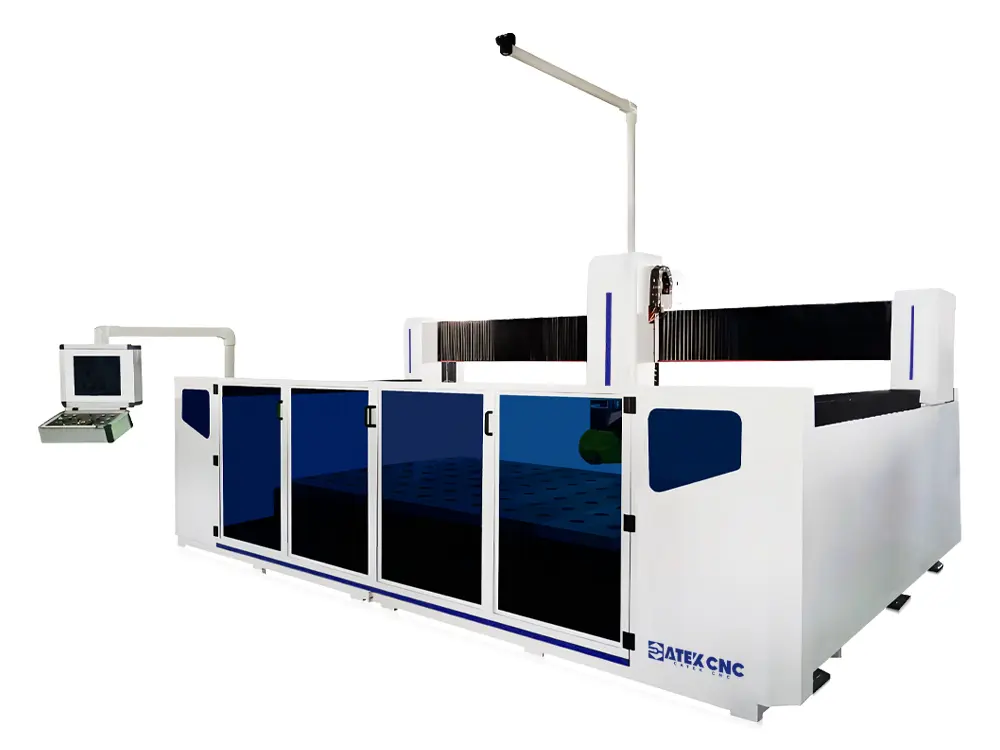

3. Five-Axis Stone Bridge Saw

For factories requiring a high degree of automation and complex machining, the 5-Axis CNC stone bridge saw is the optimal choice. This machine can process a wide variety of countertops, sintered stone slabs, and custom-shaped stone, integrating cutting, drilling, milling, and multi-angle machining to effortlessly handle complex stone projects.

Unlike traditional 3-axis CNC router machines, the spindle of a five-axis stone machining center can rotate in multiple directions. This means the cutting tool can perform cuts at different angles without the need to manually reposition the stone. This not only improves precision and reduces manual labor but also boosts production efficiency.

For factories producing high-end countertops and those requiring three-dimensional stone engraving, this type of CNC stone machining center is significantly more efficient than standard CNC router machines.

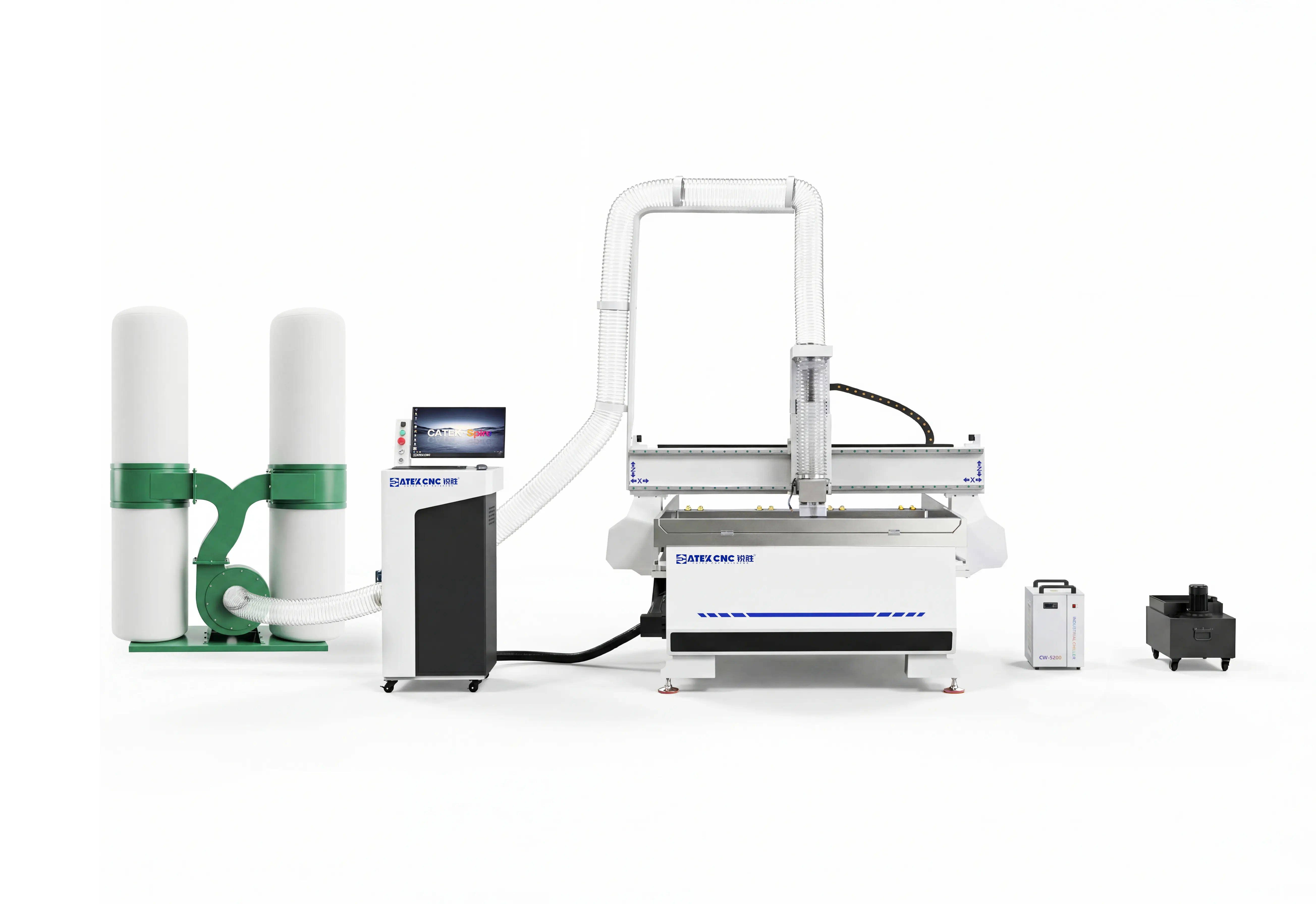

4. Spire 1325 CNC Router Machine

For applications requiring higher machining quality and faster speeds, the Spire 1325 CNC router equipped with a cooling system are an excellent choice. This series features high-precision components and servo drive systems, offering the following advantages:

• Higher machining accuracy
• Faster travel speeds
• Superior long-term operational stability
• High-end control system
• Robust frame and precision transmission system

Regardless of your specific stone processing needs, CATEKCNC can provide the right stone CNC router tailored to your actual production requirements, ensuring consistent quality and high efficiency for your stone processing projects.

V. Conclusion

In this stone processing project, we have demonstrated the complete workflow from machine selection to the final processing of the project. Dedicated CNC stone routers feature a more robust structure, higher spindle power, superior heat dissipation, and more reliable motion control. These characteristics enable the machine to perform heavy-duty cutting, deep engraving, hole drilling, and complex stone shaping without causing vibration or loss of precision. For modern stone processing facilities, selecting the right machine directly impacts product quality, production speed, and long-term operating costs.

With proper configuration and the correct processing techniques, professional CNC stone router can efficiently and safely process quartz, marble, granite, sintered stone, and other hard materials. This ensures the quality of projects such as kitchen countertops, decorative panels, headstones, and architectural stone products.
